12-L-Table-top-Sterilizer-LX231SS

Labdex 12L class B tabletop sterilizer ensures fast, efficient sterilization with a rapid steam generator and drying function. It features microprocessor control, an LCD display, and safety mechanisms like automatic shutoff, air exhaustion, and protection against high pressure. Stainless steel chamber and easy-to-clean water tank.

Zaynab6
Download Presentation

12-L-Table-top-Sterilizer-LX231SS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

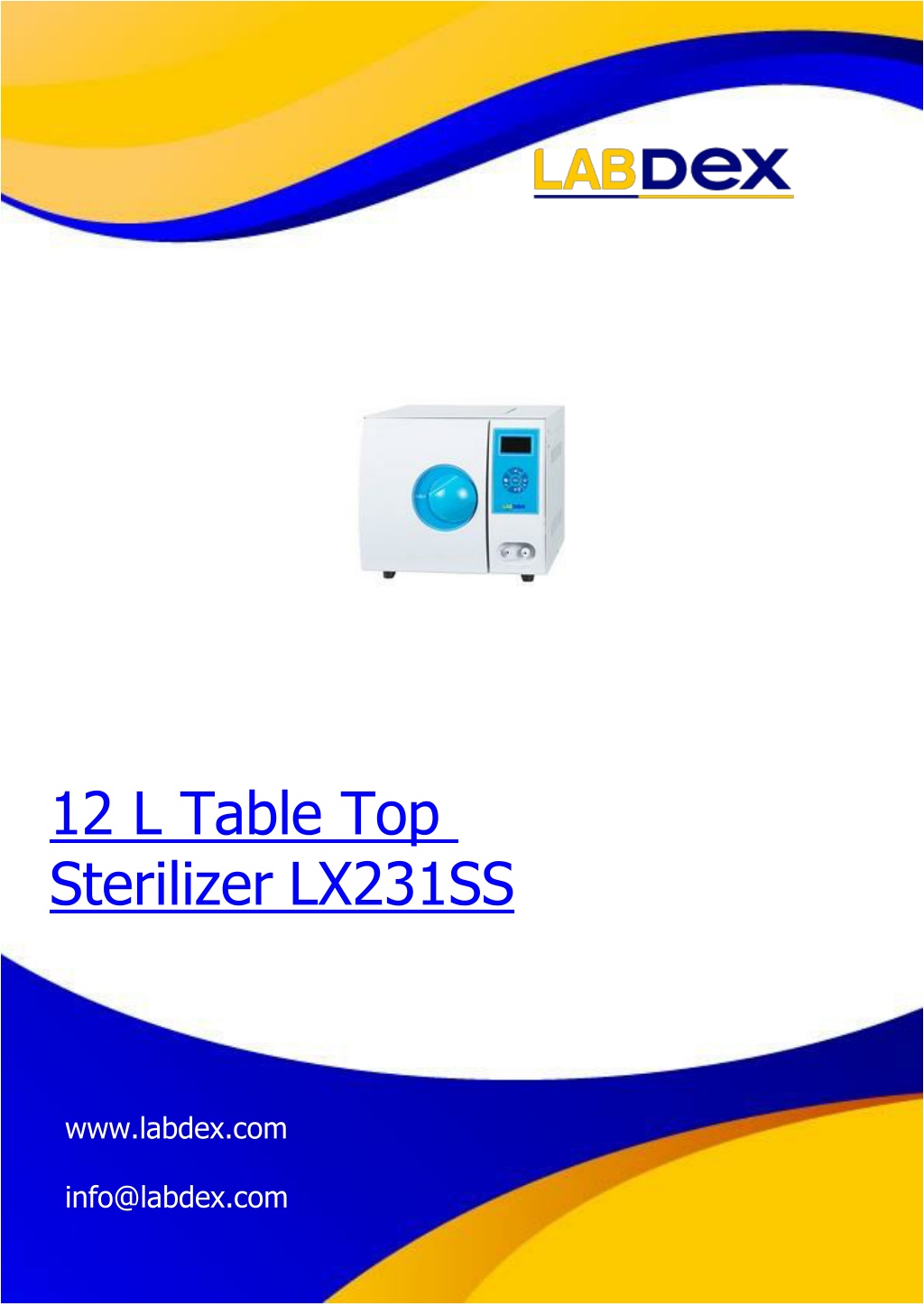

  1. 12 L Table Top Sterilizer LX231SS www.labdex.com info@labdex.com

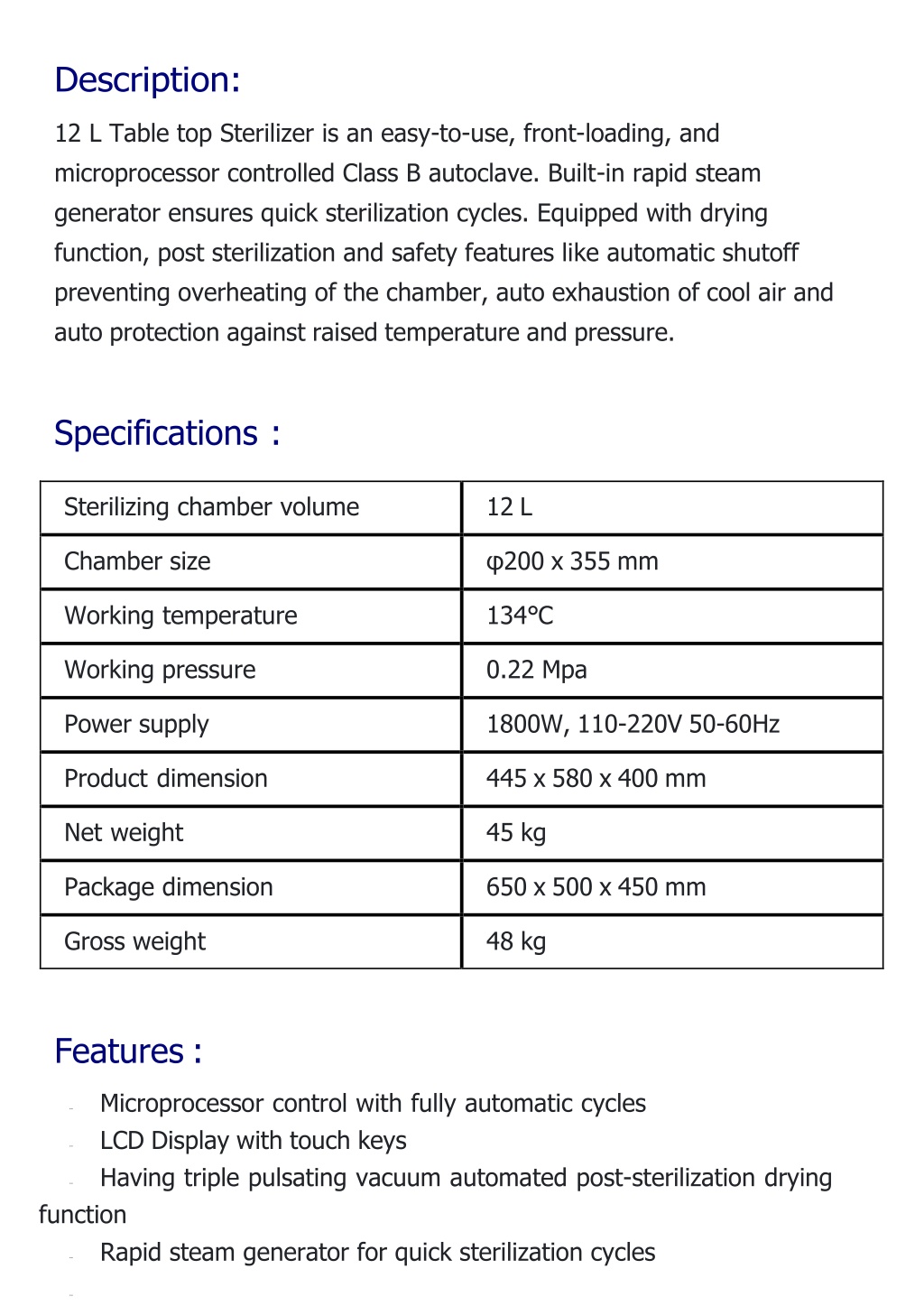

  2. Description: 12 L Table top Sterilizer is an easy-to-use, front-loading, and microprocessor controlled Class B autoclave. Built-in rapid steam generator ensures quick sterilization cycles. Equipped with drying function, post sterilization and safety features like automatic shutoff preventing overheating of the chamber, auto exhaustion of cool air and auto protection against raised temperature and pressure. Specifications : Sterilizing chamber volume 12 L Chamber size φ200 x 355 mm Working temperature 134℃ Working pressure 0.22 Mpa Power supply 1800W, 110-220V 50-60Hz Product dimension 445 x 580 x 400 mm Net weight 45 kg Package dimension 650 x 500 x 450 mm Gross weight 48 kg Features : Microprocessor control with fully automatic cycles LCD Display with touch keys Having triple pulsating vacuum automated post-sterilization drying function Rapid steam generator for quick sterilization cycles ¨ ¨ ¨ ¨ ¨

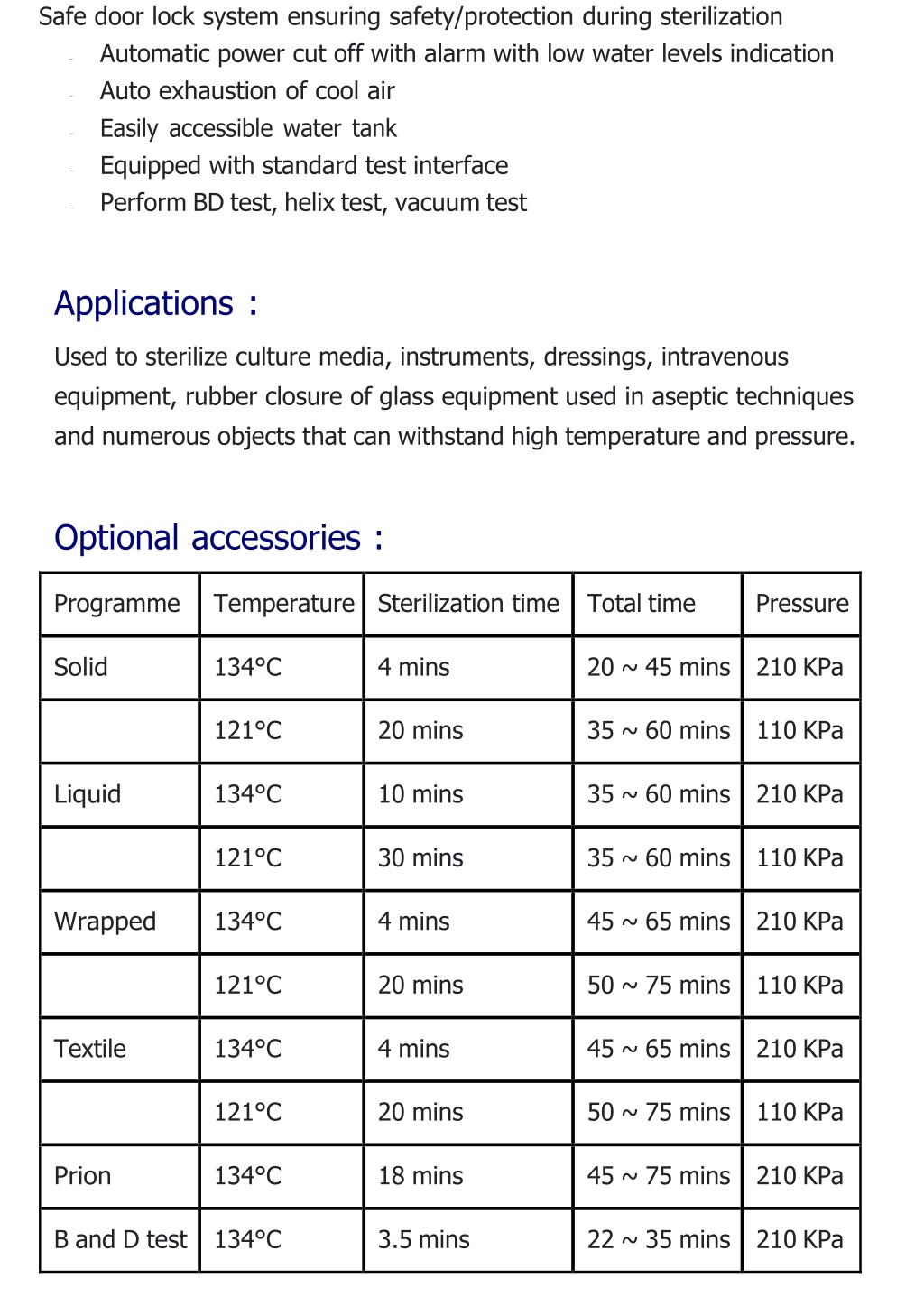

  3. Safe door lock system ensuring safety/protection during sterilization Automatic power cut off with alarm with low water levels indication Auto exhaustion of cool air Easily accessible water tank Equipped with standard test interface Perform BD test, helix test, vacuum test ¨ ¨ ¨ ¨ ¨ Applications : Used to sterilize culture media, instruments, dressings, intravenous equipment, rubber closure of glass equipment used in aseptic techniques and numerous objects that can withstand high temperature and pressure. Optional accessories : Programme Temperature Sterilization time Total time Pressure Solid 134°C 4 mins 20 ~ 45 mins 210 KPa 121°C 20 mins 35 ~ 60 mins 110 KPa Liquid 134°C 10 mins 35 ~ 60 mins 210 KPa 121°C 30 mins 35 ~ 60 mins 110 KPa Wrapped 134°C 4 mins 45 ~ 65 mins 210 KPa 121°C 20 mins 50 ~ 75 mins 110 KPa Textile 134°C 4 mins 45 ~ 65 mins 210 KPa 121°C 20 mins 50 ~ 75 mins 110 KPa Prion 134°C 18 mins 45 ~ 75 mins 210 KPa B and D test 134°C 3.5 mins 22 ~ 35 mins 210 KPa

  4. Helix test 134°C 3.5 mins 22 ~ 35 mins 110 KPa 71-75 Shelton Street Covent Garden,London WC2H 9JQ,UK Email: info@labdex.com | Website:www.labdex.com | Phone:+44 20 3950 5758
