The industrial batch cooker is a pressure vessel with a heating jacket. It can operate at steam pressure up to 5 bar, thus complying with the EU Directive on animal by-products of 2009/2011, and can even process charges containing hair, wool, or feathers for use in pet food.<br><br>The steam-heated rotor allows mixing, heating, sterilization, and drying of the raw material. The rotor is driven by a special gear that has a hollow shaft. TG-machines Batch Cooker can be delivered with additional accessories such as safety valves, fittings, and frame, or individually tailored to customer requirements.<br><br>

TGMachines
Download Presentation

Batch Cooker - TG Machines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

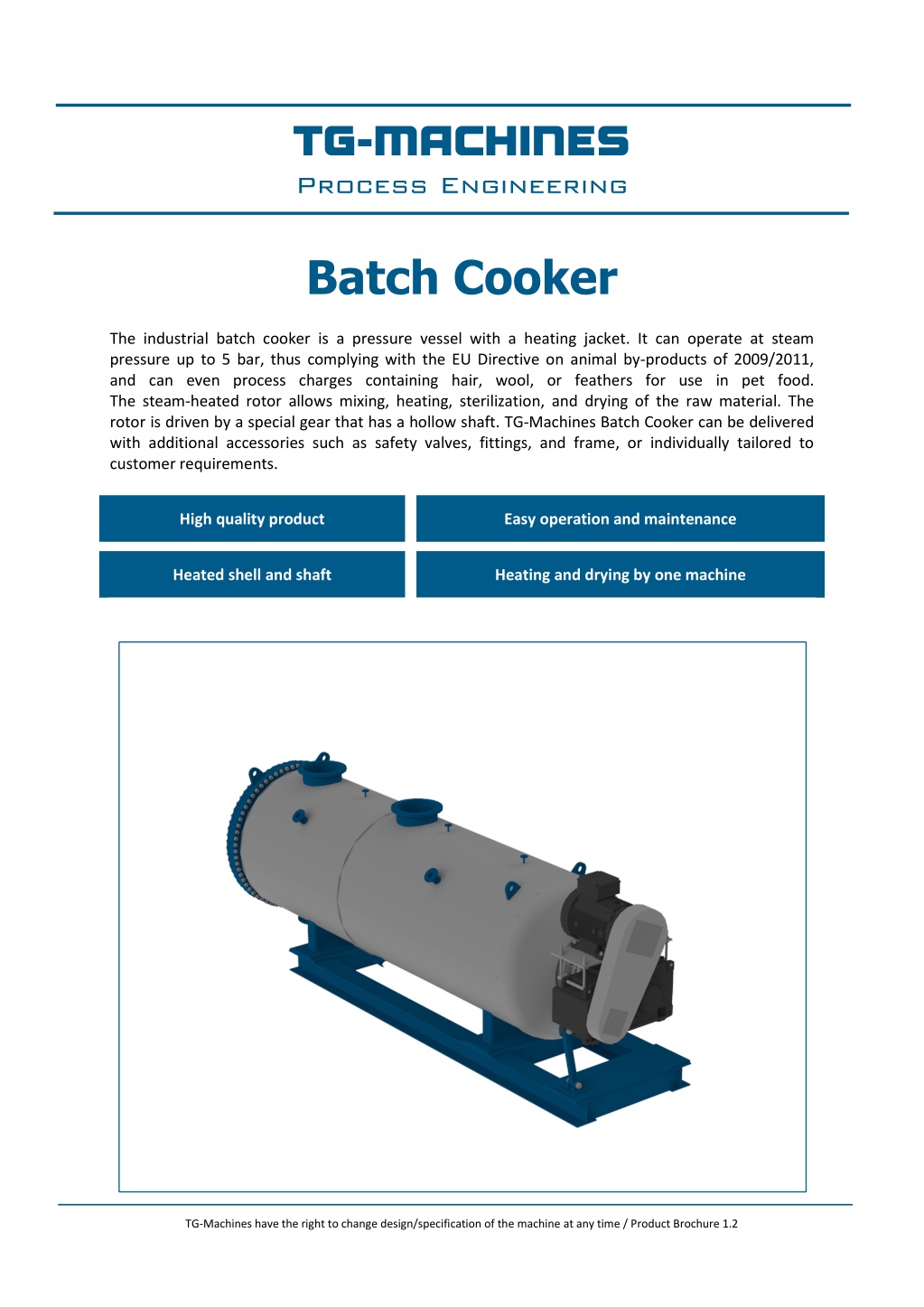

  1. TG-MACHINES Process Engineering Batch Cooker The industrial batch cooker is a pressure vessel with a heating jacket. It can operate at steam pressure up to 5 bar, thus complying with the EU Directive on animal by-products of 2009/2011, and can even process charges containing hair, wool, or feathers for use in pet food. The steam-heated rotor allows mixing, heating, sterilization, and drying of the raw material. The rotor is driven by a special gear that has a hollow shaft. TG-Machines Batch Cooker can be delivered with additional accessories such as safety valves, fittings, and frame, or individually tailored to customer requirements. High quality product Easy operation and maintenance Heated shell and shaft Heating and drying by one machine TG-Machines have the right to change design/specification of the machine at any time / Product Brochure 1.2

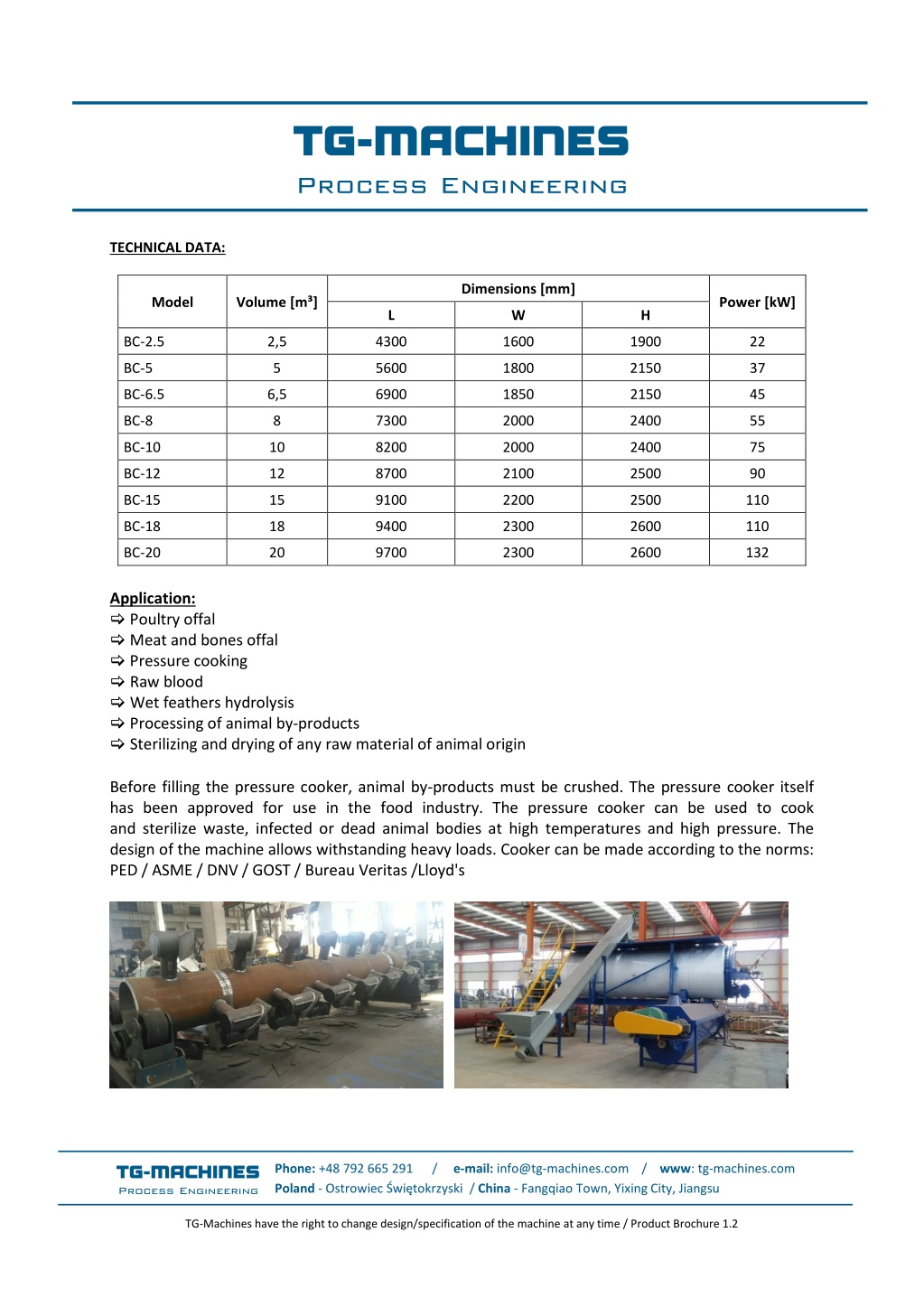

  2. TG-MACHINES Process Engineering TECHNICAL DATA: Dimensions [mm] Model Volume [m³] Power [kW] L W H BC-2.5 2,5 4300 1600 1900 22 BC-5 5 5600 1800 2150 37 BC-6.5 6,5 6900 1850 2150 45 BC-8 8 7300 2000 2400 55 BC-10 10 8200 2000 2400 75 BC-12 12 8700 2100 2500 90 BC-15 15 9100 2200 2500 110 BC-18 18 9400 2300 2600 110 BC-20 20 9700 2300 2600 132 Application:  Poultry offal  Meat and bones offal  Pressure cooking  Raw blood  Wet feathers hydrolysis  Processing of animal by-products  Sterilizing and drying of any raw material of animal origin Before filling the pressure cooker, animal by-products must be crushed. The pressure cooker itself has been approved for use in the food industry. The pressure cooker can be used to cook and sterilize waste, infected or dead animal bodies at high temperatures and high pressure. The design of the machine allows withstanding heavy loads. Cooker can be made according to the norms: PED / ASME / DNV / GOST / Bureau Veritas /Lloyd's TG-MACHINES Process Engineering Phone: +48 792 665 291 / e-mail: info@tg-machines.com / www: tg-machines.com Poland - Ostrowiec Świętokrzyski / China - Fangqiao Town, Yixing City, Jiangsu TG-Machines have the right to change design/specification of the machine at any time / Product Brochure 1.2
