measurements of internet performance for niit pakistan jan feb 2004

PingER

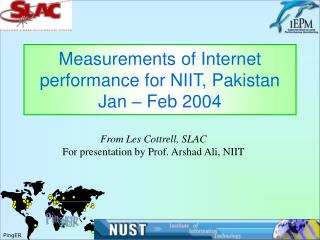

Measurements of Internet performance for NIIT, Pakistan Jan – Feb 2004

From Les Cottrell, SLAC

For presentation by Prof. Arshad Ali, NIIT

PingER

results worldwide performance
Results: Worldwide performance
  • Performance is improving
  • Developed world improving factor of 10 in 4-5 years
  • S.E. Europe, C.AsiaRussia, catching up
  • India & Africa worse off & falling behind
  • Developing world 3-10 years behind
  • Many institutes in developing world have less performance than a household in N. America or Europe!!
to pakistan performance
To Pakistan performance

Routes: ESnet (hops 3-8) - DC

ATT (9-21) - Karachi

Karachi

NIIT/Rawalpindi

Routes: ESnet (hops 3-6) - SNV

SINGTEL (7-12) - Karachi

Pakistan Telecom

Karachi

Rawalpindi

Loss %

Islamabad

RTT ms

Routes: ESnet (hops 3-6) - SNV

SINGTEL (7-12) - Karachi

Pakistan Telecom

Karachi

Lahore

Lahore

from pakistan performance
From Pakistan Performance

Route: Pakistan Telecom (2-5)

Rawalpindi, Karachi

SingTel (6-10)

ESnet (11-14) - PAIX

NIIT to SLAC

Route: Pakistan Telecom (2-5) Rawalpindi, Karachi Concert (6-9) London DataTAG (11-12) .de

NIIT to CERN

Note similarities, probably due to common bottleneck, probably in Pakistan

niit performance from u s slac
NIIT performance from U.S. (SLAC)

Preliminary results, started measurements end Dec 2003.

Nb. Heavy losses during congested day-times

Avg daily:

loss~1-2%,

RTT~320ms

Ping RTT & Loss

Bandwidth measurements using packet pair dispersion & TCP (Jan 2004)

abing (pkt-pair dispersion):Average To NIIT: ~350Kbits/s From NIIT: ~365 Kbits/s

Iperf/TCP (with SLAC): Average: To NIIT: ~320Kbits/s From NIIT: ~330Kbits/s

Iperf/TCP (with CERN): Average: To NIIT: ~270Kbits/s From NIIT: ~300Kbits/s

Can also derive throughput (assuming standard TCP) from RTT & loss (monthly) using: BW~1.2*S(1460B)/(RTT*sqrt(loss)  ~ 260Kbits/s (SLAC to NIIT)

~ 630Kbits/s (NIIT to SLAC | CERN)

Nominal path bottleneck capacity 364 Kbits/s

available bandwidth feb 04 after upgrade
Available Bandwidth (Feb ‘04 after upgrade)
  • green line is the bandwidth capacity of current bottleneck
    • deduced from the minimum packet separation
  • blue line is available bandwidth = capacity-cross-traffic.
  • Use available bandwidth estimator (abing)
    • Uses packet pair dispersion
    • Low impact, 40*1450Byte packets
    • Repeat once/minute
    • Client at SLAC, mirror/server at NIIT
  • Iperf confirms with:
    • 948Kbps (2streams),
    • 952Kbps (4streams),
    • 1042Kbps (10streams)
to ncp pakistan
To NCP Pakistan
  • Cannot use PingER to measure to ncp.edu.pk
    • Pings blocked at FLAG router (62.216.145.154, AS15412) on way to Comsats (Pakistani ISP)
  • Working with NCP to try and resolve
    • Trying to contact FLAG
  • Using abing instead
    • Indicates 2Mbps
    • But link is 384Kbps
  • Iperf shows 235 - 245 Kbps
  • Rate limiting or shaping?

~ 2MBits/s, but link is 384Kbps

Looking for discrepancy

within pakistan
Within Pakistan
  • SLAC – Karachi U:
    • ESnet (hops 3-8) – DC ATT (9-21) – Karachi
  • SLAC – NIIT RawalpindiI:
    • ESnet (hops 3-6) – SNV, SINGTEL (7-12) – Karachi, Pakistan Telecom Karachi-Rawalpindi
  • SLAC - U Lahore, similar to NIIT
  • SLAC – NSC:
    • ESnet (hops 1-6), C&W (7-11) Santa Clara – NY, FLAG (12-16) NY – London – Karlsruhe, Comsats
  • NIIT – NSC (Rawalpindi – Islamabad) few miles apart,
    • No peering in Pakistan, can this be changed?
    • Route goes via England:
      • PIE (hops 1-5), Concert (6-9)- London, FLAG (10-14) London – Karachi, Comsats (15)
    • Takes longer than to SLAC
conclusions
Conclusions
  • Big performance differences to sites, depend on ISP (at least 3 ISPs seen for Pakistan A&R sites)
  • To NIIT:
    • Before upgrade got about 300Kbps - 380Kbps at best
    • After upgrade get 1 Mbps, as expected
    • The bottleneck appears to be in Pakistan
    • There is often congestion (packet loss & extended RTTs) during busy periods each weekday
    • Video will probably be sensitive to packet loss, so it may depend on the time of day
    • H.323 (typically needs 384Kbps + 64Kbps), would appear to have been be marginal at best before upgrade, since upgrade has been very successful.
  • No peering Pakistan between NIIT and NSC
bulk data transfer
Bulk Data Transfer
  • Transfer time to send a file of various sizes between 2 sites with given capacity
    • assume can utilize 50% of capacity
    • format hours:mins:seconds

File size

Typical BaBar file sizes 500MB-1GB

PingER

interactive use
Interactive Use
  • Voice needs RTT < 250ms or else listener does not know when to speak
  • RTT > 400ms makes productive interactive work such as interactive telnet/X-windows style typing difficult
    • Screen does not match the keyboard, especially when correcting text
  • Losses:
    • Losses > 10% TCP connections fail
    • Losses >4-6% make video conferencing unintelligible for non-native language speakers
    • Losses of > 3-5% make TCP perform badly
    • Random loss of 2.5% will make Voice over IP annoying every 30 seconds or so
    • More realistic burst losses will cause VoIP to be annoying at >1% losses

PingER

more information
More information
  • NUST Institute of Information Technology (NIIT)
    • http://www.niit.edu.pk/
  • PingER project
    • http://www-iepm.slac.stanford.edu/pinger/
  • ABwE available bandwidth estimator
    • www-iepm.slac.stanford.edu/bw/abwe/abwe-cf-iperf.html
