Chapter 13 the spinal cord spinal nerves
Chapter 13The Spinal Cord & Spinal Nerves

  • Together with brain forms the CNS

  • Functions

    • spinal cord reflexes

    • integration (summation of inhibitory and excitatory) nerve impulses

    • highway for upward and downward travel of sensory and motor information

Tortora & Grabowski 9/e 2000 JWS

Structures covering the spinal cord
Structures Covering the Spinal Cord

  • Vertebrae

  • Epidural space filled with fat

  • Dura mater

    • dense irregular CT tube

  • Subdural space filled with interstitial fluid

  • Arachnoid = spider web of collagen fibers

  • Subarachnoid space = CSF

  • Pia mater

    • thin layer covers BV

    • denticulate ligs hold in place

Tortora & Grabowski 9/e 2000 JWS

Spinal cord spinal nerves
Spinal Cord & Spinal Nerves

  • Spinal nerves begin as roots

  • Dorsal or posterior root is incoming sensory fibers

    • dorsal root ganglion (swelling) = cell bodies of sensory nerves

  • Ventral or anterior root is outgoing motor fibers

Tortora & Grabowski 9/e 2000 JWS

Spinal tap or lumbar puncture
Spinal tap or Lumbar Puncture

  • Technique

    • long needle into subarachnoid space

    • safe from L3 to L5

  • Purpose

    • sampling CSF for diagnosis

    • injection of antibiotics, anesthetics or chemotherapy

    • measurement of CSF pressure

Tortora & Grabowski 9/e 2000 JWS

Gray matter of the spinal cord
Gray Matter of the Spinal Cord

Note: colors in reverse due to staining of tissue

  • Gray matter is shaped like the letter H or a butterfly

    • contains neuron cell bodies, unmyelinated axons & dendrites

    • paired dorsal and ventral gray horns

    • lateral horns only present in thoracic spinal cord

    • gray commissure crosses the midline

  • Central canal continuous with 4th ventricle of brain

Tortora & Grabowski 9/e 2000 JWS

White matter of the spinal cord
White Matter of the Spinal Cord

  • White matter covers gray matter

  • Anterior median fissure deeper than Posterior median sulcus

  • Anterior, Lateral and Posterior White Columns contain axons that form ascending & descending tracts

Tortora & Grabowski 9/e 2000 JWS

Tracts of the spinal cord

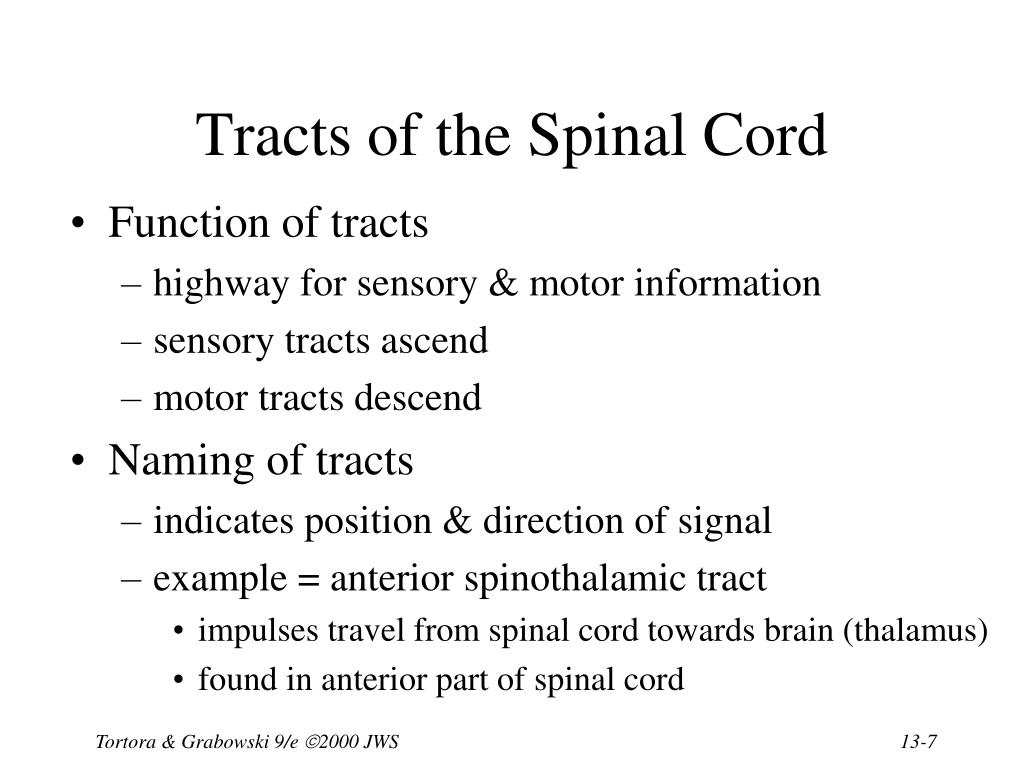

Tracts of the Spinal Cord

  • Function of tracts

    • highway for sensory & motor information

    • sensory tracts ascend

    • motor tracts descend

  • Naming of tracts

    • indicates position & direction of signal

    • example = anterior spinothalamic tract

      • impulses travel from spinal cord towards brain (thalamus)

      • found in anterior part of spinal cord

Tortora & Grabowski 9/e 2000 JWS

Location of tracts inside cord
Location of Tracts inside Cord

  • Motor tracts Sensory tracts

    • pyramidal tract (corticospinal) ---spinothalamic tract

    • extrapyramidal tract ---posterior column

    • ---spinocerebellar

Tortora & Grabowski 9/e 2000 JWS

Function of spinal tracts

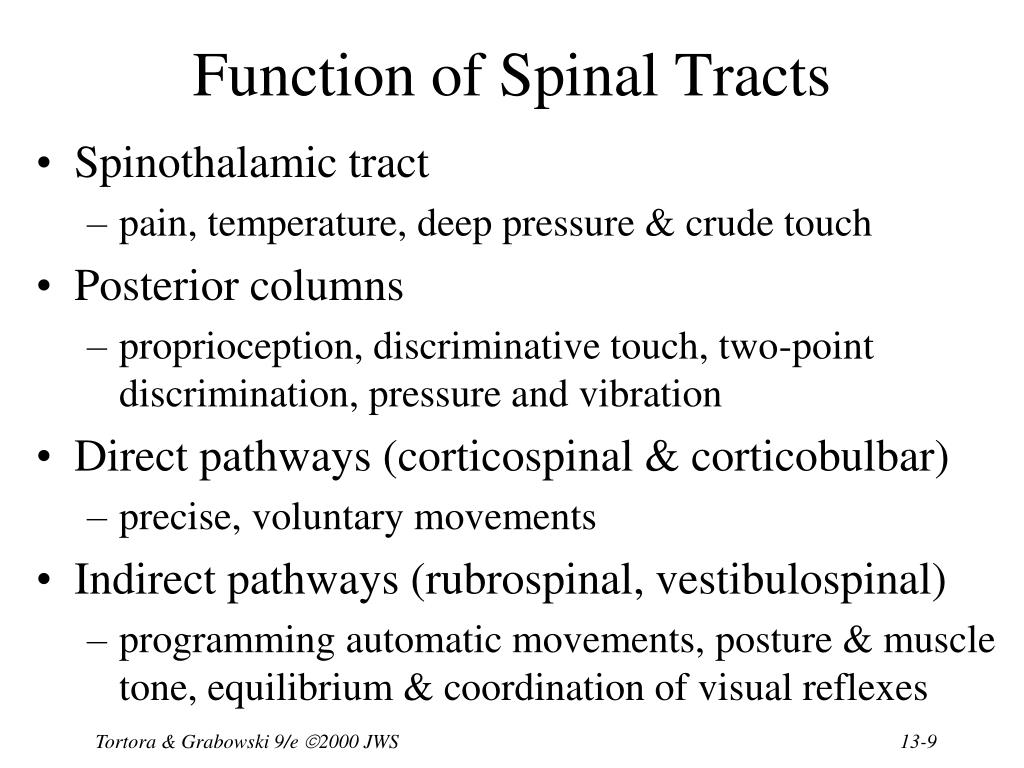

Function of Spinal Tracts

  • Spinothalamic tract

    • pain, temperature, deep pressure & crude touch

  • Posterior columns

    • proprioception, discriminative touch, two-point discrimination, pressure and vibration

  • Direct pathways (corticospinal & corticobulbar)

    • precise, voluntary movements

  • Indirect pathways (rubrospinal, vestibulospinal)

    • programming automatic movements, posture & muscle tone, equilibrium & coordination of visual reflexes

Tortora & Grabowski 9/e 2000 JWS

Spinal reflexes
Spinal Reflexes

  • Automatic response to change in environment

  • Integration center for spinal reflexes is gray matter of spinal cord

  • Examples

    • somatic reflexes result in skeletal muscle contraction

    • autonomic (visceral) reflexes involve smooth & cardiac muscle and glands.

      • heart rate, respiration, digestion, urination, etc

  • Note: cranial reflexes involve cranial nerves

Tortora & Grabowski 9/e 2000 JWS

Reflex arc

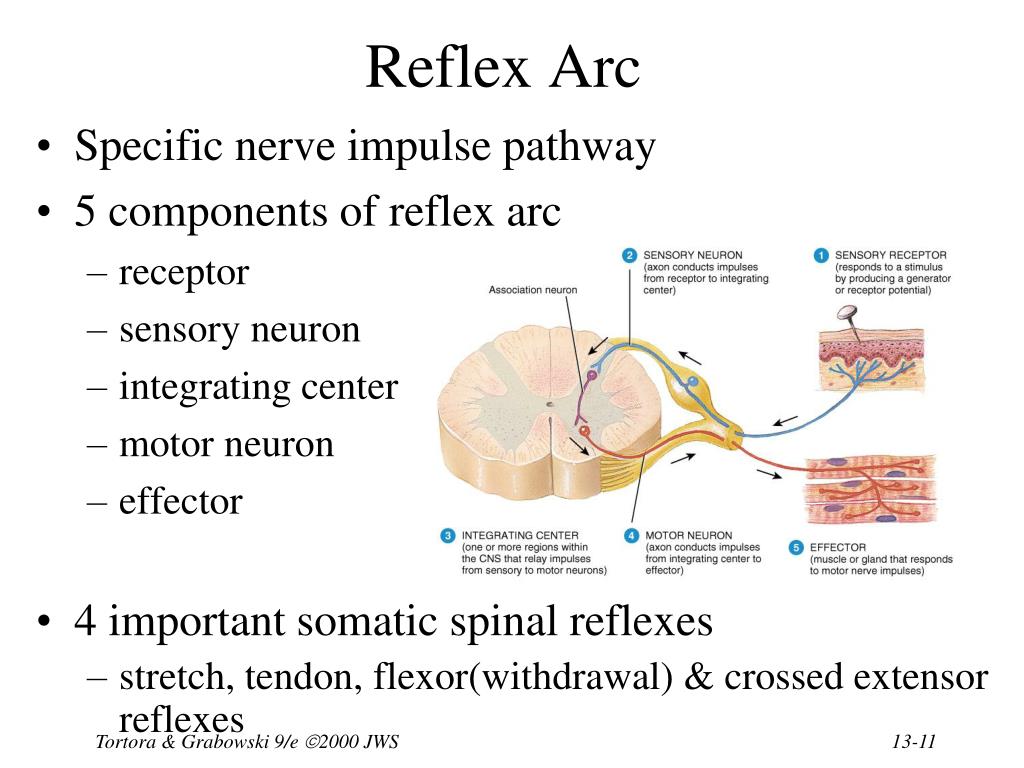

Reflex Arc

  • Specific nerve impulse pathway

  • 5 components of reflex arc

    • receptor

    • sensory neuron

    • integrating center

    • motor neuron

    • effector

  • 4 important somatic spinal reflexes

    • stretch, tendon, flexor(withdrawal) & crossed extensor reflexes

Tortora & Grabowski 9/e 2000 JWS

Stretch reflex patellar reflex
Stretch Reflex (patellar reflex)

  • Monosynaptic,ipsilateral reflex arc

  • Prevents injury from over stretching because muscle contracts when it is stretched

  • Events of stretch reflex

    • muscle spindle signals stretch of muscle

    • motor neuron activated & muscle contracts

  • Brain sets muscle spindle sensitivity as it sets muscle tone (degree of muscle contraction at rest)

  • Reciprocal innervation (polysynaptic- interneuron)

    • antagonistic muscles relax as part of reflex

Tortora & Grabowski 9/e 2000 JWS

Tendon reflex
Tendon Reflex

  • Controls muscle tension by causing muscle relaxation that prevents tendon damage

  • Golgi tendon organs in tendon

    • activated by stretching of tendon

    • inhibitory neuron is stimulated (polysynaptic)

    • motor neuron is hyperpolarized and muscle relaxes

  • Both tendon & muscle are protected

  • Reciprocal innervation (polysynaptic)

    • causes contraction of ipsilateral muscle group

Tortora & Grabowski 9/e 2000 JWS

Crossed extensor reflex
Crossed Extensor Reflex

  • Lifting left foot requires extension of right leg to maintain one’s balance

  • Pain signals cross to opposite spinal cord

  • Contralateral extensor muscles are stimulated by interneurons to hold up the body weight

  • Reciprocal innervation - when extensors contract flexors relax, etc

Tortora & Grabowski 9/e 2000 JWS

Clinical considerations
Clinical Considerations

  • Checking a patient’s reflexes may help to detect disorders/injury

  • Plantar flexion reflex -- stroke the lateral margin of the sole

    • normal response is curling under the toes

    • abnormal response or response of children under 18 months is called Babinski sign (upward fanning of toes due to incomplete myelination in child)

Tortora & Grabowski 9/e 2000 JWS

Spinal nerves

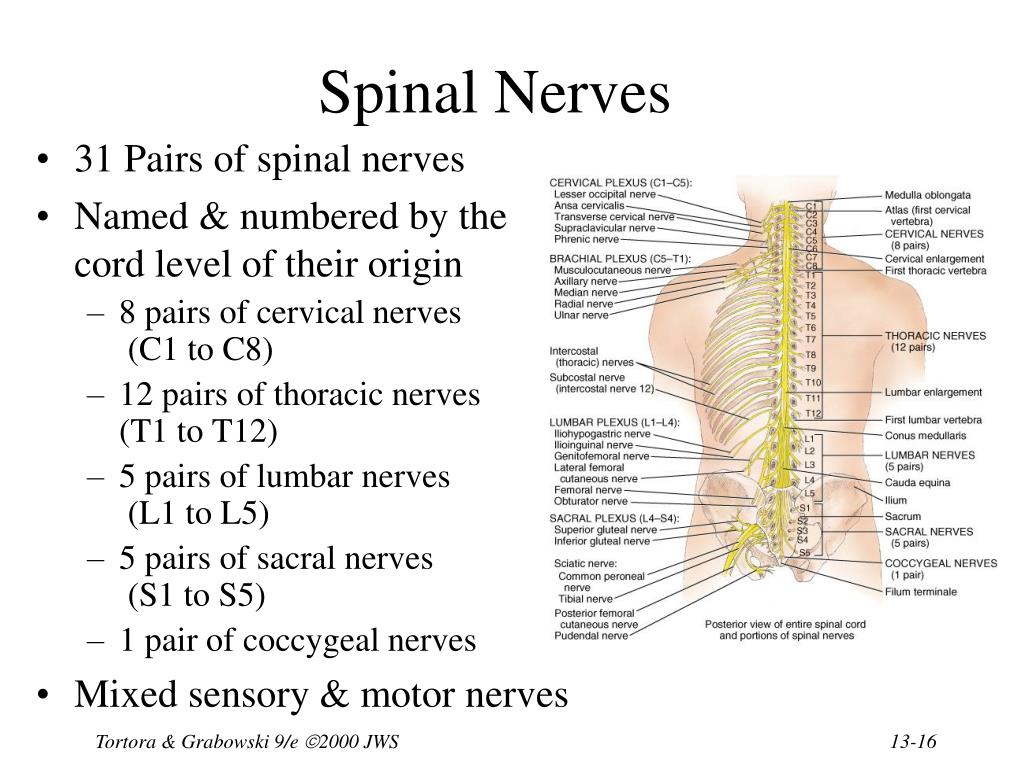

Spinal Nerves

  • 31 Pairs of spinal nerves

  • Named & numbered by the cord level of their origin

    • 8 pairs of cervical nerves (C1 to C8)

    • 12 pairs of thoracic nerves (T1 to T12)

    • 5 pairs of lumbar nerves (L1 to L5)

    • 5 pairs of sacral nerves (S1 to S5)

    • 1 pair of coccygeal nerves

  • Mixed sensory & motor nerves

Tortora & Grabowski 9/e 2000 JWS

Connective tissue coverings
Connective Tissue Coverings

  • Endoneurium = wrapping of each nerve fibers

  • Perineurium = surrounds group of nerve fibers forming a fascicle

  • Epineurium = covering of entire nerve

    • dura mater blends into it at intervertebral foramen

Tortora & Grabowski 9/e 2000 JWS

Chapter 13 the spinal cord spinal nerves




Tortora & Grabowski 9/e 2000 JWS

Branching of spinal nerve
Branching of Spinal Nerve

  • Spinal nerves formed from dorsal & ventral roots

  • Spinal nerves branch into dorsal & ventral rami

    • dorsal rami supply skin & muscles of back

    • ventral rami form plexus supply anterior trunk & limbs

    • meningeal branches supply meninges, vertebrae & BV

Tortora & Grabowski 9/e 2000 JWS

A nerve plexus

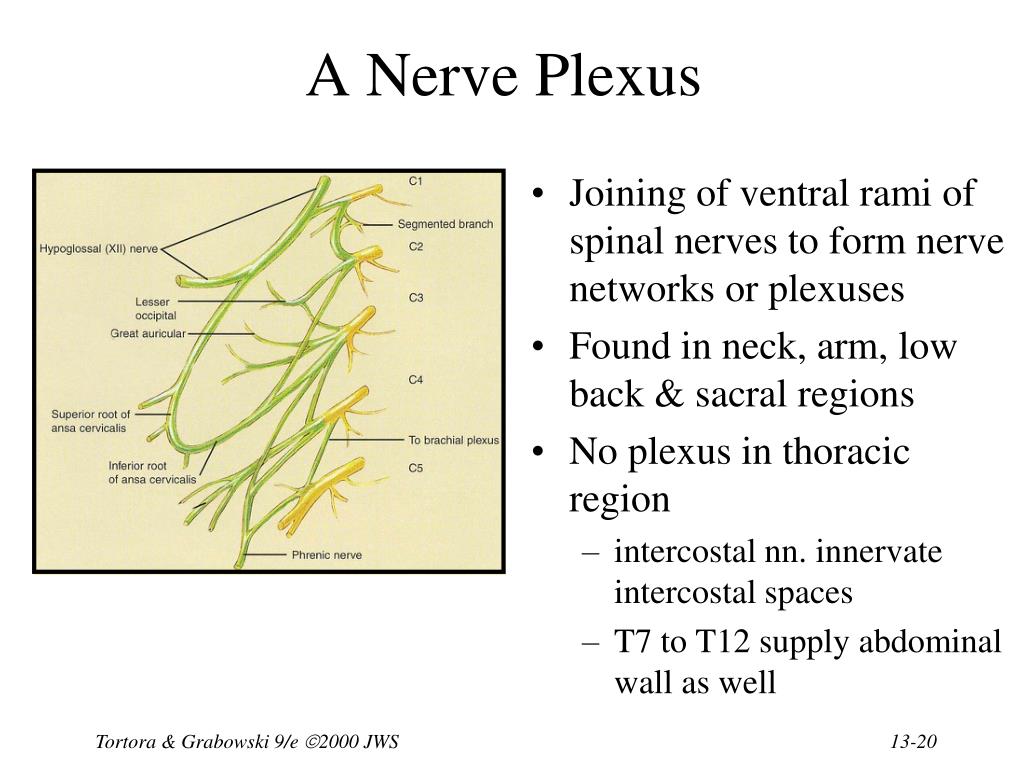

A Nerve Plexus

  • Joining of ventral rami of spinal nerves to form nerve networks or plexuses

  • Found in neck, arm, low back & sacral regions

  • No plexus in thoracic region

    • intercostal nn. innervate intercostal spaces

    • T7 to T12 supply abdominal wall as well

Tortora & Grabowski 9/e 2000 JWS

Cervical plexus
Cervical Plexus

  • Ventral rami of spinal nerves (C1 to C5)

  • Supplies parts of head, neck & shoulders

  • Phrenic nerve (C3-C5) keeps diaphragm alive

  • Damage to cord above C3 causes respiratory arrest

Tortora & Grabowski 9/e 2000 JWS

Brachial plexus

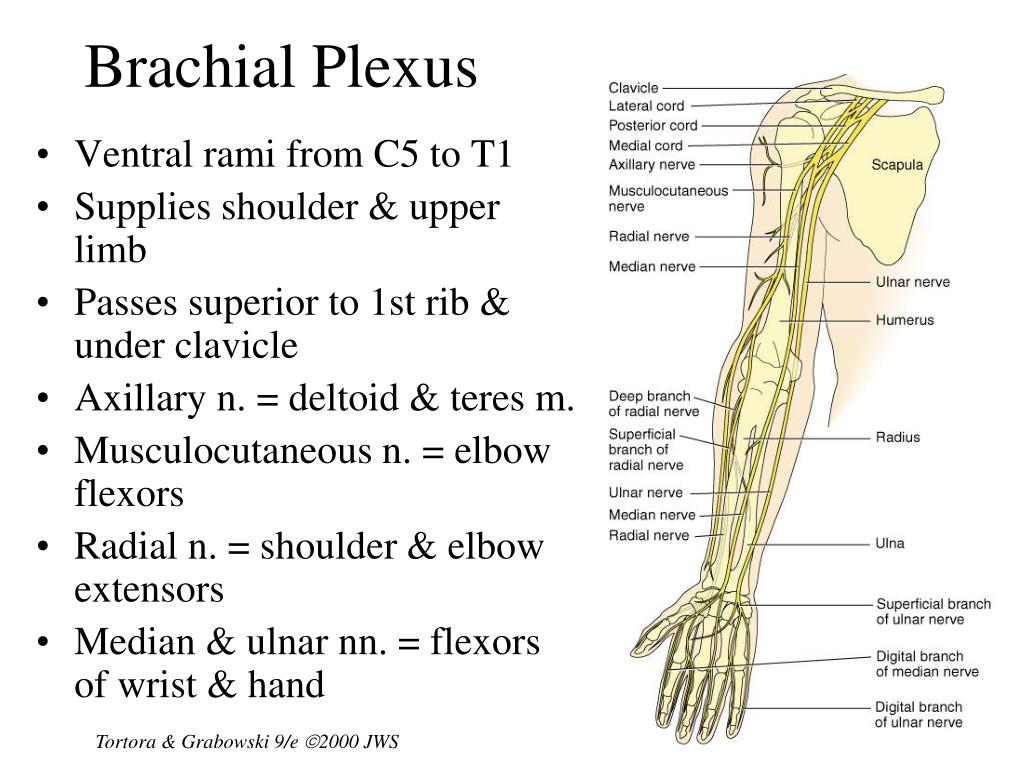

Brachial Plexus

  • Ventral rami from C5 to T1

  • Supplies shoulder & upper limb

  • Passes superior to 1st rib & under clavicle

  • Axillary n. = deltoid & teres m.

  • Musculocutaneous n. = elbow flexors

  • Radial n. = shoulder & elbow extensors

  • Median & ulnar nn. = flexors of wrist & hand

Tortora & Grabowski 9/e 2000 JWS

Clinical correlations

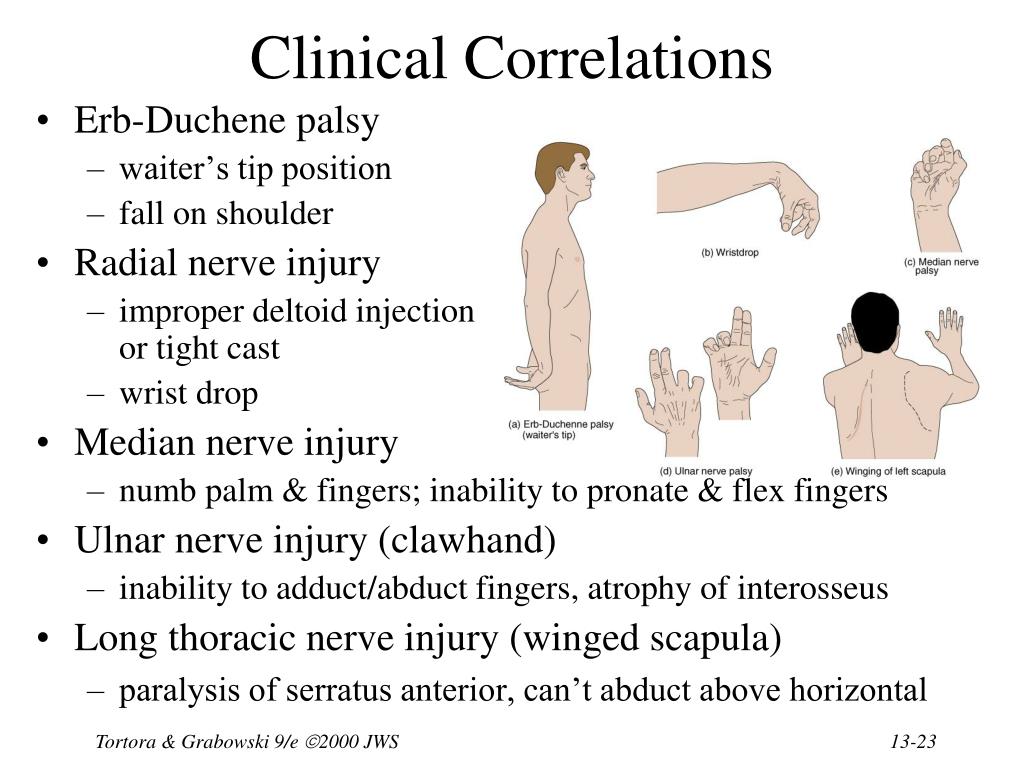

Clinical Correlations

  • Erb-Duchene palsy

    • waiter’s tip position

    • fall on shoulder

  • Radial nerve injury

    • improper deltoid injectionor tight cast

    • wrist drop

  • Median nerve injury

    • numb palm & fingers; inability to pronate & flex fingers

  • Ulnar nerve injury (clawhand)

    • inability to adduct/abduct fingers, atrophy of interosseus

  • Long thoracic nerve injury (winged scapula)

    • paralysis of serratus anterior, can’t abduct above horizontal

Tortora & Grabowski 9/e 2000 JWS

Lumbar plexus
Lumbar Plexus

  • Ventral rami of L1 to L4

  • Supplies abdominal wall, external genitals & anterior/medial thigh

  • Injury to femoral nerve causes inability to extend leg & loss of sensation in thigh

  • Injury to obturator nerve causes paralysis of thigh adductors

Tortora & Grabowski 9/e 2000 JWS

Sacral plexus
Sacral Plexus

  • Ventral rami of L4-L5 & S1-S4

  • Anterior to the sacrum

  • Supplies buttocks, perineum & part of lower limb

  • Sciatic nerve = L4 to S3 supplies post thigh & all below knee

    • Peroneal nerve injury produces foot drop or numbness

    • Tibial nerve injury produces calcaneovalgus (loss of function on anterior leg & dorsum of foot)

Tortora & Grabowski 9/e 2000 JWS

Sciatic nerve branches
Sciatic Nerve Branches

  • Notice: Common Peroneal nerve and Tibial nerve behind the knee

  • Notice: Sciatica pain extends from the buttock down the leg to the foot

  • may be sign of herniated disc

Tortora & Grabowski 9/e 2000 JWS

Dermatomes myotomes

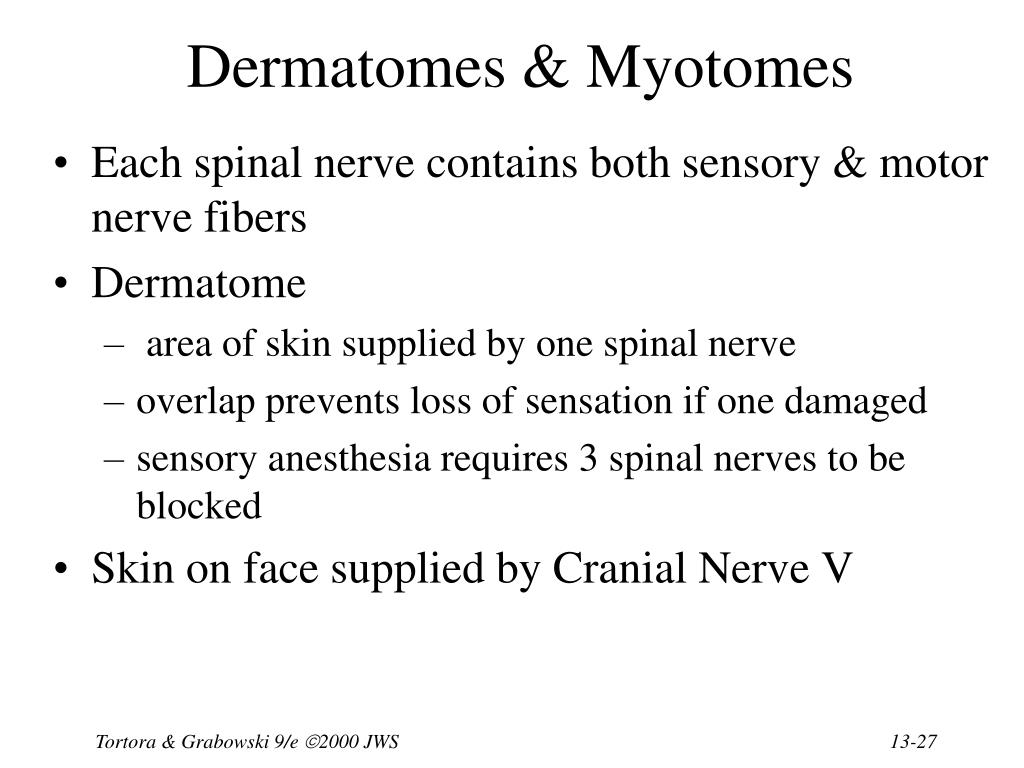

Dermatomes & Myotomes

  • Each spinal nerve contains both sensory & motor nerve fibers

  • Dermatome

    • area of skin supplied by one spinal nerve

    • overlap prevents loss of sensation if one damaged

    • sensory anesthesia requires 3 spinal nerves to be blocked

  • Skin on face supplied by Cranial Nerve V

Tortora & Grabowski 9/e 2000 JWS


  • Damaged regions of the spinal cord can be distinguished by patterns of numbness over a dermatome region

  • Infusing local anesthetics or cutting roots must be done over 3 adjacent spinal nerves.

  • Spinal cord transection

    • injury that severs the cord loss of sensation& motor control below the injury

Tortora & Grabowski 9/e 2000 JWS


  • Neuritis

    • inflammation of nerves

    • caused by injury, vitamin deficiency or poison

  • Shingles

    • infection of peripheral nerve by chicken pox virus

    • causes pain, skin discoloration, line of skin blisters

  • Poliomyelitis

    • viral infection causing motor neuron death and possible death from cardiac failure or respiratory arrest

Tortora & Grabowski 9/e 2000 JWS
