SpectraVISION i9 6L (Digital)

Paramount SpectraVISION i9 6L (Digital) is made of teakwood, ply board with special laminate. The grey matt used inside the booth strictly adheres to the international standards. The equipment is supplied with all standard<br><br>https://paramountinstruments.com/product/spectravision-i9-6l-digital/

Paramount2
Download Presentation

SpectraVISION i9 6L (Digital)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

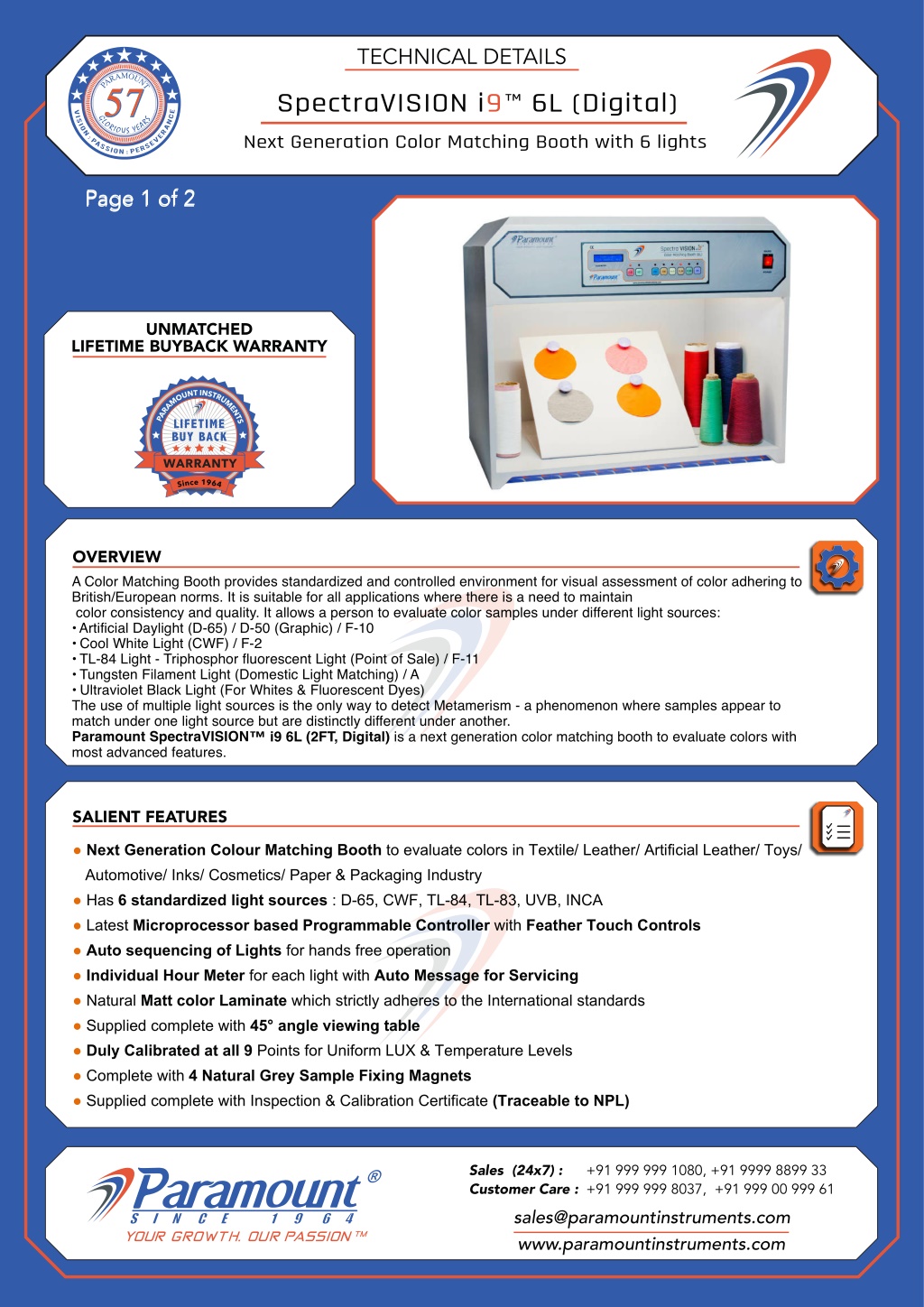

  1. TECHNICAL DETAILS SpectraVISION i9™ 6L (Digital) Next Generation Color Matching Booth with 6 lights Page 1 of 2 Page 1 of 2 UNMATCHED LIFETIME BUYBACK WARRANTY OVERVIEW A Color Matching Booth provides standardized and controlled environment for visual assessment of color adhering to British/European norms. It is suitable for all applications where there is a need to maintain color consistency and quality. It allows a person to evaluate color samples under different light sources: • Artificial Daylight (D-65) / D-50 (Graphic) / F-10 • Cool White Light (CWF) / F-2 • TL-84 Light - Triphosphor fluorescent Light (Point of Sale) / F-11 • Tungsten Filament Light (Domestic Light Matching) / A • Ultraviolet Black Light (For Whites & Fluorescent Dyes) The use of multiple light sources is the only way to detect Metamerism - a phenomenon where samples appear to match under one light source but are distinctly different under another. Paramount SpectraVISION™ i9 6L (2FT, Digital) is a next generation color matching booth to evaluate colors with most advanced features. SALIENT FEATURES ● Next Generation Colour Matching Booth to evaluate colors in Textile/ Leather/ Artificial Leather/ Toys/ Automotive/ Inks/ Cosmetics/ Paper & Packaging Industry ●Has :D-65,CWF,TL-84,TL-83,UVB,INCA ●LatestMicroprocessor based Programmable Controller withFeather Touch Controls ●Auto sequencing of Lightsforhandsfreeoperation ●Individual Hour MeterforeachlightwithAuto Message for Servicing ●NaturalMatt color LaminatewhichstrictlyadherestotheInternationalstandards ●Suppliedcompletewith45° angle viewing table ●Duly Calibrated at all 9PointsforUniformLUX&TemperatureLevels ●Completewith4 Natural Grey Sample Fixing Magnets ●SuppliedcompletewithInspection&CalibrationCertificate(Traceable to NPL) 6 standardized light sources Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com

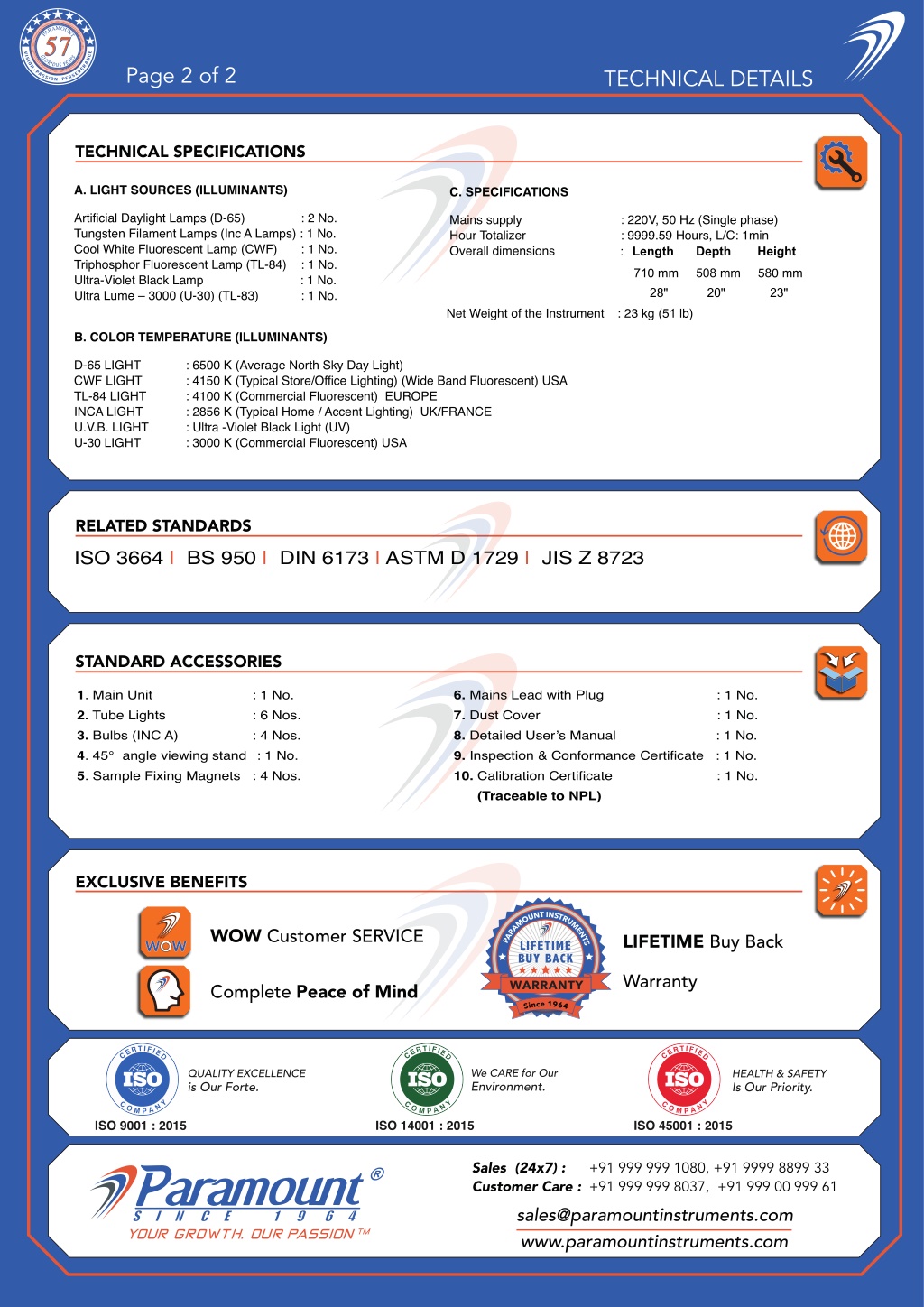

  2. Page 2 of 2 TECHNICAL DETAILS TECHNICAL SPECIFICATIONS C. SPECIFICATIONS A. LIGHT SOURCES (ILLUMINANTS) Artificial Daylight Lamps (D-65) Tungsten Filament Lamps (Inc A Lamps) : 1 No. Cool White Fluorescent Lamp (CWF) Triphosphor Fluorescent Lamp (TL-84) : 1 No. Ultra-Violet Black Lamp : 1 No. Ultra Lume – 3000 (U-30) (TL-83) : 2 No. Mains supply Hour Totalizer Overall dimensions : 220V, 50 Hz (Single phase) : 9999.59 Hours, L/C: 1min : Length : 1 No. Depth Height 710 mm 28" 508 mm 20" 580 mm 23" : 1 No. Net Weight of the Instrument : 23 kg (51 lb) B. COLOR TEMPERATURE (ILLUMINANTS) D-65 LIGHT CWF LIGHT TL-84 LIGHT INCA LIGHT U.V.B. LIGHT U-30 LIGHT : 6500 K (Average North Sky Day Light) : 4150 K (Typical Store/Office Lighting) (Wide Band Fluorescent) USA : 4100 K (Commercial Fluorescent) EUROPE : 2856 K (Typical Home / Accent Lighting) UK/FRANCE : Ultra -Violet Black Light (UV) : 3000 K (Commercial Fluorescent) USA RELATED STANDARDS ISO 3664 | BS 950 | DIN 6173 | ASTM D 1729 | JIS Z 8723 STANDARD ACCESSORIES 1. Main Unit : 1 No. 6. Mains Lead with Plug : 1 No. 2. Tube Lights : 6 Nos. 7. Dust Cover : 1 No. 3. Bulbs (INC A) : 4 Nos. 8. Detailed User’s Manual : 1 No. Detailed User’s Manual : 1 No. 4. 45° angle viewing stand : 1 No. 9. Inspection & Conformance Certificate : 1 No. 5. Sample Fixing Magnets : 4 Nos. 10. Calibration Certificate : 1 No. (Traceable to NPL) EXCLUSIVE BENEFITS WOW Customer SERVICE LIFETIME Buy Back Warranty Complete Peace of Mind We CARE for Our Environment. QUALITY EXCELLENCE is Our Forte. HEALTH & SAFETY Is Our Priority. ISO 9001 : 2015 ISO 14001 : 2015 ISO 45001 : 2015 Sales (24x7) : +91 999 999 1080, +91 9999 8899 33 Customer Care : +91 999 999 8037, +91 999 00 999 61 sales@paramountinstruments.com www.paramountinstruments.com
