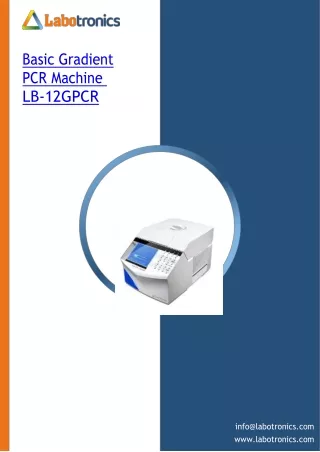

Basic-Gradient-PCR-Machine-LB-12GPCR

1. Basic Gradient PCR Machine LB-12GPCR info@labotronics.com www.labotronics.com

2. Overview Basic gradient PCR machine is a Peltier based unit with temperature extended control mode for DNA amplification. The homogeneity of sample temperature is detected through 12 channeled temperature probes. The gradient control system avoids the system error caused by the disaccord of the temperature points. Automated setup of actual temperature for required reagents ensures accuracy and high efficiency. Hermetic space technique efficiently eliminates PCR margin reaction. Specifications : Number of wells 96 + 77 0.2 mL (96 wells) Capacity per well 0.5 mL (77 wells) Operational temperature range 0 °C ~ 99.9 °C Gradient temperature range 30 °C ~ 99 °C Gradient speed 1 °C ~ 3 °C Gradient uniformity ≤ 0.2 °C Heating and cooling rate range 0.1 °C / s ~ 3.0 °C / s Maximum heating rate ≥4 °C / s Maximum cooling rate ≥4 °C / s Temperature uniformity ≤ ± 0.2 °C Temperature accuracy ≤ ± 0.1 °C Lid temperature 30 °C ~ 110 °C

3. Maximum number of cycles 99 Ambient temperature 5 °C ~ 30 °C Relative humidity < 90 % Data storage program 200 Dimensions 380 × 270 × 250 mm Weight 7.2 kgs Features : High definition LCD screen for visual monitoring of set parameters Rotating stall heat regulating function In-built memory function in case of power down Optimal panel design with operational button for ease of accessibility Top lid with multiple angle adjustments USB and Rs232 data communication interface Anti-corrosive structural unit Applications : Used for DNA amplification under gradient temperature system in the fields of genetics, immunology, genotyping, forensic, etc. Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
