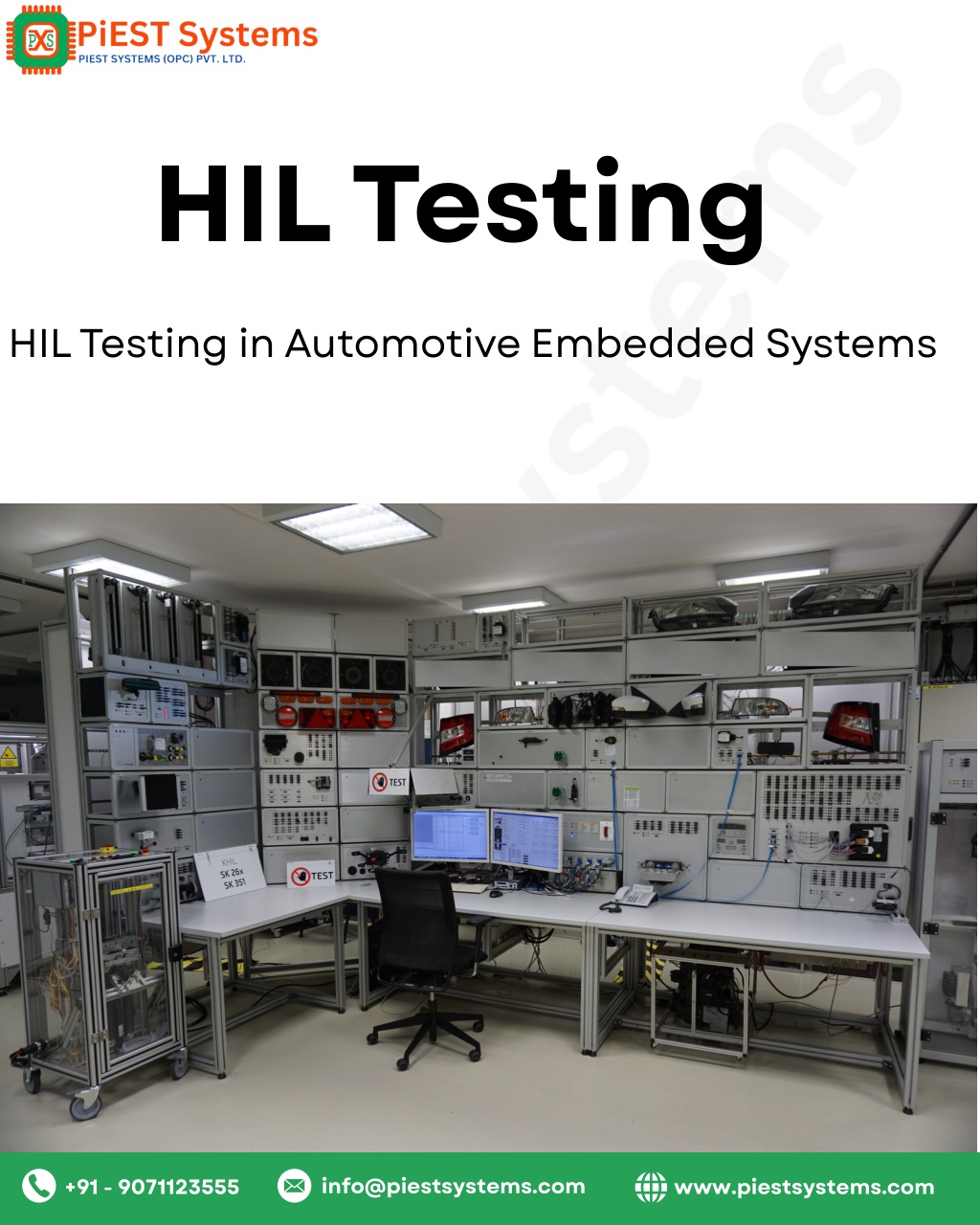

  1. HIL Testing HIL Testing in Automotive Embedded Systems info@piestsystems.com +91 - 9071123555 www.piestsystems.com

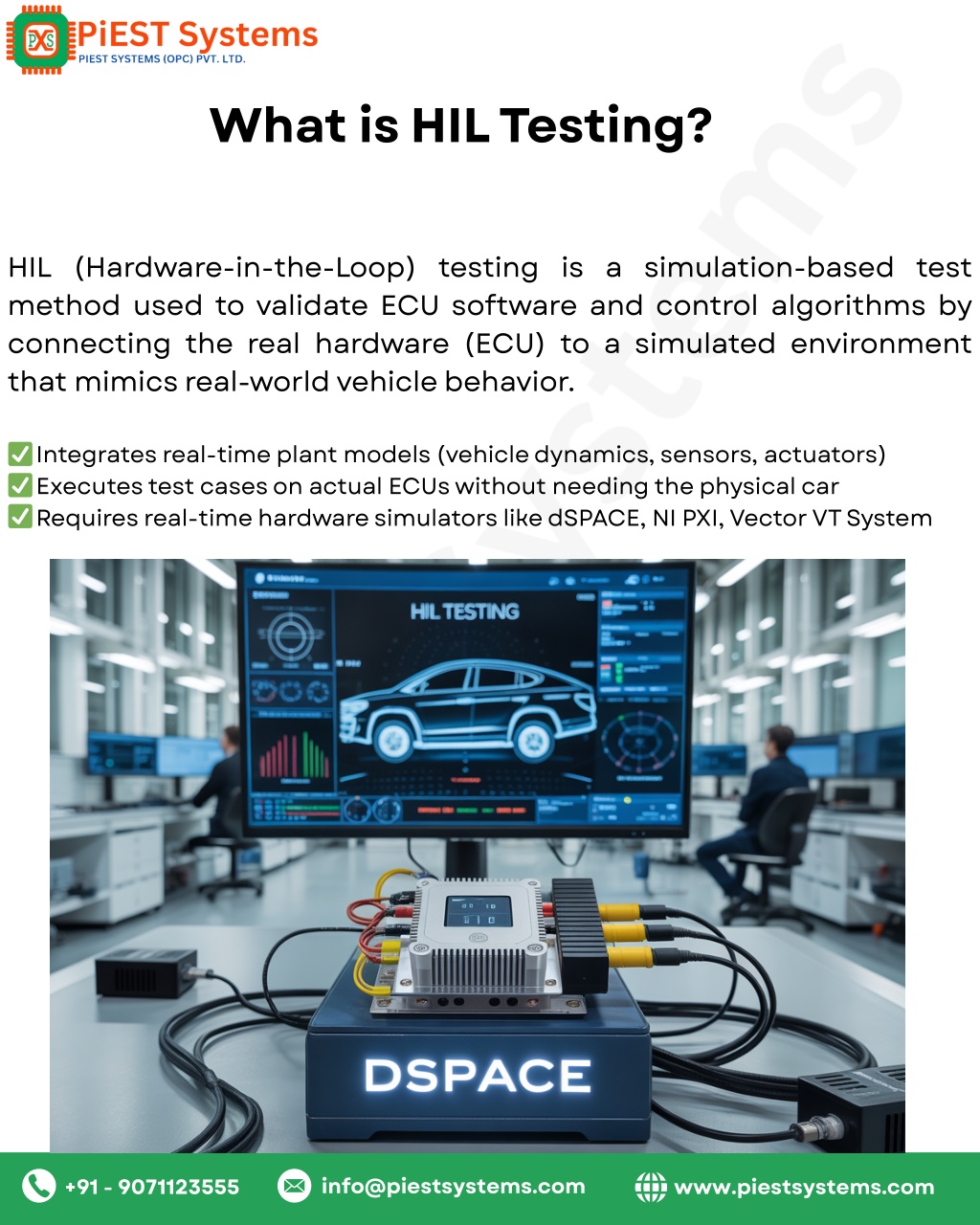

  2. What is HIL Testing? HIL (Hardware-in-the-Loop) testing is a simulation-based test method used to validate ECU software and control algorithms by connecting the real hardware (ECU) to a simulated environment that mimics real-world vehicle behavior. Integrates real-time plant models (vehicle dynamics, sensors, actuators) Executes test cases on actual ECUs without needing the physical car Requires real-time hardware simulators like dSPACE, NI PXI, Vector VT System ✅ ✅ ✅ info@piestsystems.com +91 - 9071123555 www.piestsystems.com

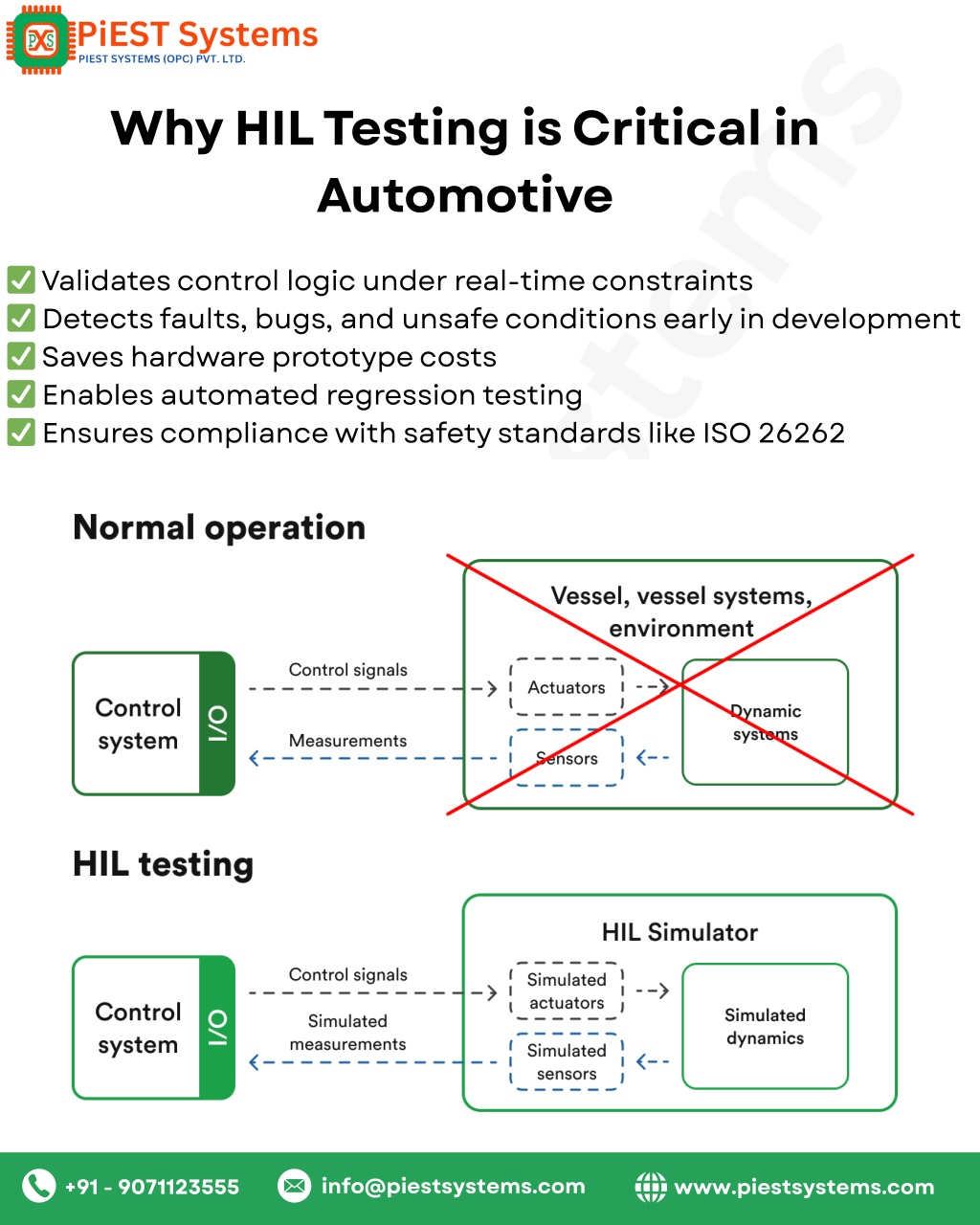

  3. Why HIL Testing is Critical in Automotive ✅ Validates control logic under real-time constraints ✅ Detects faults, bugs, and unsafe conditions early in development ✅ Saves hardware prototype costs ✅ Enables automated regression testing ✅ Ensures compliance with safety standards like ISO 26262 info@piestsystems.com +91 - 9071123555 www.piestsystems.com

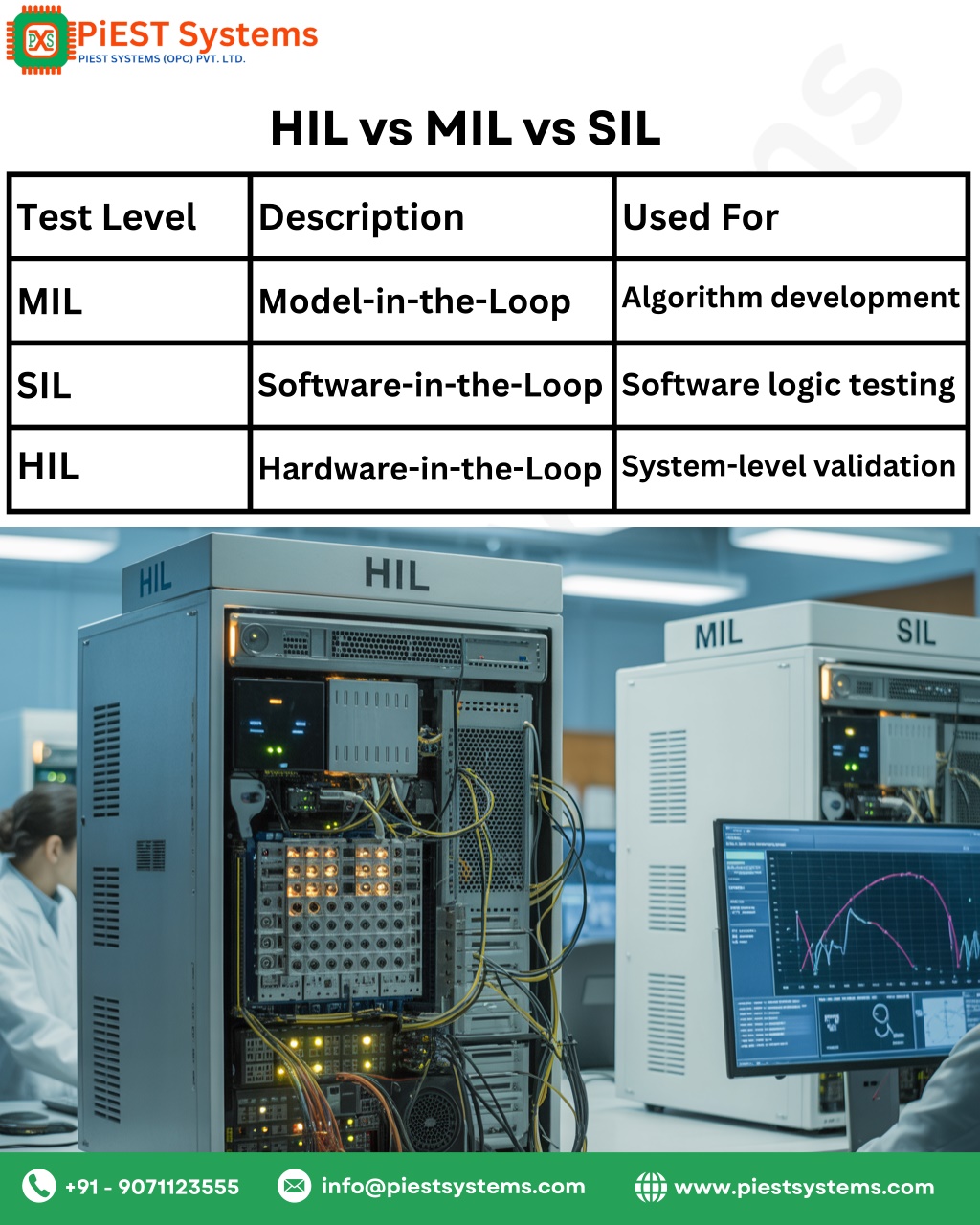

  4. HIL vs MIL vs SIL Test Level Description Used For MIL Algorithm development Model-in-the-Loop SIL Software-in-the-Loop Software logic testing HIL Hardware-in-the-Loop System-level validation info@piestsystems.com +91 - 9071123555 www.piestsystems.com

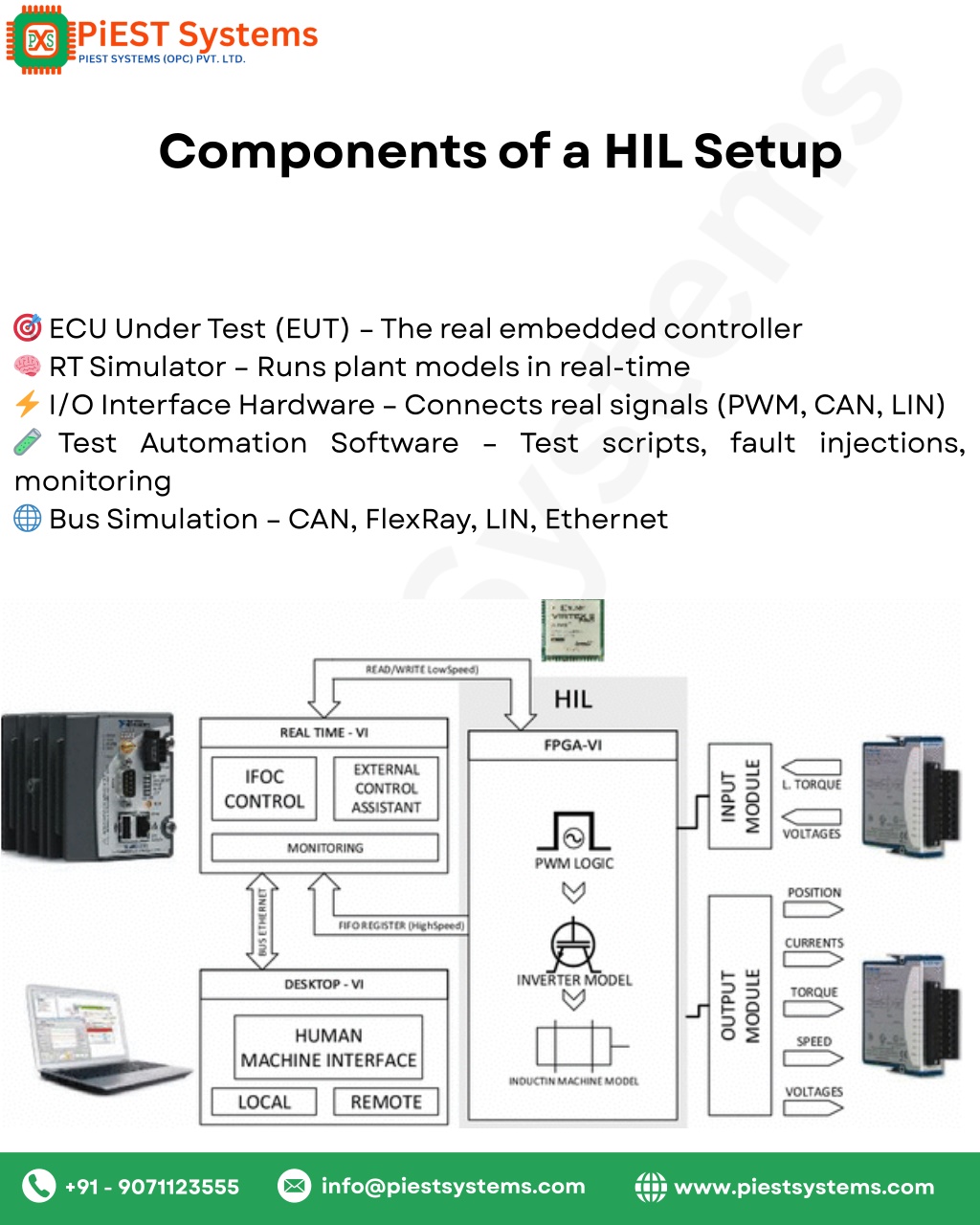

  5. Components of a HIL Setup ? ECU Under Test (EUT) – The real embedded controller ? RT Simulator – Runs plant models in real-time ⚡ I/O Interface Hardware – Connects real signals (PWM, CAN, LIN) ? Test Automation Software – Test scripts, fault injections, monitoring ? Bus Simulation – CAN, FlexRay, LIN, Ethernet info@piestsystems.com +91 - 9071123555 www.piestsystems.com

  6. Common Automotive HIL Test Areas ? Powertrain Control Units (Engine, Transmission) ? ADAS (Radar, Camera, Sensor Fusion) ? Infotainment ECUs ? BMS (Battery Management Systems) ? Body Control Modules (BCMs) ⚙ Chassis & Brake Control ECUs info@piestsystems.com +91 - 9071123555 www.piestsystems.com

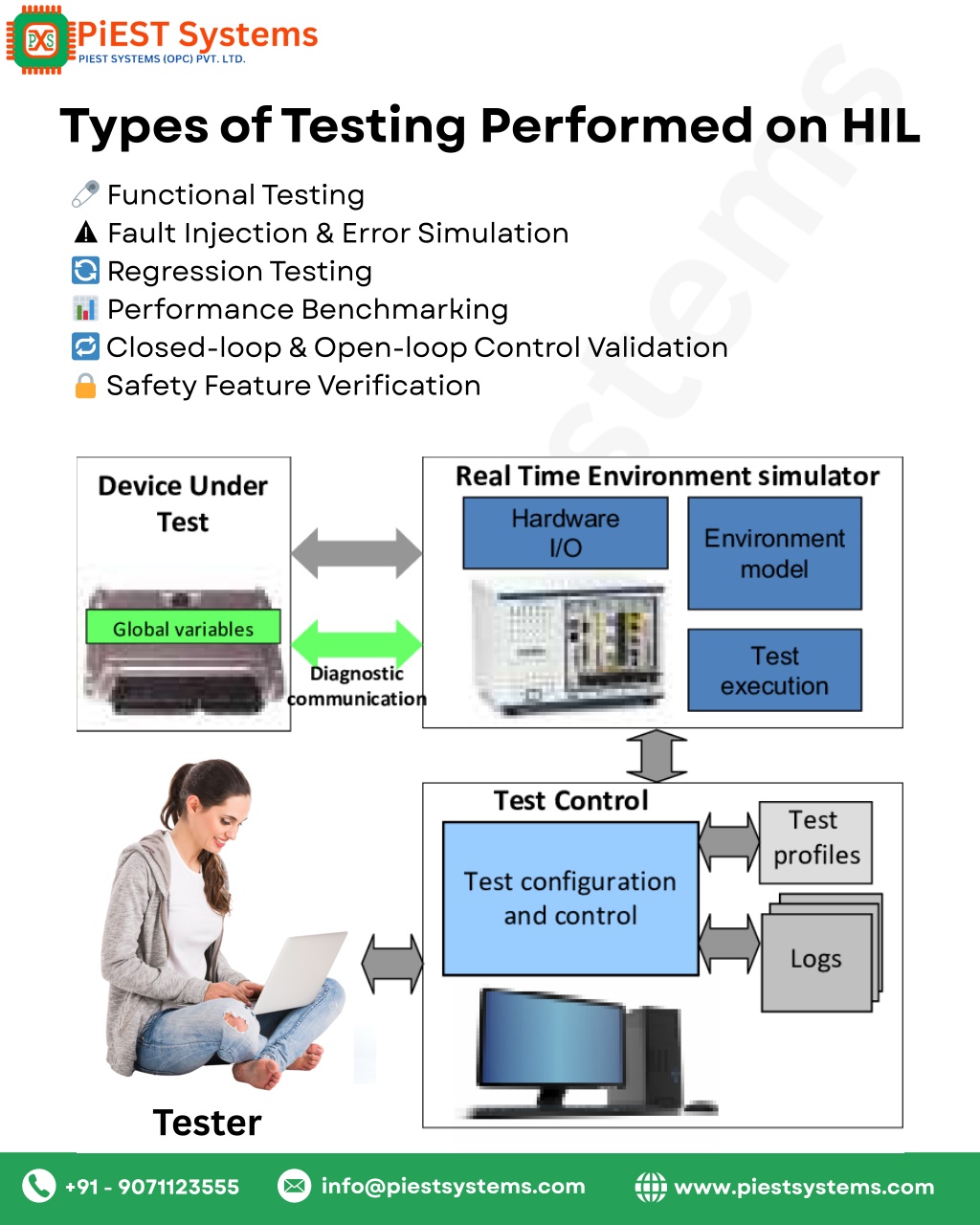

  7. Types of Testing Performed on HIL ? Functional Testing ⚠ Fault Injection & Error Simulation ? Regression Testing ? Performance Benchmarking ? Closed-loop & Open-loop Control Validation ? Safety Feature Verification Tester info@piestsystems.com +91 - 9071123555 www.piestsystems.com

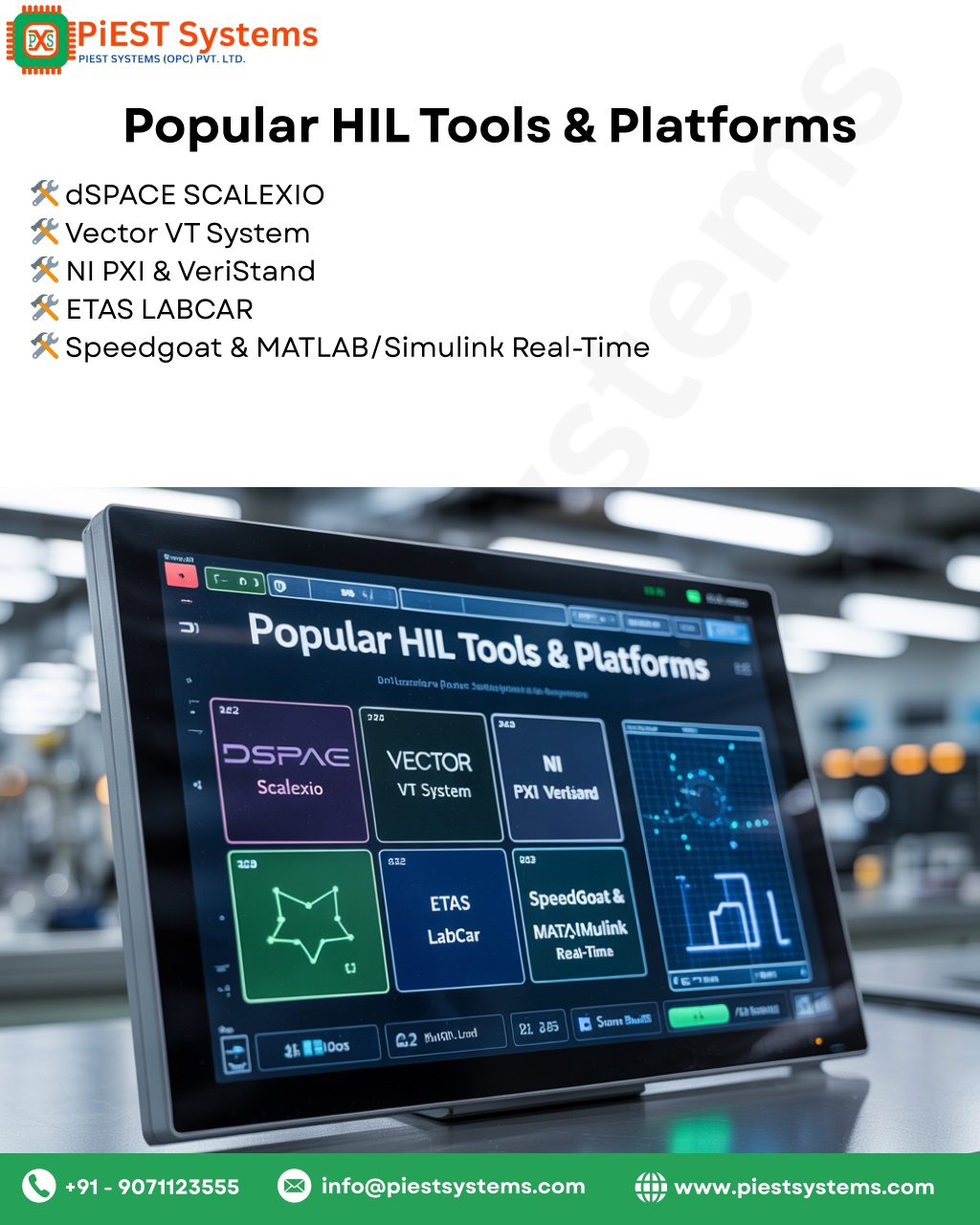

  8. Popular HIL Tools & Platforms ? dSPACE SCALEXIO ? Vector VT System ? NI PXI & VeriStand ? ETAS LABCAR ? Speedgoat & MATLAB/Simulink Real-Time info@piestsystems.com +91 - 9071123555 www.piestsystems.com

  9. Thanks Join Now our HIL Testing Course @piestsystems Like Comment Share Save info@piestsystems.com +91 - 9071123555 www.piestsystems.com
