automotive systems

Automotive systems

By: Salvador Madrigal

electrical system
Electrical System

Ignition systems

Starting systems

Charging systems

Lighting systems

ignition system
Ignition System

System for igniting the fuel mixture

Breaker point(1910-early1970)

Electronic(1970-1990)

Distributorless(1980-now)

starting system
Starting System

Power source used to provide the initial rotation to start large gas turbine engine

charging system
charging system

Replace electrical energy drawn from the battery during system starting operation

lighting system
lighting system

Consists of the components that operate a vehicle’s interior and exterior lights ( fuses, wires, switches, relays, etc.)

engine systems
Engine Systems

Exhaust Systems

Cooling Systems

Lubrication System

Diesel injection Systems

Fuel injection systems

Emission Control Systems

Carburetor Fuel Systems

engine types
Engine types

1. in-line (I4, L4)

3.Oppossed (vw’s, Porsche)

2. V-type(v6, v8, v10)

exhaust system
Exhaust System

Used to guide exhaust gases away from a controlled combustion inside an engine

cooling system
Cooling System

Maintains a constant engine operating temperature. There are two major types of cooling systems.

Air cooling system

Liquid cooling system

lubrication system
Lubrication System

Reduces friction and wear between internal engine parts by circulating filtered engine oil to high-friction points in the engine

diesel injection system
Diesel Injection System

High pressure mechanical pump spray fuel directly into combustion chamber

fuel injection system
Fuel injection system

Primarily a mechanical system that forces diesel fuel(not gasoline) directly into the combustion chamber(1990-now)

TBI(Throttle Body inj.) mid 1990-2000

MPI (Multi-port inj.)mid 1990-now

carbureted fuel system
Carbureted fuel System

Uses engine vacuum (suction) to draw fuel to the engine

emission control system
Emission control system

Used to reduce the amount of toxic(poisonous) substances produced by an engine

chassis system
Chassis system

Brake system

Drivetrain system

Steering system

Front suspension

Rear suspension

chassis
Chassis
  • Are a group of systems typically found underneath the vehicle
brake system
Brake System

Produces friction to slow or stop the vehicle

drive train system
Drive Train System

Transfers turning force from the engine crankshaft to the drive wheels

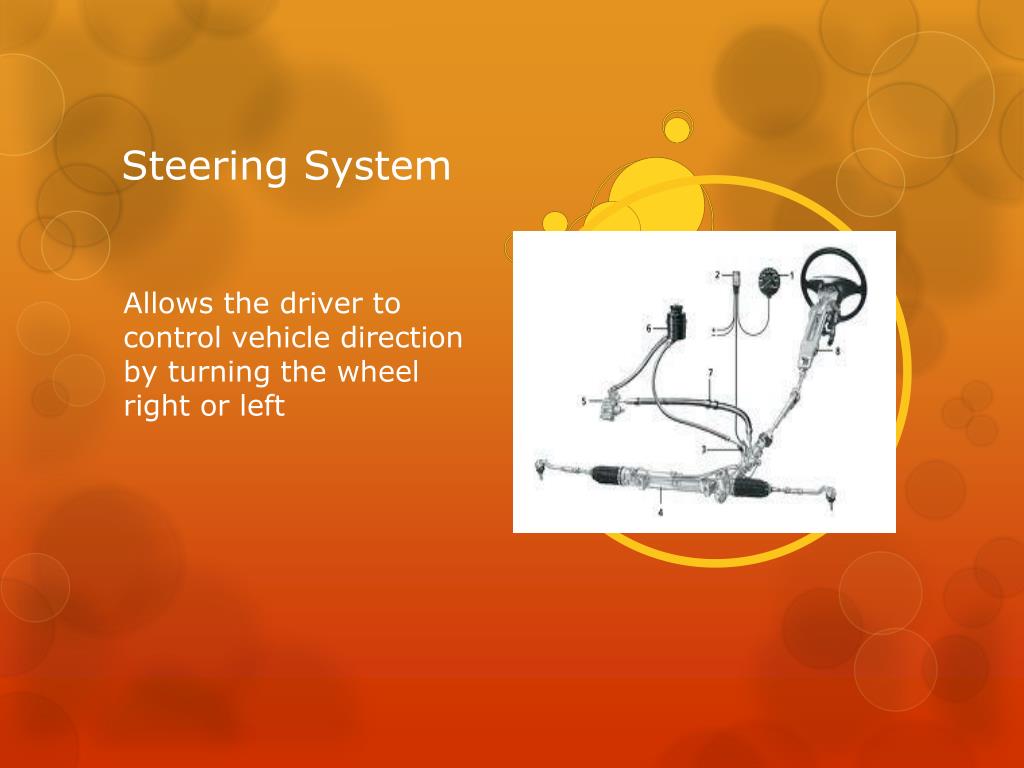

steering system
Steering System

Allows the driver to control vehicle direction by turning the wheel right or left

front suspension
Front Suspension

Vehicles do not have a driveshaft or a rear drive axle assembly. The complete drive train is in the front of the vehicle

rear suspension
Rear Suspension

The drive shafts sends power to the rear axle assembly. The rear axle assembly contains the differential and two axles that turn the rear drive wheels. Drive train and suspension interact.

miscellaneous systems
Miscellaneous Systems

Computer System

Accessory System

Safety System

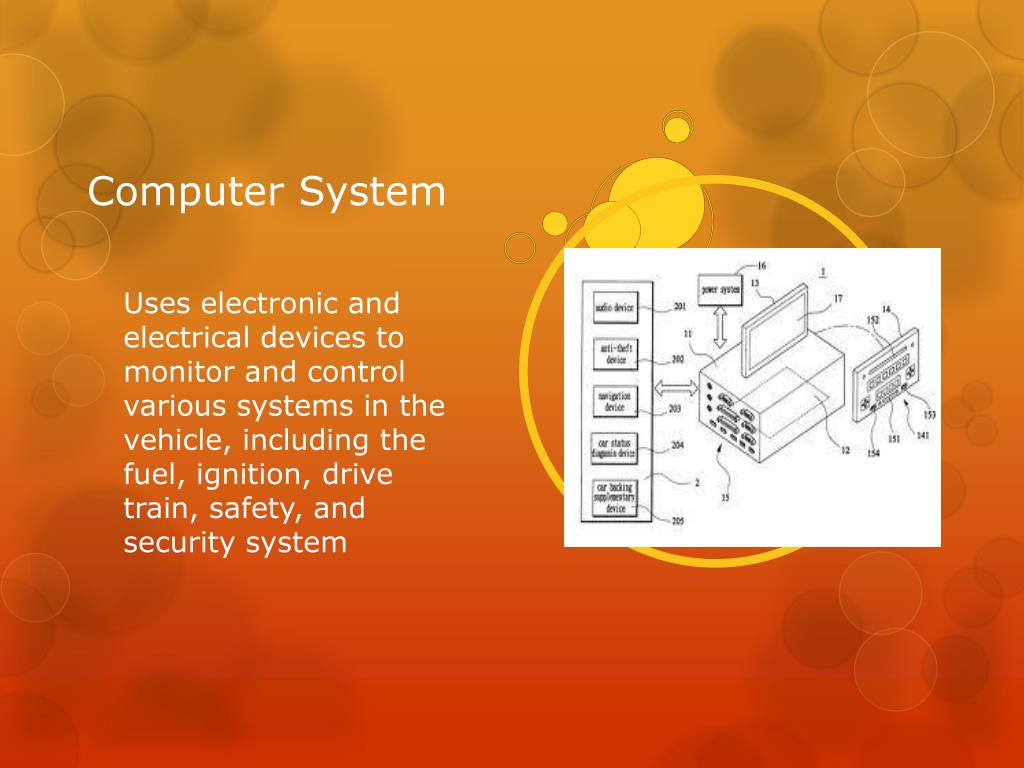

computer system
Computer System

Uses electronic and electrical devices to monitor and control various systems in the vehicle, including the fuel, ignition, drive train, safety, and security system

accessory system
Accessory System

Includes the air conditioner, sound system, power seats, power windows, and rear window de-fogger

safety system
Safety System

Includes seat-belts, air-bags, and security systems various safety systems are used on modern vehicles to protect both the driver and the passenger.
