slide1
0

Chronic obstructive pulmonary disease

Implementing NICE guidance

3rd. Edition - April 2012

NICE clinical guideline 101

what this presentation covers
What this presentation covers
  • Background
  • Scope
  • Definition
  • Recommendations
  • Costs and savings
  • NICE Pathway, NHS Evidence and National Prescribing Centre resources.
  • Discussion
  • NICE COPD quality standard
  • Find out more
epidemiology
Epidemiology
  • About 3 million people have chronic obstructive pulmonary disease (COPD) in the UK
  • Nearly 900,000 people in England and Wales are diagnosed as having COPD and an estimated 2 million people have COPD which remains undiagnosed
  • Symptoms usually develop insidiously making it difficult to determine the true prevalence of the disease
  • Most patients are not diagnosed until they are in their fifties
background
Background
  • COPD is predominantly caused by smoking and is characterised by airflow obstruction that: - is not fully reversible - does not change markedly over several months - is usually progressive in the long term
  • Exacerbations often occur, where there is a rapid and sustained worsening of symptoms beyond normal day-to-day variations requiring a change in treatment
scope
Scope
  • The scope for the guideline update was to examine:
  • Diagnosis and severity classification:
    • spirometry and post-bronchodilator values
    • multidimensional severity assessment indices (for example, the BODE index)
  • Management of stable COPD and prevention of disease progression
    • long-acting bronchodilators: beta2 agonists and anticholinergics (tiotropium, formoterol fumarate, salmeterol) as monotherapy and in combination, both with and without inhaled corticosteroids
    • mucolytic therapy (carbocisteine and mecysteine hydrochloride)

BODE = body mass index, airflow obstruction, dyspnoea and exercise tolerance

definition of copd
Definition of COPD
  • Airflow obstruction is defined as reduced FEV1/FVC ratio (< 0.7)
  • It is no longer necessary to have an FEV1 < 80% predicted for definition of airflow obstruction
  • If FEV1 is ≥ 80% predicted, a diagnosis of COPD should only be made in the presence of respiratory symptoms, for example breathlessness or cough
  • COPD produces symptoms, disability and impaired quality of life which may respond to pharmacological and other therapies that have limited or no impact on the airflow obstruction.

FEV1 = forced expiratory volume in 1 second

FVC = forced vital capacity

natural history
Natural History
  • The Fletcher-Peto Diagram, illustrating the effects of smoking on rate of decline in FEV1
diagnose copd
Diagnose COPD

Consider a diagnosis of COPD for people who are:

  • over 35, and
  • smokers or ex-smokers, and
  • have any of these symptoms:
    • - exertional breathlessness
    • - chronic cough
    • - regular sputum production,
    • frequent winter ‘bronchitis’
    • Wheeze
  • And no clinical features of asthma

[2004]

diagnose copd spirometry
Diagnose COPD: Spirometry
    • Perform spirometry if COPD seems likely [2004]
    • The presence of airflow obstruction should be confirmed by performing post-bronchodilatorspirometry[new 2010]
    • Consider alternative diagnoses or investigations in:
  • - older people without typical symptoms of COPD where the FEV1/FVC ratio is < 0.7
  • - younger people with symptoms of COPD where the FEV1/FVC ratio is ≥ 0.7 [new 2010]
    • All health professionals involved in the care of people with COPD should have access to spirometry and be competent in the interpretation of the results[2004]
differentiating copd from asthma 2
Differentiating COPD from asthma: 2
  • If diagnostic uncertainty remains, the following findings should be used to help identify asthma:
  • - FEV1 and FEV1/FVC ratio return to normal with drug therapy
  • - a very large (>400ml) FEV1 response to bronchodilators or to 30mg prednisolone daily for 2 weeks
  • - serial peak flow measuremenst showing significant (20% or greater) diurnal or day-to-day variability
  • - remaining diagnostic uncertainty may be resolved by referral for more detailed investigations
  • [2004]
diagnose copd assessment of severity
Diagnose COPD: assessment of severity
  • Assess severity of airflow obstruction using reduction in FEV1

* Symptoms should be present to diagnose COPD in people with mild airflow obstruction

** Or FEV1 < 50% with respiratory failure

[new 2010]

slide13

Managing stable COPD

Patient with COPD

Assess symptoms/problems

Manage those that are present as below

Patients with COPD should have access to the wide range of skills available from a multidisciplinary team

Palliative care

managing stable copd stop smoking
Managing stable COPD: Stop smoking
  • Encouraging patients with COPD to stop smoking is one of the most important components of their management
  • All COPD patients still smoking, regardless of age, should be encouraged to stop, and offered help to do so, at every opportunity
  • Record a smoking history, including pack years smoked
  • Offer nicotine replacement therapy, varenicline or bupropion (unless contraindicated) combined with a support programme to optimise quit rates [2010]

[2004]

managing stable copd promote effective inhaled therapy
Managing stable COPD: Promote effective inhaled therapy
  • In people with stable COPD who remain breathless or have exacerbations despite using short-acting bronchodilators as required, offer the following as maintenance therapy:
    • if FEV1 ≥ 50% predicted: either LABA or LAMA
    • if FEV1 < 50% predicted: either LABA+ICS in a combination inhaler, or LAMA
  • Offer LAMA in addition to LABA+ICS to people with COPD who remain breathless or have exacerbations despite taking LABA+ICS,irrespective of their FEV1

ICS = inhaled corticosteroid

LABA = long-acting beta2 agonist

LAMA = long-acting muscarinic agonist

[new 2010]

slide16

Managing stable COPD:

inhaled therapies

managing stable copd oral corticosteroids
Managing stable COPD: Oral corticosteroids
  • Maintenance use of oral corticosteroid therapy in COPD is not recommended
  • Some patients with advanced COPD may require maintenance oral corticosteroids when these cannot be withdrawn following an exacerbation
  • The does of oral corticosteroids should be kept as low as possible
  • Any patient treated with long term corticosteroid therapy should be monitored for the development of osteoporosis and given appropriate prophylaxis. Patients over the age of 65 should be started on prophylactic treatment without the need for monitoring
managing stable copd oxygen
Managing stable COPD: Oxygen
  • Clinicians should be aware that inappropriate oxygen therapy in
  • people with COPD may cause respiratory depression
  • Use appropriate oxygen therapy:
          • Long-term oxygen therapy
          • Ambulatory
          • Short burst

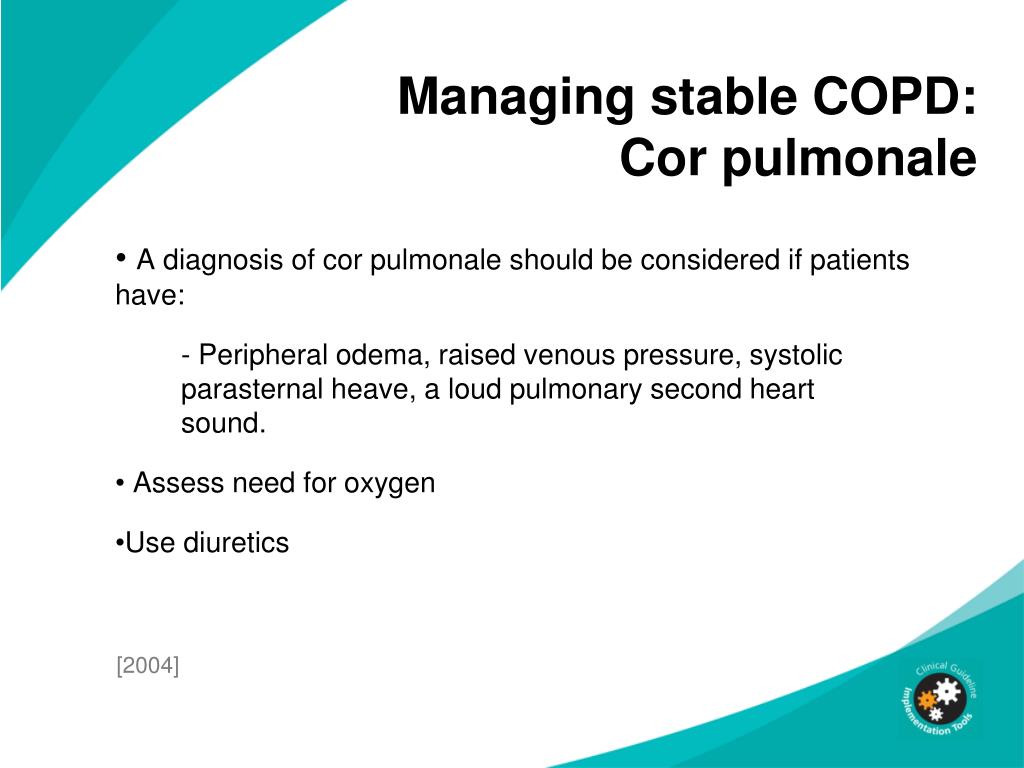

managing stable copd cor pulmonale
Managing stable COPD: Cor pulmonale
  • A diagnosis of corpulmonale should be considered if patients have:
  • - Peripheral odema, raised venous pressure, systolic parasternal heave, a loud pulmonary second heart sound.
  • Assess need for oxygen
  • Use diuretics
  • [2004]
managing stable copd pulmonary rehabilitation
Managing stable COPD: pulmonary rehabilitation

Make available to all appropriate people, including those recently hospitalised for an acute exacerbation

Hold at times that suit patients, and in buildings with good access

Pulmonary rehabilitation

An individually tailored multidisciplinary programme of care to optimise patients’ physical and social performance and autonomy

Offer to all patients who consider themselves functionally disabled by COPD

Tailor multi-component, multidisciplinary interventions to individual patient’s needs

[new 2010]

multidisciplinary working
Multidisciplinary working
  • COPD care should be delivered by a multidisciplinary team that includes respiratory nurse specialists
  • Consider referral to specialist departments (not just respiratory physicians)

[2004]

follow up of patients with copd
Follow-up of patients with COPD
  • Follow-up of patients should include:
  • -Highlighting the diagnosis in the case record
  • -Recording the values of spirometric tests
  • -Offering stop smoking advice
  • -Recording the opportunistic measurement of spirometric parameters
  • Patients should be reviewed at least once per year
  • For most patients with stable severe disease regular hospital review is not necessary
  • [2004]
managing exacerbations
Managing exacerbations
  • Minimise impact of exacerbations by:
    • - giving self-management advice on responding promptly to symptoms of exacerbation
    • - starting appropriate treatment with oral steroids and/or antibiotics
    • - use of non-invasive ventilation when indicated
    • - use of hospital-at-home or assisted-discharge schemes
  • The frequency of exacerbations should be reduced by appropriate use of inhaled corticosteroids and bronchodilators, and vaccinations

[2004]

use non invasive ventilation niv
Use non-invasive ventilation (NIV)
  • Use NIV as the treatment of choice for persistent hypercapnic ventilatory failure during exacerbations not responding to medical therapy
  • NIV should be delivered by staff trained in its application, experienced in its use and aware of its limitations
  • When starting NIV, make a clear plan covering what to do in the event of deterioration and agree ceilings of therapy
  • [2004]
palliative care
Palliative care
  • Palliative care depends on good understanding of patients’:
  • - Perception of their quality of life
  • - Satisfaction with current functioning
  • - Expectations
  • Opioids, benzodiazepines, tricyclic antidepressants, major tranquilisers and oxygen can be used for the palliation of breathlessness in patients with end stage COPD unresponsive to other medical therapy
  • Providers of care should adopt an effective and equitable standardised approach to palliative care such as that provided by the Liverpool care pathway or equivalent
  • [2004]
costs per 100 000 population
Costs per 100,000 population

Costs correct at Feb. 2011.

Costs not updated for 3rd. edition

discussion
Discussion
  • How can we improve identification and diagnosis of people over 35 who have a risk factor?
  • How does our use of spirometry compare with the recommendations?
  • How will our prescribing practice need to change?
  • What pulmonary rehabilitation services are available?
  • How do we minimise the risk of exacerbations for our patients?
nhs lung improvement
NHS Lung Improvement

Visit the NHS Lung Improvement Programme webpages (www.improvement.nhs.uk/lung) for further practical support consistent with implementing the recommendations in this guideline

nice pathway
NICE Pathway
  • The NICE COPD pathway covers the management of COPD in adults in primary care and secondary care
  • and shows recommendations on:
  • When to consider referral
  • Diagnosis
  • Managing stable COPD
  • Managing exacerbations
  • Palliative Care

Click here

to go to

NICE Pathways

nhs evidence
NHS Evidence

Visit NHS Evidence for the best available evidence on all aspects of respiratory diseases, including COPD

Click here to go to the NHS Evidence website

national prescribing centre
National Prescribing Centre

Visit the NPC for further resources supporting the NICE guideline on COPD

Click here to go to the National Prescribing Centre website

find out more
Find out more
  • Visit www.nice.org.uk/CG101 for:
    • the guideline
    • the quick reference guide
    • ‘Understanding NICE guidance’
    • costing report
    • audit support
    • baseline assessment tool
quality standards
Quality standards
  • A quality standard is a set of specific, concise statements that:
  • act as markers of high-quality, cost-effective patient care across a pathway or clinical area, covering treatment and prevention
  • are derived from the best available evidence such as NICE guidance or other NHS evidence accredited sources
  • are produced collaboratively with the NHS and social care, along with their partners and service users
copd quality standard
COPD quality standard
  • This quality standard covers Assessment, diagnosis and clinical management of chronic obstructive pulmonary disease (COPD) in adults.
  • It does not include prevention, screening or case finding.
  • The quality standard consists of 13 quality statements.
quality statement 1
Quality statement 1
  • People with COPD have one or more indicative symptoms recorded, and have the diagnosis confirmed by post‑bronchodilator spirometry carried out on calibrated equipment by healthcare professionals competent in its performance and interpretation.
  • Quality measure
  • Process:
  • Proportion of people with COPD who have one or more indicative symptoms recorded.
  • Proportion of people with COPD who have the diagnosis confirmed by post‑bronchodilatorspirometry
quality statement 2
Quality statement 2
  • People with COPD have a current individualised comprehensive management plan, which includes high-quality information and educational material about the condition and its management, relevant to the stage of disease.

Quality measure

Process:Proportion of people with COPD who have a current individualised comprehensive management plan, which includes high-quality information and educational material about the condition and its management, relevant to the stage of disease.

quality statement 3
Quality statement 3
  • People with COPD are offered inhaled and oral therapies, in accordance with NICE guidance, as part of an individualised comprehensive management plan.

Quality measure

Process:

a)Proportion of people with COPD who are offered inhaled and oral therapies in accordance with NICE guidance.

b) Proportion of people with COPD who receive their inhaled and oral therapies as part of an individualised comprehensive management plan.

quality statement 4
Quality statement 4
  • People with COPD have a comprehensive clinical and psychosocial assessment, at least once a year or more frequently if indicated, which includes degree of breathlessness, frequency of exacerbations, validated measures of health status and prognosis, presence of hypoxaemia and comorbidities.

Quality measure

Process: Proportion of people with COPD who had a comprehensive clinical and psychosocial assessment in the previous 12 months which includes degree of breathlessness, frequency of exacerbations, validated measures of health status and prognosis, presence of hypoxaemia and comorbidities.

quality statement 5
Quality statement 5
  • People with COPD who smoke are regularly encouraged to stop and are offered the full range of evidence-based smoking cessation support.

Quality measure

Process:

Proportion of people with COPD who smoke who are offered the full range of evidence-based smoking cessation support.

quality statement 6
Quality statement 6
  • People with COPD meeting appropriate criteria are offered an effective, timely and accessible multidisciplinary pulmonary rehabilitation programme.

Quality measure

Process:

Proportion of people with COPD meeting appropriate criteria who receive an effective, timely and accessible multidisciplinary pulmonary rehabilitation programme.

quality statement 7
Quality statement 7
  • People who have had an exacerbation of COPD are provided with individualised written advice on early recognition of future exacerbations, management strategies (including appropriate provision of antibiotics and corticosteroids for self-treatment at home) and a named contact.

Quality measure

Process:Proportion of people who have had an exacerbation of COPD who are given individualised written advice on early recognition of future exacerbations, management strategies (including appropriate provision of antibiotics and corticosteroids for self-treatment at home) and a named contact.

quality statement 8
Quality statement 8
  • People with COPD potentially requiring long-term oxygen therapy are assessed in accordance with NICE guidance by a specialist oxygen service.

Quality measure

Process:

Proportion of people with COPD with oxygen saturation less than or equal to 92% when stable, who are assessed for LTOT in accordance with NICE guidance by a specialist oxygen service.

quality statement 9
Quality statement 9
  • People with COPD receiving long-term oxygen therapy are reviewed in accordance with NICE guidance, at least annually, by a specialist oxygen service as part of the integrated clinical management of their COPD.

Quality measure

Process: Proportion of people with COPD receiving LTOT, who have had a review in the previous 12 months by a specialist oxygen service in accordance with NICE guidance, as part of the integrated clinical management of their COPD.

quality statement 10

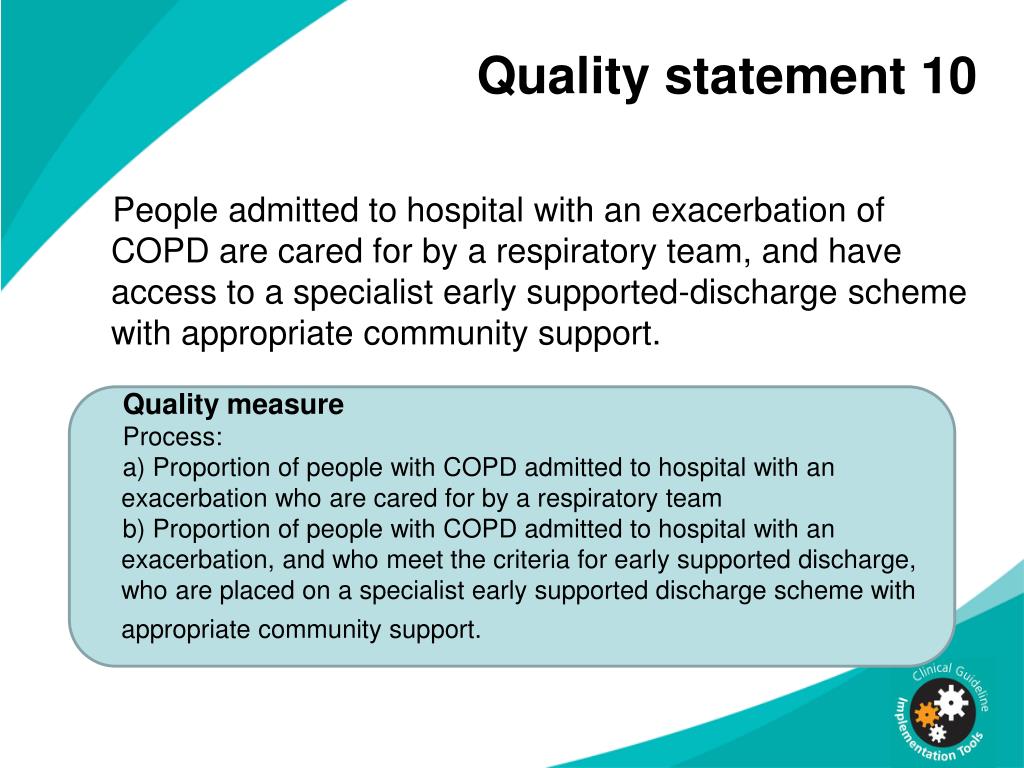

Quality statement 10
  • People admitted to hospital with an exacerbation of COPD are cared for by a respiratory team, and have access to a specialist early supported-discharge scheme with appropriate community support.

Quality measure

Process:

a) Proportion of people with COPD admitted to hospital with an exacerbation who are cared for by a respiratory team

b) Proportion of people with COPD admitted to hospital with an exacerbation, and who meet the criteria for early supported discharge, who are placed on a specialist early supported discharge scheme with appropriate community support.

quality statement 11
Quality statement 11
  • People admitted to hospital with an exacerbation of COPD and with persistent acidotic ventilatory failure are promptly assessed for, and receive, non‑invasive ventilation delivered by appropriately trained staff in a dedicated setting.
  • Quality measure
  • Process:
  • Proportion of people admitted to hospital with an exacerbation of COPD and with persistent acidotic ventilatory failure, who are promptly assessed for NIV, and for whom any subsequent delivery is promptly undertaken.
  • b) Proportion of people admitted to hospital and receiving NIV for an exacerbation of COPD and persistent acidotic ventilatory failure, who have it delivered by appropriately trained staff in a dedicated setting.
quality statement 12
Quality statement 12
  • People admitted to hospital with an exacerbation of COPD are reviewed within 2 weeks of discharge.

Quality measure

Process:

Proportion of people discharged from hospital following an admission with an exacerbation of COPD, who are reviewed within 2 weeks of discharge.

quality statement 13
Quality statement 13
  • People with advanced COPD, and their carers, are identified and offered palliative care that addresses physical, social and emotional needs.

Quality measure

Process:

Proportion of people with advanced COPD, and their carers, who receive palliative care that addresses physical, social and emotional needs.

what do you think
What do you think?
  • Did the implementation tool you accessed today meet your requirements, and will it help you to put the NICE guidance into practice?
  • We value your opinion and are looking for ways to improve our tools. Please complete this short evaluation form.
  • If you are experiencing problems accessing or using this tool, please email implementation@nice.org.uk

To open the links in this slide set right click over the link and choose ‘open link’
