objectives
Objectives
  • Distinguish between analog form and digital form.
  • State the functions of word processing, page composition, and illustration programs.
  • Explain the functions of PDLs.
  • Summarize the functions of Print Production Format (PPF) and Job Definition Format (JDF).

Permission granted to reproduce for educational use only.

objectives4
Objectives
  • Cite the definition of preflighting and explain its importance to prepress production.
  • Describe the basic creation, transmission, and output of electronic media.
  • List proofing methods used in the printing industry.

Permission granted to reproduce for educational use only.

objectives5
Objectives
  • Identify the basic functions of raster image processors (RIPs), imagesetters, and platesetters.
  • Define digital printing.

Permission granted to reproduce for educational use only.

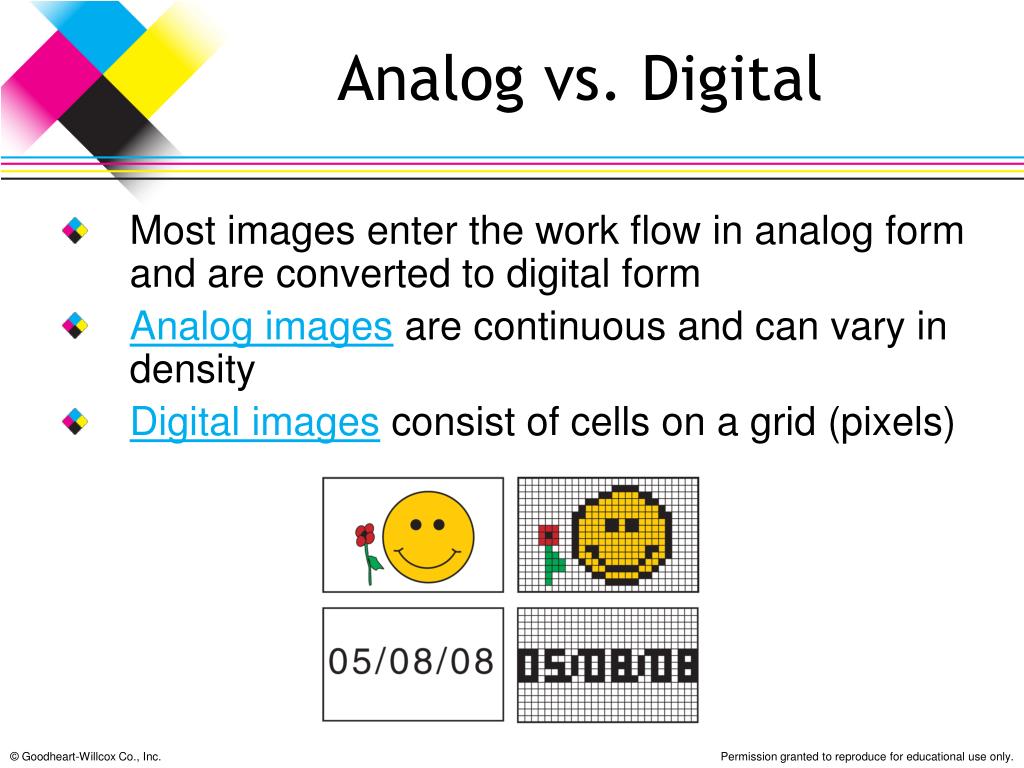

analog vs digital
Analog vs. Digital
  • Most images enter the work flow in analog form and are converted to digital form
  • Analog imagesare continuous and can vary in density
  • Digital imagesconsist of cells on a grid (pixels)

Permission granted to reproduce for educational use only.

the transition to digital
The Transition to Digital
  • Image reproduction was originally limited to type and black-and-white line drawings
  • Invention of photography in the 1800s made it possible to capture photographic images
  • Reproducing these images was not possible until the invention of the halftone screen in 1886
  • Electronic scanners and digital cameras are used now

Permission granted to reproduce for educational use only.

computer platforms
Computer Platforms
  • Major ones in use today:
    • PC
    • Macintosh computer
  • Defined by operating system used
  • Many service bureaususe a particular platform
  • Cross-platform programs, formats, or devices work on different platforms

Permission granted to reproduce for educational use only.

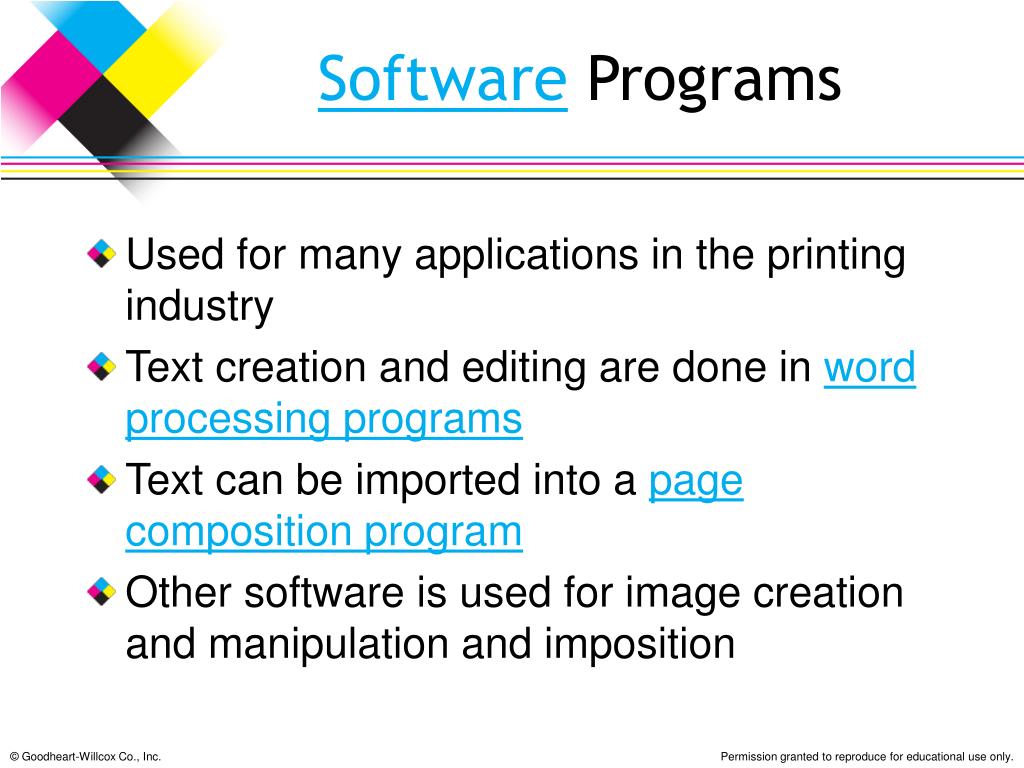

software programs
Software Programs
  • Used for many applications in the printing industry
  • Text creation and editing are done in word processing programs
  • Text can be imported into a page composition program
  • Other software is used for image creation and manipulation and imposition

Permission granted to reproduce for educational use only.

paint programs

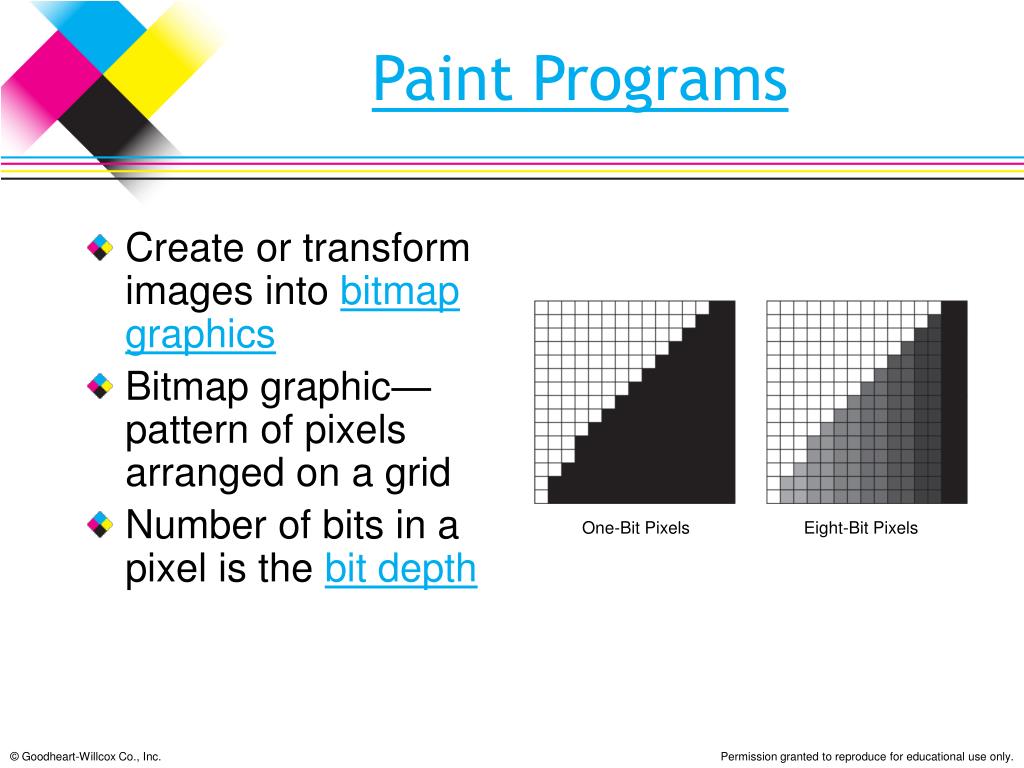

Create or transform images into bitmap graphics

Bitmap graphic—pattern of pixels arranged on a grid

Number of bits in a pixel is the bit depth

Paint Programs

One-Bit Pixels

Eight-Bit Pixels

Permission granted to reproduce for educational use only.

draw programs
Draw Programs
  • Use straight and curved lines to produce vector graphics
  • Vector graphics are represented as mathematical formulas
    • Can be greatly enlarged and still remain sharp
    • Require less computer memory than bitmap files

Permission granted to reproduce for educational use only.

image manipulation programs
Image Manipulation Programs
  • Paint programs that generate bitmap graphics
  • More advanced programs allow manipulation of almost any aspect of an image
    • Cropping images
    • Changing color and contrast
    • Removing and replicating images

Permission granted to reproduce for educational use only.

page composition programs
Page Composition Programs
  • Integrate files produced by very different types of software
  • Understand different languages used and translate elements into a common language

Permission granted to reproduce for educational use only.

translating files
Translating Files
  • PDL directs imaging performed by the output devices
  • Interpreterstranslate PostScript page descriptions line by line into patterns of dots or pixels
  • Encapsulated PostScript (EPS) filesinclude low-resolution representations of documents

Permission granted to reproduce for educational use only.

portable document format pdf
Portable Document Format (PDF)
  • Evolved out of PostScript technology
  • Designed to support:
    • CD-ROMs
    • Internet- and intranet-page production
    • Digital-printing technologies
    • Digital work flow of computer-to-plate (CTP) technology
  • A good preflighting tool

Permission granted to reproduce for educational use only.

integrating all of production
Integrating All of Production
  • International Cooperation for Integration of Prepress, Press, and Postpress (CIP3)was created to reduce compatibility problems
  • CIP3 produced Print Production Format (PPF)
  • PPF evolved into Job Definition Format (JDF)

Permission granted to reproduce for educational use only.

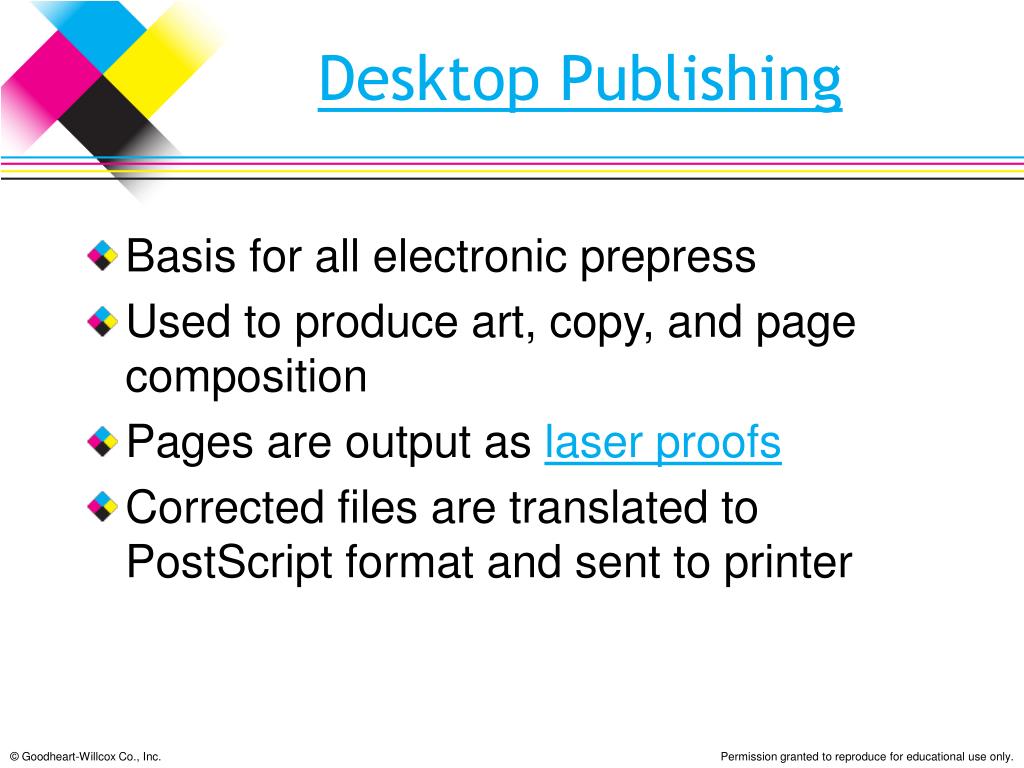

desktop publishing
Desktop Publishing
  • Basis for all electronic prepress
  • Used to produce art, copy, and page composition
  • Pages are output as laser proofs
  • Corrected files are translated to PostScript format and sent to printer

Permission granted to reproduce for educational use only.

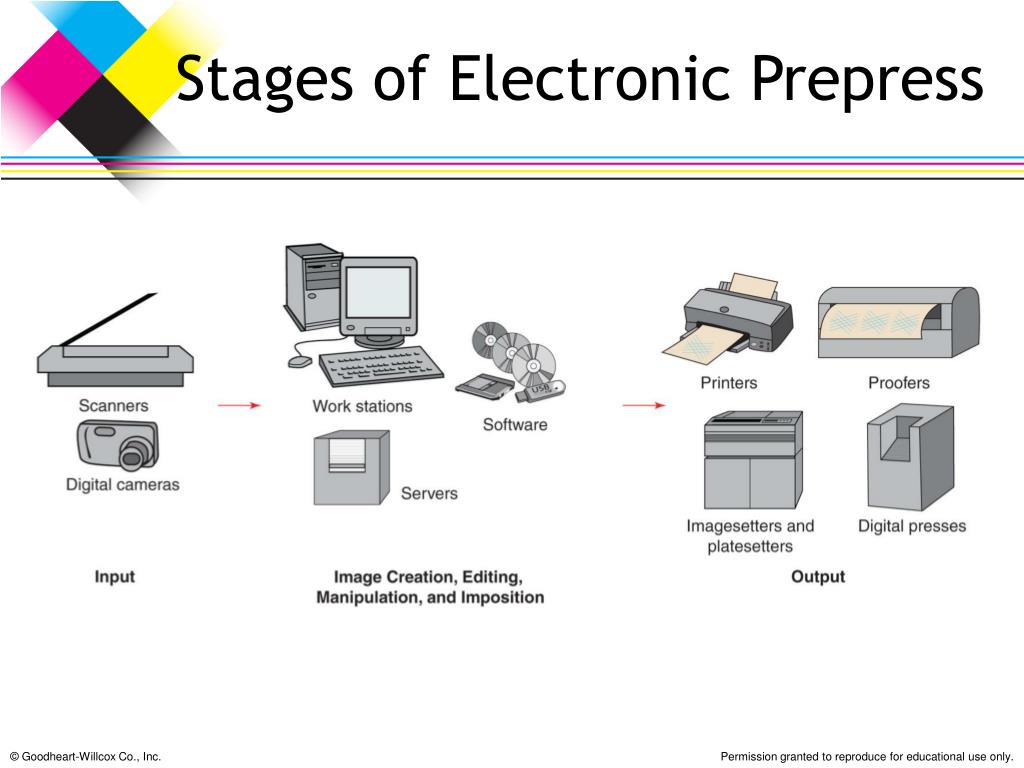

stages of electronic prepress
Stages of Electronic Prepress

Permission granted to reproduce for educational use only.

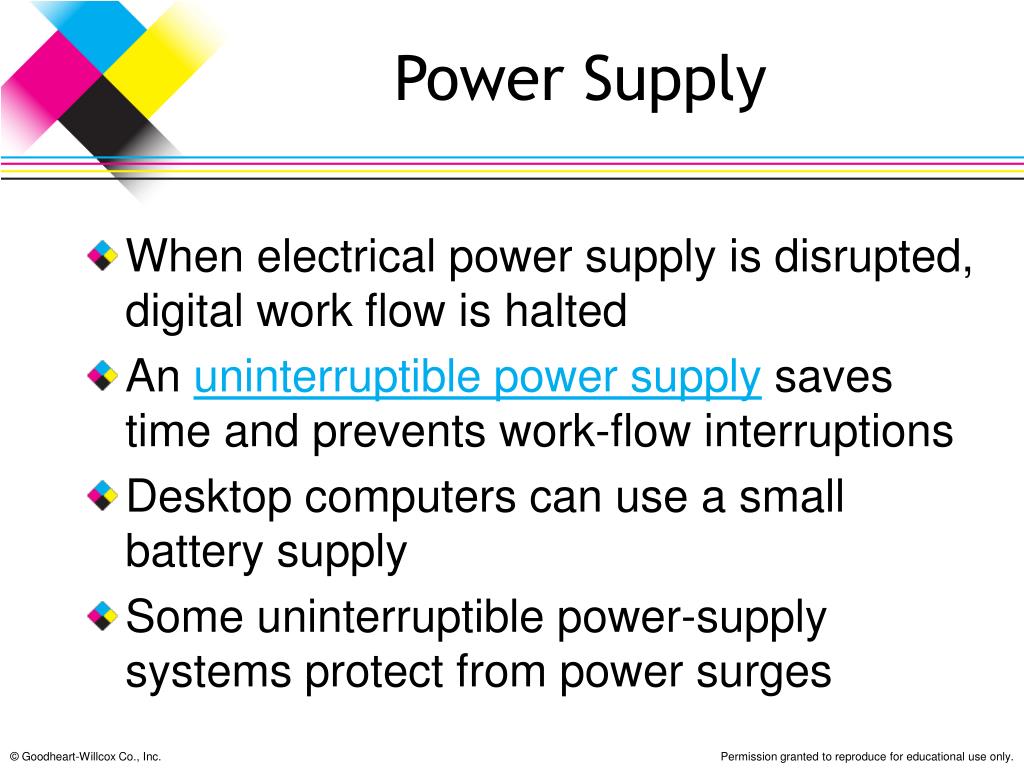

power supply
Power Supply
  • When electrical power supply is disrupted, digital work flow is halted
  • An uninterruptible power supplysaves time and prevents work-flow interruptions
  • Desktop computers can use a small battery supply
  • Some uninterruptible power-supply systems protect from power surges

Permission granted to reproduce for educational use only.

service bureaus

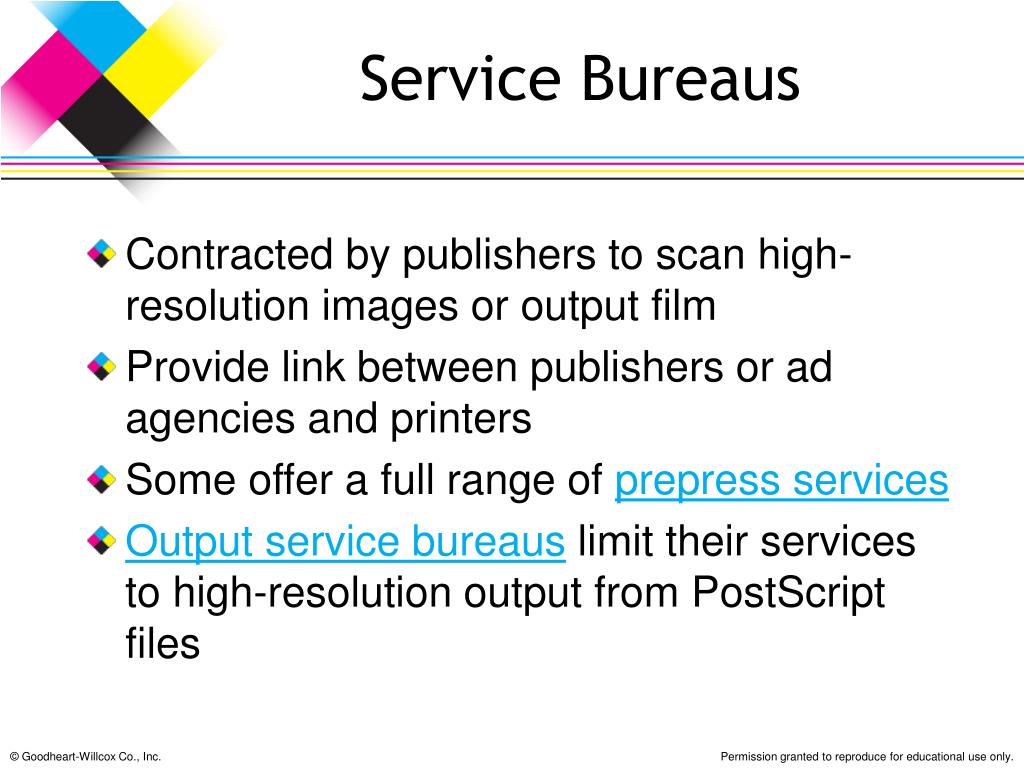

Service Bureaus
  • Contracted by publishers to scan high-resolution images or output film
  • Provide link between publishers or ad agencies and printers
  • Some offer a full range of prepress services
  • Output service bureauslimit their services to high-resolution output from PostScript files

Permission granted to reproduce for educational use only.

file formats
File Formats
  • Attention must be paid to the format in which data is stored
  • Text files can be saved in various formats and reformatted for use in other programs
  • Graphic image formats are not as flexible

Permission granted to reproduce for educational use only.

caution
Caution
  • Digital data can become damaged or corrupted
  • Always back up your files on a regular basis
  • When you make backup copies, you are copying your files to a second medium as a precaution, in case the first medium fails or is destroyed

Permission granted to reproduce for educational use only.

file naming conventions

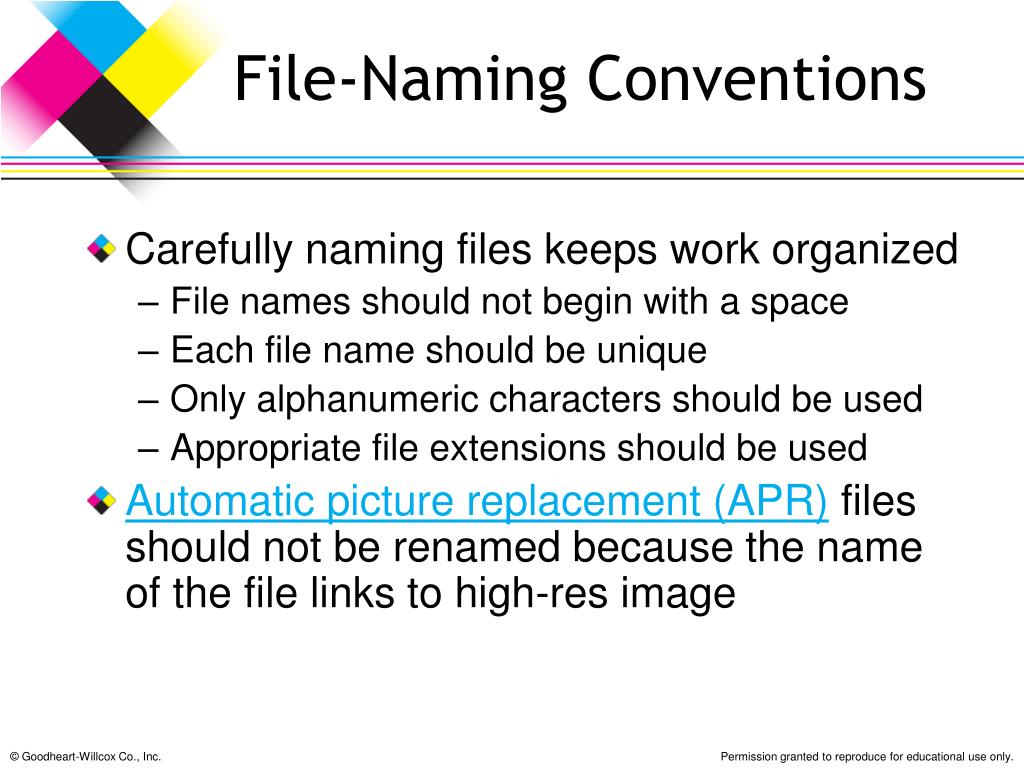

File-Naming Conventions
  • Carefully naming files keeps work organized
    • File names should not begin with a space
    • Each file name should be unique
    • Only alphanumeric characters should be used
    • Appropriate file extensions should be used
  • Automatic picture replacement (APR) files should not be renamed because the name of the file links to high-res image

Permission granted to reproduce for educational use only.

preflighting
Preflighting
  • Orderly review of files to identify problems:
    • No laser proofs supplied
    • Incorrect page sizes
    • Inadequate image bleeds
    • Scans supplied in wrong file format
  • Scitex Graphic Arts Users Association (SGAUA) publishes the Computer Ready Electronic File (CREF) II guidelines

Permission granted to reproduce for educational use only.

preflighting chart
Preflighting Chart

Permission granted to reproduce for educational use only.

preflighting chart cont
Preflighting Chart (Cont.)

Permission granted to reproduce for educational use only.

checklist for materials
Checklist for Materials

Permission granted to reproduce for educational use only.

file repair
File Repair
  • Digitally send files to a data-repair and -recovery service
  • Purchase file-repair software
    • Repairs certain film formats, media, or application files
    • Recovers graphics files that were accidentally deleted

Permission granted to reproduce for educational use only.

monitors
Monitors
  • Software used for word processing and page layout provides a What You See Is What You Get (WYSIWYG) display
  • Color-management software provides a What You See Is What You Print (WYSIWYP) display
  • Resolution and dot pitch are important

Permission granted to reproduce for educational use only.

types of monitors
Types of Monitors
  • Cathode-ray tube (CRT) monitors
    • Images are generated from beams of electrons striking phosphors on inside of screen
  • Liquid crystal display (LCD) monitors
    • Consist of a coating of liquid crystals between two thin sheets of polarized glass
  • Plasma display monitors
    • Cells containing plasma are activated by a small electric current

Permission granted to reproduce for educational use only.

crt monitors
CRT Monitors

Permission granted to reproduce for educational use only.

lcd monitors
LCD Monitors

Permission granted to reproduce for educational use only.

plasma display monitors
Plasma Display Monitors

Permission granted to reproduce for educational use only.

types of printers
Types of Printers
  • Dot matrix printers
  • Ink-jet printers
  • Laser printers
  • Thermal printers
  • Dye sublimation printers

Permission granted to reproduce for educational use only.

types of ink jet printers
Types of Ink-Jet Printers
  • Drop-on-demand ink-jet printers
    • Thermal ink-jet printers
    • Piezoelectric ink-jet printers
  • Continuous ink-jet printers
    • Emit a steady stream of droplets that receive electrical charges
    • Designed more for speed than image quality

Permission granted to reproduce for educational use only.

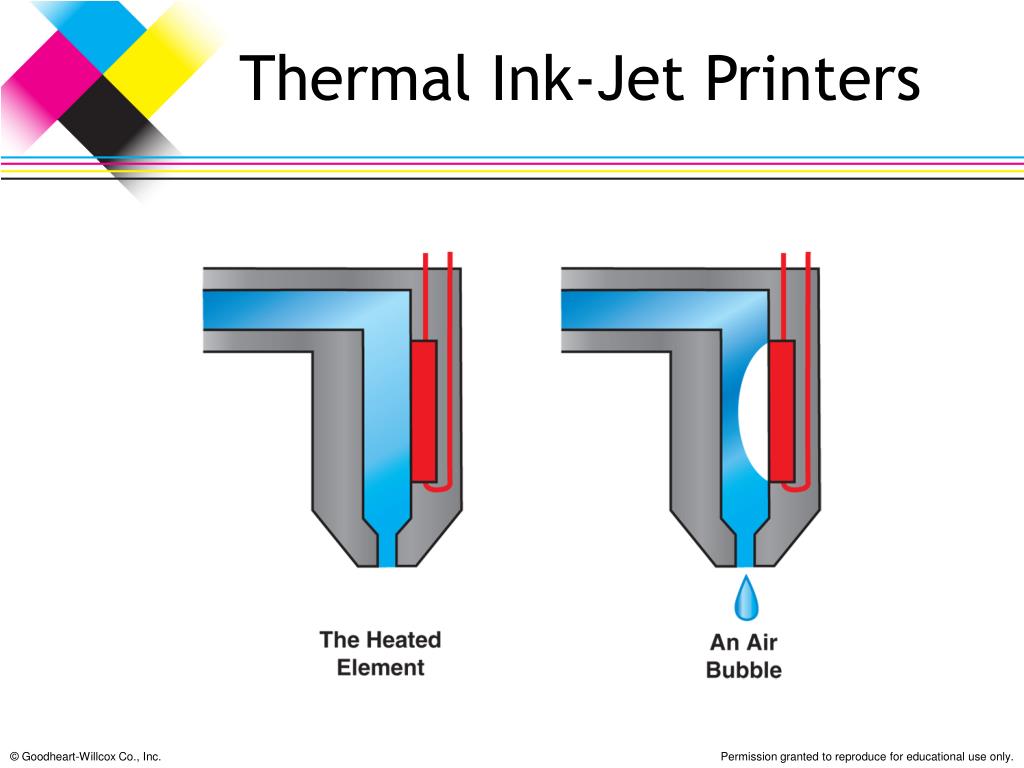

thermal ink jet printers
Thermal Ink-Jet Printers

Permission granted to reproduce for educational use only.

piezoelectric ink jet printers

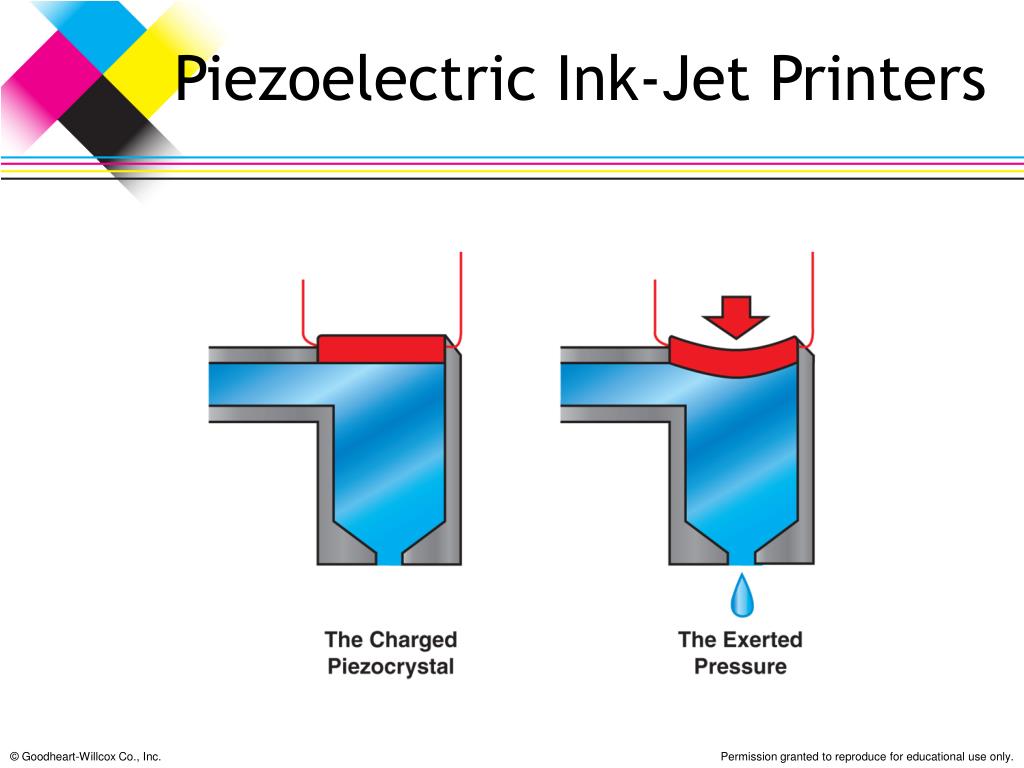

Piezoelectric Ink-Jet Printers

Permission granted to reproduce for educational use only.

laser printers
Laser Printers

Permission granted to reproduce for educational use only.

engine speed

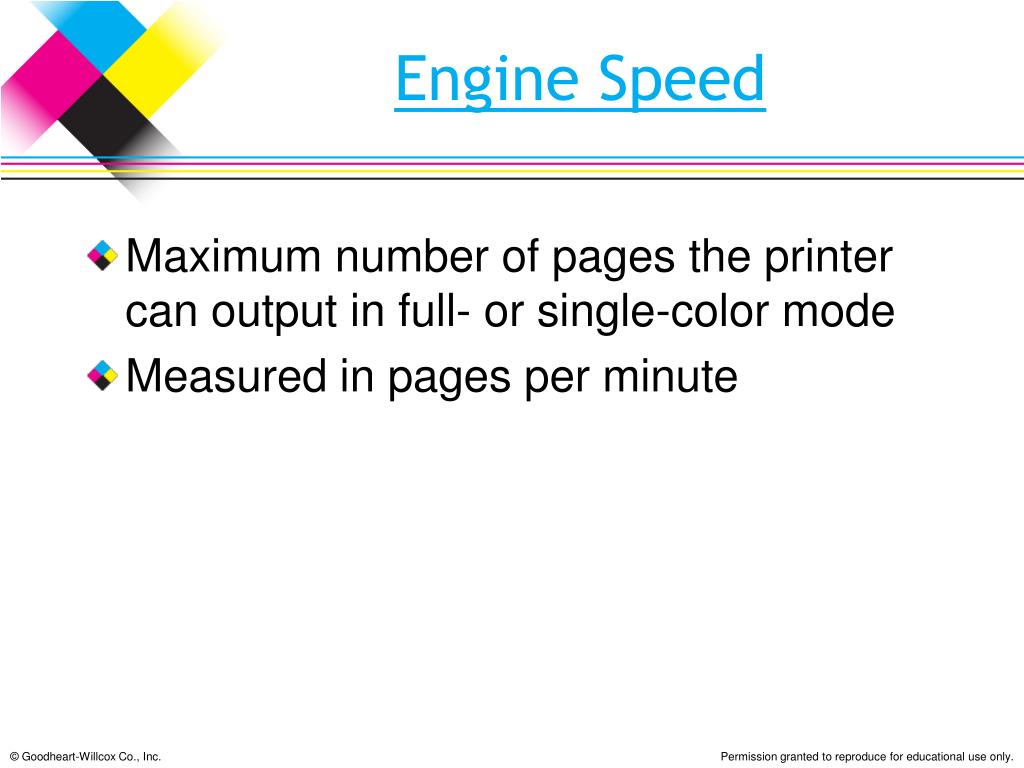

Engine Speed
  • Maximum number of pages the printer can output in full- or single-color mode
  • Measured in pages per minute

Permission granted to reproduce for educational use only.

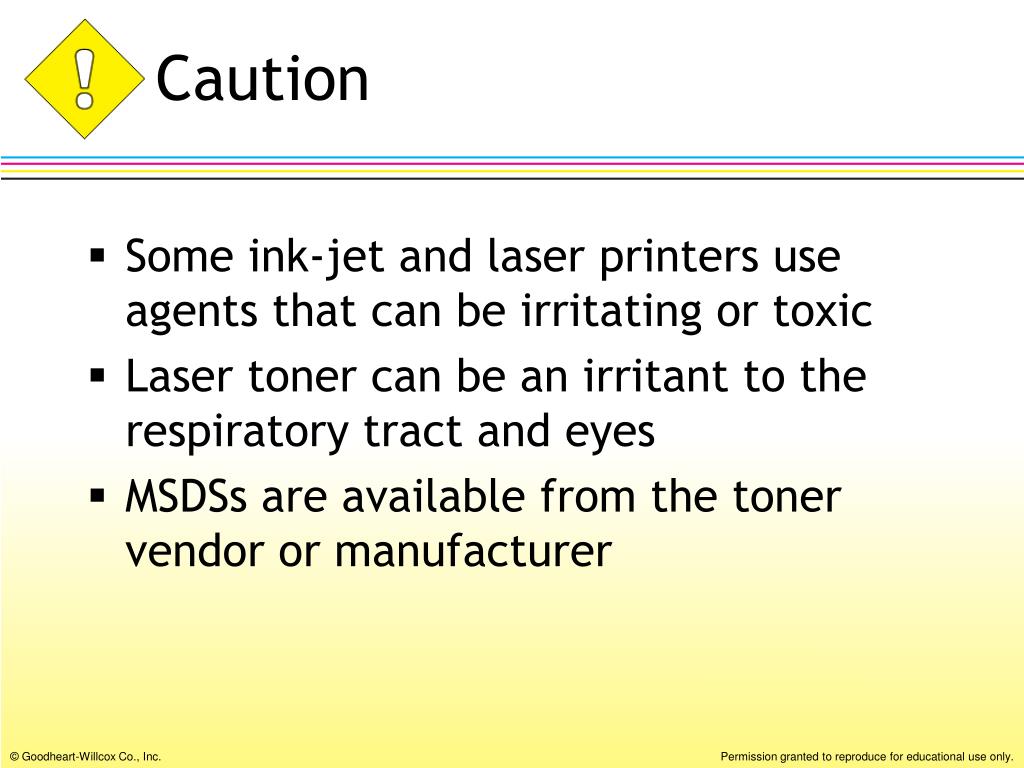

caution40
Caution
  • Some ink-jet and laser printers use agents that can be irritating or toxic
  • Laser toner can be an irritant to the respiratory tract and eyes
  • MSDSs are available from the toner vendor or manufacturer

Permission granted to reproduce for educational use only.

types of proofs
Types ofProofs
  • Hard proofs
  • Soft proofs
  • Digital proofs
  • Contract proofs

Permission granted to reproduce for educational use only.

proofing
Proofing
  • Customers often require proofs that accurately represent color and halftone reproduction
  • Digital-proofing systems can simulate the dot gainexpected on press
  • Remote proofingallows a printer to send digital files to out-of-town clients

Permission granted to reproduce for educational use only.

imagesetters

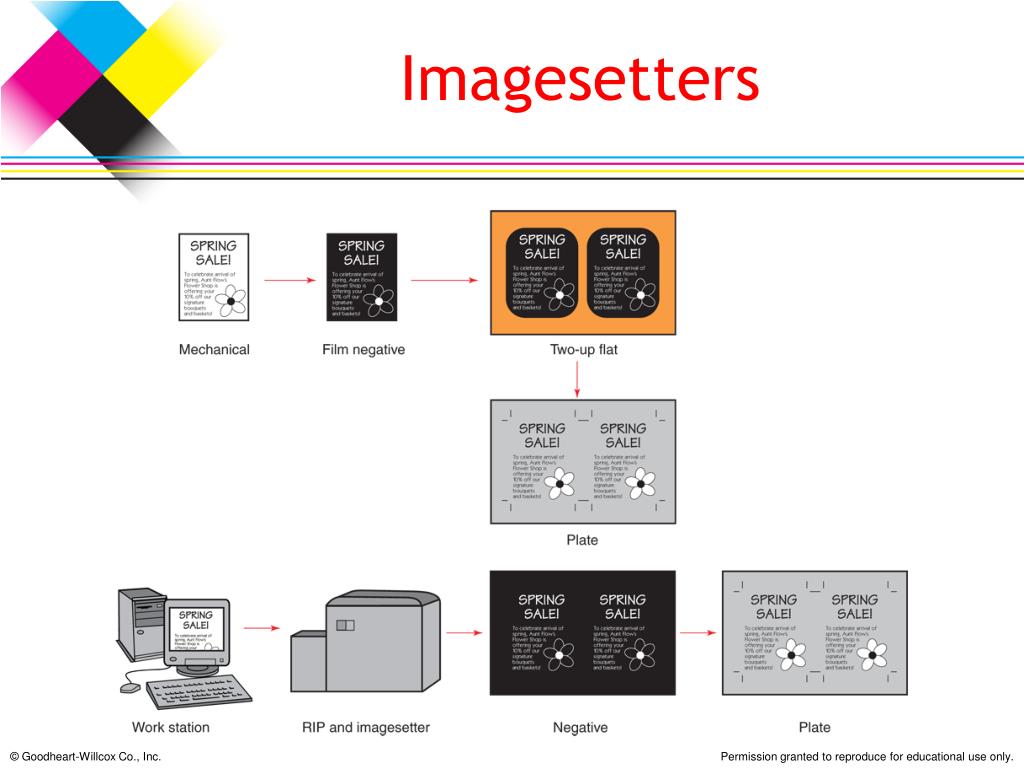

Imagesetters

Permission granted to reproduce for educational use only.

types of imagesetters
Types of Imagesetters

Permission granted to reproduce for educational use only.

imagesetter calibration
Imagesetter Calibration
  • Ensures high-quality output and repeatability
  • Imagesetter maintenance is important

Permission granted to reproduce for educational use only.

platesetters

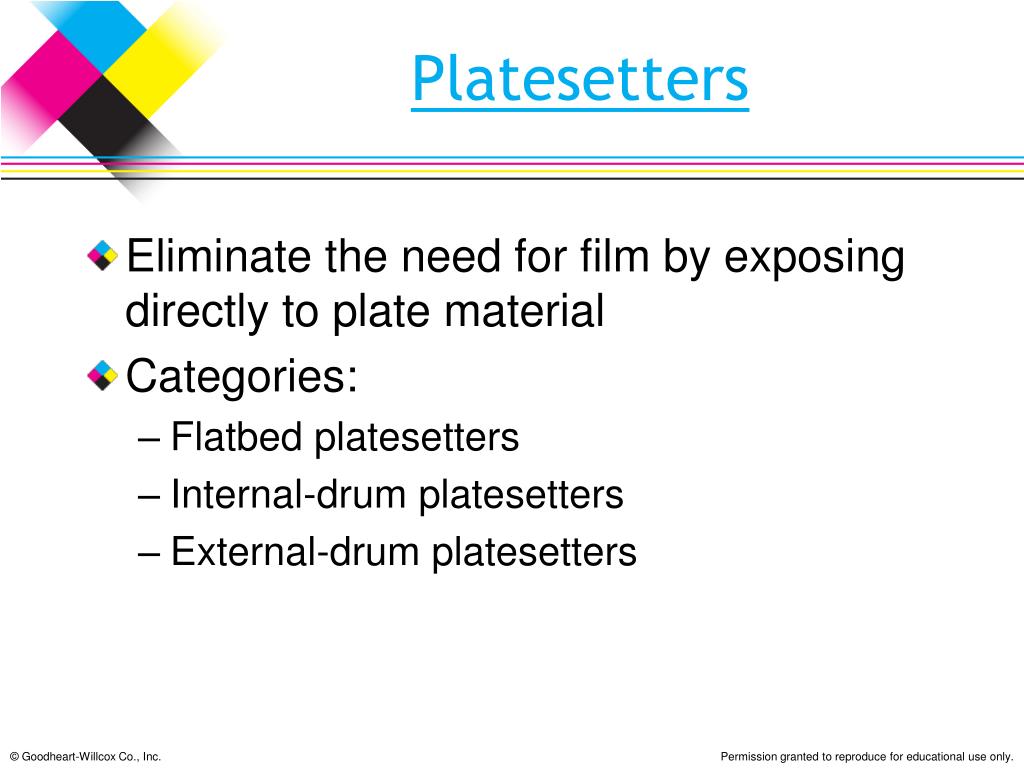

Platesetters
  • Eliminate the need for film by exposing directly to plate material
  • Categories:
    • Flatbed platesetters
    • Internal-drum platesetters
    • External-drum platesetters

Permission granted to reproduce for educational use only.

imagesetting systems
Imagesetting Systems
  • Consist of imagesetter and raster image processor (RIP)
  • RIP translates language of page-layout software into language of imagesetters and platesetters
  • Conversion of vector images to raster images is rasterization
  • Interpreter in the hardwareconverts files

Permission granted to reproduce for educational use only.

rip conversion
RIP Conversion

Permission granted to reproduce for educational use only.

automated ink control
Automated Ink Control
  • In the past, ink keys were manually set to ensure that areas of the plate received the right amount of ink
  • In the 1900s, plate scanners were developed, which set ink controls automatically
  • Now, digital data from the RIP can also set the ink keys automatically

Permission granted to reproduce for educational use only.

digital printing
Digital Printing
  • Any method of printing in which imaging of the plate occurs on press
  • Includes two processes:
    • Digital imaging (DI) technology
      • Advantages are shorter production time, reduced labor costs, cost-effective short runs, and greater registration control
    • Digital toner-based press technology
      • Main advantage is variable data printing (VDP)

Permission granted to reproduce for educational use only.

the internet
The Internet
  • Used to communicate, transfer documents, and sell products and services
  • Originally developed for the military
  • Fastest growing part is the World Wide Web (WWW)

Permission granted to reproduce for educational use only.

review questions
Review Questions
  • What is the main difference between analog form and digital form?

Analog images are continuous and can vary in density, while digital images consist of tiny cells on a very fine grid.

Permission granted to reproduce for educational use only.

review questions53
Review Questions
  • Text creation and editing should be done in a(n) _____ program.

word processing

Permission granted to reproduce for educational use only.

review questions54
Review Questions
  • What is the main function of a PDL?

A PDL directs the imaging that an output device performs.

Permission granted to reproduce for educational use only.

review questions55
Review Questions
  • PPF evolved into _____, which is a standard method of communication that eliminates the need for data to be reentered as a job moves from one system to another during production.

Job Definition Format (JDF)

Permission granted to reproduce for educational use only.

review questions56
Review Questions
  • What do we call the orderly review of files to identify potential problems that could occur during production?

Preflighting

Permission granted to reproduce for educational use only.

review questions57
Review Questions
  • Which of the following types of printers operates very similarly to photocopying machines?
  • A. Dot matrix printer
  • B. Dye sublimation printer
  • C. Ink-jet printer
  • D. Laser printer

D. Laser printer

Permission granted to reproduce for educational use only.

review questions58
Review Questions
  • What is the difference between hard proofs and soft proofs?

Hard proofs are tangible sheets of paper made directly from digital files, while soft proofs are the images displayed on a computer monitor.

Permission granted to reproduce for educational use only.

review questions59
Review Questions
  • A(n) _____ is a high-resolution output device that takes bitmap data generated by a RIP and writes it to film, paper, or printing plates, using a laser that writes the data line by line.

imagesetter

Permission granted to reproduce for educational use only.

review questions60
Review Questions
  • What is digital printing?

Any reproduction technology that receives electronic files and uses spots (or dots) for replication.

Permission granted to reproduce for educational use only.
