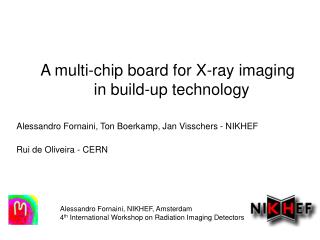

A multi-chip board for X-ray imaging

in build-up technology

Alessandro Fornaini, Ton Boerkamp, Jan Visschers - NIKHEF

Rui de Oliveira - CERN

Alessandro Fornaini, NIKHEF, Amsterdam

4th International Workshop on Radiation Imaging Detectors

slide2

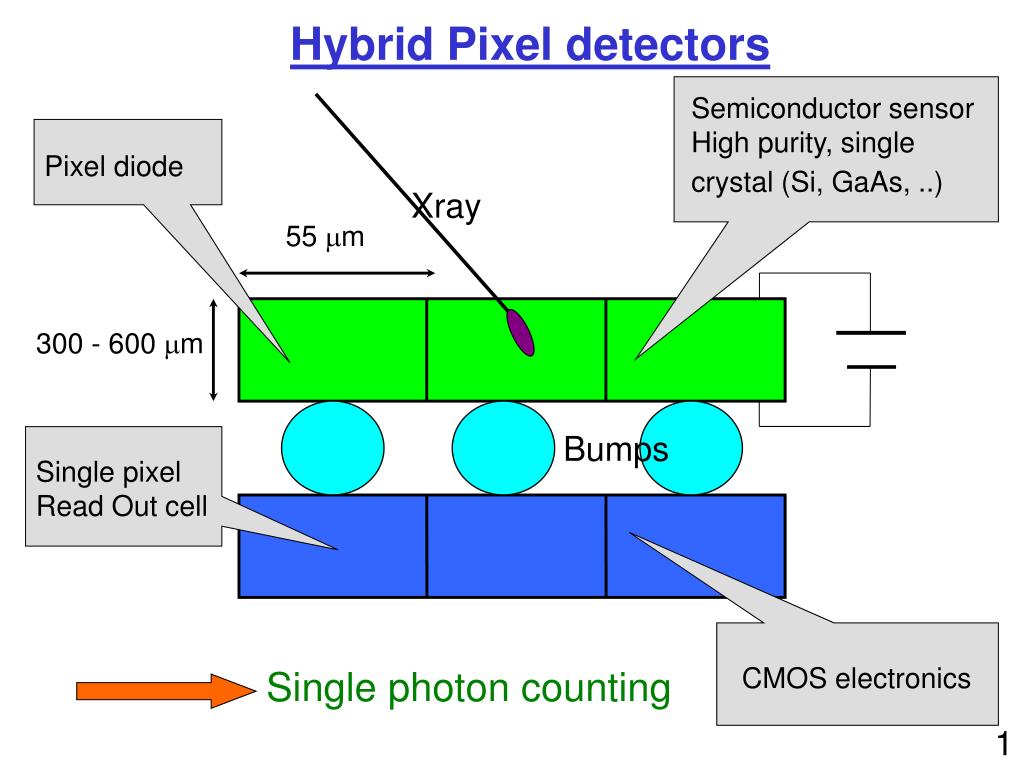

Hybrid Pixel detectors

Semiconductor sensor

High purity, single

crystal (Si, GaAs, ..)

Pixel diode

Xray

55 mm

300 - 600 mm

Bumps

Single pixel

Read Out cell

CMOS electronics

Single photon counting

1

slide3

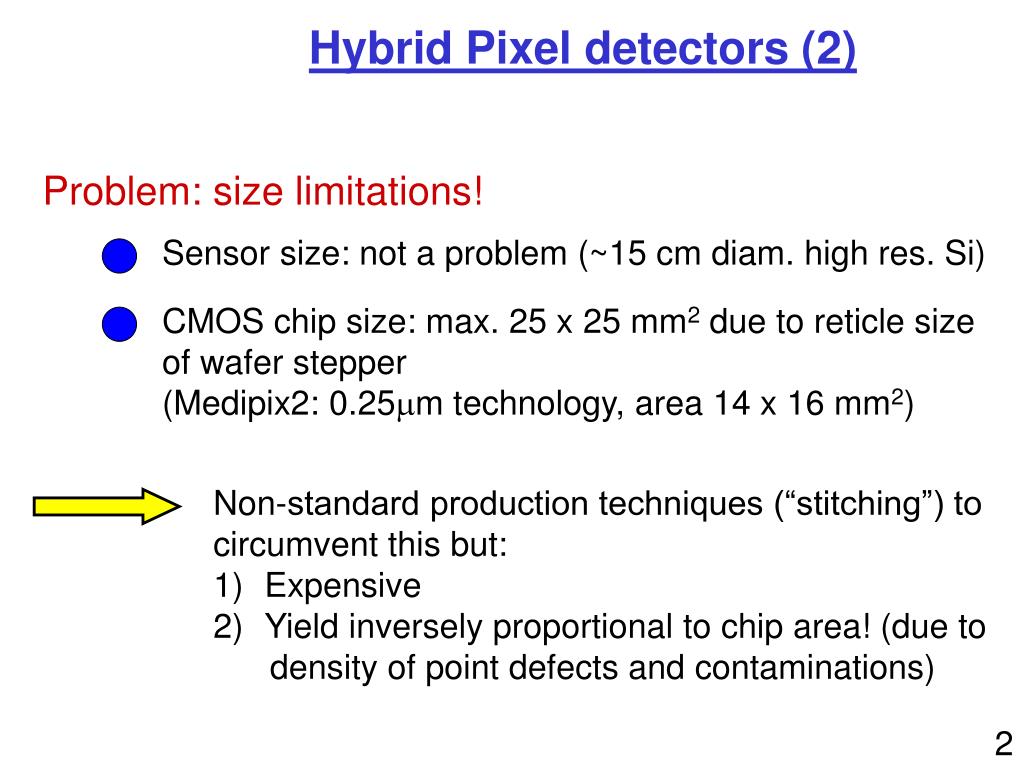

Hybrid Pixel detectors (2)

Problem: size limitations!

Sensor size: not a problem (~15 cm diam. high res. Si)

CMOS chip size: max. 25 x 25 mm2 due to reticle size

of wafer stepper

(Medipix2: 0.25mm technology, area 14 x 16 mm2)

  • Non-standard production techniques (“stitching”) to
  • circumvent this but:
  • Expensive
  • Yield inversely proportional to chip area! (due to
  • density of point defects and contaminations)

2

slide4

3.3V

Muros2

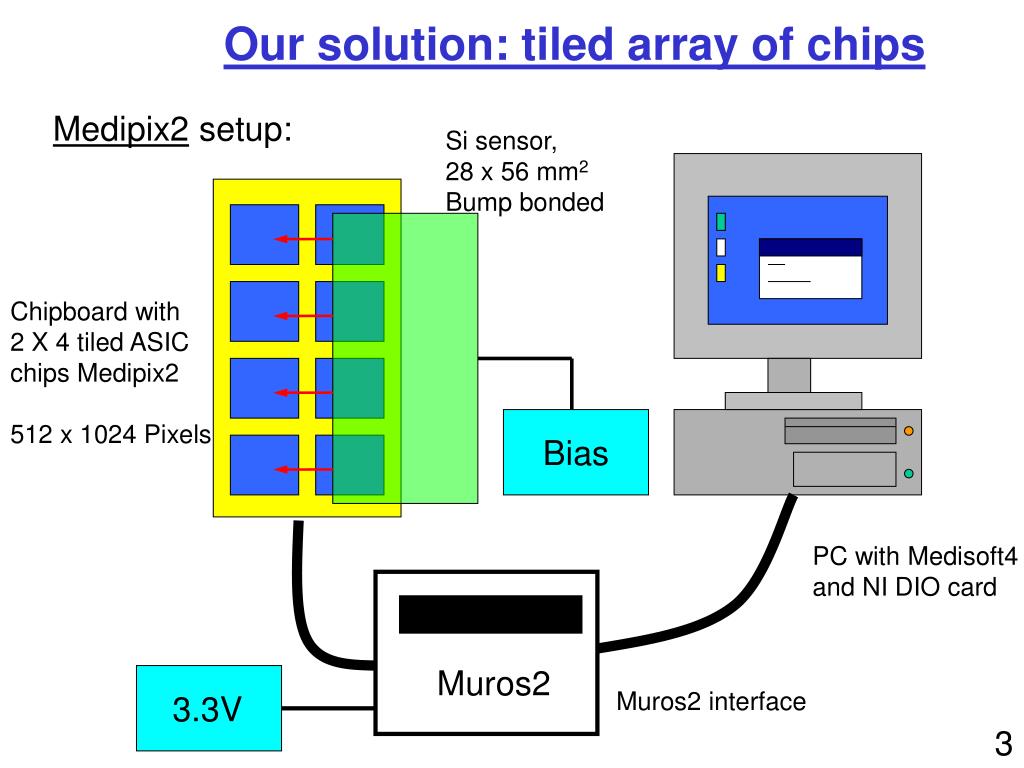

Our solution: tiled array of chips

Medipix2 setup:

Si sensor,

28 x 56 mm2

Bump bonded

Chipboard with

2 X 4 tiled ASIC

chips Medipix2

512 x 1024 Pixels

Bias

PC with Medisoft4

and NI DIO card

Muros2 interface

3

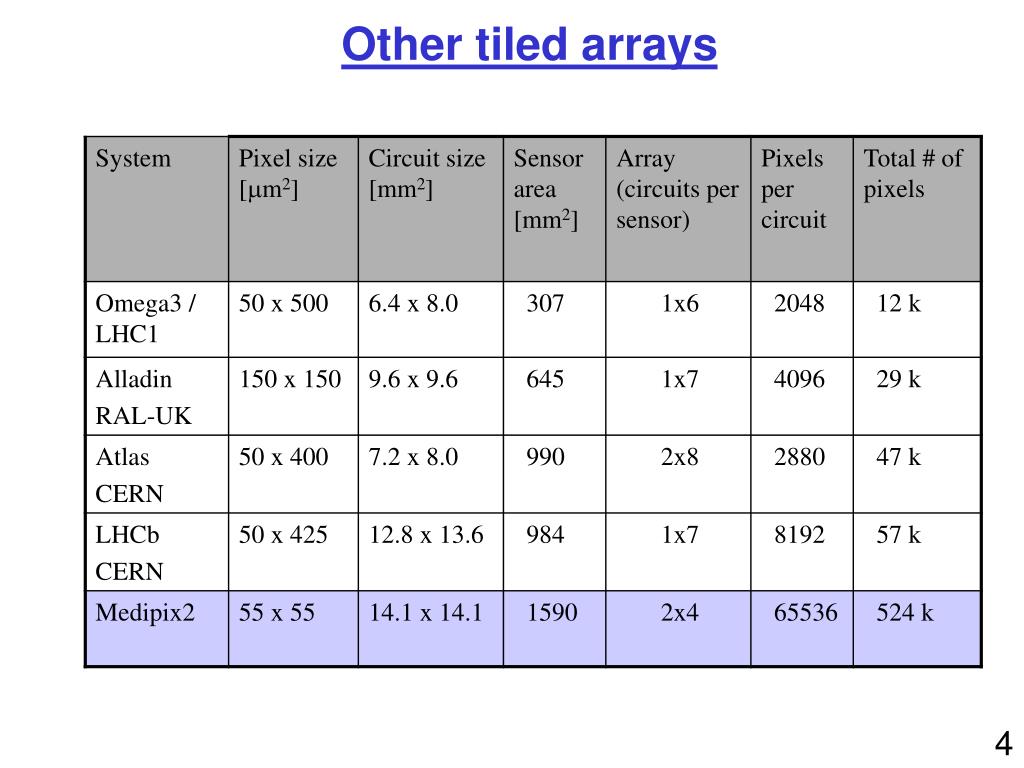

medipix2 setup
Medipix2 setup

8 Medipix2 ASIC chips, 14 X 16 mm2

1 High Res. Si sensor, 28 X 56 mm2

Chipboard in Chip-on-Board technology

Interface card to PCI DIO card (Muros2)

Sensor bias voltage supply (commercial)

PC with HS DIO board (commercial)

slide7

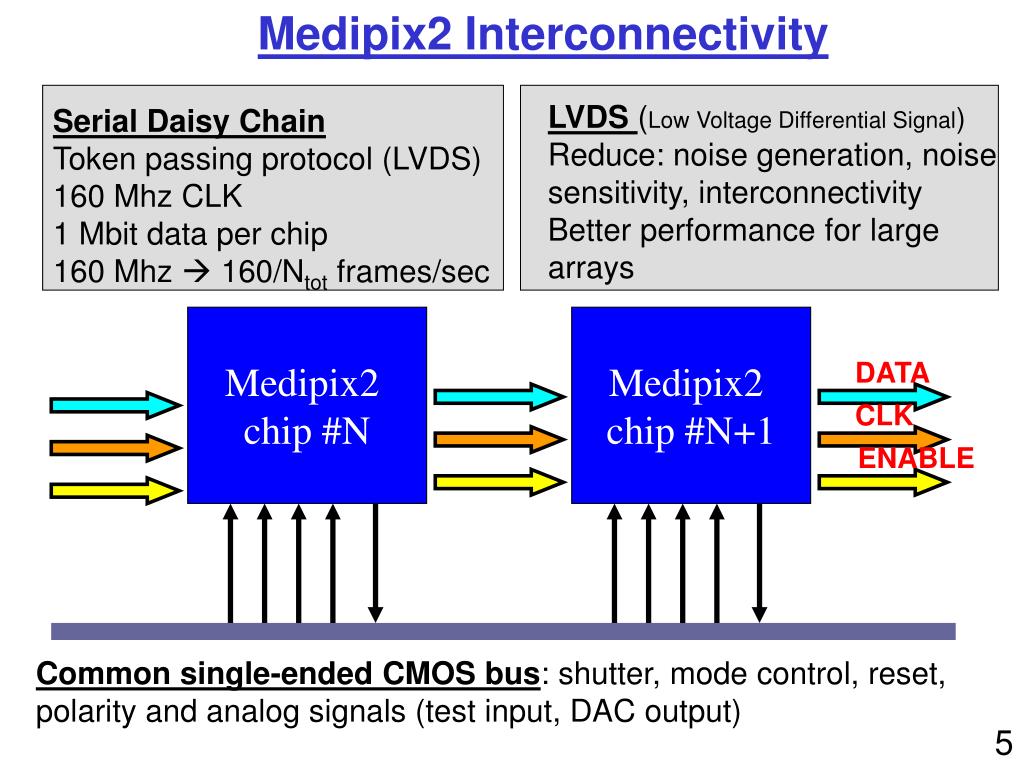

Medipix2 Interconnectivity

LVDS (Low Voltage Differential Signal)

Reduce: noise generation, noise

sensitivity, interconnectivity

Better performance for large

arrays

Serial Daisy Chain

Token passing protocol (LVDS)

160 Mhz CLK

1 Mbit data per chip

160 Mhz  160/Ntot frames/sec

Medipix2

chip #N

Medipix2

chip #N+1

DATA

CLK

ENABLE

Common single-ended CMOS bus: shutter, mode control, reset,

polarity and analog signals (test input, DAC output)

5

slide8

5

4

Layers 3, 4, 5

metal:

Common CMOS

bus

6

3

7

2

1

8

Connector

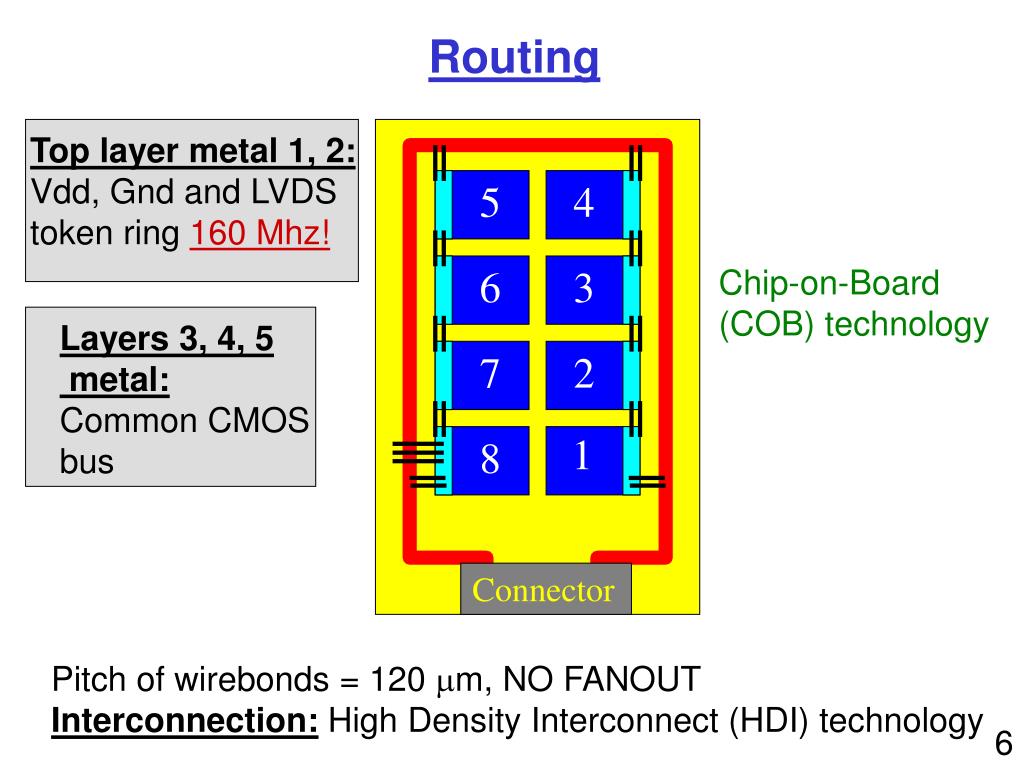

Routing

Top layer metal 1, 2:

Vdd, Gnd and LVDS

token ring 160 Mhz!

Chip-on-Board

(COB) technology

Pitch of wirebonds = 120 mm, NO FANOUT

Interconnection: High Density Interconnect (HDI) technology

6

slide9

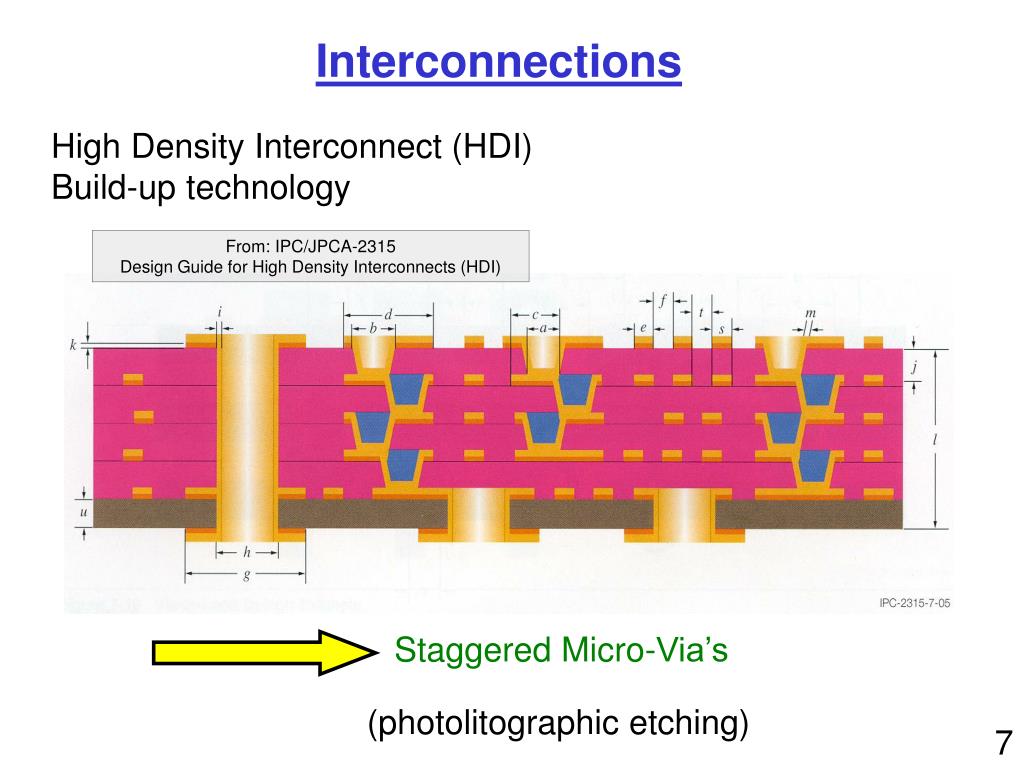

Interconnections

High Density Interconnect (HDI)

Build-up technology

From: IPC/JPCA-2315

Design Guide for High Density Interconnects (HDI)

Staggered Micro-Via’s

(photolitographic etching)

7

slide10

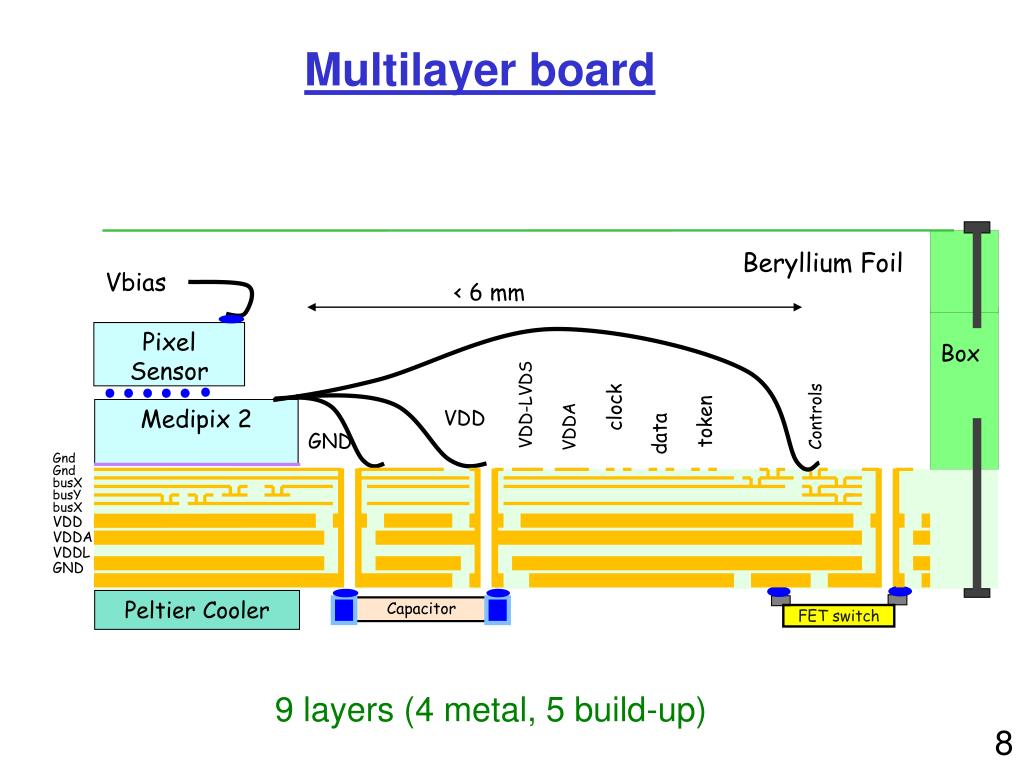

Multilayer board

Beryllium Foil

Vbias

< 6 mm

Box

Pixel Sensor

clock

VDD-LVDS

Medipix 2

token

VDD

Controls

VDDA

data

GND

Gnd

Gnd

busX

busY

busX

VDD

VDDA

VDDL

GND

Peltier Cooler

Capacitor

FET switch

9 layers (4 metal, 5 build-up)

8

slide11

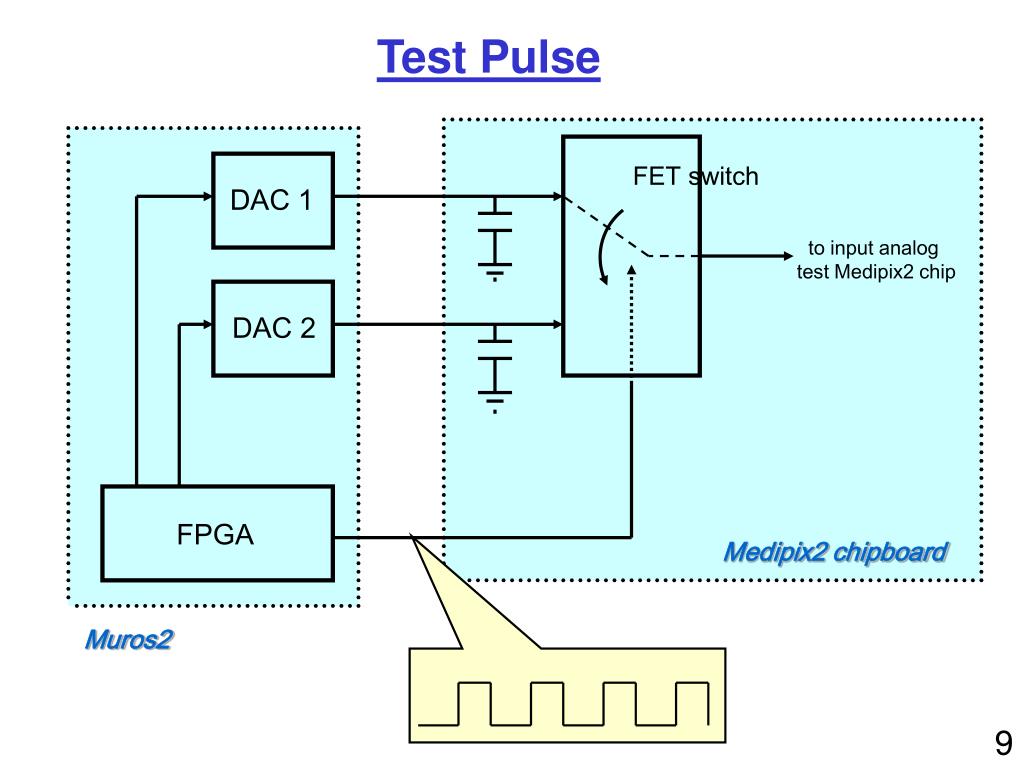

Test Pulse

FET switch

DAC 1

to input analog

test Medipix2 chip

DAC 2

FPGA

Medipix2 chipboard

Muros2

9

slide12

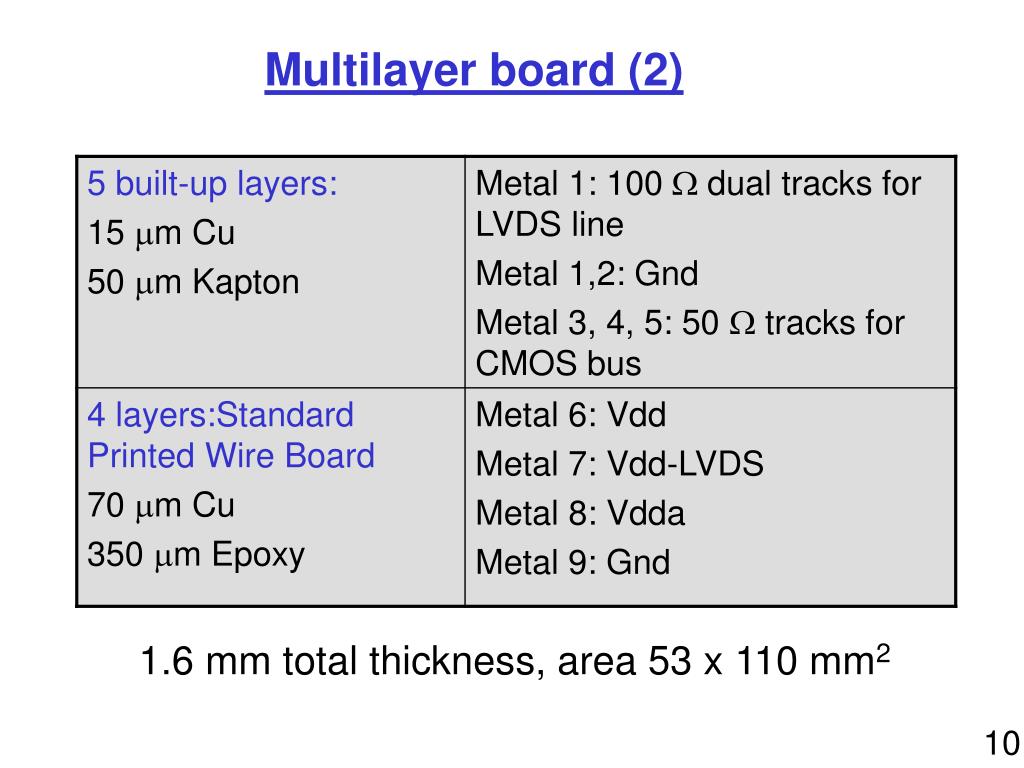

Multilayer board (2)

1.6 mm total thickness, area 53 x 110 mm2

10

slide13

through via

micro via's

& Bond Pads

VDDA

spare

clock

token

data

Capacitor

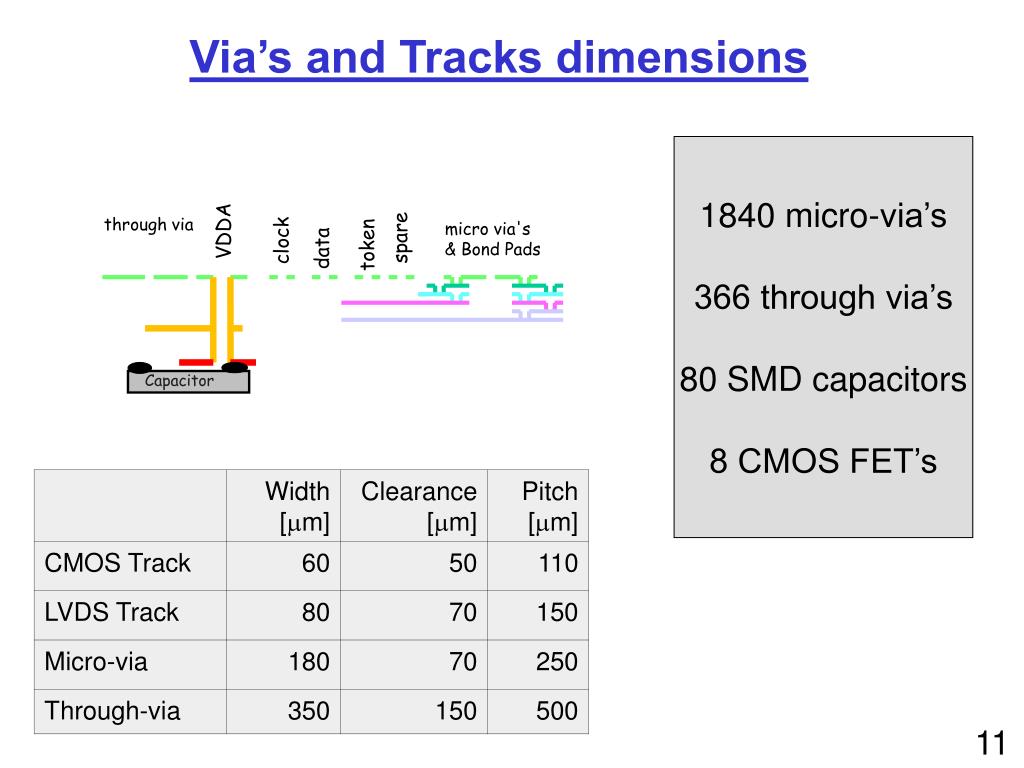

Via’s and Tracks dimensions

1840 micro-via’s

366 through via’s

80 SMD capacitors

8 CMOS FET’s

11

slide14

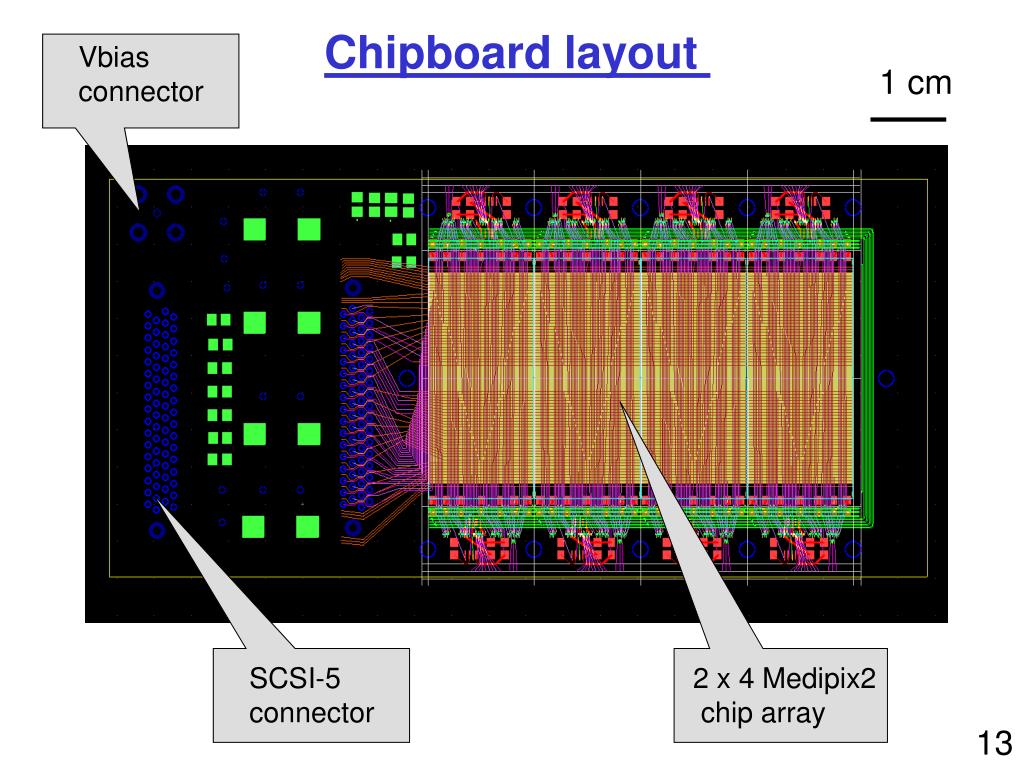

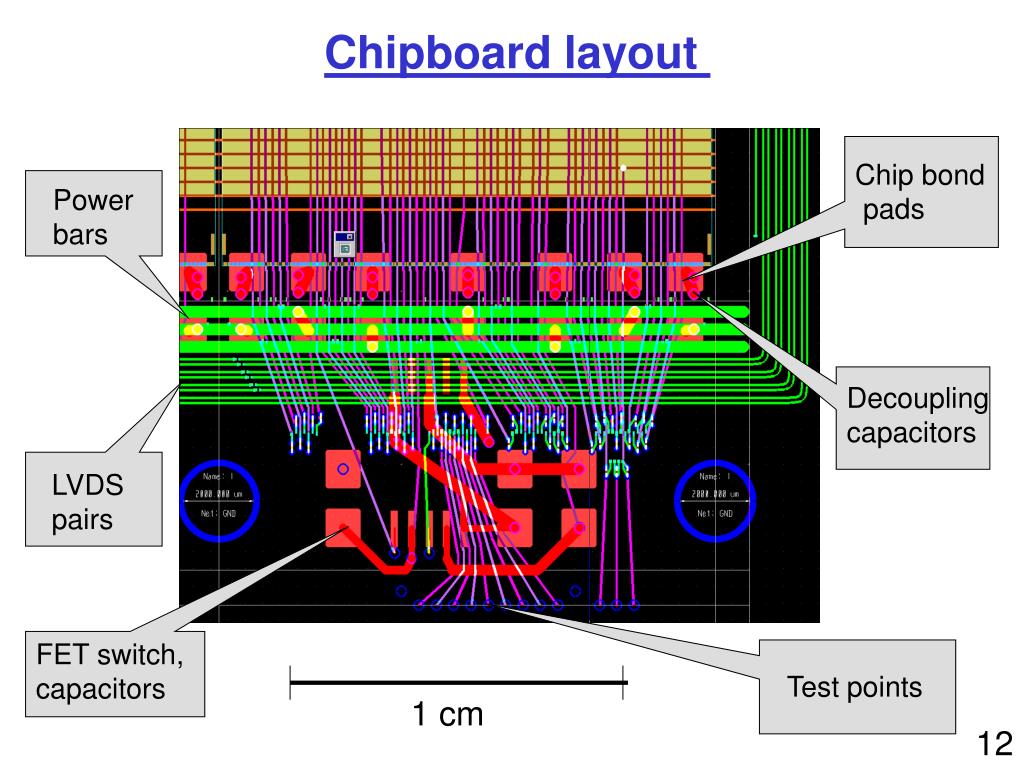

Chipboard layout

Chip bond

pads

Power

bars

Decoupling

capacitors

LVDS

pairs

FET switch,

capacitors

Test points

1 cm

12

slide15

Chipboard layout

Vbias

connector

1 cm

SCSI-5

connector

2 x 4 Medipix2

chip array

13

slide16

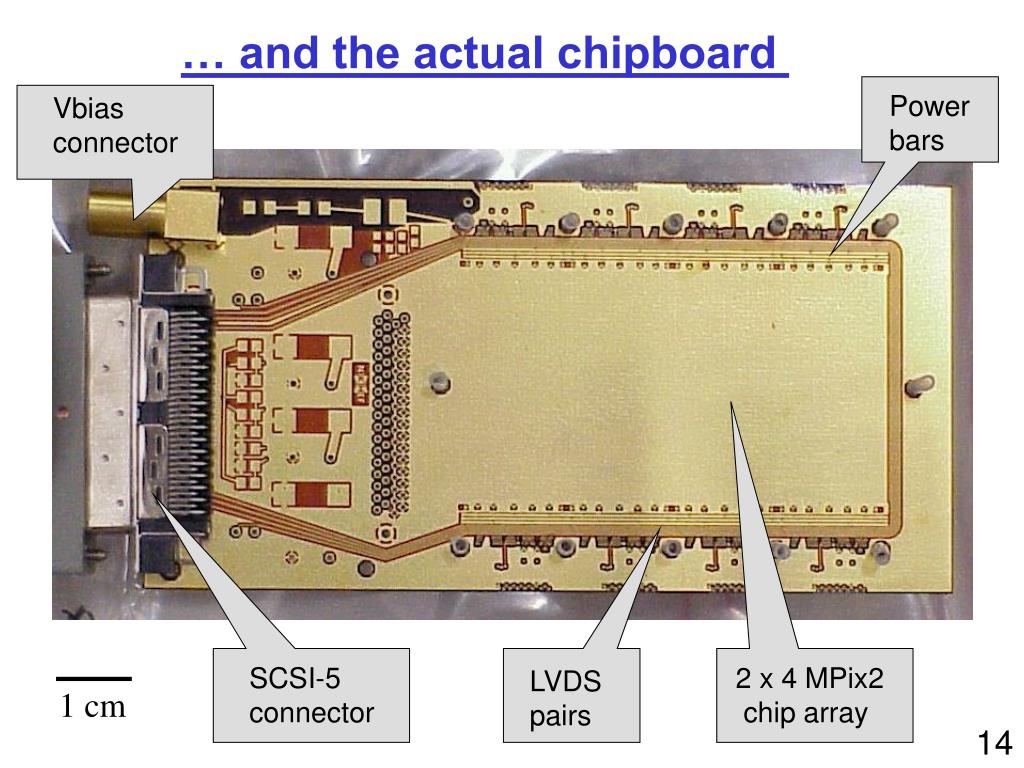

… and the actual chipboard

Power

bars

Vbias

connector

SCSI-5

connector

2 x 4 MPix2

chip array

LVDS

pairs

1 cm

14

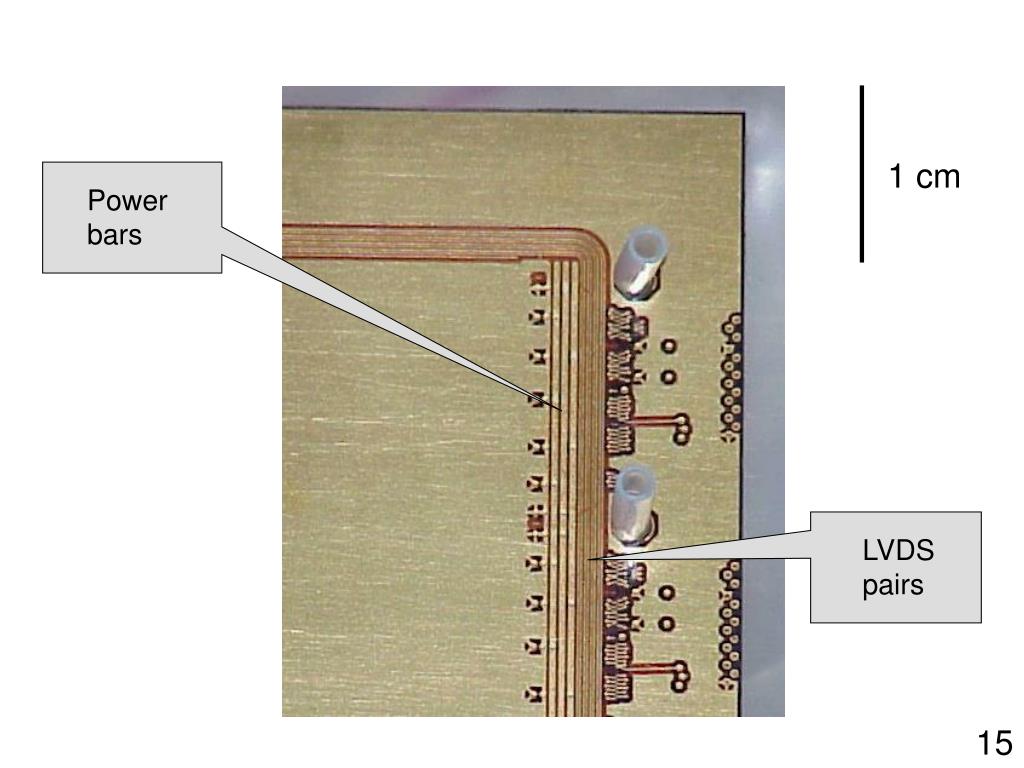

slide17

1 cm

Power

bars

LVDS

pairs

15

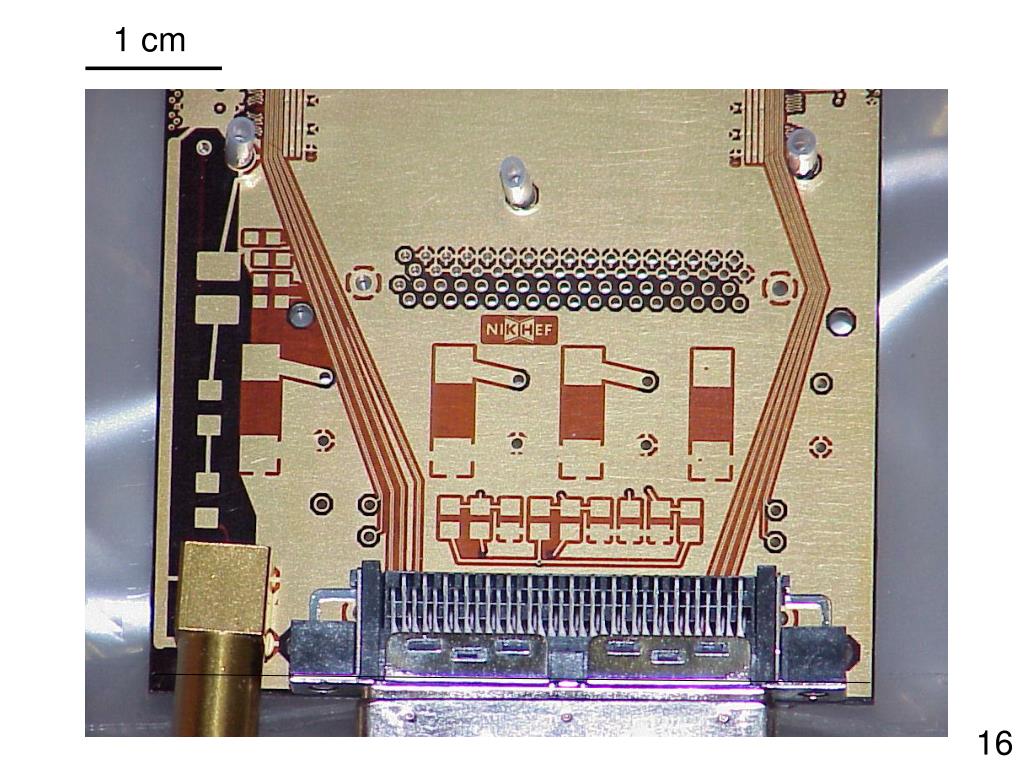

slide19

Work in progress! Currently:

- Evaluating different glues

- Gluing and wire bonding

- Testing LVDS line with 8 Medipix2 chips (no sensor) mounted on the chipboard

Planning (~ 1 month):

Testing connections with MPix2 chips

Critical: communication speed tests (160 Mhz?)

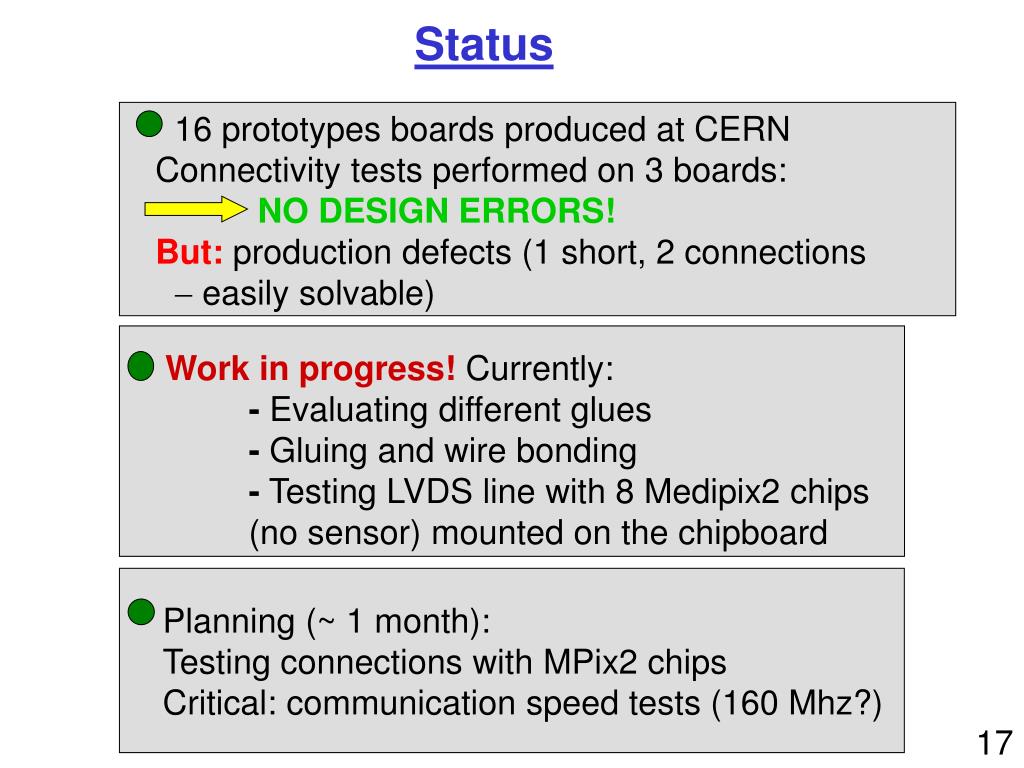

Status

16 prototypes boards produced at CERN

Connectivity tests performed on 3 boards:

NO DESIGN ERRORS!

But: production defects (1 short, 2 connections

- easily solvable)

17

slide20

16 Medipix2 2 x 4 chipboards have been produced.

Testing is still going on but up to now results are

very promising

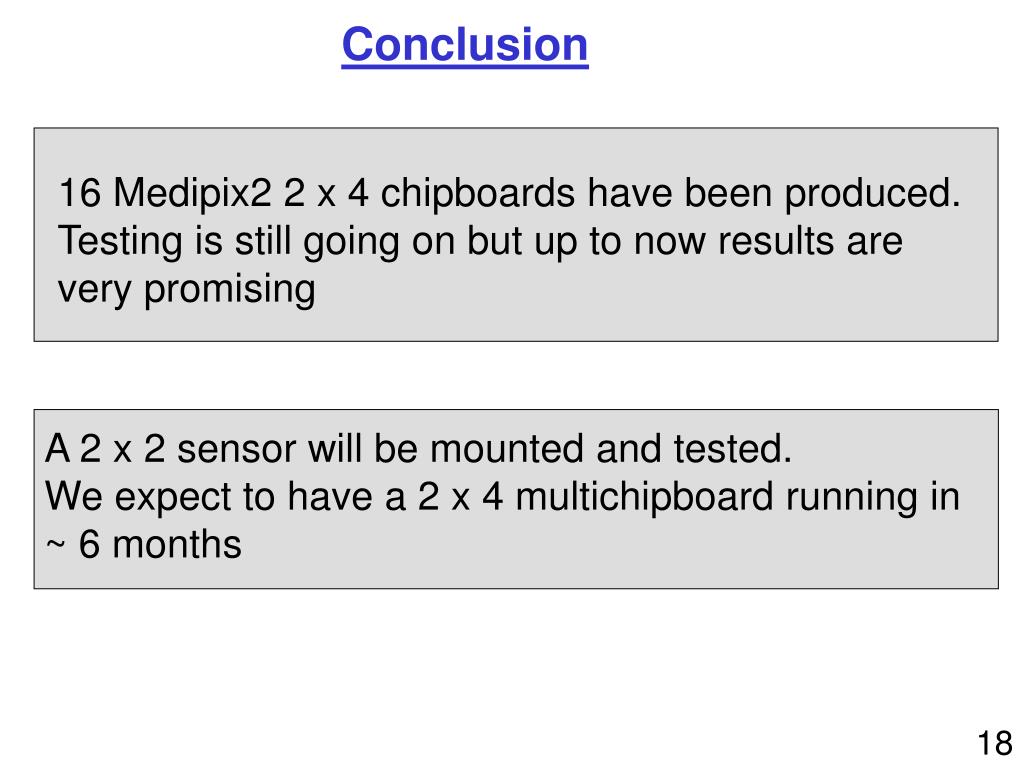

Conclusion

A 2 x 2 sensor will be mounted and tested.

We expect to have a 2 x 4 multichipboard running in ~ 6 months

18

slide22

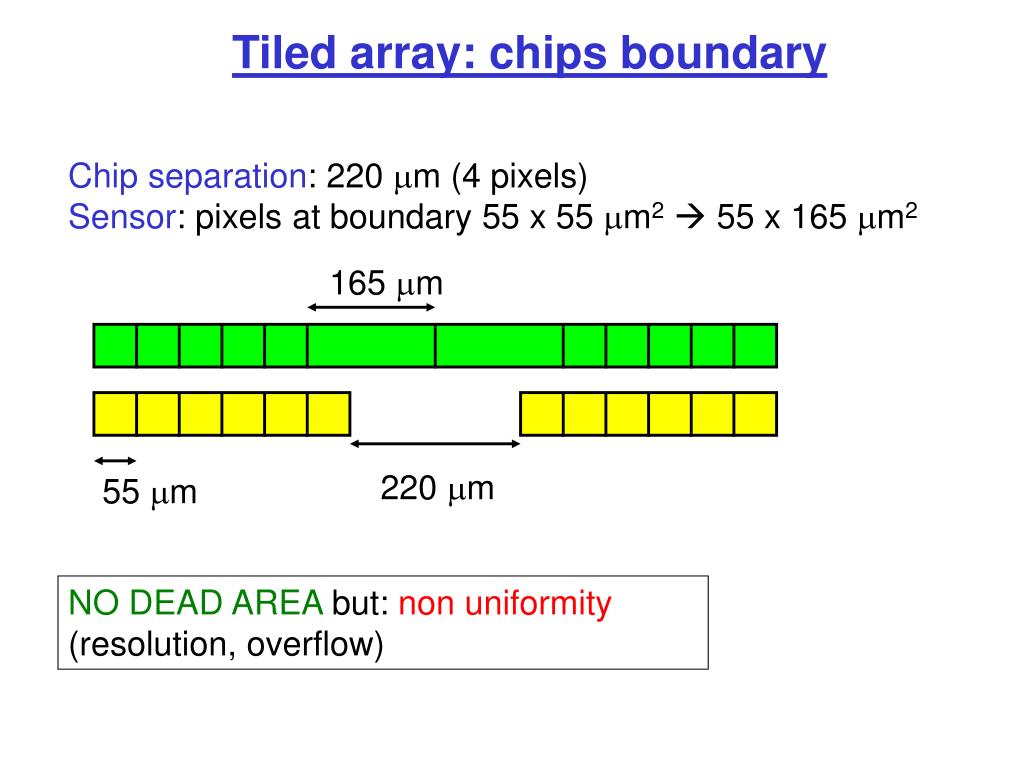

Tiled array: chips boundary

Chip separation: 220 mm (4 pixels)

Sensor: pixels at boundary 55 x 55 mm2 55 x 165 mm2

165 mm

220 mm

55 mm

NO DEAD AREAbut: non uniformity (resolution, overflow)
