greedy approximation algorithms for finding dense components in a graph

Greedy Approximation Algorithms for finding Dense Components in a Graph

Paper by Moses Charikar

Presentation by Paul Horn

overview
Overview
  • Differing definitions of density
  • The problem
  • Undirected Case
    • Linear Programming
    • Network Flows
    • Approximation
  • Directed Case
    • Linear Programming
    • Approximation
defining density

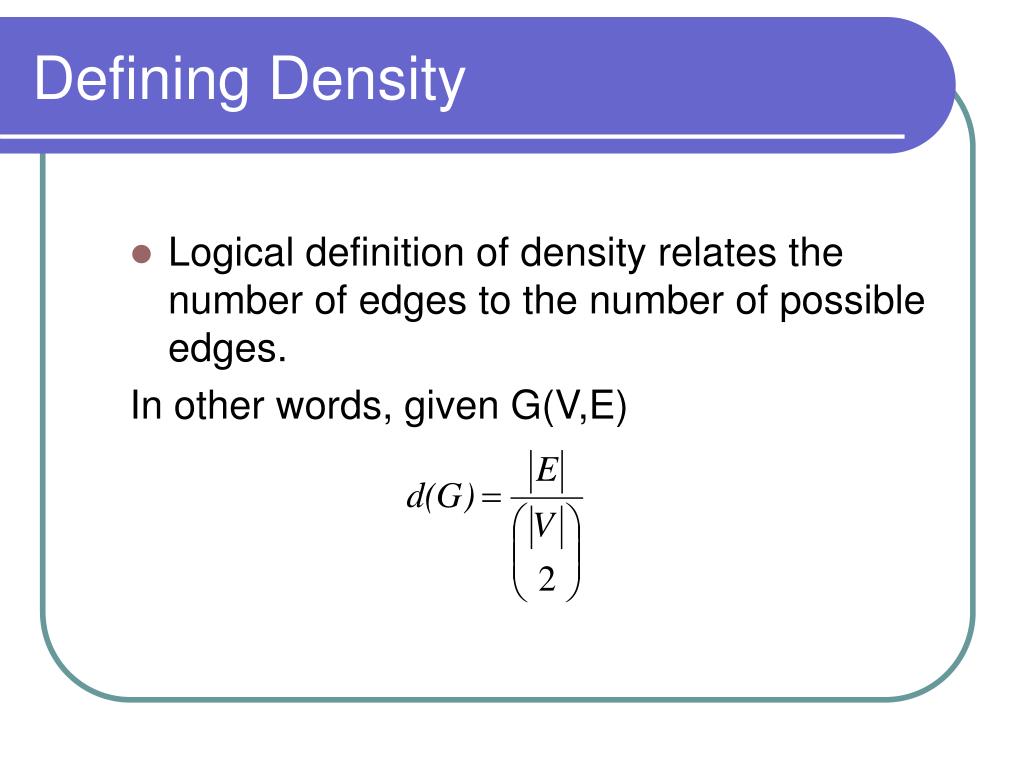

Defining Density
  • Logical definition of density relates the number of edges to the number of possible edges.

In other words, given G(V,E)

problems with density
Problems with Density
  • This simple definition of density does not make sense when looking for a densest subgraph, as two vertices connected by an edge have density 1, and this problem simplifies to maximum clique
redefining density
Redefining Density
  • Instead we define density as the average degree of a subgraph.
  • This definition of density is appropriate for sparse graphs
  • This definition is, however, inappropriate for Erdős-Rényi random graphs.
density of a directed graph
Density of a Directed Graph
  • Introduced by Kannan and Vinay

Given a digraph G(V,E), consider subgraphs S, T and let E(S,T) be the set of directed edges from S to T. Then the density of the sets S and T is

The density of the graph G is

the problem
The problem
  • Known exact algorithms for finding a maximum density subgraph of a graph are cubic or slower.
  • For large graphs, such as the webgraph – or even any sizable chunk of the webgraph this is too slow.
linear programming
Linear programming
  • In an undirected case an exactly solution can be solved by maximizing the following LP.
go with the flow
Go with the flow?
  • Flow-based algorithm to find a maximum density subgraph exists.
  • Finding a Maximum Density Subgraph, by A.V. Goldberg
  • Creates a digraph from the undirected graph, and uses flows to partion the graph.
  • Requires log(n) executions of a max flow algorithm
getting greedy
Getting Greedy…
  • Since the density of a subgraph S is its average degree, nodes of lowest degree are least likely to be a part of the densest subgraph.
  • Algorithm: Remove the lowest degree vertex each time, find the maximum density subgraph.
  • Runs in O(|V|) time.
  • Theorem: Algorithm is a 2-approximation of f(S)
directing our insight

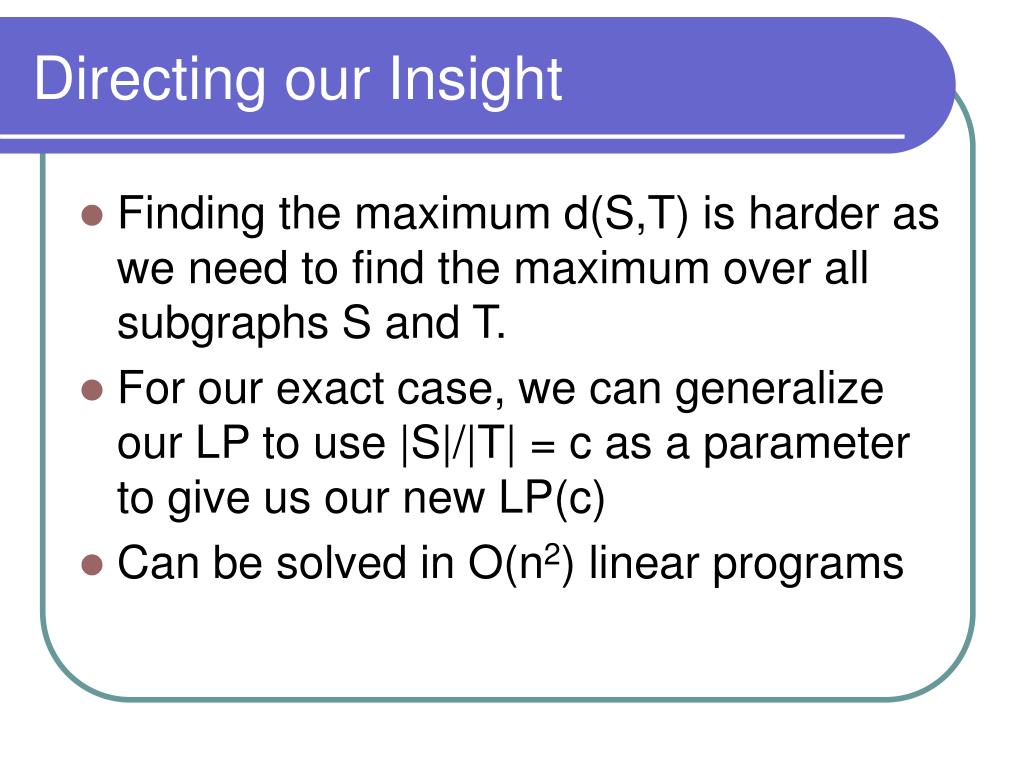

Directing our Insight
  • Finding the maximum d(S,T) is harder as we need to find the maximum over all subgraphs S and T.
  • For our exact case, we can generalize our LP to use |S|/|T| = c as a parameter to give us our new LP(c)
  • Can be solved in O(n2) linear programs
slide12
LP(c)

LP(c)

A solution to this linear program corresponds to the densests sets S, T such that |S|/|T| = c for a given value of c.

Therefore

approximate this

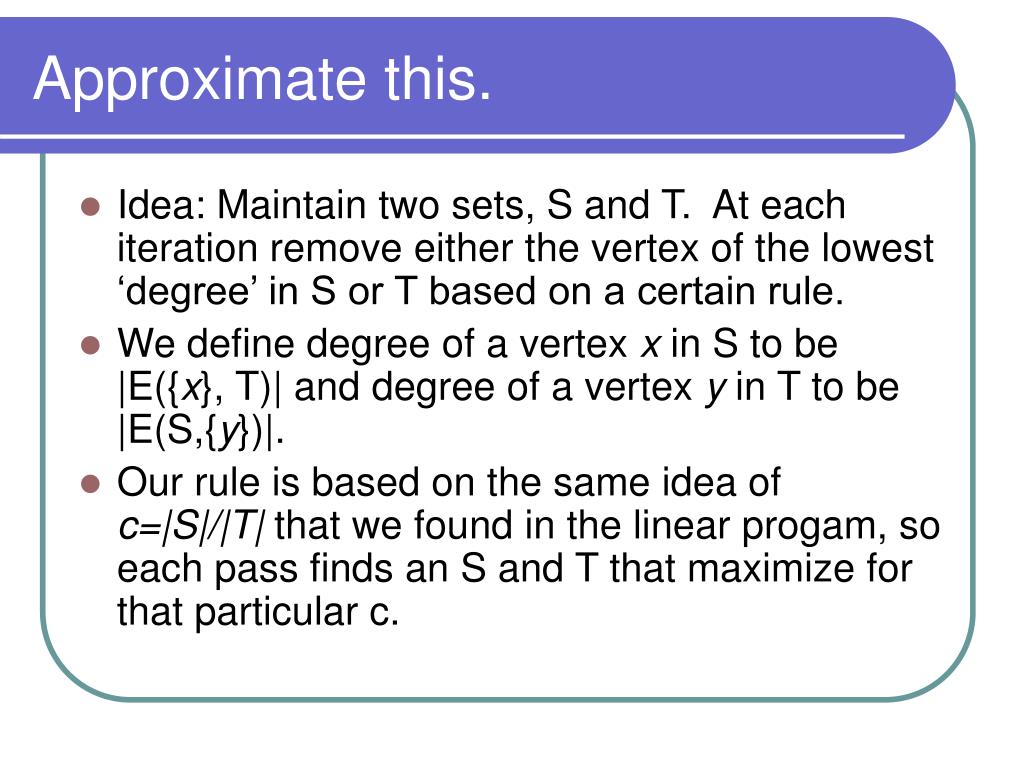

Approximate this.
  • Idea: Maintain two sets, S and T. At each iteration remove either the vertex of the lowest ‘degree’ in S or T based on a certain rule.
  • We define degree of a vertex x in S to be |E({x}, T)| and degree of a vertex y in T to be |E(S,{y})|.
  • Our rule is based on the same idea of c=|S|/|T| that we found in the linear progam, so each pass finds an S and T that maximize for that particular c.
analyzing our approximation
Analyzing our Approximation
  • When run over all c values, this algorithm gives us a 2 approximation of d(c).
  • There are, however, roughly n2possible values of c.
  • Each iteration can run in O(m+n) time.
  • Therefore running through all possible values becomes restrictive.
  • Anis possible in iterations of the algorithm.
generalizations and notes

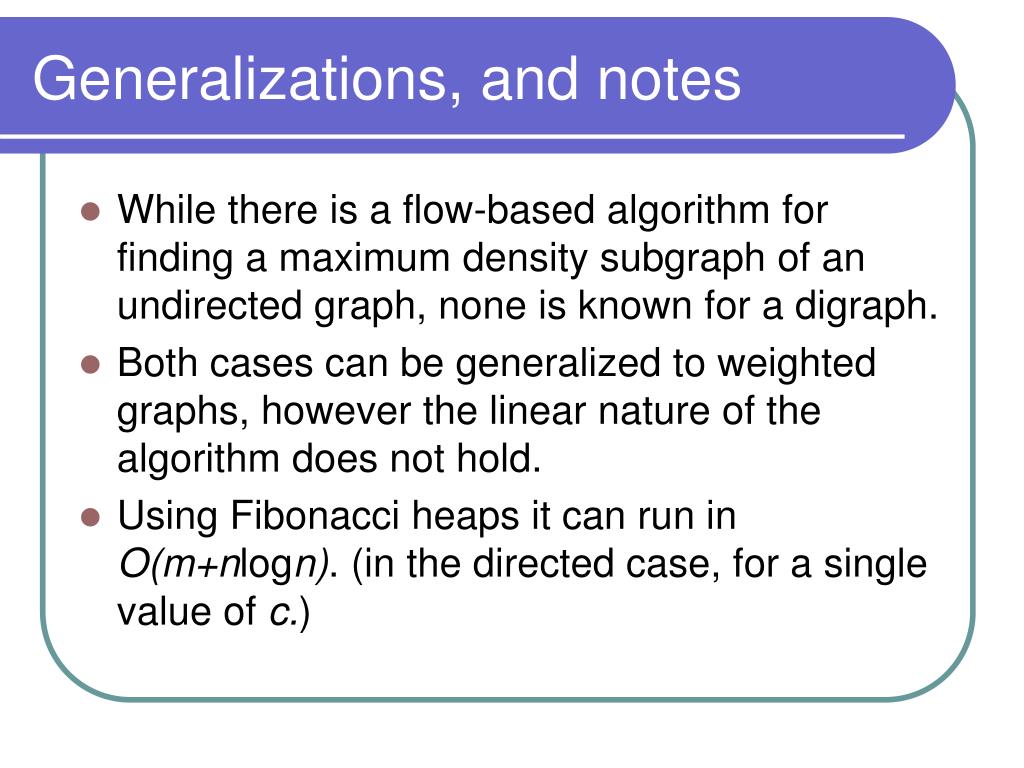

Generalizations, and notes
  • While there is a flow-based algorithm for finding a maximum density subgraph of an undirected graph, none is known for a digraph.
  • Both cases can be generalized to weighted graphs, however the linear nature of the algorithm does not hold.
  • Using Fibonacci heaps it can run in O(m+nlogn). (in the directed case, for a single value of c.)
wrapping up

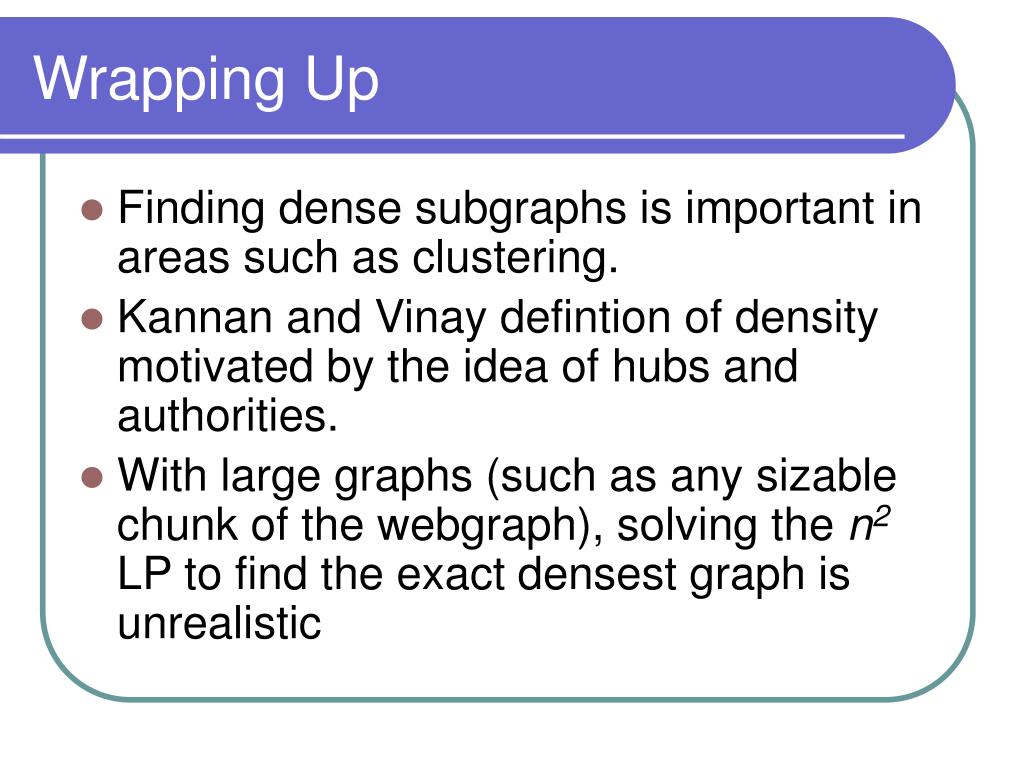

Wrapping Up
  • Finding dense subgraphs is important in areas such as clustering.
  • Kannan and Vinay defintion of density motivated by the idea of hubs and authorities.
  • With large graphs (such as any sizable chunk of the webgraph), solving the n2LP to find the exact densest graph is unrealistic
wrapping up the sequel
Wrapping Up: The Sequel
  • Therefore, the paper
    • Provides LP solutions to both the directed and undirected cases
    • Provides a linear approximation algorithm for undirected graph techniques
    • Generalizes the algorithm to directed graphs, finding sets S and T given |S|/|T|=c.
    • Observes that this is a 2-aproximation when run over all values of c and a aproximation is possible in iterations.
future work
Future Work
  • Flow based algorithm for directed case.
  • The defintion of density which we used does not require S and T to be disjoint. How does this requirement affect the algorithm and it’s complexity?
    • An n-approximation of d(G) can provide an O(n)-approximation of d’(G)
