Spectral Colorimeter

Spectral colorimeter with high precision is adopted with<br>spectral measurement working theory which greatly improves <br>the accuracy of colorimeter. Equipped with superior leather <br>design, helps in increasing the friction in case of fingers <br>sliding. The spectral colorimeter comes with mass storage <br>capacity and A, C, D65, D50 as light sources for colorimetric <br>measurement.

Eleanor96
Download Presentation

Spectral Colorimeter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

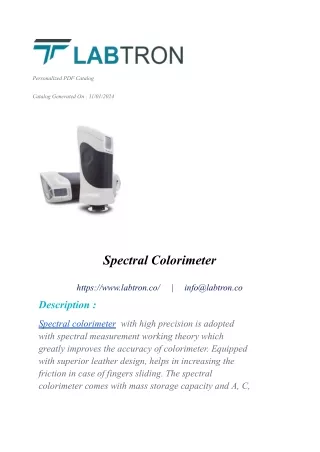

  1. Personalized PDF Catalog Catalog Generated On : 11/01/2024 Spectral Colorimeter https://www.labtron.co/ | info@labtron.co Description : Spectral colorimeter with high precision is adopted with spectral measurement working theory which greatly improves the accuracy of colorimeter. Equipped with superior leather design, helps in increasing the friction in case of fingers sliding. The spectral colorimeter comes with mass storage capacity and A, C,

  2. D65, D50 as light sources for colorimetric measurement. Specifications : Illumination Di / 8 (diffusion illumination, 8° viewing), SCI Size of integrated 40 mm, alvan diffused reflection surface coating sphere Illumination light CLED source Sensor Sensor array Wavelength 400 - 700 nm Spectral resolution 10 nm Measuring time 2 s Measurement caliber 11 mm size Optional measurement caliber 4 mm, 6 mm, 15 mm size Standard deviation ΔE × ab 0.08 (when a white Repeatability calibration plate is measured 30x at 10 second interval after calibration)

  3. Observe angles 2° and 10° Light source A,C,D50 & D65 Camera attachment Without camera Chromaticity value（L × a × b，L × C × h）, ΔE Display value, pass / fail, color tendency, average, generate test report Color difference ΔE × ab, ΔE × CH formula Color space CIE - L × a × b, L × C × h, reflectance Measurement indices Nil Data storage 100 targets and 200 samples Light source lifetime 5 years, 1.5 million times Screen Panchromatic True Color Screen Interface USB 2.0 5 ~ 45 °C, relative humidity 80 % or below( at 35 °C Working temperature ),no condensation (-25 to 55 °C), relative humidity 80 % or below( at Storage temperature 35 °C ),no condensation

  4. Rechargeable Lithium battery, 8.4 V / 2000 mAh, Power adaptor DC 12 V Dimension 77 × 86 × 210 mm Weight 550 g Features : CLED as source of diffusion illumination, 8° viewing Panchromatic true color screen with USB 2.0 interface Mass storage capacity of 100 pcs targets and 200 data groups Ergonomic design, portable nature A.C, DC65, DC50 as light source Patented technology guarantees the measurement stability Applications : Spectral Colorimeter is widely used in plastic, printing, paint, ink, textile, dyeing, food, chemical and other industries for color management.

  5. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  6. Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
