structures
Structures
  • The properties of some materials are directly related to their crystal structures.
  • Significant property differences exist between crystalline and noncrystalline materials having the same composition.
energy and packing
Energy and Packing

Energy

typical neighbor

bond length

typical neighbor

r

bond energy

• Dense, ordered packing

Energy

typical neighbor

bond length

r

typical neighbor

bond energy

• Non dense, random packing

Dense, ordered packed structures tend to have lower energies.

materials and packing
Materials and Packing

Crystalline materials...

• atoms pack in periodic, 3D arrays

• typical of:

-metals

-many ceramics

-some polymers

crystalline SiO2

Si

Oxygen

Noncrystalline materials...

• atoms have no periodic packing

• occurs for:

-complex structures

-rapid cooling

"Amorphous" = Noncrystalline

noncrystalline SiO2

metallic crystal structures

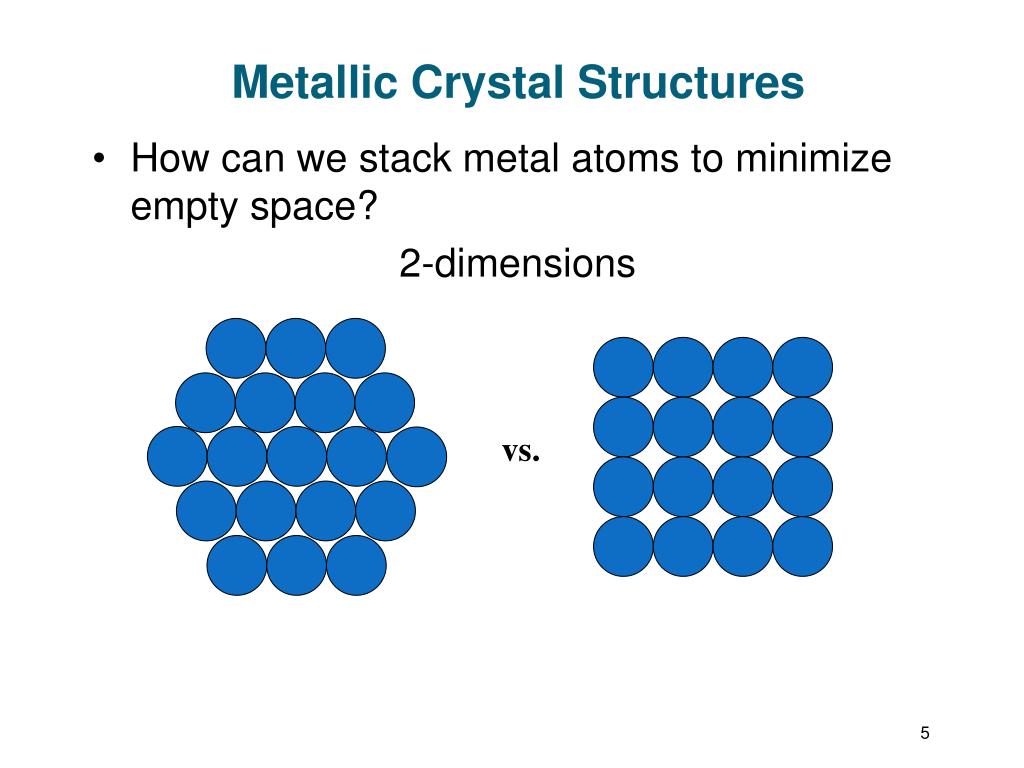

 Metallic Crystal Structures
  • How can we stack metal atoms to minimize empty space?

2-dimensions

vs.

metallic crystal structures6

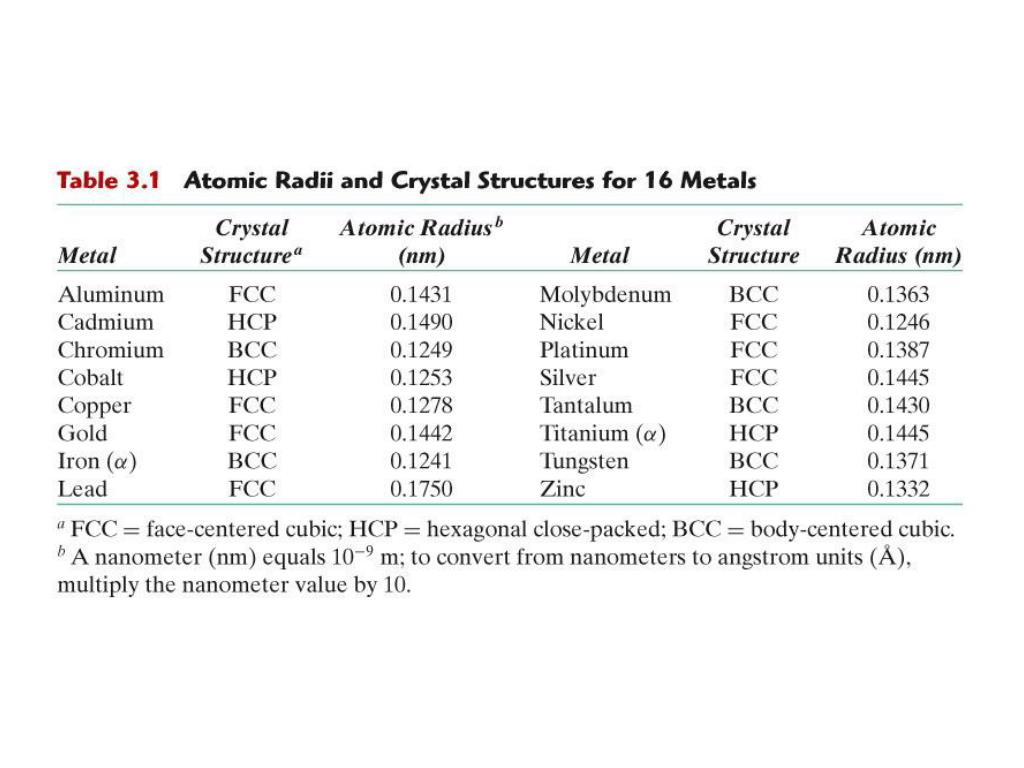

Metallic Crystal Structures

• Tend to be densely packed.

• Reasons for dense packing:

  • Typically, only one element is present, so all atomic radii are the same.
  • - Metallic bonding is not directional.
  • - Nearest neighbor distances tend to be small in
  • order to lower bond energy.
  • - The “electron cloud” shields cores from each other

• They have the simplest crystal structures.

simple cubic structure sc
Simple Cubic Structure (SC)

• Rare due to low packing density (only Po has this structure)

• Close-packed directions are cube edges.

• Coordination # = 6

(# nearest neighbors)

atomic packing factor apf
Atomic Packing Factor (APF)

volume

atoms

atom

4

a

3

unit cell

p

(0.5a)

3

R=0.5a

volume

close-packed directions

unit cell

contains 8 x 1/8 =

1

atom/unit cell

Volume of atoms in unit cell*

APF =

Volume of unit cell

*assume hard spheres

• APF for a simple cubic structure = 0.52

1

APF =

3

a

body centered cubic structure bcc

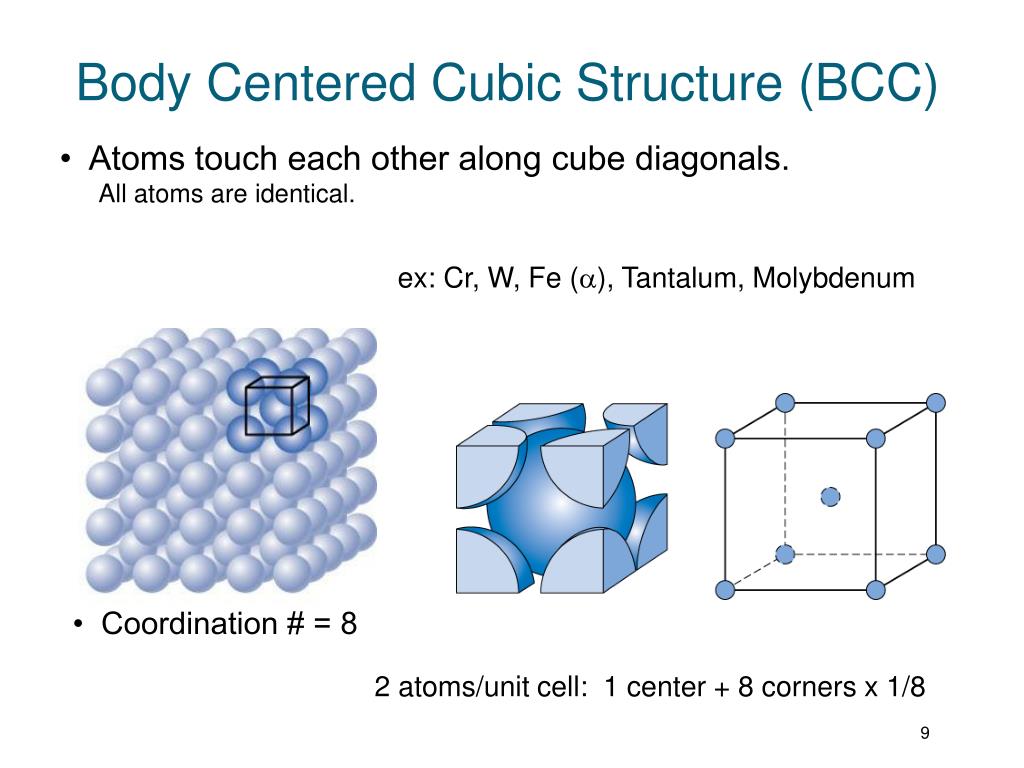

Body Centered Cubic Structure (BCC)

• Atoms touch each other along cube diagonals.

All atoms are identical.

ex: Cr, W, Fe (), Tantalum, Molybdenum

• Coordination # = 8

2 atoms/unit cell: 1 center + 8 corners x 1/8

atomic packing factor bcc
Atomic Packing Factor: BCC

a

3

a

2

Close-packed directions:

R

3 a

length = 4R =

a

atoms

volume

4

3

p

(

3

a/4

)

2

unit cell

atom

3

APF =

volume

3

a

unit cell

• APF for a body-centered cubic structure = 0.68

a

face centered cubic structure fcc
Face Centered Cubic Structure (FCC)

• Atoms touch each other along face diagonals.

--Note: All atoms are identical; the face-centered atoms are shaded

differently only for ease of viewing.

ex: Al, Cu, Au, Pb, Ni, Pt, Ag

• Coordination # = 12

4 atoms/unit cell: 6 face x 1/2 + 8 corners x 1/8

atomic packing factor fcc
Atomic Packing Factor: FCC

2 a

Unit cell contains:

6 x1/2 + 8 x1/8

=

4 atoms/unit cell

a

atoms

volume

4

3

p

(

2

a/4

)

4

unit cell

atom

3

APF =

volume

3

a

unit cell

• APF for a face-centered cubic structure = 0.74

maximum achievable APF

Close-packed directions:

2 a

length = 4R =

hexagonal close packed structure hcp
Hexagonal Close-Packed Structure (HCP)

A sites

Top

layer

c

Middle layer

B

sites

A sites

Bottom layer

a

• ABAB... Stacking Sequence

• 3D Projection

• 2D Projection

6 atoms/unit cell

• Coordination # = 12

ex: Cd, Mg, Ti, Zn

• APF = 0.74

• c/a = 1.633

slide18

Detector

Xray-Tube

Xray-Tube

Sample

Metal Target

(Cu or Co)

Detector

X-Ray Diffractometer

sample

d – distance between the

same atomic planes

λ – monochromatic

wavelength

θ – angle of diffracto-

meter

Bragg´s Equation

d = λ/2 sinθ

theoretical density r

nA

VCNA

Mass

of

Atoms

in

Unit

Cell

Total

Volume

of

Unit

Cell

 =

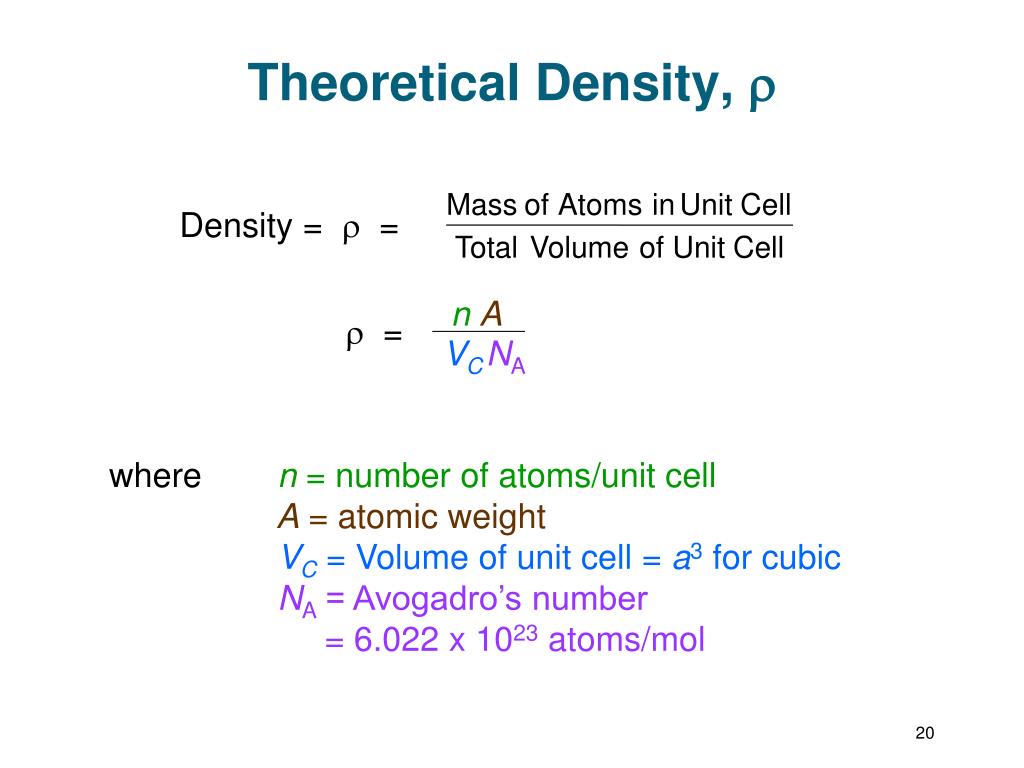

Theoretical Density, r

Density =  =

where n = number of atoms/unit cell

A =atomic weight

VC = Volume of unit cell = a3 for cubic

NA = Avogadro’s number

= 6.022 x 1023 atoms/mol

theoretical density r21

R

a

2

52.00

atoms

g

 =

unit cell

mol

atoms

3

a

6.022x1023

mol

volume

unit cell

Theoretical Density, r
  • Ex: Cr (BCC)

A(atomic weight) =52.00 g/mol

n = 2 atoms/unit cell

R = 0.125 nm

a = 4R/ 3 = 0.2887 nm

theoretical

= 7.18 g/cm3

ractual

= 7.19 g/cm3

factors that determine crystal structure

-

-

-

-

-

-

+

+

+

-

-

-

-

-

-

unstable

-

F

2+

Ca

+

CaF

:

2

anions

cation

-

F

A

X

m

p

m, p values to achieve charge neutrality

Factors that Determine Crystal Structure

1.Relative sizes of ions – Formation of stable structures:

--maximize the # of oppositely charged ion neighbors.

stable

stable

2.Maintenance of

Charge Neutrality:

--Net charge in ceramic

should be zero.

--Reflected in chemical

formula:

atomic bonding in ceramics
Atomic Bonding in Ceramics

CaF2: large

SiC: small

• Bonding:

-- Can be ionic and/or covalent in character.

-- % ionic character increases with difference in

electronegativity of atoms.

• Degree of ionic character may be large or small:

coordination and ionic radii
Coordination # and Ionic Radii

r

cation

r

anion

r

ZnS

cation

(zinc blende)

r

anion

NaCl

(sodium

chloride)

CsCl

(cesium

chloride)

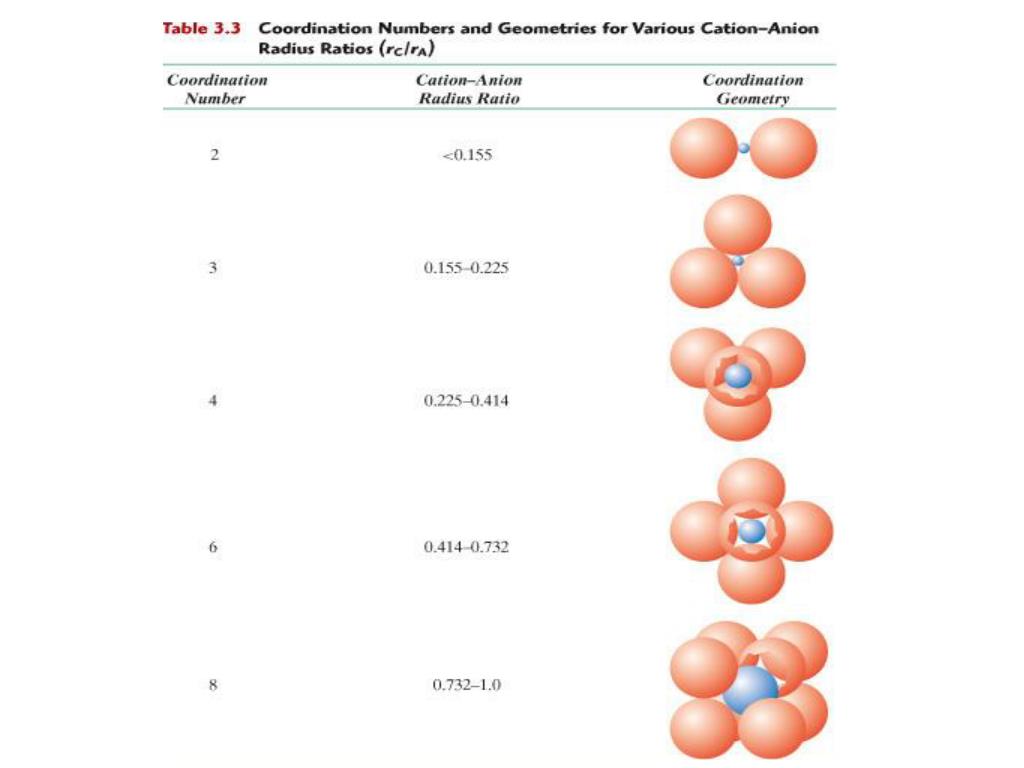

• Coordination # increases with

To form a stable structure, how many anions can

surround a cation?

Coord

#

linear

< 0.155

2

triangular

0.155 - 0.225

3

tetrahedral

0.225 - 0.414

4

octahedral

0.414 - 0.732

6

cubic

0.732 - 1.0

8

computation of minimum cation anion radius ratio
Computation of Minimum Cation-Anion Radius Ratio

a

  • Determine minimum rcation/ranionfor an octahedral site (C.N. = 6)

Measure the radii (blue and yellow spheres)

a= 2ranion

Substitute for “a” in the above equation

example problem predicting the crystal structure of feo
Example Problem:Predicting the Crystal Structure of FeO

• Answer:

Cation

Ionic radius (nm)

3+

Al

0.053

2

+

Fe

0.077

3+

Fe

0.069

2+

Ca

0.100

based on this ratio,

-- coord # = 6 because

0.414 < 0.550 < 0.732

-- crystal structure is similar to NaCl

Anion

2-

O

0.140

-

Cl

0.181

-

F

0.133

• On the basis of ionic radii, what crystal structure would you predict for FeO?

rock salt structure
Rock Salt Structure

Same concepts can be applied to ionic solids in general.

Example: NaCl (rock salt) structure

rNa = 0.102 nm

rCl = 0.181 nm

  • rNa/rCl = 0.564
  • cations (Na+) prefer octahedralsites
mgo and feo
MgO and FeO

MgO and FeO also have the NaCl structure

O2- rO = 0.140 nm

Mg2+ rMg = 0.072 nm

  • rMg/rO = 0.514
  • cations prefer octahedral sites

So each Mg2+ (or Fe2+) has 6 neighbor oxygen atoms

ax crystal structures
AX Crystal Structures

AX–Type Crystal Structures include NaCl, CsCl, and zinc blende

Cesium Chloride structure:

 Since 0.732 < 0.939 < 1.0, cubicsites preferred

So each Cs+ has 8 neighbor Cl-

ax 2 crystal structures
AX2 Crystal Structures

Fluorite structure

  • Calcium Fluorite (CaF2)
  • Cations in cubic sites
  • UO2, ThO2, ZrO2, CeO2
  • Antifluorite structure –
  • positions of cations and anions reversed
abx 3 crystal structures

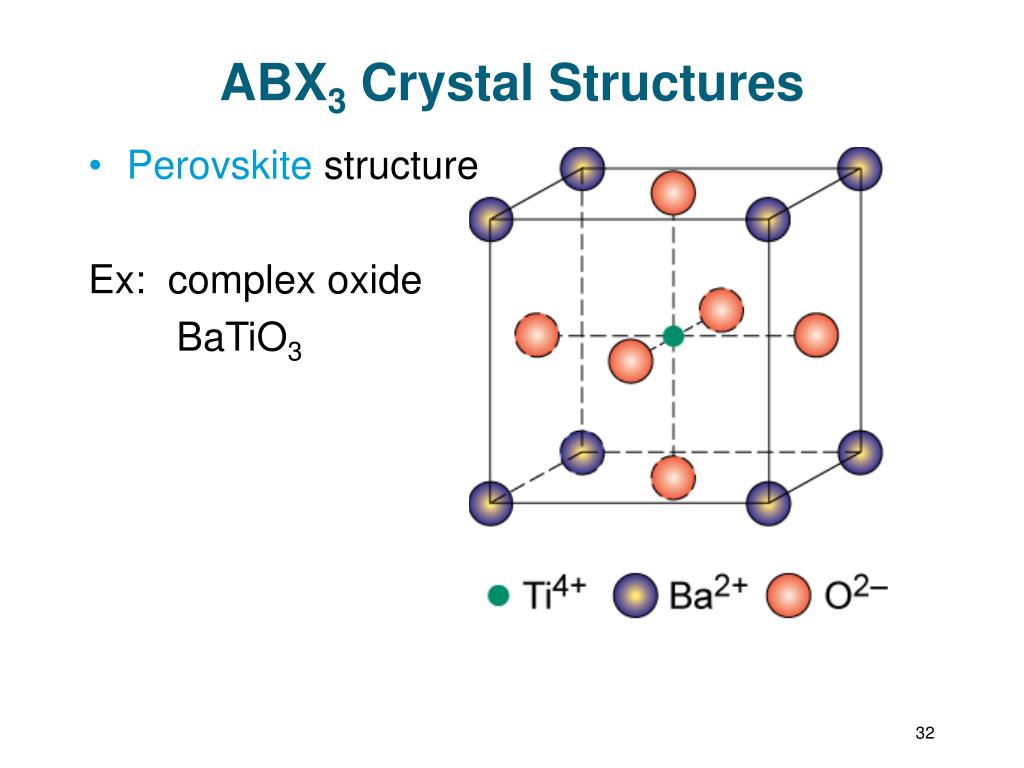

ABX3 Crystal Structures
  • Perovskite structure
  • Ex: complex oxide
  • BaTiO3
summary
SUMMARY

• Atoms may assemble into crystalline or amorphous structures.

• Common metallic crystal structures are FCC, BCC and HCP. Coordination number and atomic packing factor are the same for both FCC and HCP crystal structures.

• We can predict the density of a material, provided we know the atomic weight, atomic radius, and crystal geometry (e.g., FCC, BCC, HCP).

• Interatomic bonding in ceramics is ionic and/or covalent.

• Ceramic crystal structures are based on:

-- maintaining charge neutrality

-- cation-anion radii ratios.
