speech science xii

Version 2007-8

Speech Science XII

Speech Perception

(acoustic cues)

topics

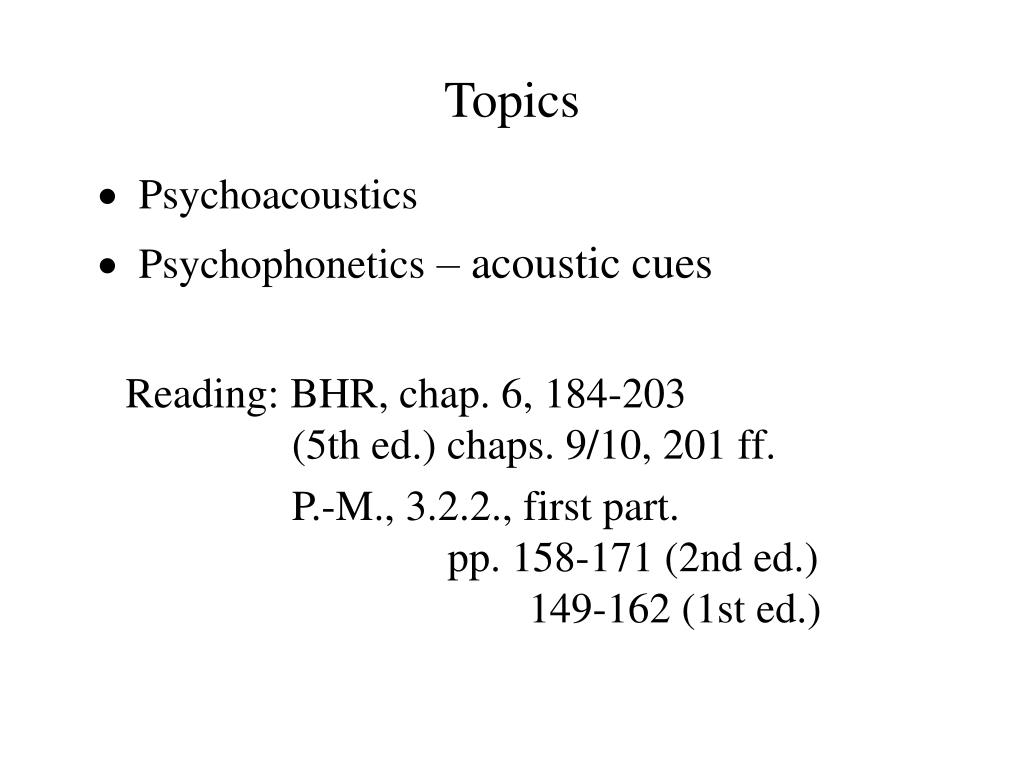

Topics

 Psychoacoustics

 Psychophonetics – acoustic cues

Reading: BHR, chap. 6, 184-203 (5th ed.) chaps. 9/10, 201 ff.

P.-M., 3.2.2., first part. pp. 158-171 (2nd ed.) 149-162 (1st ed.)

psychoacoustics 1
Psychoacoustics 1
  • Psychoacoustics investigates the relationship between basic (acoustic) signal properties and basic auditory impressions:

- How loud something sounds.

- How high- or low-pitched something sounds.

- How long somethings sounds.

- What the timbre (quality) of a sound is.

  • The questions asked are:

- Can the signal be heard? (signal strength)

- Can differences between signals be heard? (for all signal properties)

psychoacoustics 2
Psychoacoustics 2
  • Important: Psychoacoustics relates the objective, measurable signal to subjective impressions.

These are two different “worlds”

  • The simplest “model” of psychoacoustic perceptionwould be a linear relationship:

- A change in a signal parameter always has an equivalent change in the auditory impression.

• This not the case

(which makes psychoacoustics very complex ….)

• Some of the non-linearity has direct implications for phonetic understanding…..

a non linear relationship loudness

Signal strength

inside ear

Signal strengthoutside ear

A non-linear relationship: Loudness
the reason for non linear loudness
The reason for non-linear loudness

Resonance characteristics of the outer ear

non linearity above threshold

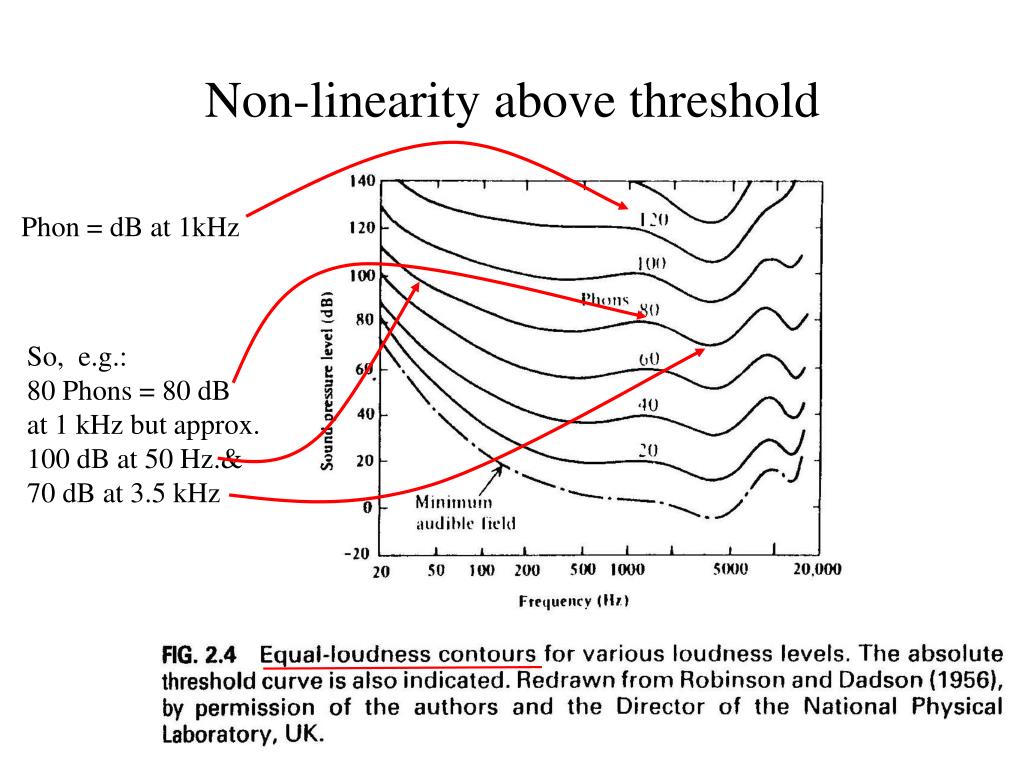

Phon = dB at 1kHz

So, e.g.:80 Phons = 80 dBat 1 kHz but approx.100 dB at 50 Hz.&70 dB at 3.5 kHz

Non-linearity above threshold
also sounds mask one another

Intensity of masking noise

Also, sounds mask one another

If noise is present,

a tone has to be

stronger to be heard(it has a higher audibility threshold).

Intensity of pure tone (masked) stimuls (dB)

The closer the tone

is in frequency tothe centre frequencyof the noise, the

stronger it has to be

to be heard!

critical bands barks erbs

strong masking

no masking

“Critical Bands” (Barks & Erbs)

Wide-band noise witha gap still masks a tonein the middle of the gap

… until the gap reachesa critical width.

Then the signal is heardat the same threshold asif there were no noise.

The noise no longer interferes with the part of the hearingmechanism dealing with the tone.

These “critical bands” arenarrow at low and broader at higher frequencies.

non linearity of loudness with duration
Non-linearity of loudness with duration
  • Above approx 300 ms (exact duration not certain) the perceived loudness of a sound is determined by signal strength (and frequency) independent of its duration.
  • Below this duration, a shorter sound is heard as less loud than a longer sound of equal intensity.

I.e., it is as if the energy is integrated over time, so that a shorter sound has less energy than a longer one.

• Phonetic importance? Short (unstressed) syllables are perceptually less prominent than longer (stressed) syllables.

psychophonetics

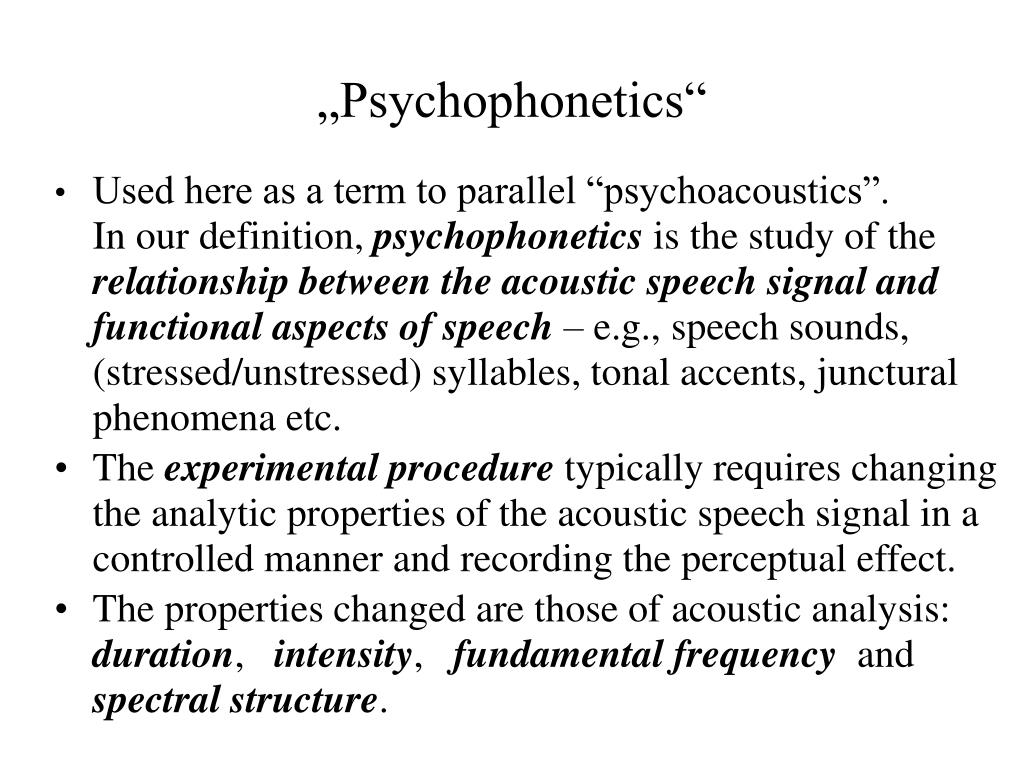

„Psychophonetics“

• Used here as a term to parallel “psychoacoustics”. In our definition, psychophonetics is the study of the relationship between the acoustic speech signal and functional aspects of speech – e.g., speech sounds, (stressed/unstressed) syllables, tonal accents, junctural phenomena etc.

• The experimentalprocedure typically requires changing the analytic properties of the acoustic speech signal in a controlled manner and recording the perceptual effect.

• The properties changed are those of acoustic analysis: duration, intensity, fundamentalfrequency and spectral structure.

acoustic cues

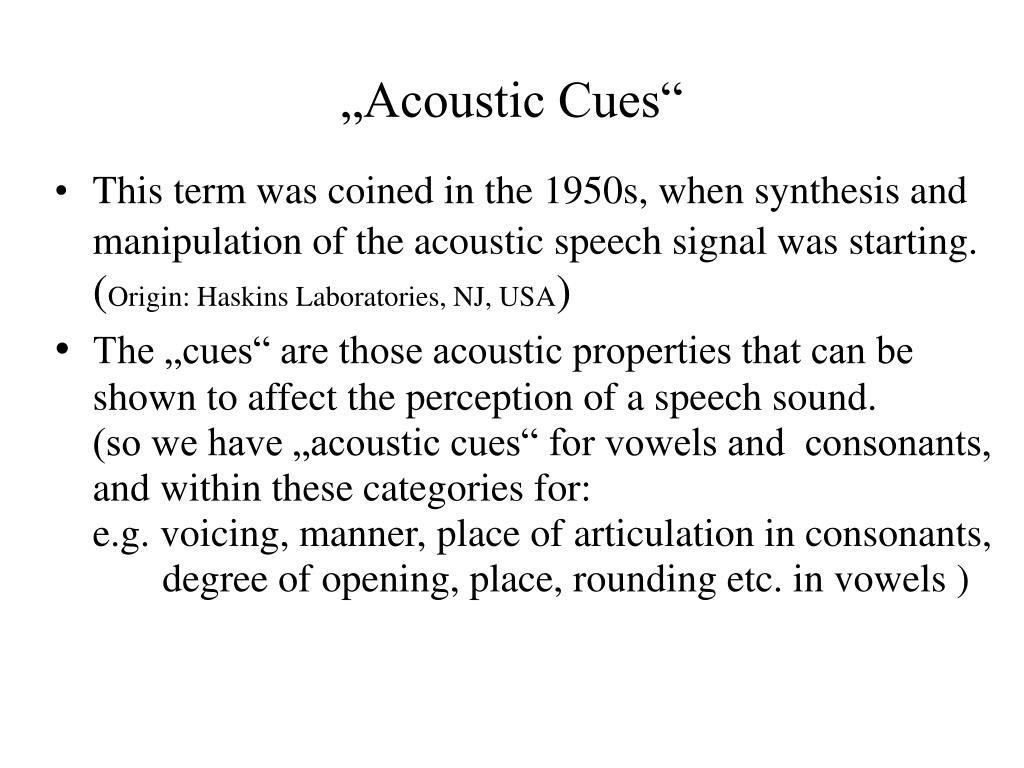

„Acoustic Cues“

• This term was coined in the 1950s, when synthesis and manipulation of the acoustic speech signal was starting.(Origin: Haskins Laboratories, NJ, USA)

• The „cues“ are those acoustic properties that can be shown to affect the perception of a speech sound.(so we have „acoustic cues“ for vowels and consonants, and within these categories for:e.g. voicing, manner, place of articulation in consonants, degree of opening, place, rounding etc. in vowels )

acoustic cues vowels 1

front vowels higher F2

rounded vowels lower F2

open vowels higher F1

Acoustic cues – vowels 1

• Cues: Formants 1 and 2 (to a first approximation)

…. and the evidence from formant synthesis:

acoustic cues vowels 2
Acoustic cues - vowels 2

• While monophthongs have a steady state formant structure, diphthongs – e.g. [aI, aU, I] – and (vowel glide) approximants – e.g. [j, w, ] – have changing formants as a „cue“ to their identity.

• [aI, aU, I] have a more or less fixed formant pattern, determined by the identity two vocalic elements which define them.

• [j, w, ] have a defined starting point, but the degree of formant change is determined by the following vowel. The starting point has a (slightly more damped) formant structure similar to the related vowel: [j]  [i]; [w]  [u]; []  [y] (see acoustics slides)

acoustic cues plosives
Acoustic cues – plosives

• Plosives have a temporally complex set of acoustic cues resulting from (i) the closing movement, (ii) the closure phase and the (iii) release of the closure.

• The closure is a period with no energy (voiceless stops) or a weak low frequency periodic signal (voicing in the closure). This introduces a perceptible interruption.

• The release burst is the result of turbulence due to the escaping air from the increased intra-oral pressure built up during the closure. This may be relatively weak (in voiced stops) or strong (in voiceless stops).The different spectral properties of the burst noise signal the different places of articulation.

vowel formant transitions as consonant cues
Vowel formant transitions as consonant cues

• Formant transitions (changing formant values in the vowel preceding and following the stop consonant) reflect the articulator movement towards and awayfrom the closure. The F2 transition is a cue to the consonantal place of articulation; F1 just signals the opening and closing movement.

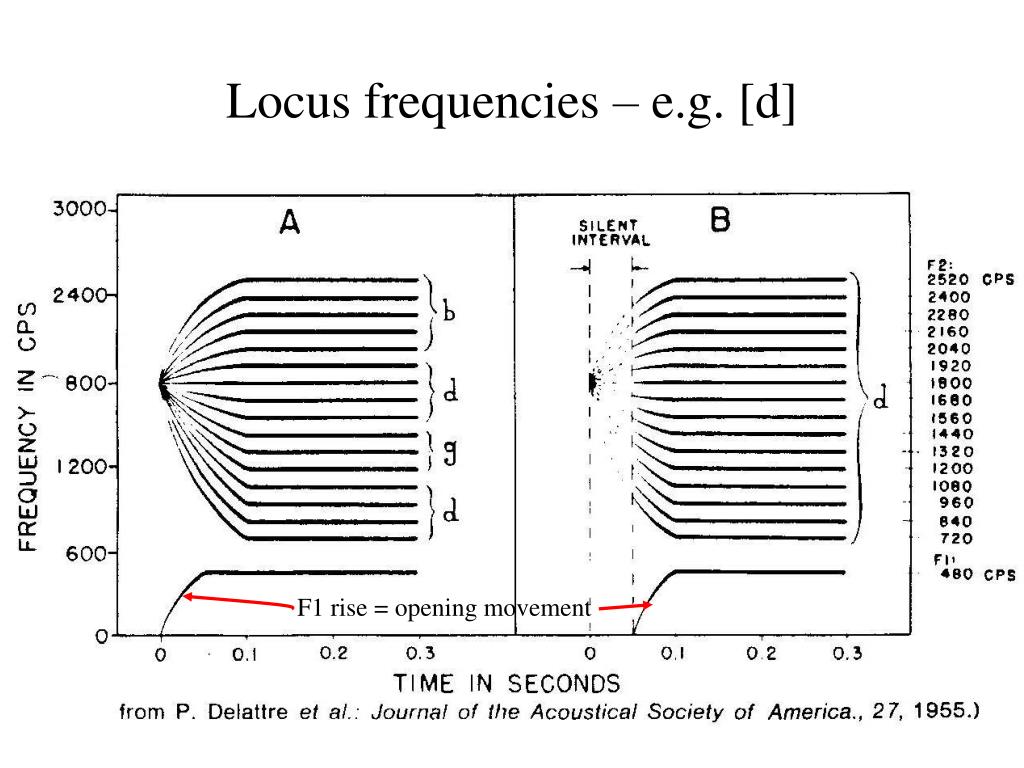

• The place of the stopdetermines the F2 formant valuefrom which or towards which the transition moves (called the locus). But the actual shape of the transition is determined by the vowel (as it is with vowel glides).

what sort of transitions for which place
What sort of transitions for which place?

• The previous slide showed that the locus for [d] (and – logically – for [t, n, l, s, z]) is fairly constant. The value (for the average adult male vocal tract) is about 1800 Hz.

• For labial consonants, the vowel can be formed independent of the consonant closure (the tongue is free to move). Both F2 and F1 therefore just reflect the opening and closing of the jaw and lips. The “locus” is therefore always low.

• For velar consonants, the consonant closure is very dependent on the vowel (both use the tongue dorsum).The locus is higher than for alveolars both for front and back vowels, but for back vowels it is lower than for front vowels. F2 and F3 transitions often converge with velars.

the importance of timing as a cue to the voicing distinction
The importance of timing as a cue to the „voicing“ distinction

The temporal differencesshown here signal thedifference between „weak“and „strong“ plosives,whether there is closurevoicing present or not.It is often claimed that thedistinction “fortis-lenis” is

better than “voiced-voiceless”

acoustic cues fricatives
Acoustic cues - fricatives

• Fricative identity is determined by the spectral distribution of the energy (see also acoustics slides).

[D]

[T]

[f]

[v]

[S]

[Z]

[z]

[s]

slide25

voice bar

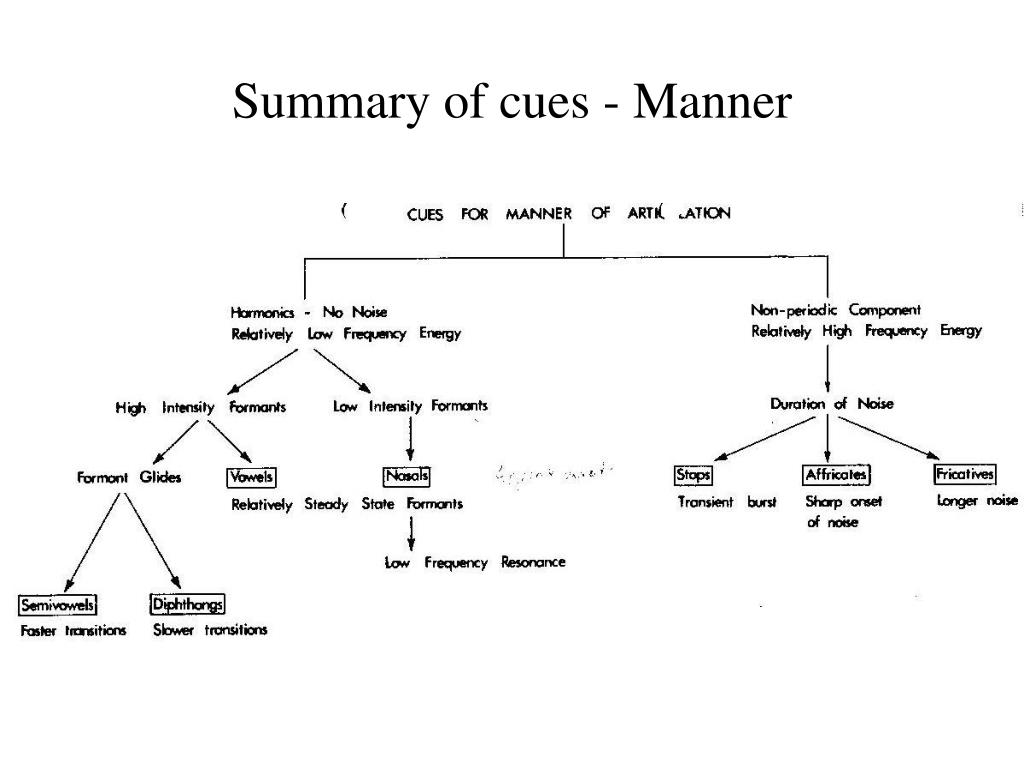

Summary of cues:Fortis-lenis
