Hematology Analyzer ZHEA-A17

Zimed Hematology analyzer offers 3-part WBC differentiation and processes 60 samples per hour. It supports 20 parameters for analysis, uses less blood, and delivers precise ,automatic results. With dual apertures for WBC and RBC/PLT, it works with whole or diluted blood samples.

Alissa3
Download Presentation

Hematology Analyzer ZHEA-A17

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

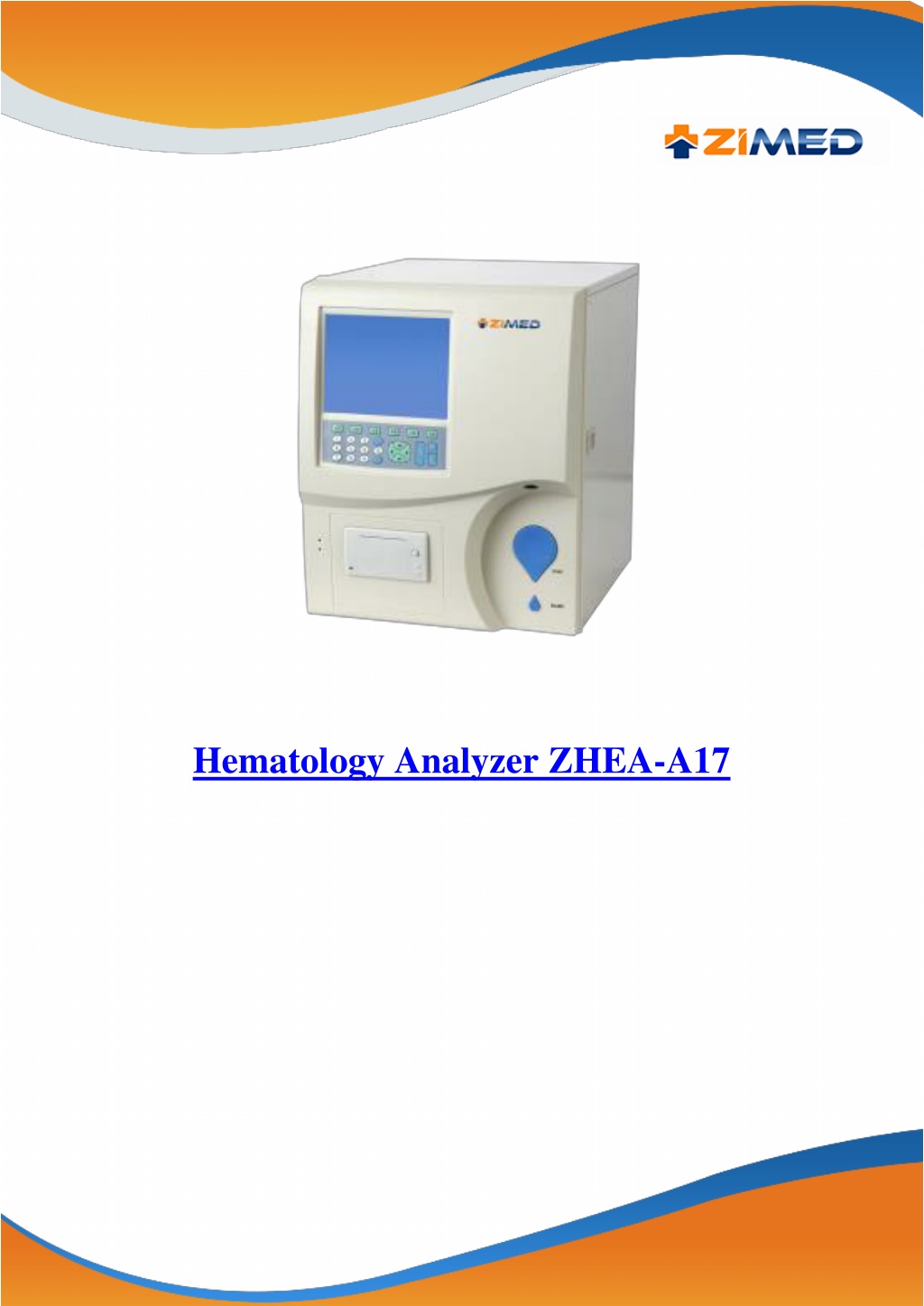

  1. Hematology Analyzer ZHEA-A17

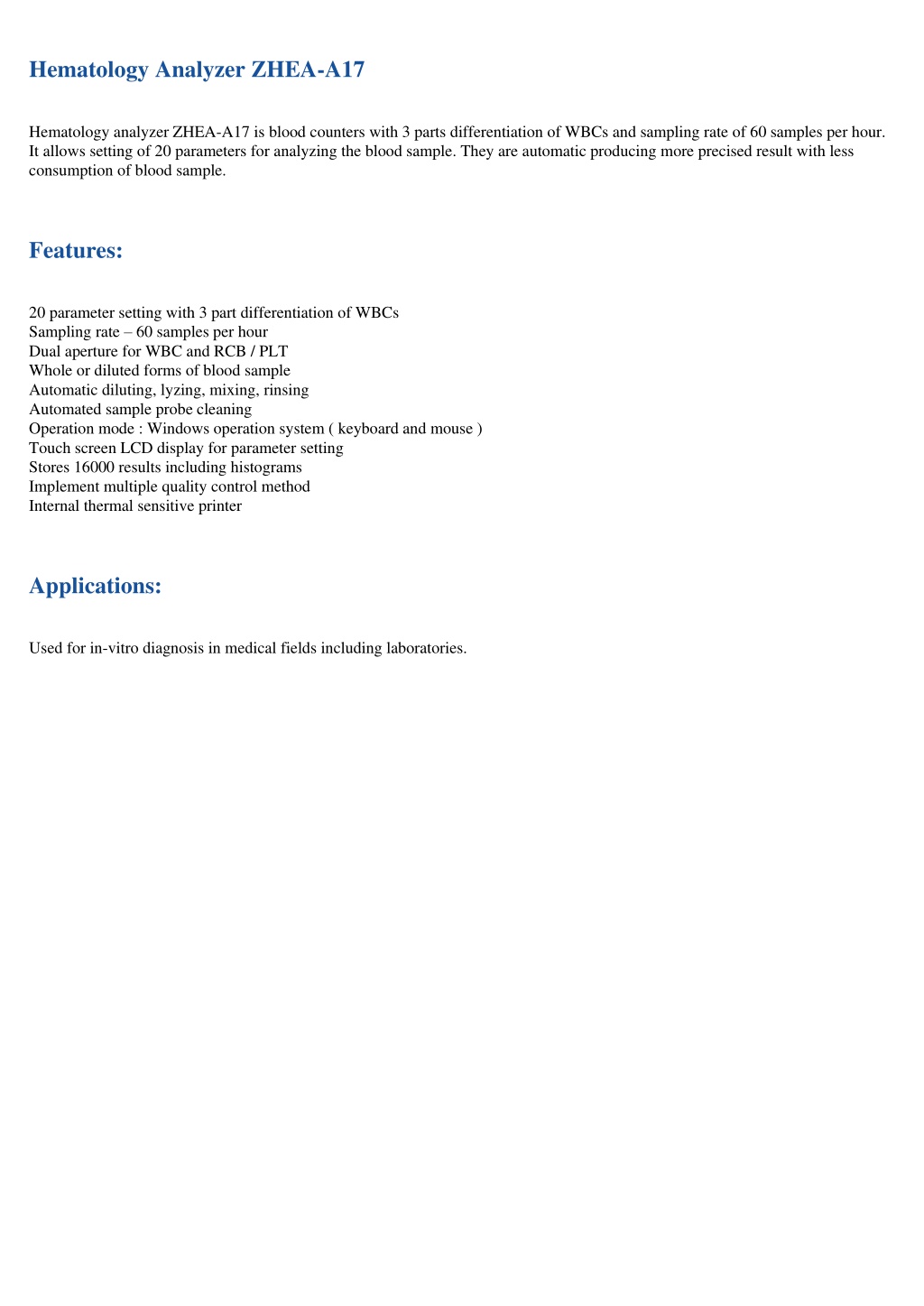

  2. Hematology Analyzer ZHEA-A17 Hematology analyzer ZHEA-A17 is blood counters with 3 parts differentiation of WBCs and sampling rate of 60 samples per hour. It allows setting of 20 parameters for analyzing the blood sample. They are automatic producing more precised result with less consumption of blood sample. Features: 20 parameter setting with 3 part differentiation of WBCs Sampling rate – 60 samples per hour Dual aperture for WBC and RCB / PLT Whole or diluted forms of blood sample Automatic diluting, lyzing, mixing, rinsing Automated sample probe cleaning Operation mode : Windows operation system ( keyboard and mouse ) Touch screen LCD display for parameter setting Stores 16000 results including histograms Implement multiple quality control method Internal thermal sensitive printer Applications: Used for in-vitro diagnosis in medical fields including laboratories.

  3. Specifications : Output 60 samples per hour Assay type 20 parameters + 3 color histograms Predilute : 20?L Whole blood : 15?L Sample volume Relative humidity 30% to 85% Coulter Principle Colorimetry hemoglobin determination Test principle WBC : 80 ?m RBC / PLT : 70 ?m Aperture diameter WBC = 2.5 (7.0 to 15.0), RBC = 2.5 (3.50 to 6.00) HGB = 1.5 (110 to 180), MCV = 0.5 (80.0 to 110.0) PLT = 5.0 (200 to 500) Precision ( CV % ) Display 8.0”color LCD display Storage 16000 results including histograms Carryover WBC / RBC / HGB 0.5% , PLT 1% Operating temperature 15 ° C to 30 ° C Power supply 100 / 240 V (AC ) ; 50 / 60 Hz Dimension 440 × 350 × 440 mm Weight 17 kg Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
