Hematology Analyzer ZHEA-A15

Zimed Hematology Analyzer is an automatic blood counter with 5-part WBC differentiation, processing 80 samples per hour. It supports 20 parameters, provides precise results with less blood, and stores data with external device connectivity.<br><br><br>

Alissa3
Download Presentation

Hematology Analyzer ZHEA-A15

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

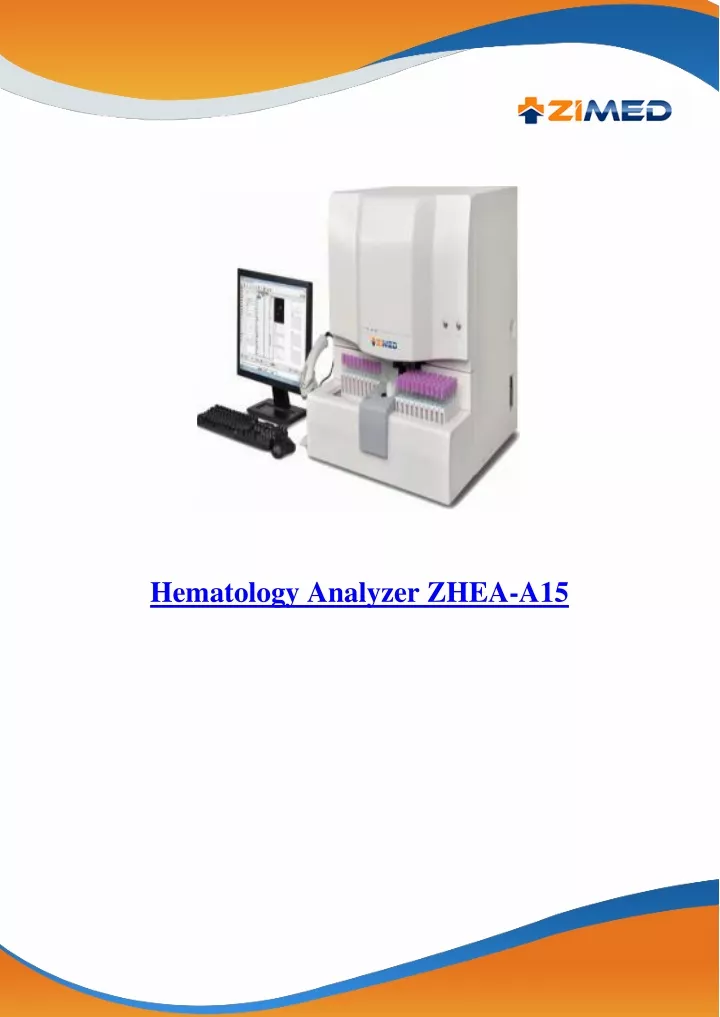

  1. Hematology Analyzer ZHEA-A15

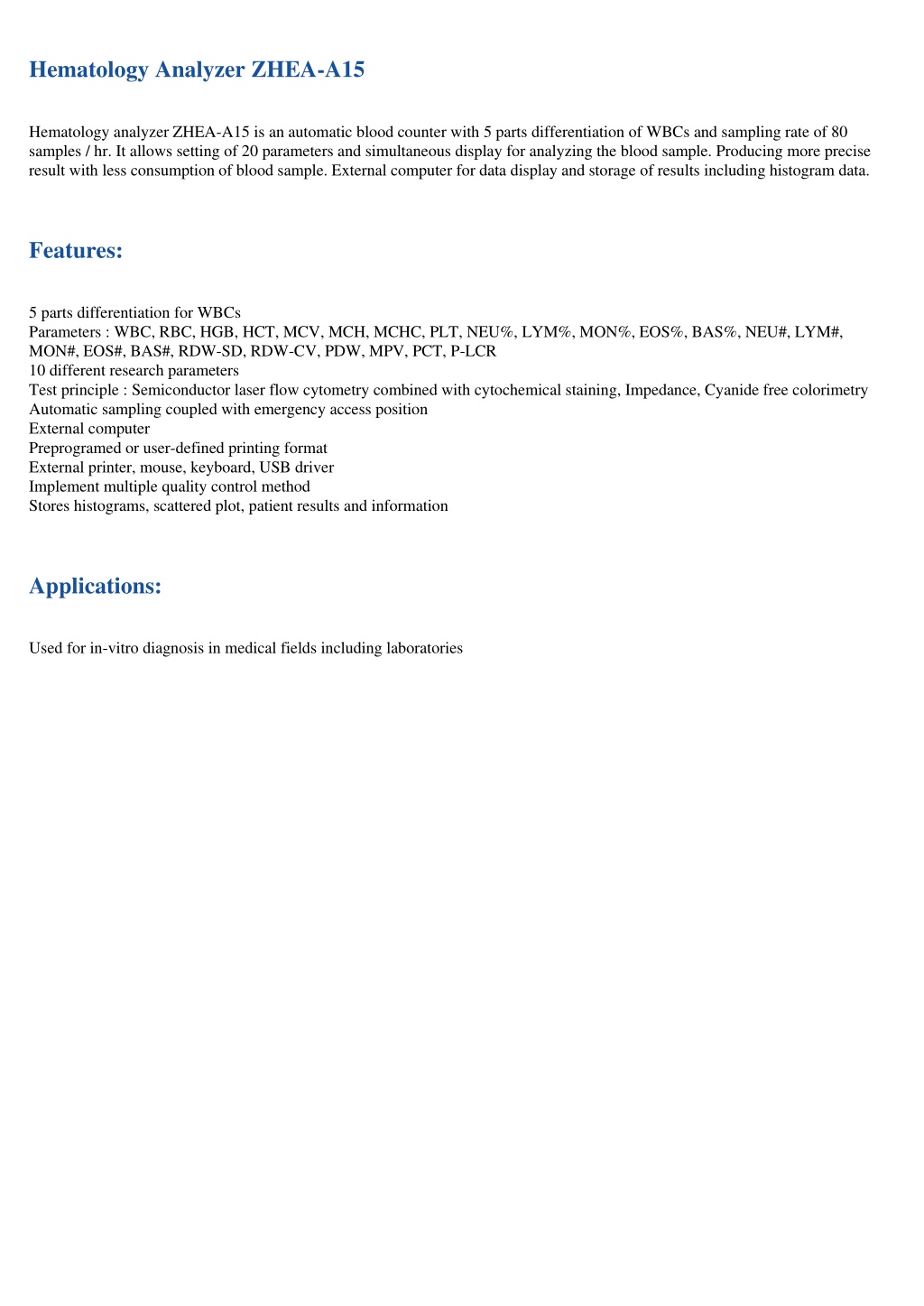

  2. Hematology Analyzer ZHEA-A15 Hematology analyzer ZHEA-A15 is an automatic blood counter with 5 parts differentiation of WBCs and sampling rate of 80 samples / hr. It allows setting of 20 parameters and simultaneous display for analyzing the blood sample. Producing more precise result with less consumption of blood sample. External computer for data display and storage of results including histogram data. Features: 5 parts differentiation for WBCs Parameters : WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#, RDW-SD, RDW-CV, PDW, MPV, PCT, P-LCR 10 different research parameters Test principle : Semiconductor laser flow cytometry combined with cytochemical staining, Impedance, Cyanide free colorimetry Automatic sampling coupled with emergency access position External computer Preprogramed or user-defined printing format External printer, mouse, keyboard, USB driver Implement multiple quality control method Stores histograms, scattered plot, patient results and information Applications: Used for in-vitro diagnosis in medical fields including laboratories

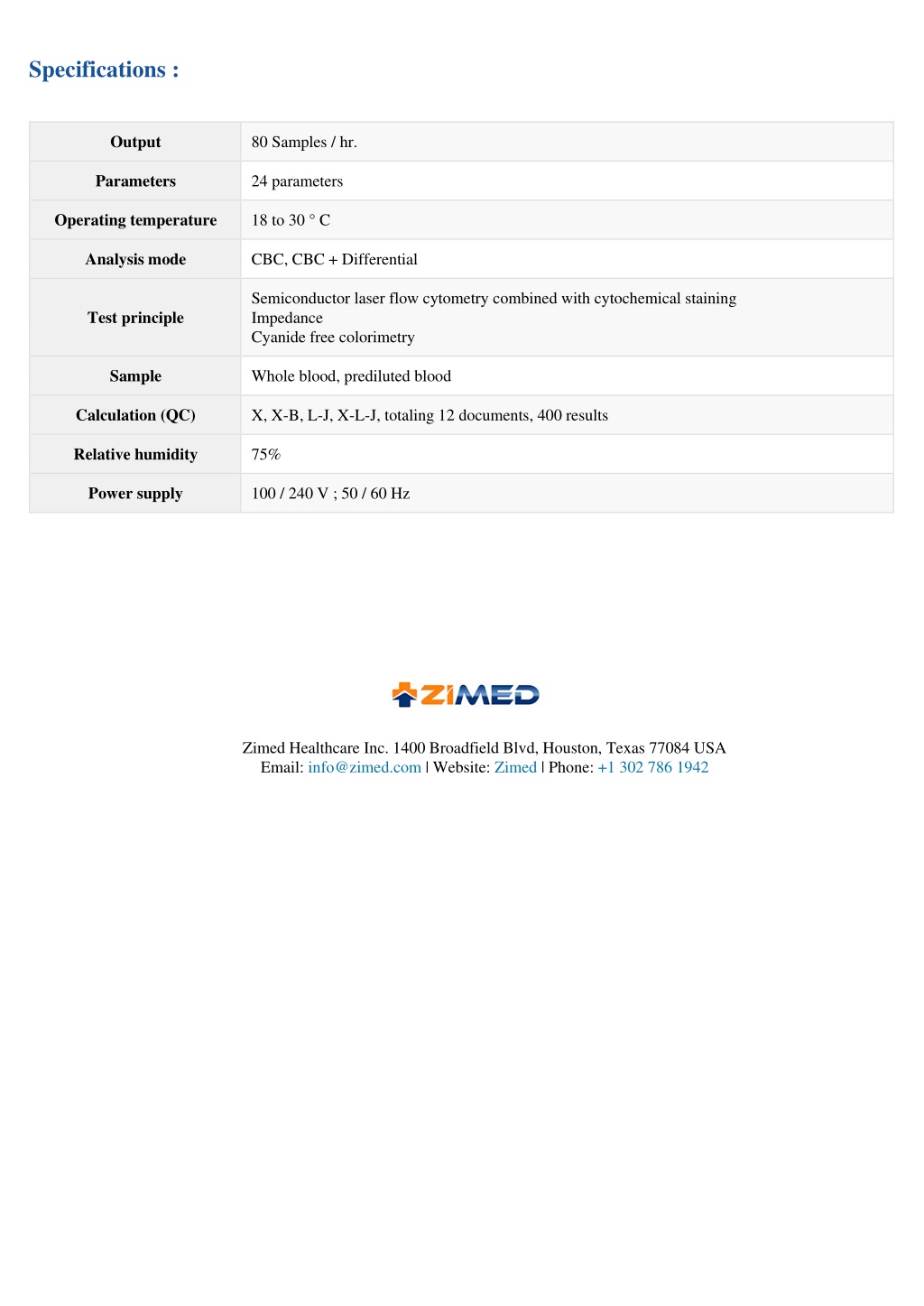

  3. Specifications : Output 80 Samples / hr. Parameters 24 parameters Operating temperature 18 to 30 ° C Analysis mode CBC, CBC + Differential Semiconductor laser flow cytometry combined with cytochemical staining Impedance Cyanide free colorimetry Test principle Sample Whole blood, prediluted blood Calculation (QC) X, X-B, L-J, X-L-J, totaling 12 documents, 400 results Relative humidity 75% Power supply 100 / 240 V ; 50 / 60 Hz Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
