Hematology-analyzer-ZHEA-A14

Zimed Hematology Analyzer is an automated blood counter with 3-part WBC differentiation, handling 60 samples per hour. It measures 22 parameters, uses less blood, supports whole or prediluted samples, and offers auto-calculation, data saving, and printing.

Alissa3
Download Presentation

Hematology-analyzer-ZHEA-A14

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

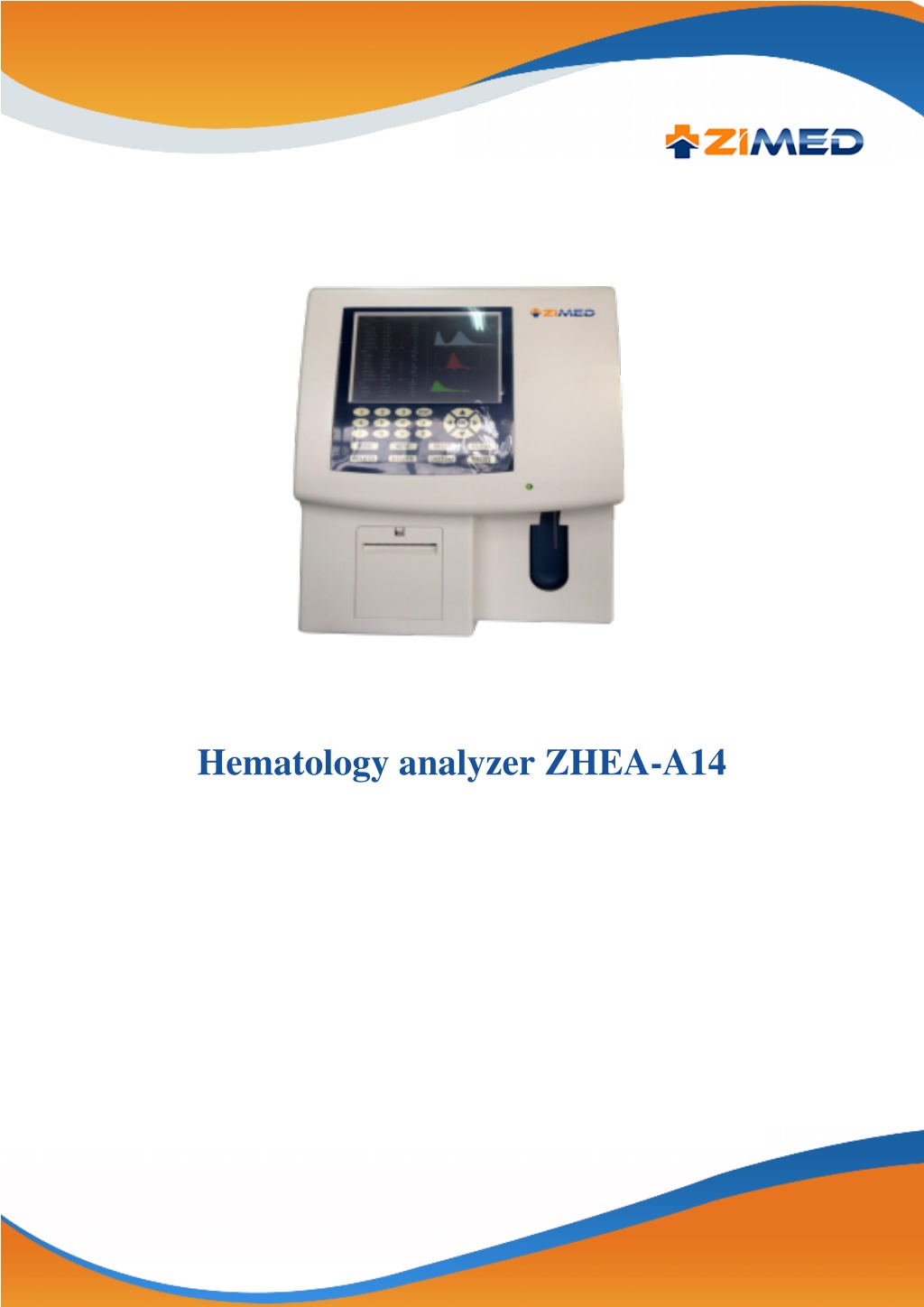

  1. Hematology analyzer ZHEA-A14

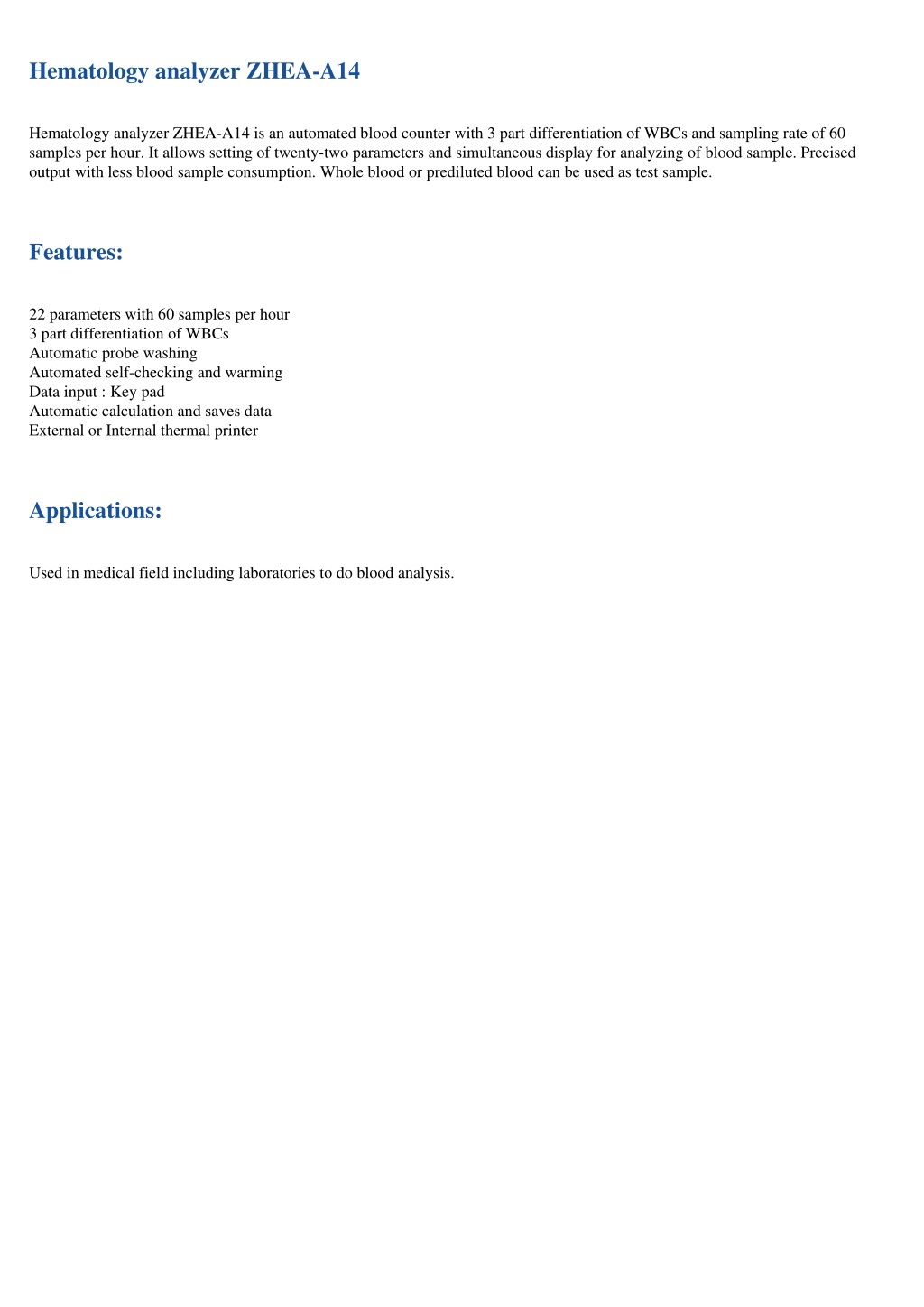

  2. Hematology analyzer ZHEA-A14 Hematology analyzer ZHEA-A14 is an automated blood counter with 3 part differentiation of WBCs and sampling rate of 60 samples per hour. It allows setting of twenty-two parameters and simultaneous display for analyzing of blood sample. Precised output with less blood sample consumption. Whole blood or prediluted blood can be used as test sample. Features: 22 parameters with 60 samples per hour 3 part differentiation of WBCs Automatic probe washing Automated self-checking and warming Data input : Key pad Automatic calculation and saves data External or Internal thermal printer Applications: Used in medical field including laboratories to do blood analysis.

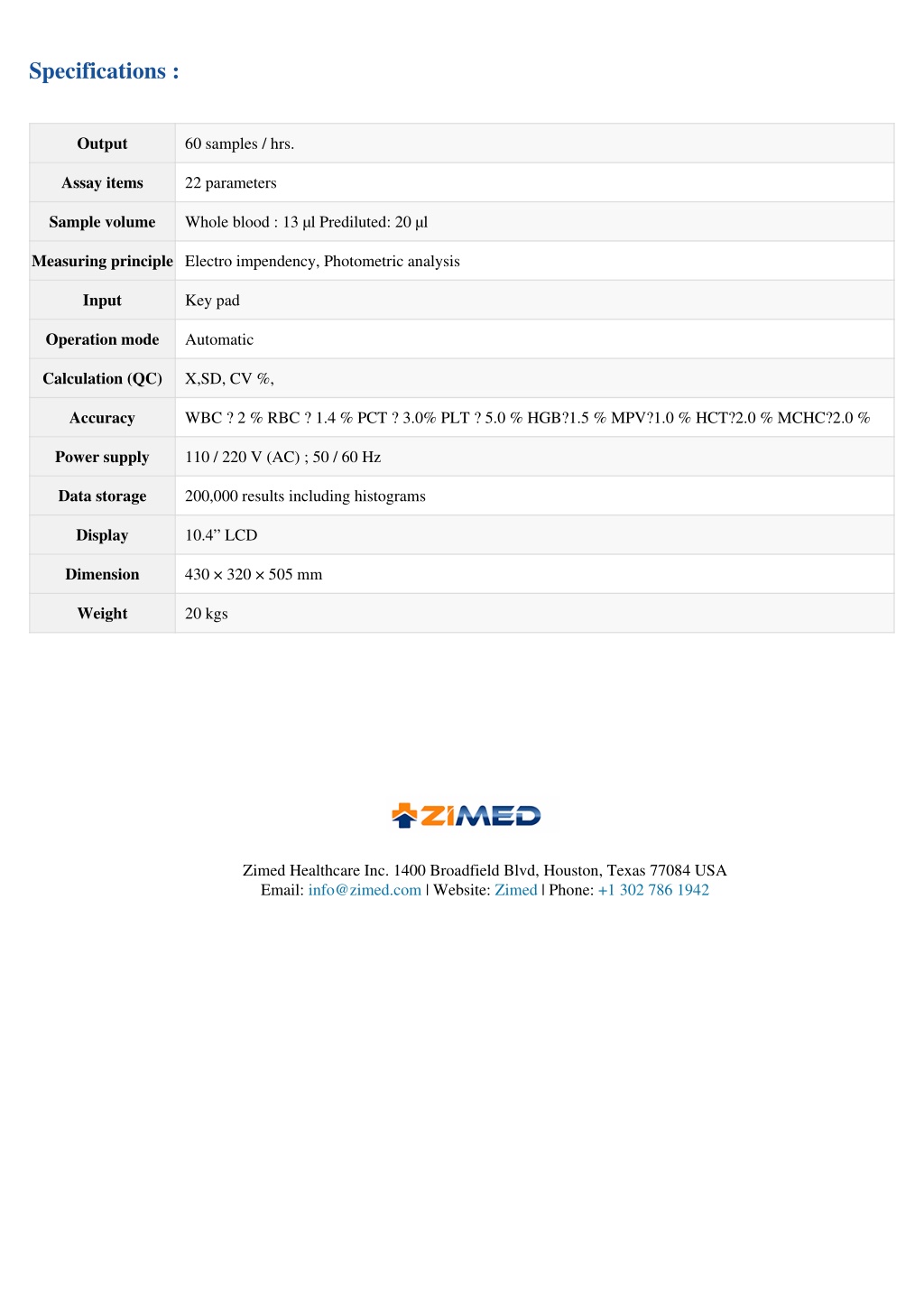

  3. Specifications : Output 60 samples / hrs. Assay items 22 parameters Sample volume Whole blood : 13 µl Prediluted: 20 µl Measuring principle Electro impendency, Photometric analysis Input Key pad Operation mode Automatic Calculation (QC) X,SD, CV %, Accuracy WBC ? 2 % RBC ? 1.4 % PCT ? 3.0% PLT ? 5.0 % HGB?1.5 % MPV?1.0 % HCT?2.0 % MCHC?2.0 % Power supply 110 / 220 V (AC) ; 50 / 60 Hz Data storage 200,000 results including histograms Display 10.4” LCD Dimension 430 × 320 × 505 mm Weight 20 kgs Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
