Hematology Analyzer ZHEA-A11

Zimed Hematology Analyzer is a fully automated, dual-channel blood counter with 3-part WBC differentiation and a 60-sample per hour rate. It offers 23 parameters with simultaneous display, provides precise results with minimal blood, and stores up to 10,000 results using advanced ARM technology.

Alissa3
Download Presentation

Hematology Analyzer ZHEA-A11

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

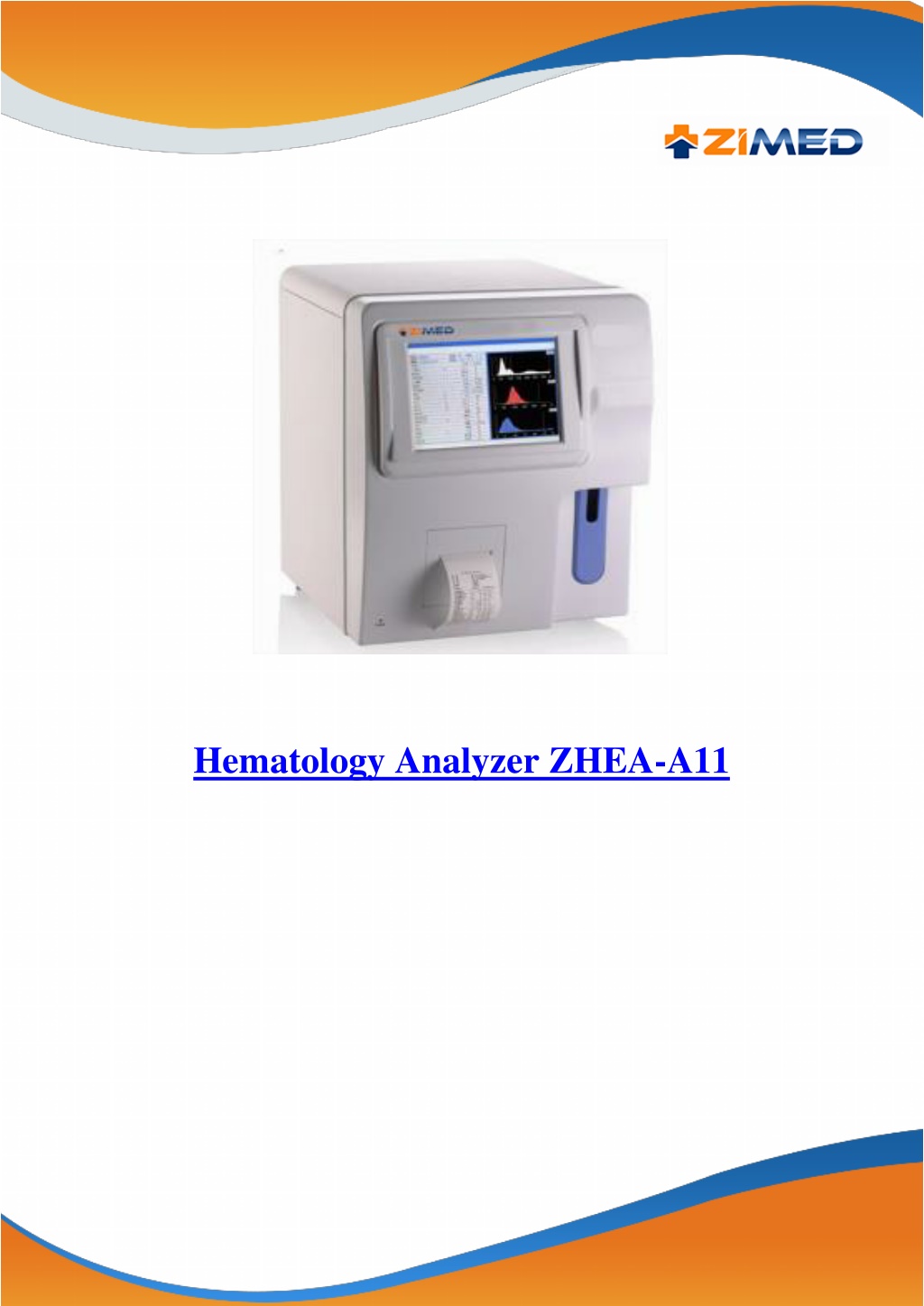

  1. Hematology Analyzer ZHEA-A11

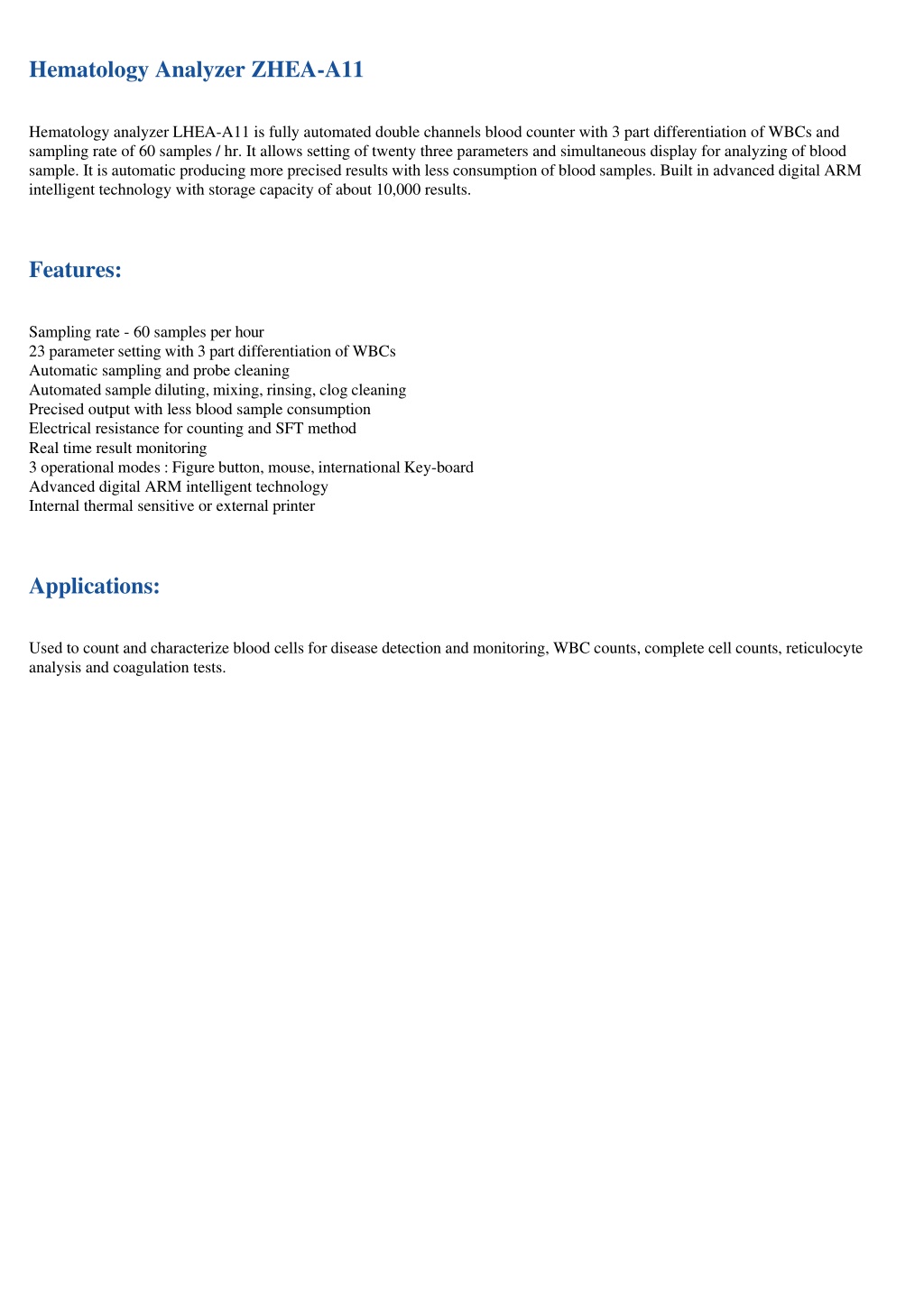

  2. Hematology Analyzer ZHEA-A11 Hematology analyzer LHEA-A11 is fully automated double channels blood counter with 3 part differentiation of WBCs and sampling rate of 60 samples / hr. It allows setting of twenty three parameters and simultaneous display for analyzing of blood sample. It is automatic producing more precised results with less consumption of blood samples. Built in advanced digital ARM intelligent technology with storage capacity of about 10,000 results. Features: Sampling rate - 60 samples per hour 23 parameter setting with 3 part differentiation of WBCs Automatic sampling and probe cleaning Automated sample diluting, mixing, rinsing, clog cleaning Precised output with less blood sample consumption Electrical resistance for counting and SFT method Real time result monitoring 3 operational modes : Figure button, mouse, international Key-board Advanced digital ARM intelligent technology Internal thermal sensitive or external printer Applications: Used to count and characterize blood cells for disease detection and monitoring, WBC counts, complete cell counts, reticulocyte analysis and coagulation tests.

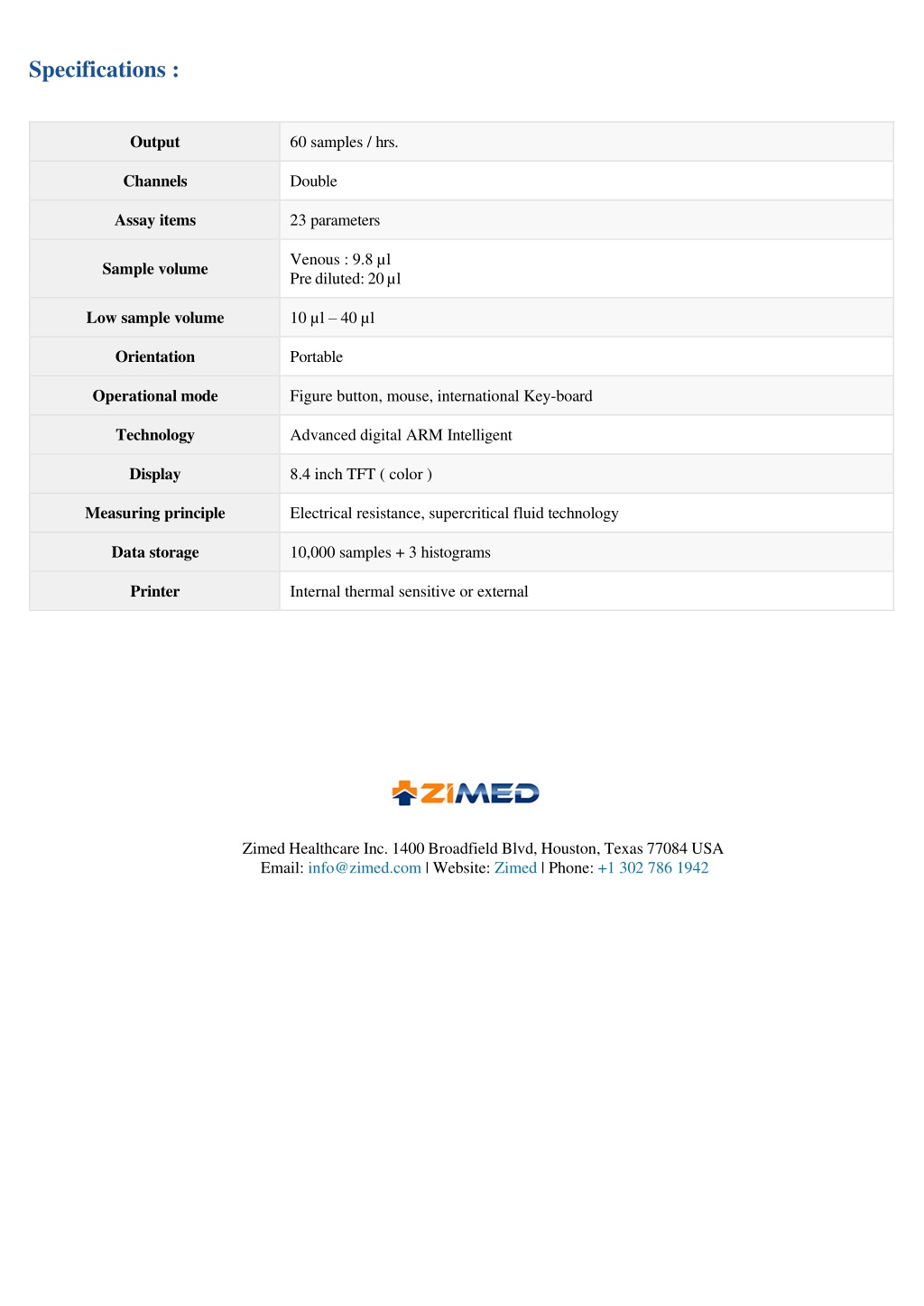

  3. Specifications : Output 60 samples / hrs. Channels Double Assay items 23 parameters Venous : 9.8 µl Pre diluted: 20 µl Sample volume Low sample volume 10 µl – 40 µl Orientation Portable Operational mode Figure button, mouse, international Key-board Technology Advanced digital ARM Intelligent Display 8.4 inch TFT ( color ) Measuring principle Electrical resistance, supercritical fluid technology Data storage 10,000 samples + 3 histograms Printer Internal thermal sensitive or external Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
