  1. Step-by-Step Process of Sheet Metal Embossing Sheet embossing enhances the aesthetics and functionality of sheet metal by creating raised or recessed designs. This metalworking technique is widely used in automotive, aerospace, and decorative metal applications. Metal embossing improves surface finishing, increases durability, and adds unique embossing patterns to the final product. by Raviteja Shyamala

  2. Understanding the Embossing Process Pressing Metal Sheets Fabrication Techniques The sheet metal embossing process involves pressing a metal sheet between two matched dies using a press machine. This technique is a crucial part of metal fabrication, ensuring precision and consistency. Various fabrication techniques, such as roll embossing, deep drawing, and die embossing, contribute to achieving different patterns and textures. Sheet forming is a crucial manufacturing process that shapes metal sheets into desired structures.

  3. Advantages of Sheet Metal Embossing Enhanced Aesthetics Improved Rigidity 1 2 Enhances metal texture and aesthetic appeal, allowing for custom metalwork and personalization. Improves structural rigidity without increasing weight, making it a cost-effective solution for large-scale manufacturing processes. Versatility 3 Compatible with various metalworking tools for added versatility in design and application.

  4. Material Selection and Preparation Material Thickness Common Metals Factors such as material thickness, type of metal, and intended use determine the final product’s strength and durability. Common metals used include Aluminum, Stainless Steel, Copper, and Brass, each offering unique properties. Surface Treatment Any surface contaminants are removed by cleaning and treating the sheets, with proper lubrication applied to facilitate smooth processing.

  5. Die Design and Tooling Process Custom Design Hardened Steel Intricate Designs Custom sheet metal manufacturers design dies based on client specifications, ensuring unique and precise patterns. Dies are typically made from hardened steel to withstand repetitive stamping processes, ensuring durability. The engraving process ensures intricate designs are embedded into the dies, enhancing the final product's aesthetic.

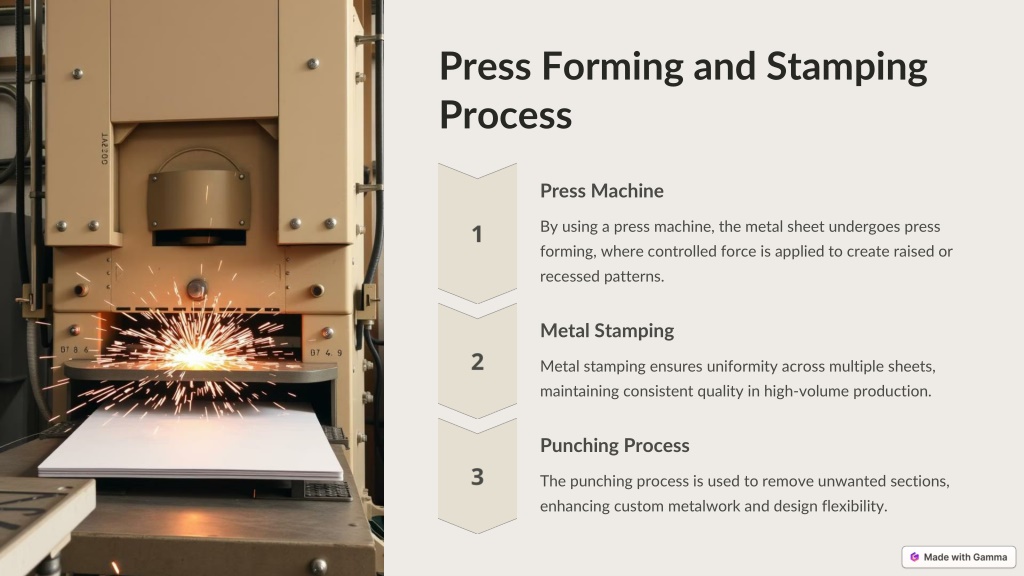

  6. Press Forming and Stamping Process Press Machine By using a press machine, the metal sheet undergoes press forming, where controlled force is applied to create raised or recessed patterns. Metal Stamping Metal stamping ensures uniformity across multiple sheets, maintaining consistent quality in high-volume production. Punching Process The punching process is used to remove unwanted sections, enhancing custom metalwork and design flexibility.

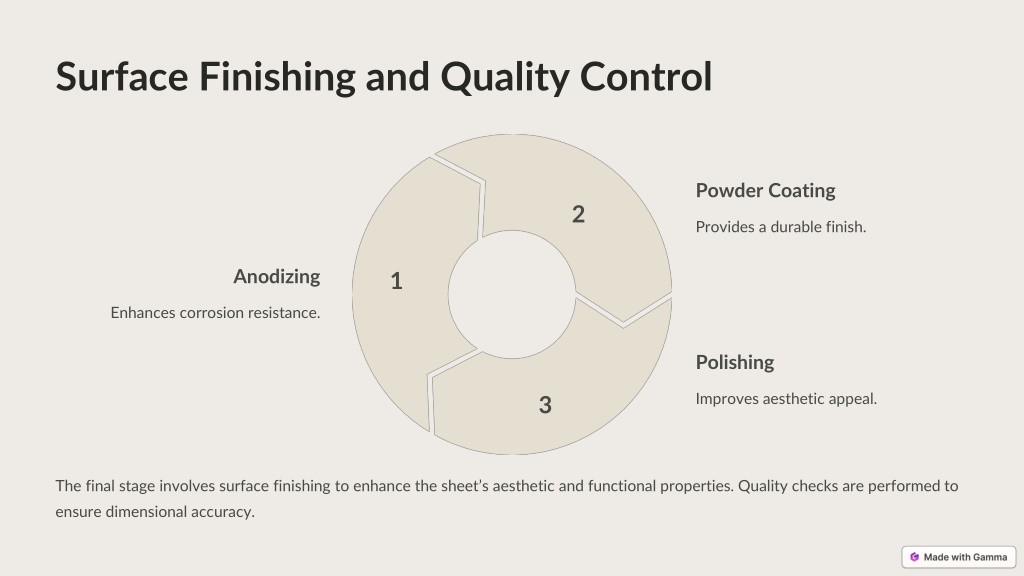

  7. Surface Finishing and Quality Control Powder Coating 2 Provides a durable finish. 1 Anodizing Enhances corrosion resistance. Polishing 3 Improves aesthetic appeal. The final stage involves surface finishing to enhance the sheet’s aesthetic and functional properties. Quality checks are performed to ensure dimensional accuracy.

  8. Applications of Sheet Metal Embossing Automotive Embossing Industrial Forming Decorative Metal Used in car body panels, dashboards, and structural components for enhanced aesthetics and rigidity. Essential for HVAC systems, electrical enclosures, and appliance casings, providing structural integrity. Employed in architecture, home decor, and jewelry designs, adding unique visual appeal.
