Protein synthesis

Protein Synthesis


Protein synthesis

QUIZ

  • Where does DNA synthesis occur ? (what organelle?)

  • Pick one…. What does Helicase do? Or what does DNA polymerase do?

  • What is the purpose of DNA synthesis?

  • Explain in your own words what DNA synthesis is

  • Write down this DNA’s complimentary strand

    • G A T A C A


I rna vs dna structure

I. RNA vs. DNA Structure

RNA

DNA

  • Single stranded

  • Nucleotide monomers

  • Ribose sugar

  • Adenine

  • Uracil

  • Guanine

  • Cytosine

  • Double stranded

  • Nucleotide monomers

  • Deoxyribose sugar

  • Adenine

  • Thymine

  • Cytosine

  • Guanine

There are 3 types of RNA mRNA; tRNA; rRNA


Protein synthesis

RNA

  • mRNA- is transcribed or re-written in the nucleus then enters the cytoplasm

    • Why use RNA?

  • tRNA- Transfer RNA, has complimentary base pair and brings the amino acid (or mini protein) to the ribosome

  • rRNA- ribosomal RNA


  • Ii transcription

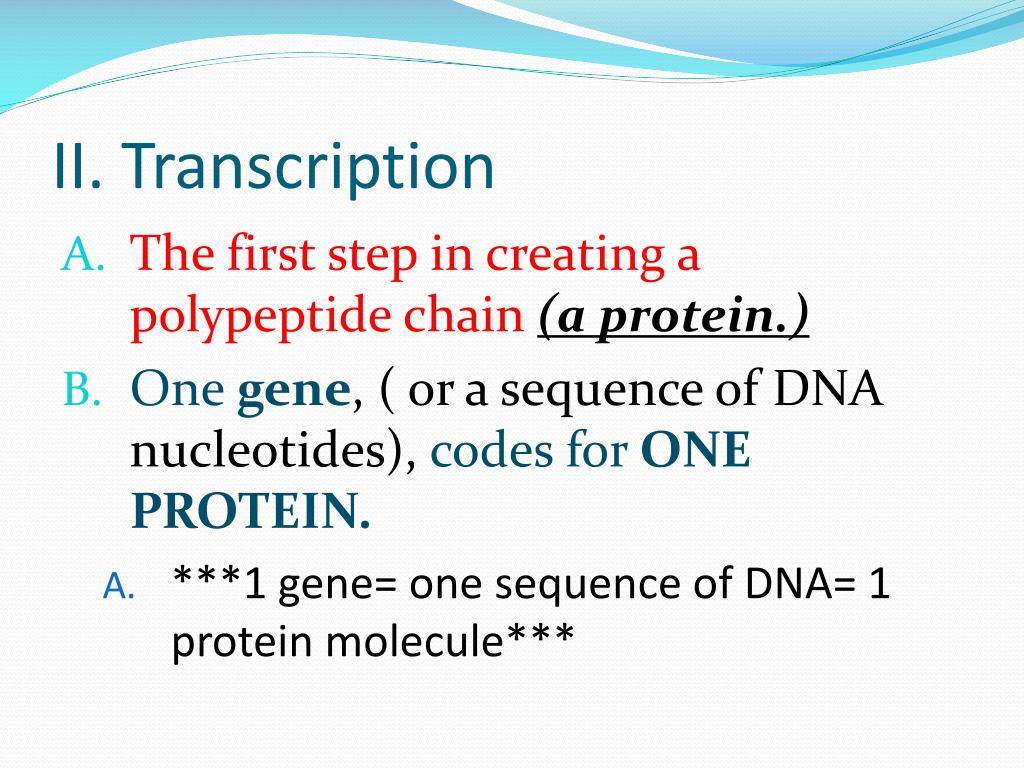

    II. Transcription

    • The first step in creating a polypeptide chain (a protein.)

    • One gene, ( or a sequence of DNA nucleotides), codes for ONE PROTEIN.

      • ***1 gene= one sequence of DNA= 1 protein molecule***


    Iii steps of transcription

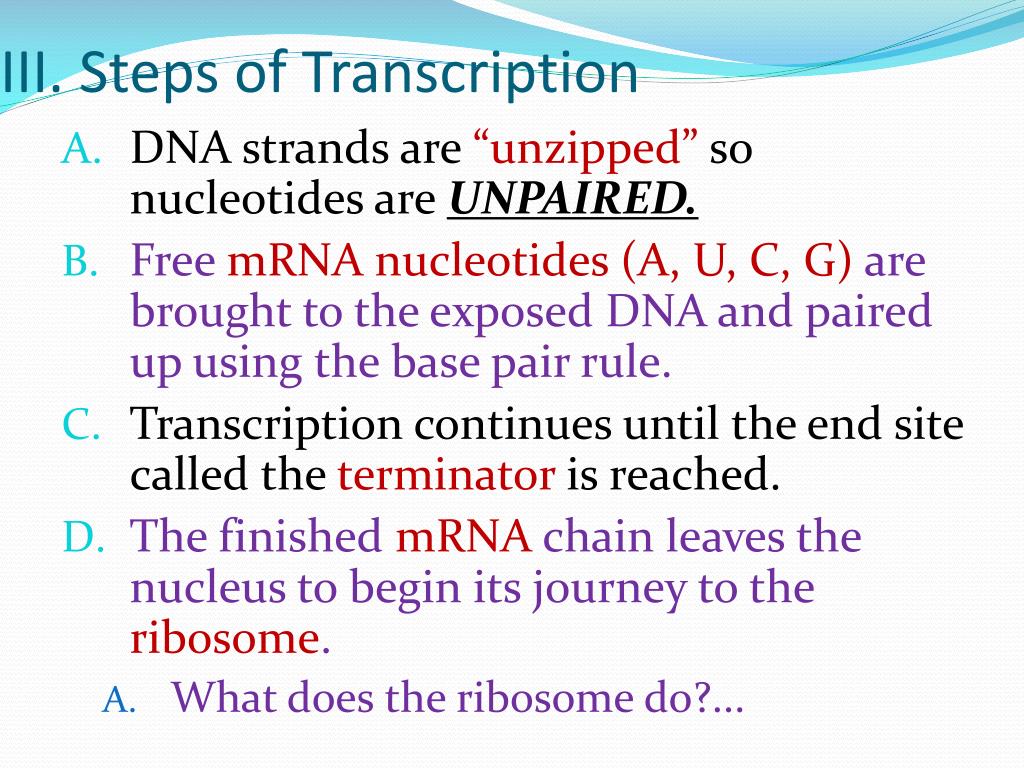

    III. Steps of Transcription

    • DNA strands are “unzipped” so nucleotides are UNPAIRED.

    • Free mRNA nucleotides (A, U, C, G) are brought to the exposed DNA and paired up using the base pair rule.

    • Transcription continues until the end site called the terminator is reached.

    • The finished mRNA chain leaves the nucleus to begin its journey to the ribosome.

      • What does the ribosome do?...


    Recap

    Recap

    • We have our mRNA which is a compliment to our DNA

      • Lets say our DNA says ATGCCTAGC

      • Our mRNA would read ____________________

      • This sequence will now leave the nucleus and travel to the ribosome to make…..


    Iv translation

    IV. Translation

    • The 2nd step in creating a protein.

    • Translation happens at the ribosome. Here, the mRNA is “decoded” into amino acids.

    • Each 3 nucleotides on mRNA is called a “Codon” and was transcribed from complementary DNA “Triplets.”

    • 1 triplet = 1 Codon = 1 amino acid

    • The right amino acid is brought to the ribosome and put into the right spot using tRNA, which contains complementary anti-codons.


    Let s practice

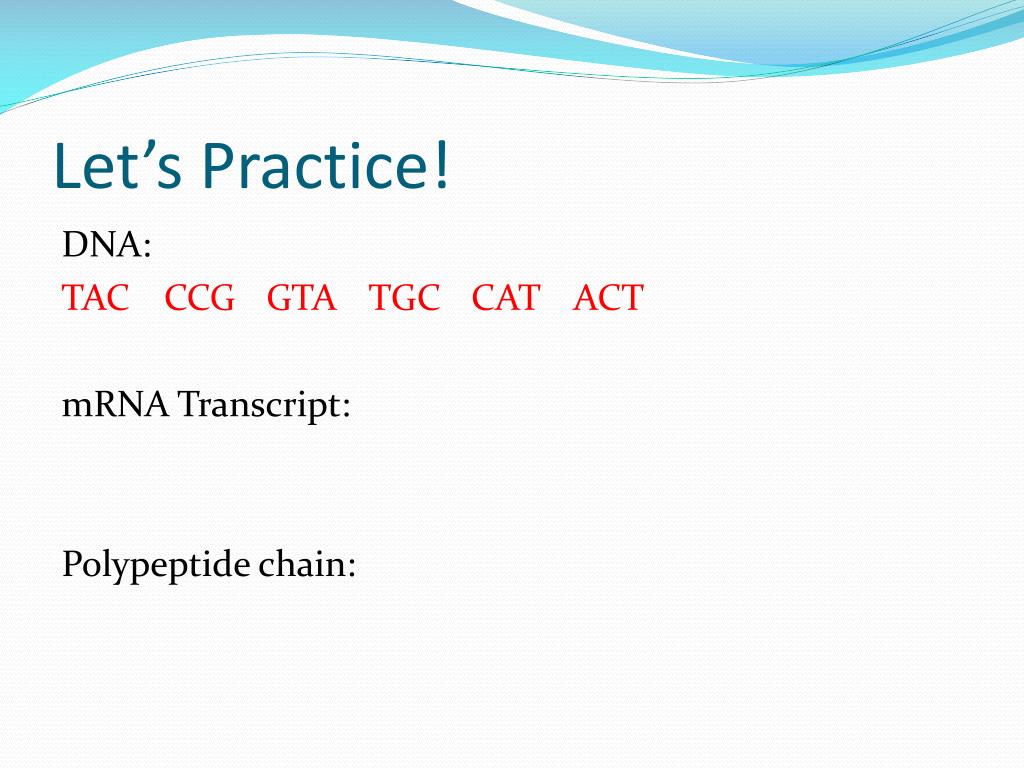

    Let’s Practice!

    DNA:

    TACCCGGTATGCCAT ACT

    mRNA Transcript:

    Polypeptide chain:


    V protein production

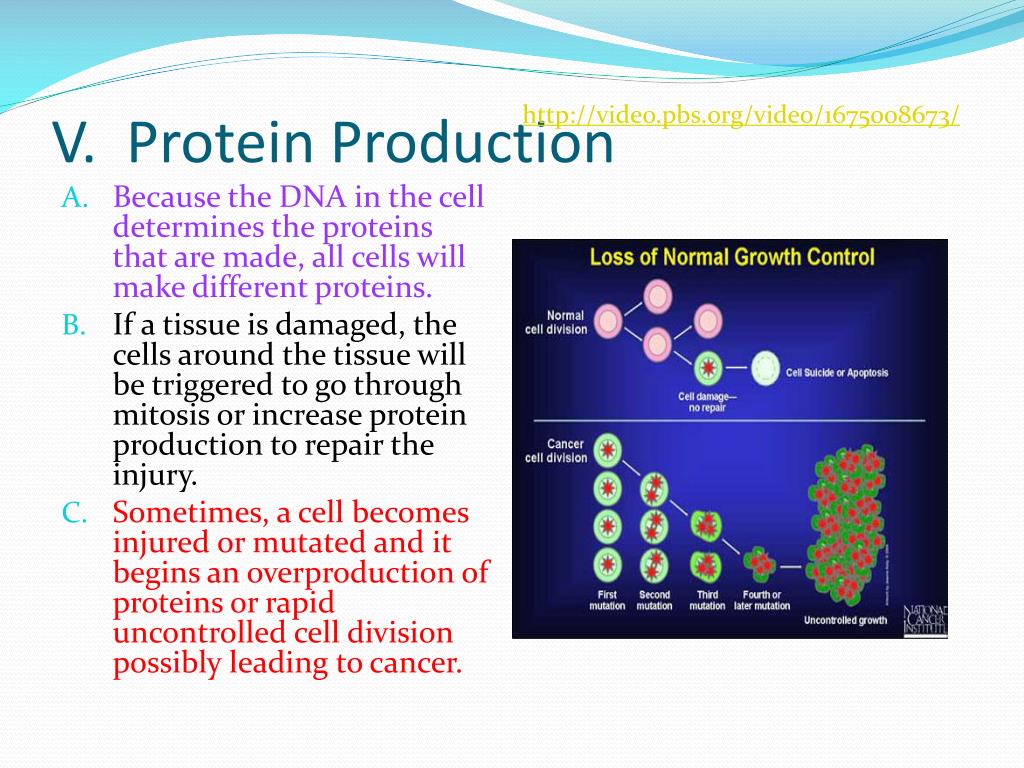

    V. Protein Production

    http://video.pbs.org/video/1675008673/

    • Because the DNA in the cell determines the proteins that are made, all cells will make different proteins.

    • If a tissue is damaged, the cells around the tissue will be triggered to go through mitosis or increase protein production to repair the injury.

    • Sometimes, a cell becomes injured or mutated and it begins an overproduction of proteins or rapid uncontrolled cell division possibly leading to cancer.
