Using Dial Indicator On a Lathe

Using Dial Indicator On a Lathe. To check that a part is centered: Insert part into chuck, and mount magnetic dial indicator onto carriage Position needle so it is tangential to surface of stock Zero the dial indicator Rotate chuck 180 ° by hand and observe dial reading

willem
Download Presentation

Using Dial Indicator On a Lathe

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

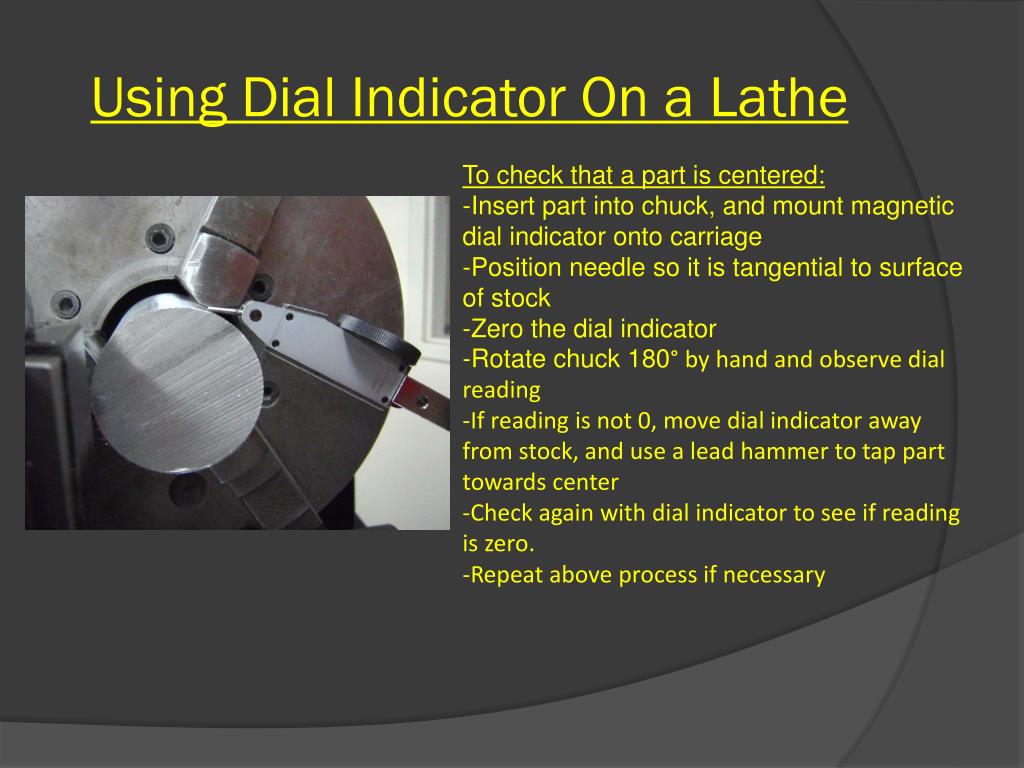

  1. Using Dial Indicator On a Lathe • To check that a part is centered: • Insert part into chuck, and mount magnetic dial indicator onto carriage • Position needle so it is tangential to surface of stock • Zero the dial indicator • Rotate chuck 180° by hand and observe dial reading • If reading is not 0, move dial indicator away from stock, and use a lead hammer to tap part towards center • -Check again with dial indicator to see if reading is zero. • -Repeat above process if necessary

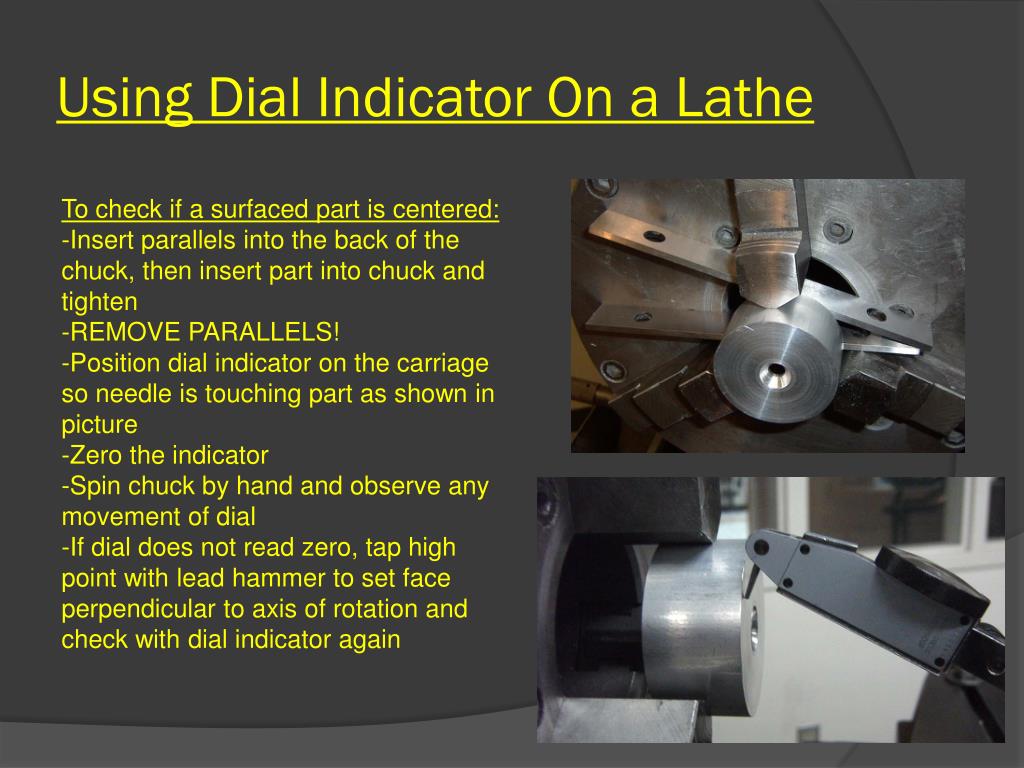

  2. Using Dial Indicator On a Lathe To check if a surfaced part is centered: -Insert parallels into the back of the chuck, then insert part into chuck and tighten -REMOVE PARALLELS! -Position dial indicator on the carriage so needle is touching part as shown in picture -Zero the indicator -Spin chuck by hand and observe any movement of dial -If dial does not read zero, tap high point with lead hammer to set face perpendicular to axis of rotation and check with dial indicator again
