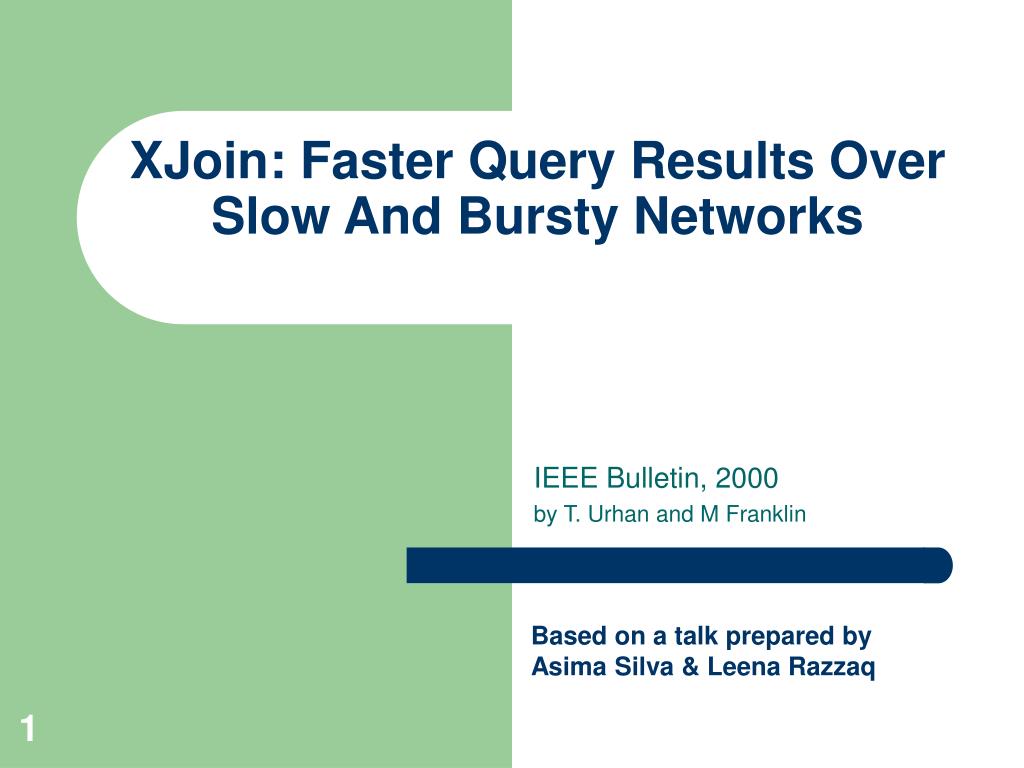

Xjoin faster query results over slow and bursty networks

XJoin: Faster Query Results Over Slow And Bursty Networks

IEEE Bulletin, 2000

by T. Urhan and M Franklin

Based on a talk prepared by Asima Silva & Leena Razzaq


Motivation
Motivation

  • Data delivery issues in terms of:

    • unpredictable delay from some remote data sources

    • wide-area network with possibly communication links, congestion, failures, and overload

  • Goal:

    • Not just overall query processing time matters

    • Also when initial data is delivered

    • Overall throughput and rate throughout query process


Overview
Overview

  • Hash Join History

  • 3 Classes of Delays

  • Motivation of XJoin

  • Challenges of Developing XJoin

  • Three Stages of XJoin

  • Handling Duplicates

  • Experimental Results


Hash join

S tuple 1

key2

key1

key3

key4

Key5…

R tuples…

R tuples

R tuples

R tuples

R tuples

S tuple 2

S tuple 3

S tuple 4

S tuple 5….

Hash Join

2. Probe

  • Only one table is hashed

1. BUILD


Hybrid hash join

Memory

Disk

Bucket i

R tuples

S tuple 1

Bucket n

R tuples

Bucket i+1

R tuples

S tuple 1

Bucket n+1

R tuples

Bucket i+2

R tuples

S tuple 1

Bucket n+2

R tuples

Bucket …

R tuples

S tuple 1

Bucket …

R tuples

Bucket j-1

R tuples

S tuple …

Bucket m-1

R tuples

Bucket j

R tuples

Bucket m

R tuples

Hybrid Hash Join

  • One table is hashed both to disk and memory (partitions)

  • G. Graefe. “Query Evaluation Techniques for Large Databases”, ACM1993.


Symmetric hash join pipeline

R tuple S tuple

R tuple S tuple

Key i

Key n

S tuples

R tuples

Key n+1

Key i+1

S tuples

R tuples

PROBE

Key n+2

Key i+2

S tuples

R tuples

Key …

Key …

R tuples

S tuples

PROBE

Key m-1

Key j-1

S tuples

R tuples

Key m

Key j

S tuples

R tuples

BUILD

BUILD

Symmetric Hash Join (Pipeline)

  • Both tables are hashed (both kept in main memory only)

  • Z. Ives, A. Levy, “An Adaptive Query Execution”, VLDB 99

OUTPUT

Source S

Source R


Problem of shj
Problem of SHJ:

  • Memory intensive :

    • Won’t work for large input streams

    • Wont’ allow for many joins to be processed in a pipeline (or even in parallel)


New problems three delays
New Problems: Three Delays

  • Initial Delay

    • First tuple arrives from remote source more slowly than usual (still want initial answer out quickly)

  • Slow Delivery

    • Data arrives at a constant, but slower than expected rate (at the end, still overall good throughput behavior)

  • Bursty Arrival

    • Data arrives in a fluctuating manner (how to avoid sitting idle in periods of low input stream rates)


Question
Question:

  • Why are delays undesirable?

    • Prolongs the time for first output

    • Slows the processing if wait for data to first be there before acting

    • If too fast, you want to avoid loosing any data

    • Waste of time if you sit idle while no data is incoming

    • Unpredictable, one single strategy won’t work


Challenges for xjoin
Challenges for XJoin

  • Manage flow of tuples between memory and secondary storage (when and how to do it)

  • Control background processing when inputs are delayed (reactive scheduling idea)

  • Ensure the full answer is produced

  • Ensure duplicate tuples are not produced

  • Both quick initial output as well as good overall throughput


Motivation of xjoin
Motivation of XJoin

  • Produces results incrementally when available

    • Tuples returned as soon as produced

    • Good for online processing

  • Allows progress to be made when one or more sources experience delays by:

    • Background processing performed on previously received tuples so results are produced even when both inputs are stalled



Memory-resident partitions of source A

Memory-resident partitions of source B

1

1

n

n

1

k

n

. . . . . . . . . . . .

. . .

. . .

M E M O R Y

flush

D I S K

Tuple B

Tuple A

hash(Tuple B) = n

hash(Tuple A) = 1

1

. . .

n

1

k

n

. . .

. . .

SOURCE-A

Disk-residentpartitions of source A

Disk-residentpartitions of source B

SOURCE-B

XJoin


1 st stage of xjoin
1st Stage of XJoin

  • Memory - to - Memory Join

  • Tuples are stored in partitions:

    • A memory-resident (m-r) portion

    • A disk-resident (d-r) portion

  • Join processing continues as usual:

    • If space permits, M to M

    • If memory full, then pick one partition as victim, flush to disk and append to end of disk partition

  • 1st Stage runs as long as one of the inputs is producing tuples

  • If no new input, then block stage1 and start stage 2


Output

Partitions of source A

Partitions of source B

j

i

j

i

. . . . . . . . .

. . . . . . . . .

Insert

Insert

Probe

Probe

Tuple A

Tuple B

hash(record A) = i

hash(record B) = j

1st Stage Memory-to-Memory Join

M E M O R Y

SOURCE-A

SOURCE-B


Why stage 1
Why Stage 1?

  • Use Memory as it is the fastest whenever possible

  • Use any new coming data as it’s already in memory

  • Don’t stop to go and grab stuff out of disk for new data joins


Question1
Question:

  • What does Second Stage do?

  • When does the Second Stage start?

  • Hints:

    • Xjoin proposes a memory management technique

    • What occurs when data input (tuples) are too large for memory?

  • Answer:

    • Second Stage joins Mem-to-Disk

    • Occurs when both the inputs are blocking


2 nd stage of xjoin
2nd Stage of XJoin

  • Activated when 1st Stage is blocked

  • Performs 3 steps:

    • Chooses the partition according to throughput and size of partition from one source

    • Uses tuples from d-r portion to probe m-r portion of other source and outputs matches, till d-r completely processed

    • Checks if either input resumed producing tuples. If yes, resume 1st Stage. If no, choose another d-r portion and continue 2nd Stage.


Stage 2 disk to memory joins

Output

i

Partitions of source A

Partitions of source B

. . . . . . .

. . . . . . .

i

. . . . . . .

. . . . . . .

M E M O R Y

DPiA MPiB

i

D I S K

i

. . . . .

. . . . .

. . . . .

. . . . .

Partitions of source A

Partitions of source B

Stage 2: Disk-to-memory Joins


Controlling 2 nd stage
Controlling 2nd Stage

  • Cost of 2nd Stage is hidden when both inputs experience delays

  • Tradeoff ?

  • What are the benefits of using the second stage?

    • Produce results when input sources are stalled

    • Allows variable input rates

  • What is the disadvantage?

    • The second stage must complete a d-r portion before checking for new input (overhead)

  • To address the tradeoff, use an activation threshold:

    • Pick a partition likely to produce many tuples right now


3 rd stage of xjoin
3rd Stage of XJoin

  • Disk-to-Disk Join

  • Clean-up stage

    • Assumes that all data for both inputs has arrived

    • Assumes that first and second stage completed

    • Makes sure that all tuples belonging in the result are being produced.

  • Why is this step necessary?

    • Completeness of answer


Handling duplicates
Handling Duplicates

  • When could duplicates be produced?

  • Duplicates could be produced in all 3 stages as multiple stages may perform overlapping work.

  • How address it:

    • XJoin prevents duplicates with timestamps.

  • When address this:

    • During processing as continuous output


Time stamping part 1
Time Stamping : part 1

  • 2 fields are added to each tuple:

    • Arrival TimeStamp (ATS)

      • indicates when the tuple arrived first in memory

    • Departure TimeStamp (DTS)

      • used to indicated time the tuple was flushed to disk

  • [ATS, DTS] indicates when tuple was in memory

  • When did two tuples get joined?

    • If Tuple A’s DTS is within Tuple B’s [ATS, DTS]

  • Tuples that meet this overlap condition are not considered for joining by the 2nd or 3rd stages


Detecting tuples joined in 1st stage

ATS

ATS

DTS

DTS

Tuple A

102

234

Tuple A

102

234

Non-Overlapping

Overlapping

Tuple B1

Tuple B2

178

348

601

198

Detecting tuples joined in 1st stage

  • Tuples joined in first stage

  • B1 arrived after A, and before A was flushed to disk

  • Tuples not joined in first stage

  • B2 arrived after A, and after A was flushed to disk


Time stamping part 2
Time Stamping : part 2

  • For each partition, keep track off:

    • ProbeTS: time when a 2nd stage probe was done

    • DTSlast: the latest DTS time of all the tuples that were available on disk at that time

  • Several such probes may occur:

    • Thus keep an ordered history of such probe descriptors

  • Usage:

    • All tuples before and including at time DTSlast were joined in stage 2 with all tuples in main memory (ATS,DTS) at time ProbeTS


Detecting tuples joined in 2nd stage

DTSlast

ATS

DTS

ProbeTS

Tuple A

100

200

20

300

100

800

250

700

900

340

550

300

Partition 1

Partition 3

Partition 2

Overlap

Partition 1

Partition 2

Tuple B

500

600

ATS

DTS

History list for the corresponding partitions

Detecting tuples joined in 2nd stage

All tuples before and including DTSlast were joined in Stage 2

At time ProbeTS

All A tuples in Partition 2 up to DTSlast 250,

Were joined with m-r tuples that arrived before Partition 2’s ProbeTS.


Experiments
Experiments

  • HHJ (Hybrid Hash Join)

  • Xjoin (with 2nd stage and with caching)

  • Xjoin (without 2nd stage)

  • Xjoin (with aggressive usage of 2nd stage)


Case 1 slow network both sources are slow bursty
Case 1: Slow NetworkBoth sources are slow (bursty)

  • XJoin improves delivery time of initial answers -> interactive performance

  • The reactive background processing is an effective solution to exploit intermittant delays to keep continued output rates.

  • Shows that 2nd stage is very useful if there is time for it



Case 2 fast network both sources are fast
Case 2: Fast NetworkBoth sources are fast

  • All XJoin variants deliver initial results earlier.

  • XJoin also can deliver the overall result in equal time to HHJ

  • HHJ delivers the 2nd half of the result faster than XJoin.

  • 2nd stage cannot be used too aggressively if new data is coming in continuously


Case 2 fast network both sources are fast1
Case 2: Fast NetworkBoth sources are fast


Conclusion
Conclusion

  • Can be conservative on space (small footprint)

  • Can be used in conjunction with online query processing to manage the streams

  • Resuming Stage 1 as soon as data arrives

  • Dynamically choosing techniques for producing results


References
References

  • Urhan, Tolga and Franklin, Michael J. “XJoin: Getting Fast Answers From Slow and Bursty Networks.”

  • Urhan, Tolga, Franklin, Michael J. “XJoin: A Reactively-Scheduled Pipelined Join Operator.”

  • Hellerstein, Franklin, Chandrasekaran, Deshpande, Hildrum, Madden, Raman, and Shah. “Adaptive Query Processing: Technology in Evolution”. IEEE Data Engineering Bulletin, 2000.

  • Hellerstein and Avnur, Ron. “Eddies: Continuously Adaptive Query Processing.”

  • Babu and Wisdom, Jennefer. “Continuous Queries Over Data Streams”.
