  1. Underground Coal Gasification (UCG)with CO2 Enhanced Oil Recovery (EOR) in Western North Dakota Zhengwen Zeng and Peng PeiDepartment of Geology and Geologic Engineering University of North Dakota

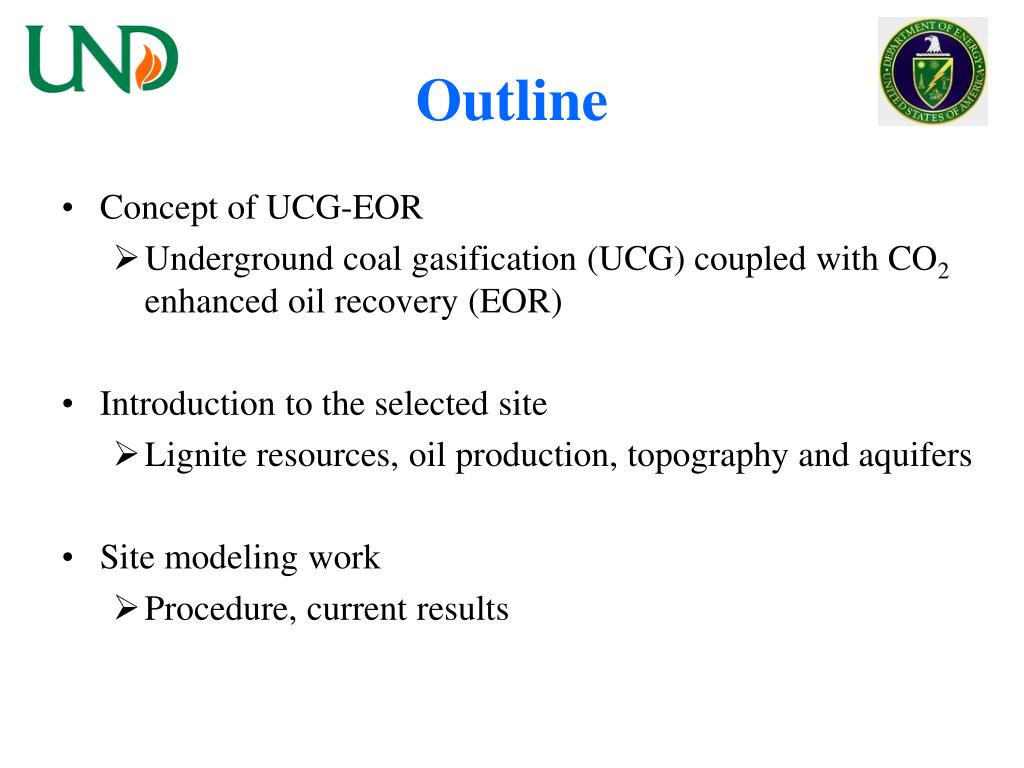

  2. Outline Concept of UCG-EOR Underground coal gasification (UCG) coupled with CO2 enhanced oil recovery (EOR) Introduction to the selected site Lignite resources, oil production, topography and aquifers Site modeling work Procedure, current results

  3. Concept of UCG-EOR

  4. Our Goals • Generate power and/or syngas products via underground coal gasification to recover the huge, unmineable lignite resources in North Dakota • Enhance oil recovery in nearby mature petroleum reservoirs using CO2 from the underground coal gasification plants • Sequester the CO2 eventually in the deep oil reservoirs to reduce greenhouse gas emission

  5. Site Screening for UCG-CO2EOR

  6. Selected Site – Dunn County, ND (Fischer et al, 2005) 4 townships, 144 square miles Lignite in Fort Union Formation

  7. Oil Production in the Selected Area • Little Knife and many other fields are under the lignite resources in the selected area. • Many fields are in water flooding phase (secondary production). • There is big demand on CO2 for tertiary EOR.

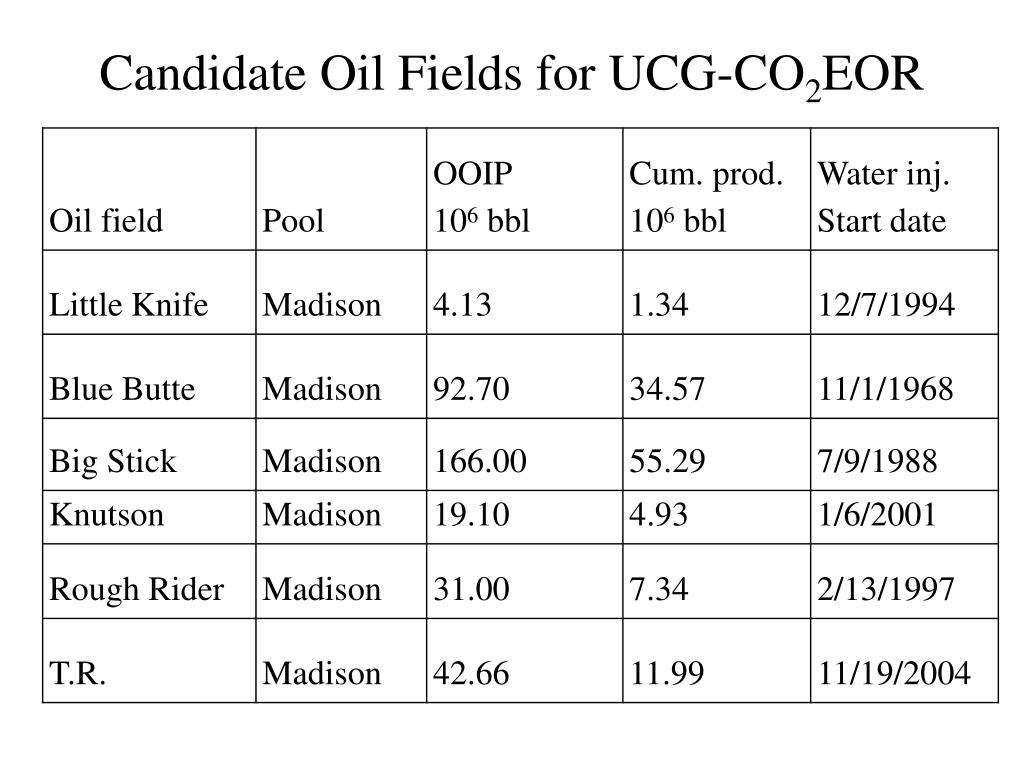

  8. Candidate Oil Fields for UCG-CO2EOR

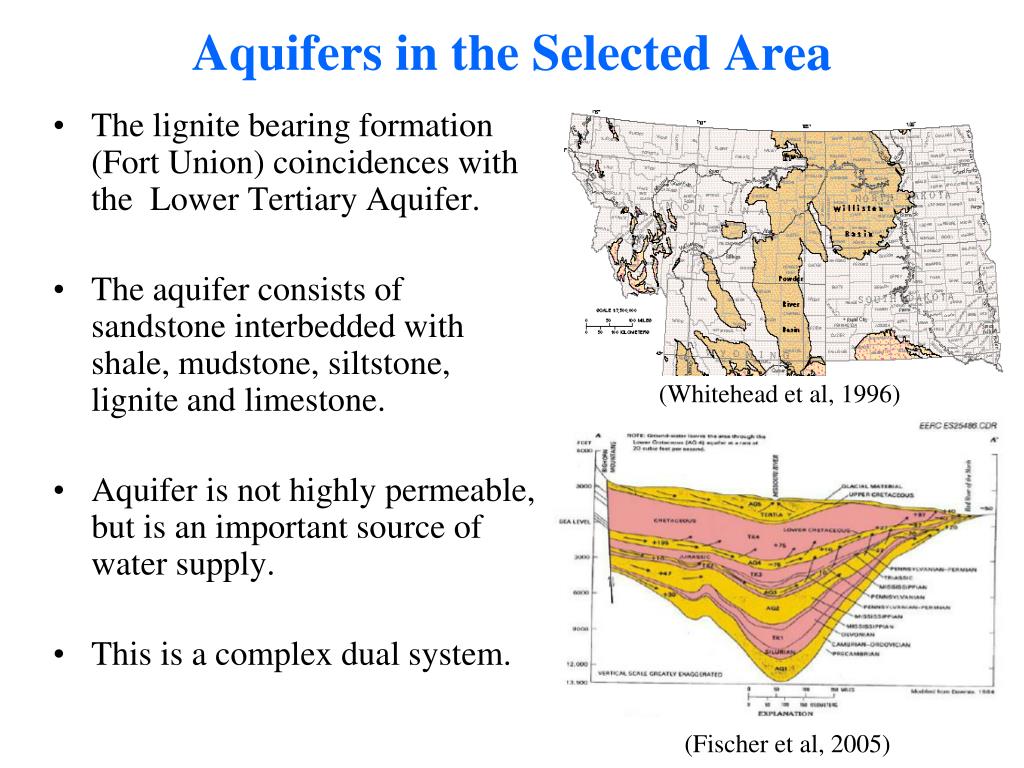

  9. Aquifers in the Selected Area • The lignite bearing formation (Fort Union) coincidences with the Lower Tertiary Aquifer. • The aquifer consists of sandstone interbedded with shale, mudstone, siltstone, lignite and limestone. • Aquifer is not highly permeable, but is an important source of water supply. • This is a complex dual system. (Whitehead et al, 1996) (Fischer et al, 2005)

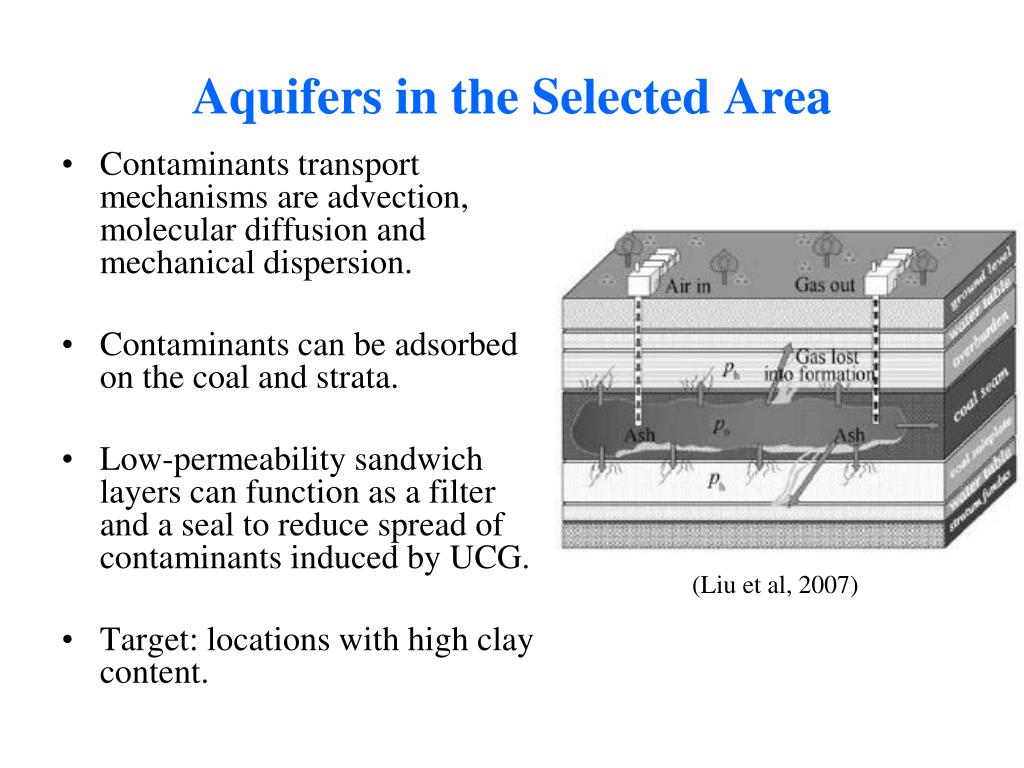

  10. Aquifers in the Selected Area • Contaminants transport mechanisms are advection, molecular diffusion and mechanical dispersion. • Contaminants can be adsorbed on the coal and strata. • Low-permeability sandwich layers can function as a filter and a seal to reduce spread of contaminants induced by UCG. • Target: locations with high clay content. (Liu et al, 2007)

  11. Modeling the Coal Seam and Adjacent Layers • Harmon coal sub-zones in Fort Union Formation • Lithological interpretation logs from US Geological Survey • Oil & gas well logs from North Dakota Geological Survey (Flore et al, 1999)

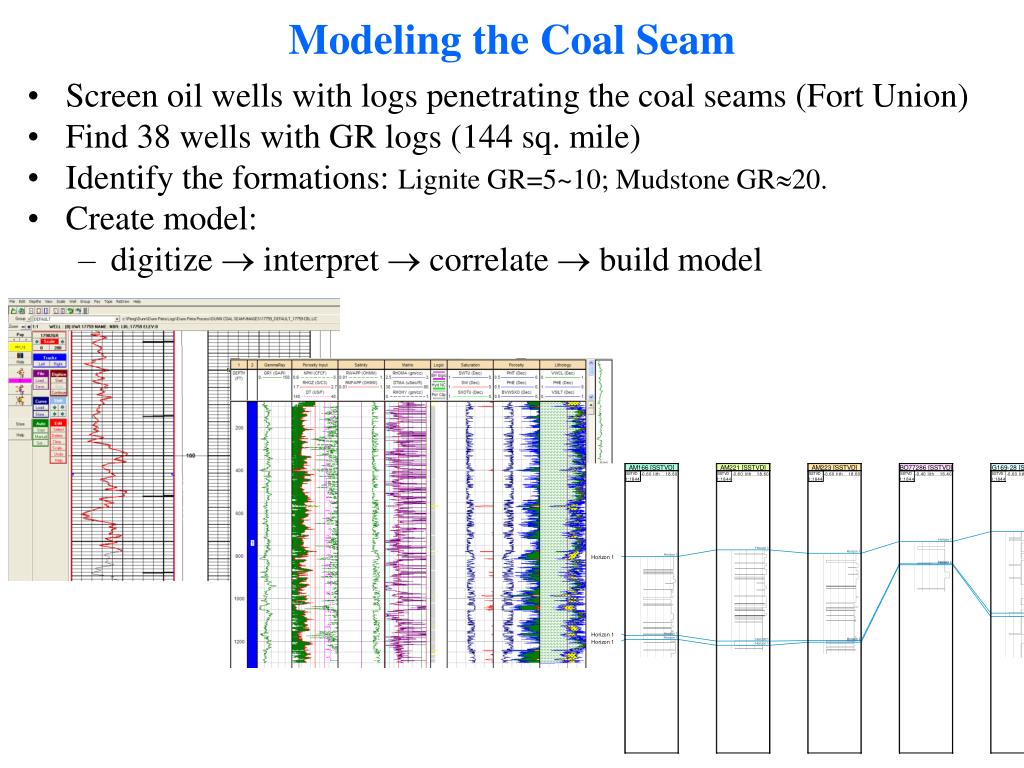

  12. Modeling the Coal Seam • Screen oil wells with logs penetrating the coal seams (Fort Union) • Find 38 wells with GR logs (144 sq. mile) • Identify the formations: Lignite GR=5~10; Mudstone GR20. • Create model: • digitize  interpret  correlate  build model

  13. Model result: Coal Seam and Topography

  14. The Harmon Coal Seam Depth, ft Isopach, ft

  15. Clay Content Coal seam Clay content at 10 ft below the coal seam

  16. Clay Content Clay content at 10 ft above the coal seam Clay content at 30 ft above the coal seam

  17. Summary • Integrated lignite UCG-CCS-CO2EOR in Williston Basin, North Dakota is proposed. • Candidate lignite and oil fields are screened. • Hydrological and petroleum reservoir production conditions of the candidate fields are studied. • Geology of the lignite and the clay seals above and beneath the coal seams are modeled.

  18. Acknowledgements This research is funded by: US DOE through contracts of DE-FC26-05NT42592 (CO2 Sequestration) and DE-FC26-08NT0005643 (Bakken Geomechanics); North Dakota Industry Commission with five industrial sponsors (Encore Acquisition Company, Hess Corporation, Marathon Oil Company, St. Mary Land & Exploration Company, and Whiting Petroleum Corporation) under contract NDIC-G015-031; North Dakota Department of Commerce together with Schlumberger, IHS and American Petroleum Institute through Petroleum Research, Education and Entrepreneurship Center of Excellence (PREEC) program. We greatly appreciate all the sponsors for their support!
