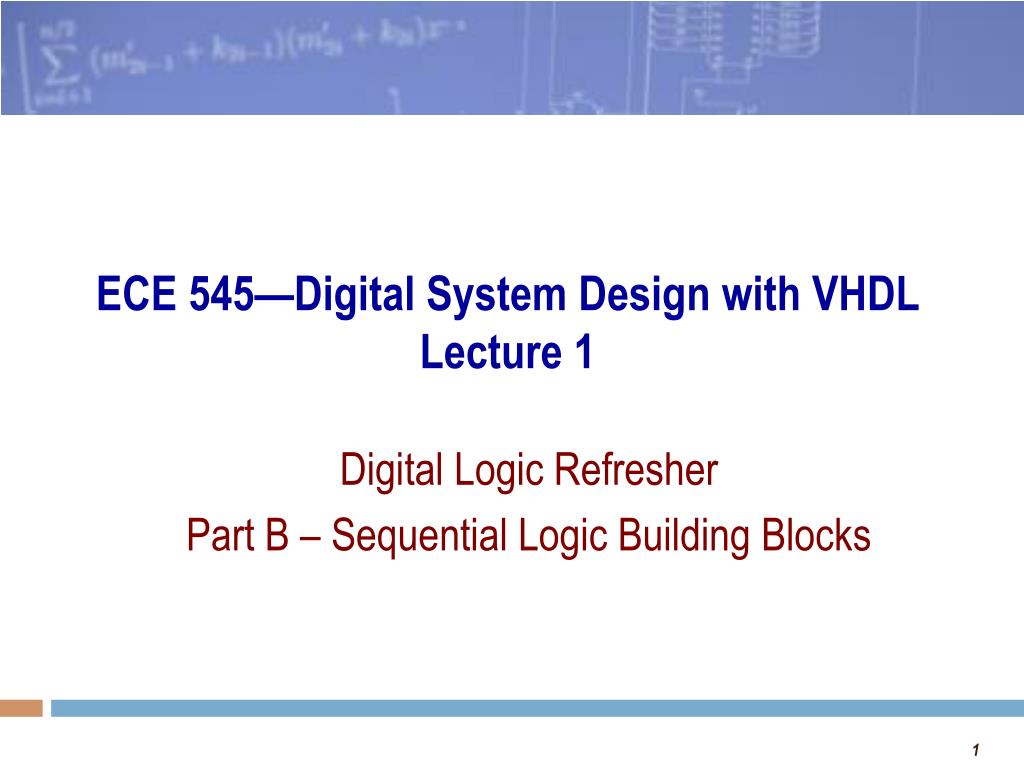

ECE 545—Digital System Design with VHDLLecture 1

Digital Logic Refresher

Part B – Sequential Logic Building Blocks


Lecture roadmap sequential logic

Lecture Roadmap – Sequential Logic

  • Sequential Logic Building Blocks

    • Flip-Flops, Latches

    • Registers, Shift Registers

    • Counters

    • RAM

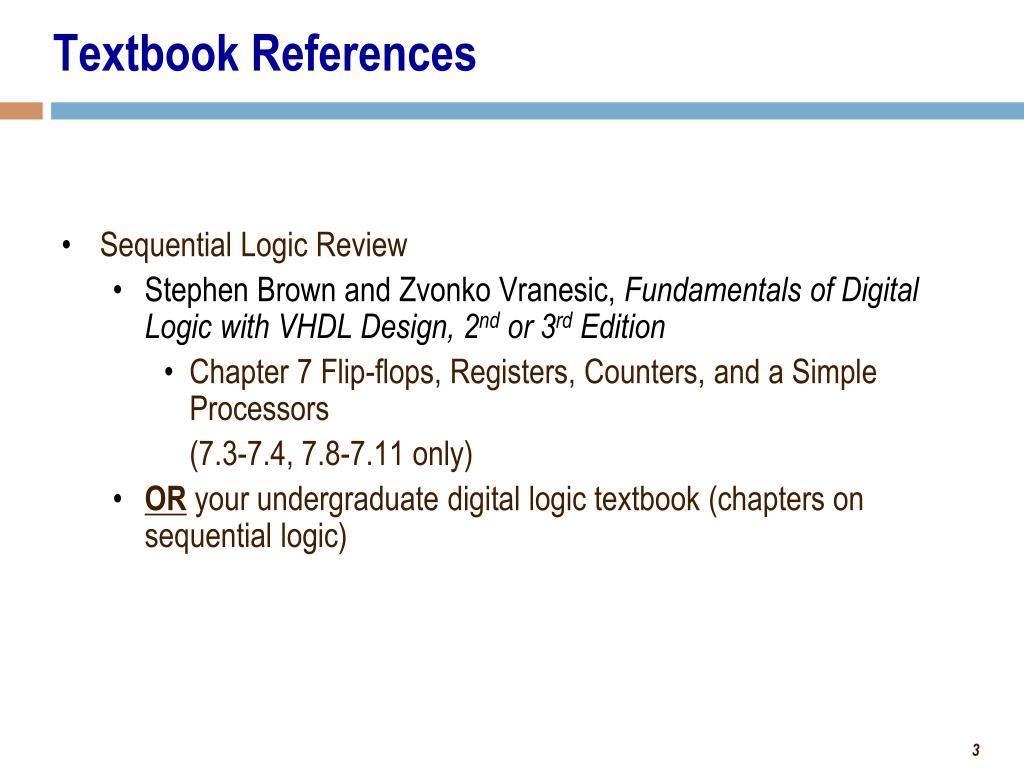

Textbook references

Textbook References

  • Sequential Logic Review

    • Stephen Brown and Zvonko Vranesic, Fundamentals of Digital Logic with VHDL Design, 2nd or 3rd Edition

      • Chapter 7 Flip-flops, Registers, Counters, and a Simple Processors

        (7.3-7.4, 7.8-7.11 only)

    • ORyour undergraduate digital logic textbook (chapters on sequential logic)


Sequential logic building blocks

Sequential Logic Building Blocks

some slides modified from:Brown and Vranesic, “Fundamentals of Digital Logic with VHDL Design, 2nd Edition”S. Dandamudi, “Fundamentals of Computer Organization and Design”

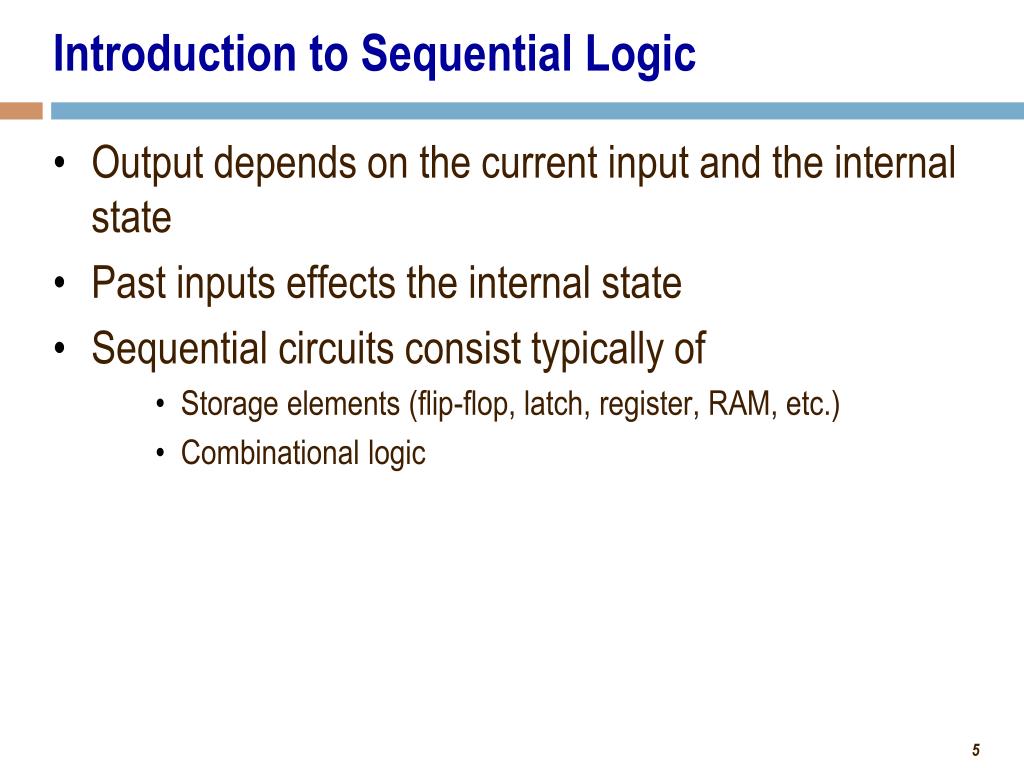

Introduction to sequential logic

Introduction to Sequential Logic

  • Output depends on the current input and the internal state

  • Past inputs effects the internal state

  • Sequential circuits consist typically of

    • Storage elements (flip-flop, latch, register, RAM, etc.)

    • Combinational logic


Introduction cont d

Introduction (cont’d)

Main components of a typical synchronous sequential circuit

(synchronous = uses a clock to keep circuits in lock step)

INPUT

COMBINATIONAL

LOGIC

OUTPUT

NEXT STATE

S(t+1)

PRESENT STATE

S(t)

STATE-HOLDING STORAGE ELEMENTS

(i.e. FLIP-FLOPS)

CLOCK


State holding memory elements

State-Holding Memory Elements

  • Latch versus Flip Flop

    • Latches are level-sensitive: whenever clock is high, latch is transparent

    • Flip-flops are edge-sensitive: data passes through (i.e. data is sampled) only on a rising (or falling) edge of the clock

    • Latches cheaper to implement than flip-flops

    • Flip-flops are easier to design with than latches

  • In this course, primarily use D flip-flops

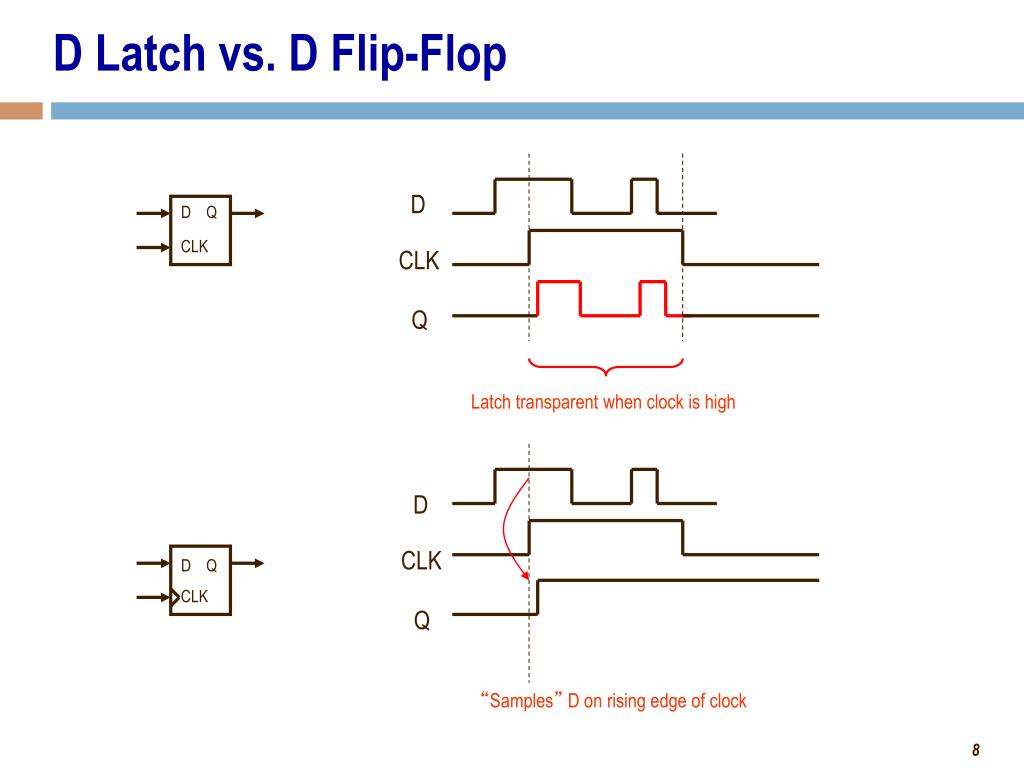

D latch vs d flip flop

D Latch vs. D Flip-Flop

D

D

Q

CLK

CLK

Q

Latch transparent when clock is high

D

CLK

D

Q

CLK

Q

“Samples” D on rising edge of clock


Ece 545 digital system design with vhdl lecture 1

Q

D

Clock

D latch

Truth table

Graphical symbol

Q(t+1)

Clock

D

Q(t)

0

0

1

0

1

1

1

Timing diagram

t

t

t

t

1

2

3

4

Clock

D

Q

Time


Ece 545 digital system design with vhdl lecture 1

Q

D

Clock

D flip-flop

Truth table

Graphical symbol

Q(t+1)

Clk

D

0

0

1

1

Q(t)

0

Q(t)

1

Timing diagram

t

t

t

t

1

2

3

4

Clock

D

Q

Time


D flip flop with asynchronous set and reset

Bubble on the symbol means “active-low”

When Set = 0, set Q to 1

When Set = 1, do nothing

When Reset = 0, set Q to 0

When Reset = 1, do nothing

“Set” and “Reset” also known as “Preset” and “Clear” respectively

In this circuit, Set and Reset are asynchronous

Q changes immediately when preset or clear are active, regardless of clock

D Flip-Flop with Asynchronous Set and Reset

Set

Q

D

Q

Reset

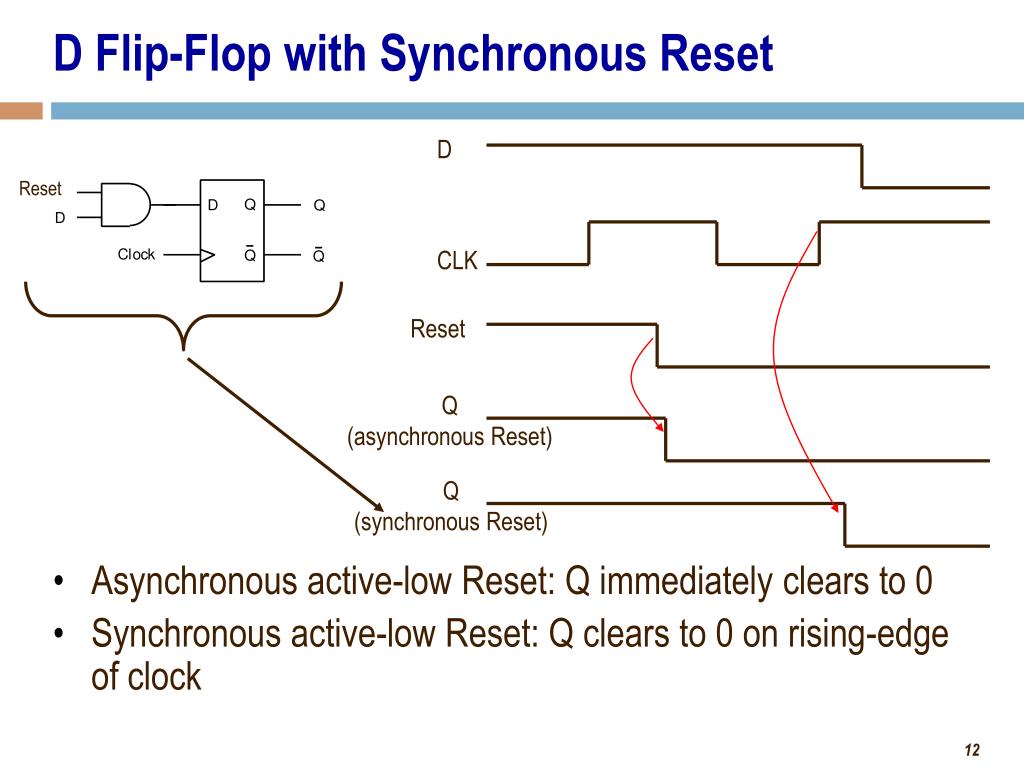

D flip flop with synchronous reset

D Flip-Flop with Synchronous Reset

  • Asynchronous active-low Reset: Q immediately clears to 0

  • Synchronous active-low Reset: Q clears to 0 on rising-edge of clock

D

Reset

CLK

Reset

Q(asynchronous Reset)

Q(synchronous Reset)


Register

4

4

D

Q

Clock

Register

  • In typical nomenclature, a register is a name for a collection of flip-flops used to hold a bus

  • All flip-flops of a register share the same clock and control signals

D(3)

Q(3)

D

Q

CLK

D(2)

Q(2)

D

Q

CLK

D(1)

Q(1)

D

Q

CLK

D(0)

Q(0)

D

Q

CLK


Shift register

Q

Q

Q

Q

3

2

1

0

Sin

Q

Q

Q

Q

Q

D

D

D

D

Clk

(a) Circuit

Q

Q

Q

Q

=

Q

Sin

3

2

1

0

t

1

0

0

0

0

0

t

0

1

0

0

0

1

t

1

0

1

0

0

2

t

1

1

0

1

0

3

t

1

1

1

0

1

4

t

0

1

1

1

0

5

t

0

0

1

1

1

6

t

0

0

0

1

1

7

Shift Register

SHIFTREGISTER

Clk

Sin

Q


Ece 545 digital system design with vhdl lecture 1

4

4

4

4

Enable

Enable

D

D

Q

Q

Load

Sin

Sin

Clock

Clock

4-bit Shift Registers: symbols

a) with Enable

b) with Enable and Parallel Load


Shift register with enable internal structure

D

D

D

D

Q

Q

Q

Q

Shift Register with Enable: internal structure

Q(1)

Q(0)

Q(2)

Q(3)

Sin

Clock

Enable


Shift register with parallel load internal structure

D(0)

D

D

D

D

Q

Q

Q

Q

Shift Register with Parallel Load: internal structure

Load

D(3)

D(1)

D(2)

Sin

Clock

Enable

Q(3)

Q(2)

Q(1)

Q(0)


Synchronous up counter

Synchronous Up Counter

  • Enable (synchronous): when high enables the counter, when low counter holds its value

  • Load (synchronous) : when load = 1, load the desired value into the counter

  • Output carry: indicates when the counter “rolls over”

  • D3 downto D0, Q3 downto Q0 is how to interpret MSB to LSB

enable

load

carry

D0

Q0

D1

Q1

D2

Q2

D3

Q3

clock


Random access memory ram

Random Access Memory (RAM)

  • More efficient than registers for storing large amounts of data

  • Can read and write to RAM

  • Addressable memory

  • RAM dimensions are:

    • (number of words) x (bits per word)

  • Address is m bits, data is n bits

    • 2m x n-bit RAM

  • Example: address is 5 bits, data is 8 bits

    • 32 x 8 RAM

  • Write Enable (WE)

    • When set, writing takes place

      at the next rising edge of

      the clock

RAM

DIN

DOUT

n

n

ADDR

m

WE

CLK


Dual port ram

Dual-Port RAM

  • Two sets of input ports

    {DINA, ADDRA, WEA}

    {DINB, ADDRB, WEB}

  • Two corresponding outputs

    DOUTA

    DOUTB

  • One memory matrix

  • Possible operations:

    • Read from two memory locations

    • Write to two different memory locations

    • Read from a memory location

      and write to a memory location

      (different or the same)

RAM

DINA

DOUTA

n

n

ADDRA

m

WEA

DINB

DOUTB

n

n

ADDRB

m

WEB

CLK
