  1. Projections and Coordinate Systems Chapter 2

  2. ArcView • Structure • Project • View • Theme • Feature • Project (.apr) • ASCII text • Location dependent!!!

  3. Documents • View • picture of the themes • Table • relational database (.dbf format) • Chart • bar, line, scatter, etc • Layout • the map • Script • programming in Avenue language

  4. Theme • Theme • Point • Line • Area • Feature • Individual item • Shapefile • .shp • .shx • .dbf

  5. Arc/Info • ARC and INFO Spatial and attribute information are separate • ARC is spatial information • INFO is attribute information • data is binary - must use tools to read

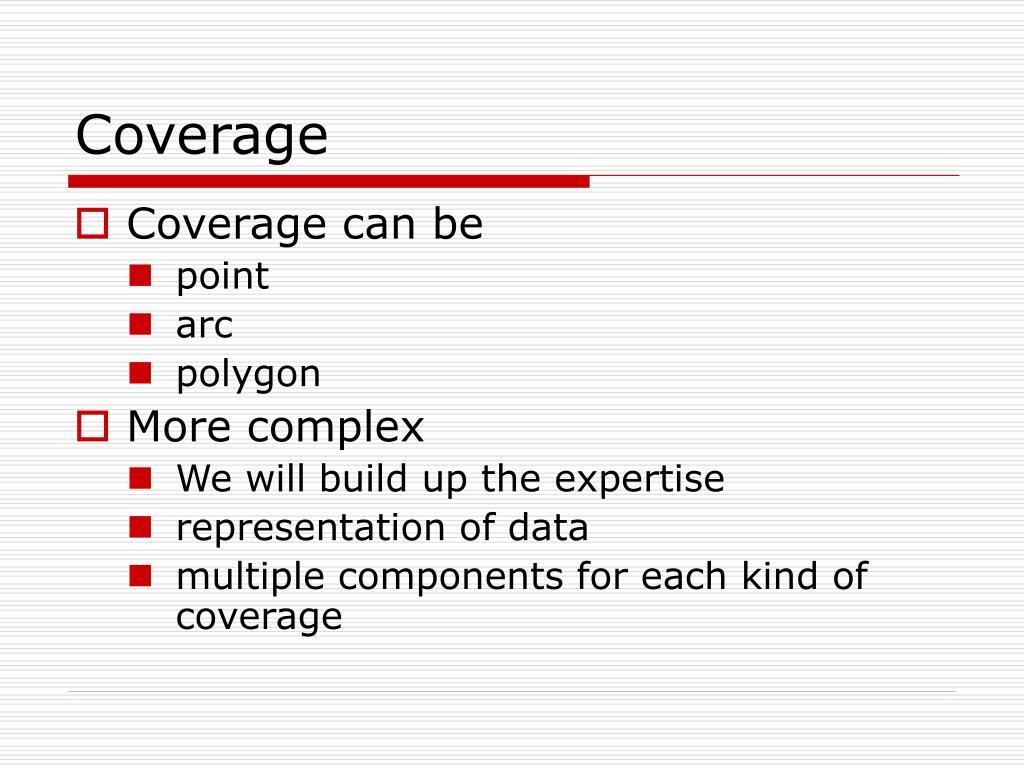

  6. Coverage • Coverage can be • point • arc • polygon • More complex • We will build up the expertise • representation of data • multiple components for each kind of coverage

  7. Geographic Grid • Meridians and parallels • Longitue and latitude • E-W and N-S • DMS=degree-minute-second • DD=decimal degrees • Convert D + M/60+S/3600 = DD

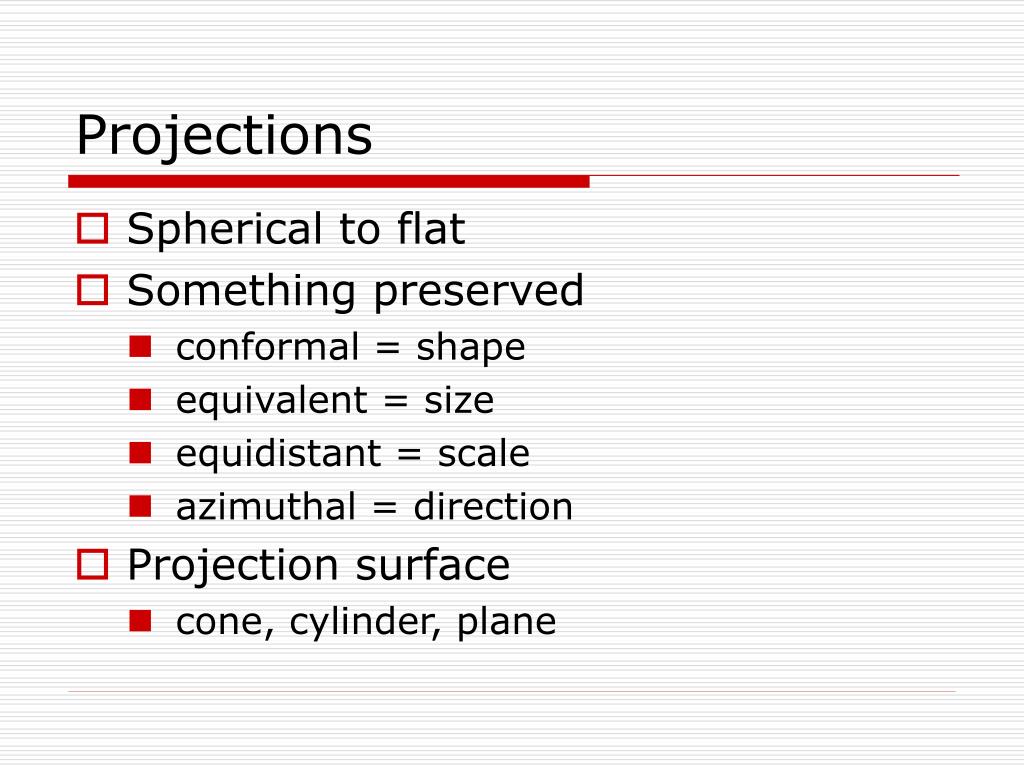

  8. Projections • Spherical to flat • Something preserved • conformal = shape • equivalent = size • equidistant = scale • azimuthal = direction • Projection surface • cone, cylinder, plane

  9. Datum • Spheroid or ellipsoid • North American Datum of 1927 (NAD27) and Clark 1866 (ground-measured) • North American Datum of 1983 (NAD83) and WGS84 or GRS80 (satellite-measured)

  10. Coordinate Systems • Universal Transverse Mercator (UTM) • Universal Polar Stereographic (UPS) • State Plane Coordinate (SPC) • Public Land Survey System (PLSS)

  11. UTM • Universal Transverse Mercator • 84°N and 80°S • 60 zones • 6° per zone • Beginning at 180° W

  12. UPS • Universal Polar Stereographic • Polar areas • 100,000-meter squares • Similar to UTM

  13. SPC • State Plane Coordinate • 1930s accuracy of 1/10,000 or less • State may have more than one zone • Shape of state changes N-S or E-W • Texas has how many?

  14. PLSS • Public Land Survey System • Not in Texas • Mainly central and western states • 6 x 6 mile squares (townships) • 36 square mile parcels of 640 acres (sections)
