Cascading 1-Bit Comparators

Cascading 1-Bit Comparators. Lecture L6.5. A 1-Bit Comparator. The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1. .

nuru
Download Presentation

Cascading 1-Bit Comparators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Cascading 1-Bit Comparators Lecture L6.5

  2. A 1-Bit Comparator The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1.

  3. The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1.

  4. Gout = x & !y # x & Gin # !y & Gin Eout = !x & !y & !Gin & !Lin # x & y & !Gin & !Lin Lout = !x & y # !x & Lin # y & Lin

  5. A 4-Bit Comparator

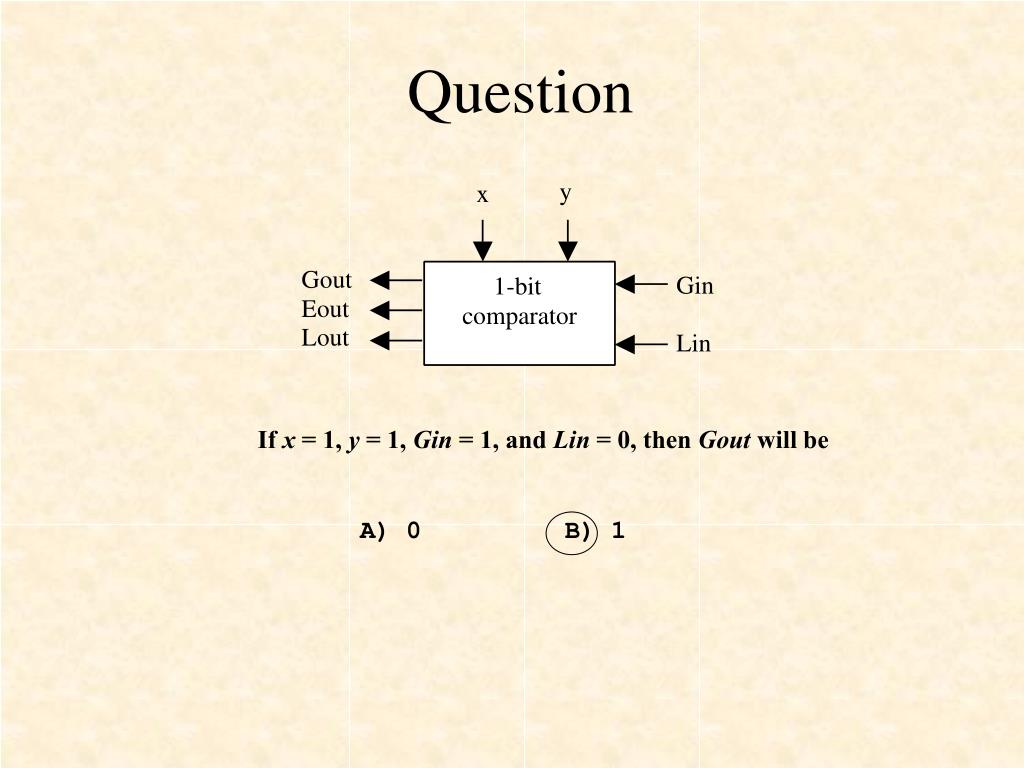

  6. Question If x = 1, y = 1, Gin = 1, and Lin = 0, then Gout will be A) 0 B) 1

  7. Question If [x3..x0] = [1,0,1,1] and [y3..y0] = [1,0,0,1], then Gout = [G4..G1] is equal to A)[1,0,1,0] B)[0,0,1,0] C)[1,1,1,0] D)[1,1,0,1] E)none of the above 1 1 1 0
