Comparators. Discussion D4.4. A 1-Bit Comparator. The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1.

Download Presentation

Comparators

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Comparators Discussion D4.4

  2. A 1-Bit Comparator The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1.

  3. The variable Gout is 1 if x > y or if x = y and Gin = 1. The variable Eout is 1 if x = y and Gin = 0 and Lin = 0. The variable Lout is 1 if x < y or if x = y and Lin = 1.

  4. Gout = x * y' + x * Gin + y' * Gin Eout = x' * y' * Gin' * Lin' + x * y * Gin' * Lin' Lout = x' * y + x' * Lin + y * Lin

  5. A 4-Bit Comparator

  6. Comparators Recall that an XNOR gate can be used as an equality detector XNOR X if X = Y then Z <= '1'; else Z <= '0'; end if; Z Y Z = !(X $ Y) Z = X xnor Y Z = ~(X @ Y) X Y Z 0 0 1 0 1 0 1 0 0 1 1 1

  7. 4-Bit Equality Comparator A: in STD_LOGIC_VECTOR(3 downto 0); B: in STD_LOGIC_VECTOR(3 downto 0); A_EQ_B: out STD_LOGIC;

  8. library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; entity eqdet4 is Port ( A : in std_logic_vector(3 downto 0); B : in std_logic_vector(3 downto 0); A_EQ_B : out std_logic); end eqdet4; architecture Behavioral of eqdet4 is signal C: std_logic_vector(3 downto 0); begin C <= A xnor B; A_EQ_B <= C0 and C1 and C2 and C3; end Behavioral;

  9. comp A_EQ_B A(n-1:0) A_GT_B A_LT_B B(n-1:0) A_UGT_B A_ULT_B Comparators A, B signed A, B unsigned Signed: 2's complement signed numbers

  10. -- Comparator for unsigned and signed numbers library IEEE; use IEEE.std_logic_1164.all; use IEEE.std_logic_arith.all; use IEEE.std_logic_unsigned.all; entity comp is generic(width:positive); port ( A: in STD_LOGIC_VECTOR(width-1 downto 0); B: in STD_LOGIC_VECTOR(width-1 downto 0); A_EQ_B: out STD_LOGIC; A_GT_B: out STD_LOGIC; A_LT_B: out STD_LOGIC; A_ULT_B: out STD_LOGIC; A_UGT_B: out STD_LOGIC ); end comp; comp A_EQ_B A(n-1:0) A_GT_B A_LT_B B(n-1:0) A_UGT_B A_ULT_B

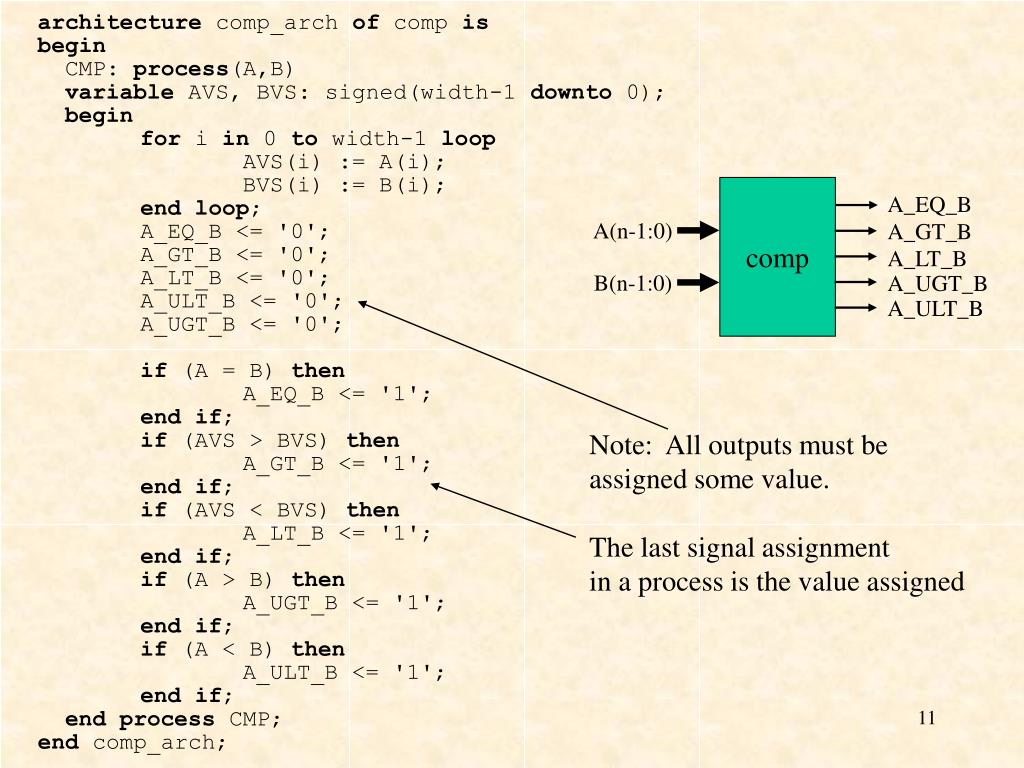

  11. architecture comp_arch of comp is begin CMP: process(A,B) variable AVS, BVS: signed(width-1 downto 0); begin for i in 0 to width-1 loop AVS(i) := A(i); BVS(i) := B(i); end loop; A_EQ_B <= '0'; A_GT_B <= '0'; A_LT_B <= '0'; A_ULT_B <= '0'; A_UGT_B <= '0'; if (A = B) then A_EQ_B <= '1'; end if; if (AVS > BVS) then A_GT_B <= '1'; end if; if (AVS < BVS) then A_LT_B <= '1'; end if; if (A > B) then A_UGT_B <= '1'; end if; if (A < B) then A_ULT_B <= '1'; end if; end process CMP; end comp_arch; comp A_EQ_B A(n-1:0) A_GT_B A_LT_B B(n-1:0) A_UGT_B A_ULT_B Note: All outputs must be assigned some value. The last signal assignment in a process is the value assigned

  12. 4-Bit Comparator
