  1. RAINWATER HARVESTING MASTER PLANIN JAMIA MILLIA ISLAMIA CAMPUS NEW DELHI(First of its kind in India with the Proposal to develop Rainwater Harvesting Master Plan of INDIA)

  2. Presented By Prof. Gauhar Mahmood Dept. of Civil Engineering Jamia Millia Islamia

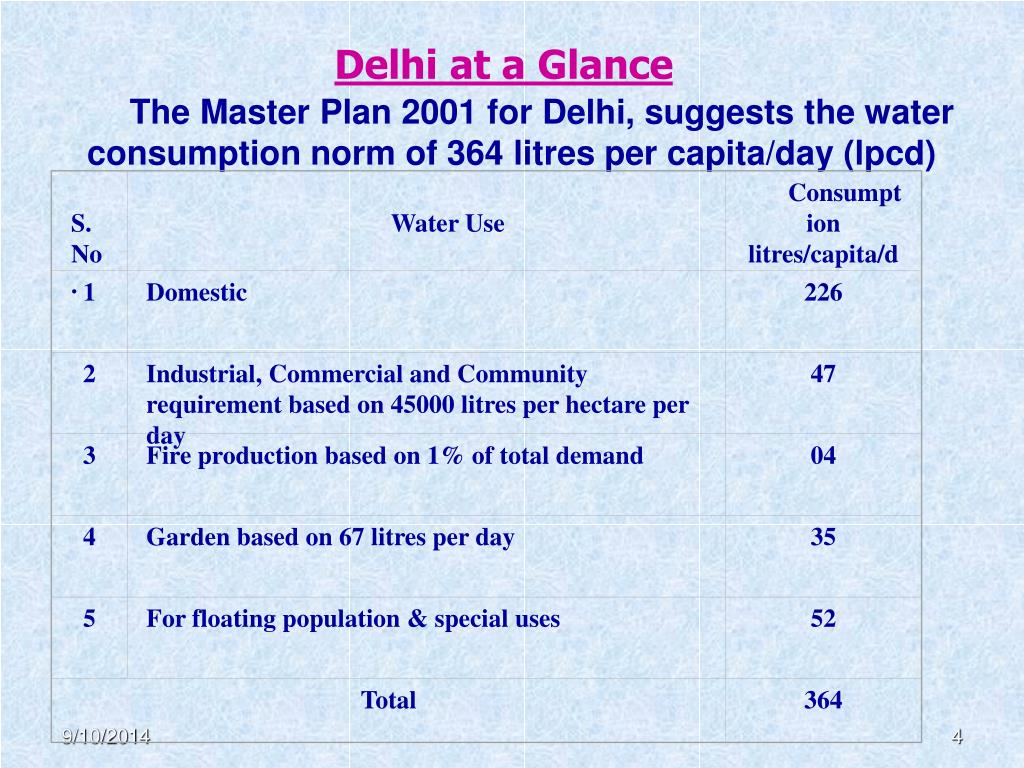

  3. S. No. Water Use Consumption litres/capita/d 1 Domestic 226 2 Industrial, Commercial and Community requirement based on 45000 litres per hectare per day 47 3 Fire production based on 1% of total demand 04 4 Garden based on 67 litres per day 35 5 For floating population & special uses 52 Total 364 Delhi at a Glance The Master Plan 2001 for Delhi, suggests the water consumption norm of 364 litres per capita/day (lpcd)

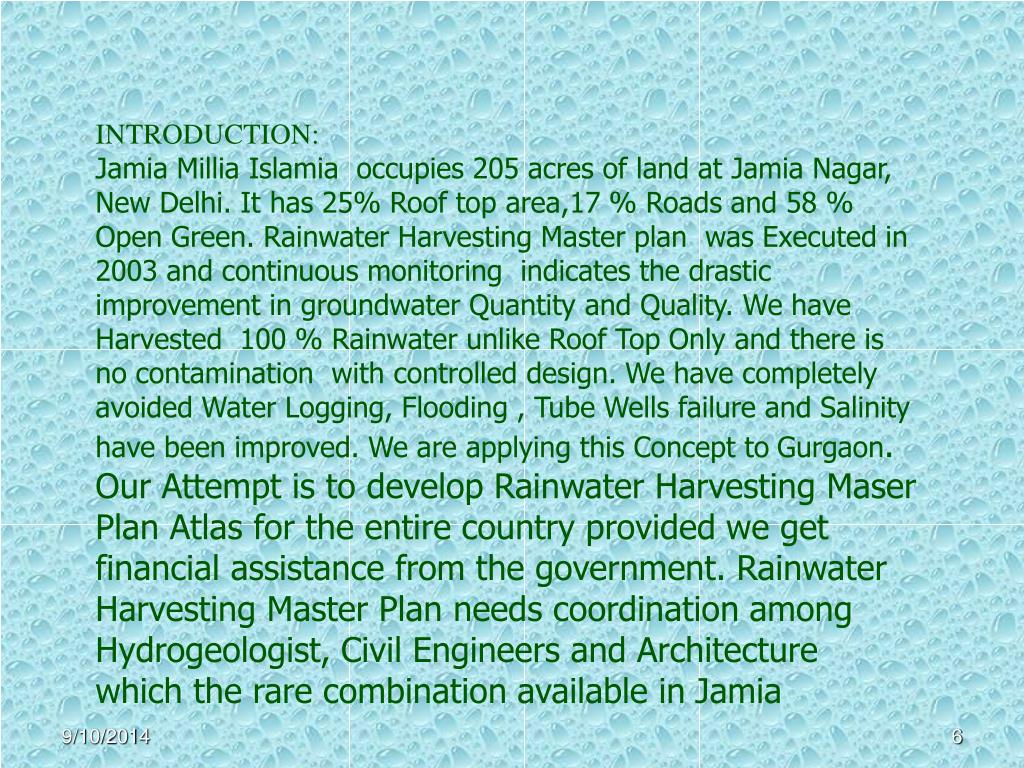

  4. INTRODUCTION:JamiaMilliaIslamiaoccupies 205 acres of land at Jamia Nagar, New Delhi. It has 25% Roof top area,17 % Roads and 58 % Open Green. Rainwater Harvesting Master plan was Executed in 2003 and continuous monitoring indicates the drastic improvement in groundwater Quantity and Quality. We have Harvested 100 % Rainwater unlike Roof Top Only and there is no contamination with controlled design. We have completely avoided Water Logging, Flooding , Tube Wells failure and Salinity have been improved. We are applying this Concept to Gurgaon. Our Attempt is to develop Rainwater Harvesting Maser Plan Atlas for the entire country provided we get financial assistance from the government. Rainwater Harvesting Master Plan needs coordination among Hydrogeologist, Civil Engineers and Architecture which the rare combination available in Jamia

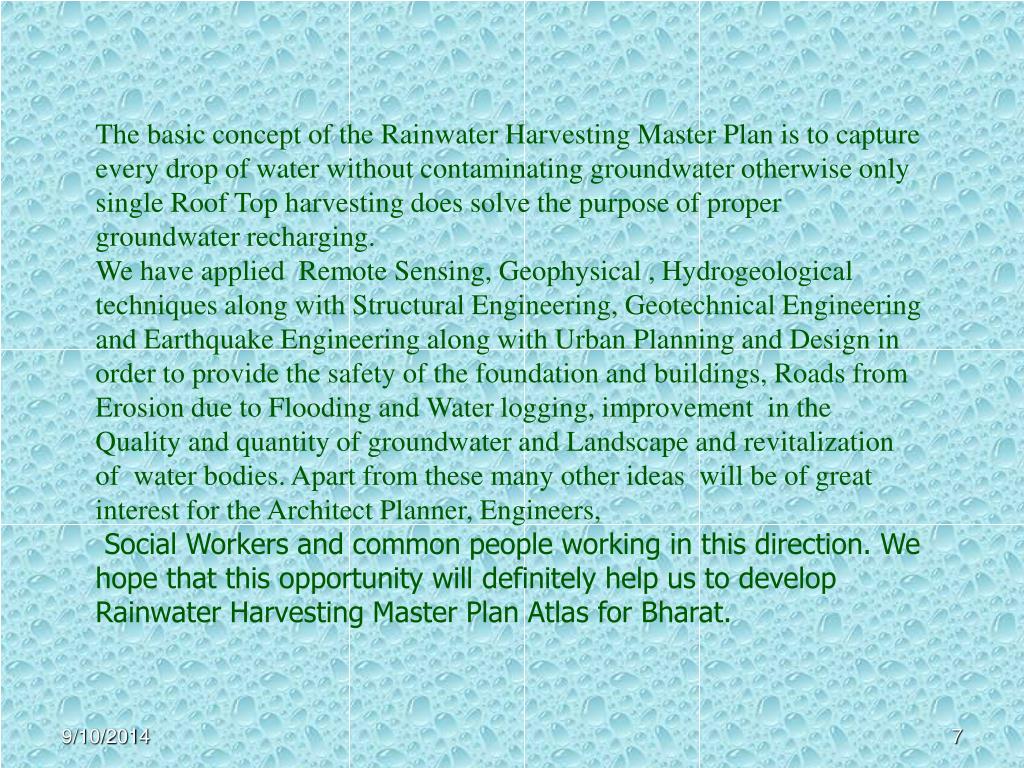

  5. The basic concept of the Rainwater Harvesting Master Plan is to capture every drop of water without contaminating groundwater otherwise only single Roof Top harvesting does solve the purpose of proper groundwater recharging. We have applied Remote Sensing, Geophysical , Hydrogeological techniques along with Structural Engineering, Geotechnical Engineering and Earthquake Engineering along with Urban Planning and Design in order to provide the safety of the foundation and buildings, Roads from Erosion due to Flooding and Water logging, improvement in the Quality and quantity of groundwater and Landscape and revitalization of water bodies. Apart from these many other ideas will be of great interest for the Architect Planner, Engineers, Social Workers and common people working in this direction. We hope that this opportunity will definitely help us to develop Rainwater Harvesting Master Plan Atlas for Bharat.

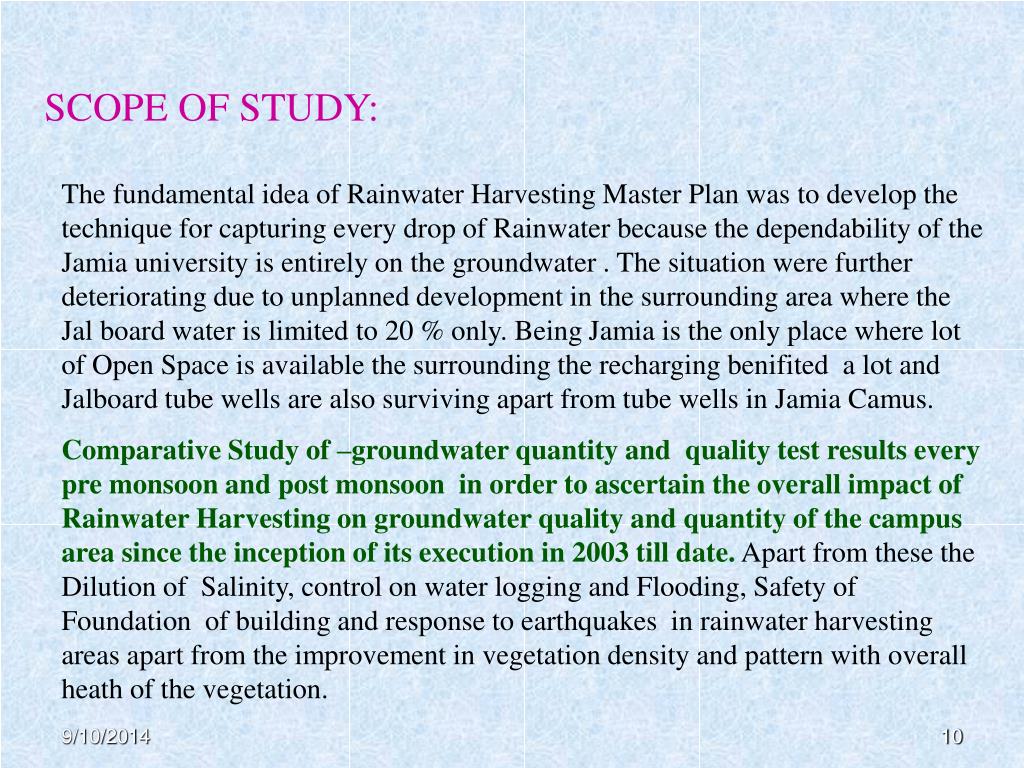

  6. SCOPE OF STUDY: The fundamental idea of Rainwater Harvesting Master Plan was to develop the technique for capturing every drop of Rainwater because the dependability of the Jamia university is entirely on the groundwater . The situation were further deteriorating due to unplanned development in the surrounding area where the Jal board water is limited to 20 % only. Being Jamia is the only place where lot of Open Space is available the surrounding the recharging benifited a lot and Jalboard tube wells are also surviving apart from tube wells in Jamia Camus. Comparative Study of –groundwater quantity and quality test results every pre monsoon and post monsoon in order to ascertain the overall impact of Rainwater Harvesting on groundwater quality and quantity of the campus area since the inception of its execution in 2003 till date. Apart from these the Dilution of Salinity, control on water logging and Flooding, Safety of Foundation of building and response to earthquakes in rainwater harvesting areas apart from the improvement in vegetation density and pattern with overall heath of the vegetation.

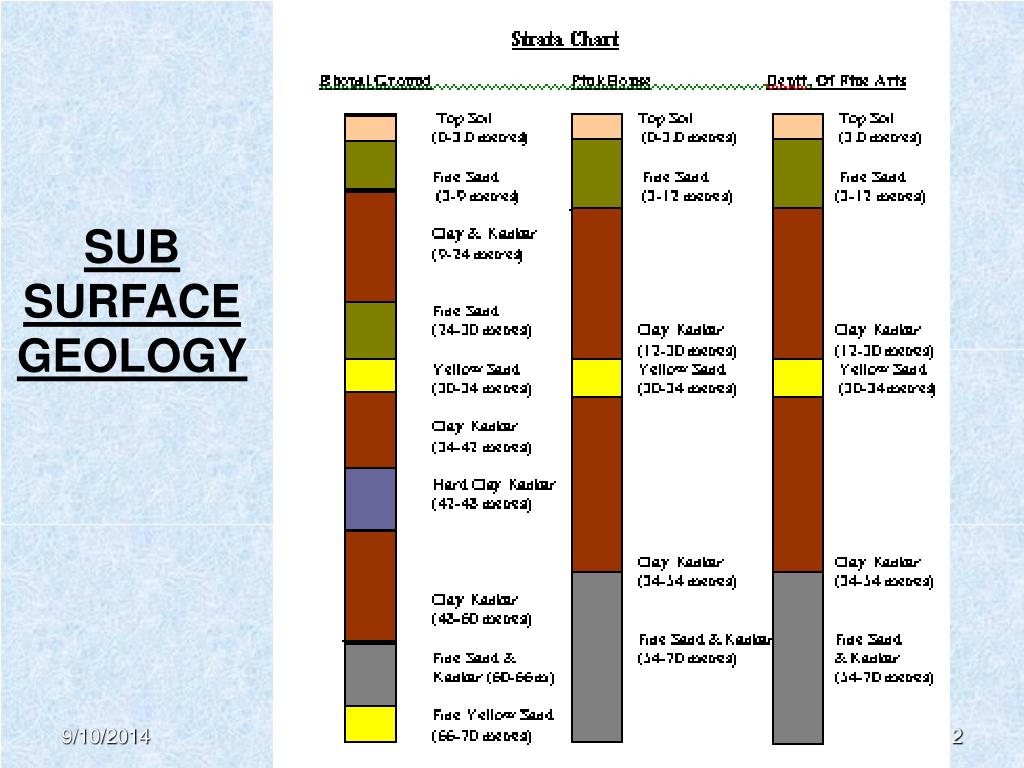

  7. SUB SURFACE GEOLOGY

  8. Green Space Potential for 25mm rainfall / 15 Minutes To Design the Injection Wells:

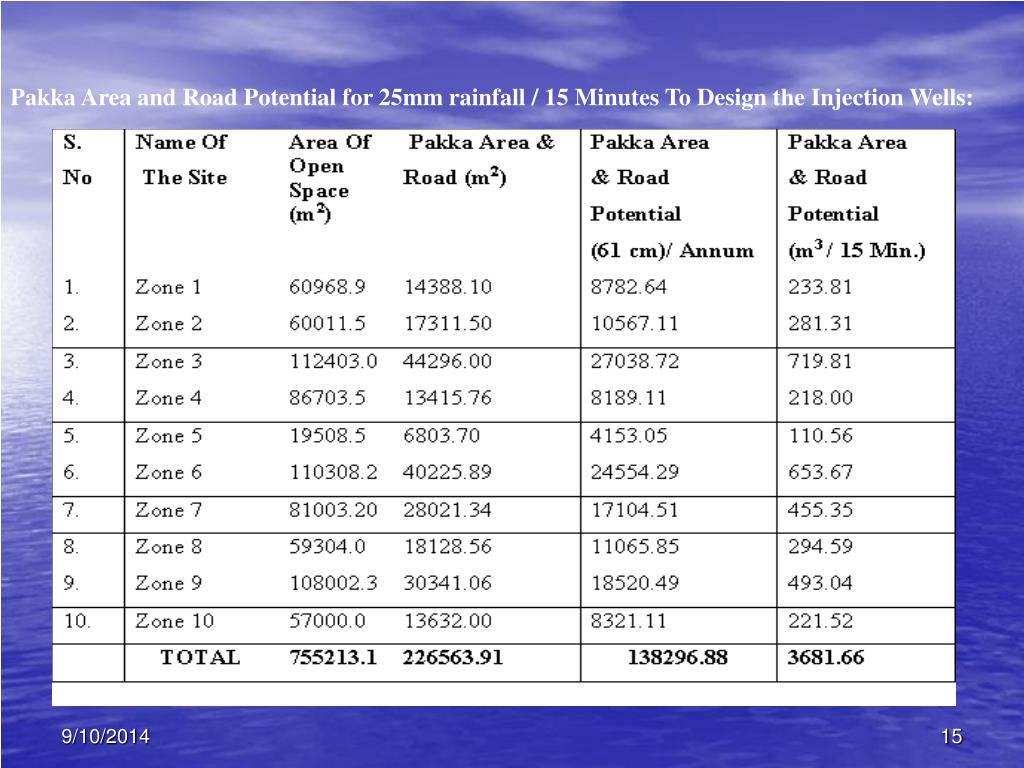

  9. Pakka Area and Road Potential for 25mm rainfall / 15 Minutes To Design the Injection Wells:

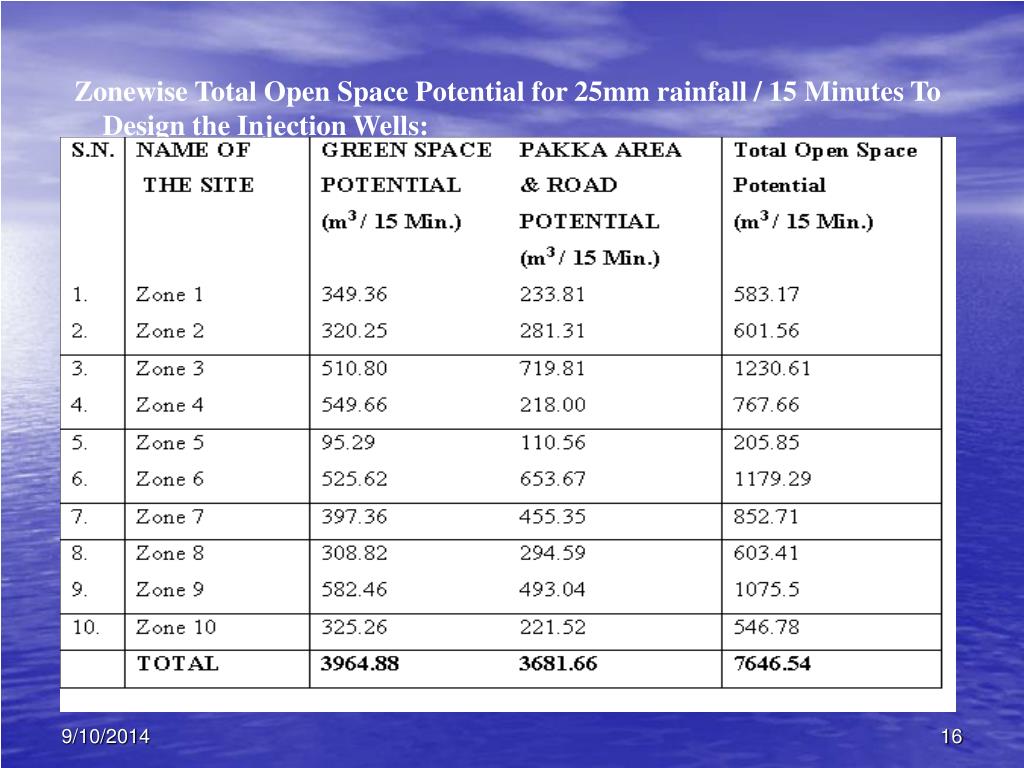

  10. Zonewise Total Open Space Potential for 25mm rainfall / 15 Minutes To Design the Injection Wells:

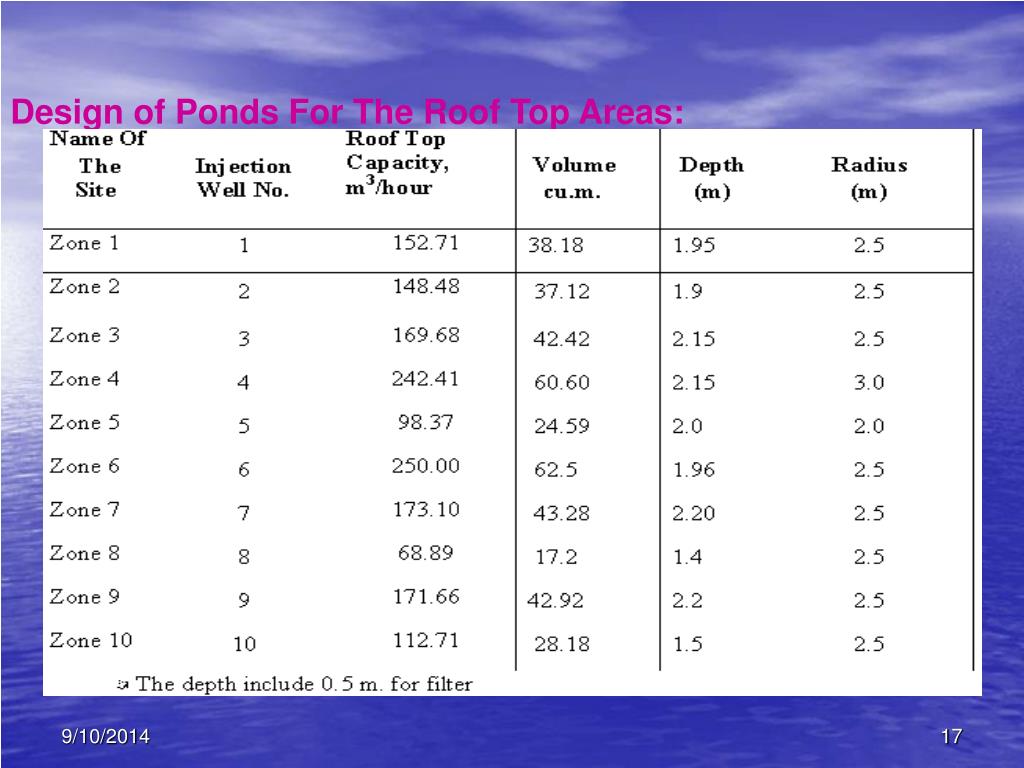

  11. Design of Ponds For The Roof Top Areas:

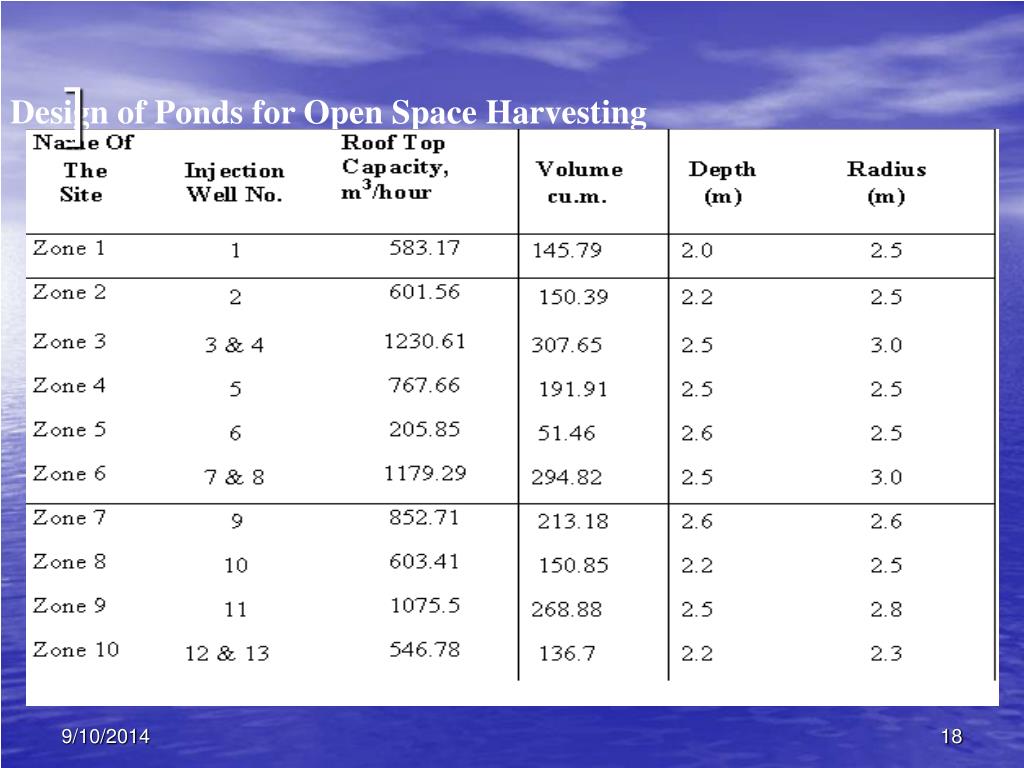

  12. ] Design of Ponds for Open Space Harvesting

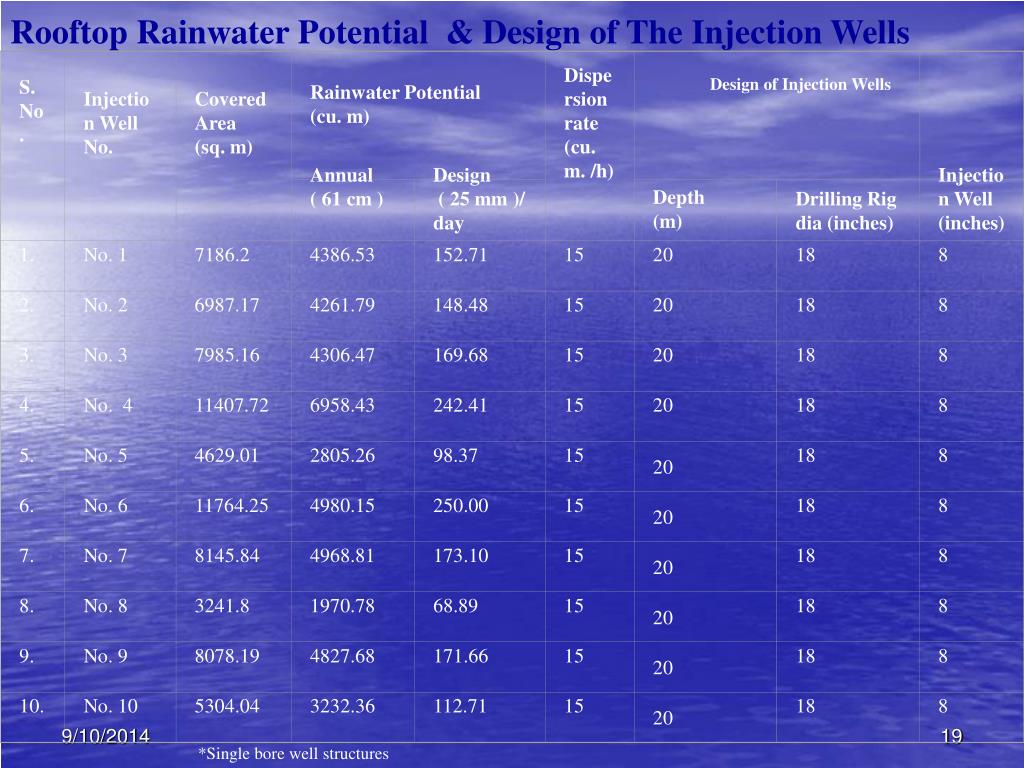

  13. Rooftop Rainwater Potential & Design of The Injection Wells S. No. Injection Well No. Covered Area (sq. m) Rainwater Potential (cu. m) Dispersion rate (cu. m. /h) Annual ( 61 cm ) Design ( 25 mm )/ day Depth (m) Drilling Rig dia (inches) Injection Well (inches) 1. No. 1 7186.2 4386.53 152.71 15 20 18 8 2. No. 2 6987.17 4261.79 148.48 15 20 18 8 3. No. 3 7985.16 4306.47 169.68 15 20 18 8 4. No. 4 11407.72 6958.43 242.41 15 20 18 8 5. No. 5 4629.01 2805.26 98.37 15 20 18 8 6. No. 6 11764.25 4980.15 250.00 15 20 18 8 7. No. 7 8145.84 4968.81 173.10 15 20 18 8 8. No. 8 3241.8 1970.78 68.89 15 20 18 8 9. No. 9 8078.19 4827.68 171.66 15 20 18 8 10. No. 10 5304.04 3232.36 112.71 15 20 18 8 Design of Injection Wells *Single bore well structures

  14. S. No. Injection Well No. Open Area (sq. m) Rainwater Potential (Cu.m.) Dispersion Rate (cu. m. /h)  Design of Injection Well Design at (25 mm)/ day Depth (m) Drilling Rig Dia. (Inches) Injection Well Dia. (Inches) 1. No. 1 60968.9 583.17 15 20 8 4 2. No. 2 60011.5 601.56 15 15 20 8 4 3. No. 3 & 4 112403.0 1230.61 20 8 4 4. No. 5 86703.5 767.66  15 20 8 4 5. No. 6 19508.5 205.85  15 20 8 4 6. No. 7 & 8 110308.2 1179.29 15 20 8 4 7. No. 9 81003.20 852.71 15 20 8 4 8. No. 10 59304.0 583.17 15 20 8 4 9. No. 11 108002.3 601.56  15 20 8 4 10. No. 12 & 13 57000.0 1230.61 15 20 8 4 Open Space Rainwater Potential & Design of The Injection Wells

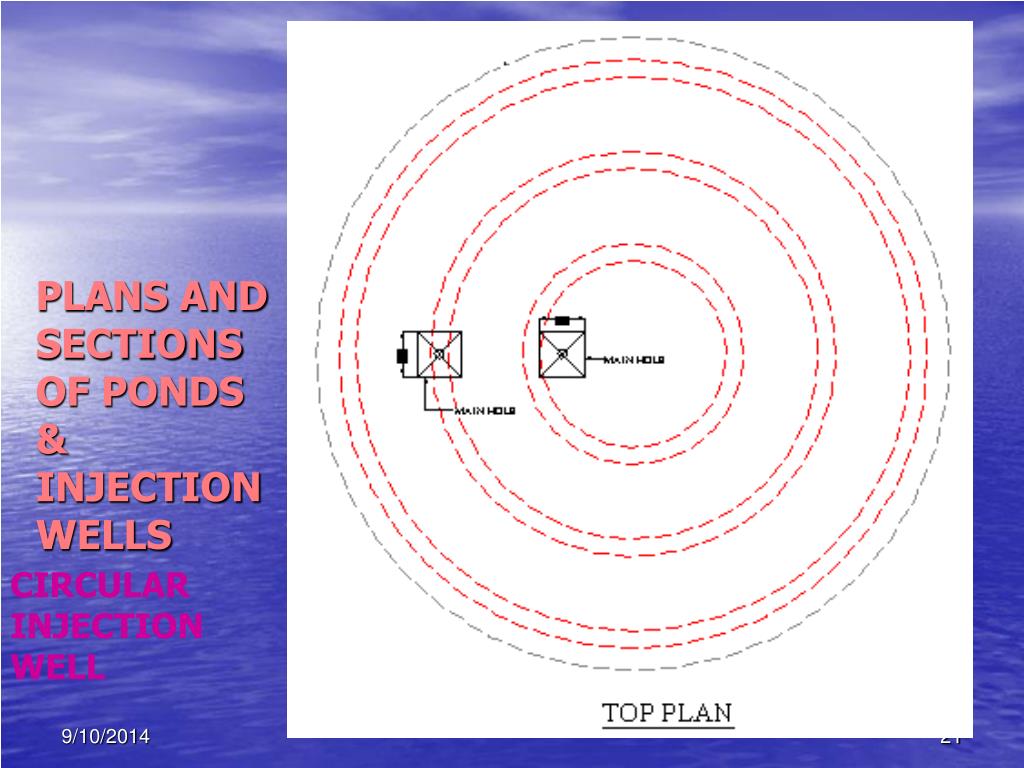

  15. PLANS AND SECTIONS OF PONDS & INJECTION WELLS CIRCULAR INJECTION WELL

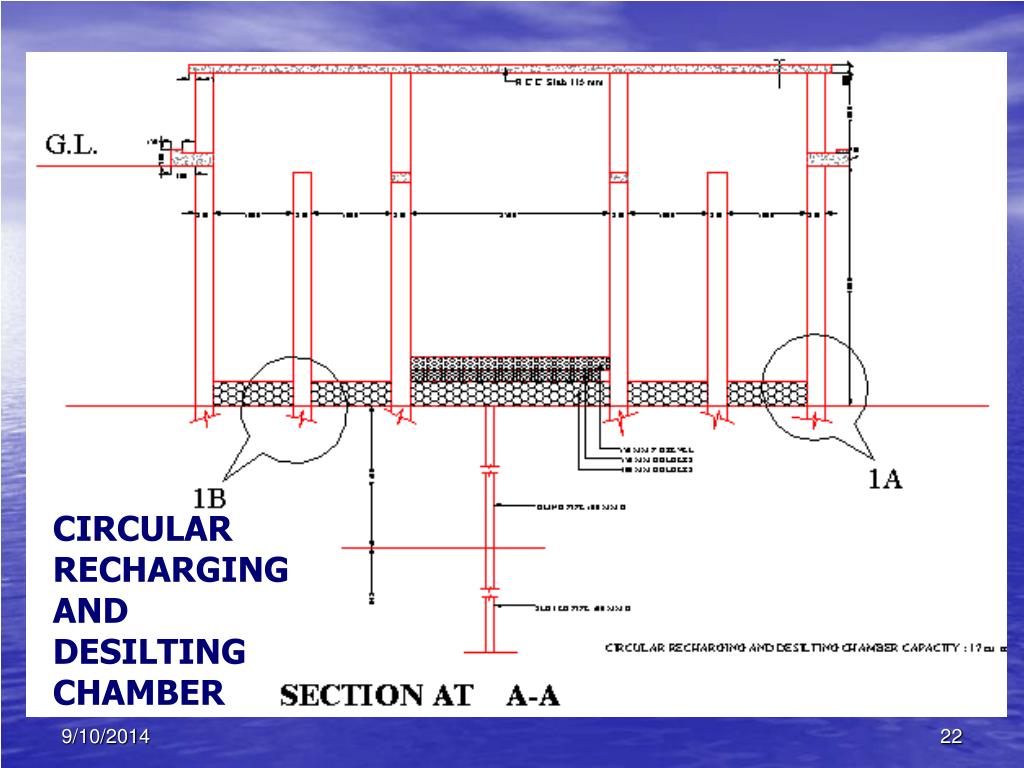

  16. CIRCULAR RECHARGING AND DESILTING CHAMBER

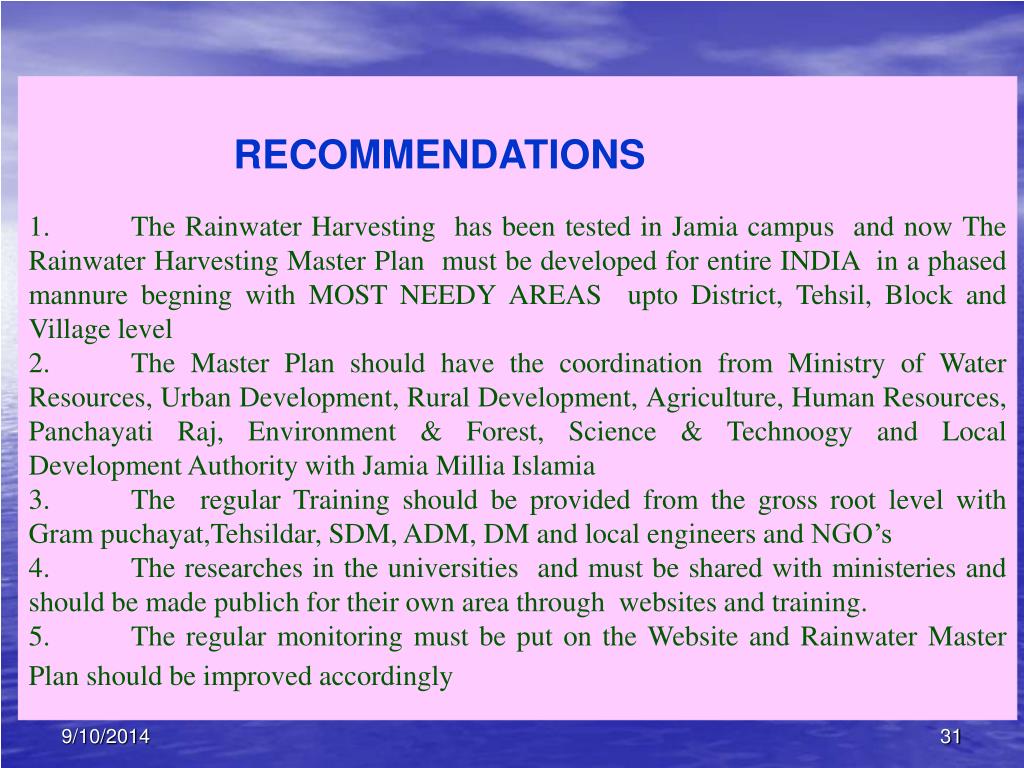

  17. RECOMMENDATIONS 1. The Rainwater Harvesting has been tested in Jamia campus and now The Rainwater Harvesting Master Plan must be developed for entire INDIA in a phased mannurebegning with MOST NEEDY AREAS upto District, Tehsil, Block and Village level 2. The Master Plan should have the coordination from Ministry of Water Resources, Urban Development, Rural Development, Agriculture, Human Resources, Panchayati Raj, Environment & Forest, Science & Technoogy and Local Development Authority with JamiaMilliaIslamia 3. The regular Training should be provided from the gross root level with Gram puchayat,Tehsildar, SDM, ADM, DM and local engineers and NGO’s 4. The researches in the universities and must be shared with ministeries and should be made publich for their own area through websites and training. 5. The regular monitoring must be put on the Website and Rainwater Master Plan should be improved accordingly

  18. Thanks..!!
