Presentation Transcript


Outline l.jpg

OUTLINE

ON SOME TIMING JITTER ISSUES FOR THE FERMI  FEL

PHOTOINJECTOR LASER SYSTEM

Presented by M.B.Danailov

Laser Lab, Sincrotrone Trieste

[email protected]

Current status of the FERMI project

(slides provided by Rene Bakker)

Photoinjector laser system and related jitter reduction issues

►required parameters

►main concerns

►near future experiments

SLAC XFEL Short Bunch Measurement and Timing Workshop


Elettra l.jpg

ELETTRA

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide3 l.jpg

Undulator

Building

(new)

Experimental

User Hall

(new)

1 GeV Linac

(existing)

Booster Synchrotron

(under construction)

Present linac availability:

22 h/day

ELETTRA

2-GeV 3rd generation storage-ring

(existing)

runs presently 3000 h/year,

24 h/day for special studies

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Fermi@elettra l.jpg

[email protected]

  • Key features:

    • Development of a user-facility.

    • Based on existing 1-GeV S-band linac infrastructure.

  • Specifications:

    • Spectral range (2 undulator lines):

      • 100–40nm (12–30eV): FEL-1

      •  40 –10nm(30–124eV):FEL-2

    • Flexible polarization.

    • Seeded operation (SASE as optional).

    • Short pulses (sub-ps  < 100 fs RMS).

    • 50 Hz repetition rate, 1 micro-pulse per macro-pulse.

SLAC XFEL Short Bunch Measurement and Timing Workshop


Fermi@elettra5 l.jpg

[email protected]

  • Present status:

    • Funding granted

    • Linac serves as injector for ELETTRA

  • 2005 – 2006:

    • (available for FERMI : 22 h/day)

    • Construction of a new full-energy injector (booster) for ELETTRA

    • Commencement of FEL construction

    • 2007 …………

    • Implementation and use of the linac FEL user-facility

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide6 l.jpg

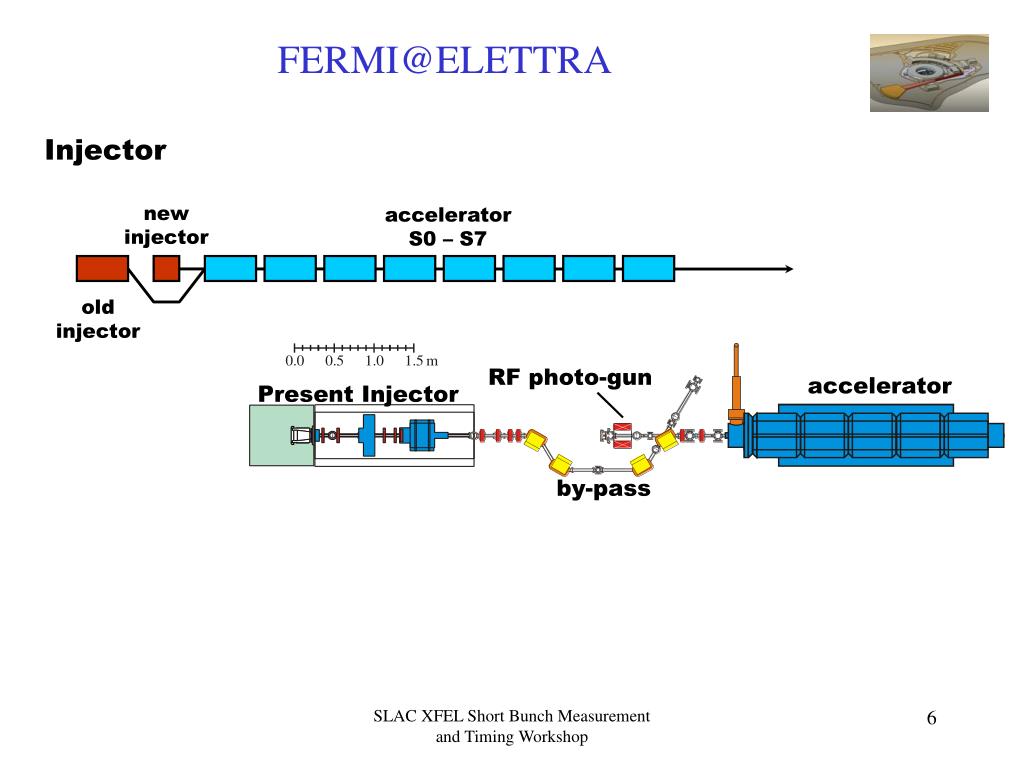

Injector

new

injector

accelerator

S0 – S7

old

injector

RF photo-gun

accelerator

Present Injector

by-pass

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide7 l.jpg

bunch compressor

1

bunch compressor

2

new

injector

S0

S1 – S5

S6 – S7

old

injector

linac

linac

linac

BC1

BC2

new

injector

harmonic

cavity

(new)

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide8 l.jpg

harmonic

cavity

FEL-1

user stations

new

rf photo-injector

seed

linac

linac

booster

accelerator

BC2

BC1

seed

FEL-2

30 % tunability

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide9 l.jpg

  • online diagnostics

  • focused beam

  • direct unfocussed beam

  • monochromatized beam

FEL

synchronized

laser

spontaneous

radiator

photo-cathode

laser

RF

P&P lasers

Master

Oscillator

timing

diagnostics

linac

FEL

feedback

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide10 l.jpg

[email protected]

2-Stage High Gain Harmonics Generation

250 nm  50 nm  10 nm

SLAC XFEL Short Bunch Measurement and Timing Workshop


Slide11 l.jpg

20 ms

~ 2.5 ms

accelerating

field in linac

electron pulse

e.g., 50 ns (20 MHz)

20 ms

~ 2.5 ms

increase of the average brilliance and flux: 40x

[email protected]

SLAC XFEL Short Bunch Measurement and Timing Workshop


Fermi photoinjector laser l.jpg

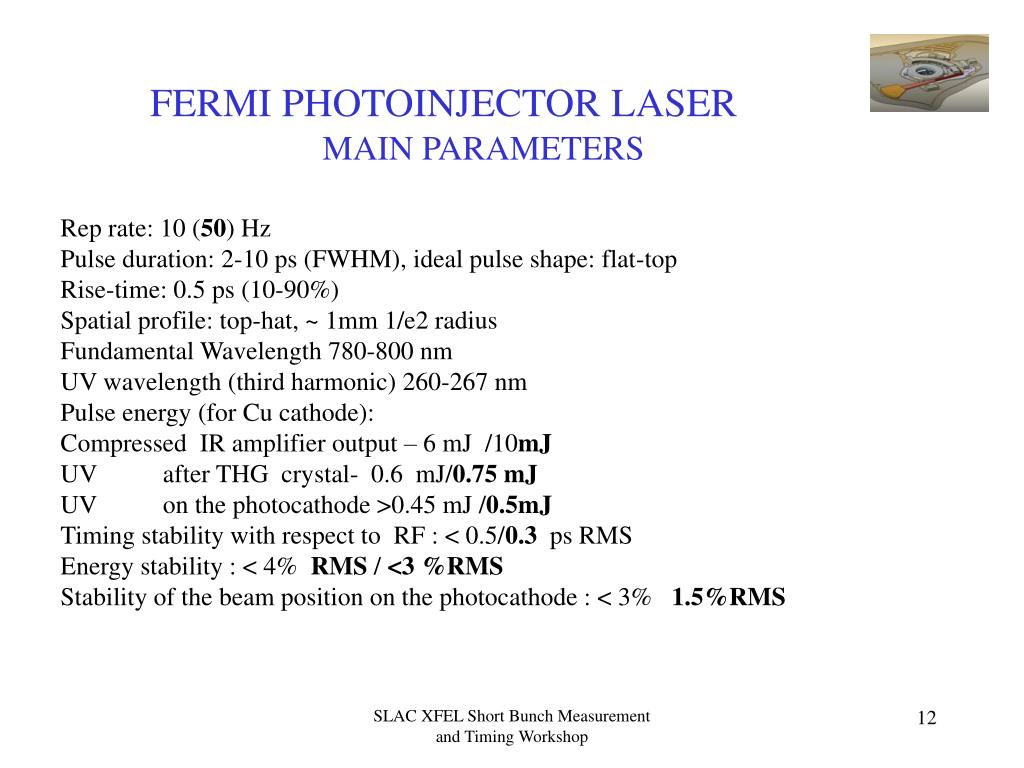

FERMI PHOTOINJECTOR LASER

MAIN PARAMETERS

Rep rate: 10 (50) Hz

Pulse duration: 2-10 ps (FWHM), ideal pulse shape: flat-top

Rise-time: 0.5 ps (10-90%)

Spatial profile: top-hat, ~ 1mm 1/e2 radius

Fundamental Wavelength 780-800 nm

UV wavelength (third harmonic) 260-267 nm

Pulse energy (for Cu cathode):

Compressed IR amplifier output – 6 mJ /10mJ

UV after THG crystal- 0.6 mJ/0.75 mJ

UVon the photocathode >0.45 mJ /0.5mJ

Timing stability with respect to RF : < 0.5/0.3 ps RMS

Energy stability : < 4% RMS / <3 %RMS

Stability of the beam position on the photocathode : < 3% 1.5%RMS

SLAC XFEL Short Bunch Measurement and Timing Workshop


Fermi photoinjector laser layout l.jpg

Ampl2 (Multi-pass, 50 Hz)

SS

THG

Stab

Pump Laser 2

cr-cor

FERMI PHOTOINJECTOR LASERLAYOUT

REF

Error sig ?

Ampl1

(Regen. , 1 KHz)

ML

Laser

PP

TS

Pump Laser 1

TS: temporal shaping ; PP : pulse picker ; SS – spatial shaping ; Stab – pulse energy stabilization system

cr-cor : cross correlator (SFG intensity -> jitter)

SLAC XFEL Short Bunch Measurement and Timing Workshop


Oscillator jitter l.jpg

OSCILLATOR JITTER

  • CURRENTLY CHARACTERIZED:

  • 1.Oscillator :

  • - home made mirror dispersion controlled (MDC) Cr:LiSAF laser

  • - Ti:S oscillator with prism dispersion control

  • 2. Phase-locking : Commercial CLX-1100 Timing Stabiliser , based on single band (100 MHz) PL loop , mixer

  • Performance: <200 fs RMS short term stability in noise protected environment

  • Increase to few ps in presence of acoustic noise

  • STRATEGY FOR IMPROVEMENT:

  • 1.Oscillator:

  • MDC Ti:S laser

  • Frequency-doubled Er-doped fiber laser

  • 2.Phase-locking:

  • Use of double band-loop (GHz detector working at harmonic of the rep rate)

  • Digital phase detector based error measurement

SLAC XFEL Short Bunch Measurement and Timing Workshop


Fermi beam transport system l.jpg

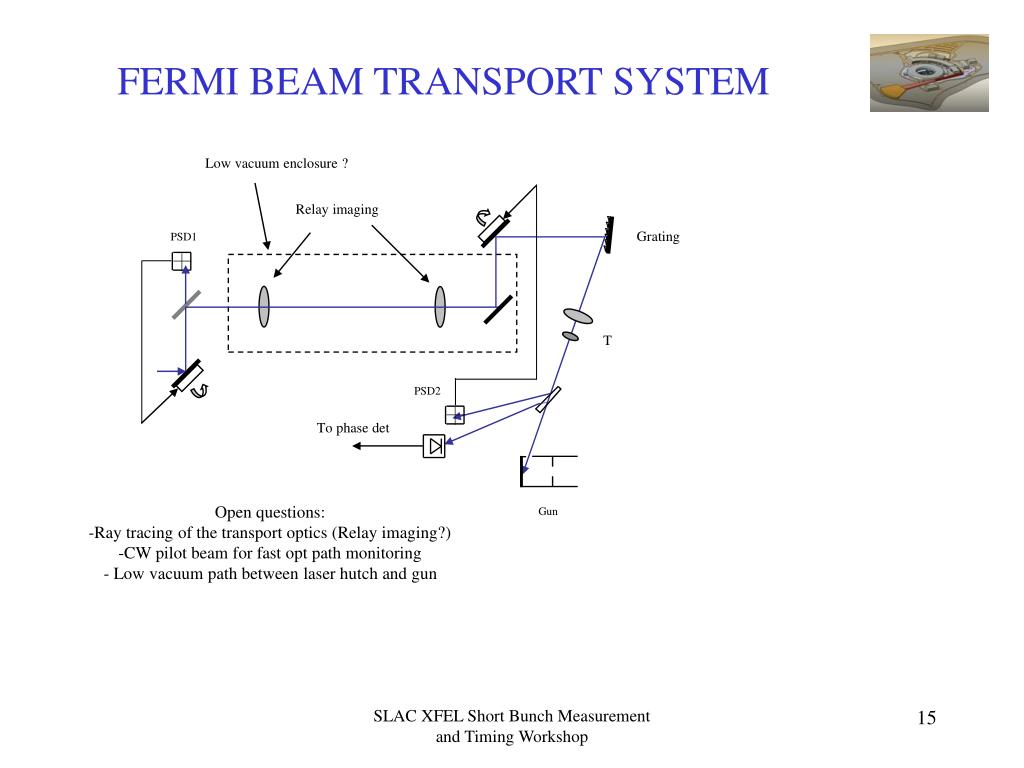

FERMI BEAM TRANSPORT SYSTEM

Low vacuum enclosure ?

Relay imaging

Grating

PSD1

T

PSD2

To phase det

  • Open questions:

  • Ray tracing of the transport optics (Relay imaging?)

  • CW pilot beam for fast opt path monitoring

  • - Low vacuum path between laser hutch and gun

Gun

SLAC XFEL Short Bunch Measurement and Timing Workshop


Summary l.jpg

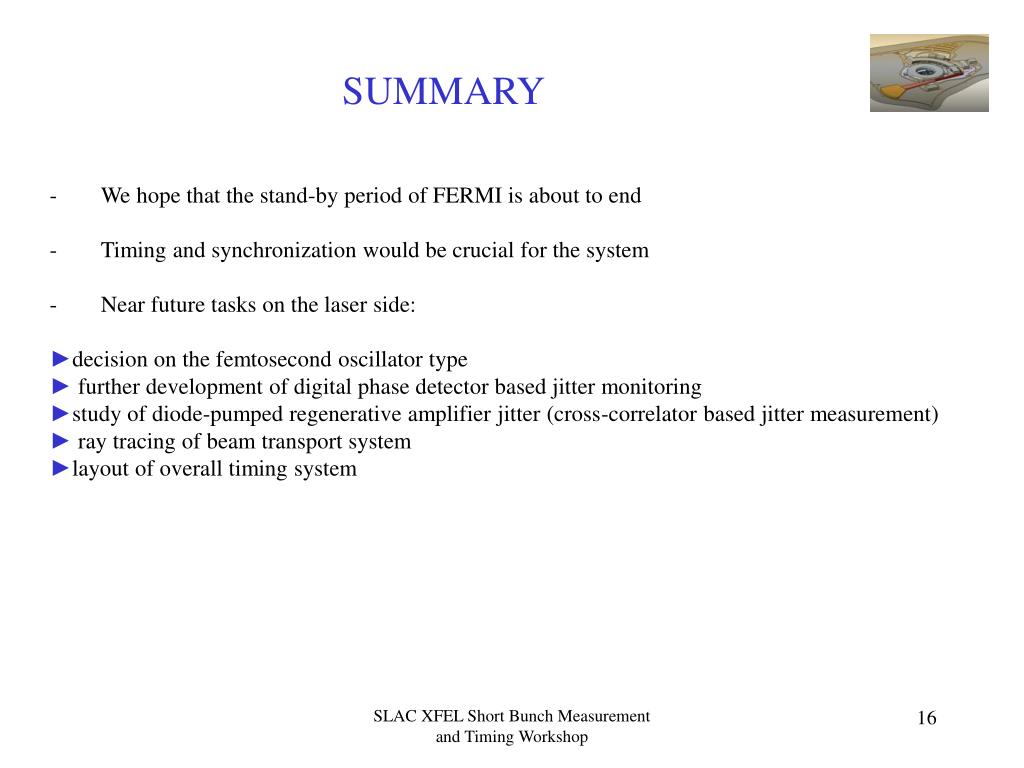

SUMMARY

  • We hope that the stand-by period of FERMI is about to end

  • Timing and synchronization would be crucial for the system

  • Near future tasks on the laser side:

  • ►decision on the femtosecond oscillator type

  • ► further development of digital phase detector based jitter monitoring

  • ►study of diode-pumped regenerative amplifier jitter (cross-correlator based jitter measurement)

  • ► ray tracing of beam transport system

  • ►layout of overall timing system

SLAC XFEL Short Bunch Measurement and Timing Workshop
