  1. Distributed Application Analysis and Debugging using NetLogger v2 Brian L. Tierney Lawrence Berkeley National Laboratory GGF

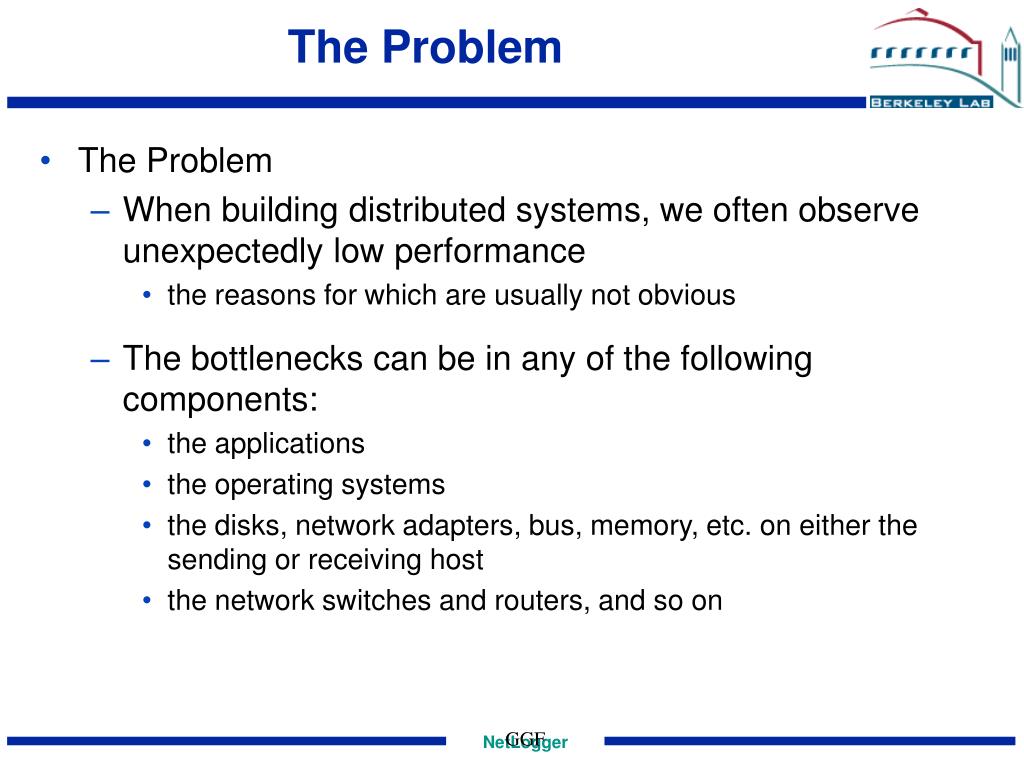

  2. The Problem • The Problem • When building distributed systems, we often observe unexpectedly low performance • the reasons for which are usually not obvious • The bottlenecks can be in any of the following components: • the applications • the operating systems • the disks, network adapters, bus, memory, etc. on either the sending or receiving host • the network switches and routers, and so on GGF

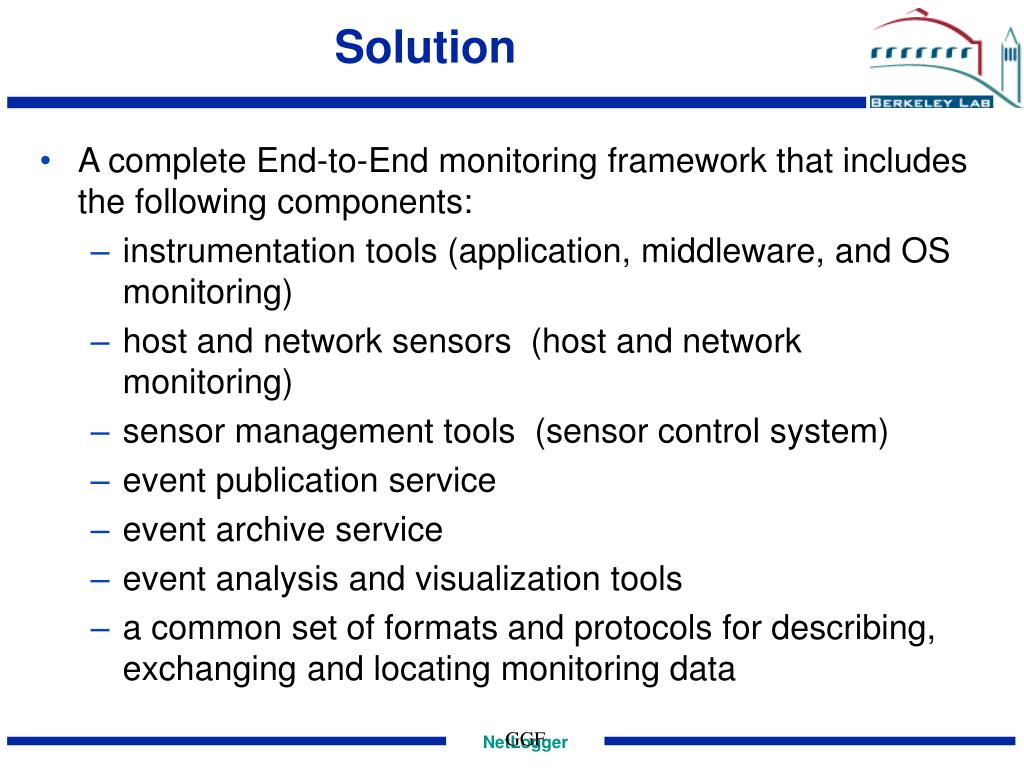

  3. Solution • A complete End-to-End monitoring framework that includes the following components: • instrumentation tools (application, middleware, and OS monitoring) • host and network sensors (host and network monitoring) • sensor management tools (sensor control system) • event publication service • event archive service • event analysis and visualization tools • a common set of formats and protocols for describing, exchanging and locating monitoring data GGF

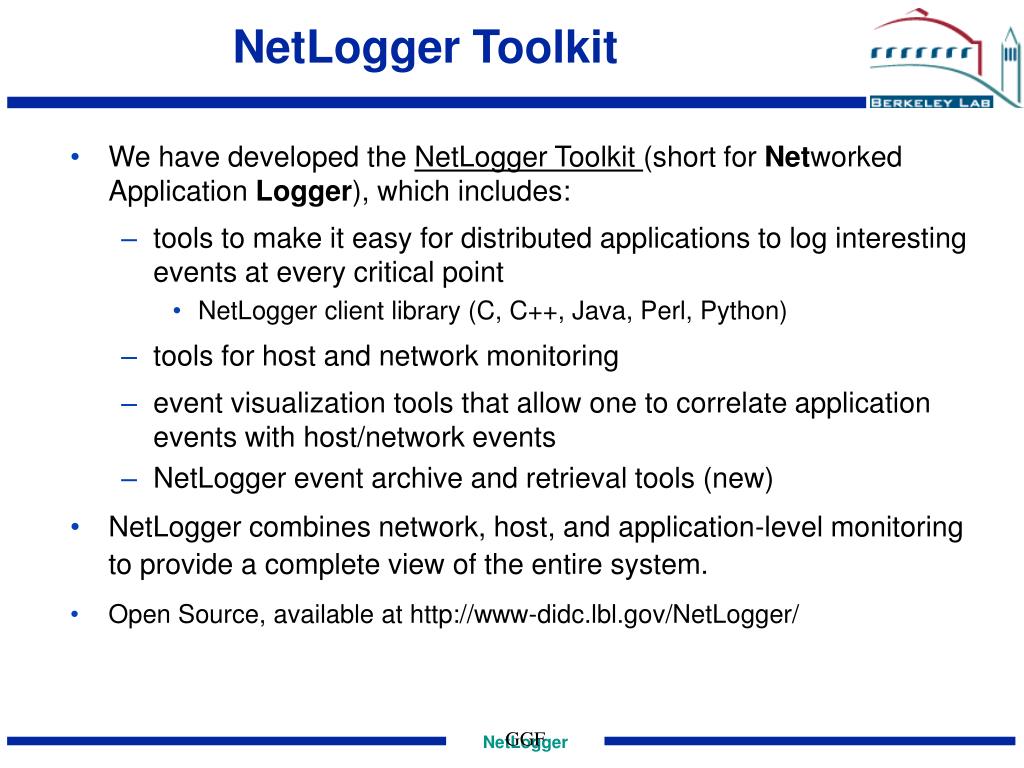

  4. NetLogger Toolkit • We have developed the NetLogger Toolkit (short for Networked Application Logger), which includes: • tools to make it easy for distributed applications to log interesting events at every critical point • NetLogger client library (C, C++, Java, Perl, Python) • tools for host and network monitoring • event visualization tools that allow one to correlate application events with host/network events • NetLogger event archive and retrieval tools (new) • NetLogger combines network, host, and application-level monitoring to provide a complete view of the entire system. • Open Source, available at http://www-didc.lbl.gov/NetLogger/ GGF

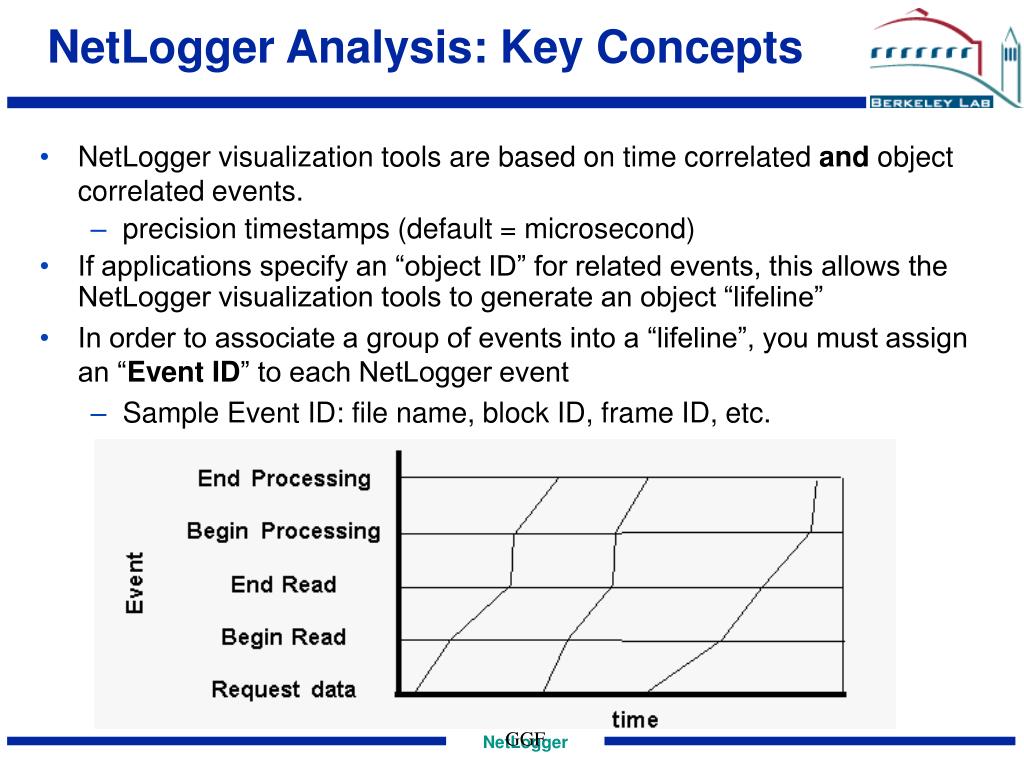

  5. NetLogger Analysis: Key Concepts • NetLogger visualization tools are based on time correlated and object correlated events. • precision timestamps (default = microsecond) • If applications specify an “object ID” for related events, this allows the NetLogger visualization tools to generate an object “lifeline” • In order to associate a group of events into a “lifeline”, you must assign an “Event ID” to each NetLogger event • Sample Event ID: file name, block ID, frame ID, etc. GGF

  6. Example: Combined Host and Application Monitoring GGF

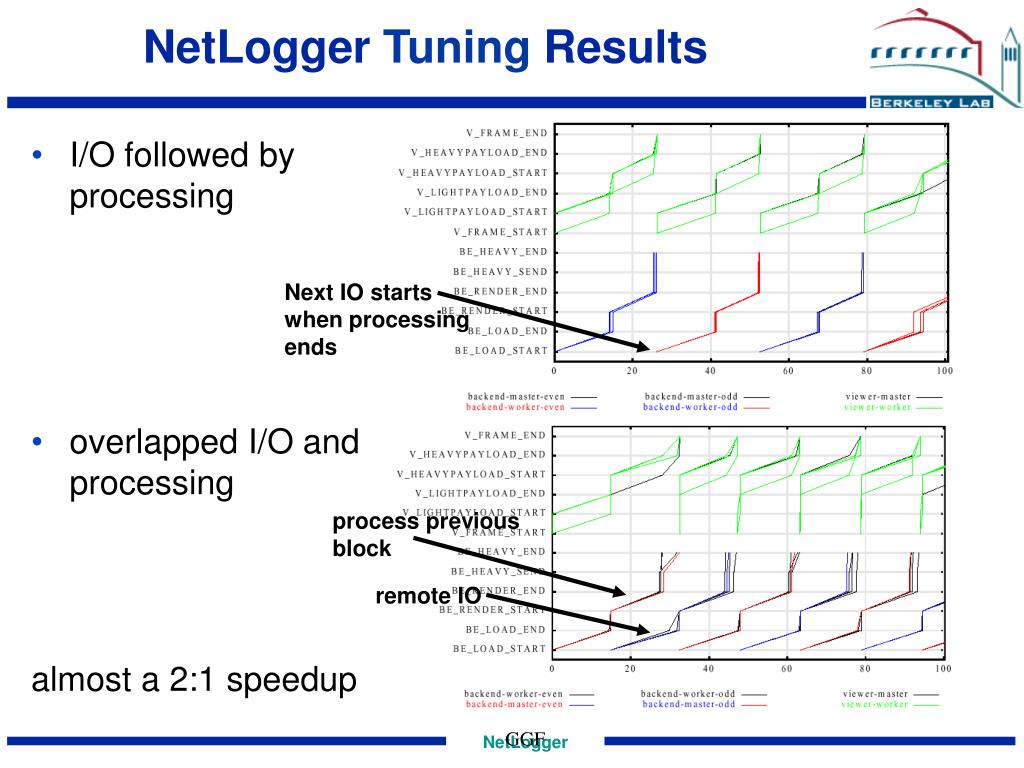

  7. NetLogger Tuning Results • I/O followed by processing • overlapped I/O and processing almost a 2:1 speedup Next IO starts when processing ends process previous block remote IO GGF

  8. NetLogger Analysis of GridFTP: multi-stream bug GGF

  9. Sample NetLogger Use lp = NetLoggerOpen( progname, x-netlog://loghost.lbl.gov, NL_MEM); while (!done) { NetLoggerWrite(lp, "EVENT_START", "TEST.SIZE=%d", size); /* perform the task to be monitored */ done = do_something(data, size); NetLoggerWrite(lp, "EVENT_END"); } NetLoggerClose(lp); GGF

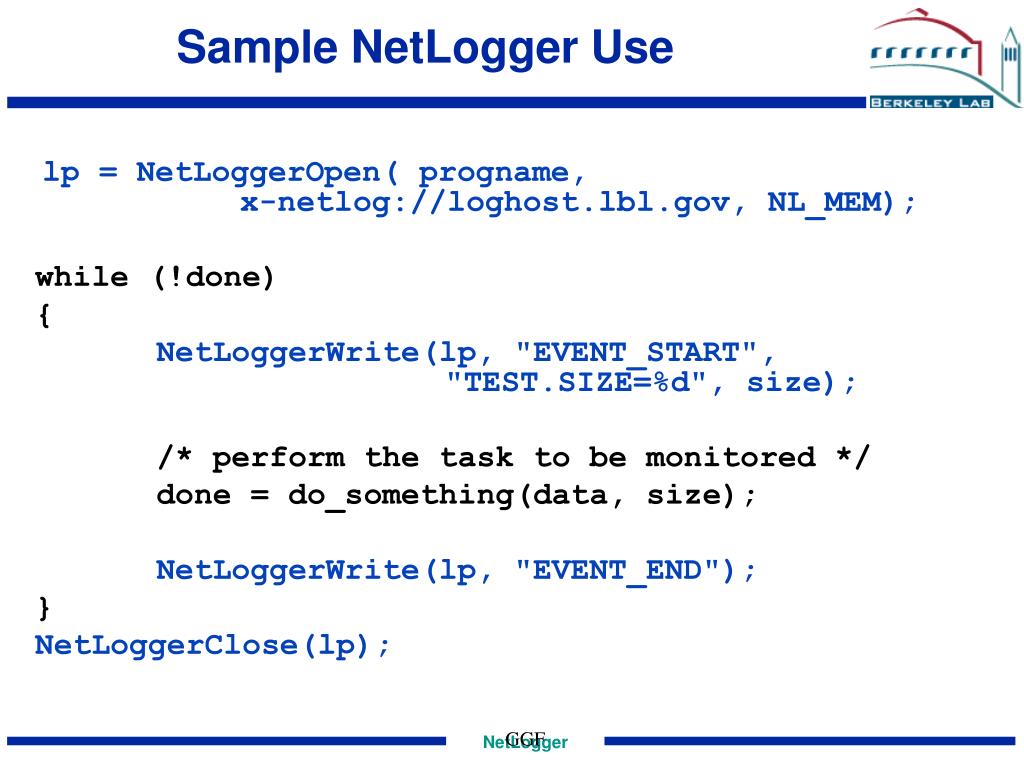

  10. NetLoggerOpen() shell environment variables • Enable/Disable logging: setenv NETLOGGER_ON {true, on, yes, 1}: do logging setenv NETLOGGER_ON {false, off, no, 0}: do not do logging • Log Destination: setenv NETLOGGER_DEST logging destination Examples: setenv NETLOGGER_DEST file://tmp/netlog.log write log messages to file /tmp/netlog.log setenv NETLOGGER_DEST x-netlog://loghost.lbl.gov send log messages to netlogd on host loghost.lbl.gov, default port setenv NETLOGGER_DEST x-netlog://loghost.lbl.gov:6006 send log messages to netlogd on host loghost.lbl.gov, port 6006 • NETLOGGER_DEST overrides the URL passed in via the NetLoggerOpen() call. GGF

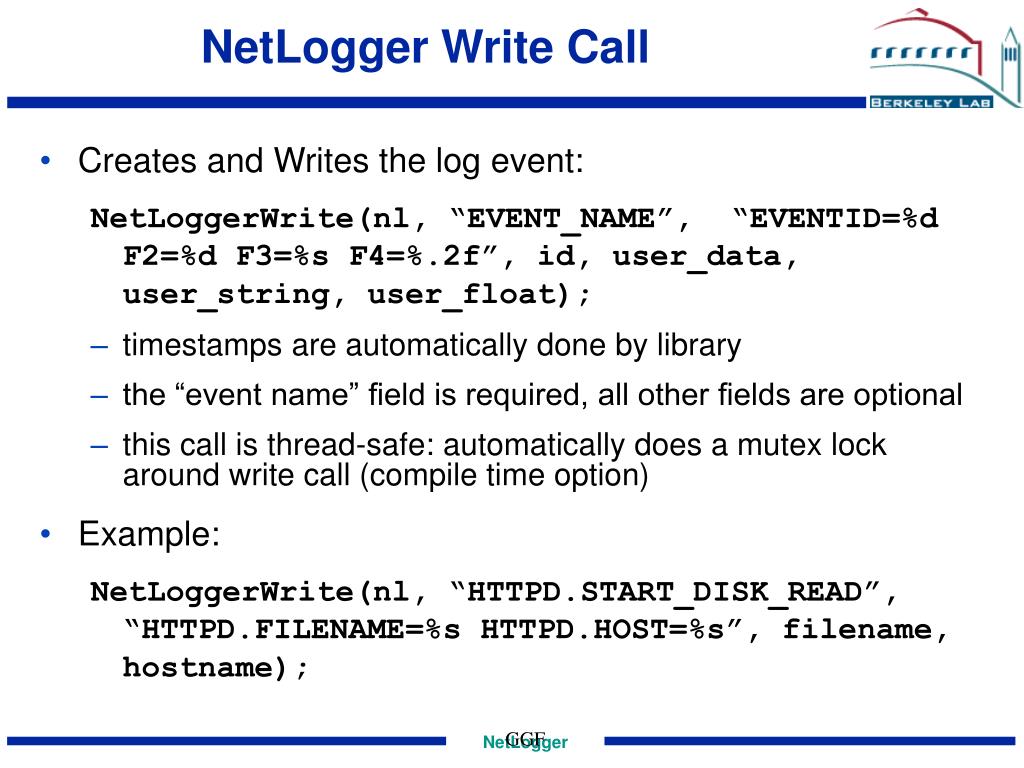

  11. NetLogger Write Call • Creates and Writes the log event: NetLoggerWrite(nl, “EVENT_NAME”, “EVENTID=%d F2=%d F3=%s F4=%.2f”, id, user_data, user_string, user_float); • timestamps are automatically done by library • the “event name” field is required, all other fields are optional • this call is thread-safe: automatically does a mutex lock around write call (compile time option) • Example: NetLoggerWrite(nl, “HTTPD.START_DISK_READ”, “HTTPD.FILENAME=%s HTTPD.HOST=%s”, filename, hostname); GGF

  12. Event ID • In order to associate a group of events into a “lifeline”, you must assign an event ID to each NetLogger event • Sample Event Ids • file name • block ID • frame ID • Socket ID • user name • host name • combination of the above • etc. GGF

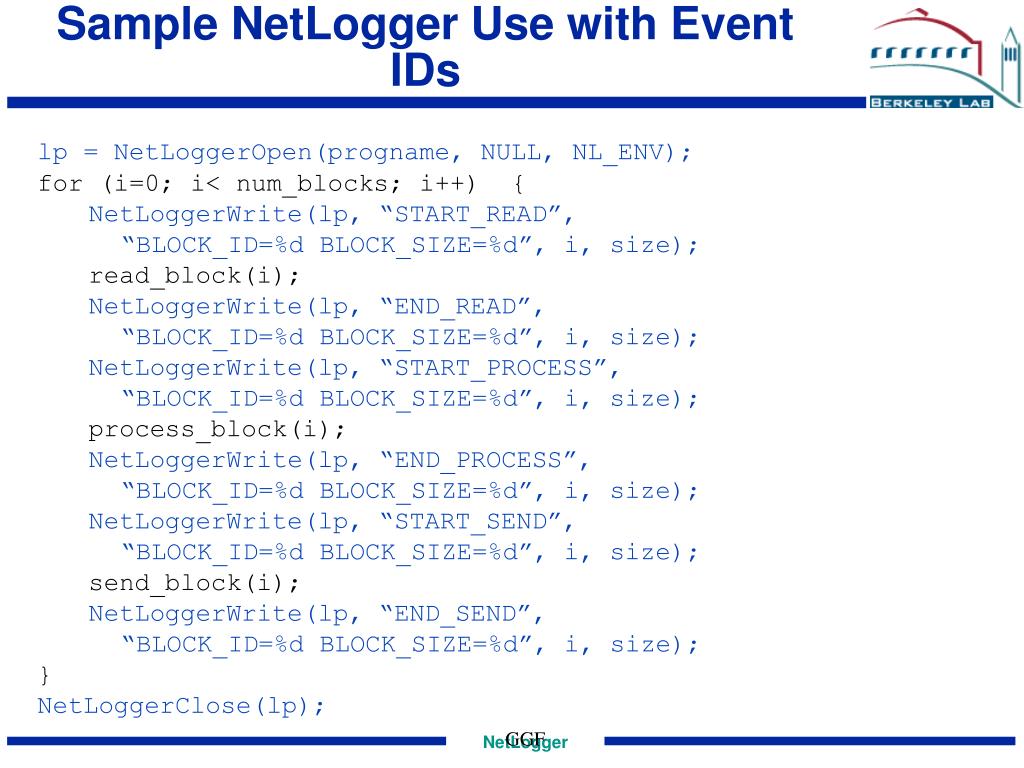

  13. Sample NetLogger Use with Event IDs lp = NetLoggerOpen(progname, NULL, NL_ENV); for (i=0; i< num_blocks; i++) { NetLoggerWrite(lp, “START_READ”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); read_block(i); NetLoggerWrite(lp, “END_READ”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); NetLoggerWrite(lp, “START_PROCESS”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); process_block(i); NetLoggerWrite(lp, “END_PROCESS”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); NetLoggerWrite(lp, “START_SEND”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); send_block(i); NetLoggerWrite(lp, “END_SEND”, “BLOCK_ID=%d BLOCK_SIZE=%d”, i, size); } NetLoggerClose(lp); GGF

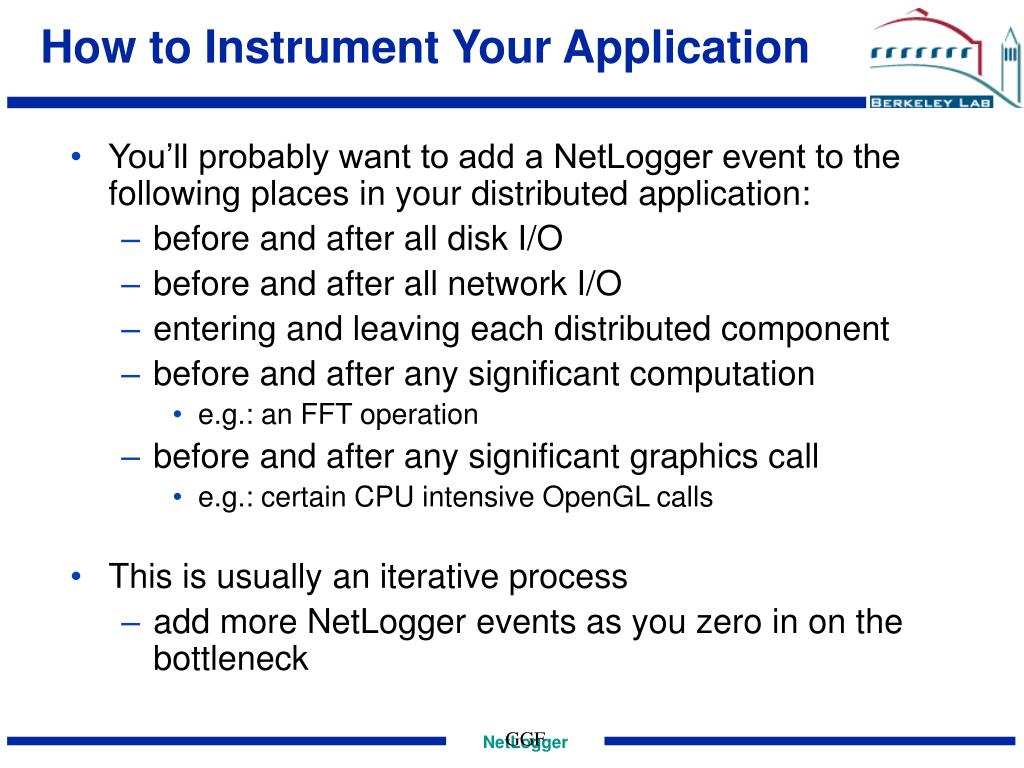

  14. How to Instrument Your Application • You’ll probably want to add a NetLogger event to the following places in your distributed application: • before and after all disk I/O • before and after all network I/O • entering and leaving each distributed component • before and after any significant computation • e.g.: an FFT operation • before and after any significant graphics call • e.g.: certain CPU intensive OpenGL calls • This is usually an iterative process • add more NetLogger events as you zero in on the bottleneck GGF

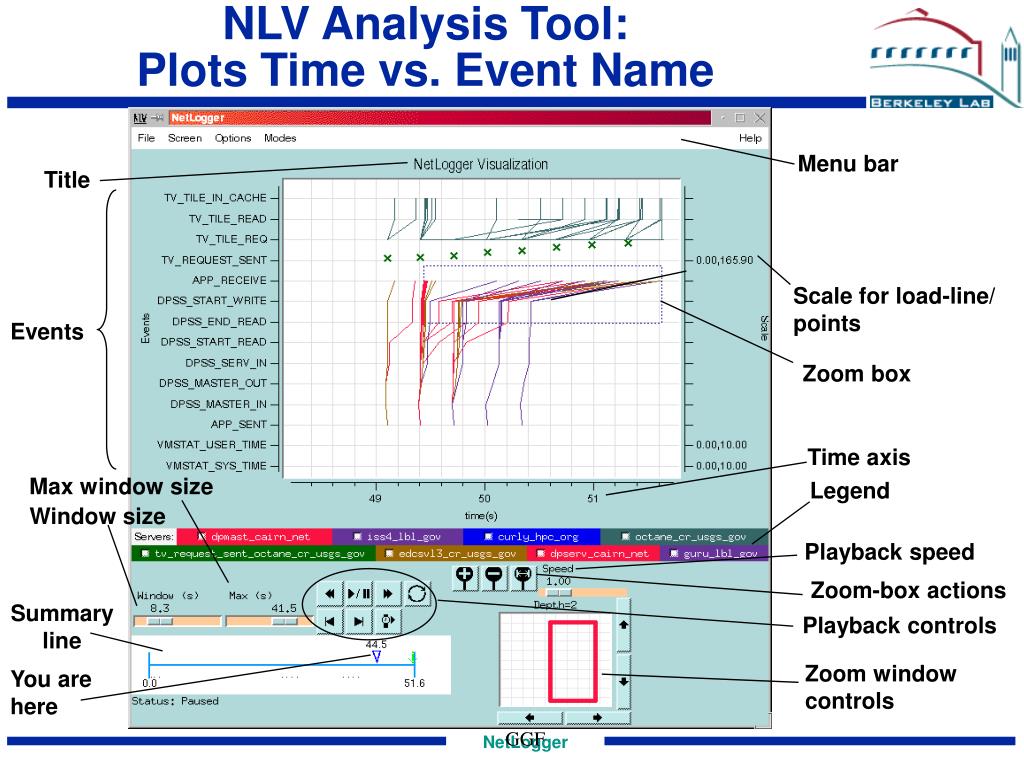

  15. NLV Analysis Tool: Plots Time vs. Event Name Menu bar Title Scale for load-line/ points Events Zoom box Time axis Max window size Legend Window size Playback speed Zoom-box actions Summary line Playback controls Zoom window controls You are here GGF

  16. Use Case: Instrumented GridFTP server • An Efficient Data Channel Protocol is extremely important • For example, consider the following: • FTP server is instrumented to log the start and end times for all network and disk read and writes, which are in blocks of 64 KBytes • FTP Server has a fast RAID disk array and 1000-BT network • 10 simultaneous clients (parallel GridFTP) • Each client is transferring data at 10 Mbytes/second • Total server throughput = 100 Mbytes/sec • This will generate roughly 6250 events / second of monitoring data • Assuming each monitoring event is 50 Bytes, this equates to 313 KBytes/second, or 1.1 GBytes per hour, of monitoring data. GGF

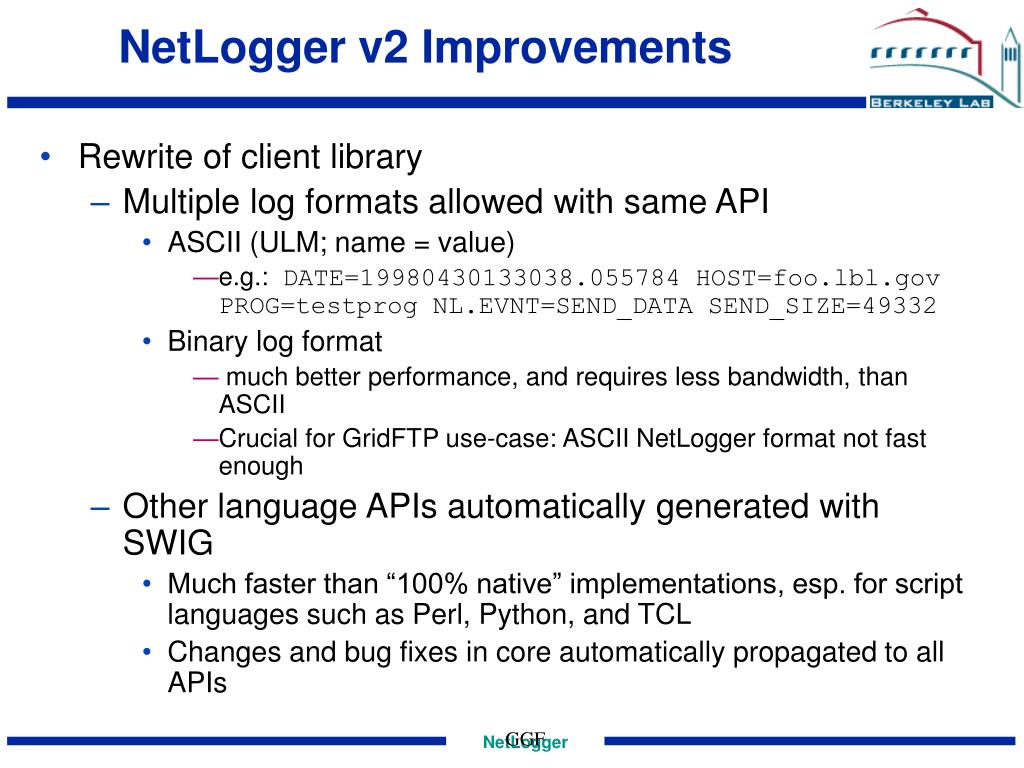

  17. NetLogger v2 Improvements • Rewrite of client library • Multiple log formats allowed with same API • ASCII (ULM; name = value) • e.g.: DATE=19980430133038.055784 HOST=foo.lbl.gov PROG=testprog NL.EVNT=SEND_DATA SEND_SIZE=49332 • Binary log format • much better performance, and requires less bandwidth, than ASCII • Crucial for GridFTP use-case: ASCII NetLogger format not fast enough • Other language APIs automatically generated with SWIG • Much faster than “100% native” implementations, esp. for script languages such as Perl, Python, and TCL • Changes and bug fixes in core automatically propagated to all APIs GGF

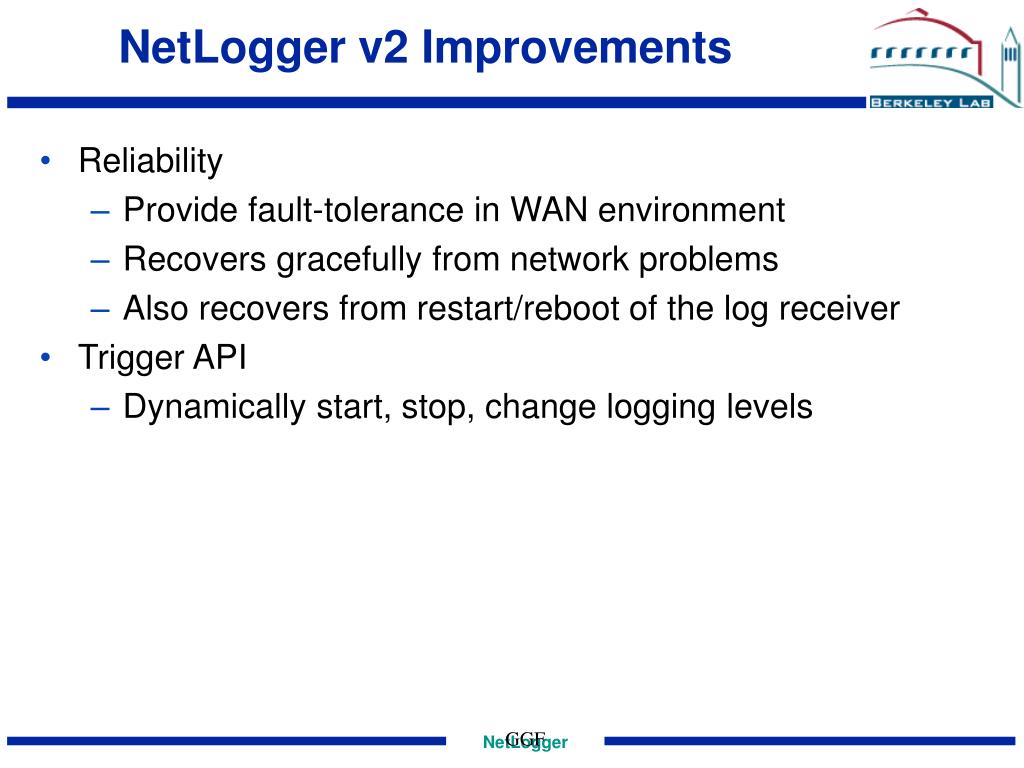

  18. NetLogger v2 Improvements • Reliability • Provide fault-tolerance in WAN environment • Recovers gracefully from network problems • Also recovers from restart/reboot of the log receiver • Trigger API • Dynamically start, stop, change logging levels GGF

  19. New NetLogger Feature: Binary Format • Data is sent in native format: “receiver-makes-right” • IEEE floating point only, simple data types supported • Lots of buffering (64K) to reduce system call overhead GGF

  20. New NetLogger Feature:Reliability API • Reliability API is used to provide fault tolerance • if remote NetLogger receiver become unavailable, will automatically failover to alternate location (e.g: local disk or 2nd receiver) • Option to periodically try to reconnect to the remote server • send local disk file on reconnect • NetLoggerSetBackup( handle, char *backupURL, int SendonReconnect ) • Set the backup URL • SendonReconnect flag: if backup URL is local disk, send these results after a successful reconnect • NetLoggerSetReconnect( handle, int sec ) • Set the number of seconds between reconnect attempts when the backup URL is in use GGF

  21. New NetLogger Feature:Trigger API • Trigger API is used to activate monitoring from an external “activation service” • NetLoggerSetTrigger( handle, char *filename. int sec) • Check the configuration file specified in “filename”, every “sec” seconds • int NetLoggerSetTriggerFunc( handle, fn_t *fnptr, int sec ) • Call a user-defined trigger function every “sec” seconds • NetLoggerCheckTrigger( handle) • Check the trigger function immediately (in addition to the periodic check from NetLoggerSetTrigger). GGF

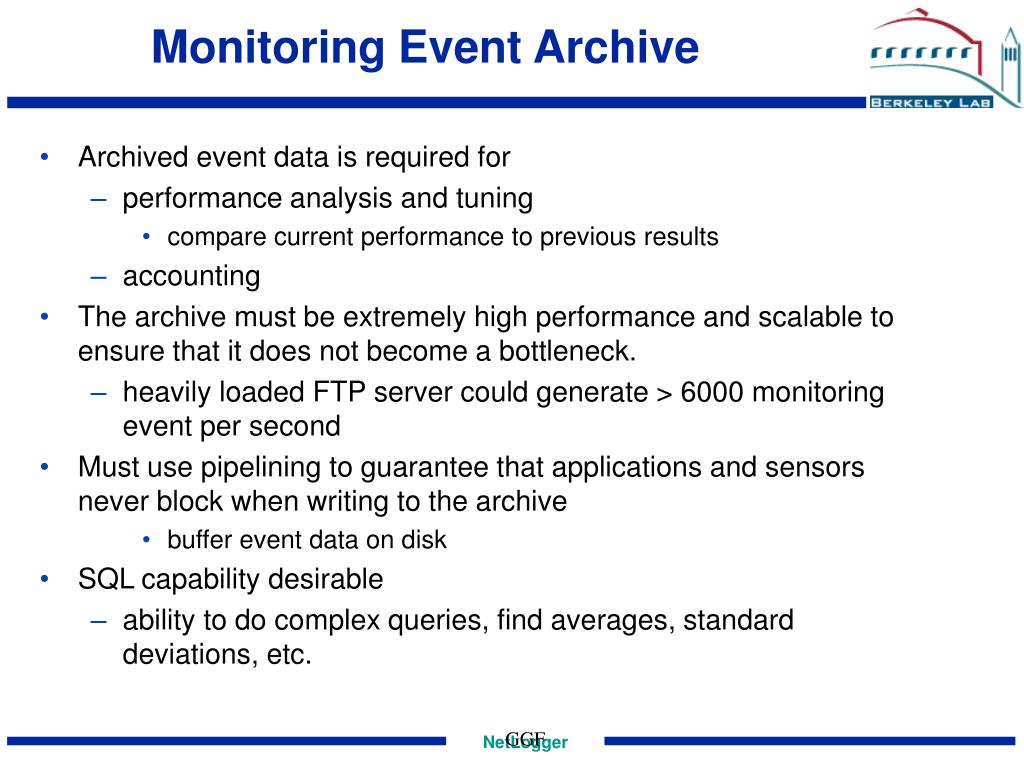

  22. Monitoring Event Archive • Archived event data is required for • performance analysis and tuning • compare current performance to previous results • accounting • The archive must be extremely high performance and scalable to ensure that it does not become a bottleneck. • heavily loaded FTP server could generate > 6000 monitoring event per second • Must use pipelining to guarantee that applications and sensors never block when writing to the archive • buffer event data on disk • SQL capability desirable • ability to do complex queries, find averages, standard deviations, etc. GGF

  23. Monitoring Event Archive • Requirements for FTP Server monitoring: • 6200 events/sec • 313 KBytes/second, (1.1 GBytes / hour) GGF

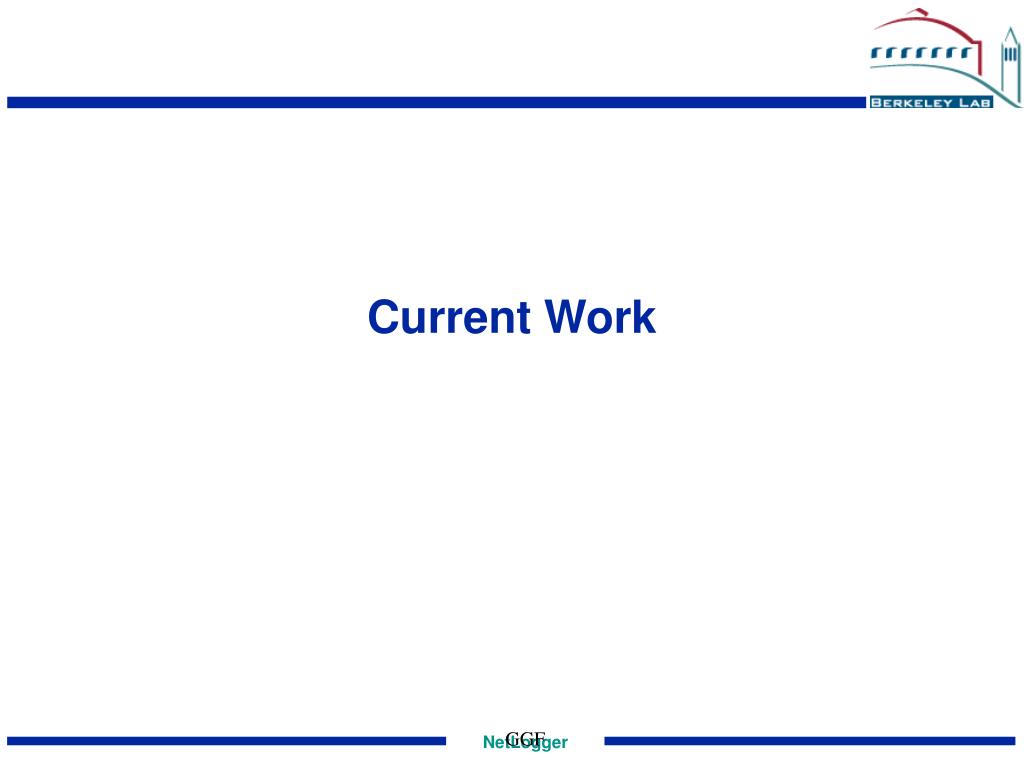

  24. Current Work GGF

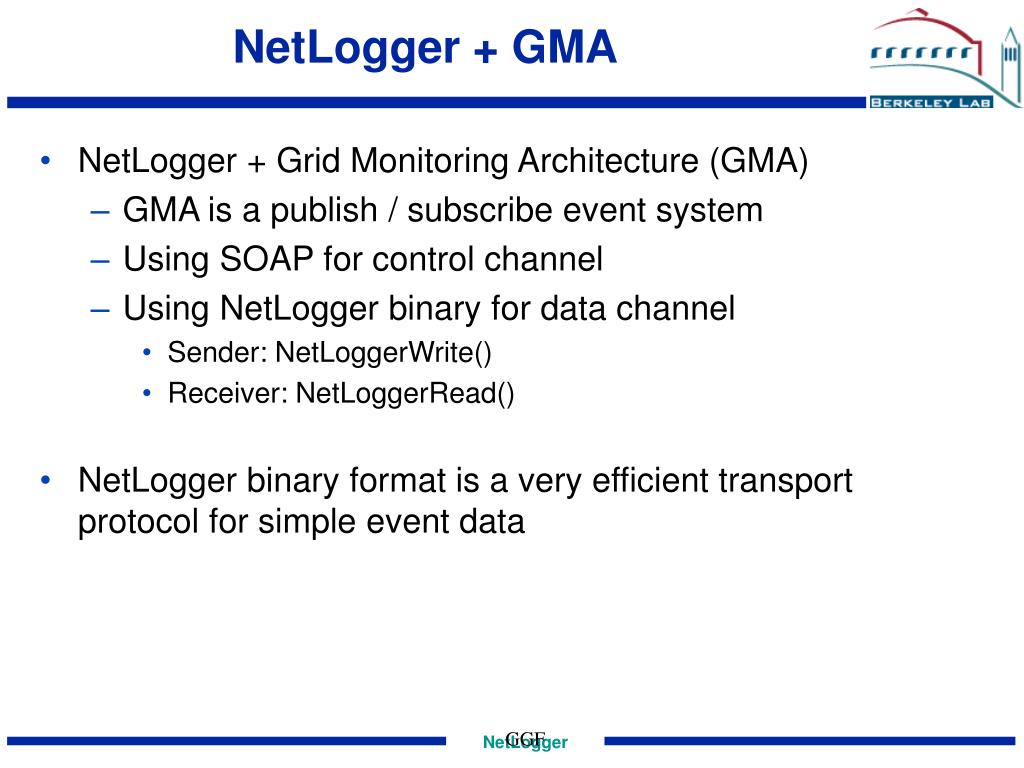

  25. NetLogger + GMA • NetLogger + Grid Monitoring Architecture (GMA) • GMA is a publish / subscribe event system • Using SOAP for control channel • Using NetLogger binary for data channel • Sender: NetLoggerWrite() • Receiver: NetLoggerRead() • NetLogger binary format is a very efficient transport protocol for simple event data GGF

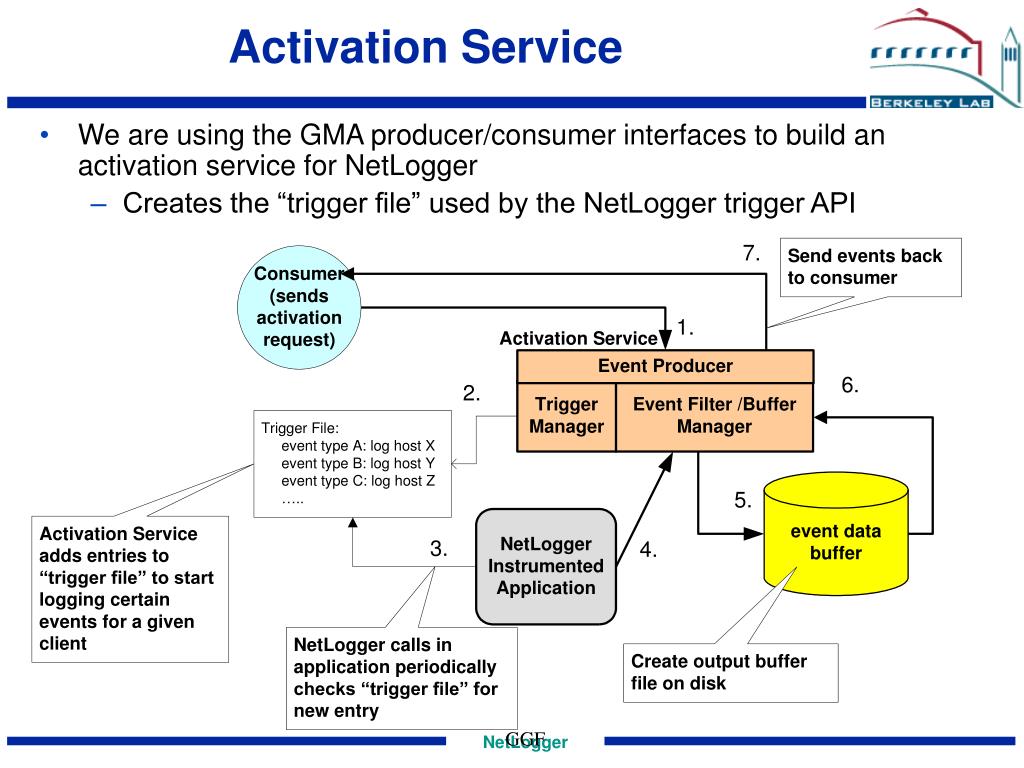

  26. Activation Service • We are using the GMA producer/consumer interfaces to build an activation service for NetLogger • Creates the “trigger file” used by the NetLogger trigger API GGF

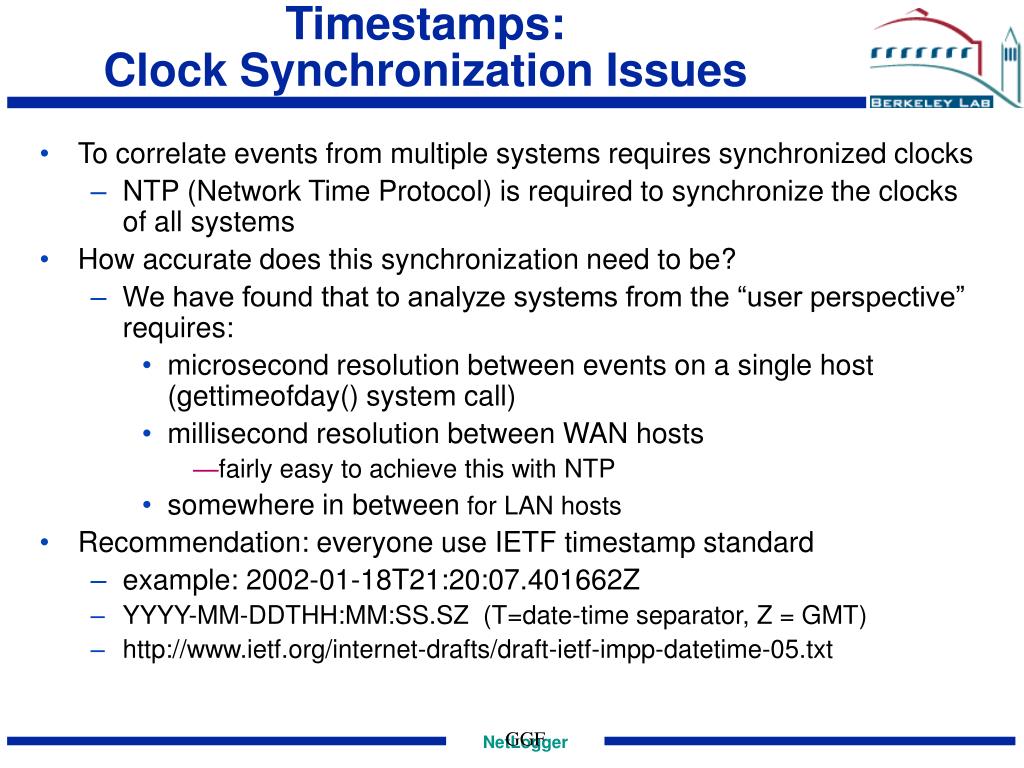

  27. Timestamps:Clock Synchronization Issues • To correlate events from multiple systems requires synchronized clocks • NTP (Network Time Protocol) is required to synchronize the clocks of all systems • How accurate does this synchronization need to be? • We have found that to analyze systems from the “user perspective” requires: • microsecond resolution between events on a single host (gettimeofday() system call) • millisecond resolution between WAN hosts • fairly easy to achieve this with NTP • somewhere in between for LAN hosts • Recommendation: everyone use IETF timestamp standard • example: 2002-01-18T21:20:07.401662Z • YYYY-MM-DDTHH:MM:SS.SZ (T=date-time separator, Z = GMT) • http://www.ietf.org/internet-drafts/draft-ietf-impp-datetime-05.txt GGF

  28. For More Information http://www-didc.lbl.gov/NetLogger email: bltierney@lbl.gov, dkgunter@lbl.gov GGF
