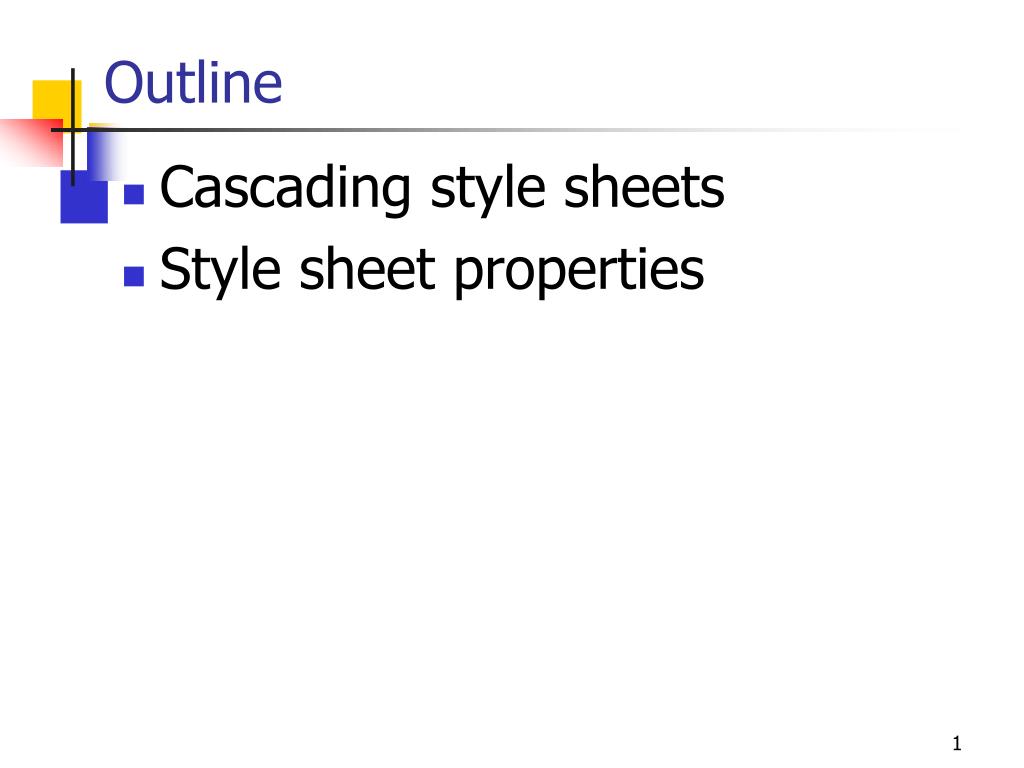

  1. Outline • Cascading style sheets • Style sheet properties

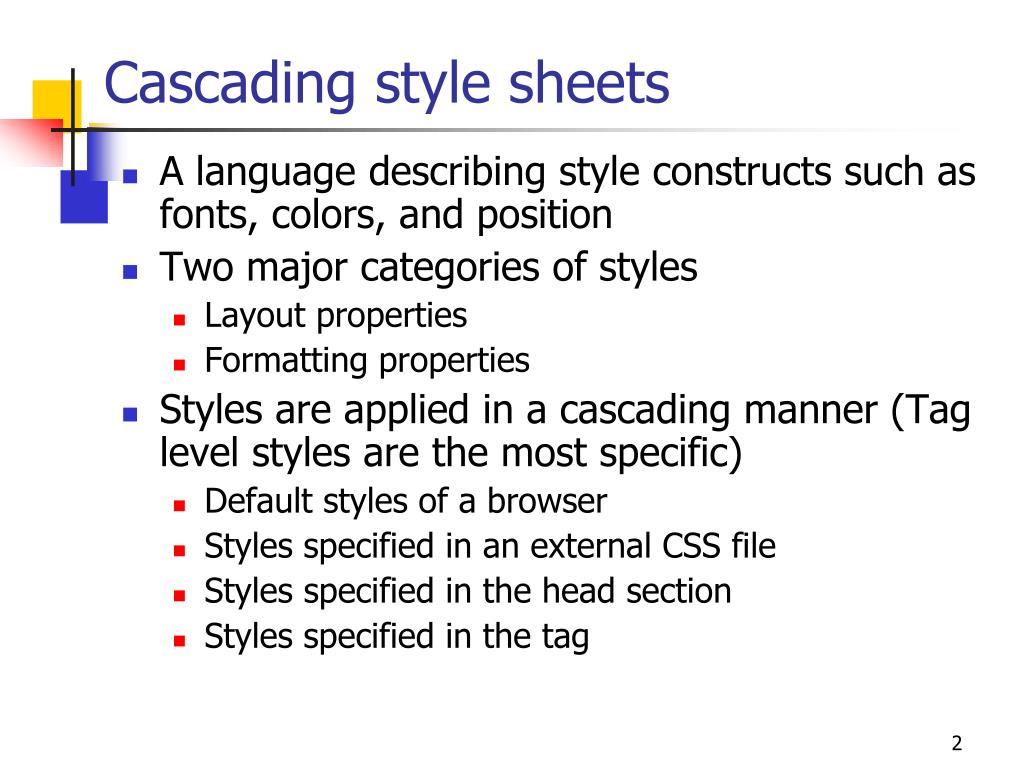

  2. Cascading style sheets • A language describing style constructs such as fonts, colors, and position • Two major categories of styles • Layout properties • Formatting properties • Styles are applied in a cascading manner (Tag level styles are the most specific) • Default styles of a browser • Styles specified in an external CSS file • Styles specified in the head section • Styles specified in the tag

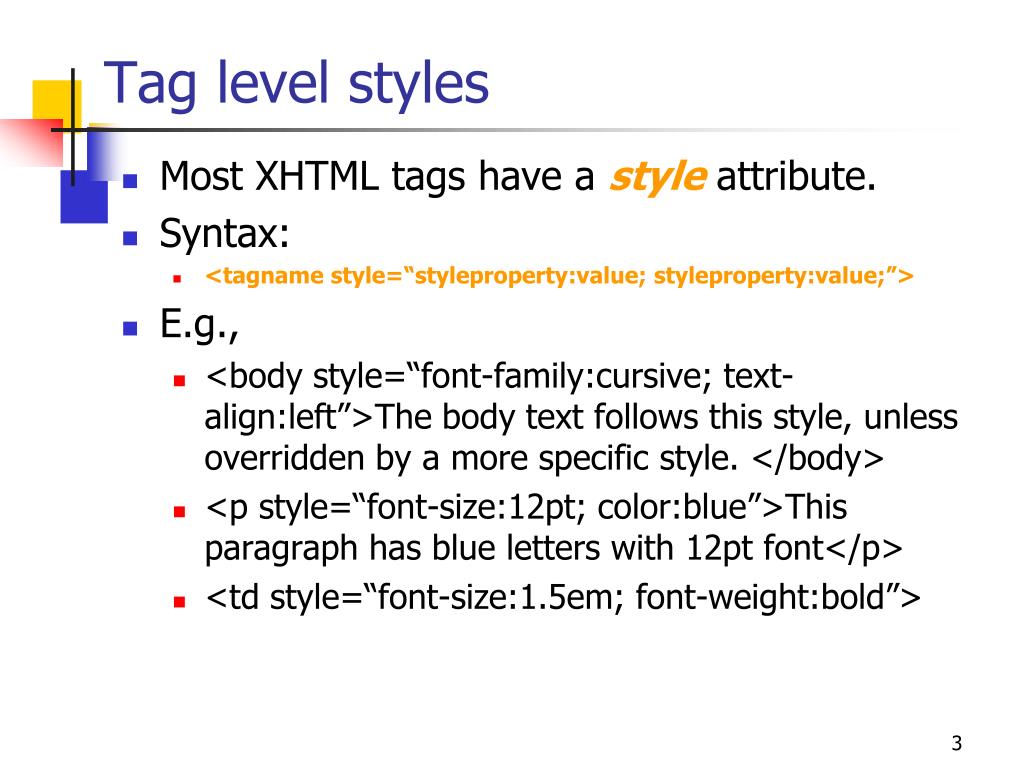

  3. Tag level styles • Most XHTML tags have a style attribute. • Syntax: • <tagname style=“styleproperty:value; styleproperty:value;”> • E.g., • <body style=“font-family:cursive; text-align:left”>The body text follows this style, unless overridden by a more specific style. </body> • <p style=“font-size:12pt; color:blue”>This paragraph has blue letters with 12pt font</p> • <td style=“font-size:1.5em; font-weight:bold”>

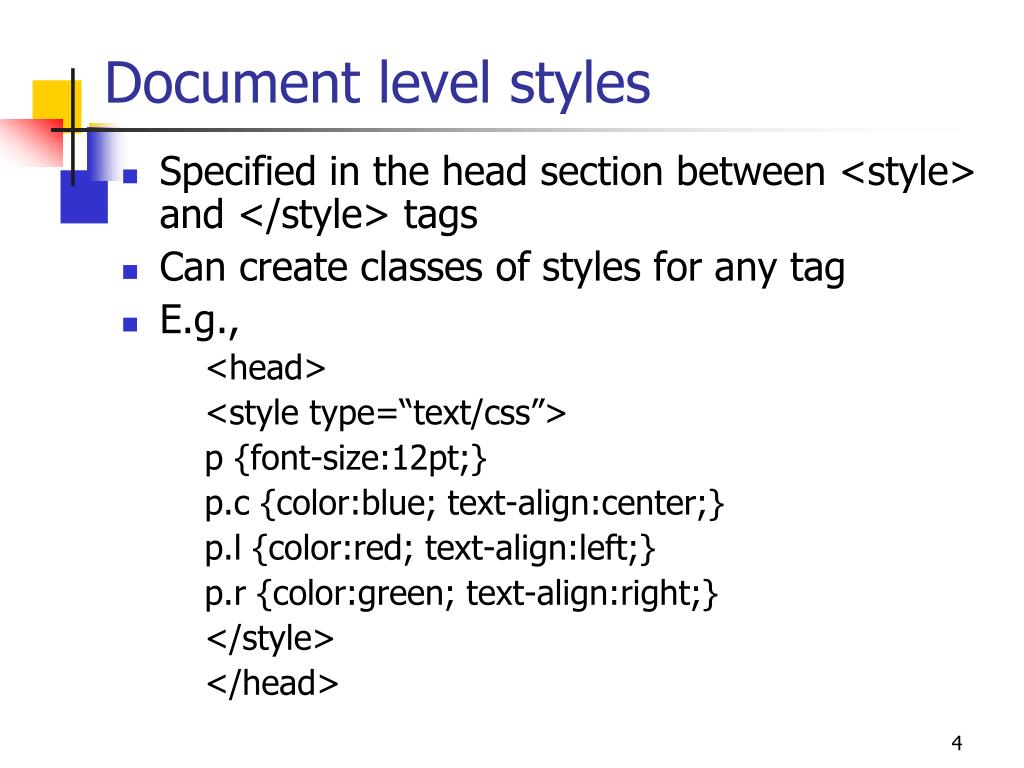

  4. Document level styles • Specified in the head section between <style> and </style> tags • Can create classes of styles for any tag • E.g., <head> <style type=“text/css”> p {font-size:12pt;} p.c {color:blue; text-align:center;} p.l {color:red; text-align:left;} p.r {color:green; text-align:right;} </style> </head>

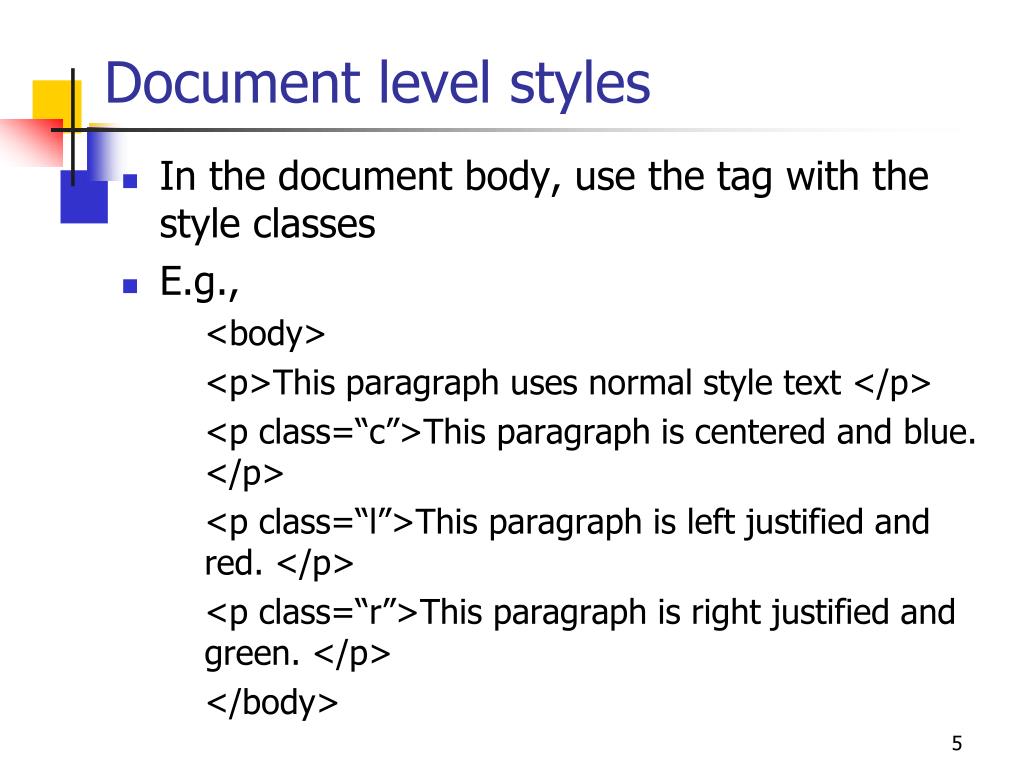

  5. Document level styles • In the document body, use the tag with the style classes • E.g., <body> <p>This paragraph uses normal style text </p> <p class=“c”>This paragraph is centered and blue. </p> <p class=“l”>This paragraph is left justified and red. </p> <p class=“r”>This paragraph is right justified and green. </p> </body>

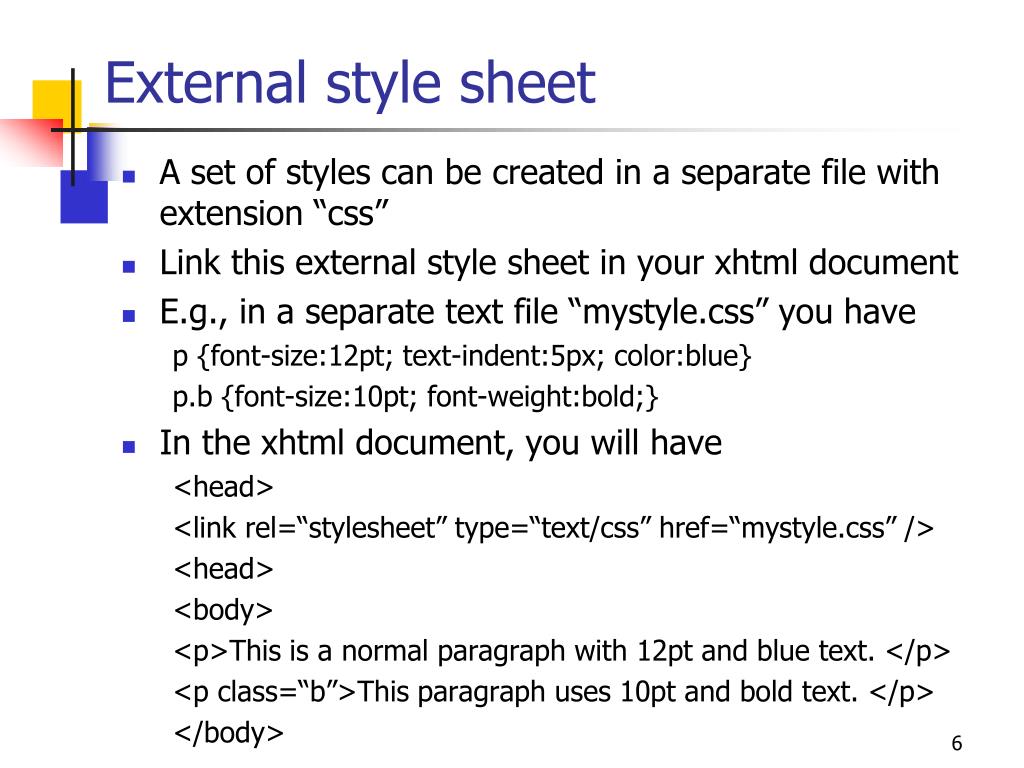

  6. External style sheet • A set of styles can be created in a separate file with extension “css” • Link this external style sheet in your xhtml document • E.g., in a separate text file “mystyle.css” you have p {font-size:12pt; text-indent:5px; color:blue} p.b {font-size:10pt; font-weight:bold;} • In the xhtml document, you will have <head> <link rel=“stylesheet” type=“text/css” href=“mystyle.css” /> <head> <body> <p>This is a normal paragraph with 12pt and blue text. </p> <p class=“b”>This paragraph uses 10pt and bold text. </p> </body>

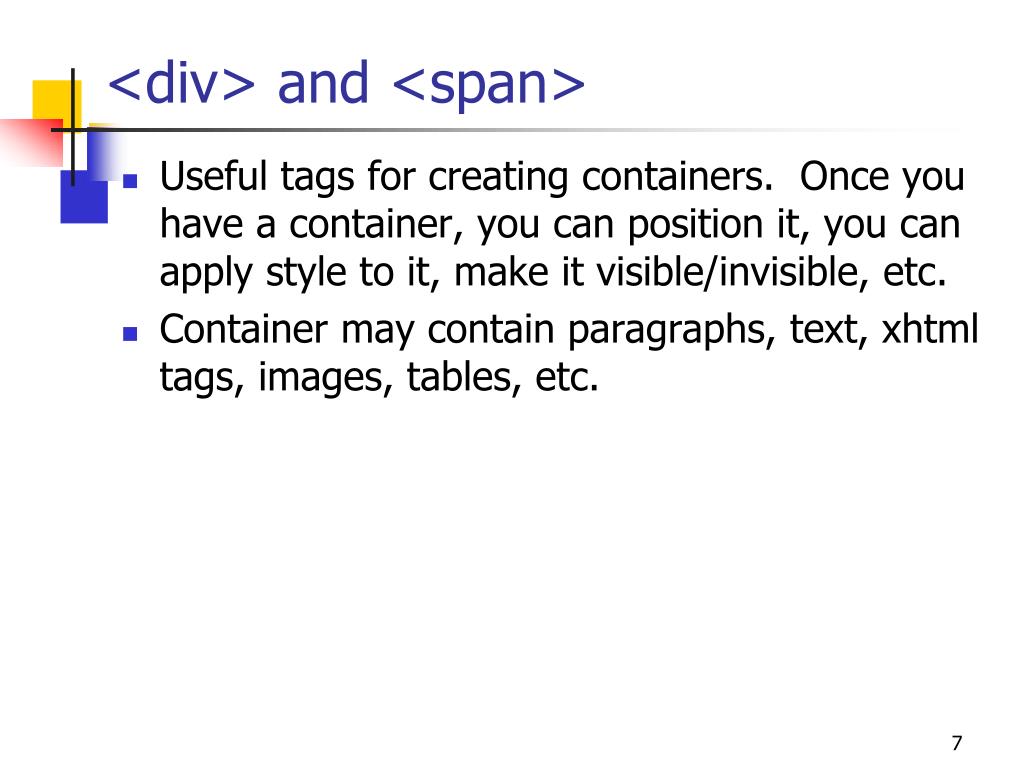

  7. <div> and <span> • Useful tags for creating containers. Once you have a container, you can position it, you can apply style to it, make it visible/invisible, etc. • Container may contain paragraphs, text, xhtml tags, images, tables, etc.

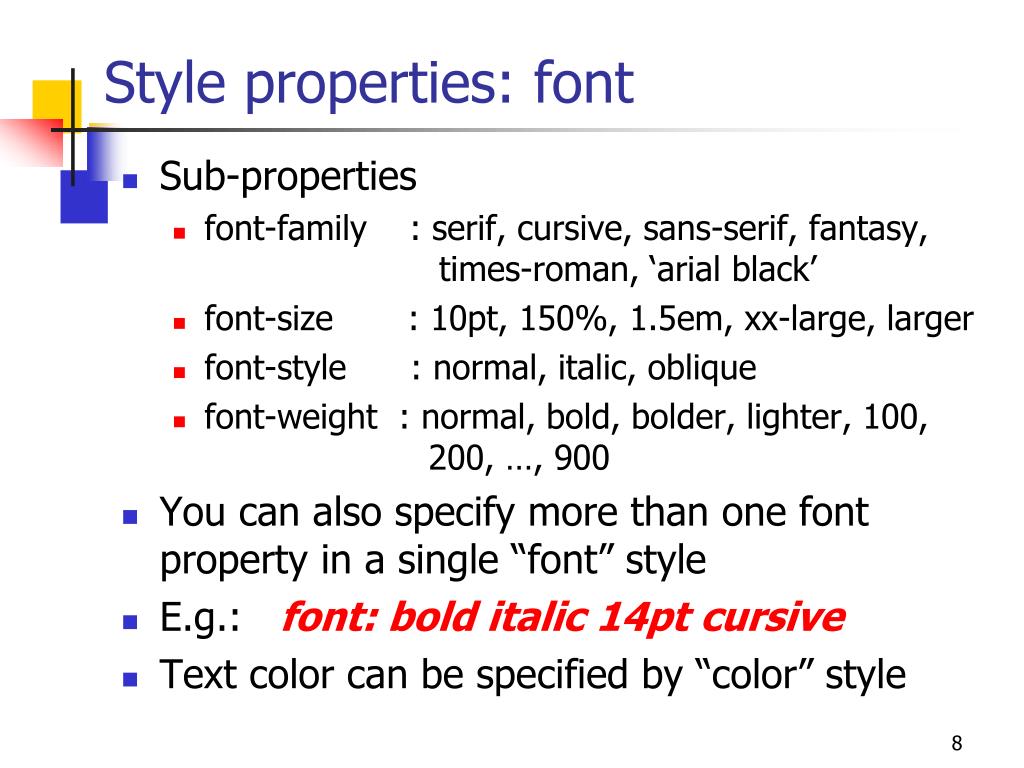

  8. Style properties: font • Sub-properties • font-family : serif, cursive, sans-serif, fantasy, times-roman, ‘arial black’ • font-size : 10pt, 150%, 1.5em, xx-large, larger • font-style : normal, italic, oblique • font-weight : normal, bold, bolder, lighter, 100, 200, …, 900 • You can also specify more than one font property in a single “font” style • E.g.: font: bold italic 14pt cursive • Text color can be specified by “color” style

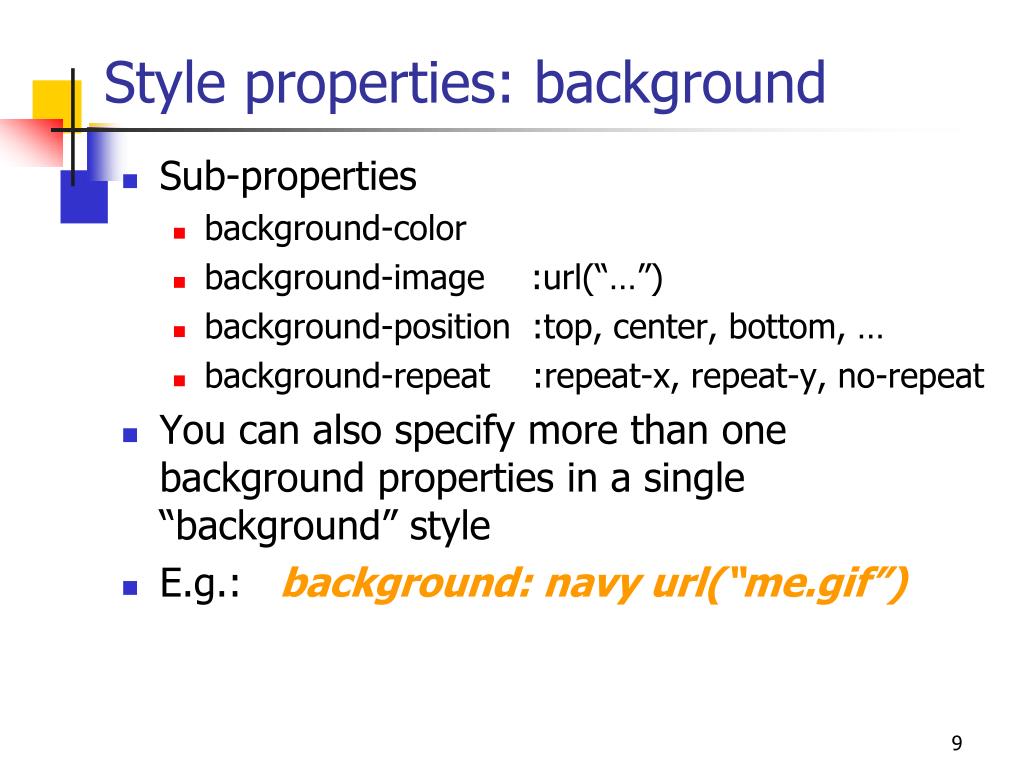

  9. Style properties: background • Sub-properties • background-color • background-image :url(“…”) • background-position :top, center, bottom, … • background-repeat :repeat-x, repeat-y, no-repeat • You can also specify more than one background properties in a single “background” style • E.g.: background: navy url(“me.gif”)

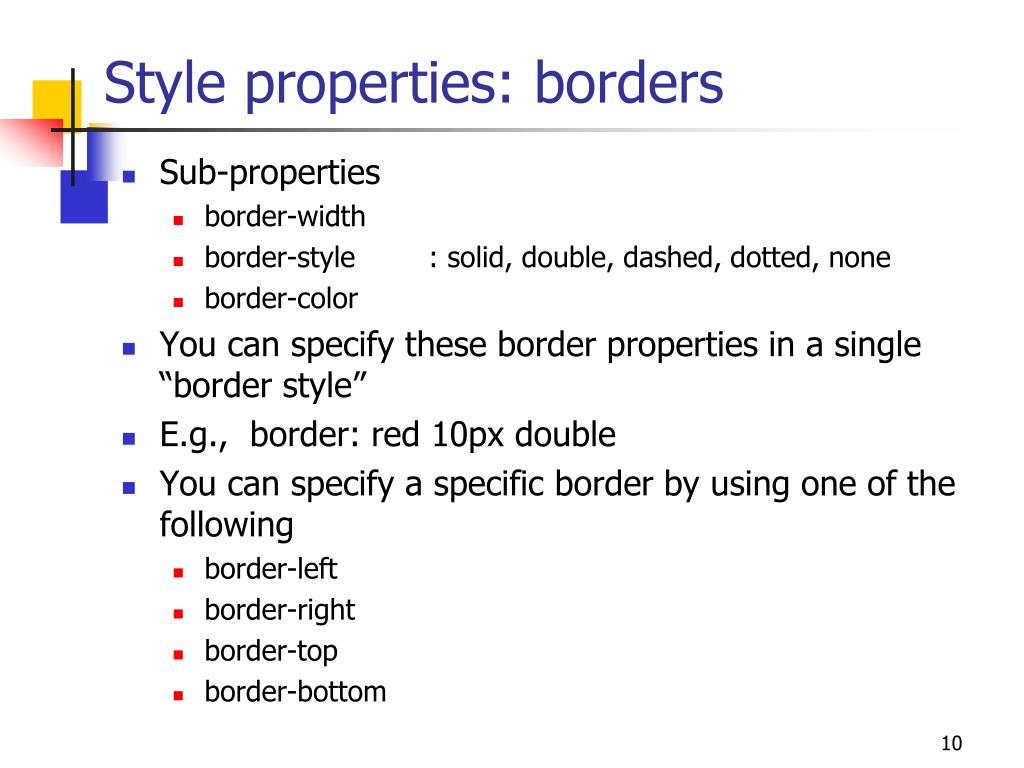

  10. Style properties: borders • Sub-properties • border-width • border-style : solid, double, dashed, dotted, none • border-color • You can specify these border properties in a single “border style” • E.g., border: red 10px double • You can specify a specific border by using one of the following • border-left • border-right • border-top • border-bottom

  11. Style properties: Margins • Sub-properties • margin-top • margin-right • margin-bottom • margin-left • margin • padding-top • padding-right • padding-bottom • padding-left • padding • Margin adds spacing around element, padding adds spacing inside element

  12. Style properties: Text • Sub-properties • text-align :left, right, center, justify • text-decoration : underline, italic, line-through, none • text-indent • text-transform : none, capitalize, uppercase, lowercase • vertical-align : top, middle, bottom, sub, super

  13. Style properties: position • Position can be: • Relative • Absolute • Can specify an offset from • Top • Bottom • Left • Right • In • px • % • em • Cm • E.g., <img src=“…” style=“position:absolute;top:100px; left:200px” />

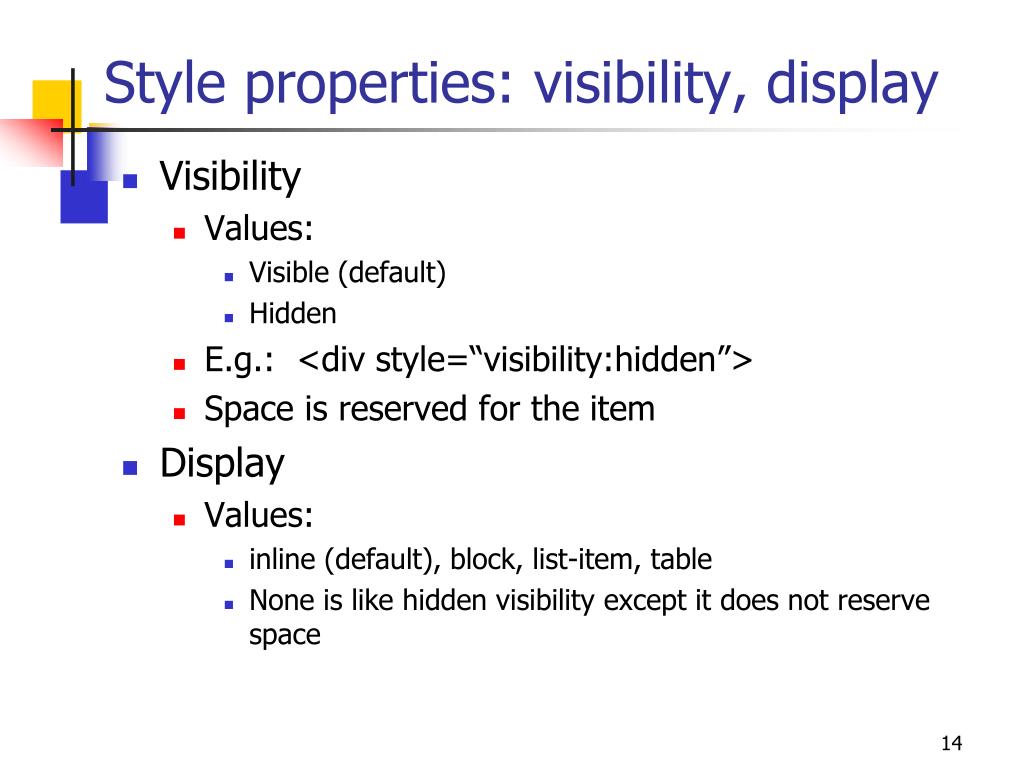

  14. Style properties: visibility, display • Visibility • Values: • Visible (default) • Hidden • E.g.: <div style=“visibility:hidden”> • Space is reserved for the item • Display • Values: • inline (default), block, list-item, table • None is like hidden visibility except it does not reserve space

  15. Events • E.g., • onMouseOver • onClick • onMouseOut • <p style=“color:green” onMouseover=“style.color=‘red’”>This paragraph changes to red when moused over.</p> • <p style=“color:green” onClick=“style.visibility=‘hidden’”>Click to hide me</p>
