  1. Chapter 5 Spatial Vision and Form Perception

  2. What Defines an Object? • Detection is the process of picking out an object from its surroundings. • Discrimination is the process of distinguishing one object from another. • Identification is the precise recognition of a particular object or a specific person.

  3. What are the components of visual form? • In the structuralist tradition, ideas and perceptions are created by combining components–simple sensations constitute the building blocks of perceived form. • How can we identify units of sensation with only minimal contributions from our prejudices and expectations?

  4. A Local Analysis: Differences between Neighbors • Each level of spatial information defines a scale. • The multichannel model: • Each subset of neurons conveys a characteristic kind of information defined by the spatial scale. • Gratings are special patterns used to test the multichannel model.

  5. Gratings as Tools for Exploring Form Perception

  6. Gratings as Tools for Exploring Form Perception • Spatial frequency (the number of light and dark regions imaged within a given distance on the retina) • Contrast (intensity difference between light and dark bars of the grating)

  7. Gratings as Tools for Exploring Form Perception • Orientation (axis of the grating’s bars) • Spatial phase (a grating’s position relative to some landmark)

  8. Using Gratings to Measure Performance • Transfer function specifies how contrast is transferred through the lens. • Cutoff frequency is point at which image contrast falls to zero.

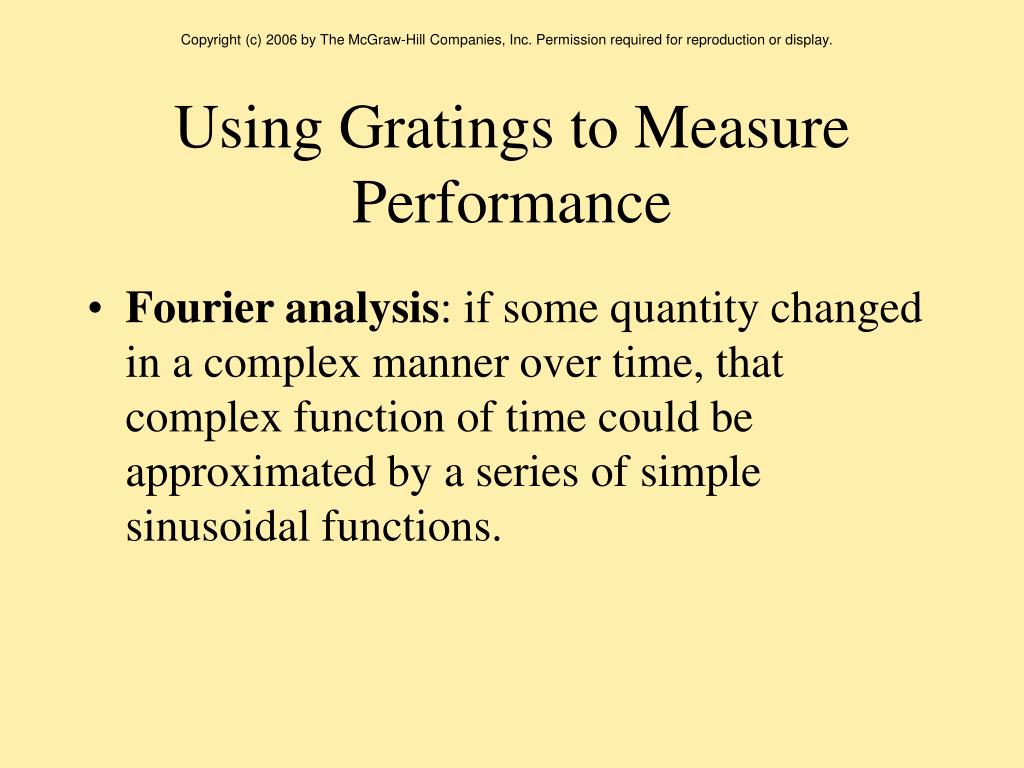

  9. Using Gratings to Measure Performance • Fourier analysis: if some quantity changed in a complex manner over time, that complex function of time could be approximated by a series of simple sinusoidal functions.

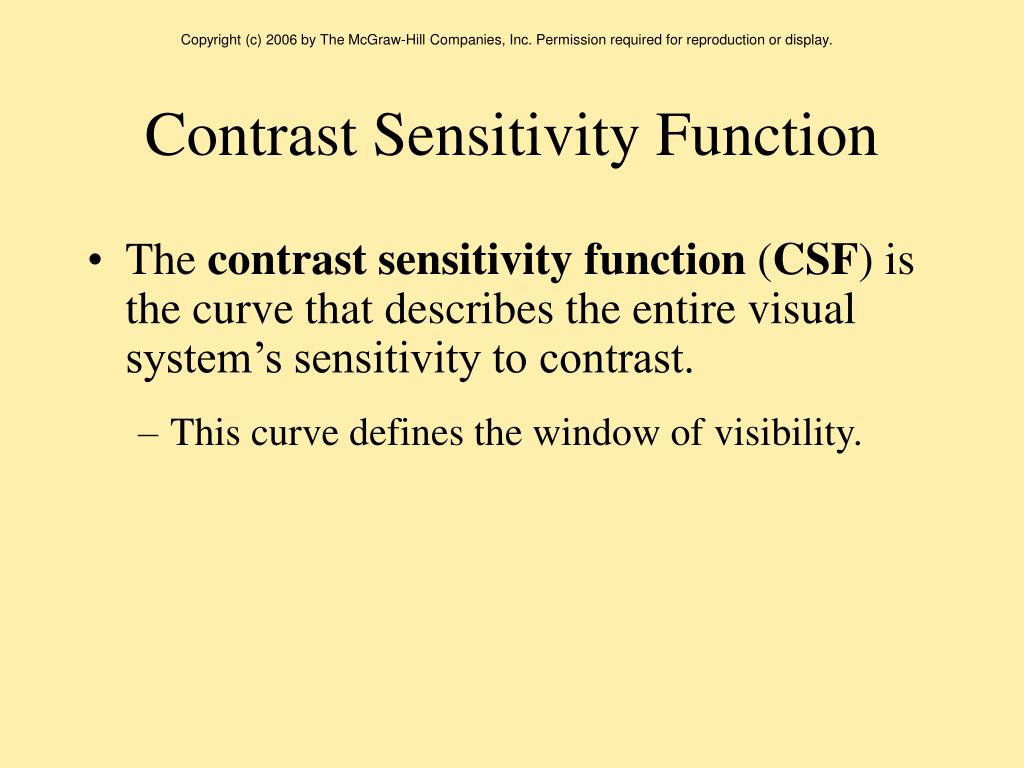

  10. Contrast Sensitivity Function • The contrast sensitivity function (CSF) is the curve that describes the entire visual system’s sensitivity to contrast. • This curve defines the window of visibility.

  11. Contrast Sensitivity Function • The sensitivity of the visual system determines the threshold contrast needed to detect a given spatial frequency • CSF can be derived by measuring contrast thresholds for different spatial frequencies

  12. CSF at 3 Light Levels

  13. CSFs of Other Species • Why do cats chase “invisible” objects? • CSFs of nonhuman primates are similar to CSF of humans.

  14. Age and the CSF • Infants have a different window of visibility than adults do. • CSF of the infant improves steadily over first year of life. • Systematic changes in CSF begin reappearing after age 30.

  15. Structural Basis of the CSF • Selective adaptation effects suggest that different neural channels are used to detect different spatial frequencies. • Detection of any spatial target depends on responses in sets of neurons tuned to a certain size and orientation.

  16. Contrast Normalization • Visual responses are combined from all active neurons whose receptive fields fall within a local neighborhood. • This combined signal modifies the individual responses of those active neurons.

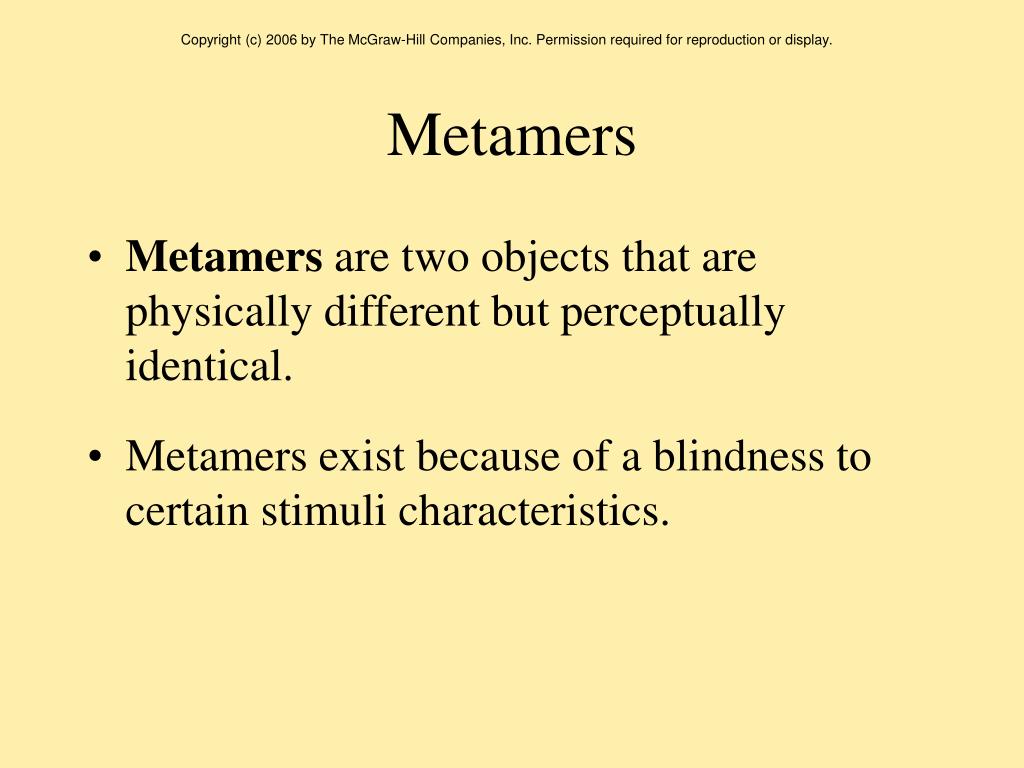

  17. Metamers • Metamers are two objects that are physically different but perceptually identical. • Metamers exist because of a blindness to certain stimuli characteristics.

  18. Form Defined by Texture Differences • Spatial discontinuities in texture, or texture contrasts, help visual system to detect and discriminate form. • Texture properties include regularity, granularity, and strong local orientation.

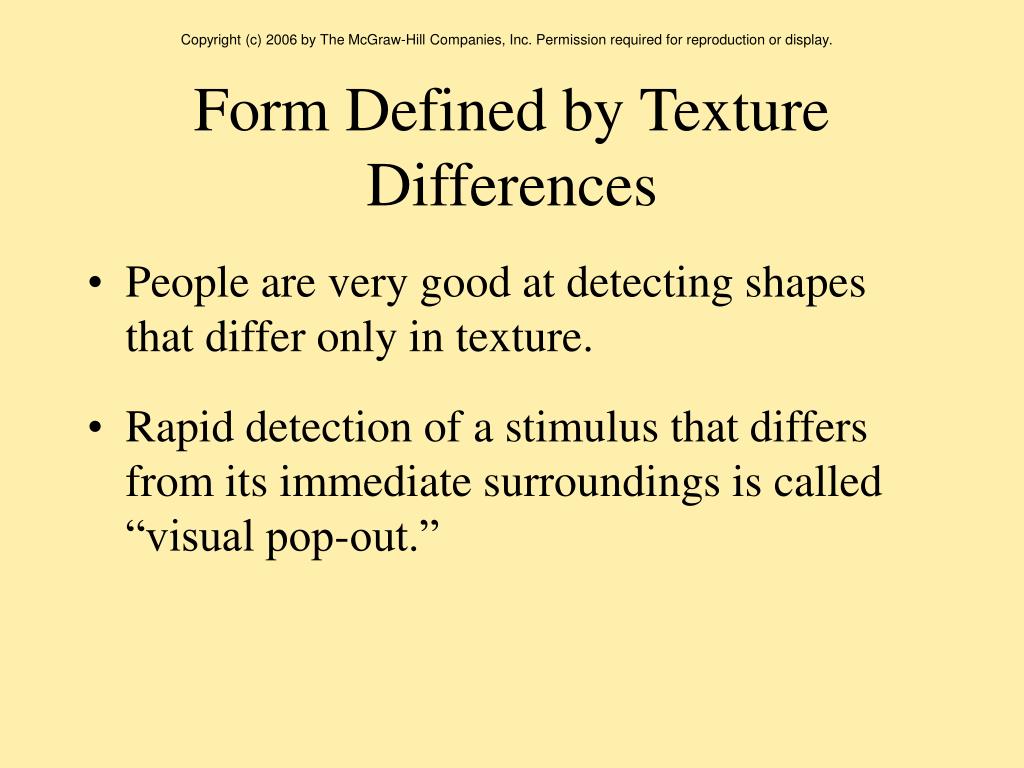

  19. Form Defined by Texture Differences • People are very good at detecting shapes that differ only in texture. • Rapid detection of a stimulus that differs from its immediate surroundings is called “visual pop-out.”

  20. Visual Pop-Out

  21. Global Context and Gestalt • Gestalt movement argued that objects appear as they do in virtue of the parts’ relations to one another. • Configural superiority effect: the whole is different from the sum of its individual parts.

  22. Global Context and Gestalt • Proximity • Similarity • Closure • Good continuation

  23. Global Structure and Symmetry • Symmetry: the tendency for parts of an object centered about a given axis to be highly similar in shape, texture, and color. • Most biological objects have the property of symmetry.

  24. How do we detect symmetry? • Detecting regions that differ from their immediate surroundings is an early step in detecting symmetry. • The visual system must also register similarities in the spatial arrangement of regions in the visual field.
