Presentation Transcript

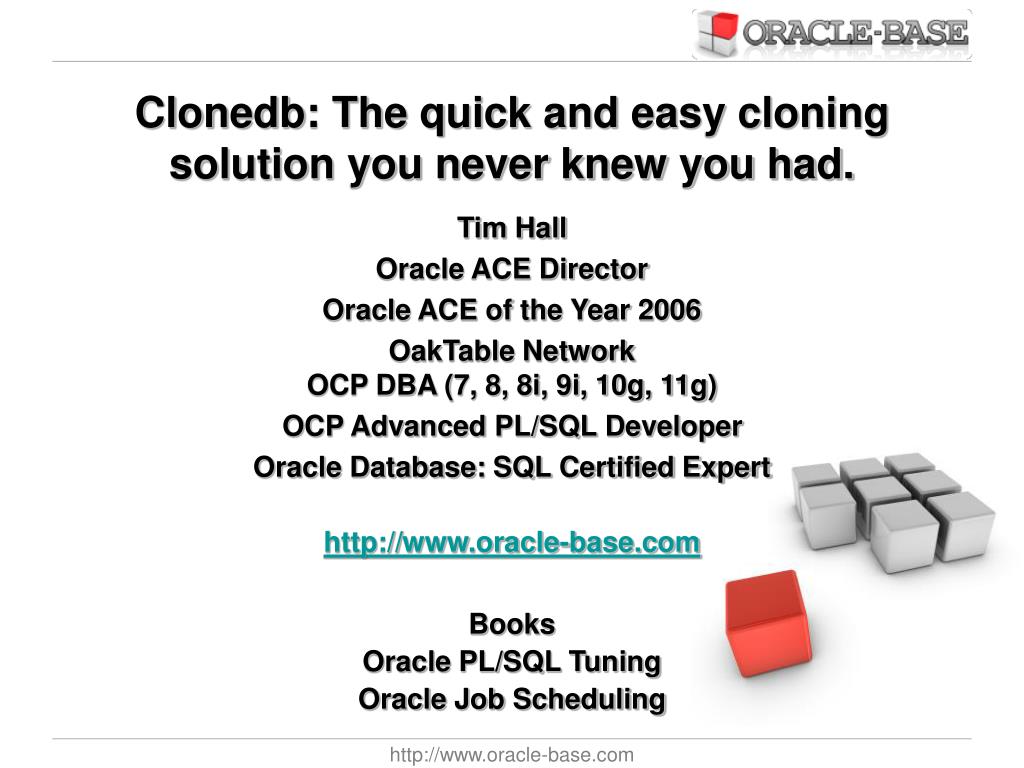

clonedb the quick and easy cloning solution you never knew you had

Tim Hall

Oracle ACE Director

Oracle ACE of the Year 2006

OakTable NetworkOCP DBA (7, 8, 8i, 9i, 10g, 11g)

OCP Advanced PL/SQL Developer

Oracle Database: SQL Certified Expert

http://www.oracle-base.com

Books

Oracle PL/SQL Tuning

Oracle Job Scheduling

Clonedb: The quick and easy cloning solution you never knew you had.

http://www.oracle-base.com

slide2

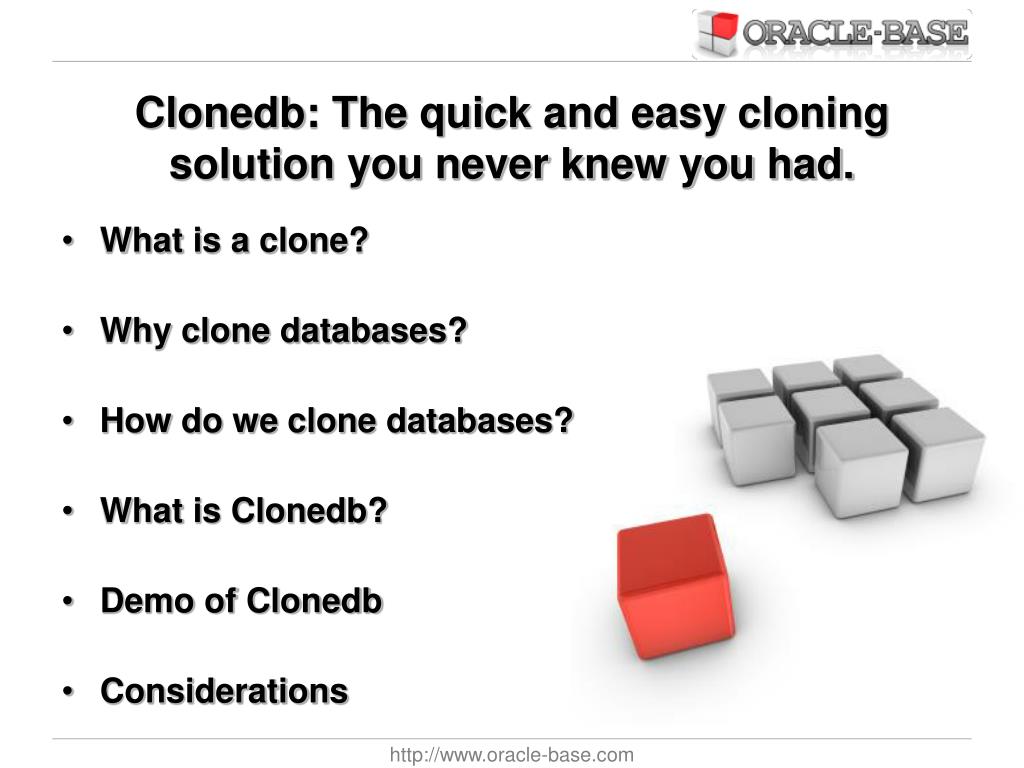

Clonedb: The quick and easy cloning solution you never knew you had.

  • What is a clone?
  • Why clone databases?
  • How do we clone databases?
  • What is Clonedb?
  • Demo of Clonedb
  • Considerations

http://www.oracle-base.com

what is a clone

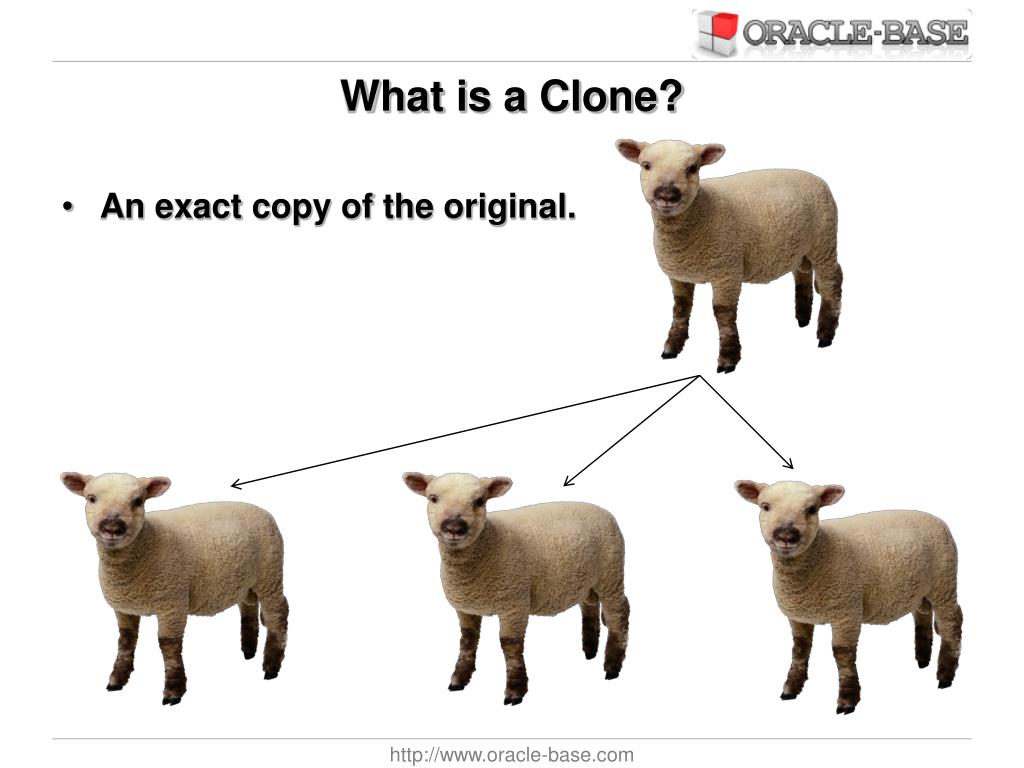

What is a Clone?
  • An exact copy of the original.

http://www.oracle-base.com

why clone databases

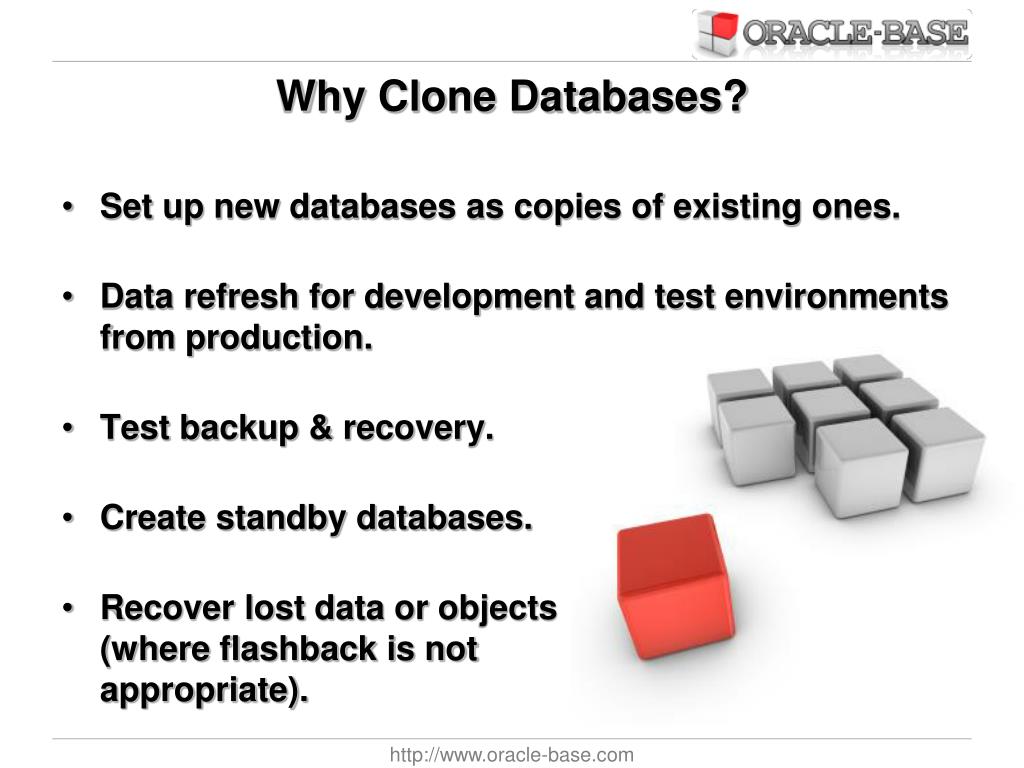

Why Clone Databases?
  • Set up new databases as copies of existing ones.
  • Data refresh for development and test environments from production.
  • Test backup & recovery.
  • Create standby databases.
  • Recover lost data or objects(where flashback is notappropriate).

http://www.oracle-base.com

how do we clone databases
How do we Clone Databases?
  • There are already several methods for cloning databases including:
    • Manually copy files and recreate the database.
    • RMAN DUPLICATE - active database (11g).
    • RMAN DUPLICATE - backup.
    • 3rd Party solutions.
  • All require copying or restoring filesto new location requiring:
    • Additional disk space.
    • Time to perform the copy.
  • Clonedb makes cloning quicker and saves space.

http://www.oracle-base.com

what is clonedb

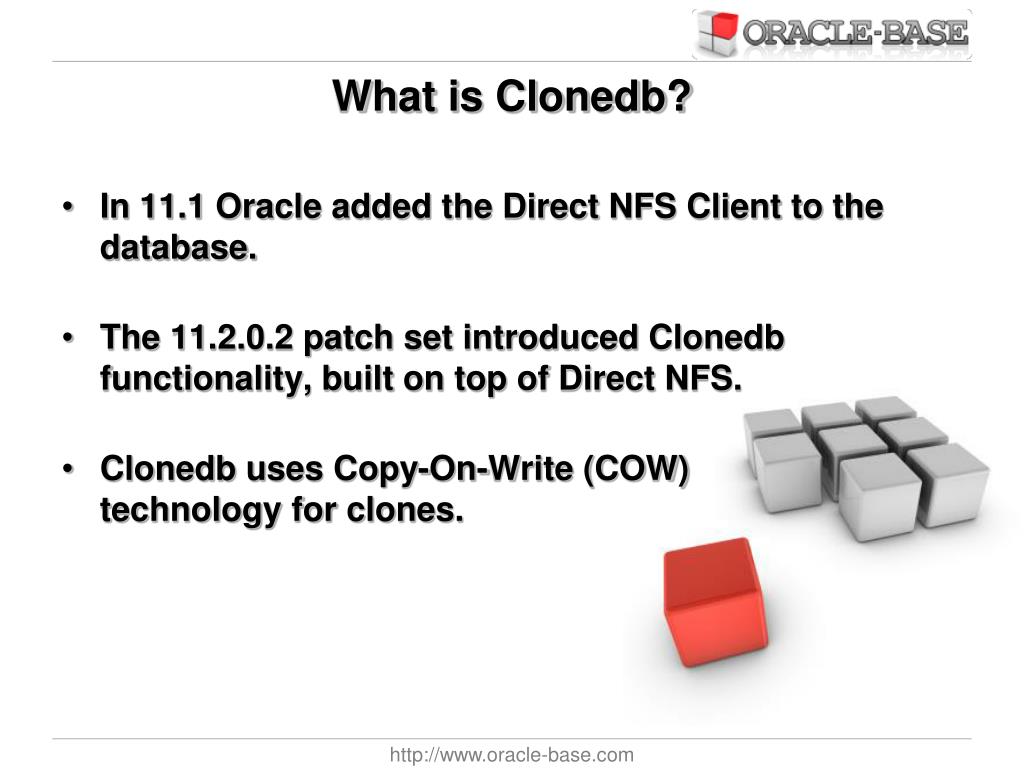

What is Clonedb?
  • In 11.1 Oracle added the Direct NFS Client to the database.
  • The 11.2.0.2 patch set introduced Clonedb functionality, built on top of Direct NFS.
  • Clonedb uses Copy-On-Write (COW)technology for clones.

http://www.oracle-base.com

copy on write cow
Copy-On-Write (COW)

NFS

C.O.W.

Files

  • Clones use read-only image copies of datafiles as source.
  • Only modified blocks are written to NFS location.

Clone

Database

Datafile


Copies

NFS

C.O.W.

Files

Clone

Database

http://www.oracle-base.com

what is clonedb continued
What is Clonedb? (continued)
  • Clonedb saves space when you have multiple clones as they can all reference the same source files.
  • One-time server setup, then repeatedcloning is super-quick.
  • Only documented in My Oracle Support (MOS)Note 1210656.1

http://www.oracle-base.com

slide9
Demo

(cleanup.sql)

http://www.oracle-base.com

nfs server setup

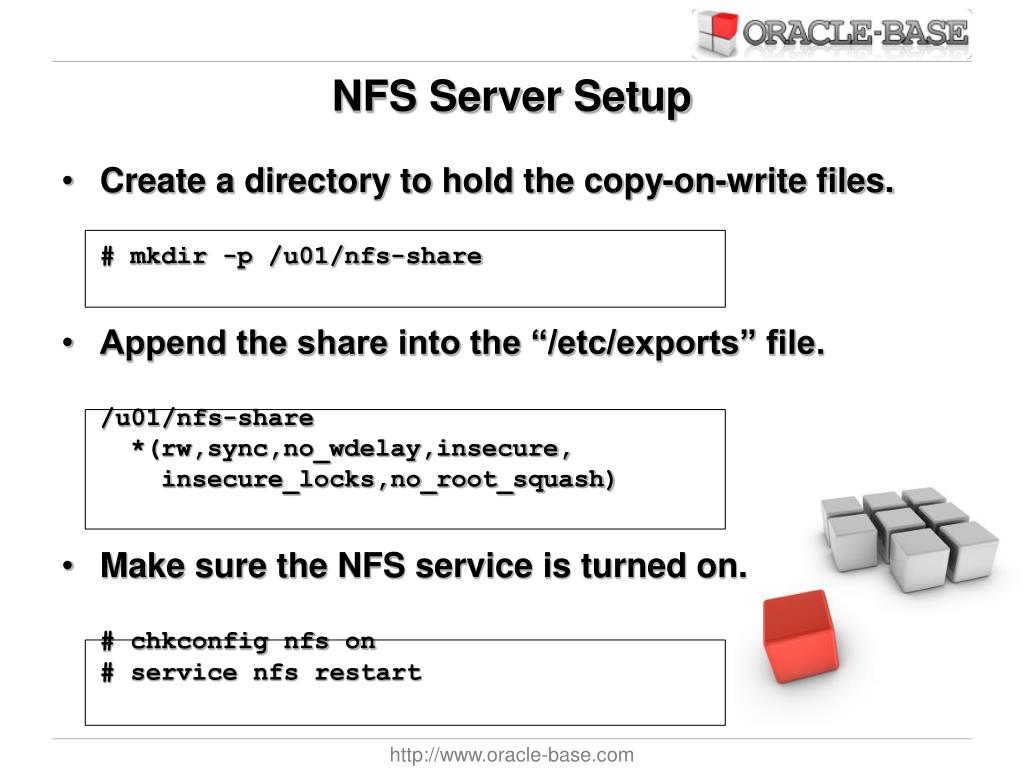

NFS Server Setup
  • Create a directory to hold the copy-on-write files.# mkdir -p /u01/nfs-share
  • Append the share into the “/etc/exports” file./u01/nfs-share *(rw,sync,no_wdelay,insecure, insecure_locks,no_root_squash)
  • Make sure the NFS service is turned on.# chkconfig nfs on# service nfs restart

http://www.oracle-base.com

production backup
Production Backup
  • Make an image copy backup of the database. The copy can be placed on a share (CIFS/NFS) or copied to the local file system of the server running the clone.configure controlfile autobackup off;sql \'alter database begin backup\';run { set nocfau; backup as copy database format ’/u01/backups/prod/%U’;}sql \'alter database end backup\';(backup.sh)

http://www.oracle-base.com

copy production pfile
Copy Production PFILE
  • Take a copy of the production PFILE by running the following command as the SYS user.(create_pfile.sh)CREATE PFILE=\'/u01/backups/prod/initTEST.ora\' FROM SPFILE;
  • Edit the PFILE, changing allreferences to the original SIDand database name.

http://www.oracle-base.com

clonedb server setup
Clonedb Server Setup
  • Turn on Direct NFS for the ORACLE_HOME on the clonedb server.(dnfs.sh)$cd $ORACLE_HOME/rdbms/lib$ make -f ins_rdbms.mk dnfs_on
  • Make the necessary directoriesfor the NFS mount and tosupport the instance.(directories.sh)

http://www.oracle-base.com

nfs mount
NFS Mount
  • Add the NFS mount to the “/etc/fstab” file, along with any other necessary shares.nas1:/u01/nfs-share /u01/copy-on-write nfs rw,bg,hard,nointr,tcp,vers=3,timeo=600, rsize=32768,wsize=32768,actimeo=0 0 0
  • Mount the copy-on-write location.# mount /u01/copy-on-write

http://www.oracle-base.com

clone the database
Clone the database
  • Set the required environment variables and run the “clone.pl” script.(create_clone_script.sh)
  • Review the contents of thegenerated files.
  • Run the files to create the clone.(create_clone.sh)

http://www.oracle-base.com

clone the database1
Clone the database
  • If you did hot backup you may need to recover database.SQL> RECOVER DATABASE USING BACKUP CONTROLFILE UNTIL CANCEL;SQL> ALTER DATABASE OPEN RESETLOGS;
  • Make sure the TEMP tablespacehas been handled properly.(manage_temp.sql)
  • Check the database.(datafiles.sql)

http://www.oracle-base.com

considerations performance
Considerations - Performance
  • Copy-On-Write location is NFS. Is that an issue for you?
  • If a cloned database is to be usedfor performance testing, do youreally want a different storagetechnology in the mix?
  • Possible performanceimprovements on the horizon?

http://www.oracle-base.com

considerations space savings

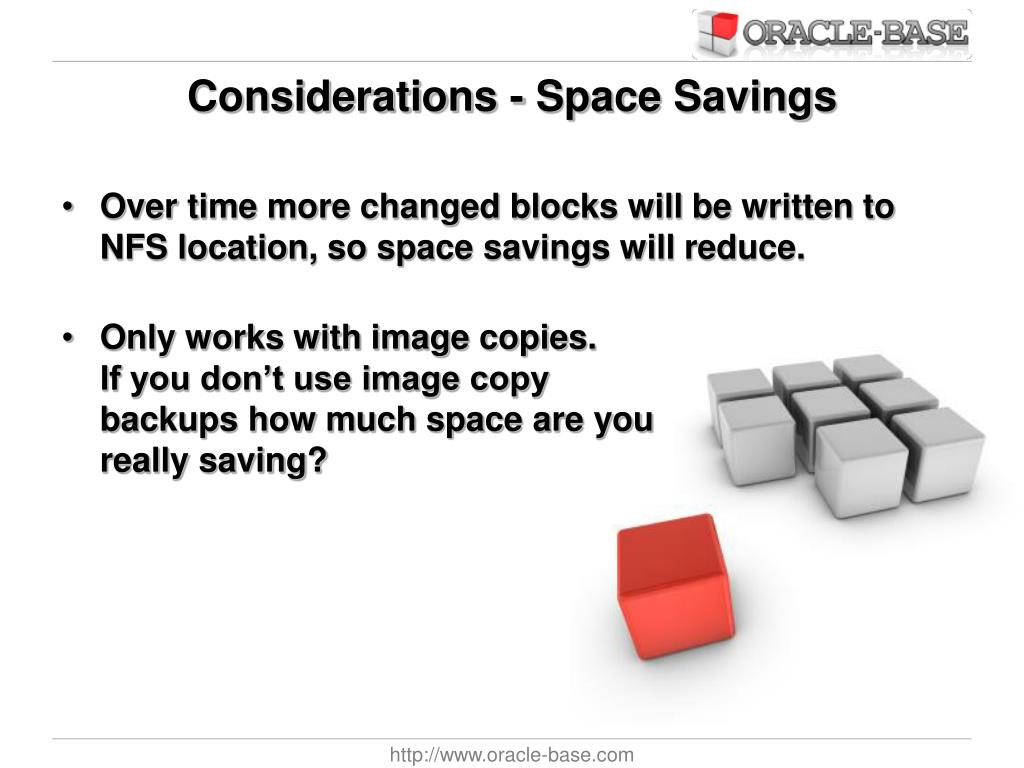

Considerations - Space Savings
  • Over time more changed blocks will be written to NFS location, so space savings will reduce.
  • Only works with image copies.If you don’t use image copybackups how much space are youreally saving?

http://www.oracle-base.com

considerations others

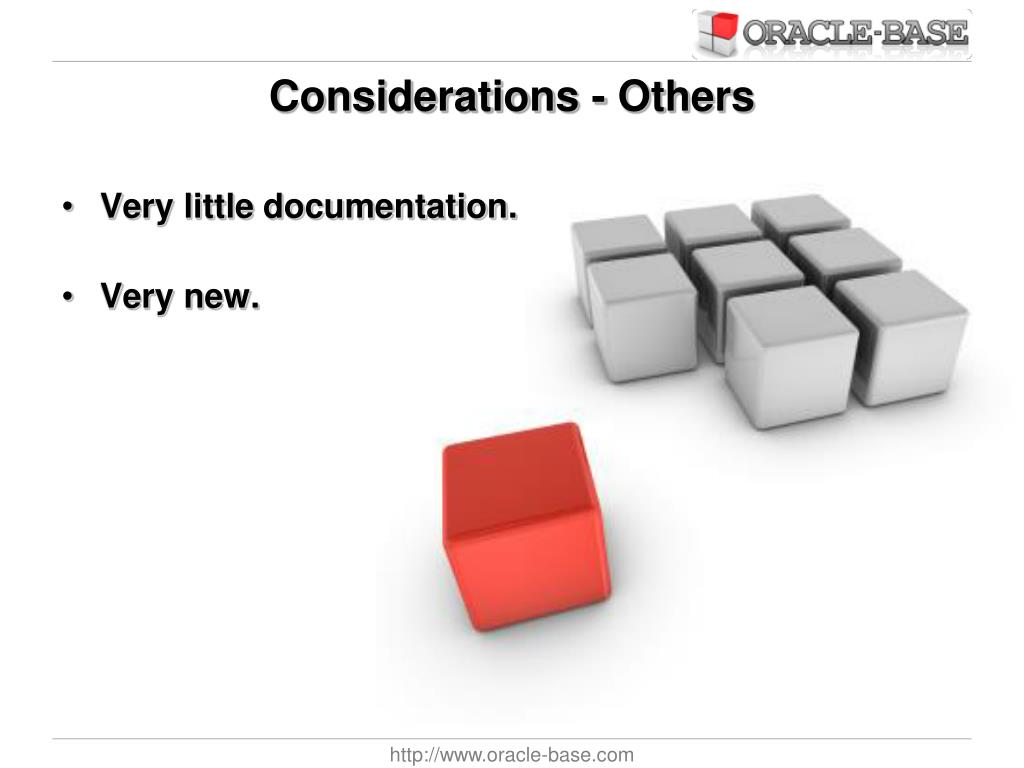

Considerations - Others
  • Very little documentation.
  • Very new.

http://www.oracle-base.com

where would i use it
Where would I use it?
  • For short-lived clones used for functional, not performance testing.
  • To test backups.
  • To recover lost objects.

http://www.oracle-base.com

where would i not use it
Where would I NOT use it?
  • Setting up long-term clones.
  • For clones used for performance testing.
  • For setting up a standby database.

http://www.oracle-base.com

summary

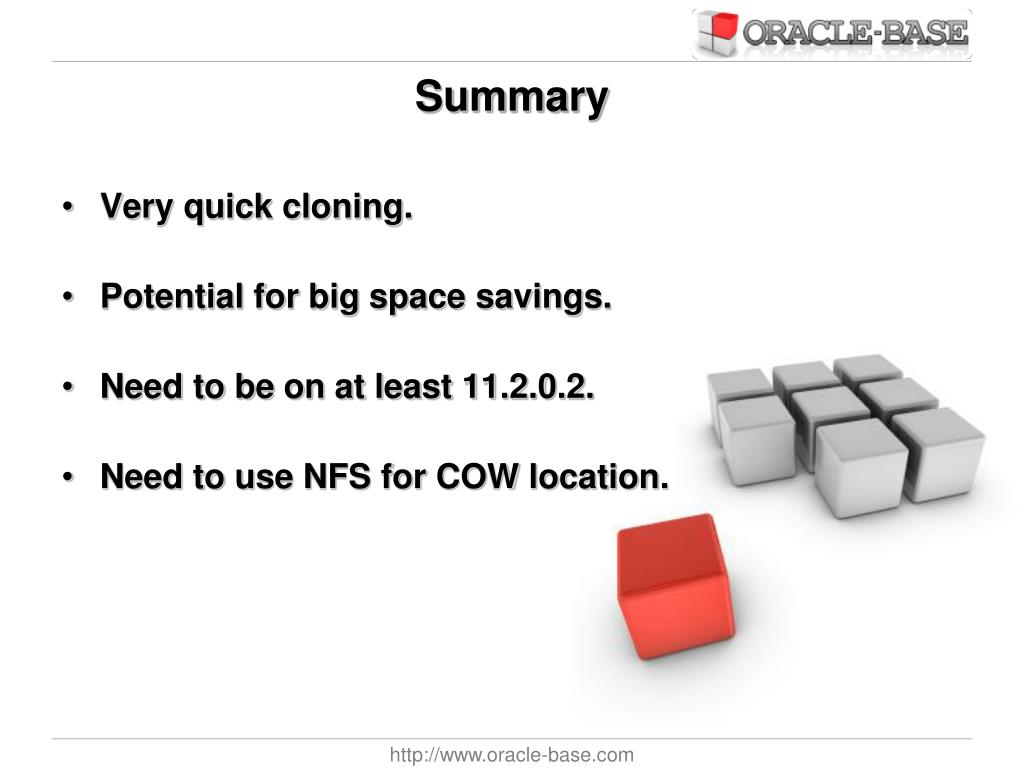

Summary
  • Very quick cloning.
  • Potential for big space savings.
  • Need to be on at least 11.2.0.2.
  • Need to use NFS for COW location.

http://www.oracle-base.com

the end

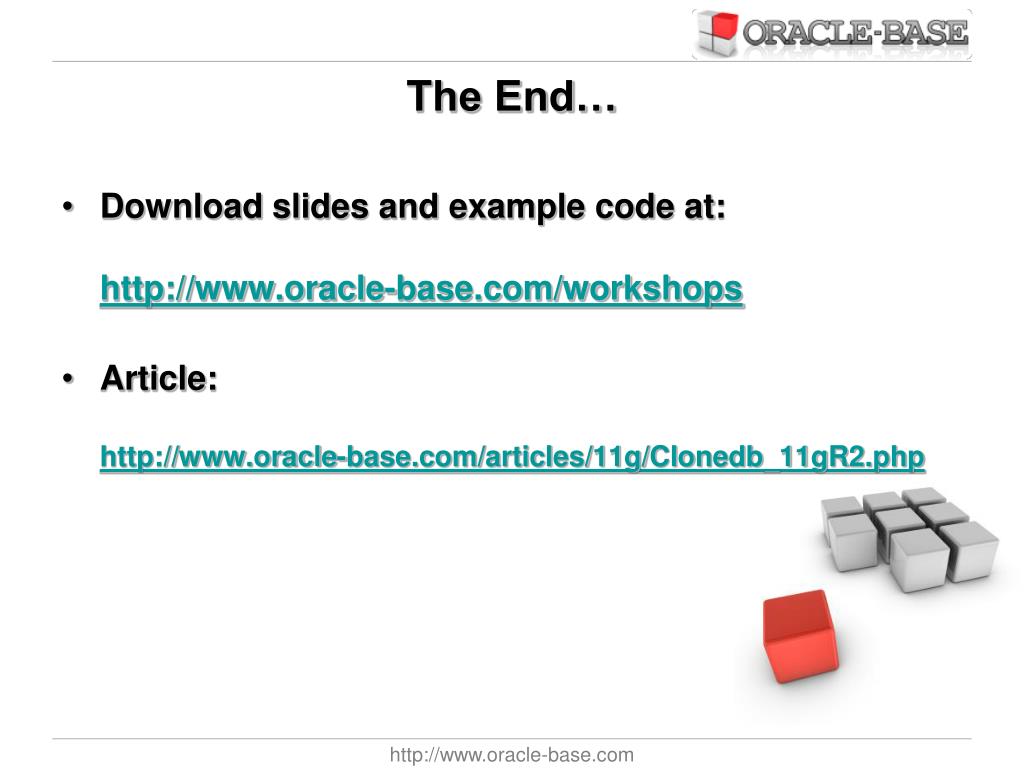

The End…
  • Download slides and example code at:http://www.oracle-base.com/workshops
  • Article:http://www.oracle-base.com/articles/11g/Clonedb_11gR2.php
