  1. Sheep Cloning Paley Li, Nicholas Cameron, and James Noble

  2. Object cloning • How do you do object cloning?

  3. Shallow cloning • Copies an object and alias the references in that object.

  4. Shallow cloning • Copies an object and alias the references in that object. foo a b

  5. Shallow cloning • Copies an object and alias the references in that object. foo a a b b foo’

  6. Deep cloning • Copies the object and its referenced objects.

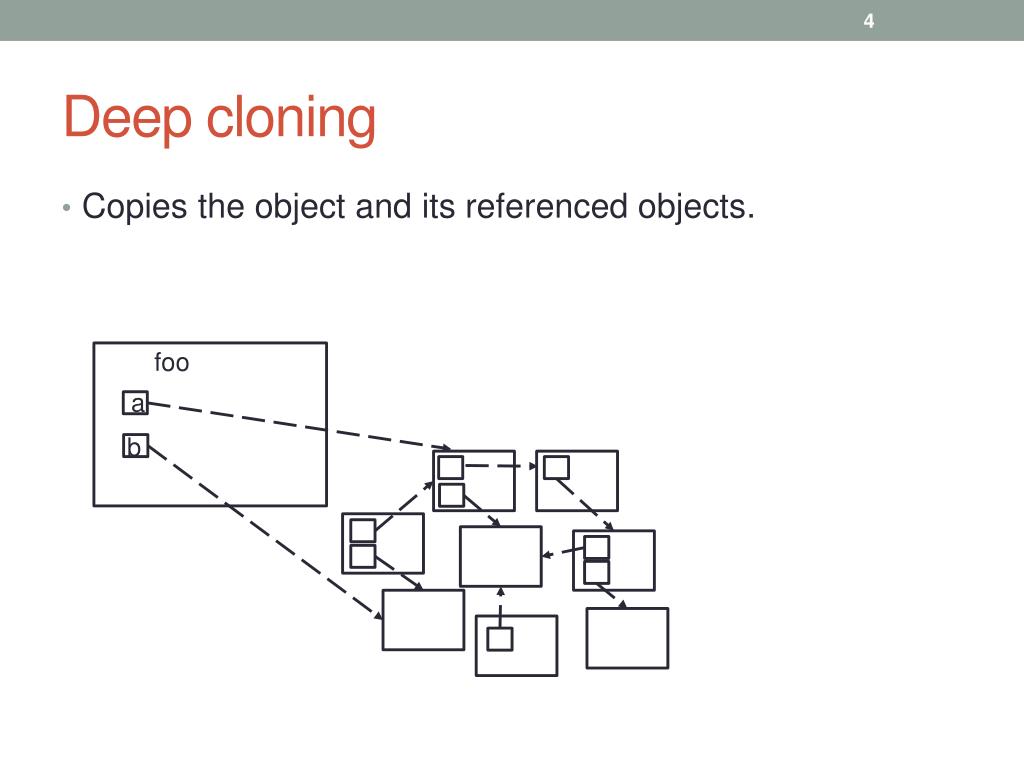

  7. Deep cloning • Copies the object and its referenced objects. foo a b

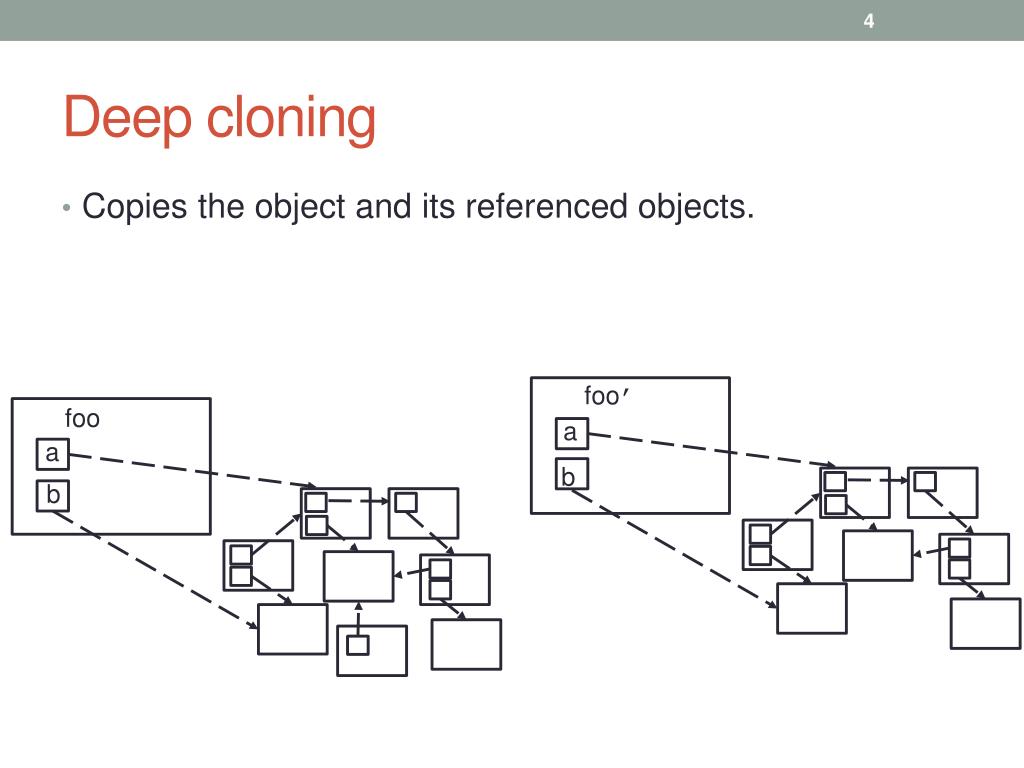

  8. Deep cloning • Copies the object and its referenced objects. foo foo’ a a b b

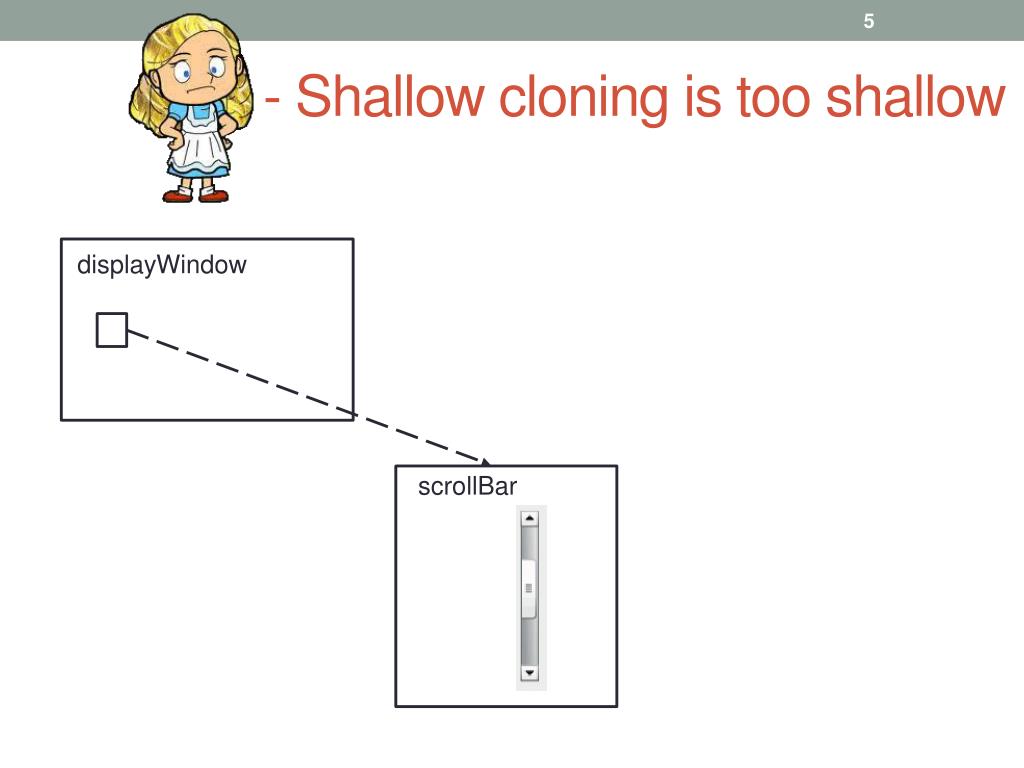

  9. 5 - Shallow cloning is too shallow scrollBar displayWindow

  10. 5 - Shallow cloning is too shallow scrollBar displayWindow displayWindow’

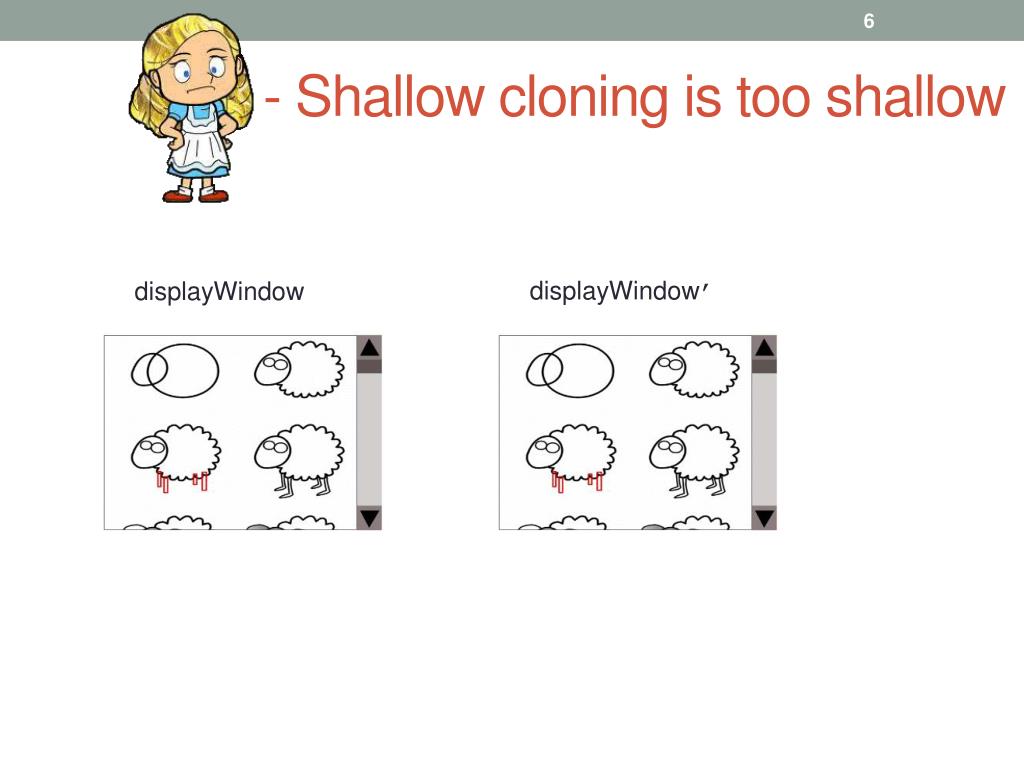

  11. 6 - Shallow cloning is too shallow displayWindow displayWindow’

  12. - Deep cloning is too deep imageDatabase displayWindow

  13. - Deep cloning is too deep imageDatabase imageDatabase’ displayWindow displayWindow’

  14. - Deep cloning is too deep displayWindow displayWindow’

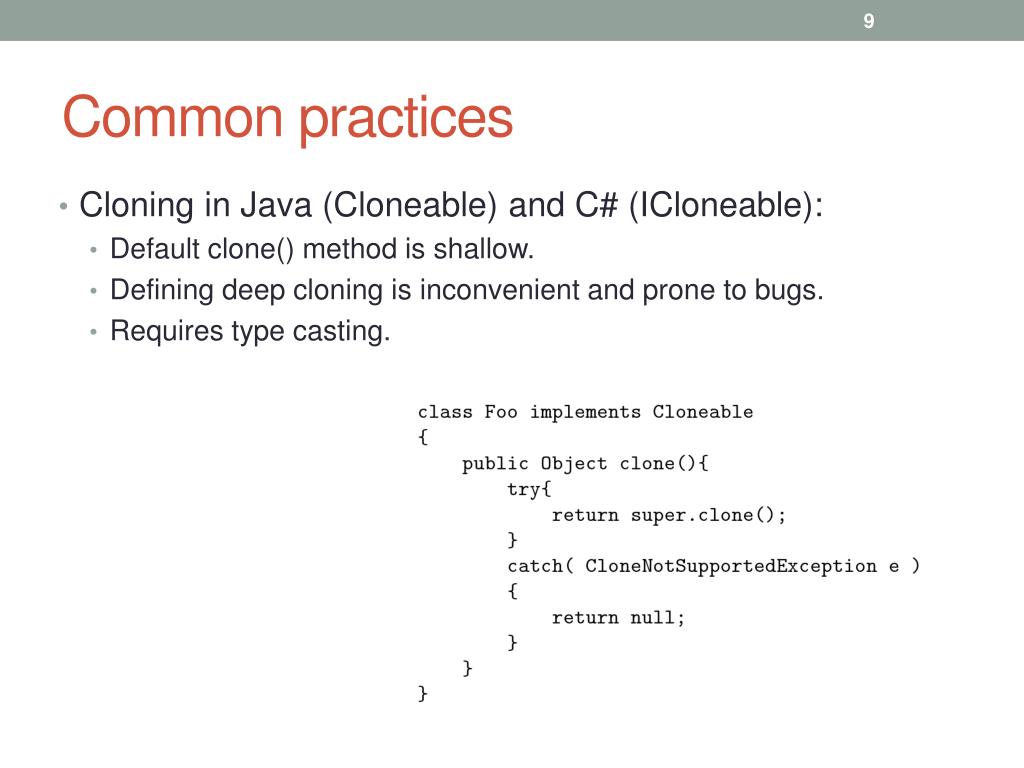

  15. Common practices • Cloning in Java (Cloneable) and C# (ICloneable): • Default clone() method is shallow. • Defining deep cloning is inconvenient and prone to bugs. • Requires type casting.

  16. Common practices • Cloning in C++ : • Copy constructors and assignment operators. • Cloning in Eiffel : • Inherit shallow and deep cloning from the ANY class.

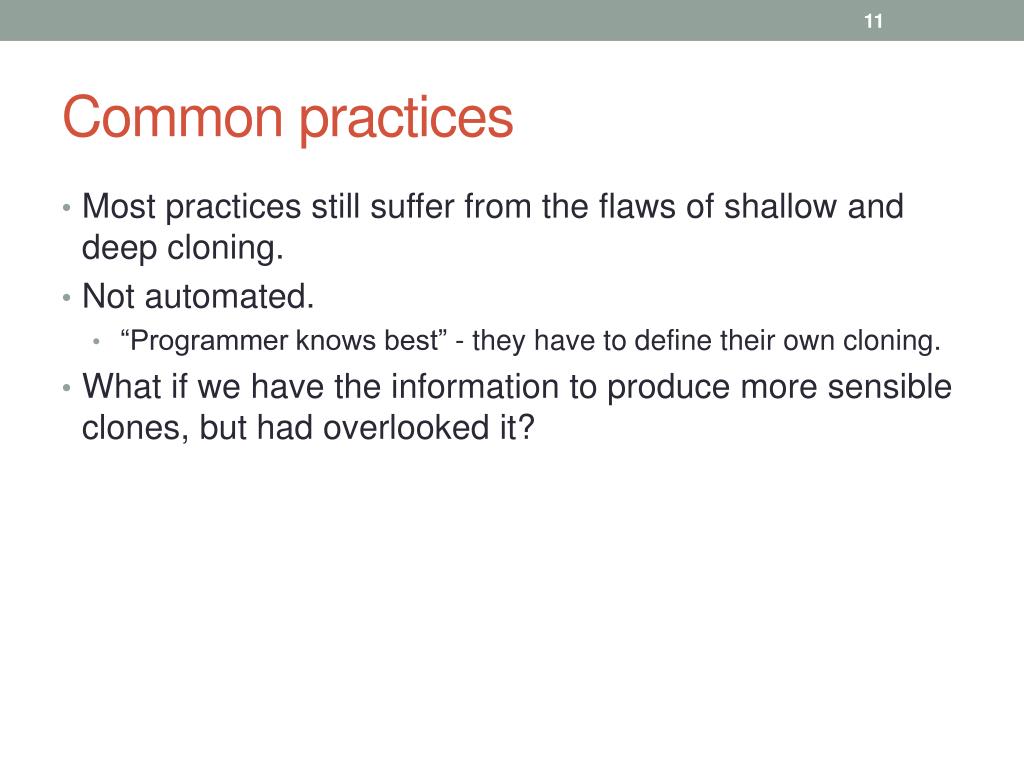

  17. Common practices • Most practices still suffer from the flaws of shallow and deep cloning. • Not automated. • “Programmer knows best” - they have to define their own cloning. • What if we have the information to produce more sensible clones, but had overlooked it?

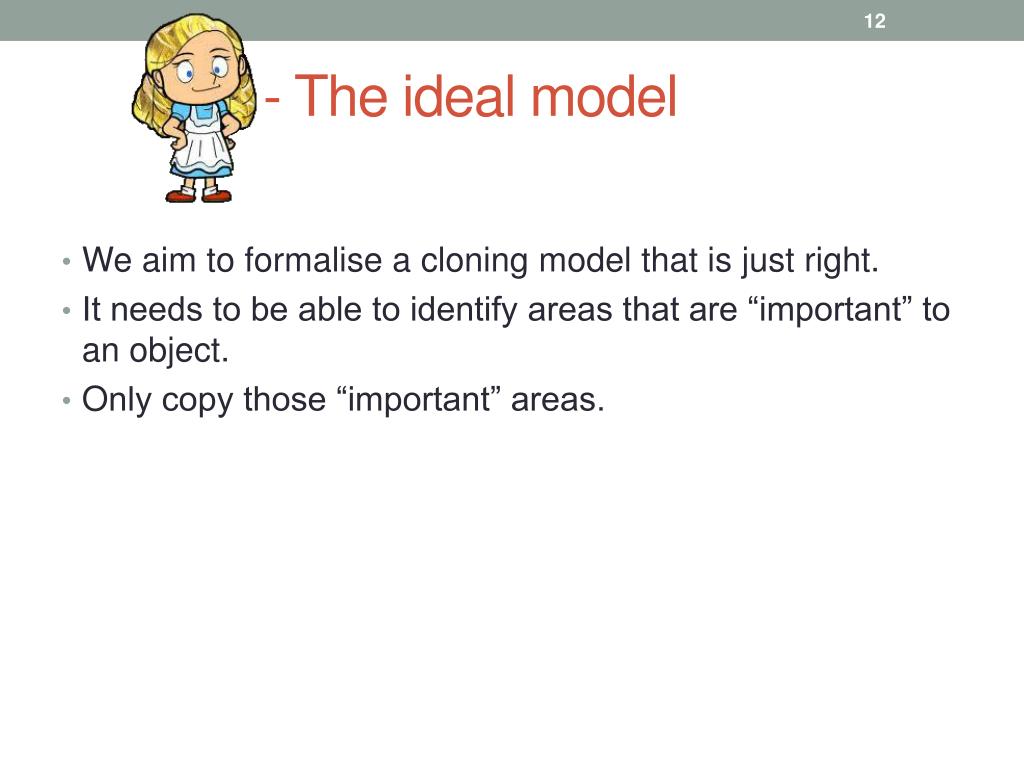

  18. - The ideal model • We aim to formalise a cloning model that is just right. • It needs to be able to identify areas that are “important” to an object. • Only copy those “important” areas.

  19. Ownership Types • Ownership types enforce a hierarchical topology over the heap.

  20. Ownership Types • Context is the formal set of objects owned by an object. • Representation is the set of objects which are conceptually part of an object.

  21. Ownership Types • Context is the formal set of objects owned by an object. • Representation is the set of objects which are conceptually part of an object. Representation = context =

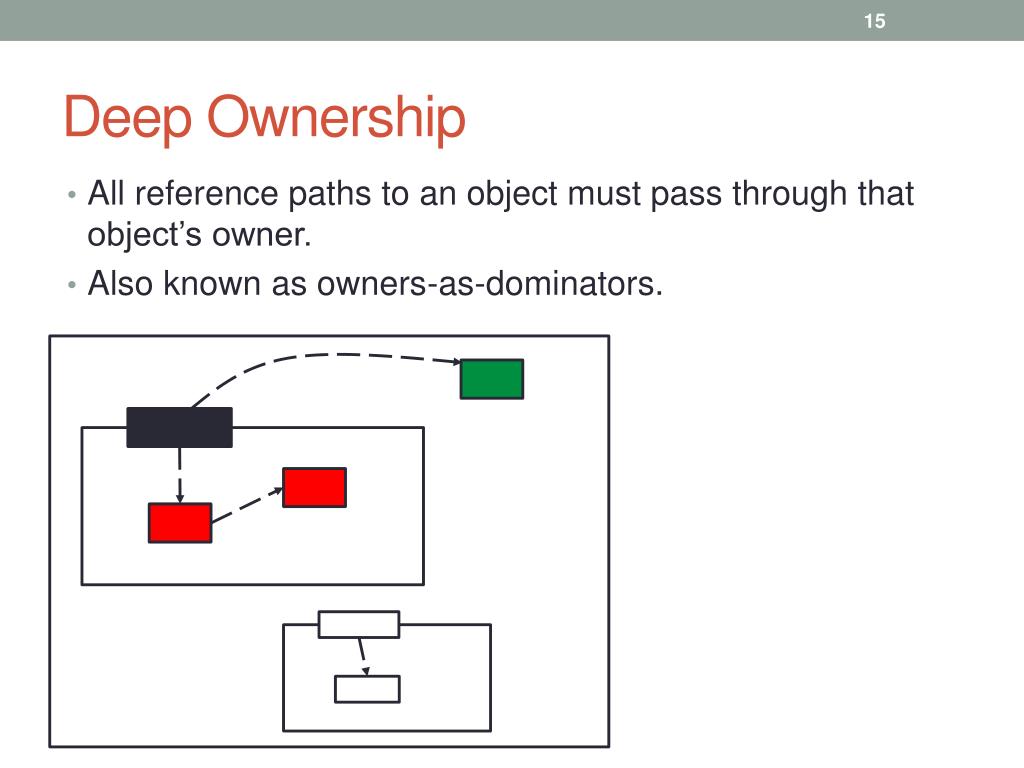

  22. Deep Ownership • All reference paths to an object must pass through that object’s owner. • Also known as owners-as-dominators. X X

  23. Deep Ownership • All reference paths to an object must pass through that object’s owner. • Also known as owners-as-dominators.

  24. Sheep = Shallow + Deep • Utilises ownership types to identify the “important bits” of each object. • Cloning an object’s representation: • Copies every object inside the object’s context. • Aliases every reference to objects outside the object’s context.

  25. - Sheep cloning is just right! displayWindow

  26. - Sheep cloning is just right! displayWindow displayWindow’

  27. - Sheep cloning is just right! displayWindow displayWindow’

  28. - Sheep cloning is just right! displayWindow displayWindow’

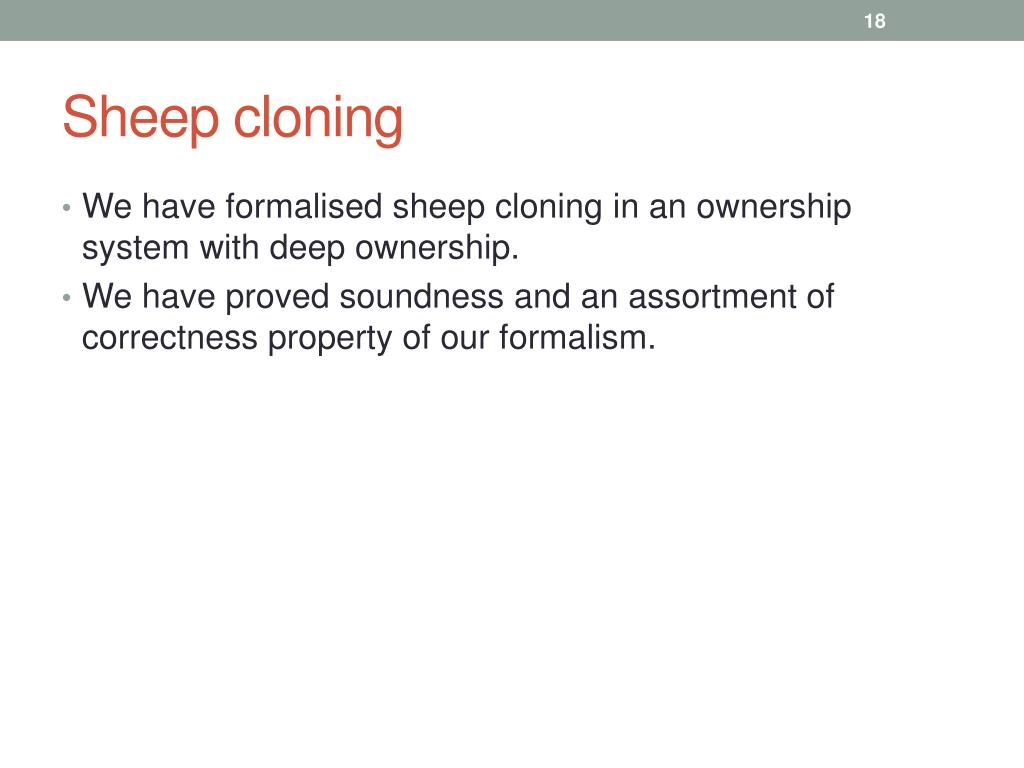

  29. Sheep cloning • We have formalised sheep cloning in an ownership system with deep ownership. • We have proved soundness and an assortment of correctness property of our formalism.

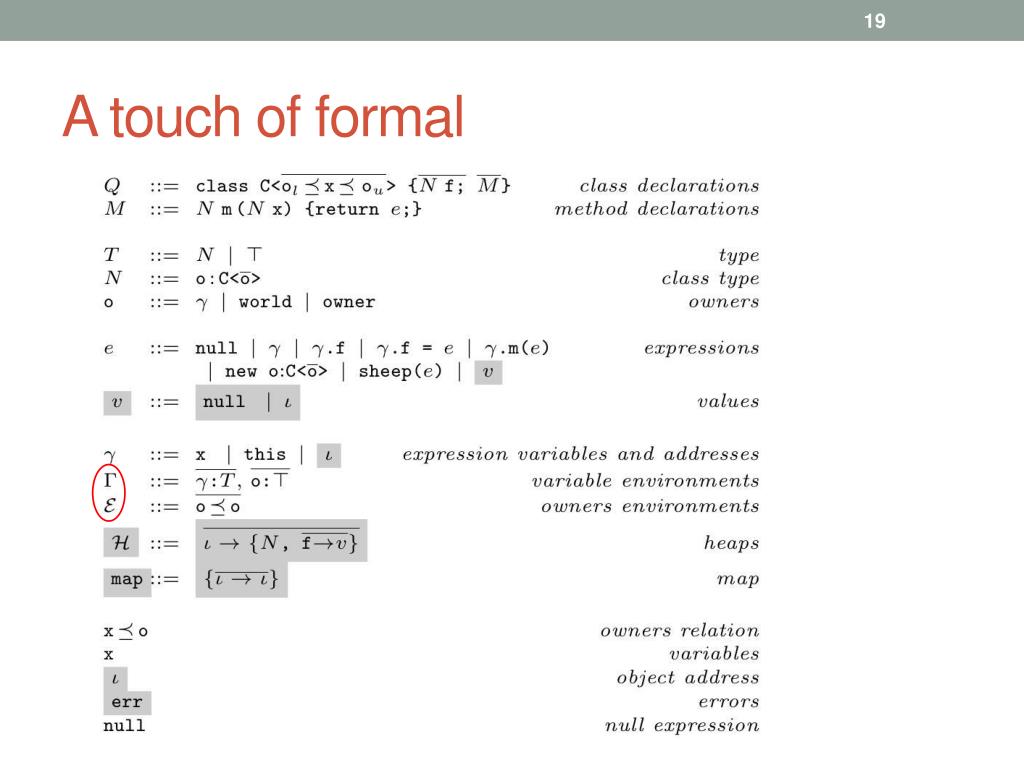

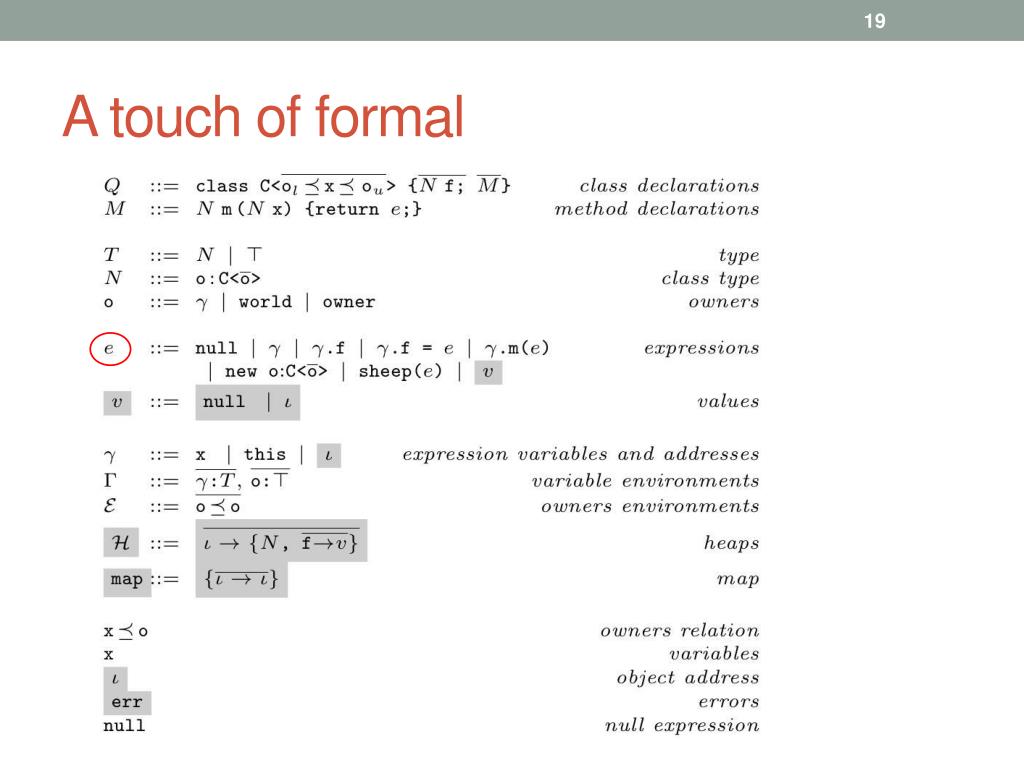

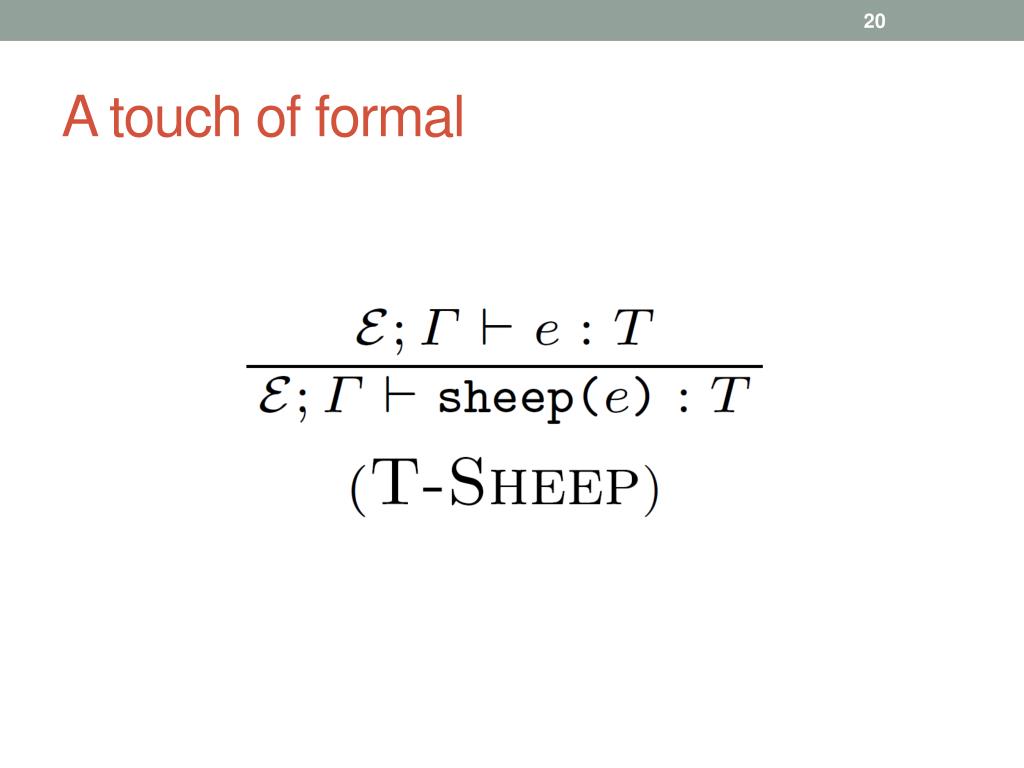

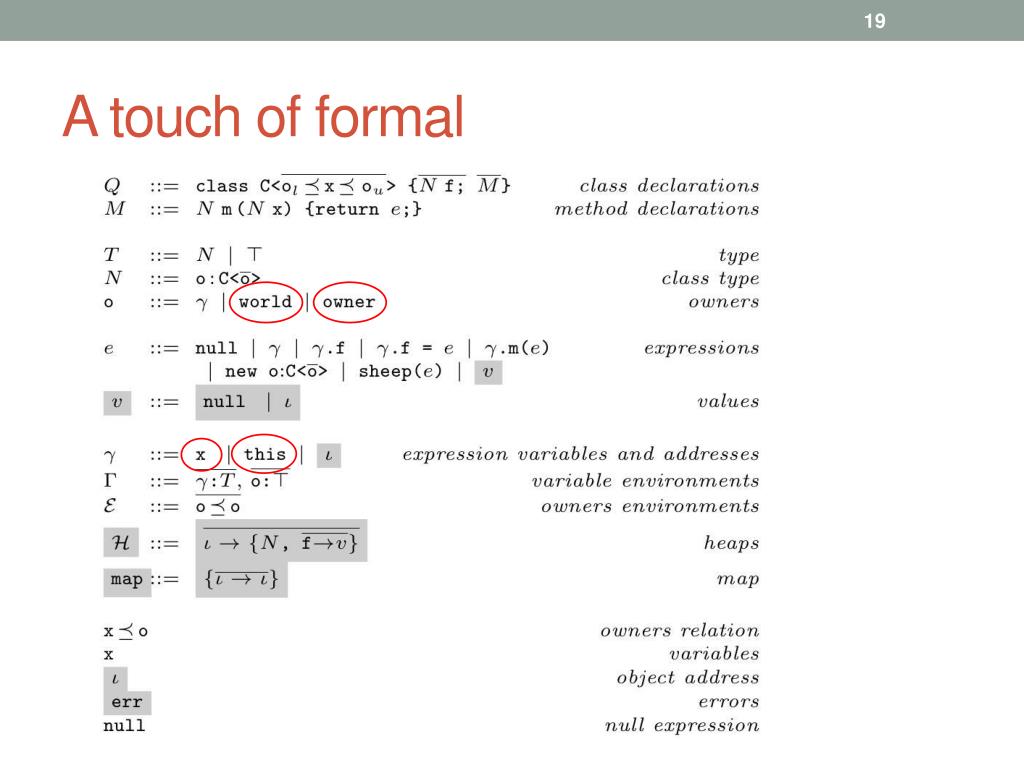

  30. A touch of formal

  31. A touch of formal

  32. A touch of formal

  33. A touch of formal

  34. A touch of formal

  35. A touch of formal

  36. A touch of formal

  37. A touch of formal

  38. A touch of formal

  39. A touch of formal

  40. A touch of formal

  41. A touch of formal Original object

  42. A touch of formal Original object

  43. A touch of formal Original object

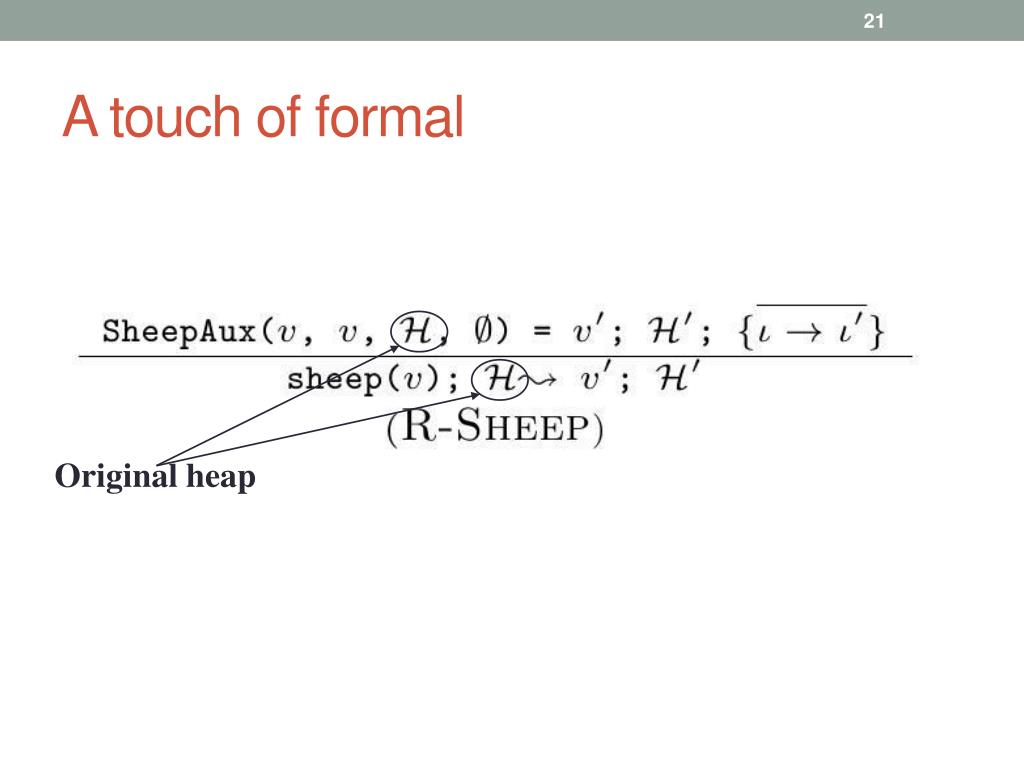

  44. A touch of formal Original heap

  45. A touch of formal Map

  46. A touch of formal Sheep clone

  47. A touch of formal New heap (containing the Sheep clone)

  48. A touch of formal • SheepAux function: • R-SheepInside: Copies the object if it is inside the original object. • R-SheepOutside: Creates an alias to the object if the object is outside the original object. • R-SheepRef: Creates a reference to an existing Sheep clone of an object using the Map. • R-SheepNull: Returns a null, when Sheep cloning a null.

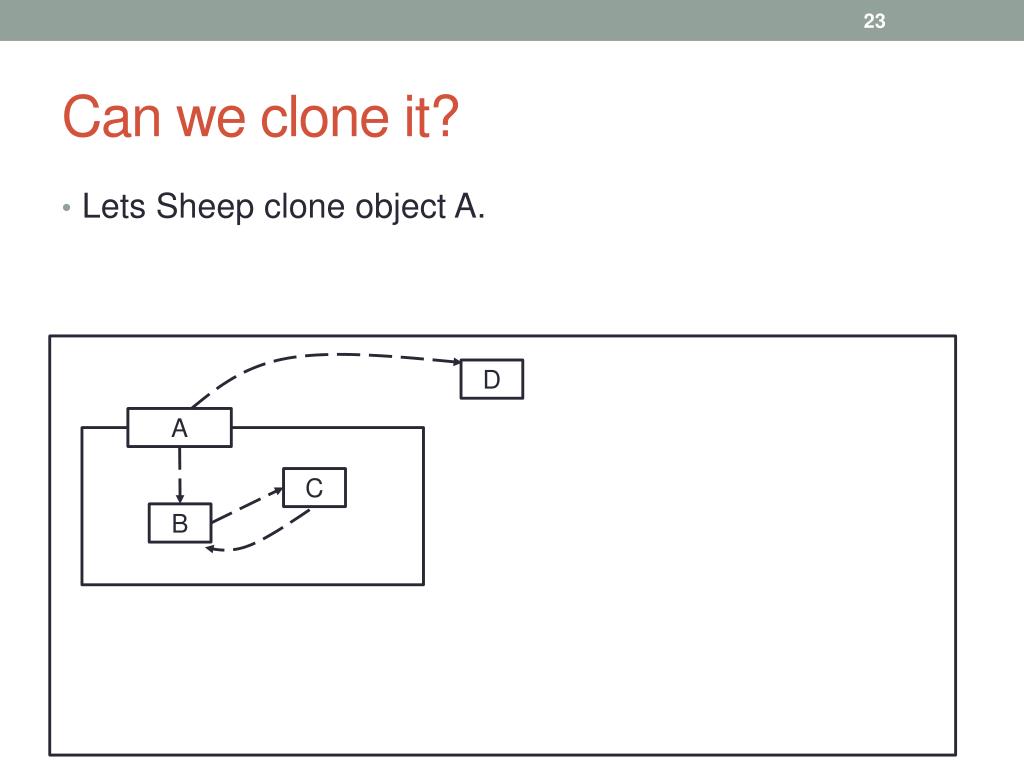

  49. Can we clone it? • Lets Sheep clone object A. A B D C

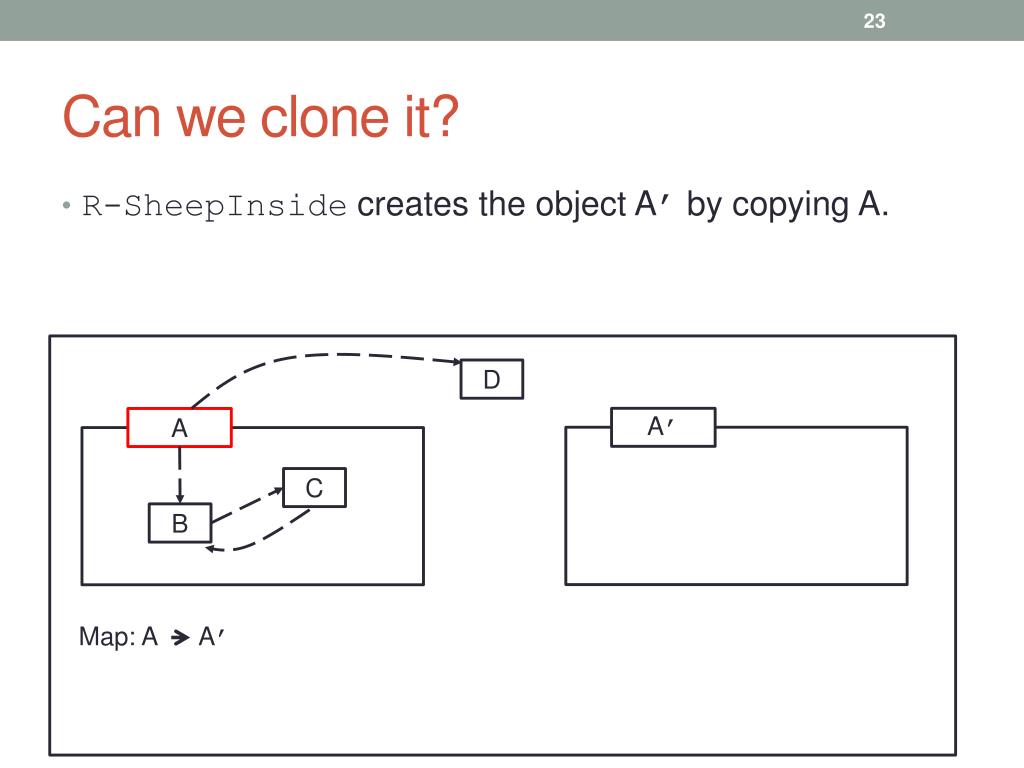

  50. Can we clone it? • R-SheepInsidecreates the object A’ by copying A. A A’ Map: A A’ B D C
