Amplifying dna pcr cell based dna cloning

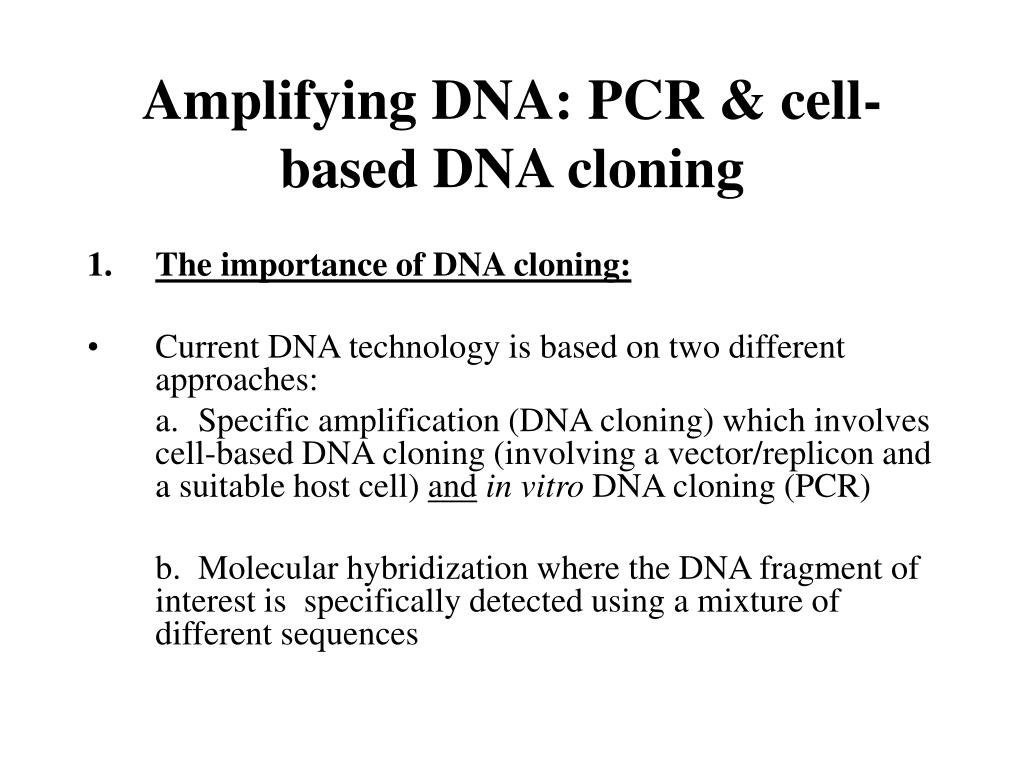

Amplifying DNA: PCR & cell-based DNA cloning

  • The importance of DNA cloning:

  • Current DNA technology is based on two different approaches:

    a. Specific amplification (DNA cloning) which involves cell-based DNA cloning (involving a vector/replicon and a suitable host cell) andin vitro DNA cloning (PCR)

    b. Molecular hybridization where the DNA fragment of interest is specifically detected using a mixture of different sequences



  • 2. Polymerase Chain Reaction (PCR): features & Applications:

  • Template DNA: DNA (linear or circular) or cDNA (complementary DNA produced from produced mRNA by reverse transcriptase)

  • Primers: pairs of oligonucleotides each 18-25 nucleotides long; 40%-60% GC content; melting temp of both should not differ by >5oC; 3’ terminal sequences of any primer should not be to any sequences of the other primer in the pair; self-complimentary sequences (inverted repeats) of

    >3 bp should be avoided.

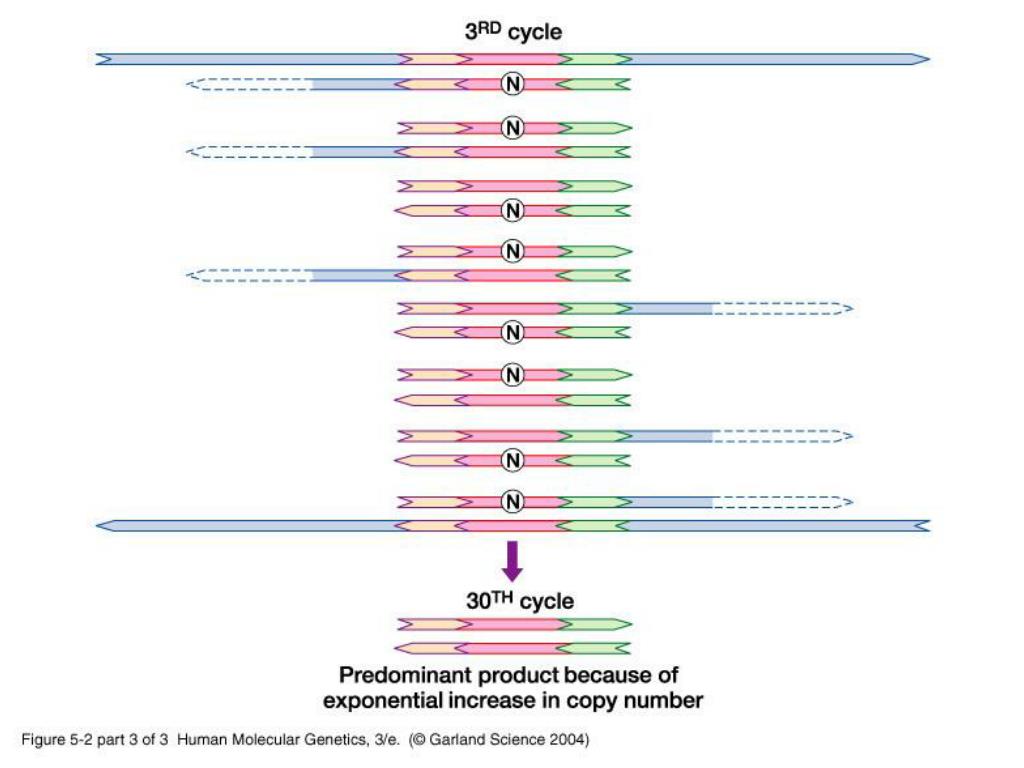

  • Cycling nature & exponential amplification: denaturation; primer annealing; and DNA synthesis (extension).

  • Regular Taq DNA polymerase lacks 3’ -> 5’ exonuclease activity needed to provide proof-reading function.





  • PCR has two limitations:

    a.short sizes of amplified products (<5 kb). This is solved by doing Long-range PCR (up to tens of Kb long) which uses a mixture of two heat stable polymerases that provide optimal levels of DNA synthesis as well as a 3’ -> 5’ exonuclease activity.

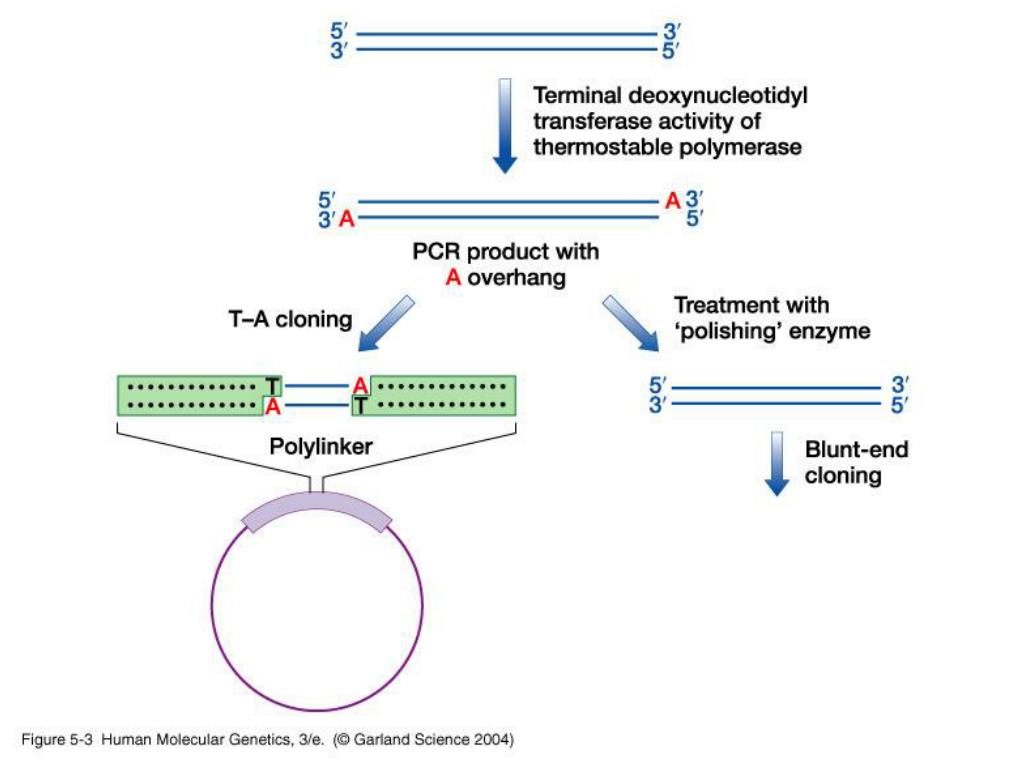

    b.low yields of amplifications which is resolved by cloning the PCR amplified DNA fragment in a vector then propagating the vector in a cell based system (clone by A/T cloning or by using anchored PCR primers).

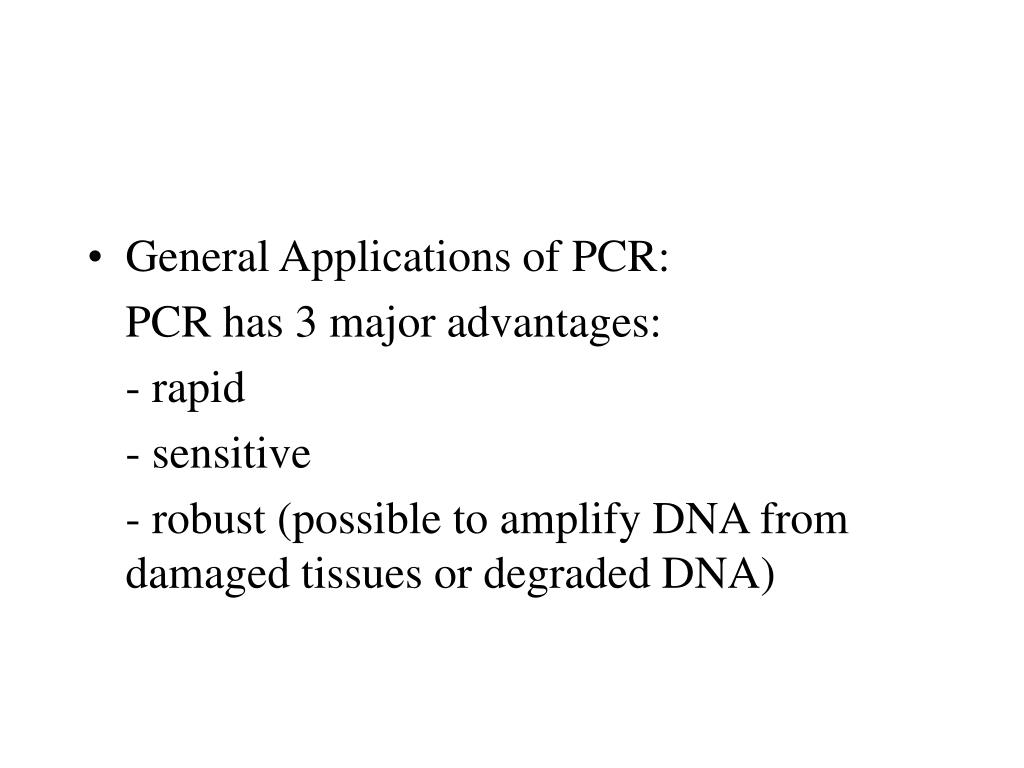

  • General Applications of PCR:

    PCR has 3 major advantages:

    - rapid

    - sensitive

    - robust (possible to amplify DNA from damaged tissues or degraded DNA)


  • Primer specificity is very important in PCR. Several modifications have been developed to reduce nonspecific binding (see Box 5.1):

    - Hot-start PCR

    - Nested PCR

    - Touch-down PCR

  • The correct base pairing at the extreme 3’ end of bound primers is a requirement for producing a PCR product. This allowed the use of PCR to distinguish between alleles of the same gene that differ in a single nucleotide (allele-specific PCR). This method is known as ARMS (amplification refractory mutation system).


05 04 jpg
05_04.jpg modifications have been developed to reduce nonspecific binding (see Box 5.1):


05 04 2 jpg
05_04_2.jpg modifications have been developed to reduce nonspecific binding (see Box 5.1):

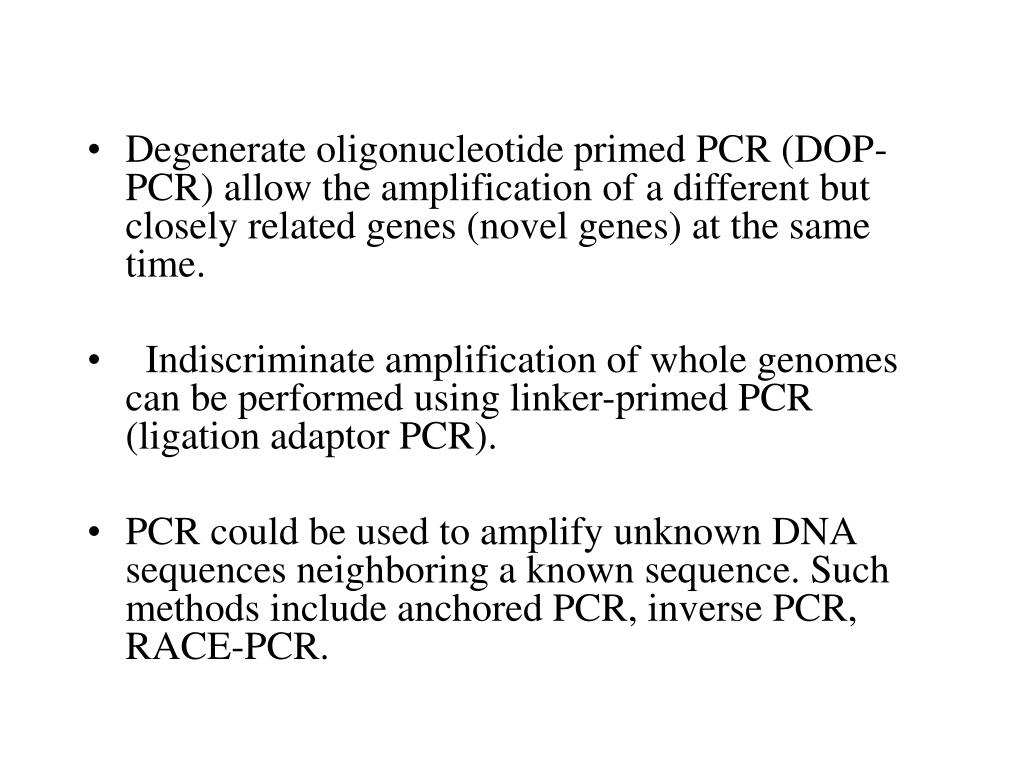

  • Degenerate oligonucleotide primed PCR (DOP-PCR) allow the amplification of a different but closely related genes (novel genes) at the same time.

  • Indiscriminate amplification of whole genomes can be performed using linker-primed PCR (ligation adaptor PCR).

  • PCR could be used to amplify unknown DNA sequences neighboring a known sequence. Such methods include anchored PCR, inverse PCR, RACE-PCR.

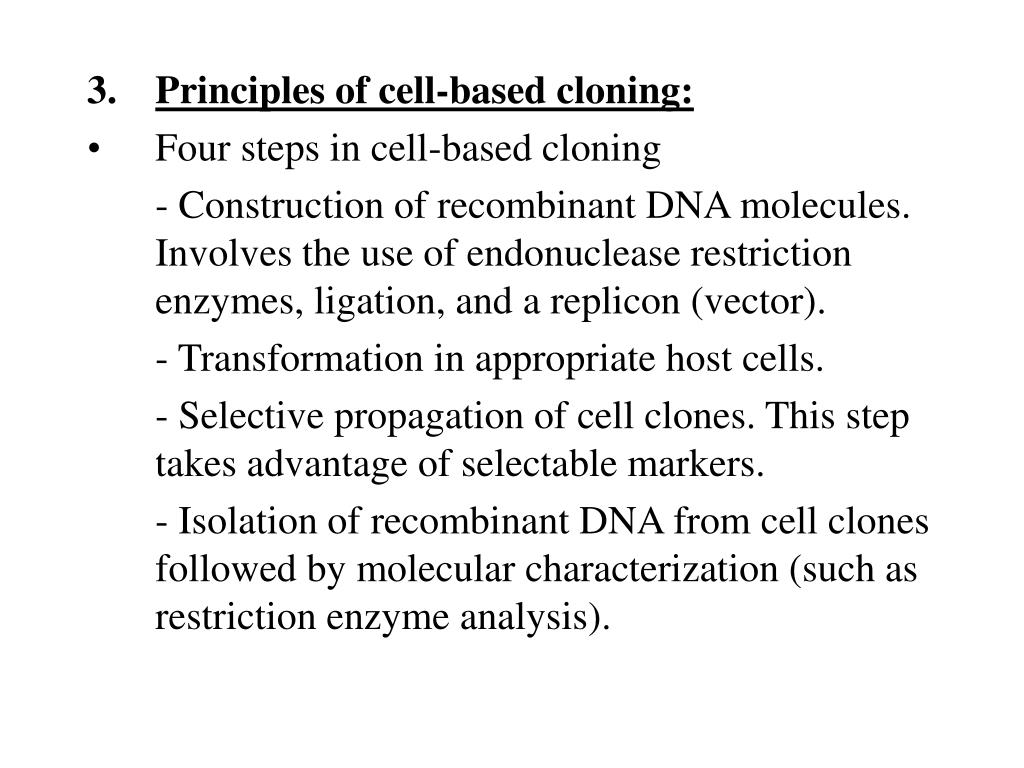

  • Principles of cell-based cloning: amplification of a different but closely related genes (novel genes) at the same time.

  • Four steps in cell-based cloning

    - Construction of recombinant DNA molecules. Involves the use of endonuclease restriction enzymes, ligation, and a replicon (vector).

    - Transformation in appropriate host cells.

    - Selective propagation of cell clones. This step takes advantage of selectable markers.

    - Isolation of recombinant DNA from cell clones followed by molecular characterization (such as restriction enzyme analysis).


05 05 jpg
05_05.jpg amplification of a different but closely related genes (novel genes) at the same time.


05 05 2 jpg
05_05_2.jpg amplification of a different but closely related genes (novel genes) at the same time.


  • Endonuclease restriction enzymes type II (RE), are a powerful tool (molecular scissors) used in restricting target DNA (whole genome or plasmid) into smaller DNA fragments. The restriction of a DNA double helix molecule may result in a blunt end or a cohesive end terminus (sticky end generating a 3’ or 5’ single strand overhang). See Table 5.1

  • RE are used to generate recombinant linear molecules (concatemers) or circular molecules (cyclization).

  • Simple cloning vectors include bacterial plasmids and bacteriophages.


05 06 jpg
05_06.jpg powerful tool (molecular scissors) used in restricting target DNA (whole genome or plasmid) into smaller DNA fragments. The restriction of a DNA double helix molecule may result in a blunt end or a cohesive end terminus (sticky end generating a 3’ or 5’ single strand overhang). See Table 5.1



05 07 jpg

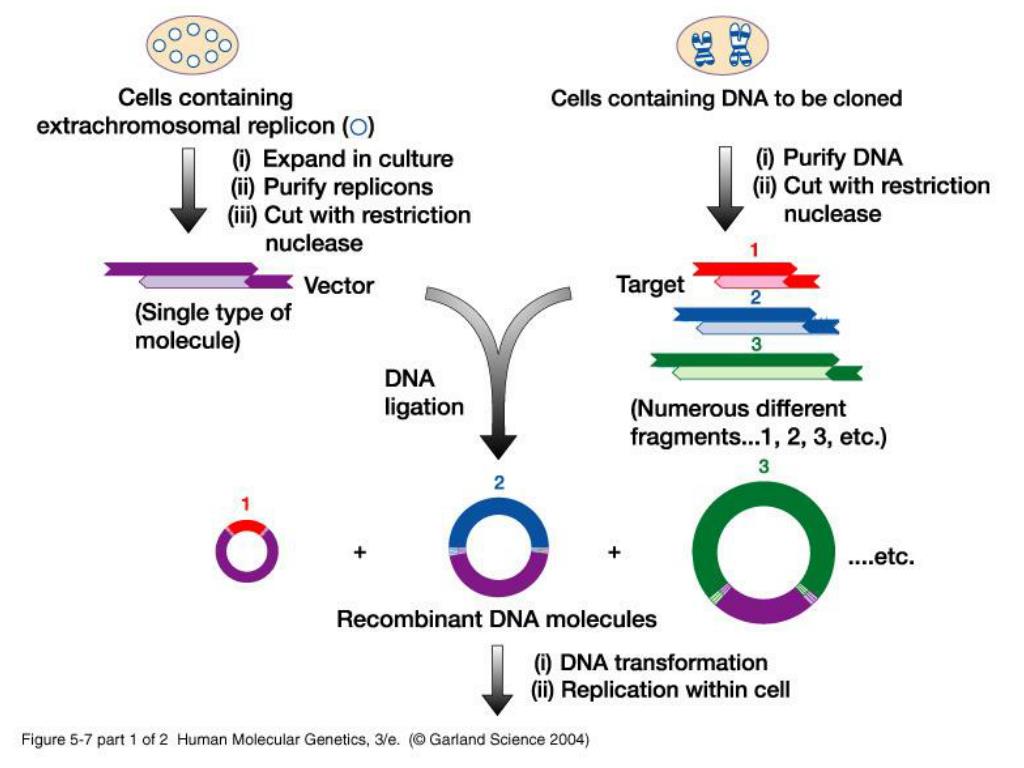

05_07.jpg host cells (e.g. bacteria) for propagation. Normally a single recombinant DNA exists per cell but sometimes co-transformation may result in two or more recombinant DNA molecules per host cell.


05 07 2 jpg
05_07_2.jpg host cells (e.g. bacteria) for propagation. Normally a single recombinant DNA exists per cell but sometimes co-transformation may result in two or more recombinant DNA molecules per host cell.


05 08 jpg
05_08.jpg host cells (e.g. bacteria) for propagation. Normally a single recombinant DNA exists per cell but sometimes co-transformation may result in two or more recombinant DNA molecules per host cell.


  • DNA libraries are a collection of clones that represent the entire genome of an organism.

    Two types of libraries are known:

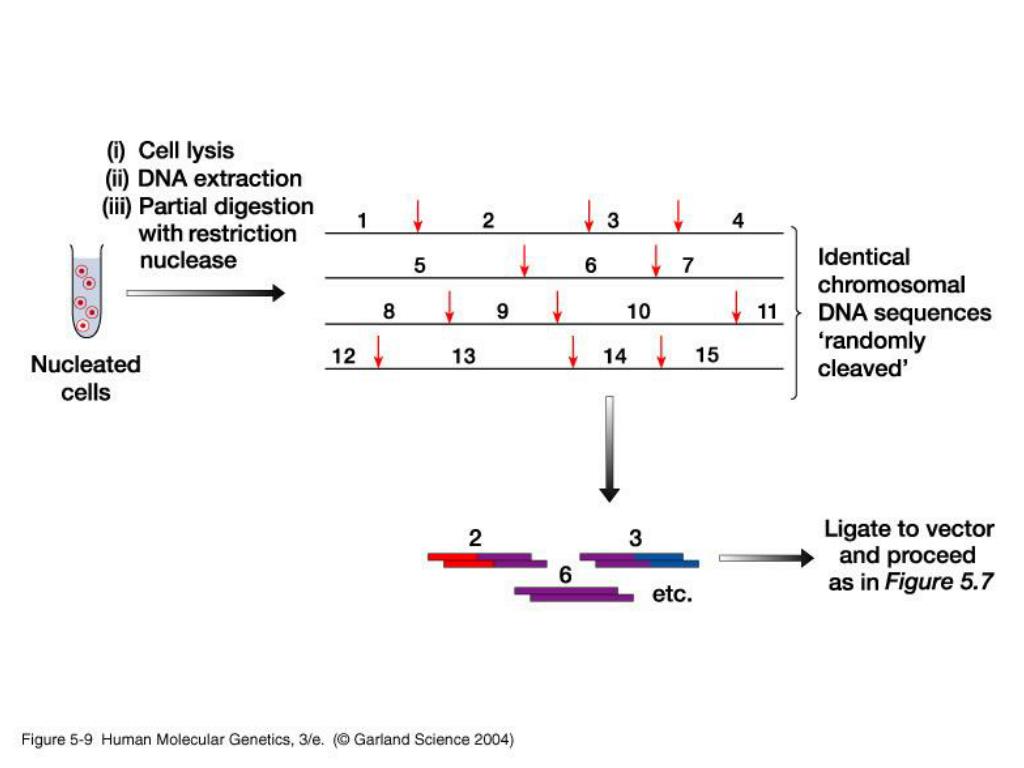

    - Genomic library. To be representative of the entire genome, the library should be >4GE. A genome equivalent (GE) is genome size/average insert size. In humans, for a GE=1, you need 3000Mb genome size)/40 kb (insert size) = 75,000 independent clones.

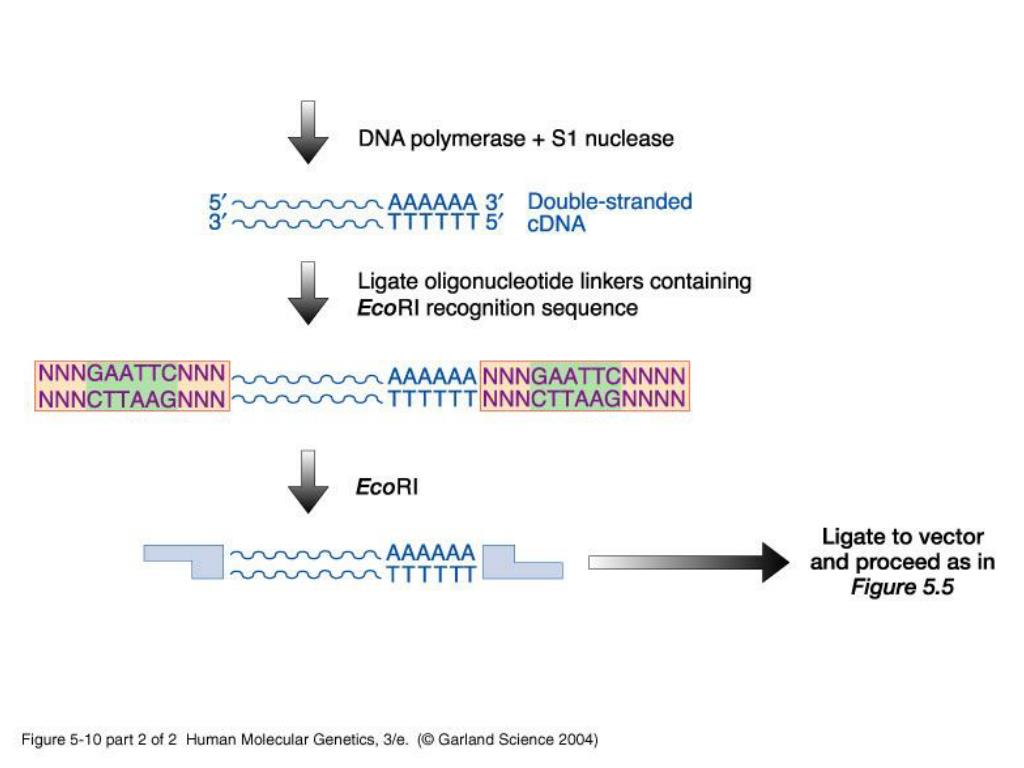

    - cDNA library. Takes advantage of reverse transcriptase. Usually much smaller than a genomic library.


05 09 jpg
05_09.jpg entire genome of an organism.


05 10 jpg
05_10.jpg entire genome of an organism.


05 10 2 jpg
05_10_2.jpg entire genome of an organism.

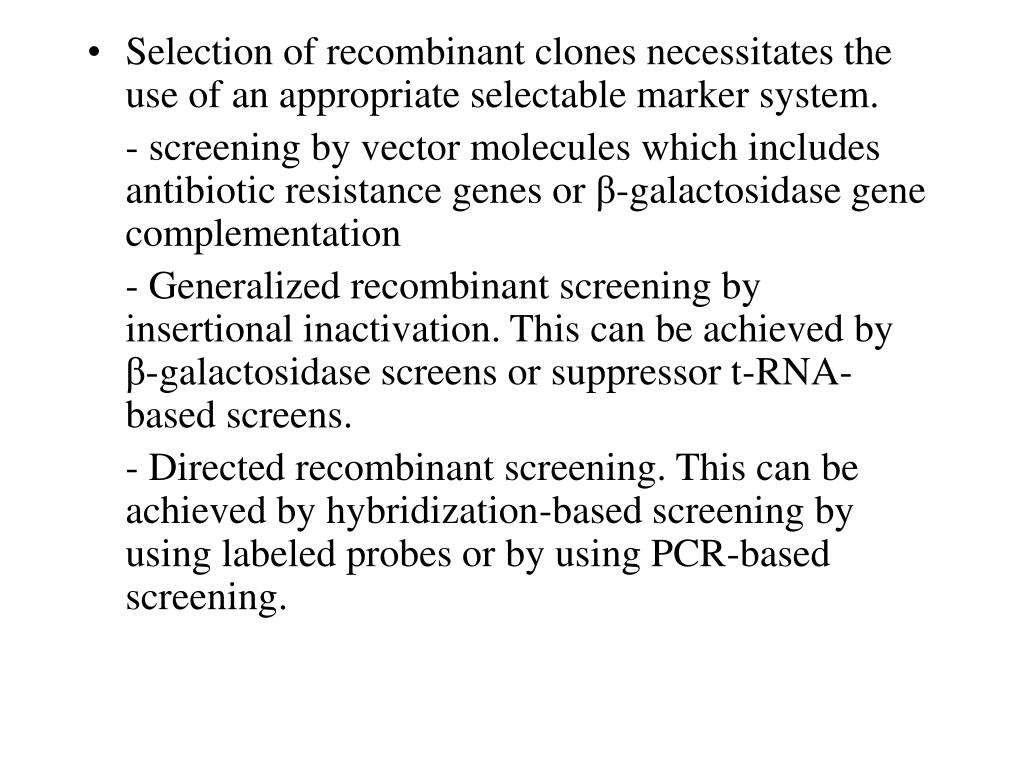

  • Selection of recombinant clones necessitates the use of an appropriate selectable marker system.

    - screening by vector molecules which includes antibiotic resistance genes or β-galactosidase gene complementation

    - Generalized recombinant screening by insertional inactivation. This can be achieved by β-galactosidase screens or suppressor t-RNA-based screens.

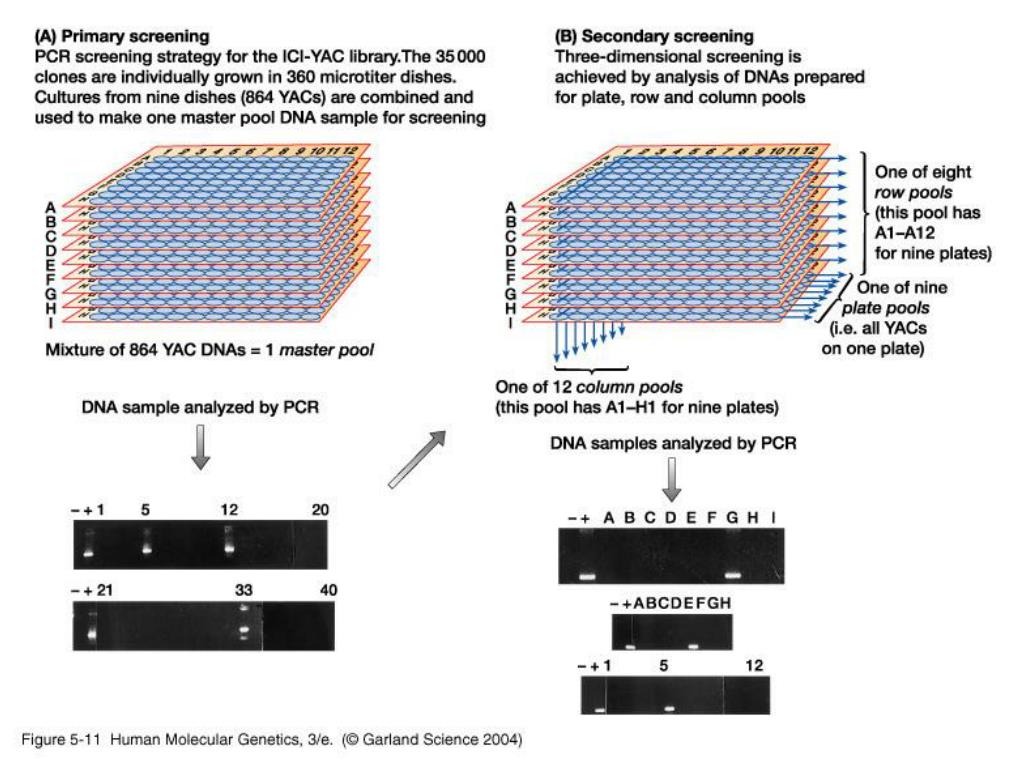

    - Directed recombinant screening. This can be achieved by hybridization-based screening by using labeled probes or by using PCR-based screening.


05 11 jpg
05_11.jpg appropriate selectable marker system.


4. Cloning systems for different sized DNA fragments: appropriate selectable marker system.

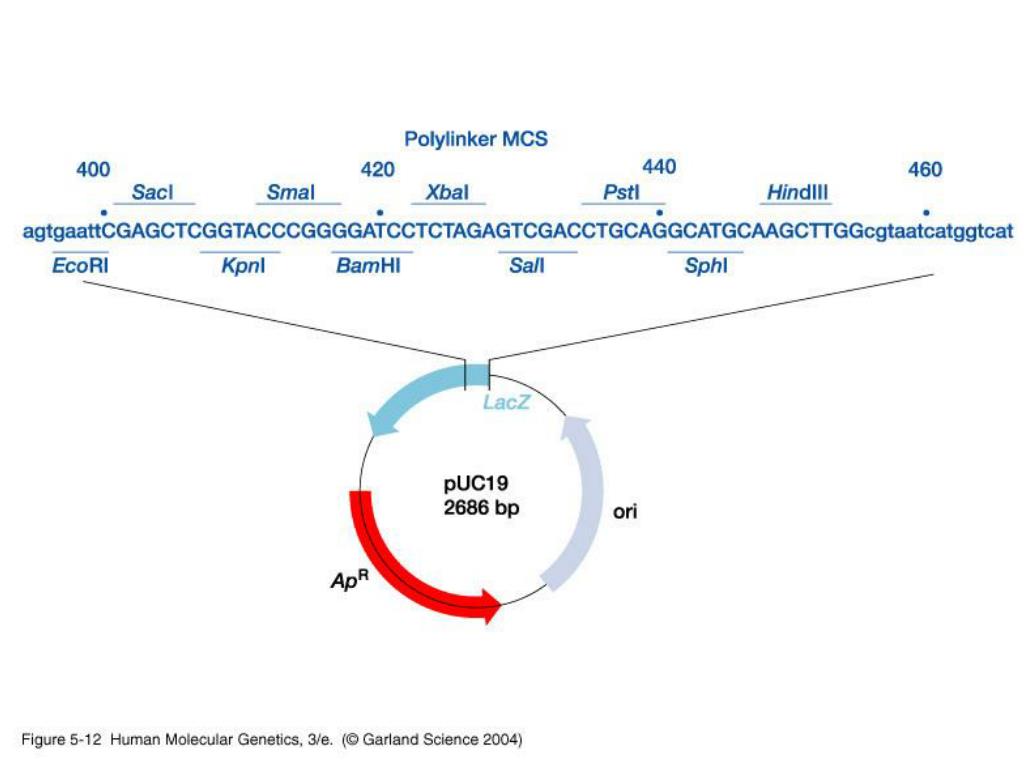

  • Such cloning systems normally include an antibiotic resistance gene (to enable screening for presence of vector) and a marker gene with a multiple cloning site (to enable screening recombinant clones).

  • See Table 5.2 for different cloning vectors and the DNA insert sizes that each could accommodate.


05 12 jpg
05_12.jpg appropriate selectable marker system.


  • Lambda and cosmid vectors are used in cloning moderately large DNA fragments in bacterial cells.

    Three types of λ derived cloning vectors:

    a. Replacement λ vectors: removal of central section of the genome and replacing by a foreign DNA fragment (up to 23 kb inserts)

    b. Insertion λ vectors: modifications to allow insertional cloning of cDNA fragments into the cI gene (up to 5 kb)

    c. Cosmid vectors: cos sequences of λ are inserted into a small plasmid generating a cosmid. Can take 33 – 44 kb inserts.


05 13 jpg
05_13.jpg large DNA fragments in bacterial cells.


05 14 jpg
05_14.jpg large DNA fragments in bacterial cells.


05 15 jpg
05_15.jpg large DNA fragments in bacterial cells.


05 16 jpg
05_16.jpg large DNA fragments in bacterial cells.


  • Bacterial Artificial Chromosome (BAC) vectors are used to clone large fragments (>300 kb). Low copy number (1-2 copies/cell) fertility factor (F-factor) plasmids are used for this purpose.

  • Bacteriophage P1 vectors and P1 artificial chromosomes (PACs). Components of the P1 phage are included in a circular plasmid and can accommodate up to 122 Kb DNA fragments.

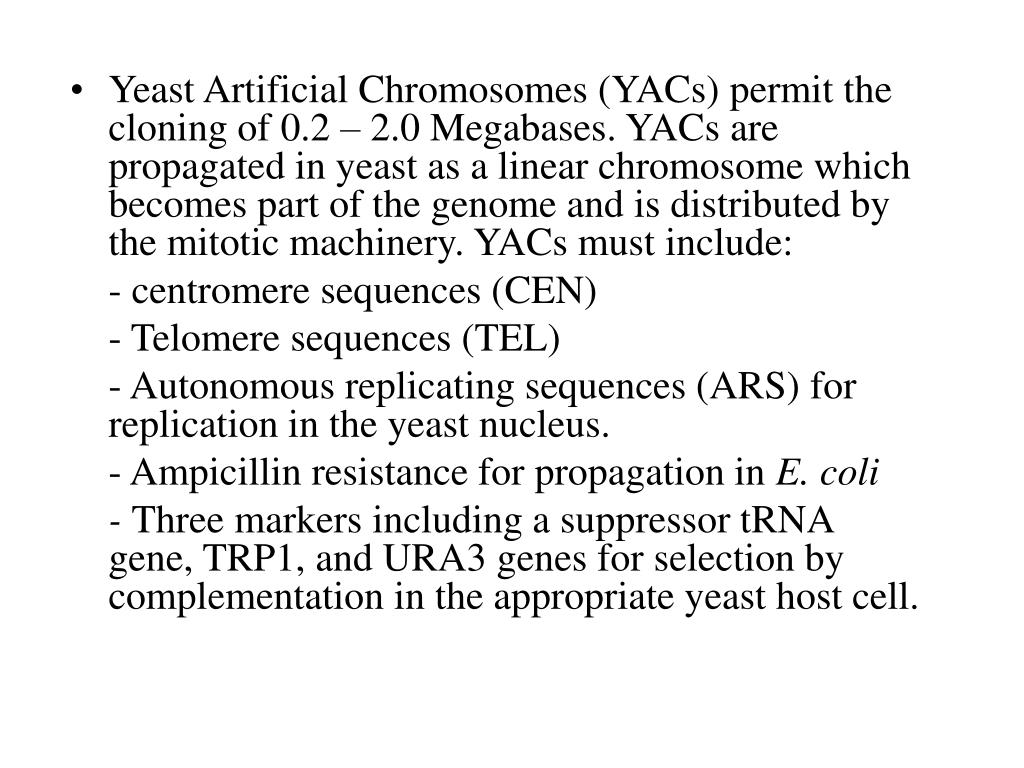

  • Yeast Artificial Chromosomes (YACs) permit the cloning of 0.2 – 2.0 Megabases. YACs are propagated in yeast as a linear chromosome which becomes part of the genome and is distributed by the mitotic machinery. YACs must include:

    - centromere sequences (CEN)

    - Telomere sequences (TEL)

    - Autonomous replicating sequences (ARS) for replication in the yeast nucleus.

    - Ampicillin resistance for propagation in E. coli

    - Three markers including a suppressor tRNA gene, TRP1, and URA3 genes for selection by complementation in the appropriate yeast host cell.


05 17 jpg
05_17.jpg 0.2 – 2.0 Megabases. YACs are propagated in yeast as a linear chromosome which becomes part of the genome and is distributed by the mitotic machinery. YACs must include:


5. Cloning systems for producing mutagenized DNA: 0.2 – 2.0 Megabases. YACs are propagated in yeast as a linear chromosome which becomes part of the genome and is distributed by the mitotic machinery. YACs must include:

  • Cell-based oligonucleotide mismatch mutagenesis can be used to generate a specific nucleotide substitution in a coding sequence of a gene. This is achieved by using M13 vectors to generate single-stranded recombinant DNA


05 19 jpg
05_19.jpg 0.2 – 2.0 Megabases. YACs are propagated in yeast as a linear chromosome which becomes part of the genome and is distributed by the mitotic machinery. YACs must include:



05 18 jpg

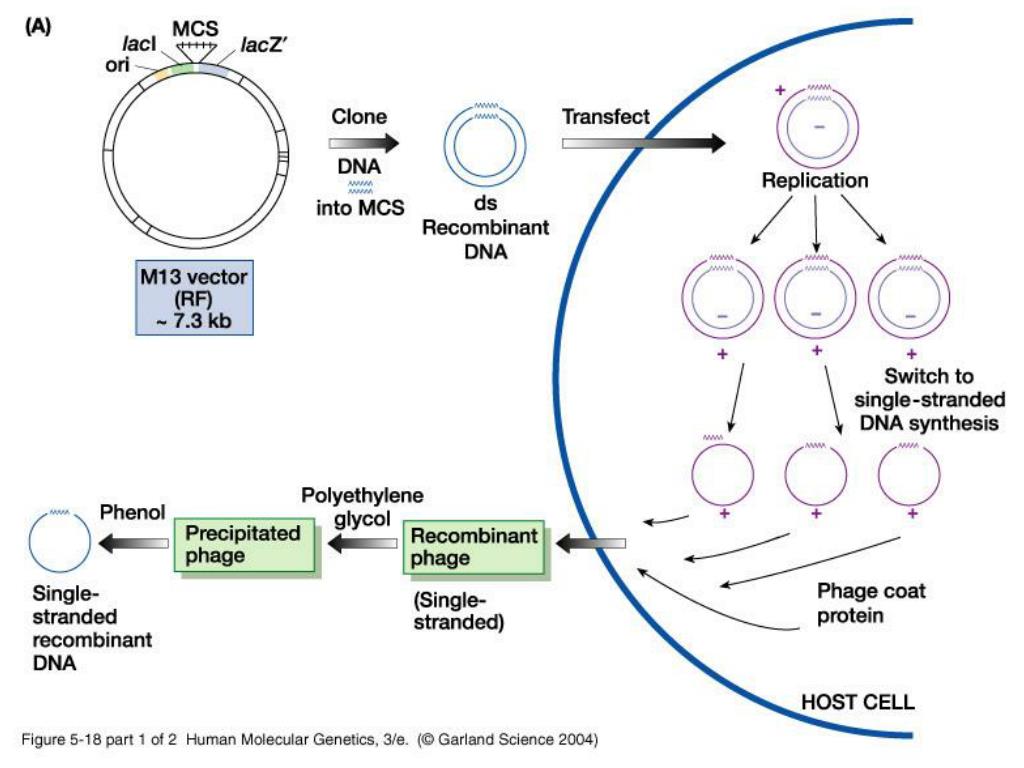

05_18.jpg obtained using M13 vectors or phagemid vectors.


05 18 2 jpg

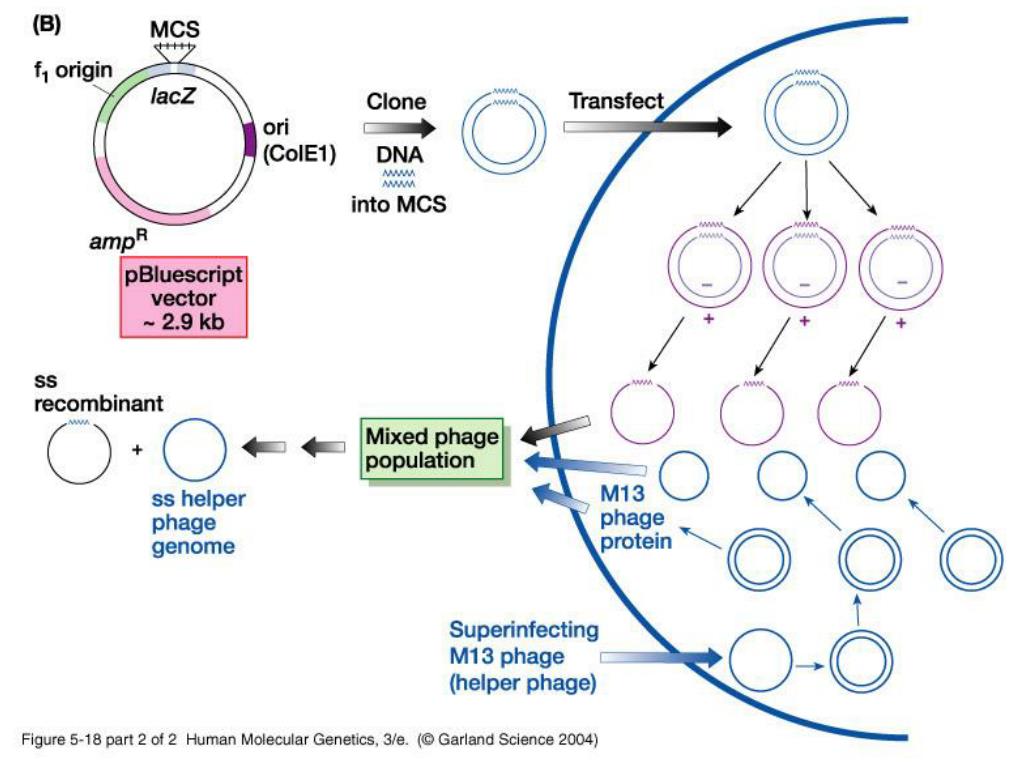

05_18_2.jpg obtained using M13 vectors or phagemid vectors.


  • PCR-based mutagenesis could be used to achieve two types of changes:

    - 5’ adds-on mutagenesis which adds specific sequences at the 5’ of the amplified product. Such sequences may include a phage promoter to drive gene expression.

    - Site-directed mutagenesis which results in an amplified product with a specific base substitution to introduce a specific amino acid substitution at the protein level.


05 20 jpg
05_20.jpg changes:


  • Cloning systems designed for gene expression: changes:

  • Bacterial cells are used as hosts for recombinant expression vectors designed for the production of large amounts of a recombinant protein (fusion proteins or tagged proteins).

  • Problems with overexpression in bacteria include toxicity of large amounts of the recombinant protein, lack of posttranslational processing, inability to synthesize very large mammalian proteins, and protein folding and solubility.


  • To solve the above mentioned problems: changes:

    - The use of pET-3 bacterial vectors containing T7 promoter in combination with host cells carrying the gene for T7 RNA polymersae expressed under the control of the lacZ promoter (i.e. inducible by IPTG).

    - The vector is designed so that the recombinant protein is fused to an endogenous protein (fusion proteins).

    - Use an affinity tag so that the recombinant fusion protein be purified by affinity chromatography. Two affinity tagging systems are GST-glutathione affinity and polyhistidine-nickel ion affinity.


05 21 jpg
05_21.jpg changes:


05 21 2 jpg
05_21_2.jpg changes:


05 22 jpg
05_22.jpg changes:


05 22 2 jpg
05_22_2.jpg changes:


05 22 3 jpg
05_22_3.jpg changes:


05 23 jpg
05_23.jpg changes:
