IMAGE RECEPTORS

IMAGE RECEPTORS. Follow the Sequence- Film System. Tube Patient (bucky) or non-bucky Cassette INTENSIFYING SCREEN FILM . Follow the Sequence- Filmless (CR) System. Tube Patient (bucky) or non-bucky Cassette IMAGING PLATE DIGITIZER OR READER MONITOR.

kassia
Download Presentation

IMAGE RECEPTORS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. IMAGE RECEPTORS

  2. Follow the Sequence- Film System • Tube • Patient • (bucky) or non-bucky • Cassette • INTENSIFYING SCREEN • FILM

  3. Follow the Sequence- Filmless (CR) System • Tube • Patient • (bucky) or non-bucky • Cassette • IMAGING PLATE • DIGITIZER OR READER • MONITOR

  4. Follow the Sequence- Filmless (DR) System • Tube • Patient • (bucky) or non-bucky • DIGITAL RECEPTOR • MONITOR

  5. INTENSIFYING SCREEN • PG 179 • When using intensifying screens in cassette the exposure to the film is 90% -99% FROM LIGHT • Anatomy of a screen • Protective layer • Phosphor or active layer • Reflecting or absorbing layer • base

  6. PHOSPHORS • SPECTRAL EMISSION • RARE EARTH • HIGH ABSORPTION +HIGH CONVERSION EFFICIENCY= • FASTER SPEED

  7. PHOSPHOR THICKNESS, SIZE • Impacts screen speed and detail • Faster screen =less detail = less mAs • Slower screen = more detail =more mAs • Old screen speed/new screen speed • Reflecting layers = increase screen speed • Light absorbing layer or light absorbing dyes=decrease speed but increase recorded detail • Table 7-9 • Quantum Mottle • Screen Maintenance

  8. Follow the Sequence- Filmless (CR) System • Tube • Patient • (bucky) or non-bucky • Cassette • IMAGING PLATE • DIGITIZER OR READER • MONITOR

  9. CR cassette • Protective layer • Photostimulable phosphor • Reflective layer • Base • Backing

  10. Barium Fluorohalide crystals coated with europium • Phosphor releases some visible light • The x-ray energy is absorbed (trapped) • Latent image • Sensitive to a wide range of energies • Erase plate if not used in 48 hours • Process within an hour of exposure • Increase mAs as CR is equivalent to 200 screen speed vs 400 screen speed used in film systems…why?

  11. Follow the Sequence- Filmless (DR) System • Tube • Patient • (bucky) or non-bucky • DIGITAL RECEPTOR • MONITOR

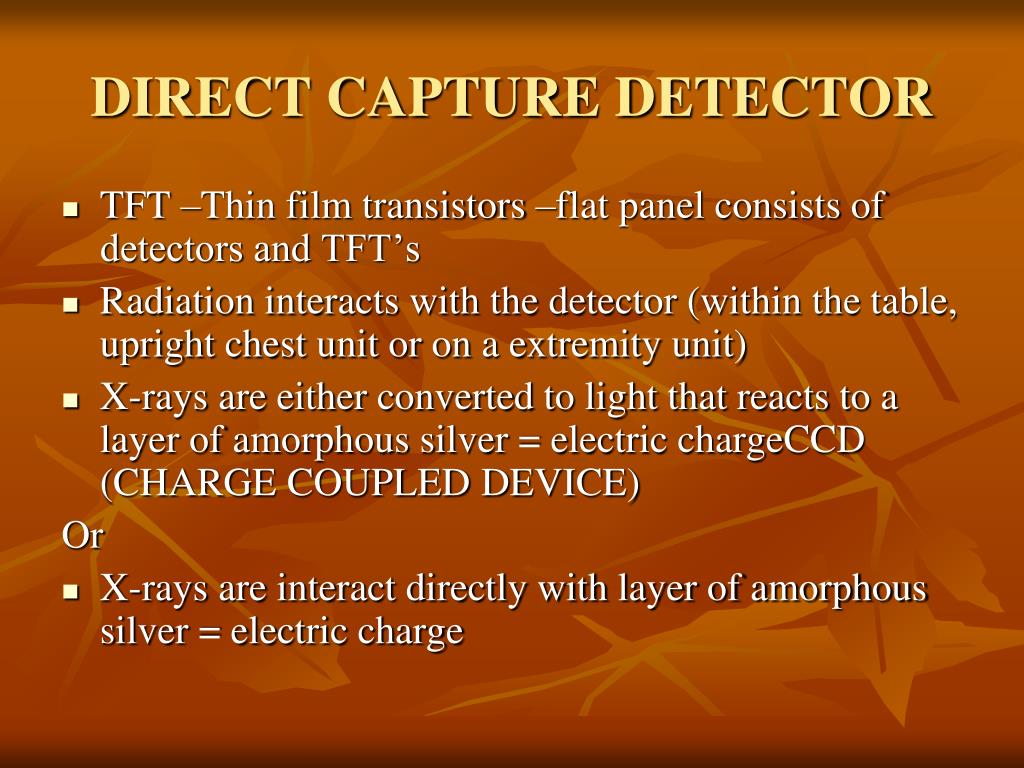

  12. DIRECT CAPTURE DETECTOR • TFT –Thin film transistors –flat panel consists of detectors and TFT’s • Radiation interacts with the detector (within the table, upright chest unit or on a extremity unit) • X-rays are either converted to light that reacts to a layer of amorphous silver = electric chargeCCD (CHARGE COUPLED DEVICE) Or • X-rays are interact directly with layer of amorphous silver = electric charge
