  1. ED and WD X-ray Analysis Elemental analysis in the SEM The ‘what’, ‘where’ and ‘how much’?

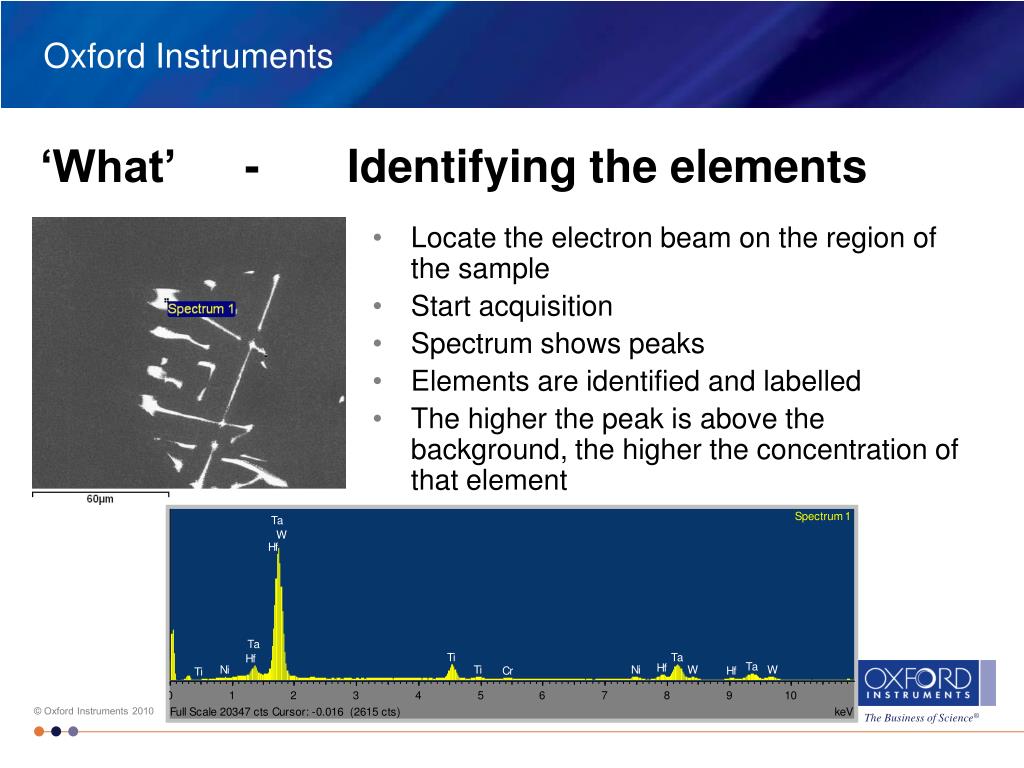

  2. ‘What’ - Identifying the elements Locate the electron beam on the region of the sample Start acquisition Spectrum shows peaks Elements are identified and labelled The higher the peak is above the background, the higher the concentration of that element

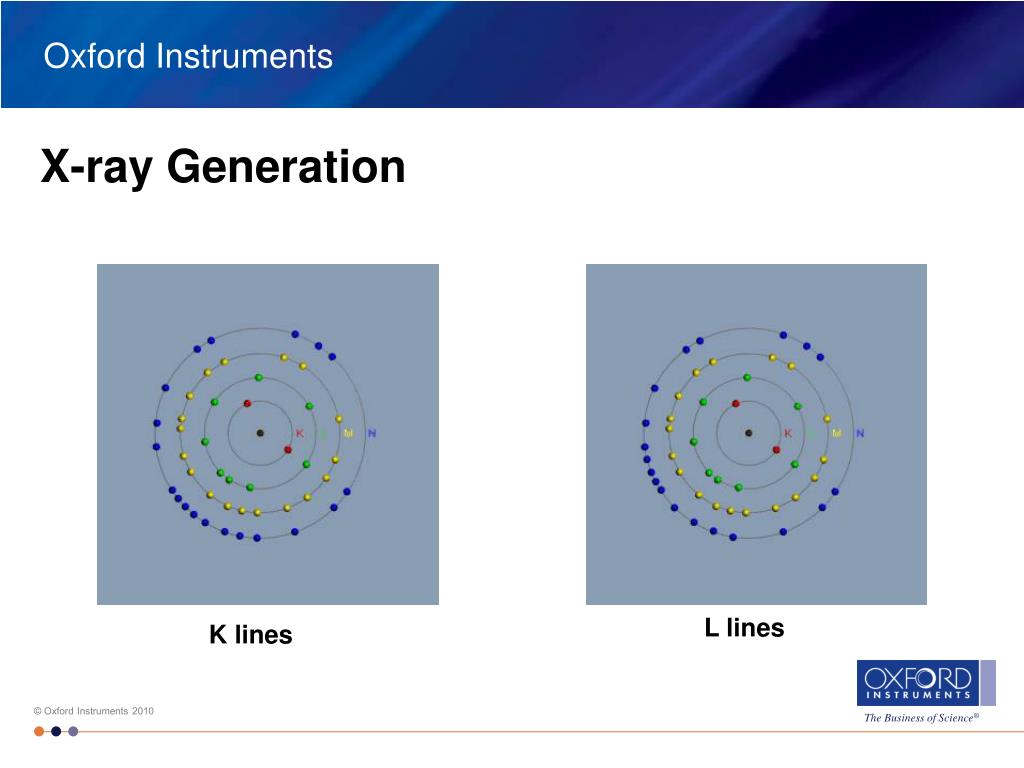

  3. X-ray Generation L lines K lines

  4. X-ray line series Sn L series Ca K series

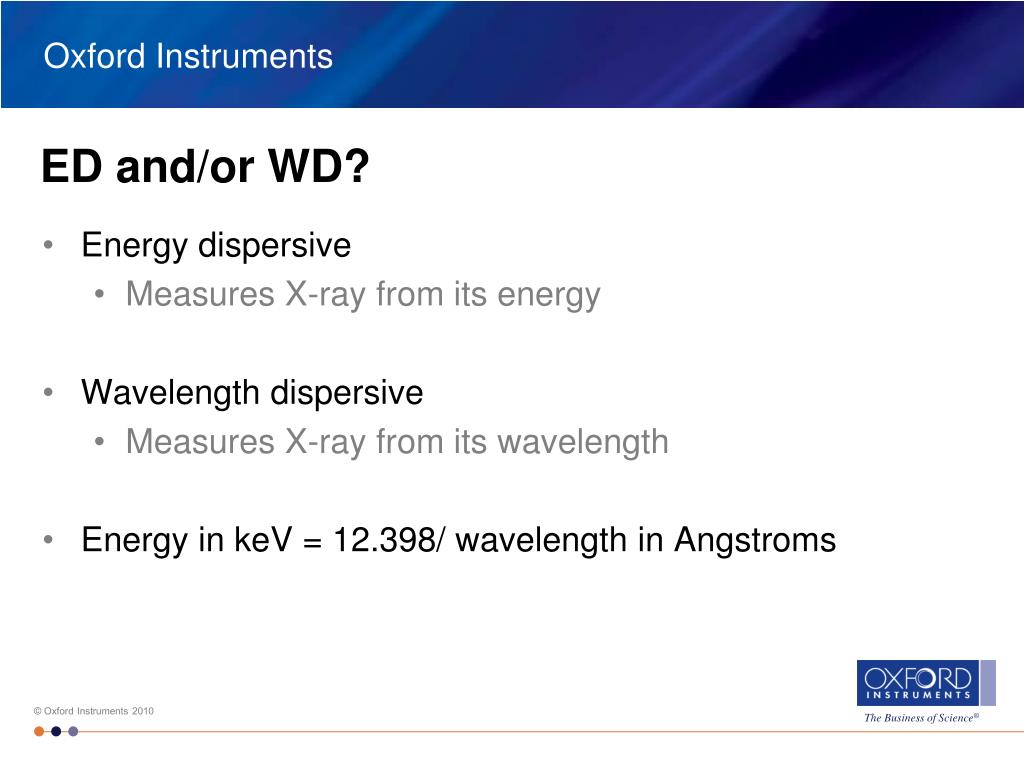

  5. ED and/or WD? Energy dispersive Measures X-ray from its energy Wavelength dispersive Measures X-ray from its wavelength Energy in keV = 12.398/ wavelength in Angstroms

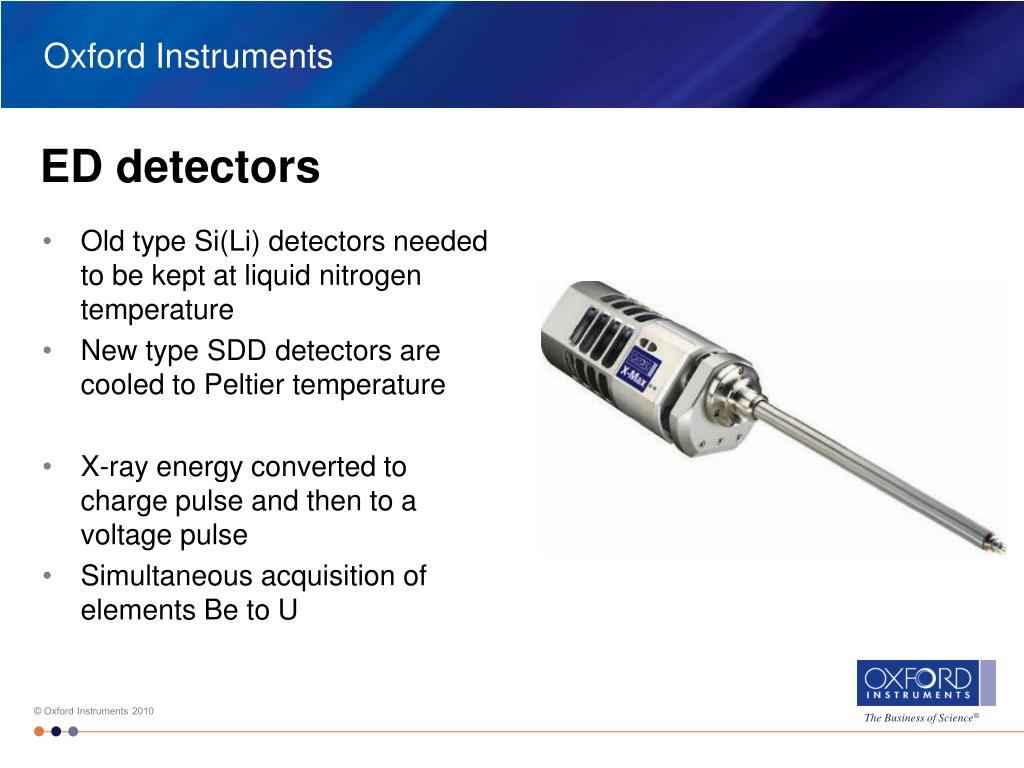

  6. ED detectors Old type Si(Li) detectors needed to be kept at liquid nitrogen temperature New type SDD detectors are cooled to Peltier temperature X-ray energy converted to charge pulse and then to a voltage pulse Simultaneous acquisition of elements Be to U

  7. WD spectrometer Diffraction according to Bragg’s law nλ=2dsinθ Much better peak resolution then ED Much better sensitivity for trace elements Sequential analysis of elements Be to U

  8. ED and WD together resolution sensitivity

  9. What can be analysed? Just about anything you can put in the SEM! Microanalysis – typical volume analysed about 1µm Depends on accelerating voltage and density Nanoanalysis – need to reduce electron beam penetration Reduce accelerating voltage For best results the sample should be flat and polished and conducting But often you can achieve adequate results from ‘rough’ samples

  10. Typical applications Comparing ‘good’ and ‘bad’ samples Identifying compositions in fine grain structures Identifying sources of contamination Measuring variation in composition across an interface

  11. Industrial and research applications Failure analysis - automotive, aerospace, semiconductors Materials research Quality Control Photovoltaics Light Emitting Diodes Thin film analysis Artefact conservation Steel inclusions Gun Shot Residue forensics

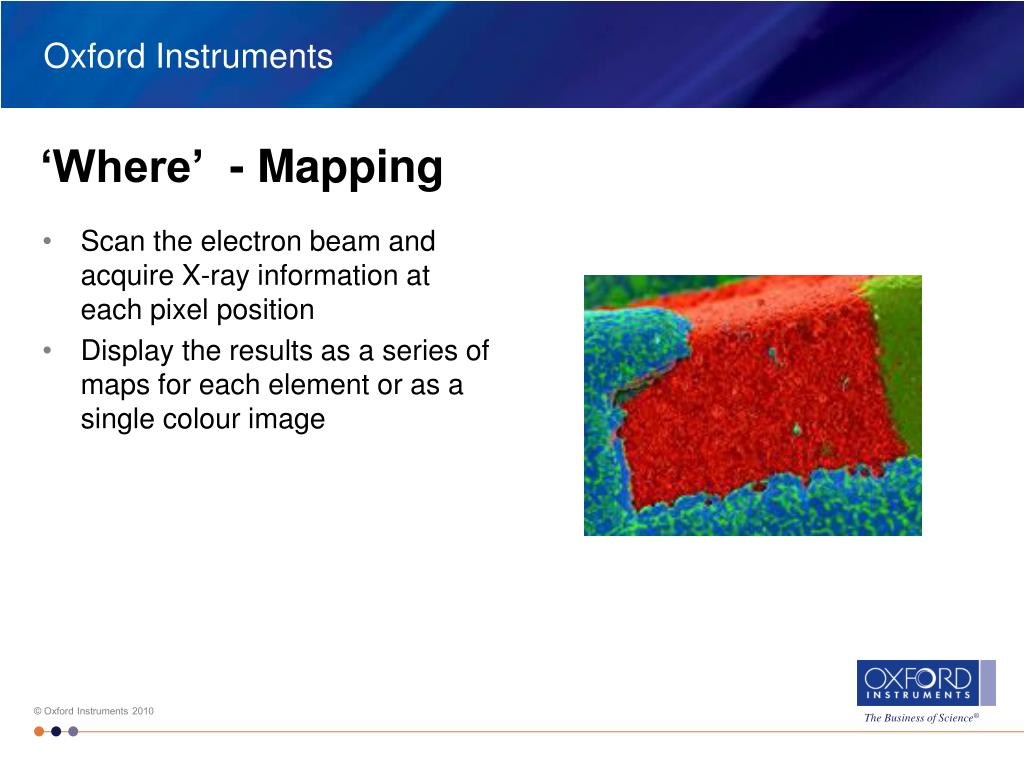

  12. ‘Where’ - Mapping Scan the electron beam and acquire X-ray information at each pixel position Display the results as a series of maps for each element or as a single colour image

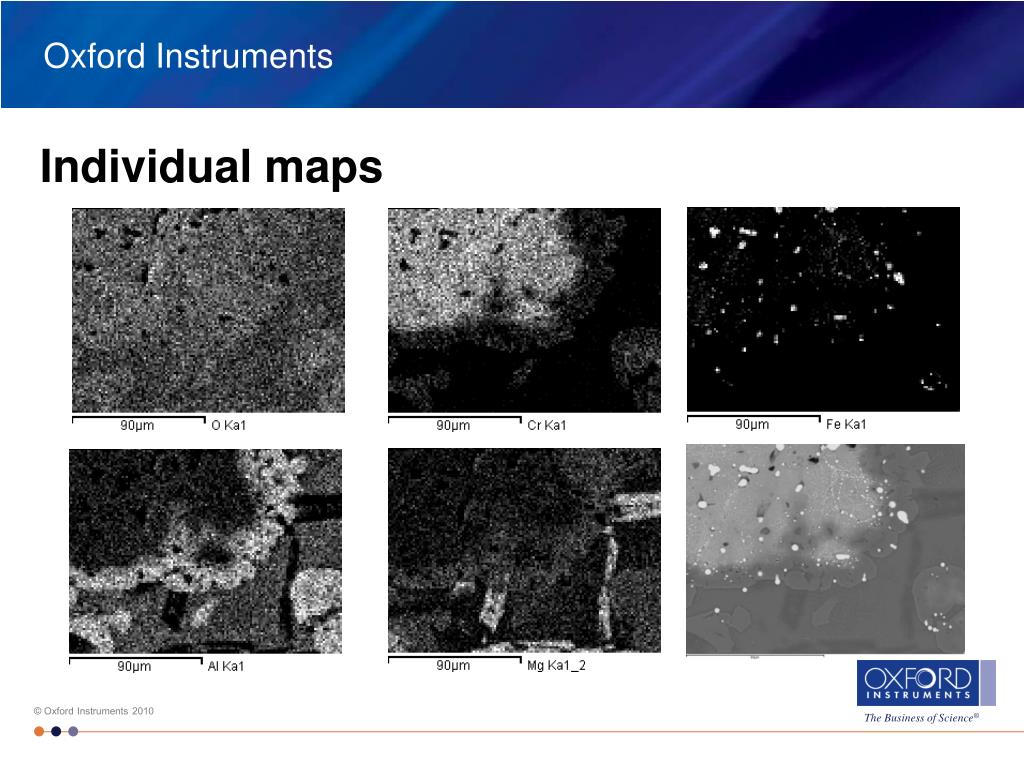

  13. Individual maps

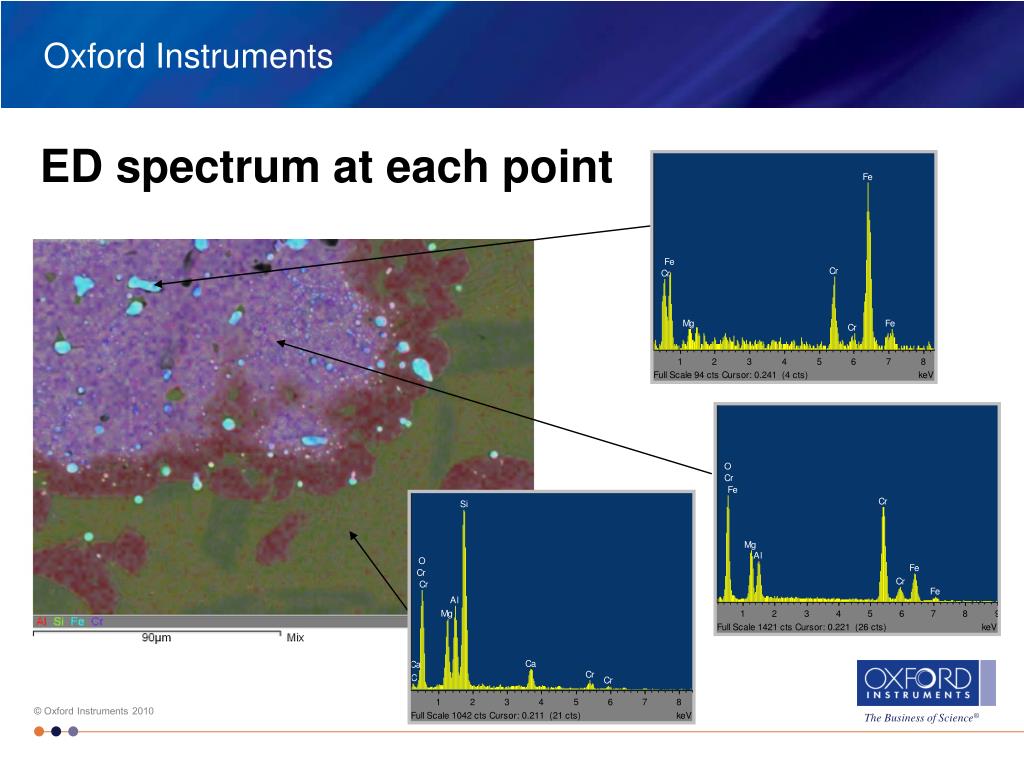

  14. ED spectrum at each point

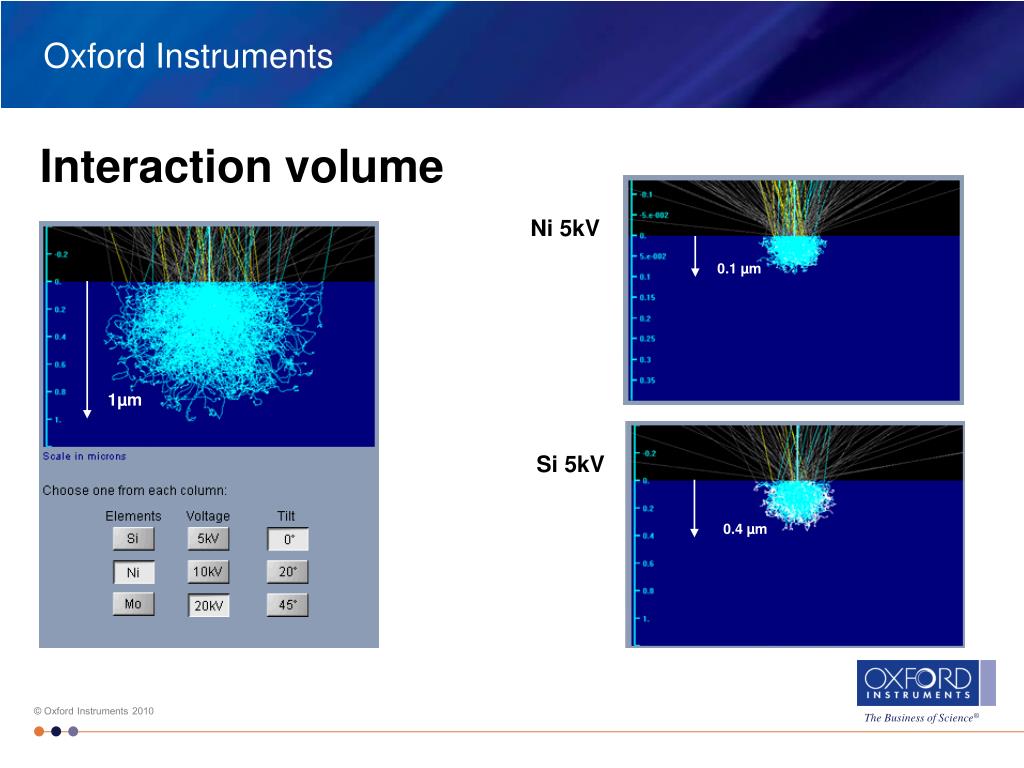

  15. Interaction volume Ni 5kV 0.1 µm 1µm Si 5kV 0.4 µm

  16. Mapping large areas Field width 0.53mm3x3 maps stitched WD geometry requirement – will defocus at low mag.

  17. ‘How much’ – Quantitative Analysis

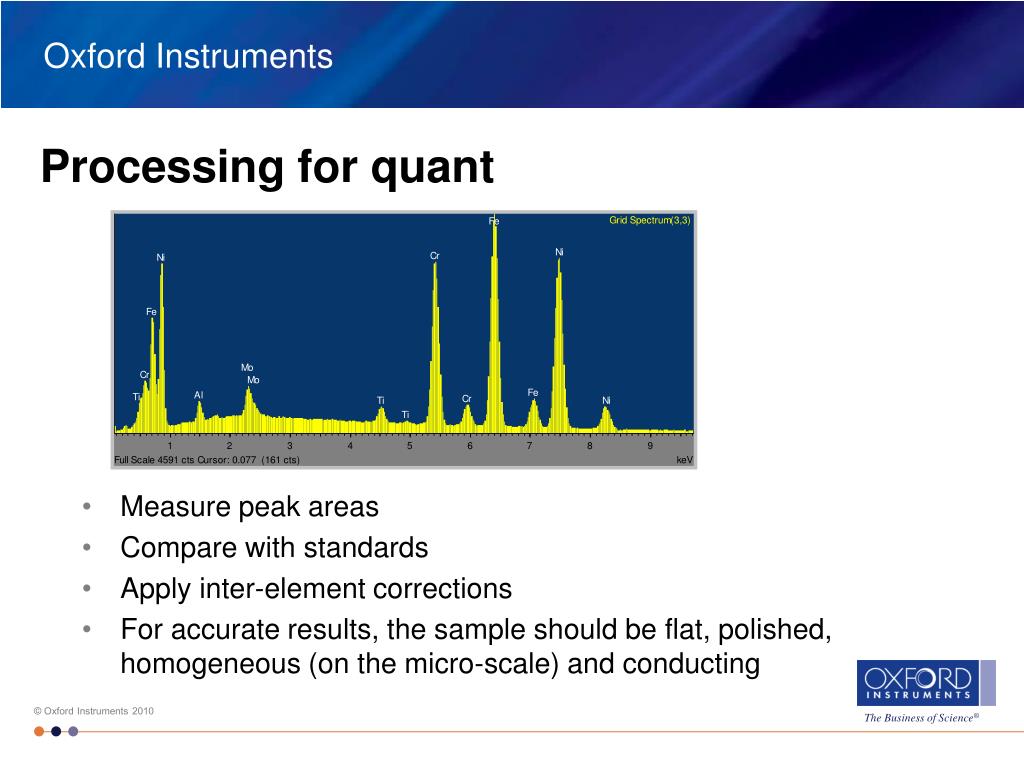

  18. Processing for quant Measure peak areas Compare with standards Apply inter-element corrections For accurate results, the sample should be flat, polished, homogeneous (on the micro-scale) and conducting

  19. Detection limits Typically 0.1% to 0.5% for ED Order of magnitude better for WD Exact detection limit depends on operating conditions and composition

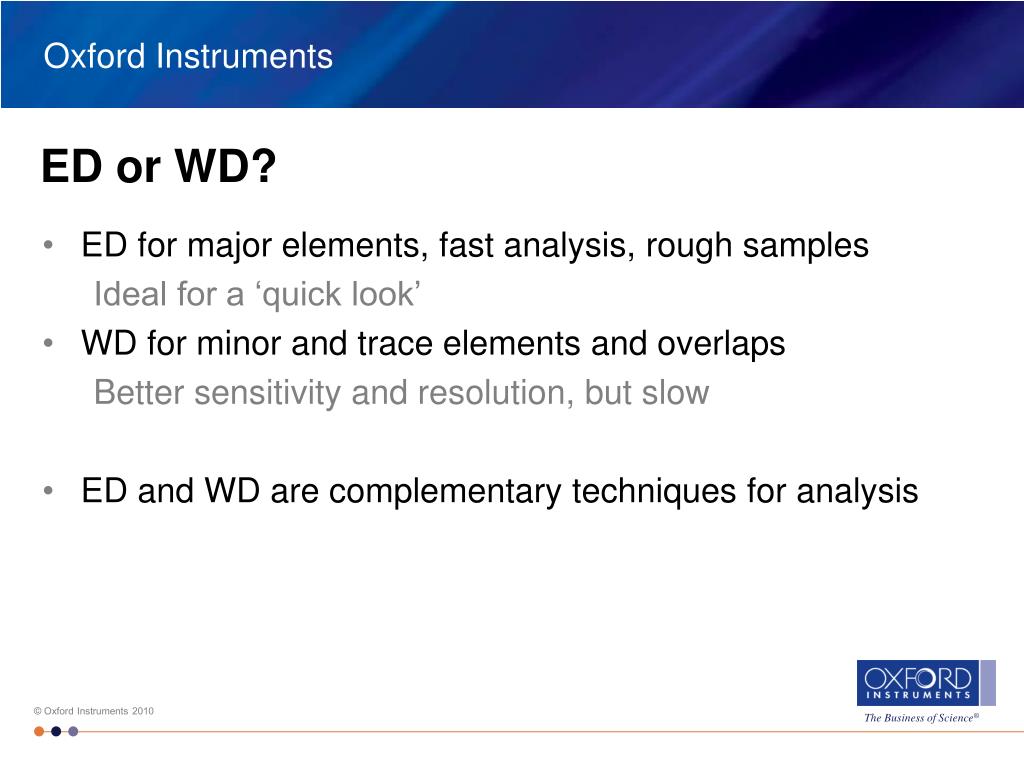

  20. ED or WD? ED for major elements, fast analysis, rough samples Ideal for a ‘quick look’ WD for minor and trace elements and overlaps Better sensitivity and resolution, but slow ED and WD are complementary techniques for analysis
