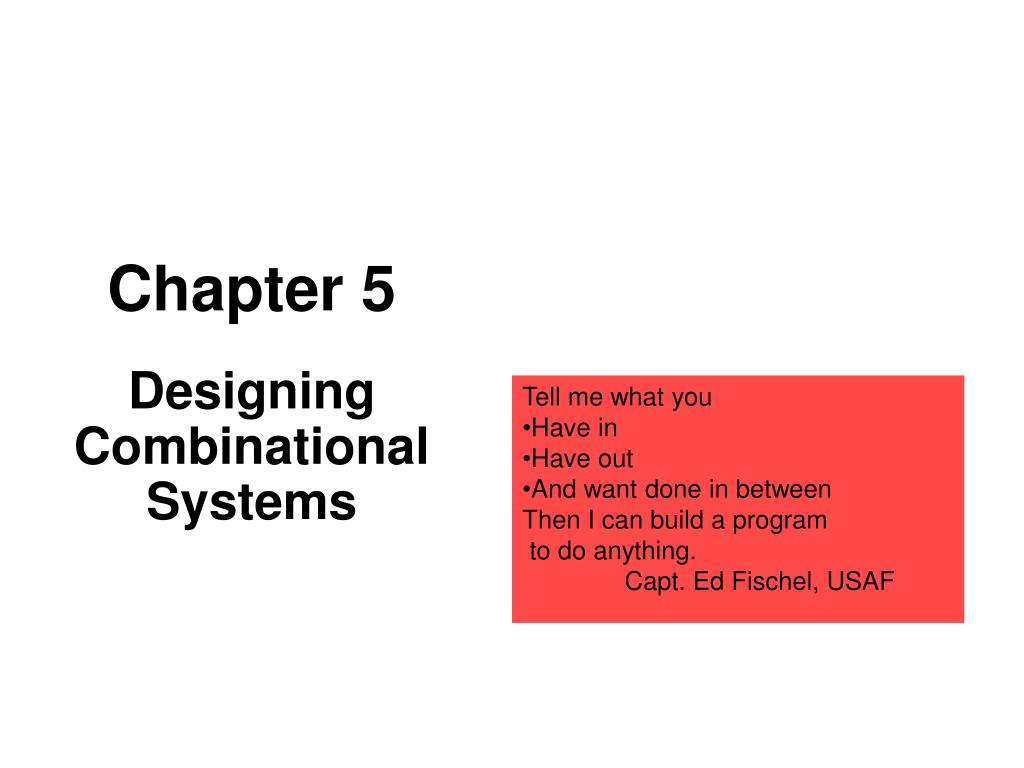

Chapter 5

Chapter 5

  • Tell me what you

  • Have in

  • Have out

  • And want done in between

  • Then I can build a program

  • to do anything.

  • Capt. Ed Fischel, USAF

Designing Combinational Systems

Chapter 5

When an input to gate changes

There is a small delay, ∆t

Consider three inputs to Nand gates

1. Input C changes,

Then Out F changes a little later ∆t

2. In A changes,

Connection X changes a little later ∆t

Then Out F changes 2∆t later

3. In C changes, no effect

4. In B changes,

Connection X changes ∆t

5.In B changes,

Causes X to change ∆t

At same time as B, C changes

Which changes out F ∆t

Then X changes out F 2 ∆t

Called a glitch or hazard

Chapter 5

Each gate causes a delay ∆

Each sequential causes another ∆

An adder has 6 shifts ∆

A 4 bit has 4 * 6 = 24 ∆

Can be real impact

N-bit adder = n 1-bit adders

Called a carry-ripple adder

Chapter 5

For adder, can build truth table

For subtractor can build truth table

Generally if need subtractor, will want both.

Use trick learned in Ch. 1

Complement each bit of subtrahend,

Then add 1

Use control line a’/s

When = 1 do subtraction


1 (+) x = x’

0 (+) x = x

Use XOR for each bit

Chapter 5

Compare two numbers


w/ inputs unequal XOR=1

w/ inputs equal XOR=0


a’b= , ab’=

Since this is binary,

That represents all possible


Chapter 5


Select one of several outputs from coded input

Convert binary input to individual outputs

Each out corresponds to a number

Active hi

Output =1 when condition is active

Chapter 5

Active lo

Output =0when condition is active

Chapter 5

Enable is a control line

It is another input to the AND gate

Generally shown at bottom

EN’ is active low

When en’ = 0, the decoder works

When en’ = 1, the decoder is off

Chapter 5


Note order of inputs – CBA where C is hi order bit

Previous models – ABC where A is high order bit

Range 0-7

Multiple select lines

En1 = 1, En2’ = 0, En3’ =0

Otherwise all outputs are inactive =1

3 select lines allow selection of up to 8 devices

Chapter 5

Suppose want to select 1 of 32 devices

Use four decoders

Need 2 control lines to select

Which of 4 decoders

Use ab

Need 3 data lines for CBA inputs

Use cde

String would be abcde

1st decoder select a=0 b=0

2nd decoder select a=0 b=1

3rd decoder select a=1 b=0

4th decoder select a=1 b=1

4th decoder will need inverter

There is only one active hi enable

Chapter 5

Decoder is easy way to implement a logic function

Consider 2 functions

F = Σ(0,2,3,7)

G= Σ(1,4,6,7)

Range 0-7, need 3 inputs, 2↑3 = 8

Using active hi, connect out thru OR

Using active lo, connect out thru NAND

Active lo,

invert out of decoder & In of OR

Invert-OR is a NAND

Chapter 5

EX 5.4

Implement 3 different functions

Use 1 of 4 device as select

Use four 1 of 4 decoders

Input string abcd

Notice value of output

at each decoder

Since it is active lo,

NAND outputs

NAND = invert-OR

Select goes to decoders

and to output NAND

Chapter 5

5.3 Encoders

Inverse of decoder

Input line value is weighted

Only one line active

Has a binary value

If more than one input can be active, must establish priority

In table no. 7 is highest priority. Ignore any input that is less.

NR is no request. That is necessary to differentiate for0 input and no input.

Chapter 5

5.4 Multiplexer

A switch that passes one of inputs to the ouput, based on select lines

Four inputs, w, x, y, z

Two select S1, S0

Output = w, if S0 = 0

Output = x, if S1 = 1

Can build 4-way from two 2-way

Chapter 5

Ex 5.5

A 3 variable function can be build directly from 8-way mux

Look at truth table

Use inputs as select lines, place function value on mux in

Could do same thing with a 4:1 mux

Rearrange truth table.

Chapter 5

To now have assumed all values are 0 or 1

Tri-state has a hi=z state, which appears as no device

If device is disabled, then function has no connection

Chapter 5

Bus – set of lines that carry data

May be bi-directional

Built using tri-state mux

If use SOP, requires 2-wires

Chapter 5

5.6 Now to large implementation

Programmable Logic Device

Gate arrays




This is very simple version

3-in, 3-out

Many possible connections

Implement SOP expressions

Only requires uncomplementedinput

Complement built-in

Chapter 5

5.6 PLD

F=a’b’ + abc

G=a’b’c’ + ab + bc

H = a’b’ + c

Solid line shows implementation

Dot show connection

This is too messy

Generally do not show

dashed lines

Use software to set up

Program the device in a burner.

PLA – specifies all connectionsfor AND and OR, most general

ROM – AND array fixedspecify ORjust a decoder

PAL – determine AND gate inputs

Chapter 5

5.6.1 ROM design

4-in, 3-out

Only need minterm value

W(A, B, C, D) = ∑m(3, 7, 8, 9, 11, 15)

X(A, B, C, D) = ∑m(3, 4, 5, 7, 10, 14, 15)

Y(A, B, C, D) = ∑m(1, 5, 7, 11, 15)

Note matrix looks like truth table

One AND gate for each minterm

Burn connection for the OR out

Called a memory device

Just another combinational logic

Chapter 5

W(A, B, C, D) = ∑m(3, 7, 8, 9, 11, 15)

X(A, B, C, D) = ∑m(3, 4, 5, 7, 10, 14, 15)

Y(A, B, C, D) = ∑m(1, 5, 7, 11, 15)

5.6.2 PLA design

Need to find SOP expressions

Use k-map, QM

Same function, but reduce to SOP

W = AB´C´ + A´CD + ACD

X = A´BC´ + ACD´ + A´CD + BCD

Y = A´C´D´ + ACD + BCD

Limitation-# of AND

Illustration shows

2 possible solutionsfor wxy

Chapter 5

5.6.3 Programmable Array Logic

Each out from an ORthat has own group of ANDs

No sharing of terms

Often have some feedback from

Out back to input

Often tri-state

Chapter 5

W = AB´C´ + CD

Y = A´BC´ + A´CD + ACD´ + {BCD or ABC}

Z = A´C´D´ + ACD + {A´BD or BCD}

Programmable Array Logic

Same example

Use software to set-up

One version is VeriLog

Then burn the chip in a programmer

Chapter 5

5.8.2 7-Seg

Complex, large system

4-in, 7-out

6,7,9 have alternative design, DC

4-in gives 16 possible out

Actually only 10 numbers 0-9

Remaining options, DC

Chapter 5


Create K-map for each output

Determine output equation

Chapter 5

From list of equations

Create table of PI

Mark X if the minterm is used

Chapter 5


Another implementation

Use maximum sharing

Same process

Use k-Map or QM

Chapter 5


Maximum sharing


both techniquesvery involved


a = X´Y´Z´ + WX´Y´ + W´XY´Z + W´YZ + W´X´Y´

b = W´YZ + W´X´Y + W´Y´Z´ + X´Y´

c = W´YZ + X´Y´ + W´X

d = X´Y´Z + W´XY´Z + W´X´Y + W´YZ´

e = X´Y´Z´ + W´YZ´

f = WX´Y´ + W´Y´Z´ + W´X

g = WX´Y´ + W´X´Y + W´YZ´ + W´XY´

Chapter 5


Easy way out

PLA here

Need SOP

Chapter 5


Easiest way


Need minterms only

Note matrix

It is truth table


Chapter 5


Programs provided by vendors of PLD

Specific to device

Chapter 5

Error coding

Data transmitted or stored can create errors

Hamming add a single bit to detect error

Parity Bit is 1 0r 0 so that total number of 1’s is even.

One error will cause a change and the parity will not match.

Exor the bits to check. If result is 0, then assume correct.

Chapter 5

ROM Other uses

Since a ROM will have an output based on the status of the address lines, it can be used to represent a conventional logic network. There are ‘n’ outputs and each output can have 2mmaxterms.

The ROM has fixed values, which makes it well suited for projects that require a table lookup. This is particularly appropriate for mathematics problems that are repeated frequently.

Consider an example.

Given:y = 2 x2 – 1

Allowable range:0  x  3

What is the address (input) variable?x

What is the data (output) variable?y

How many addresses are there?4 (0, 1, 2, 3)

How many address lines are required?m = 2  2m = 4

What is the largest value output?17

How many output lines are required?n = 5  2n= 32

Create a table of values to implement the function. Negative values are represented by setting the most significant bit (MSB) to 1. Decimal numbers can also be represented by setting another bit.

By connecting switches to the address lines and LED’s to the output lines, the special purpose calculator is realized.

Chapter 5

Chapter 5

Designing Combinational circuits









Good stuff for building most circuits.

Next Chapter look at Sequential

Means has feedback & memory
