Integrating CADD and GIS Data. CADD. GIS. BAAMA Sept. 27, 2007 Presented by: Reneé Gerasimtchouk , GIS Specialist Lysée Moyaert , GIS / CADD Manager Mineta San Jos é International Airport. Case Study. Problem Have many CADD files, how to get into GIS? How to keep these two in sync?

Download Presentation

Integrating CADD and GIS Data

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Integrating cadd and gis data

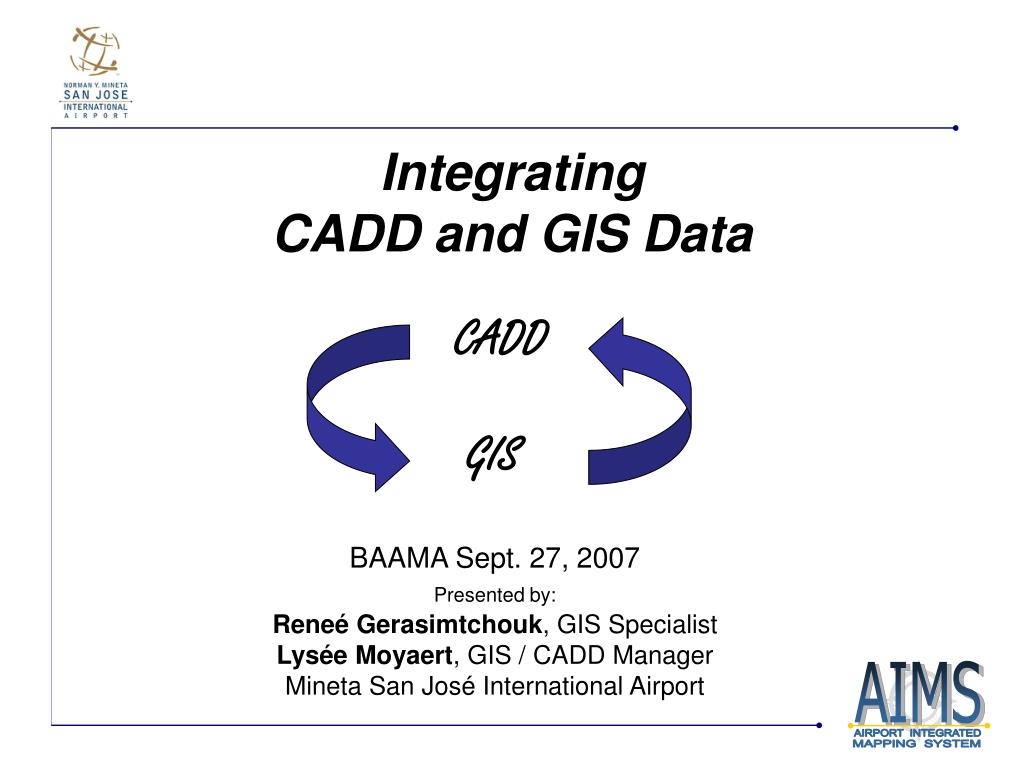

Integrating CADD and GIS Data

CADD

GIS

BAAMA Sept. 27, 2007

Presented by:

Reneé Gerasimtchouk, GIS SpecialistLysée Moyaert, GIS / CADD ManagerMineta San José International Airport


Case study

Case Study

  • Problem

  • Have many CADD files, how to get into GIS?

  • How to keep these two in sync?

  • Requirements

  • Solution must preserve our CADD Standards while importing and exporting (Airport uses modified National CADD Standards)

  • CADD files must be imported into our SDSFIE schema in Oracle (Spatial Data Standards for Facilities, Infrastructure, and Environment)

  • Airport’s custom Coordinate System must be maintained

  • Error trapping prior to loading

  • Easy loading and exporting of large amounts of CADD data

  • Solution

  • A custom application using FME that is user friendly and can both import and export CADD files to and from GIS.


Integrating cadd and gis data

CADD Standards


Solution

Solution

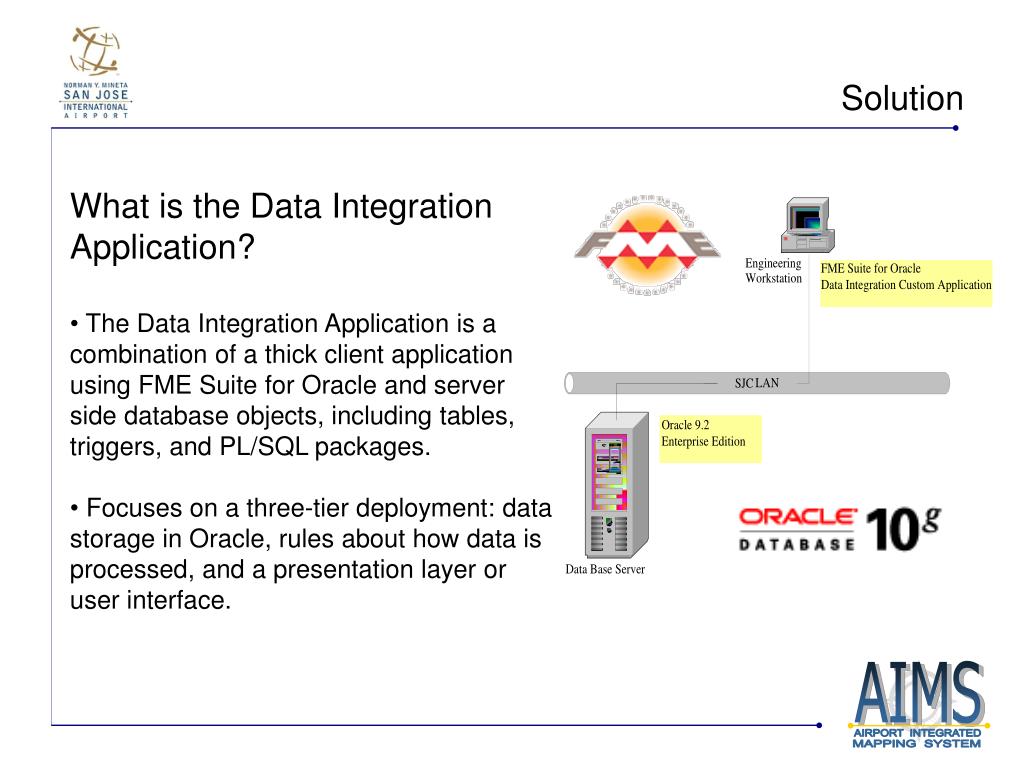

  • What is the Data Integration Application?

  • The Data Integration Application is a combination of a thick client application using FME Suite for Oracle and server side database objects, including tables, triggers, and PL/SQL packages.

  • Focuses on a three-tier deployment: data storage in Oracle, rules about how data is processed, and a presentation layer or user interface.


Loading data

Loading Data

Data Integration Application first runs series of checks

  • Scans CADD file & displays a list of layers found

  • References the CROSSWALK table for valid CADD and GIS relationship

  • Allows user to select layers to be loaded


Crosswalk table

Crosswalk table

  • Crosswalk table managed directly in the Data Integration Tool

  • Manages the relationship between CADD layers and GIS tables

  • Used as a template for both importing and exporting data


Validation of cadd file

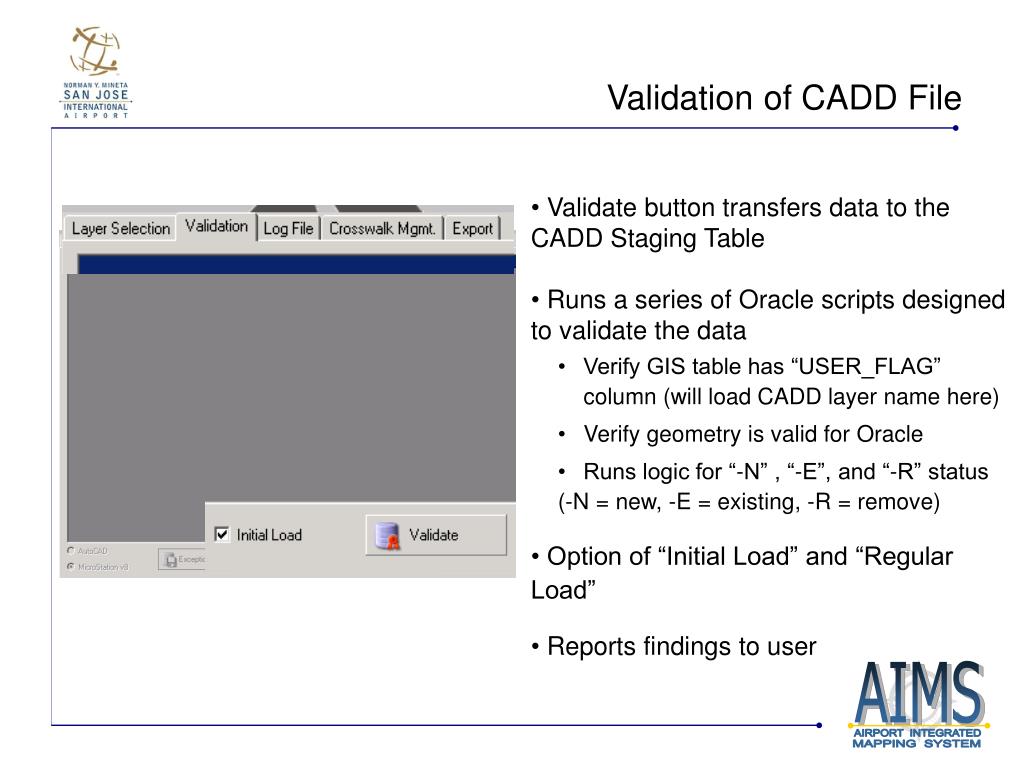

Validation of CADD File

  • Validate button transfers data to the CADD Staging Table

  • Runs a series of Oracle scripts designed to validate the data

    • Verify GIS table has “USER_FLAG” column (will load CADD layer name here)

    • Verify geometry is valid for Oracle

    • Runs logic for “-N” , “-E”, and “-R” status

    • (-N = new, -E = existing, -R = remove)

  • Option of “Initial Load” and “Regular Load”

  • Reports findings to user

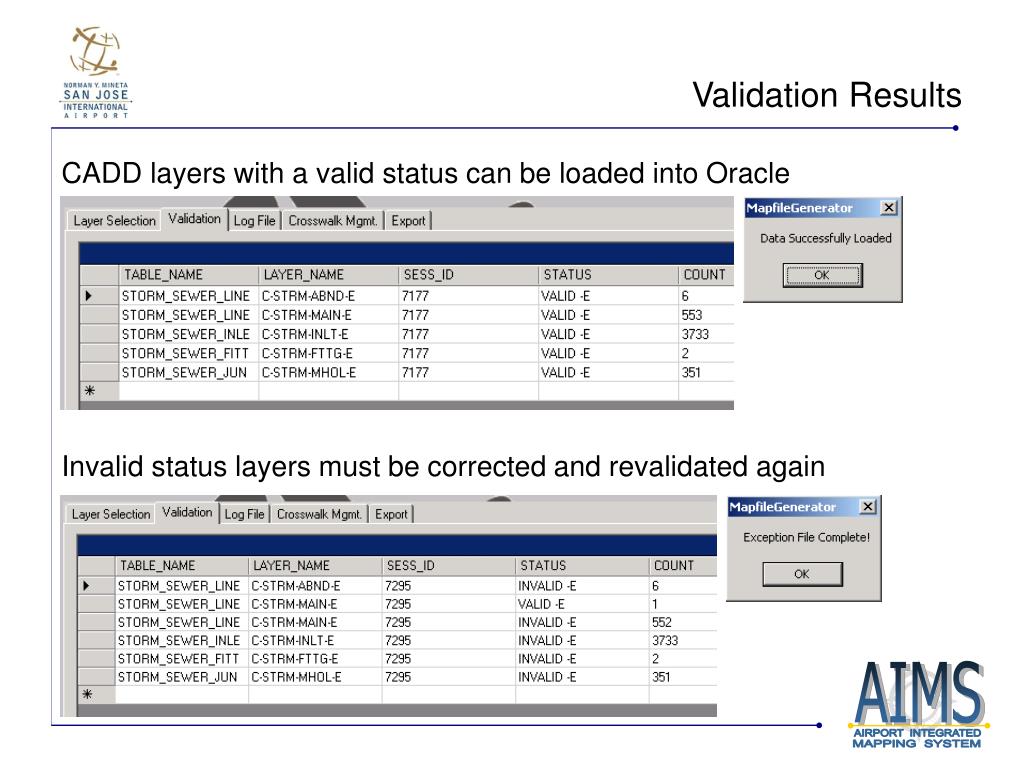

Validation results

Validation Results

CADD layers with a valid status can be loaded into Oracle

Invalid status layers must be corrected and revalidated again


Integrating cadd and gis data

GIS data

  • Data now loaded into Oracle

  • Application loads CADD layer name into USER_FLAG field

    • Used for exporting and maintains CADD standard layer name

  • Data added (STRUCT_B and FLOOR_NUM are required for exporting)

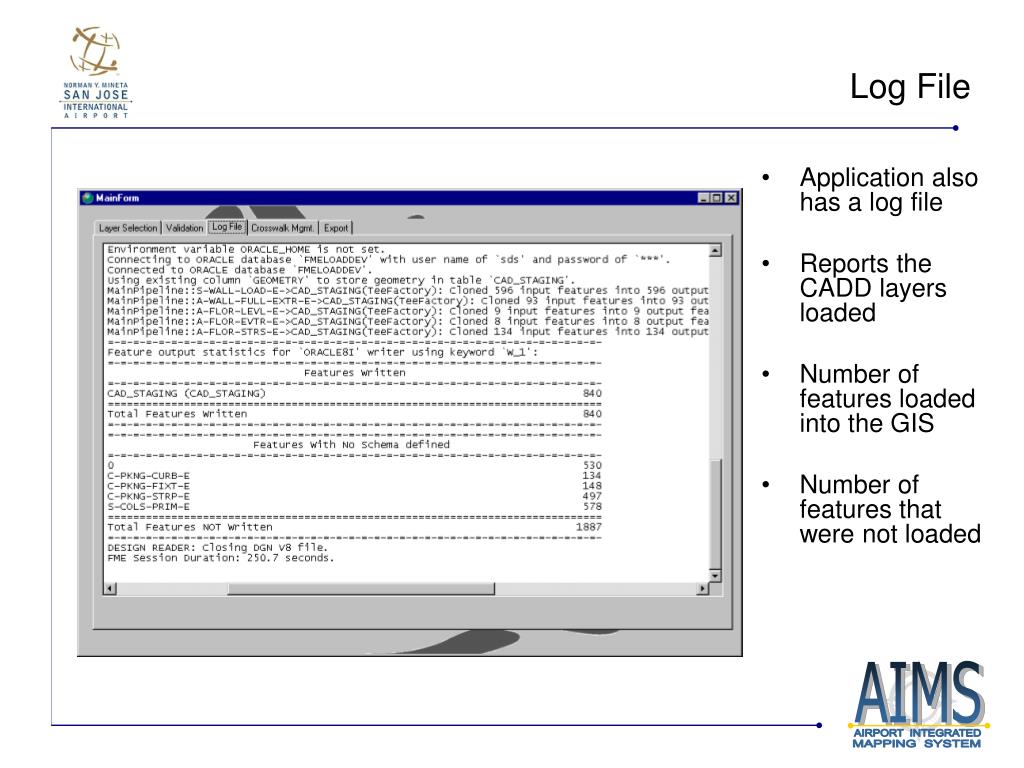

Log file

Application also has a log file

Reports the CADD layers loaded

Number of features loaded into the GIS

Number of features that were not loaded

Log File

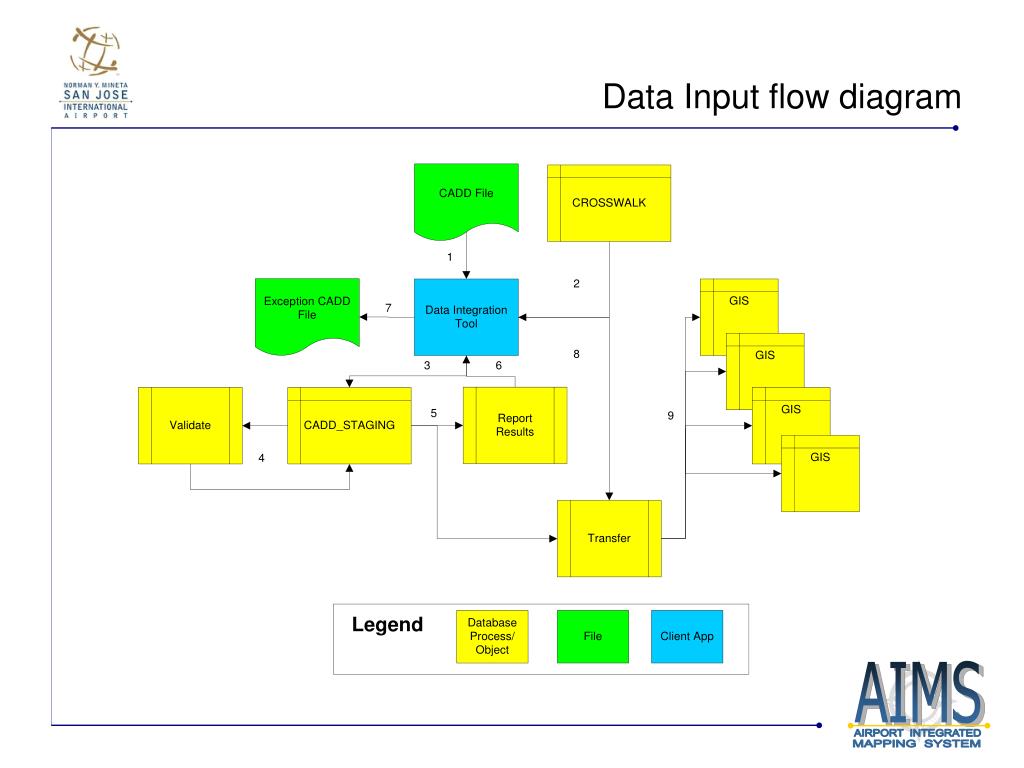

Data input flow diagram

Data Input flow diagram


Exporting

Exporting

  • Data Integration Application can easily export data from GIS back into a CADD drawing

  • Again uses the CROSSWALK table for relationship from GIS back to CADD

  • Also uses a Drawing Set .mdb file as a template to extract the various CADD levels from the GIS table and group into individual drawing sets

  • Uses the STRUCT_B and FLOOR_NUM fields from the GIS table for grouping


Integrating cadd and gis data

Data export flow diagram


Integrating cadd and gis data

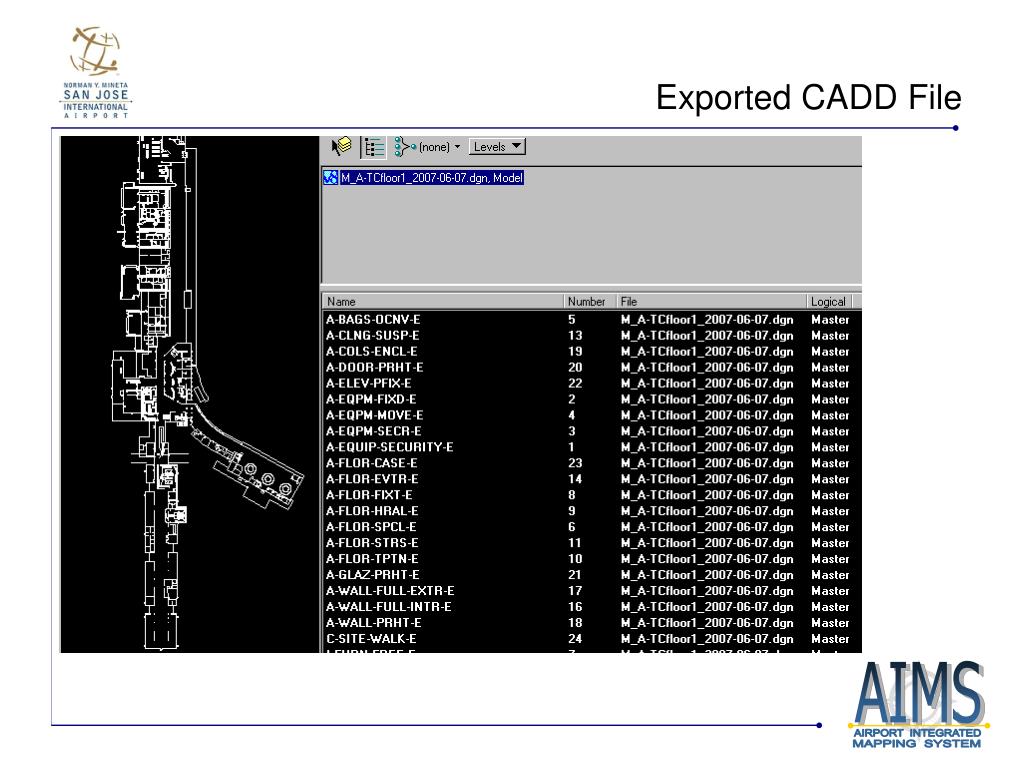

Exported CADD File


Integrating cadd and gis data

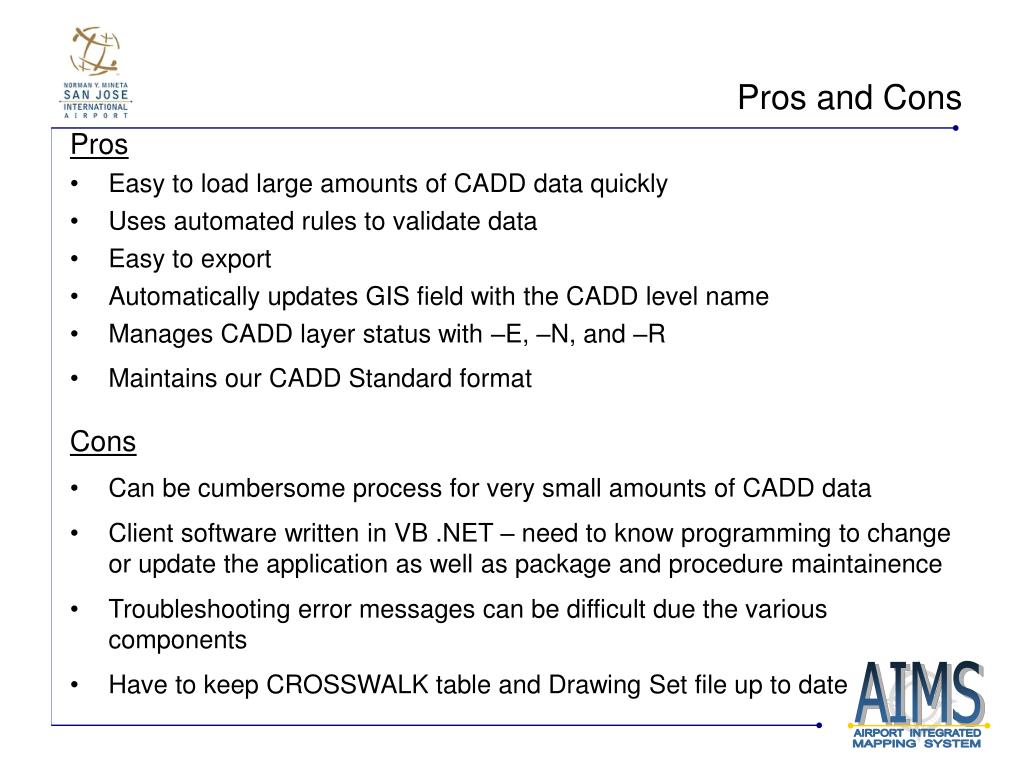

Pros

Easy to load large amounts of CADD data quickly

Uses automated rules to validate data

Easy to export

Automatically updates GIS field with the CADD level name

Manages CADD layer status with –E, –N, and –R

Maintains our CADD Standard format

Pros and Cons

Cons

  • Can be cumbersome process for very small amounts of CADD data

  • Client software written in VB .NET – need to know programming to change or update the application as well as package and procedure maintainence

  • Troubleshooting error messages can be difficult due the various components

  • Have to keep CROSSWALK table and Drawing Set file up to date


Other methods

Other Methods

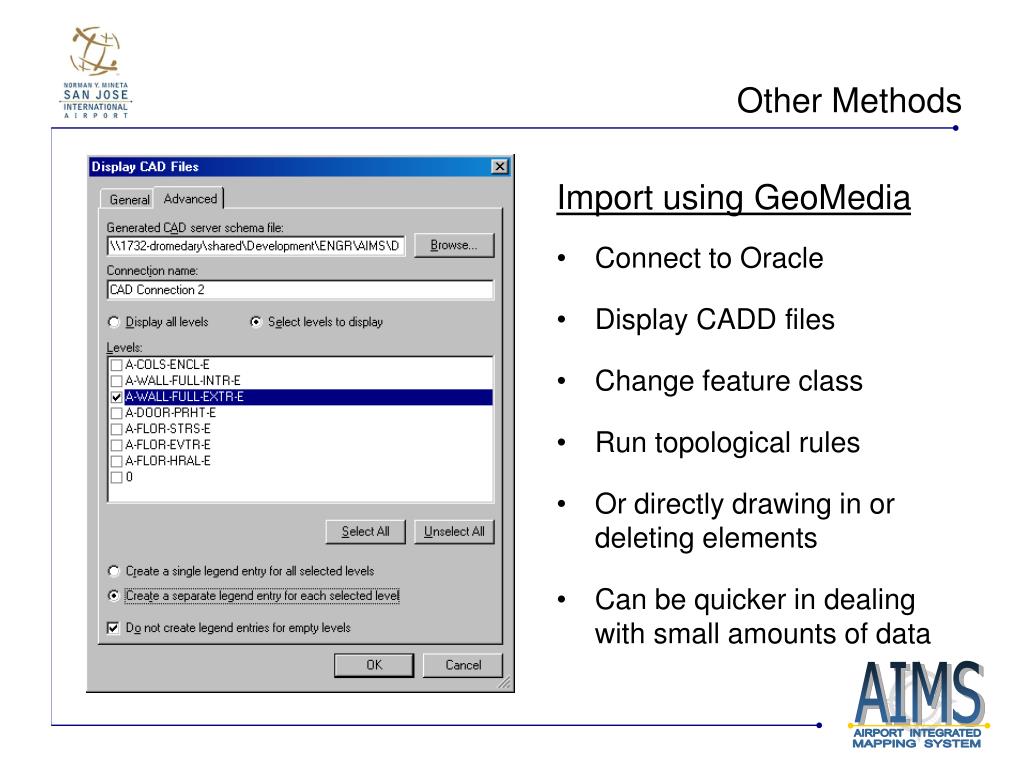

Import using GeoMedia

  • Connect to Oracle

  • Display CADD files

  • Change feature class

  • Run topological rules

  • Or directly drawing in or deleting elements

  • Can be quicker in dealing with small amounts of data


Other methods1

Other Methods

Export from GeoMedia

  • Easy to export however does not keep CADD layer name

  • Exports all elements from GIS table – no grouping

  • Only way to group is query out data from GIS prior to exporting – too time consuming


Integrating cadd and gis data

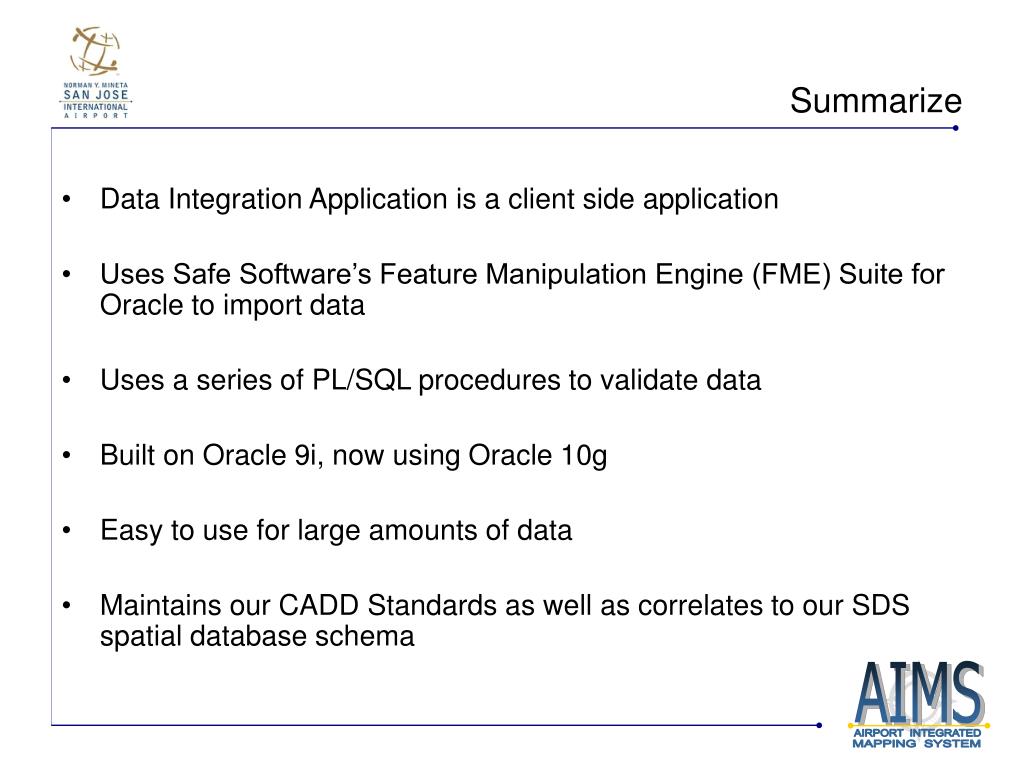

Data Integration Application is a client side application

Uses Safe Software’s Feature Manipulation Engine (FME) Suite for Oracle to import data

Uses a series of PL/SQL procedures to validate data

Built on Oracle 9i, now using Oracle 10g

Easy to use for large amounts of data

Maintains our CADD Standards as well as correlates to our SDS spatial database schema

Summarize


Questions

Questions?

Thank You!

[email protected]

[email protected]

www.nationalcadstandard.org

www.sdsfie.org

www.safe.com
