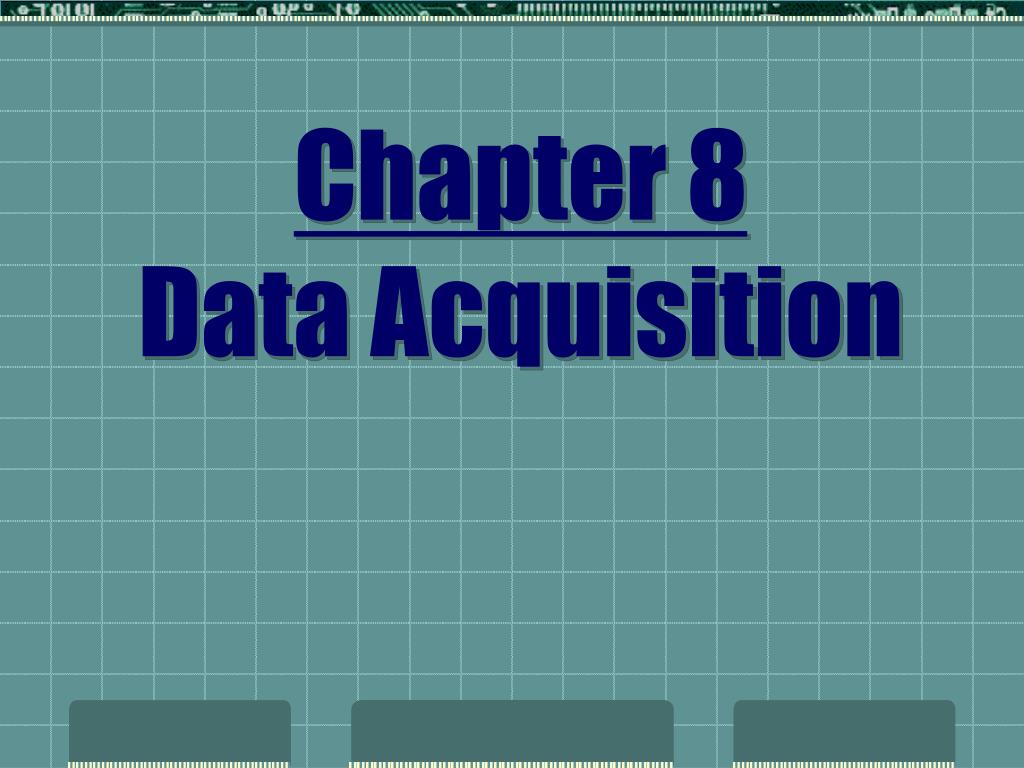

  1. Chapter 8Data Acquisition

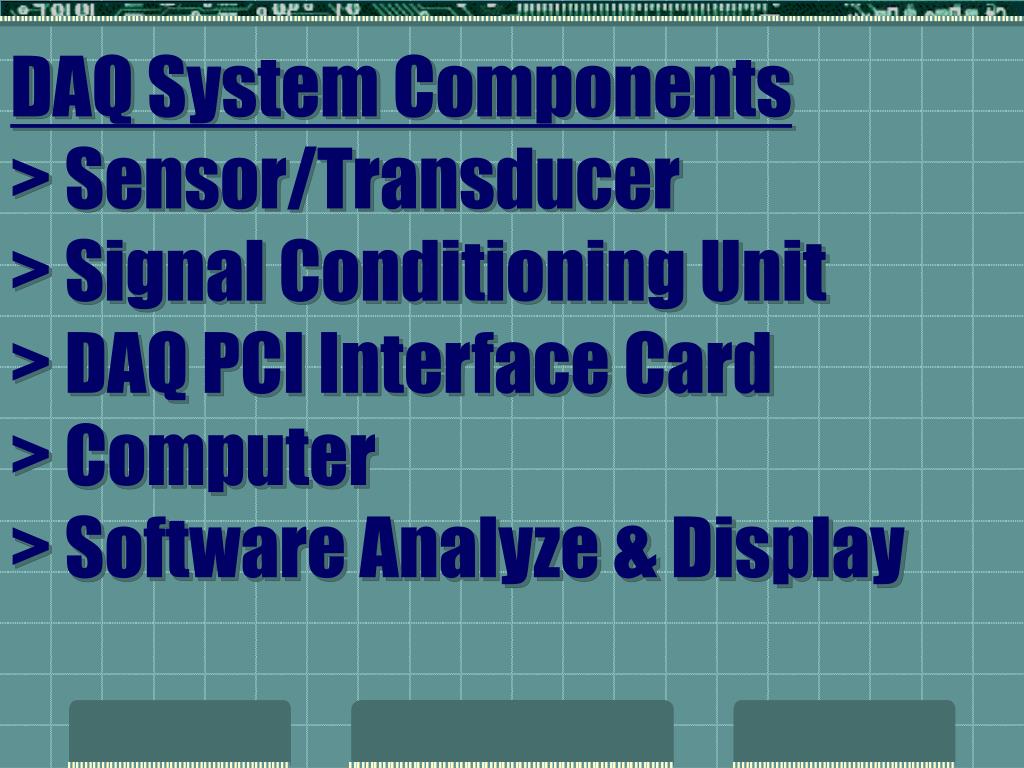

  2. DAQ System Components> Sensor/Transducer> Signal Conditioning Unit> DAQ PCI Interface Card> Computer> Software Analyze & Display

  3. Signal Information > State > Rate > Level > Shape > Frequency

  4. Signal Types Digital: > On-Off > Pulse Train Analog: > DC > Time-Domain > Frequency-Domain

  5. Signal Conditioning Circuits > Linearization > Excitation > Isolation > Filtering > Amplification

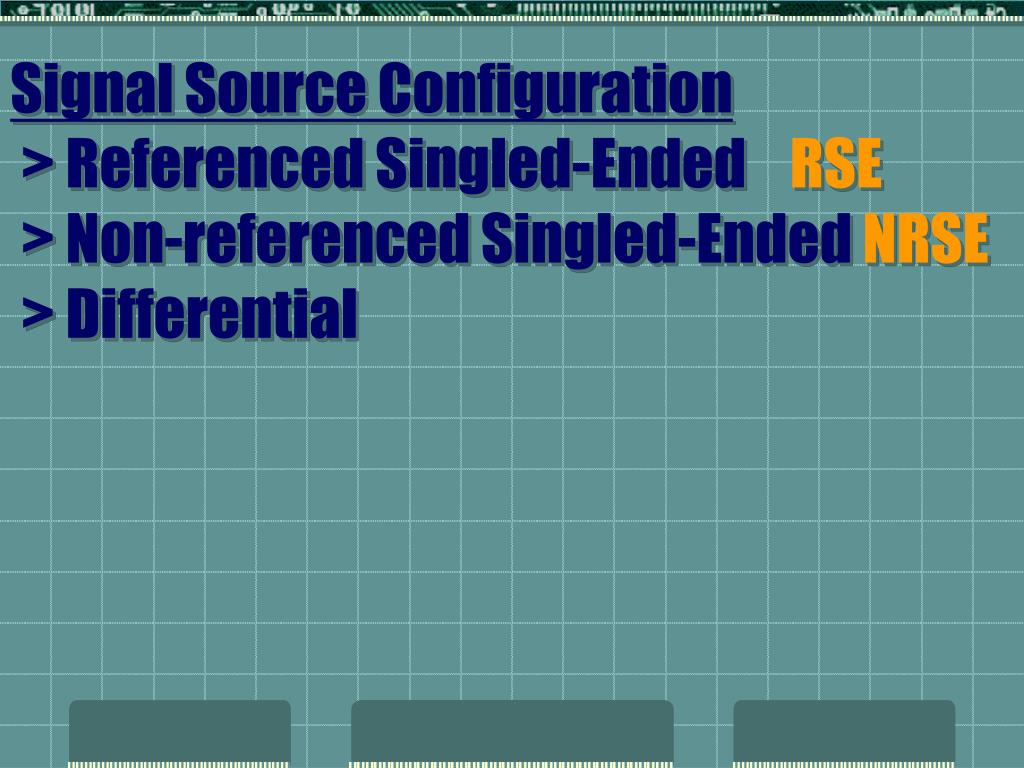

  6. Signal Source Configuration > Referenced Singled-Ended RSE > Non-referenced Singled-Ended NRSE > Differential

  7. Analog I/O Conversion Issues > Resolution > Range > Signal Limit Settings > Sampling Rate

  8. Code WidthVCW = Range 2Resolution
