  1. Chapter 5 Modeling the Processes and Logic

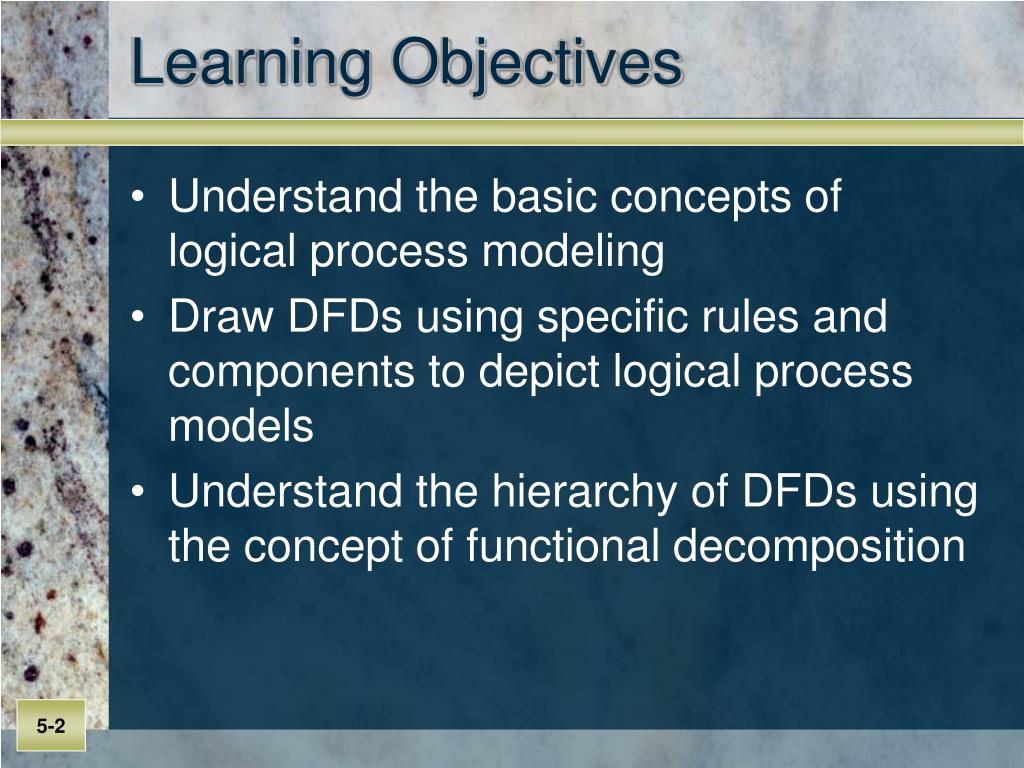

  2. Learning Objectives • Understand the basic concepts of logical process modeling • Draw DFDs using specific rules and components to depict logical process models • Understand the hierarchy of DFDs using the concept of functional decomposition

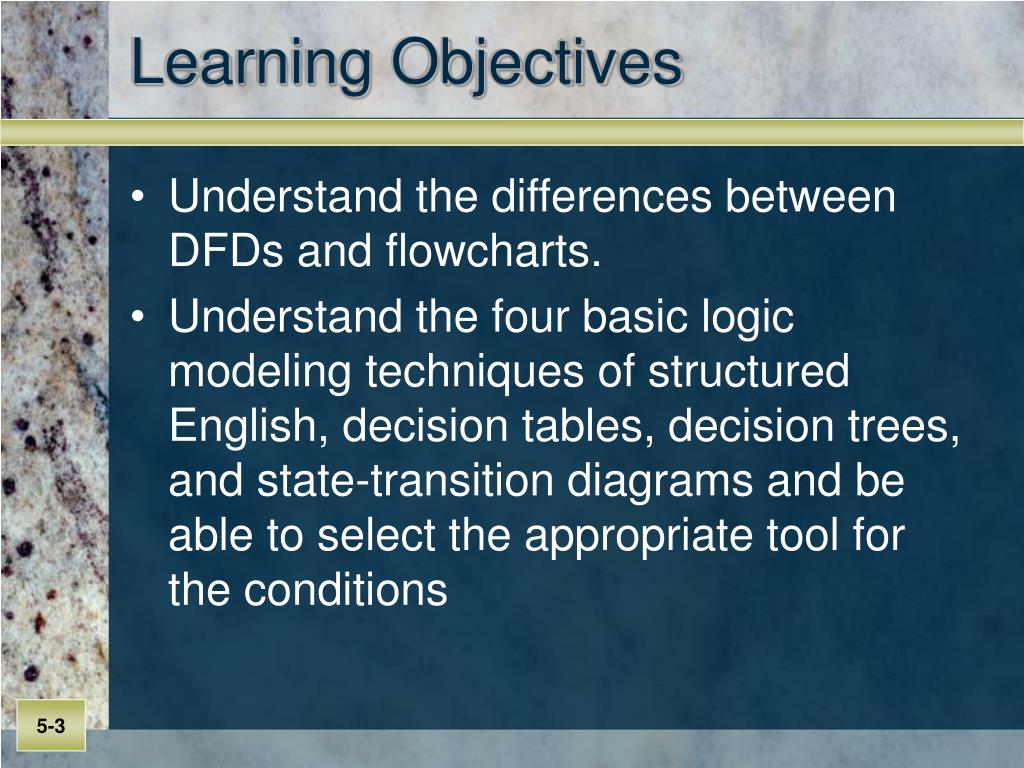

  3. Learning Objectives • Understand the differences between DFDs and flowcharts. • Understand the four basic logic modeling techniques of structured English, decision tables, decision trees, and state-transition diagrams and be able to select the appropriate tool for the conditions

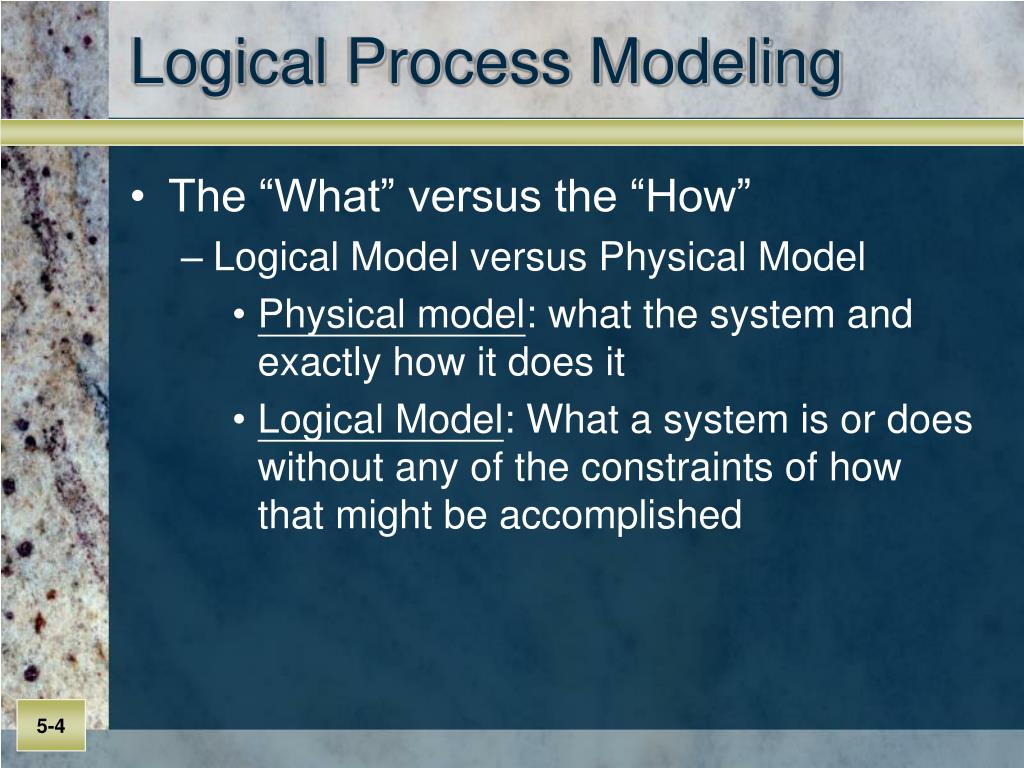

  4. Logical Process Modeling • The “What” versus the “How” • Logical Model versus Physical Model • Physical model: what the system and exactly how it does it • Logical Model: What a system is or does without any of the constraints of how that might be accomplished

  5. Benefits of Logical Model • Reduces the risk of overlooking important business requirement due to the analyst becoming preoccupied with the technical elements • Reduces the biases associated with the way the current system is implemented • Analysts can communicate with users easily

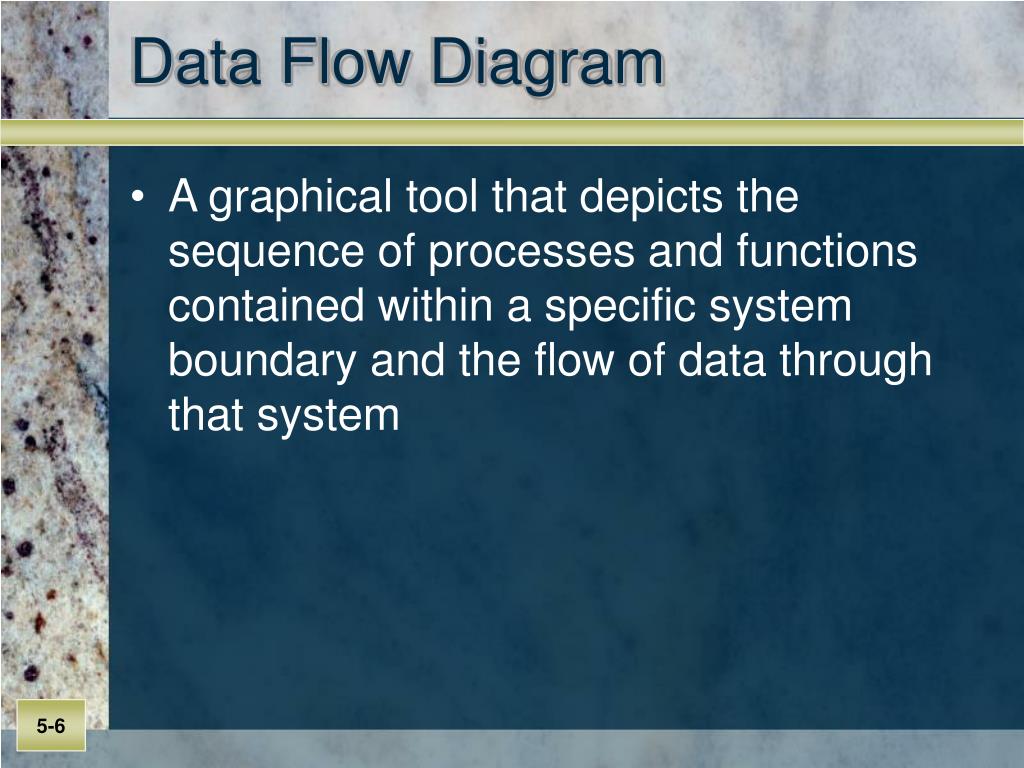

  6. Data Flow Diagram • A graphical tool that depicts the sequence of processes and functions contained within a specific system boundary and the flow of data through that system

  7. DFD Symbols • Four basic symbols • Process • Data Flow • Data Store • External Entity • Two popular symbol sets • Gane and Sarson • DeMarco and Yourson

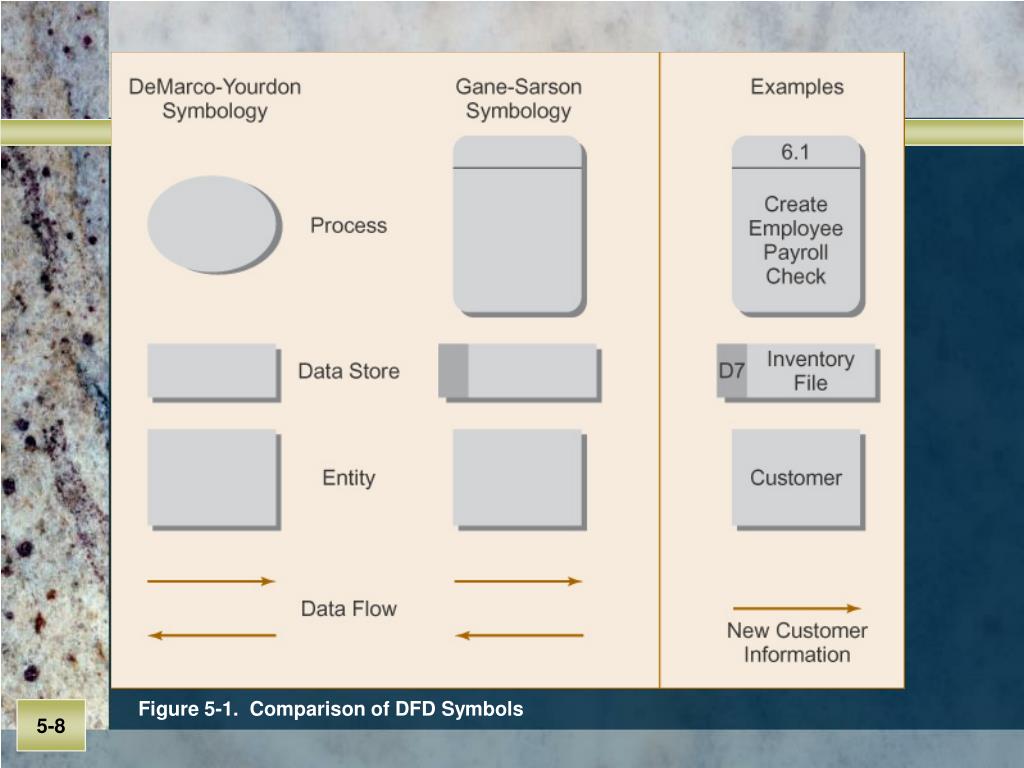

  8. Figure 5-1. Comparison of DFD Symbols

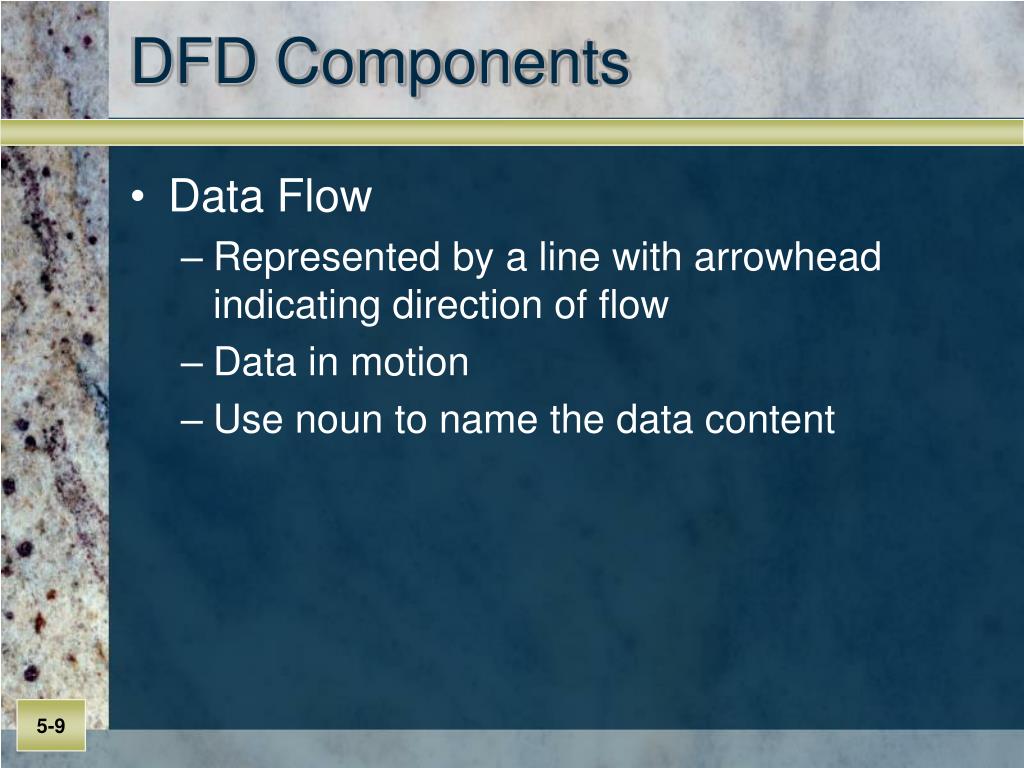

  9. DFD Components • Data Flow • Represented by a line with arrowhead indicating direction of flow • Data in motion • Use noun to name the data content

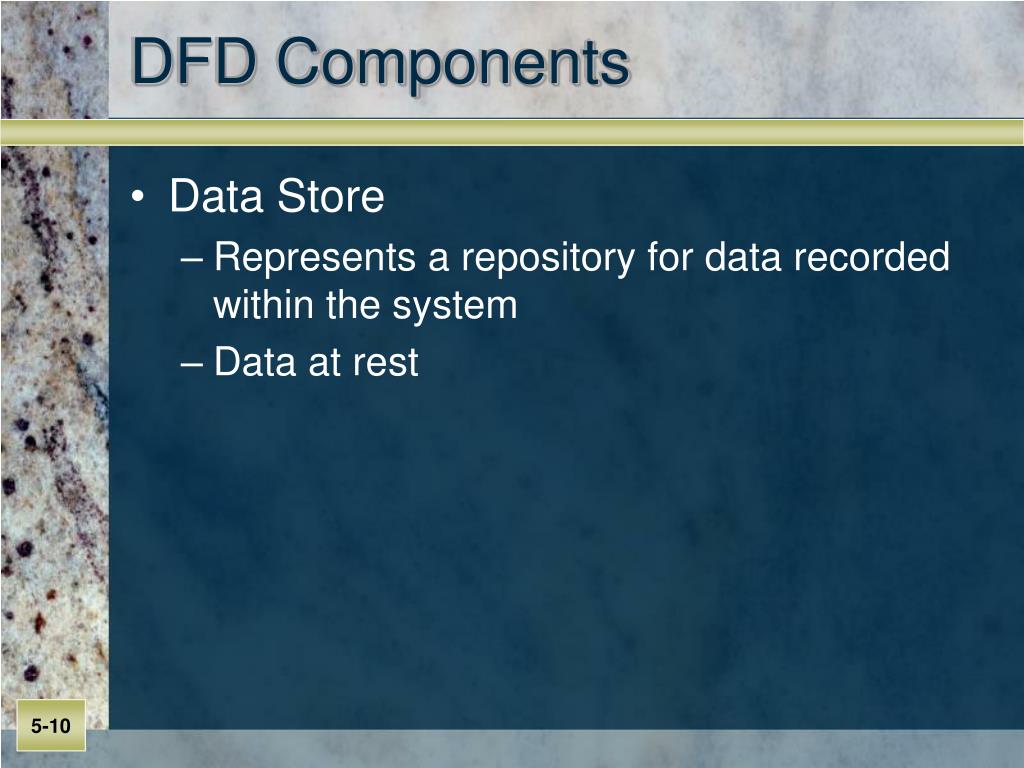

  10. DFD Components • Data Store • Represents a repository for data recorded within the system • Data at rest

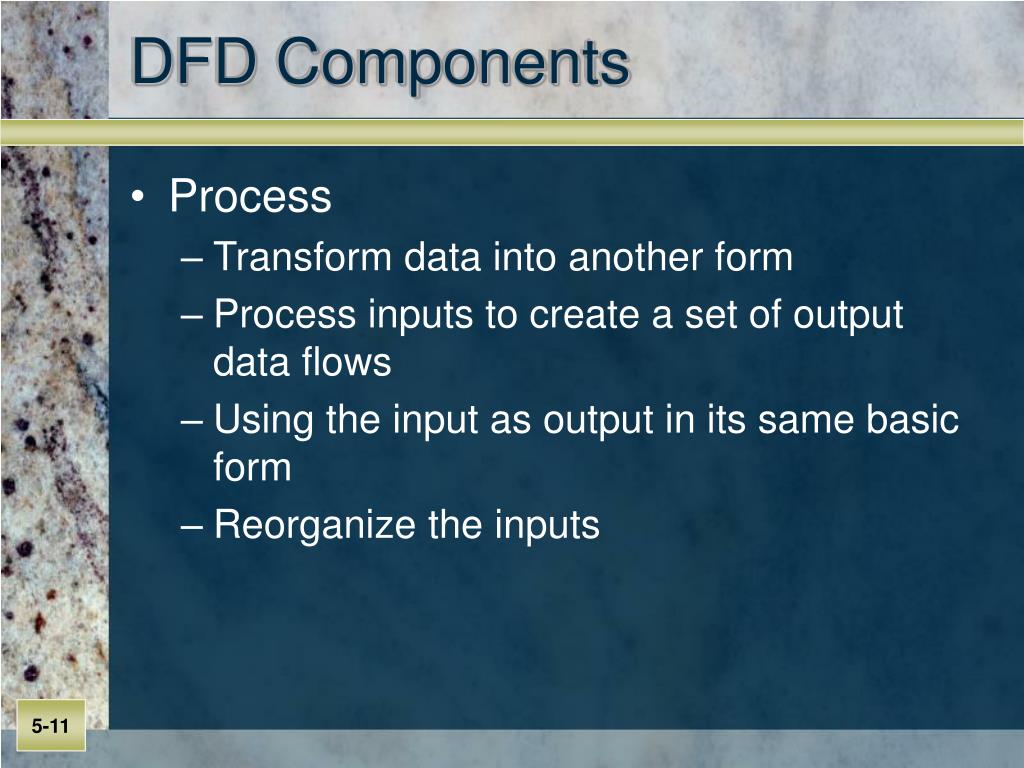

  11. DFD Components • Process • Transform data into another form • Process inputs to create a set of output data flows • Using the input as output in its same basic form • Reorganize the inputs

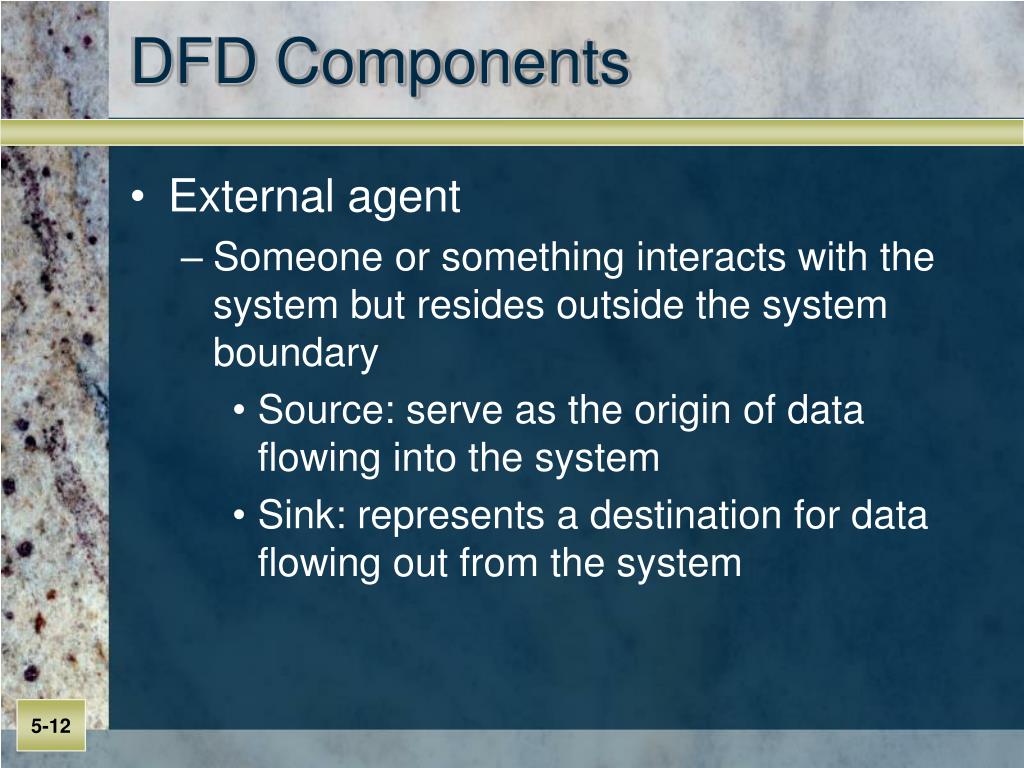

  12. DFD Components • External agent • Someone or something interacts with the system but resides outside the system boundary • Source: serve as the origin of data flowing into the system • Sink: represents a destination for data flowing out from the system

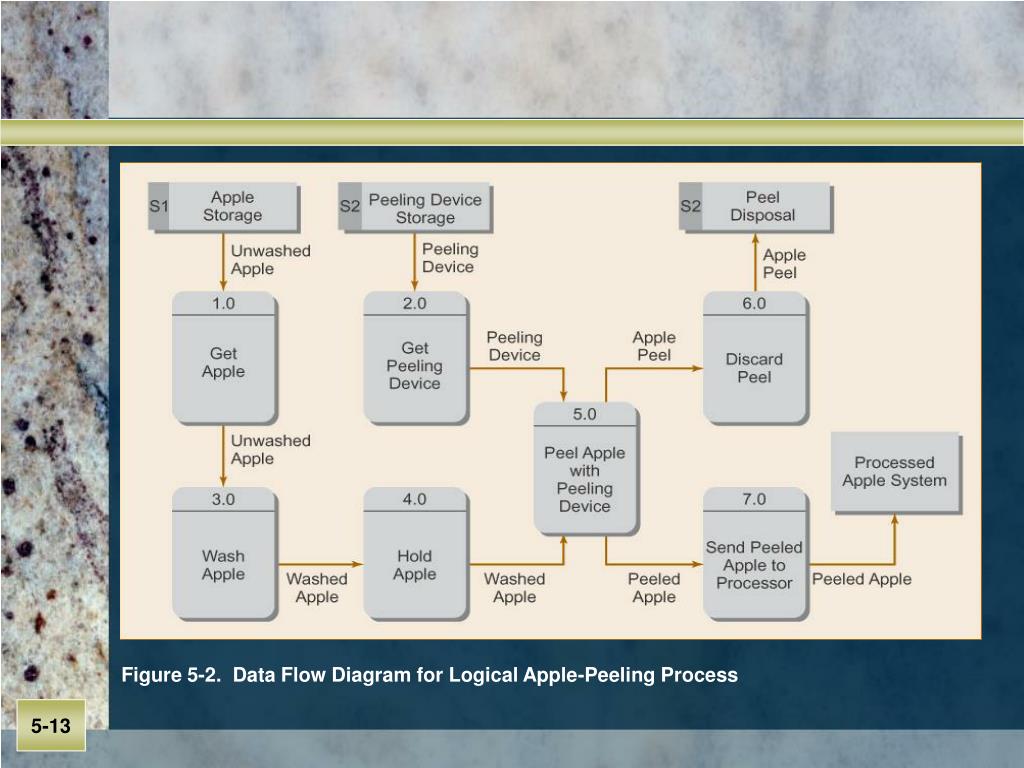

  13. Figure 5-2. Data Flow Diagram for Logical Apple-Peeling Process

  14. DFD Hierarchy • System is composed of a decomposable set of subsystems • By creating a top-down decomposed hierarchy of diagrams, each with a greater degree of detail than the last, we can understand the complexity of the system

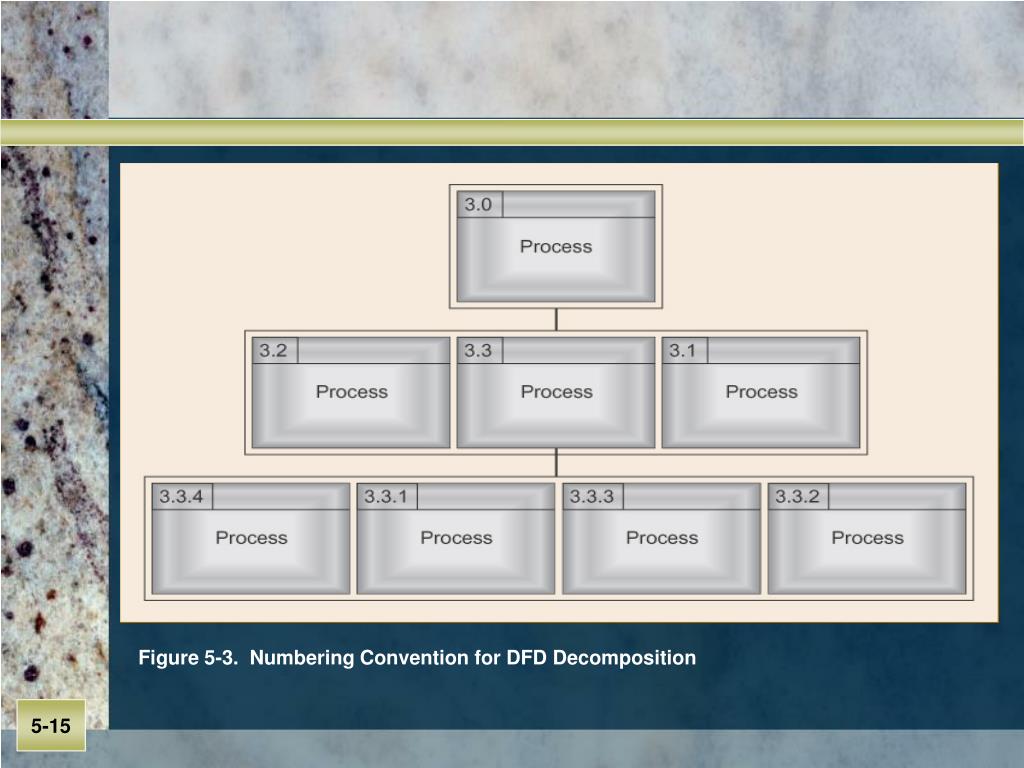

  15. Figure 5-3. Numbering Convention for DFD Decomposition

  16. Context Level Diagram • Shows the system boundary • Contain only one process, labeled with the name of the system, assigned a zero as its identifier • Data flow connects the process to its source and sink entities

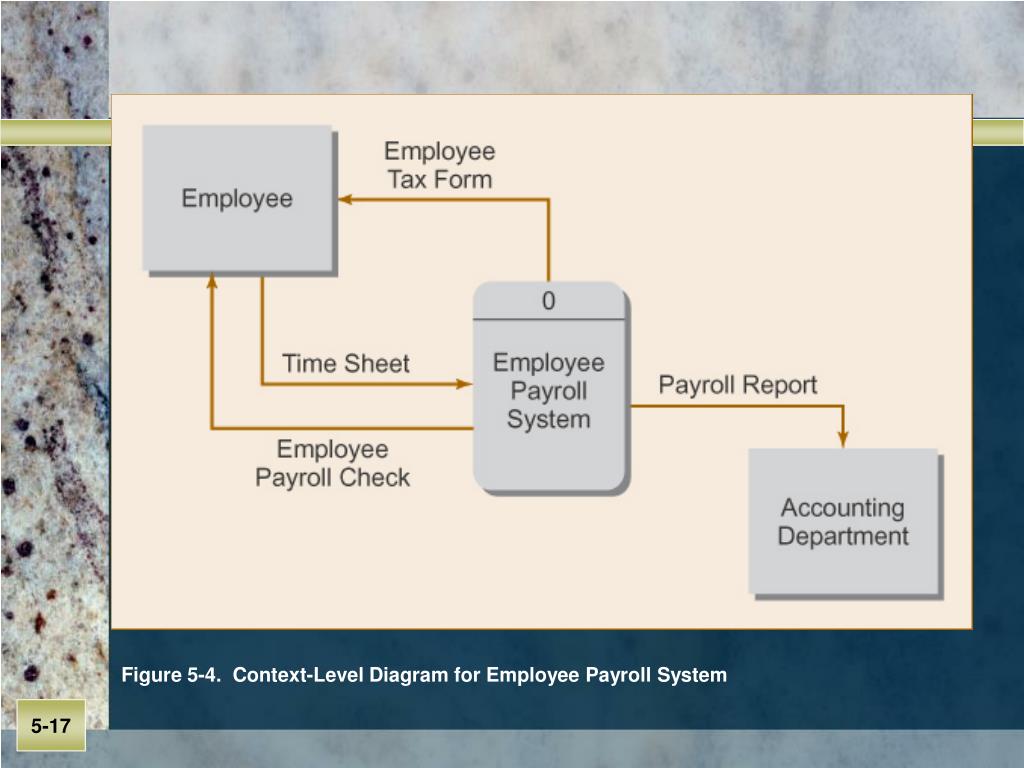

  17. Figure 5-4. Context-Level Diagram for Employee Payroll System

  18. Level-0 DFD • More detail than the context diagram • Major processes within the system • Sequence of those processes • Data stores accessed by those processes • Source and sink entities that interact with the system

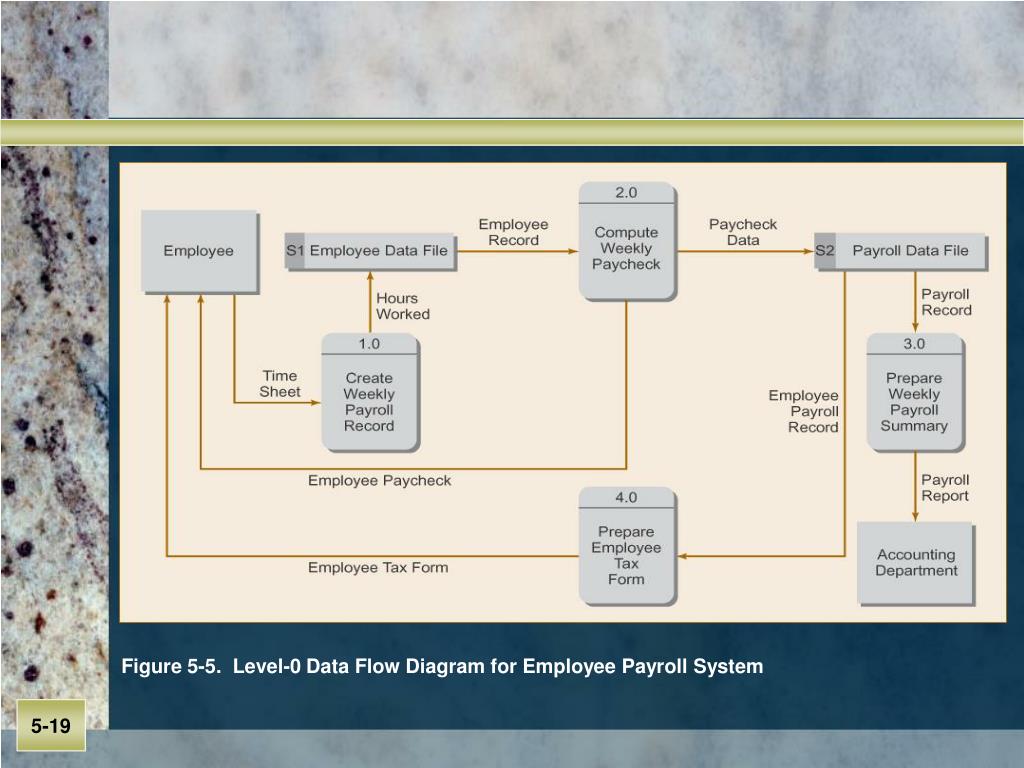

  19. Figure 5-5. Level-0 Data Flow Diagram for Employee Payroll System

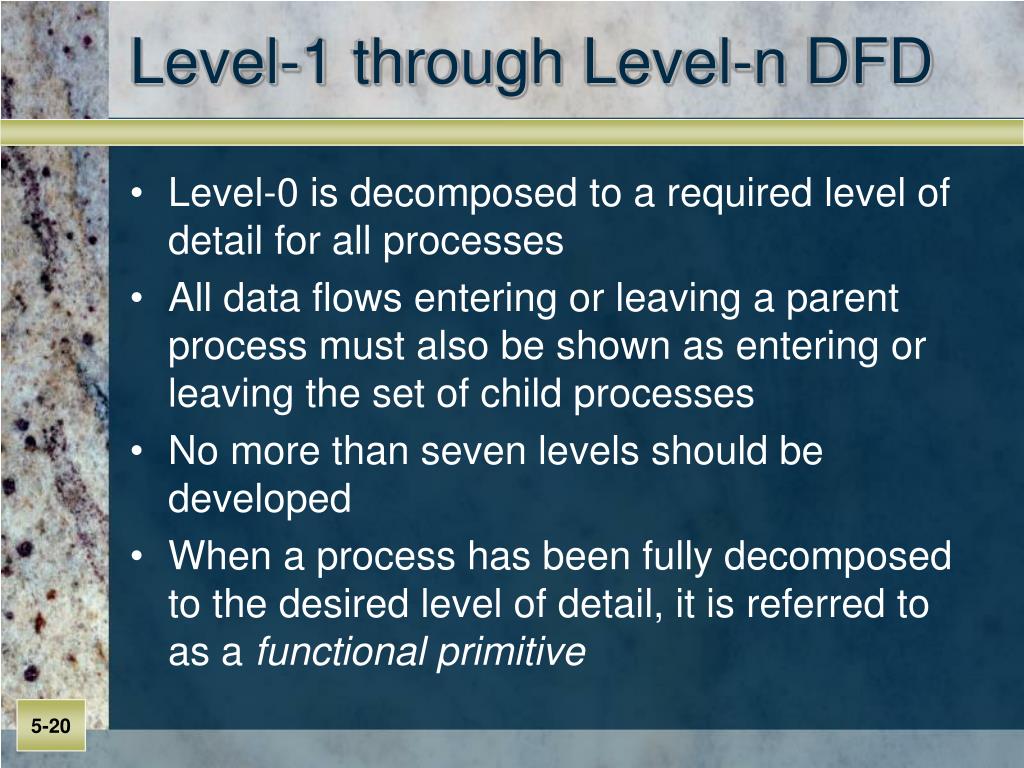

  20. Level-1 through Level-n DFD • Level-0 is decomposed to a required level of detail for all processes • All data flows entering or leaving a parent process must also be shown as entering or leaving the set of child processes • No more than seven levels should be developed • When a process has been fully decomposed to the desired level of detail, it is referred to as a functional primitive

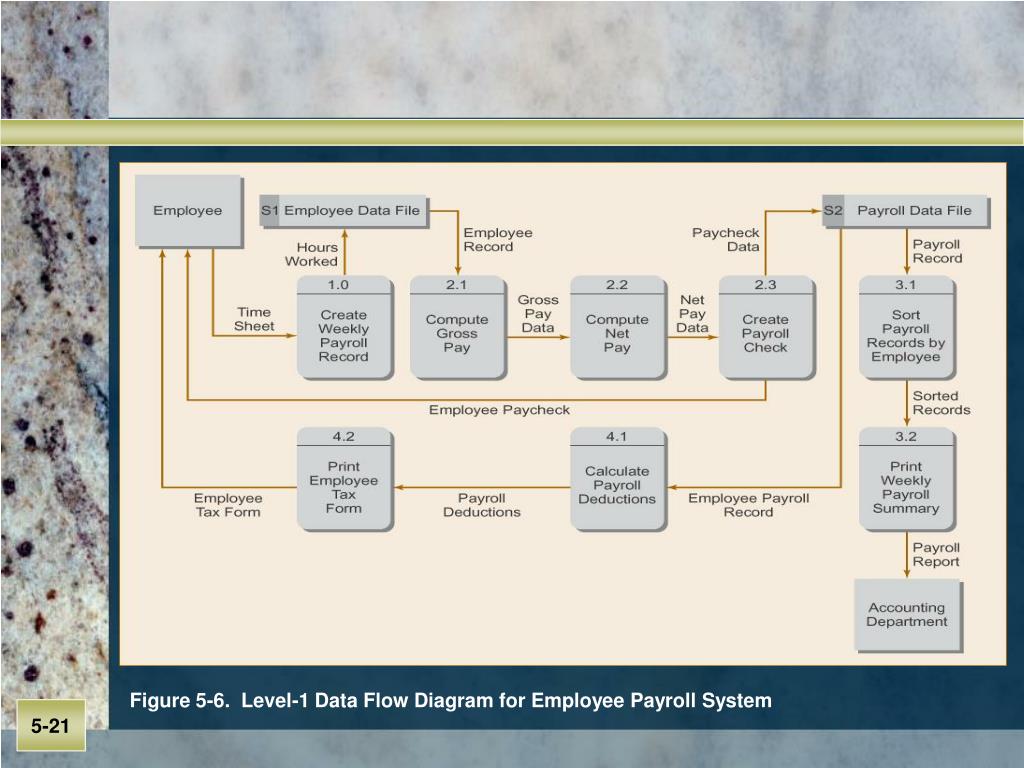

  21. Figure 5-6. Level-1 Data Flow Diagram for Employee Payroll System

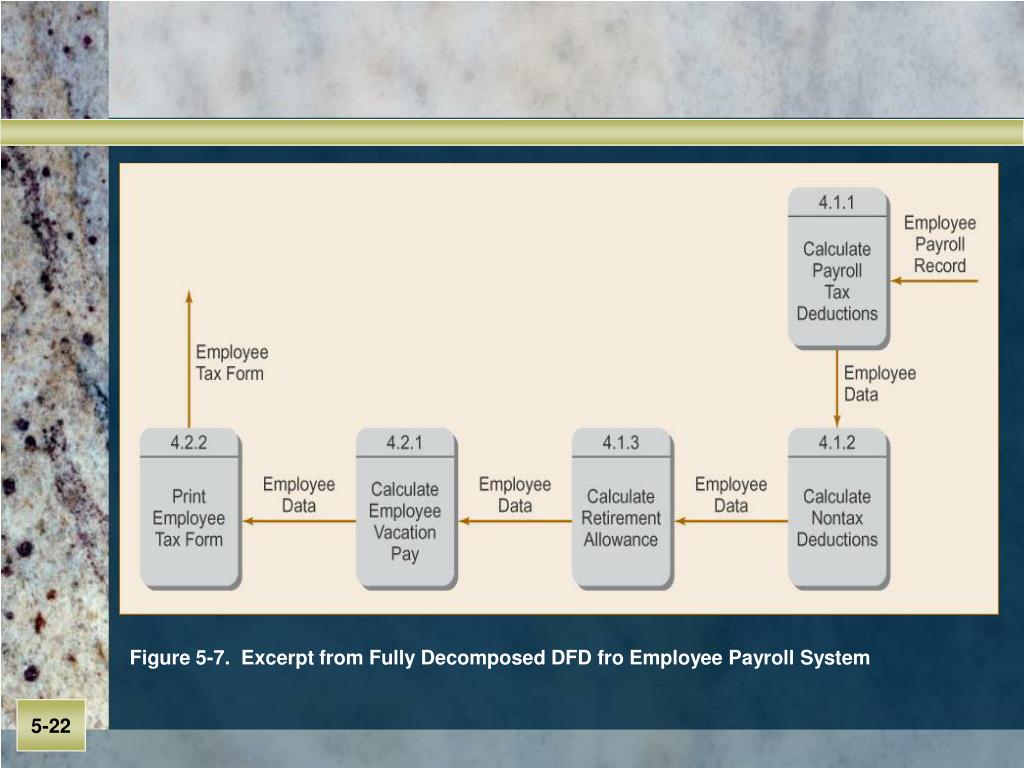

  22. Figure 5-7. Excerpt from Fully Decomposed DFD fro Employee Payroll System

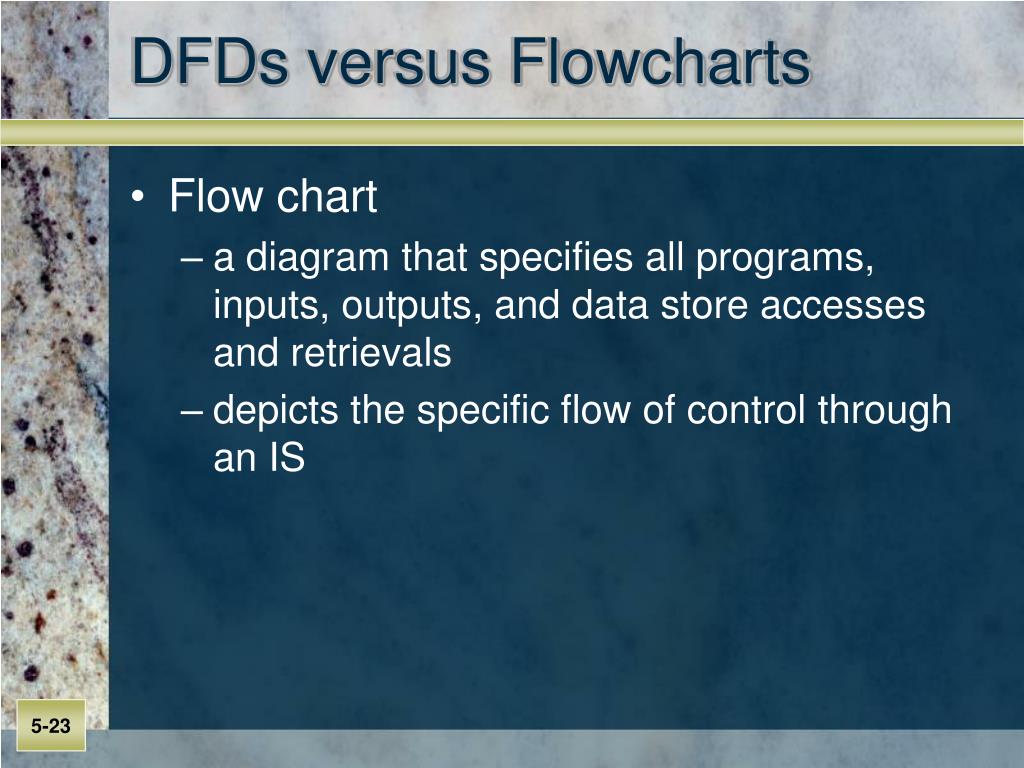

  23. DFDs versus Flowcharts • Flow chart • a diagram that specifies all programs, inputs, outputs, and data store accesses and retrievals • depicts the specific flow of control through an IS

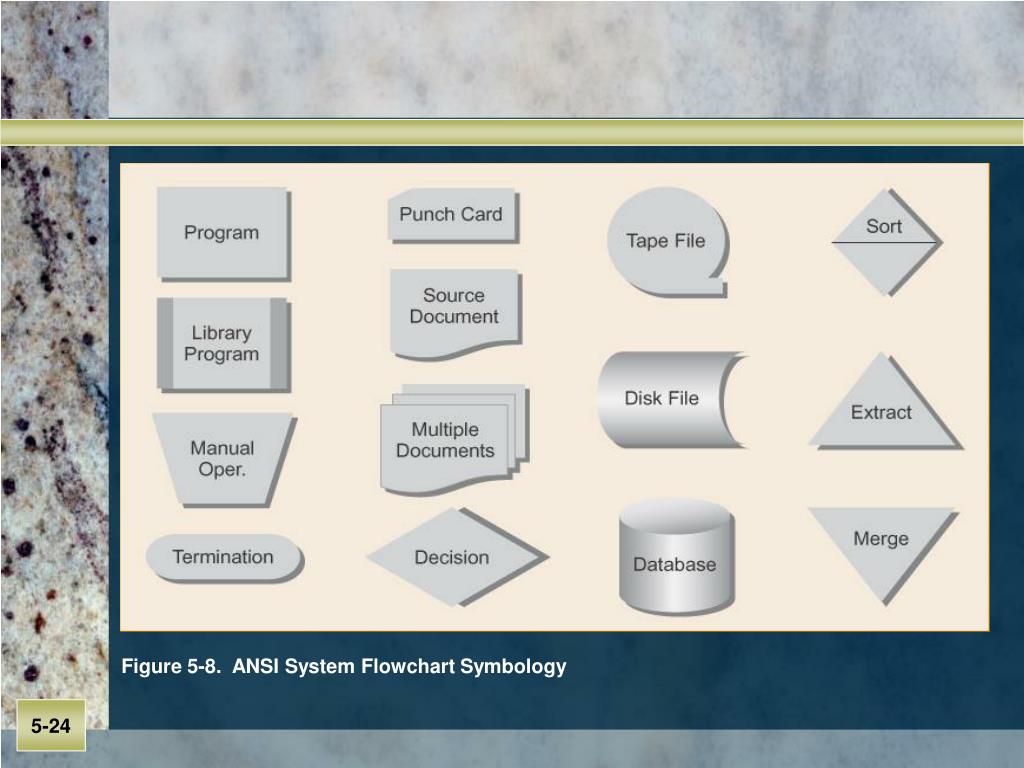

  24. Figure 5-8. ANSI System Flowchart Symbology

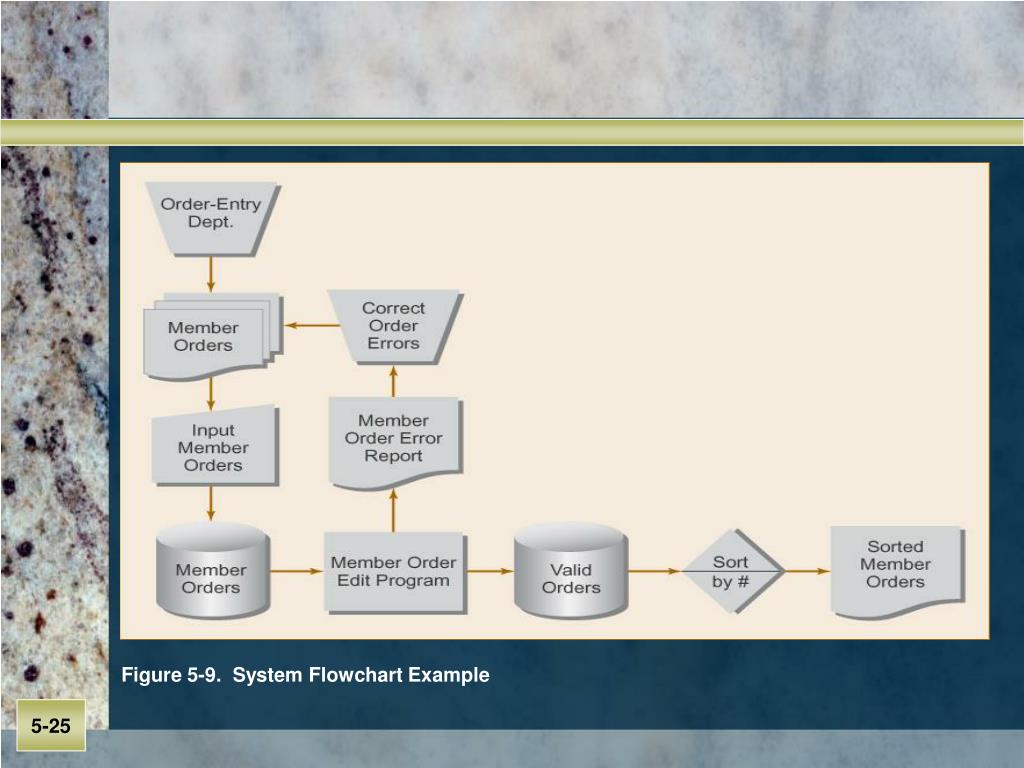

  25. Figure 5-9. System Flowchart Example

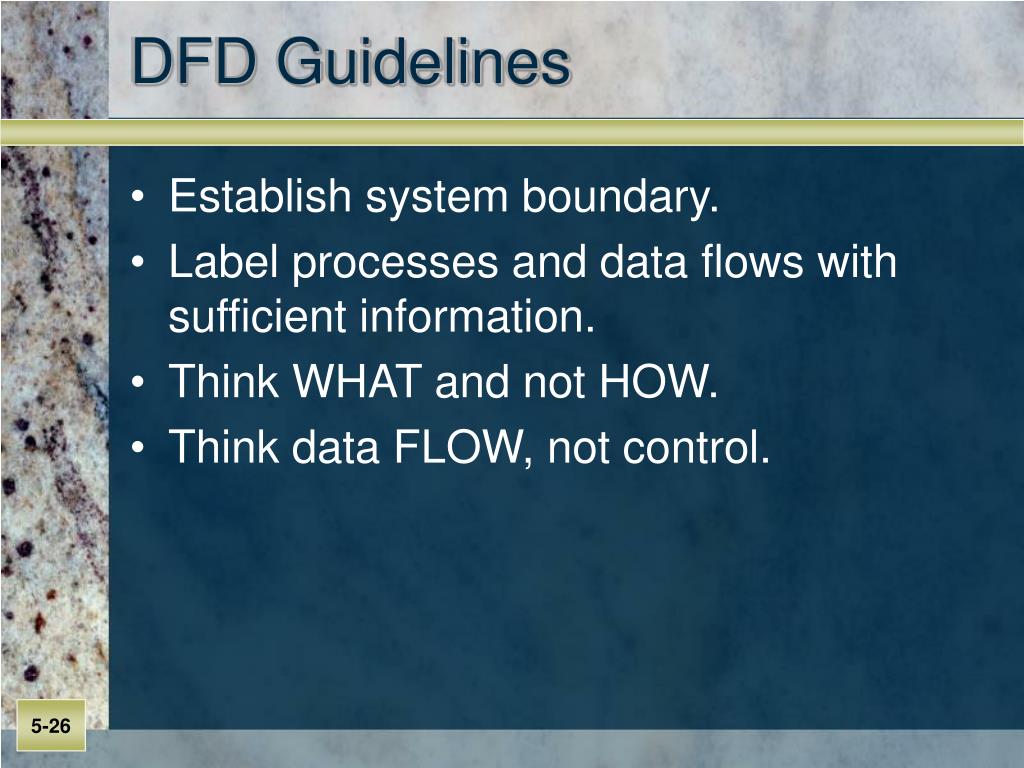

  26. DFD Guidelines • Establish system boundary. • Label processes and data flows with sufficient information. • Think WHAT and not HOW. • Think data FLOW, not control.

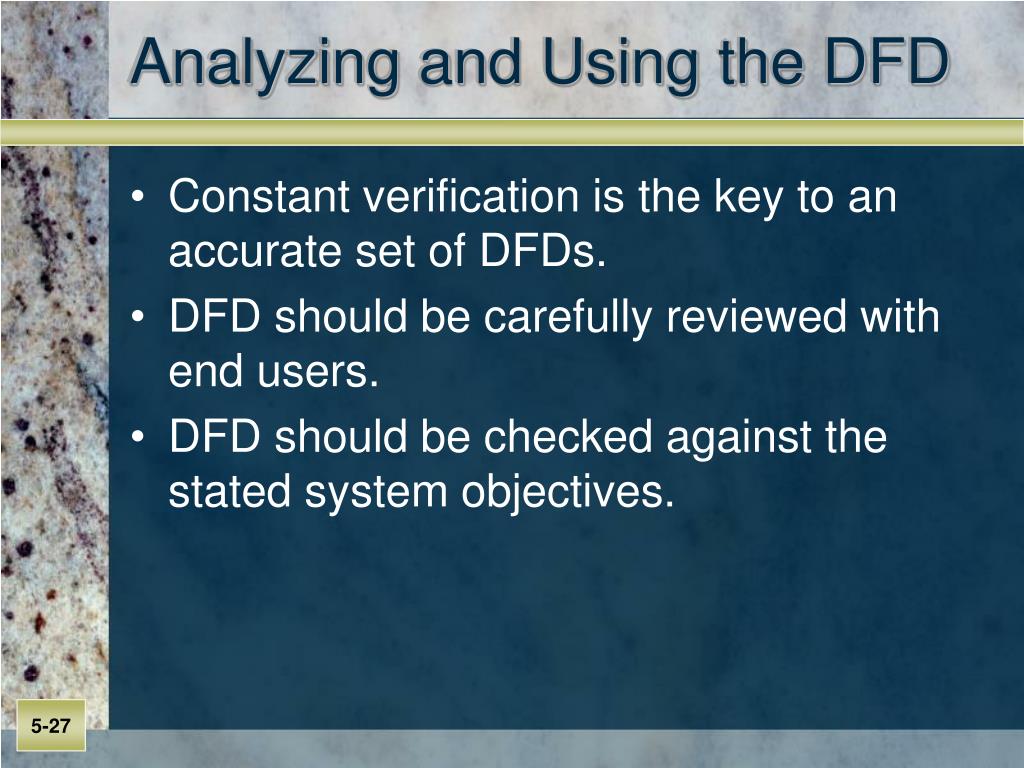

  27. Analyzing and Using the DFD • Constant verification is the key to an accurate set of DFDs. • DFD should be carefully reviewed with end users. • DFD should be checked against the stated system objectives.

  28. Modeling Process Logic • A technique used to model the sequential or temporal logic contained within the processes • Structured English • Decision tables • Decision Trees • State-Transition Diagram

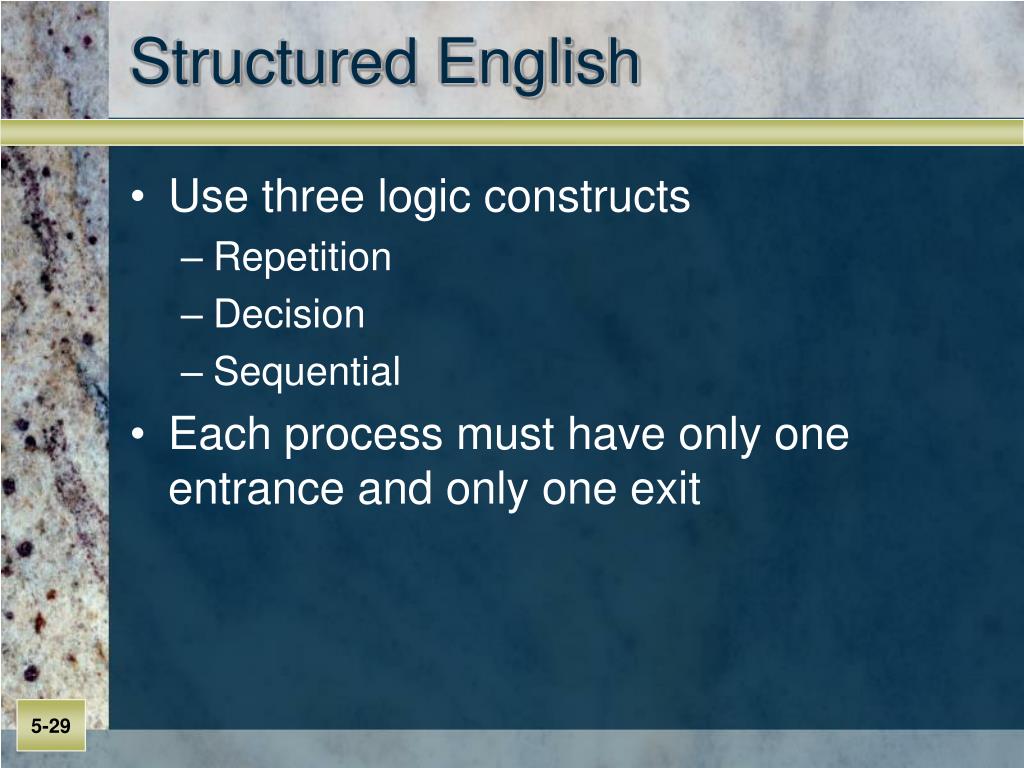

  29. Structured English • Use three logic constructs • Repetition • Decision • Sequential • Each process must have only one entrance and only one exit

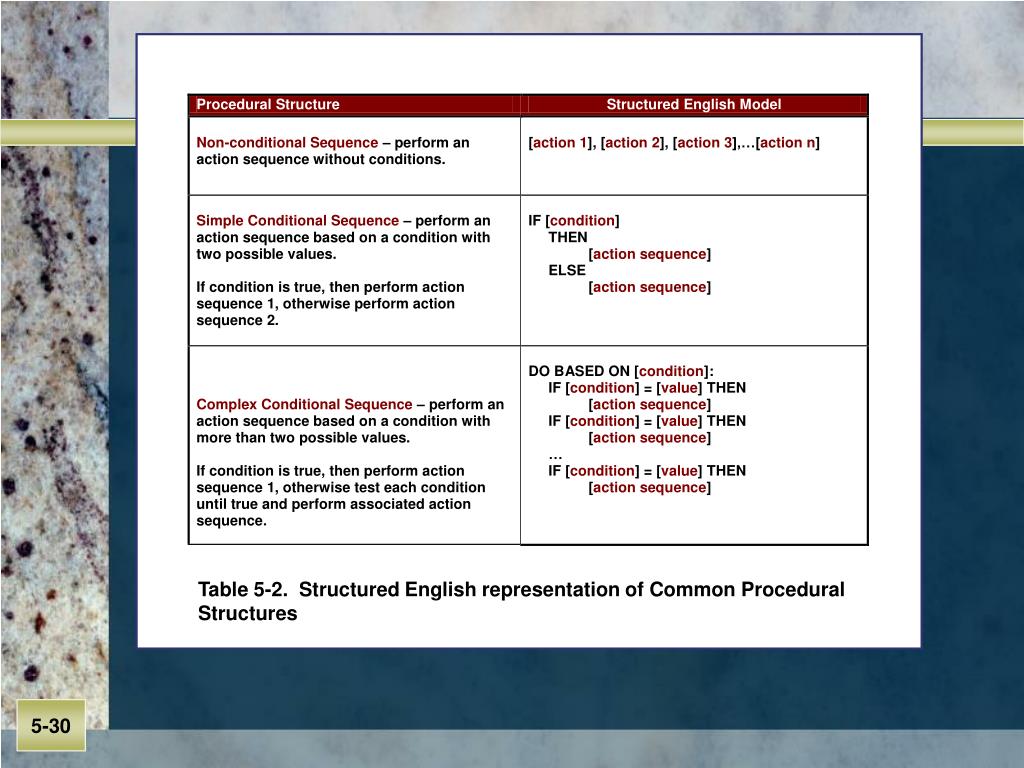

  30. Table 5-2. Structured English representation of Common Procedural Structures

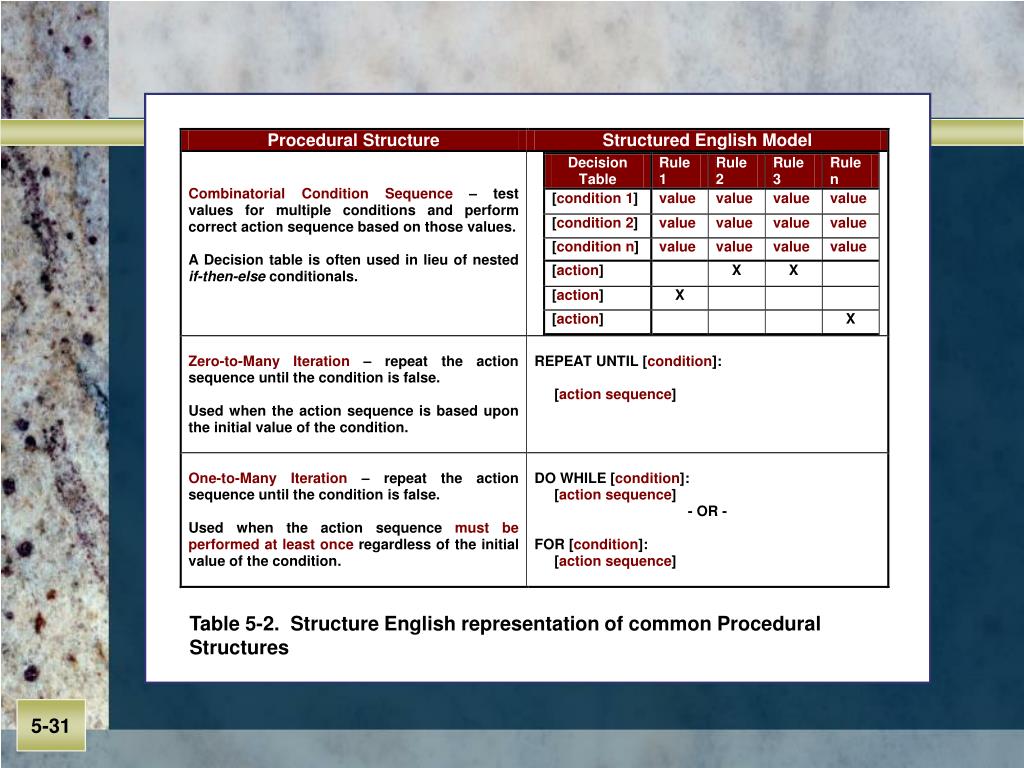

  31. Table 5-2. Structure English representation of common Procedural Structures

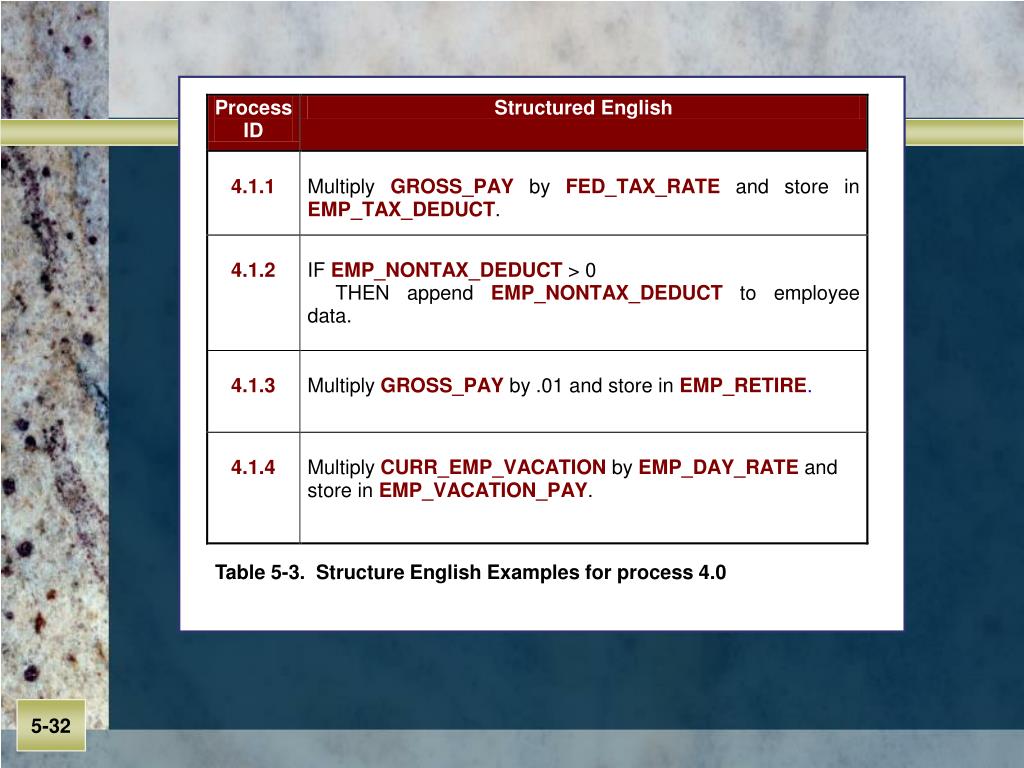

  32. Table 5-3. Structure English Examples for process 4.0

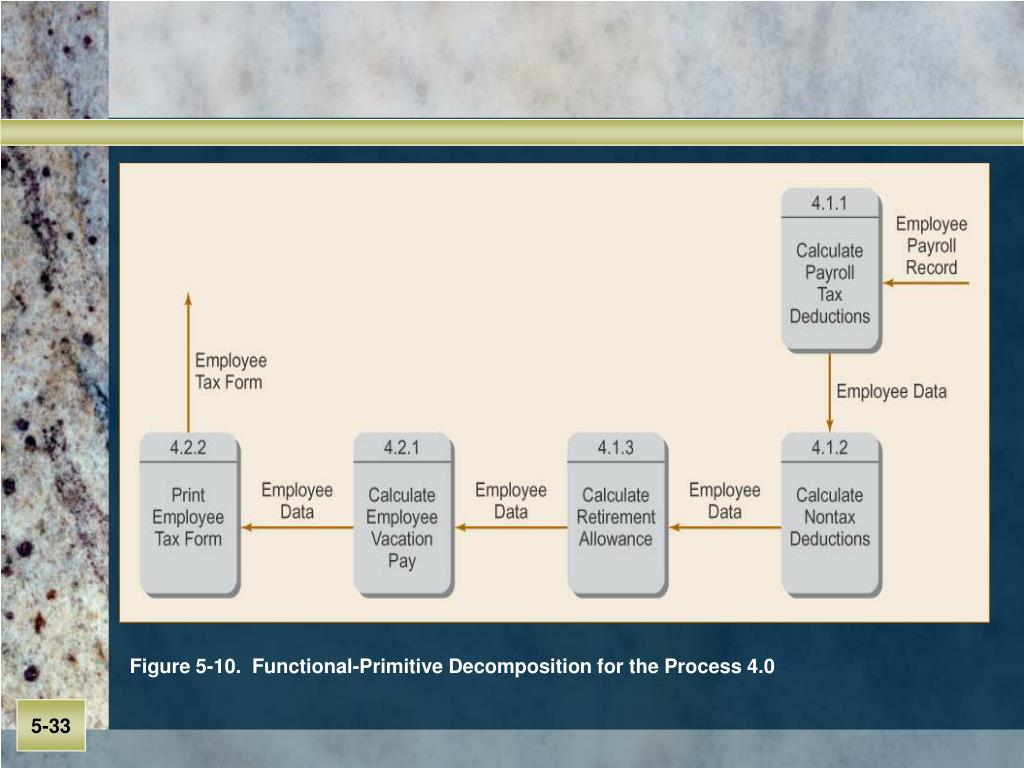

  33. Figure 5-10. Functional-Primitive Decomposition for the Process 4.0

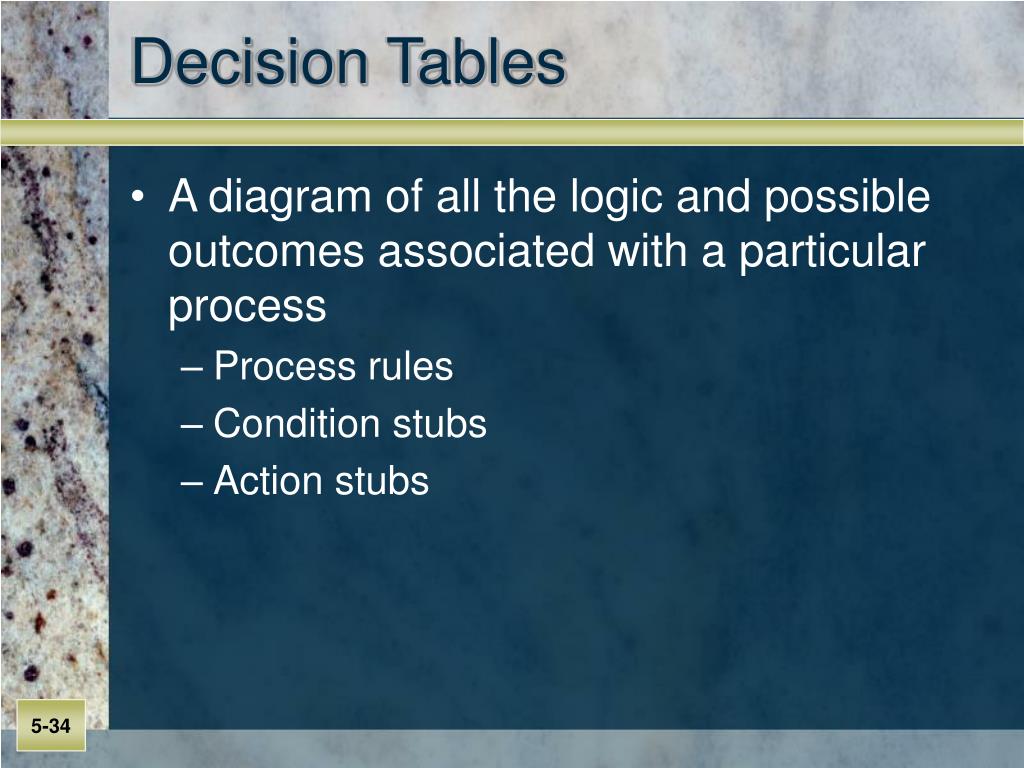

  34. Decision Tables • A diagram of all the logic and possible outcomes associated with a particular process • Process rules • Condition stubs • Action stubs

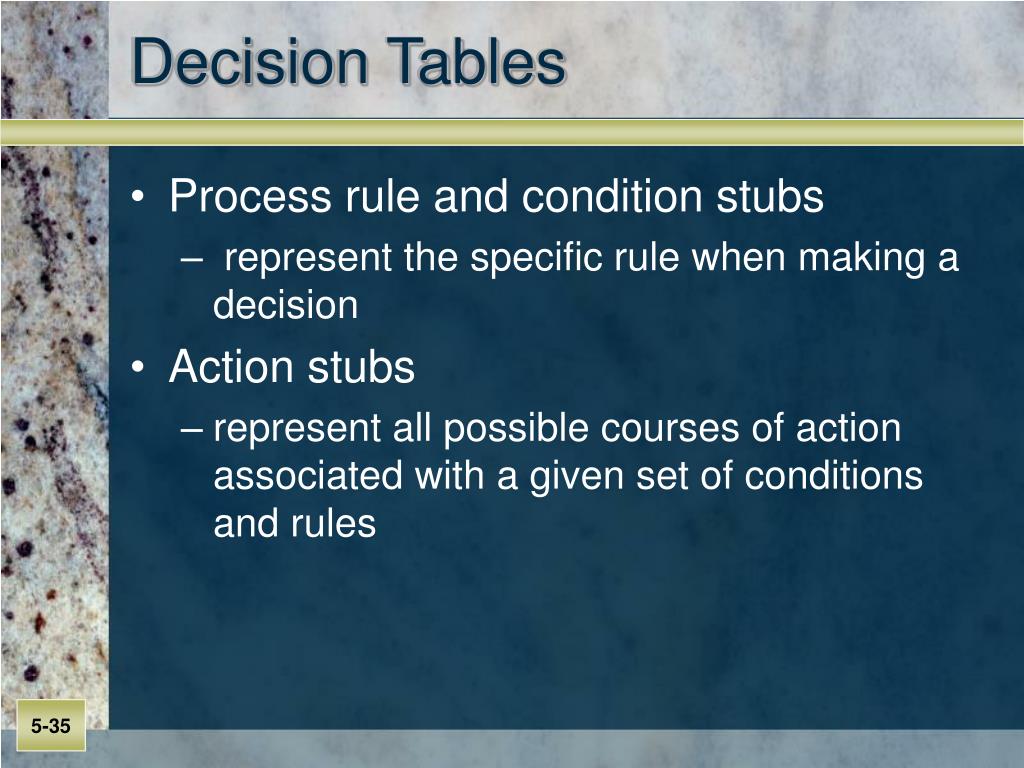

  35. Decision Tables • Process rule and condition stubs • represent the specific rule when making a decision • Action stubs • represent all possible courses of action associated with a given set of conditions and rules

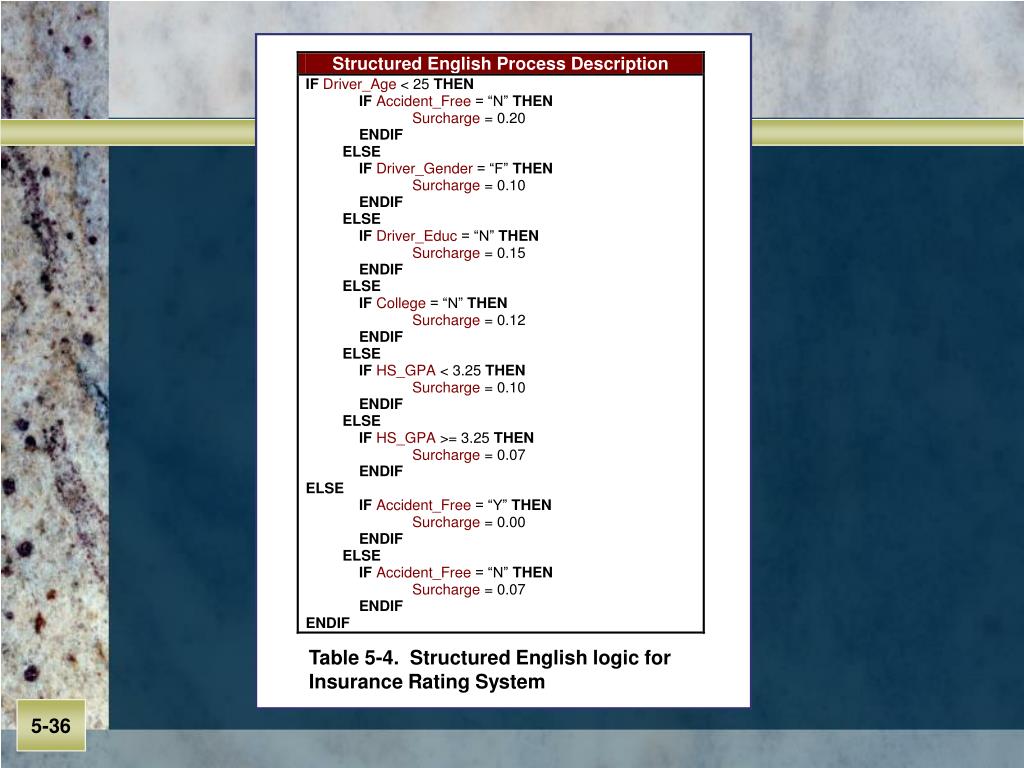

  36. Table 5-4. Structured English logic for Insurance Rating System

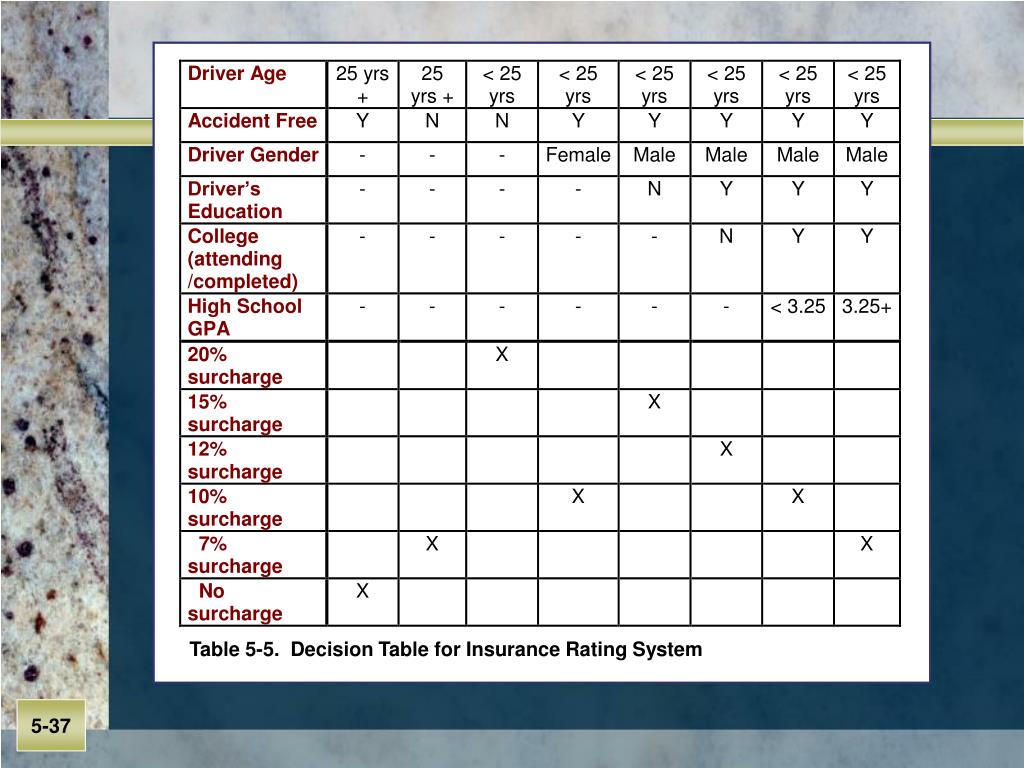

  37. Table 5-5. Decision Table for Insurance Rating System

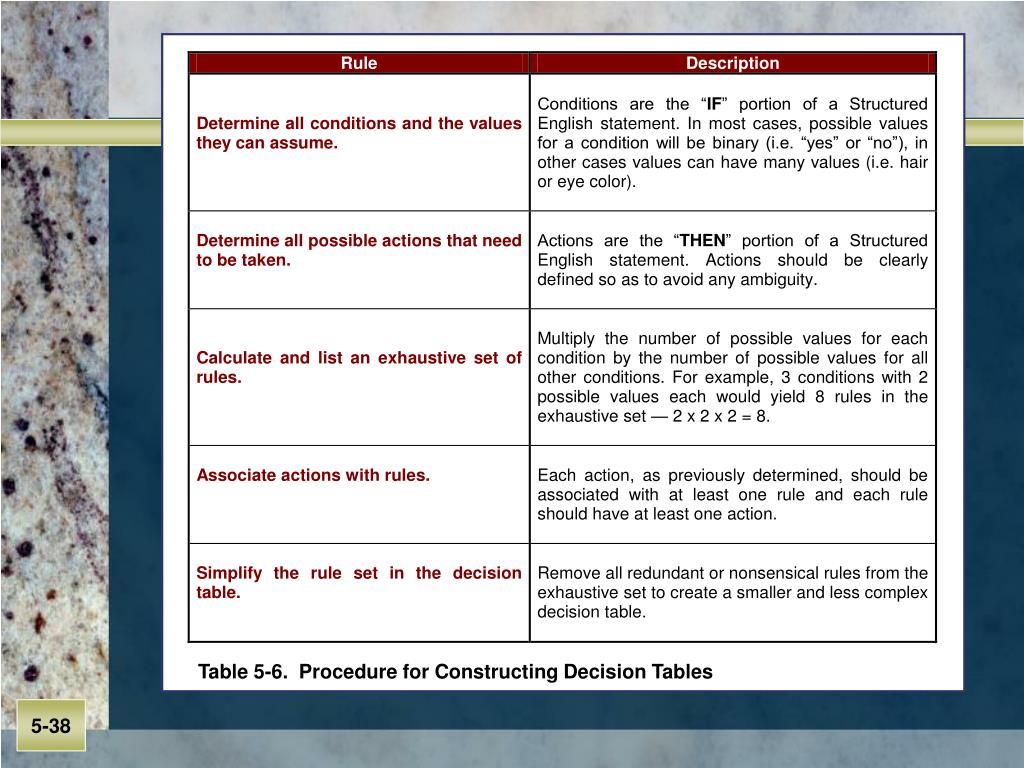

  38. Table 5-6. Procedure for Constructing Decision Tables

  39. Decision Trees • Graphical representation of logic in a “tree trunk and branches” shape • Decision Points (nodes) • the sequence in which the decision are made • Actions • description of action to be taken are connected to a node by an arrow

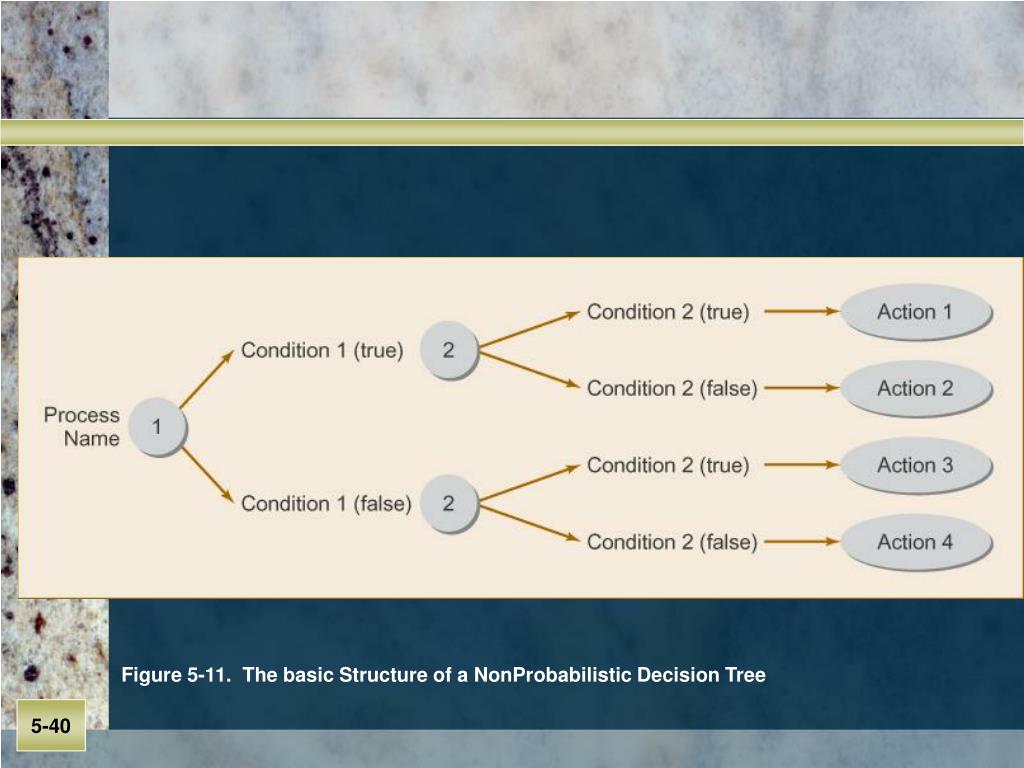

  40. Figure 5-11. The basic Structure of a NonProbabilistic Decision Tree

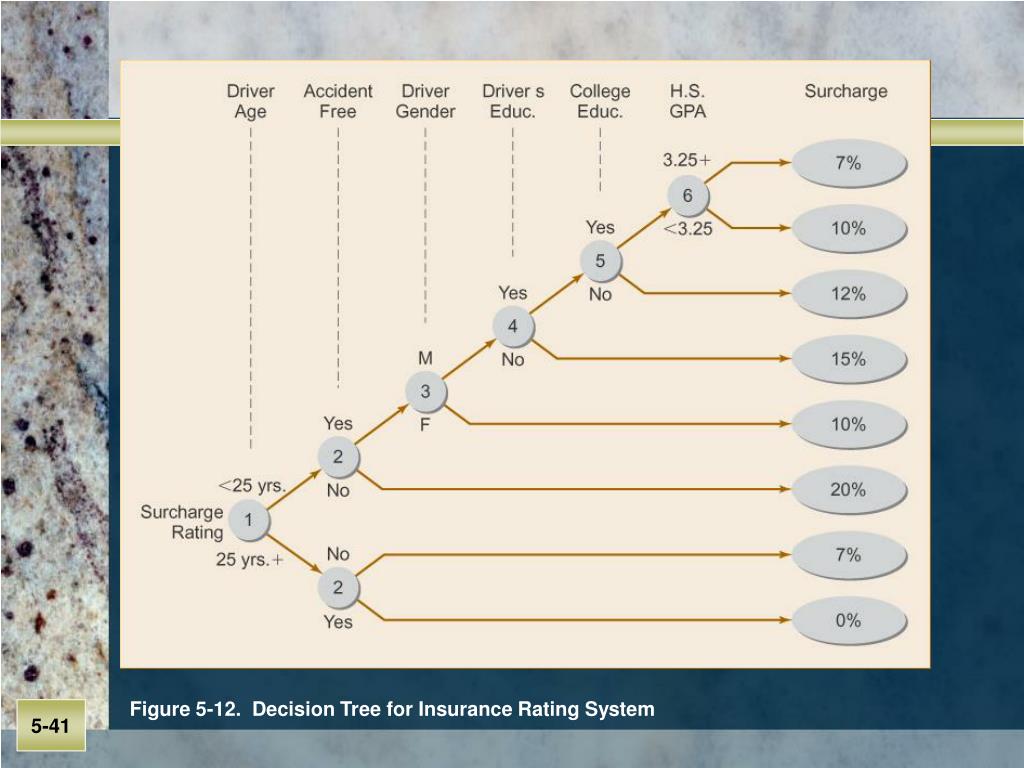

  41. Figure 5-12. Decision Tree for Insurance Rating System

  42. State Transition Diagram • Models how two or more processes are related to each other in time • Illustrates the various states a system component can take in relation to the events or conditions that cause a change from one state to another

  43. State Transition Diagram • State: a condition of existence that can be taken by a system component • When an event occurs, a transition triggered, and the system component assumes a different state, thus causing an action to occur

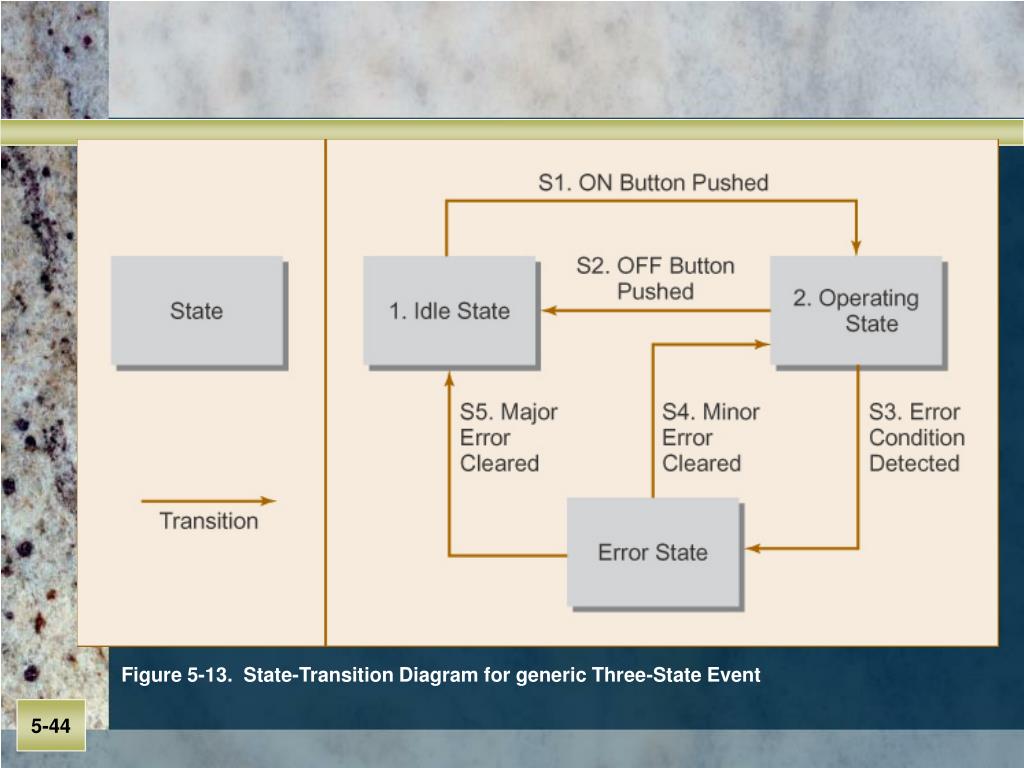

  44. Figure 5-13. State-Transition Diagram for generic Three-State Event

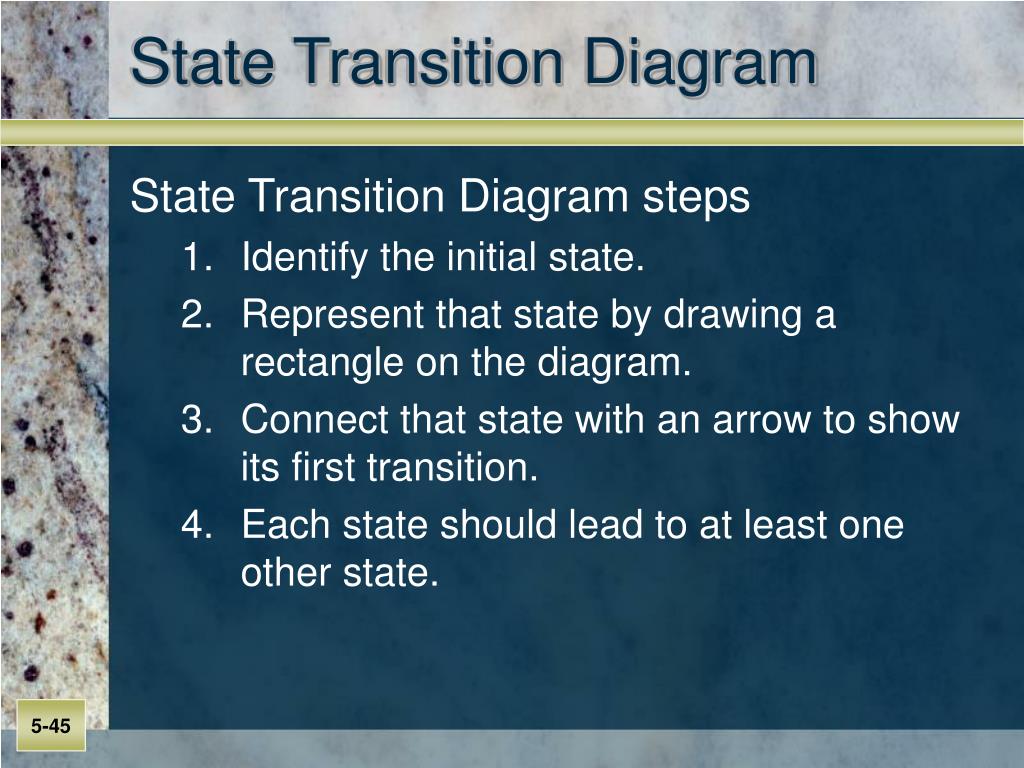

  45. State Transition Diagram State Transition Diagram steps • Identify the initial state. • Represent that state by drawing a rectangle on the diagram. • Connect that state with an arrow to show its first transition. • Each state should lead to at least one other state.

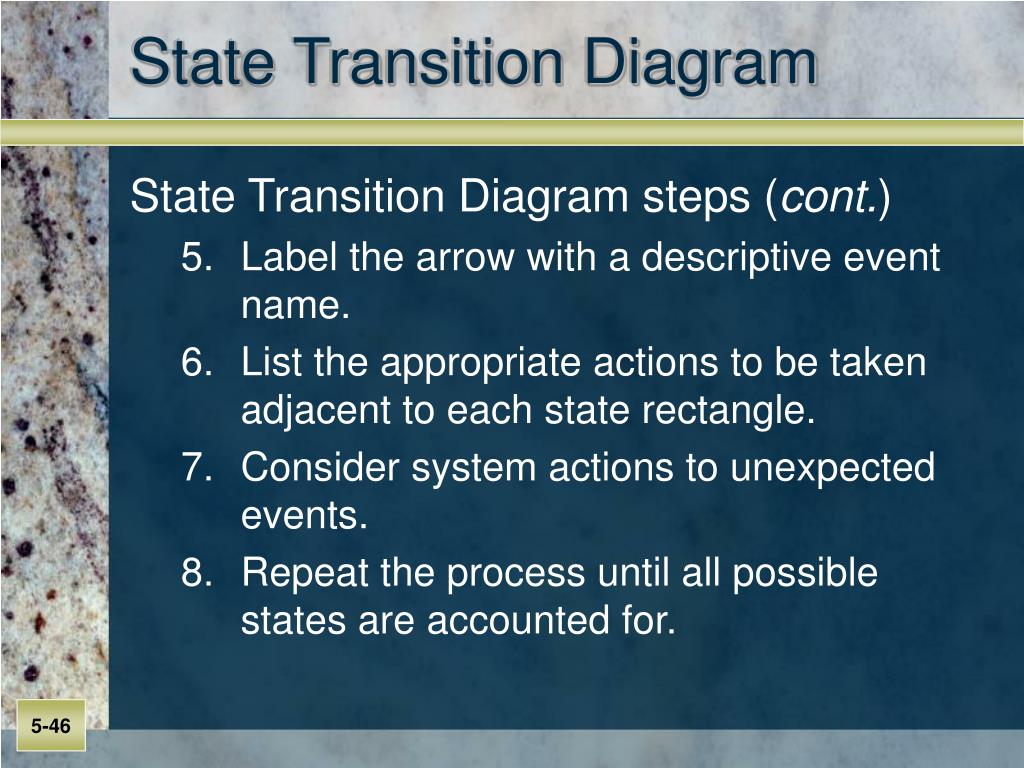

  46. State Transition Diagram State Transition Diagram steps (cont.) • Label the arrow with a descriptive event name. • List the appropriate actions to be taken adjacent to each state rectangle. • Consider system actions to unexpected events. • Repeat the process until all possible states are accounted for.

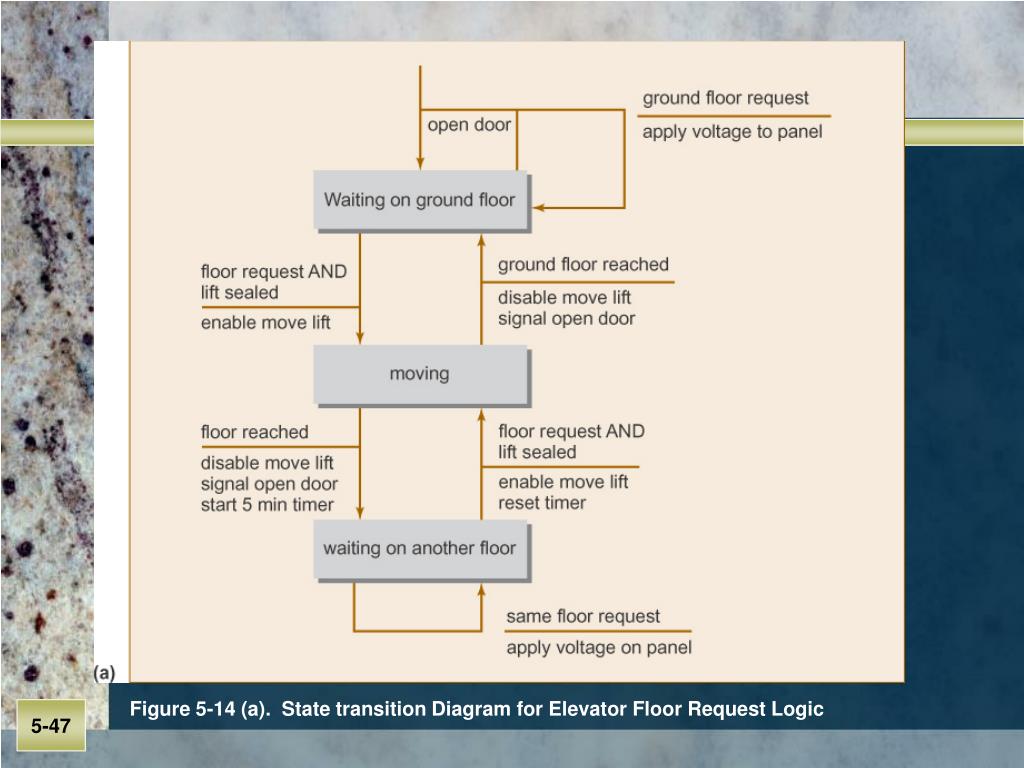

  47. Figure 5-14 (a). State transition Diagram for Elevator Floor Request Logic

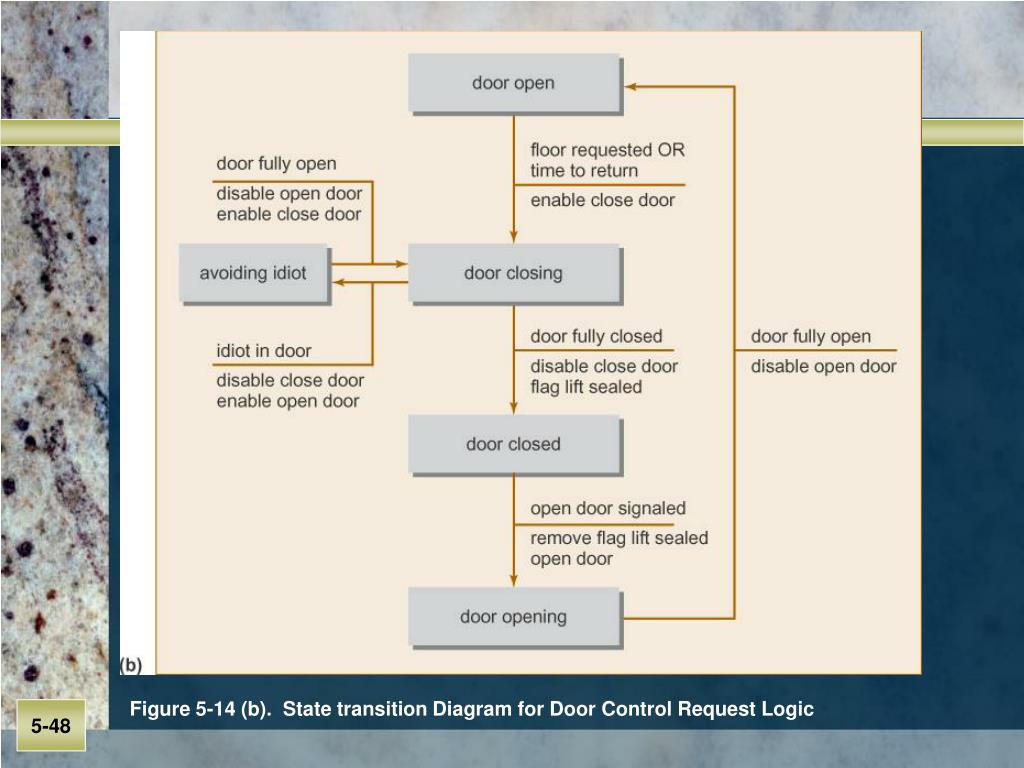

  48. Figure 5-14 (b). State transition Diagram for Door Control Request Logic

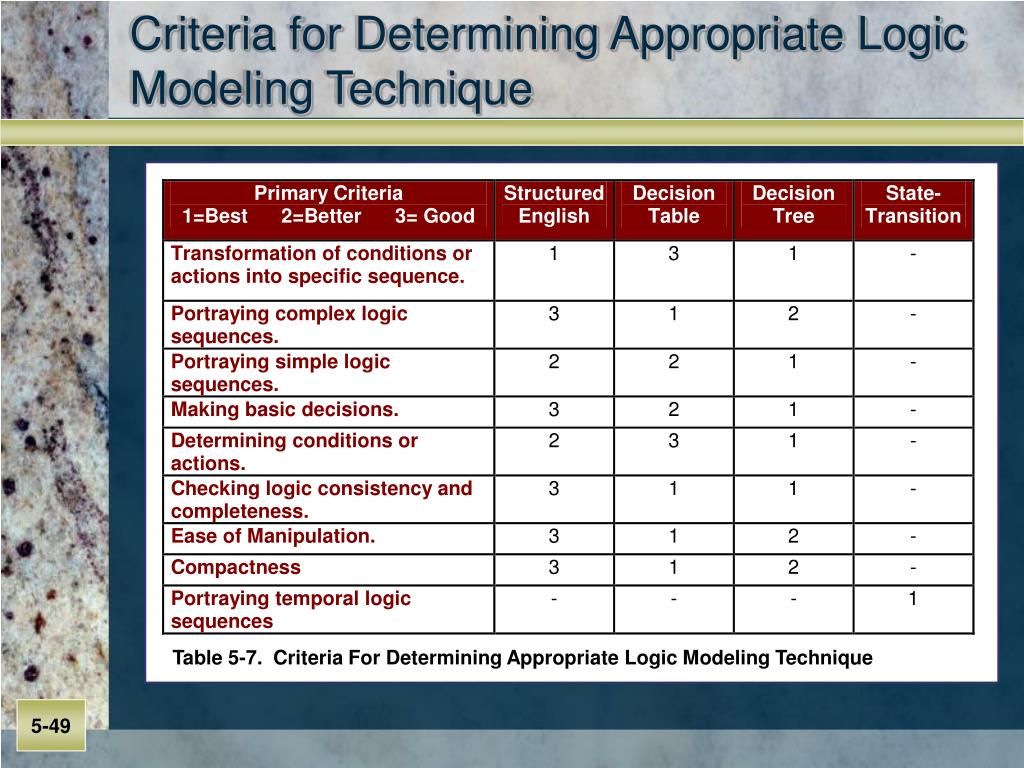

  49. Criteria for Determining Appropriate Logic Modeling Technique Table 5-7. Criteria For Determining Appropriate Logic Modeling Technique

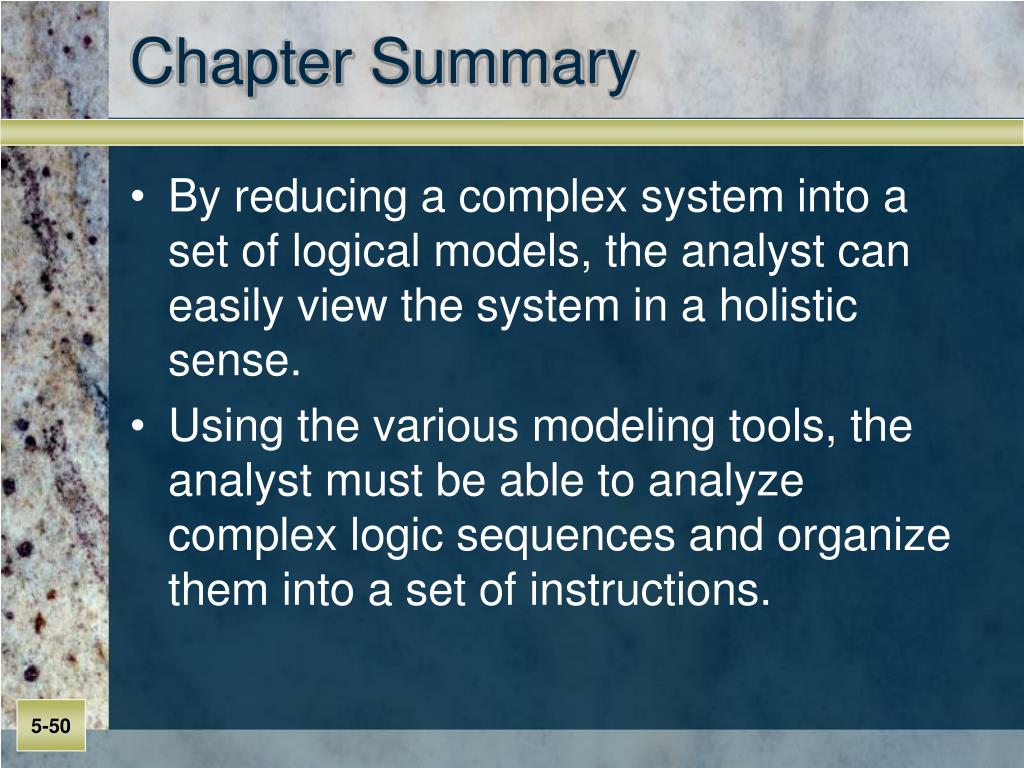

  50. Chapter Summary • By reducing a complex system into a set of logical models, the analyst can easily view the system in a holistic sense. • Using the various modeling tools, the analyst must be able to analyze complex logic sequences and organize them into a set of instructions.
