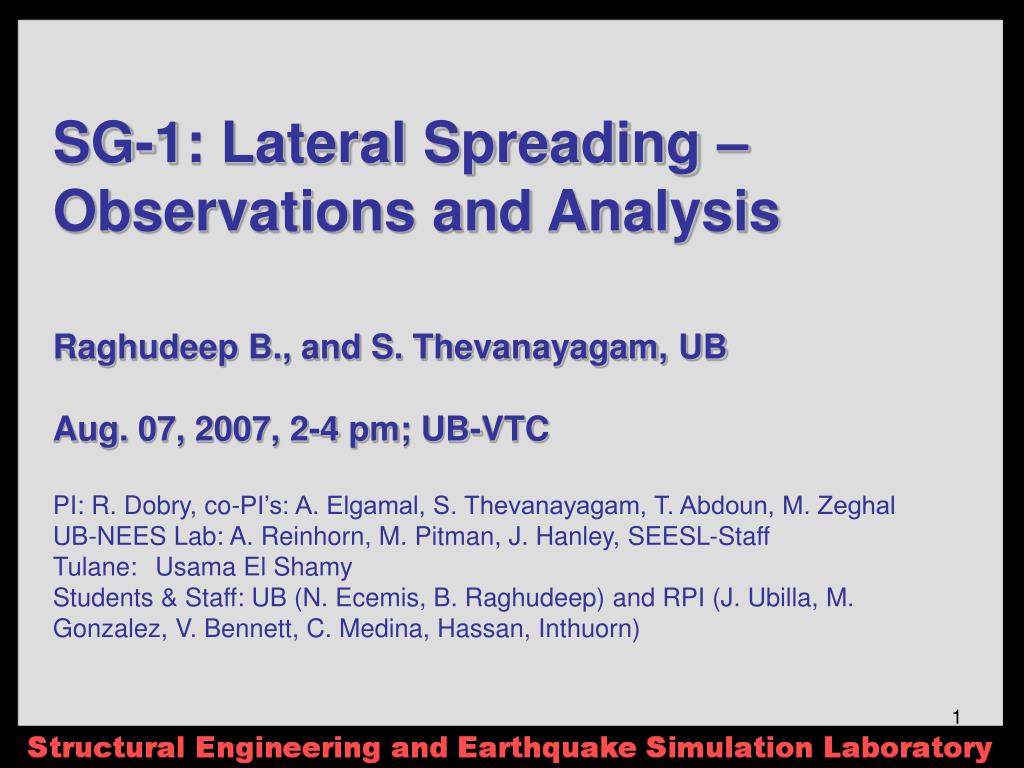

SG-1: Lateral Spreading – Observations and AnalysisRaghudeep B., and S. Thevanayagam, UBAug. 07, 2007, 2-4 pm; UB-VTCPI: R. Dobry, co-PI’s: A. Elgamal, S. Thevanayagam, T. Abdoun, M. ZeghalUB-NEES Lab: A. Reinhorn, M. Pitman, J. Hanley, SEESL-StaffTulane:Usama El ShamyStudents & Staff: UB (N. Ecemis, B. Raghudeep) and RPI (J. Ubilla, M. Gonzalez, V. Bennett, C. Medina, Hassan, Inthuorn)

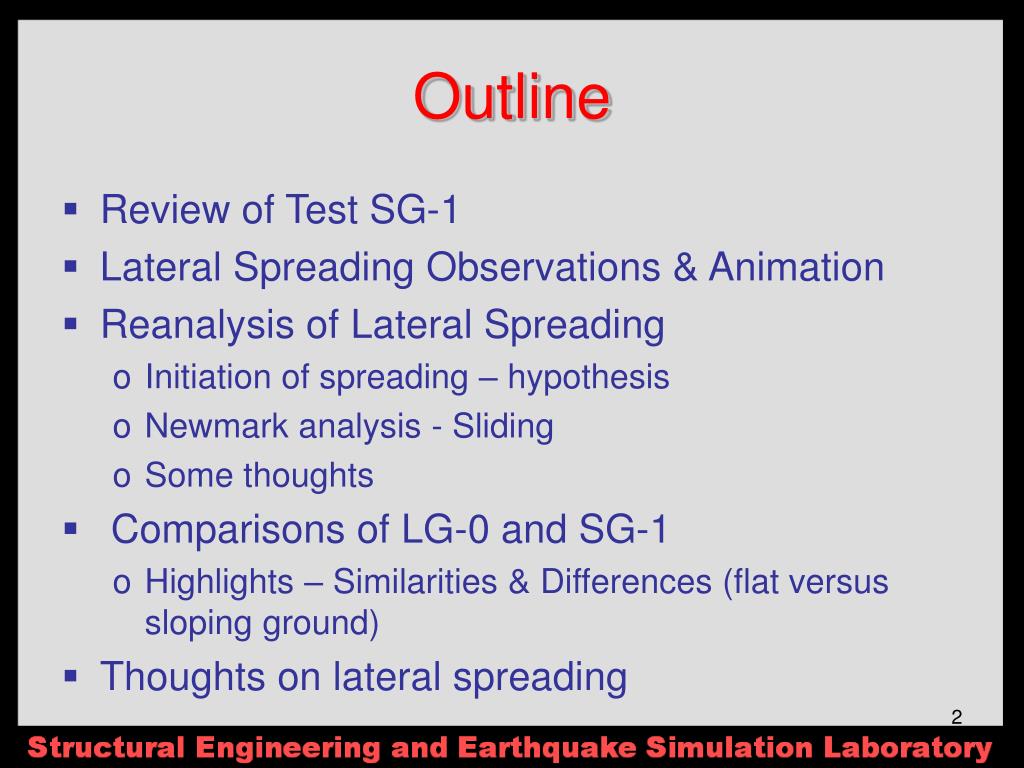

  • Review of Test SG-1

  • Lateral Spreading Observations & Animation

  • Reanalysis of Lateral Spreading

    • Initiation of spreading – hypothesis

    • Newmark analysis - Sliding

    • Some thoughts

  • Comparisons of LG-0 and SG-1

    • Highlights – Similarities & Differences (flat versus sloping ground)

  • Thoughts on lateral spreading

Review of test sg 1

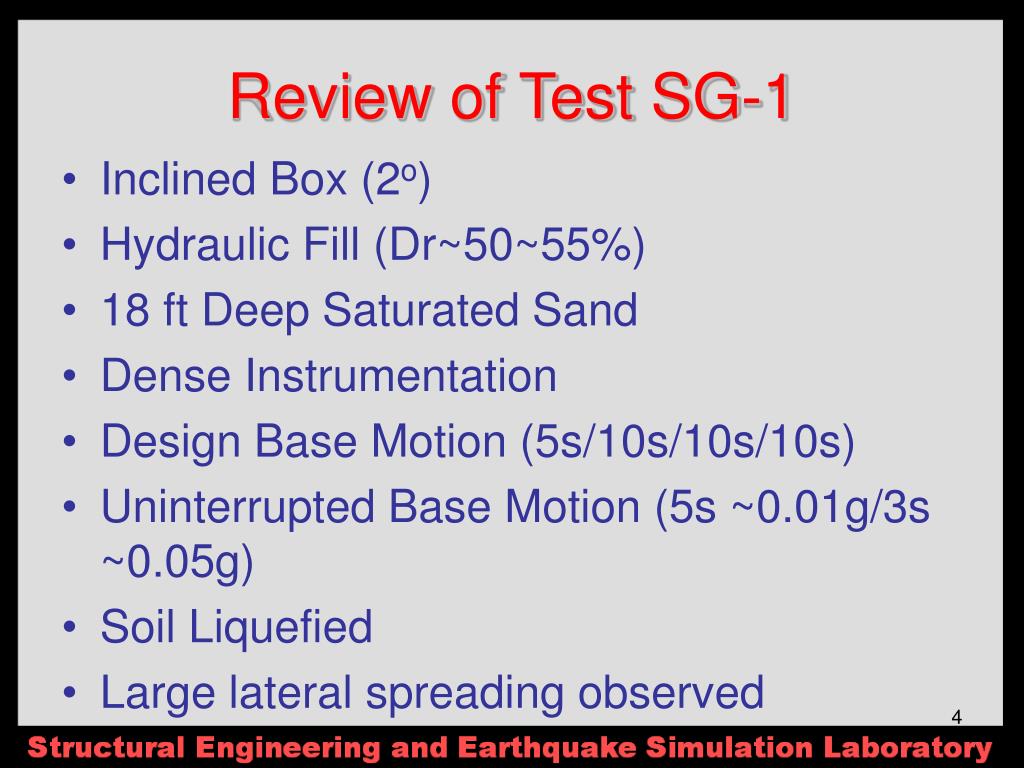

Review of Test SG-1

Review of test sg 11

Review of Test SG-1

  • Inclined Box (2o)

  • Hydraulic Fill (Dr~50~55%)

  • 18 ft Deep Saturated Sand

  • Dense Instrumentation

  • Design Base Motion (5s/10s/10s/10s)

  • Uninterrupted Base Motion (5s ~0.01g/3s ~0.05g)

  • Soil Liquefied

  • Large lateral spreading observed

Test sg 1 configuration

Test SG-1 Configuration

Top View

Side View

Input base motion

Input Base Motion

2 Hz

Acceleration response

Base Input Motion

Acceleration Response

Excess pore pressure response

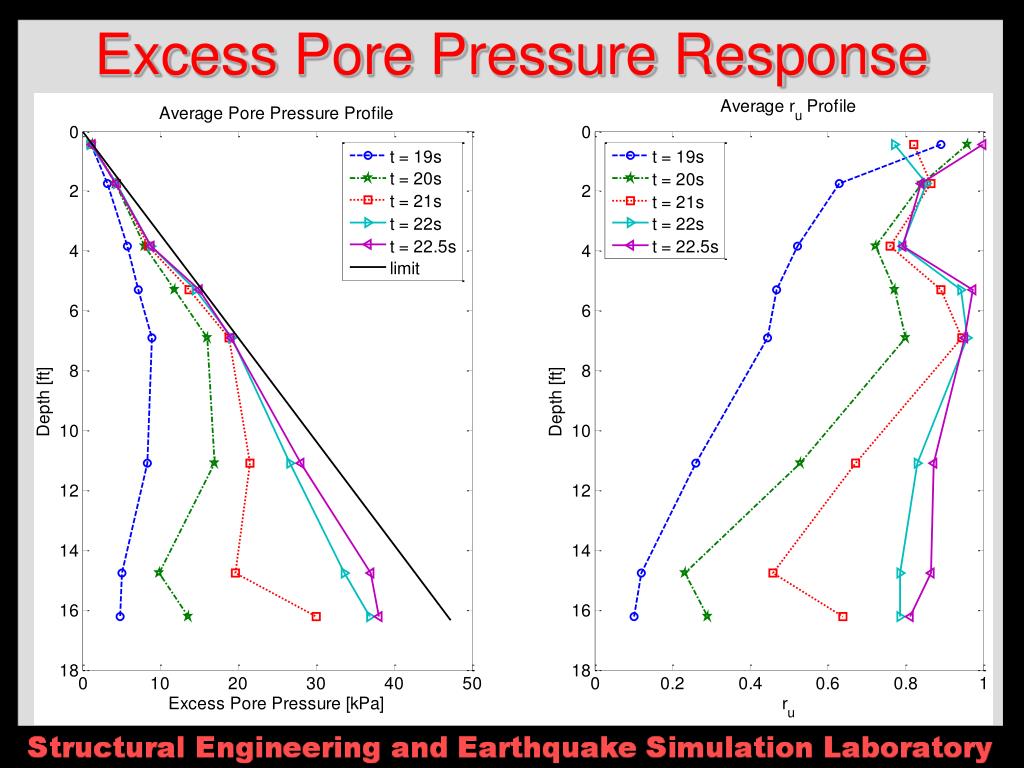

Excess Pore Pressure Response

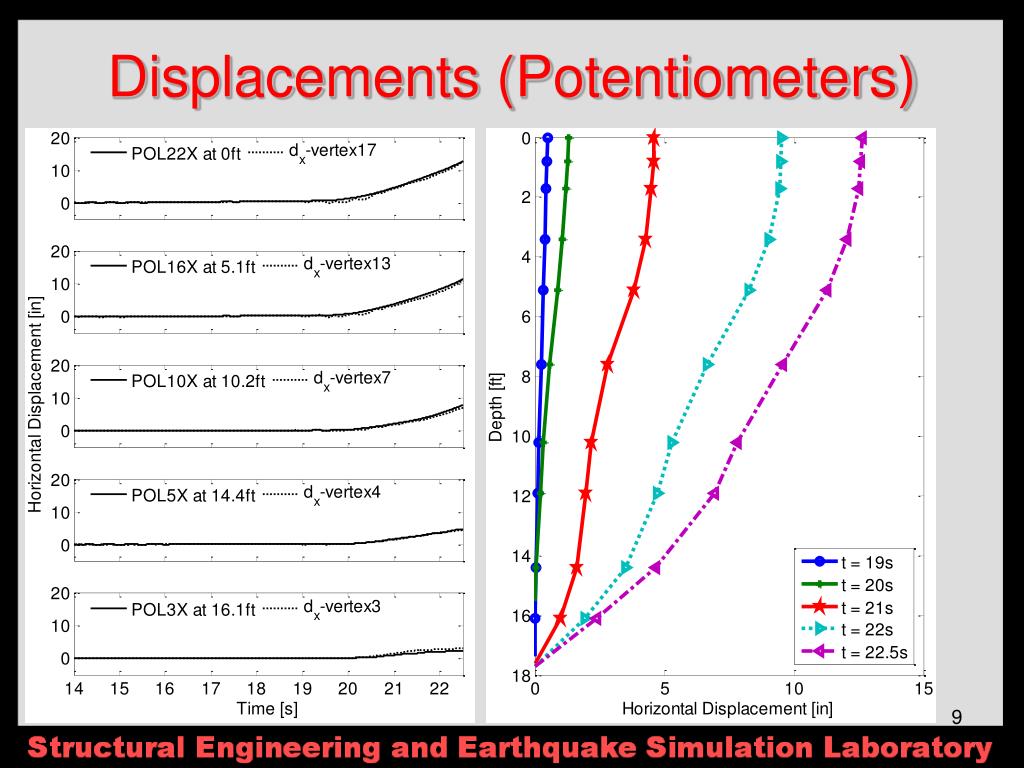

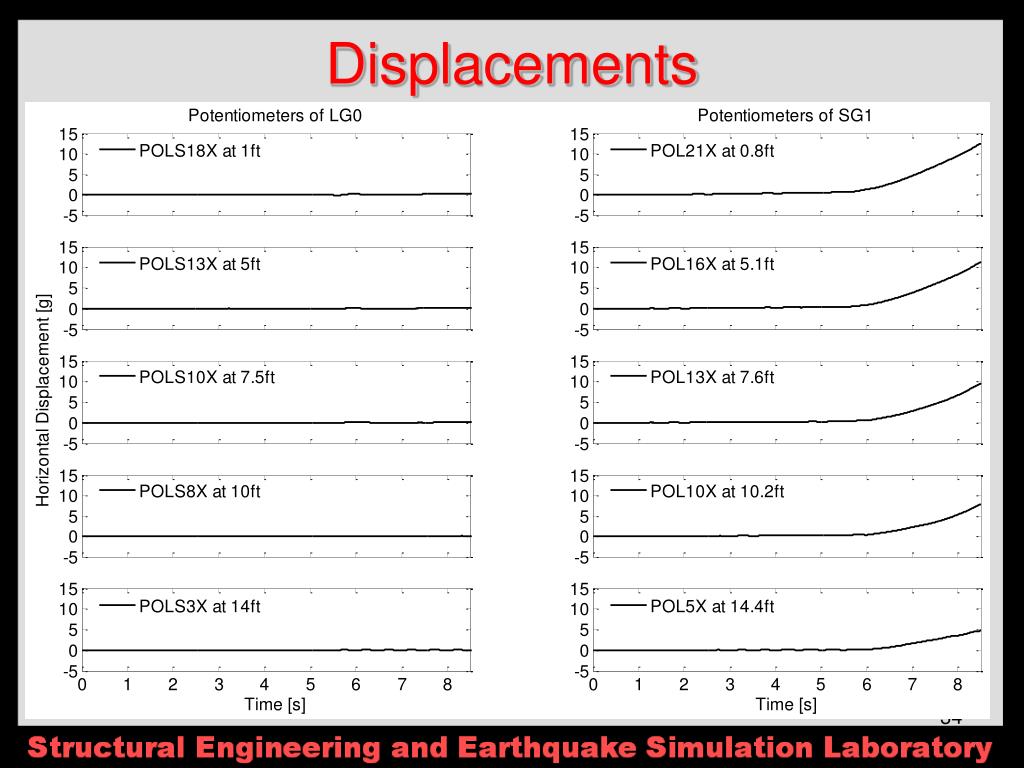

Displacements potentiometers

Displacements (Potentiometers)

Shear strains potentiometer

Top Rings

Spread Initiation

Bottom Rings

Delayed Initiation of Spread

Shear Strains (potentiometer)

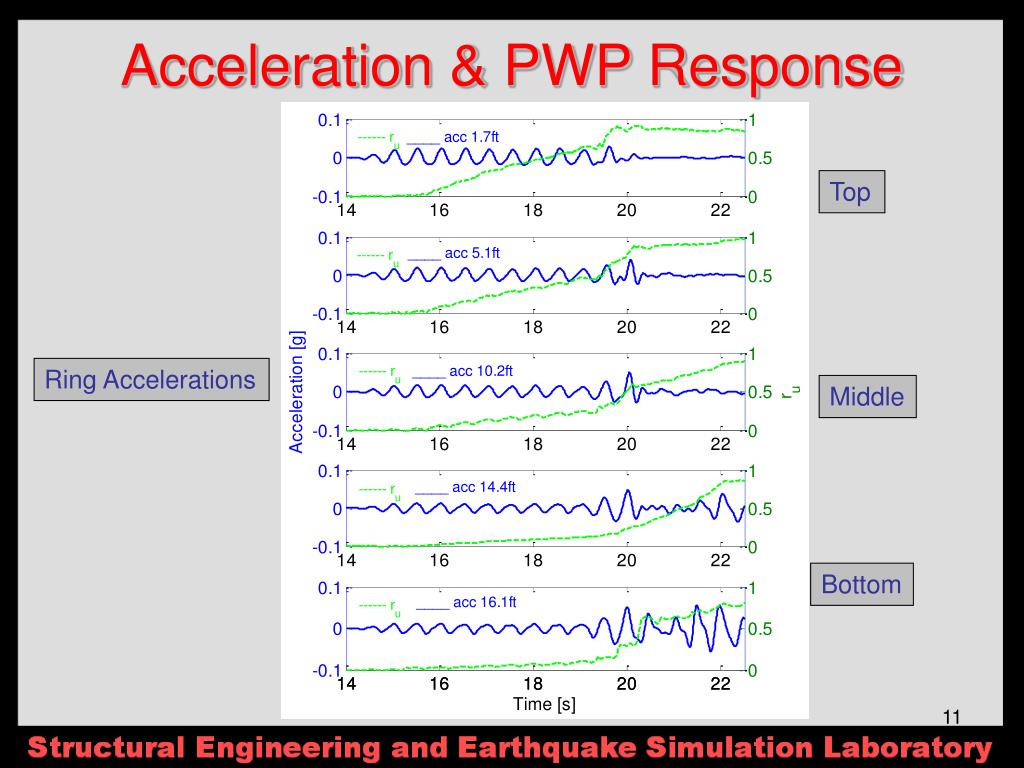

Acceleration pwp response

Acceleration & PWP Response


Ring Accelerations



Lateral spreading observations animation

Lateral Spreading Observations & Animation


0 – 7ft

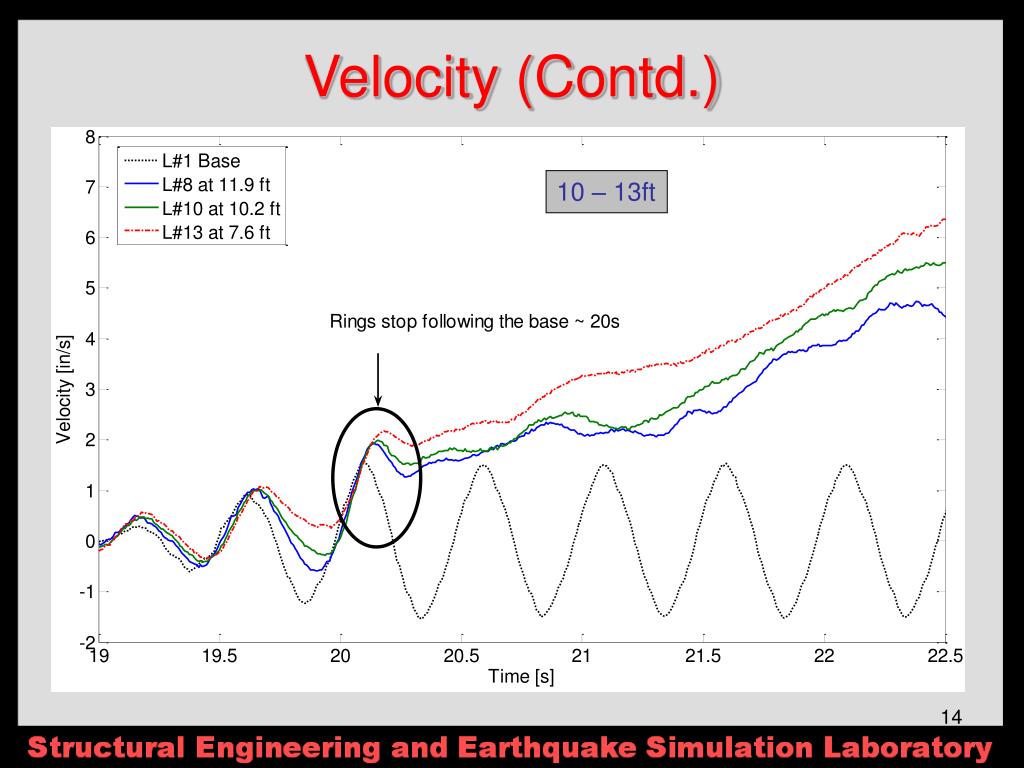

Velocity contd

10 – 13ft

Velocity (Contd.)

Velocity contd1

10 – 17ft

Velocity (Contd.)

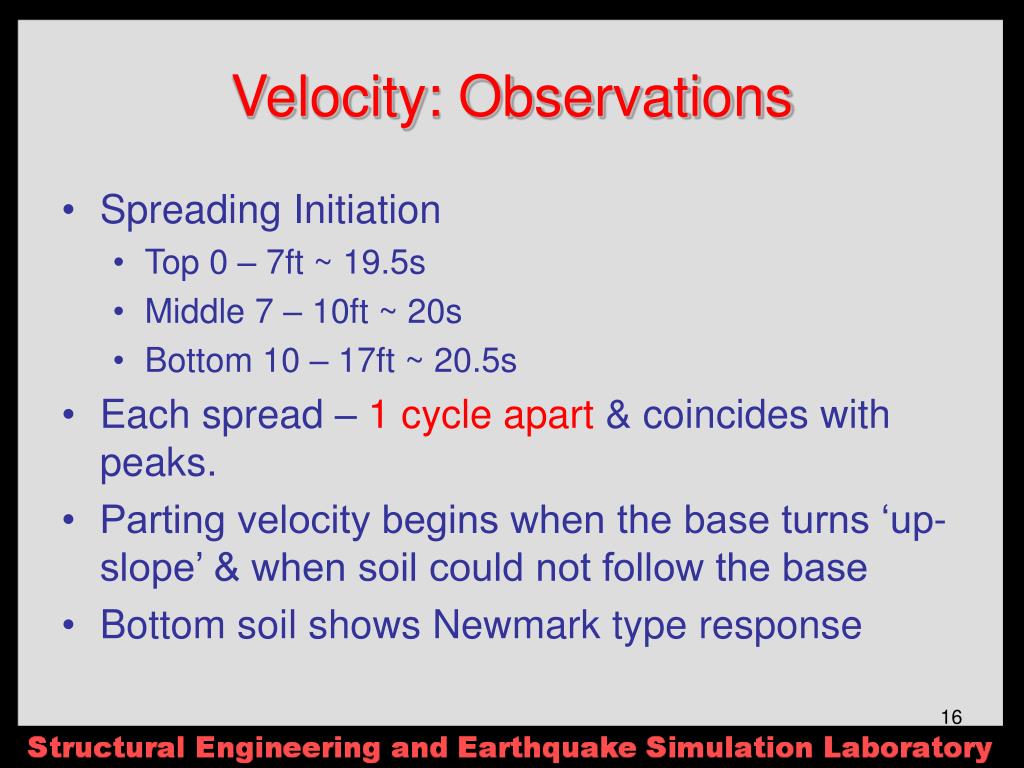

Velocity observations

Velocity: Observations

  • Spreading Initiation

    • Top 0 – 7ft ~ 19.5s

    • Middle 7 – 10ft ~ 20s

    • Bottom 10 – 17ft ~ 20.5s

  • Each spread – 1 cycle apart & coincides with peaks.

  • Parting velocity begins when the base turns ‘up-slope’ & when soil could not follow the base

  • Bottom soil shows Newmark type response

Visualization sg1 17 5 21 5s x10 pore pressure shear strain

Visualization SG1 (17.5~21.5s, x10)Pore Pressure Shear Strain

Reanalysis of lateral spreading initiation of spreading hypothesis

Reanalysis of Lateral SpreadingInitiation of Spreading - Hypothesis

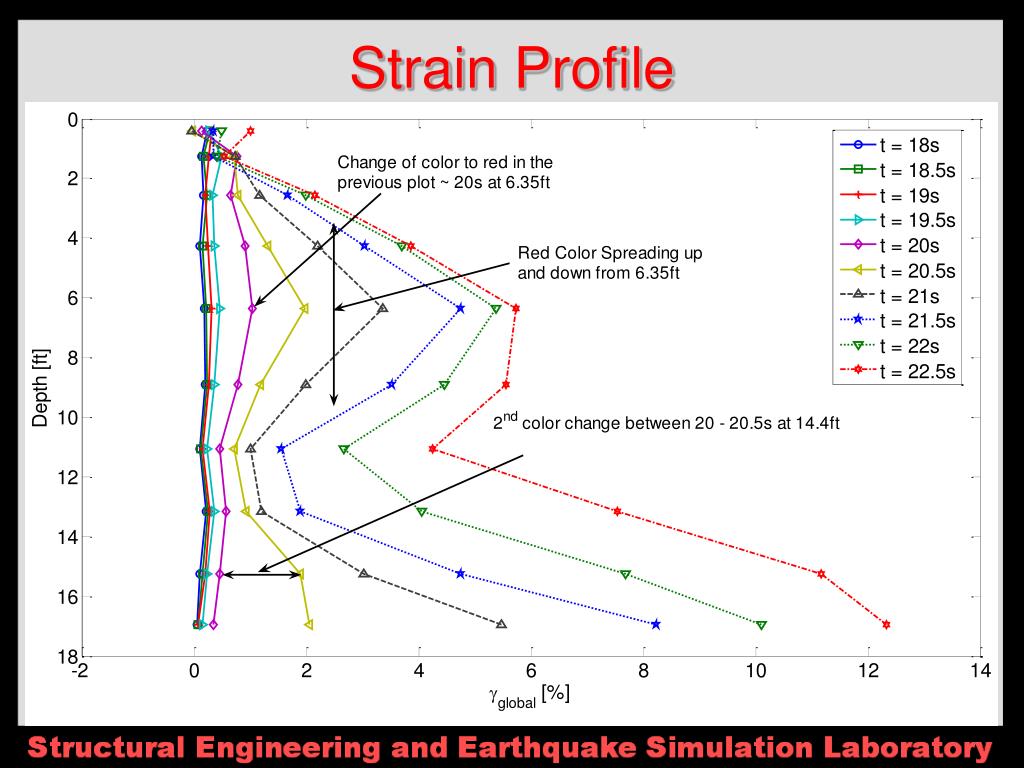

Strain profile

Strain Profile

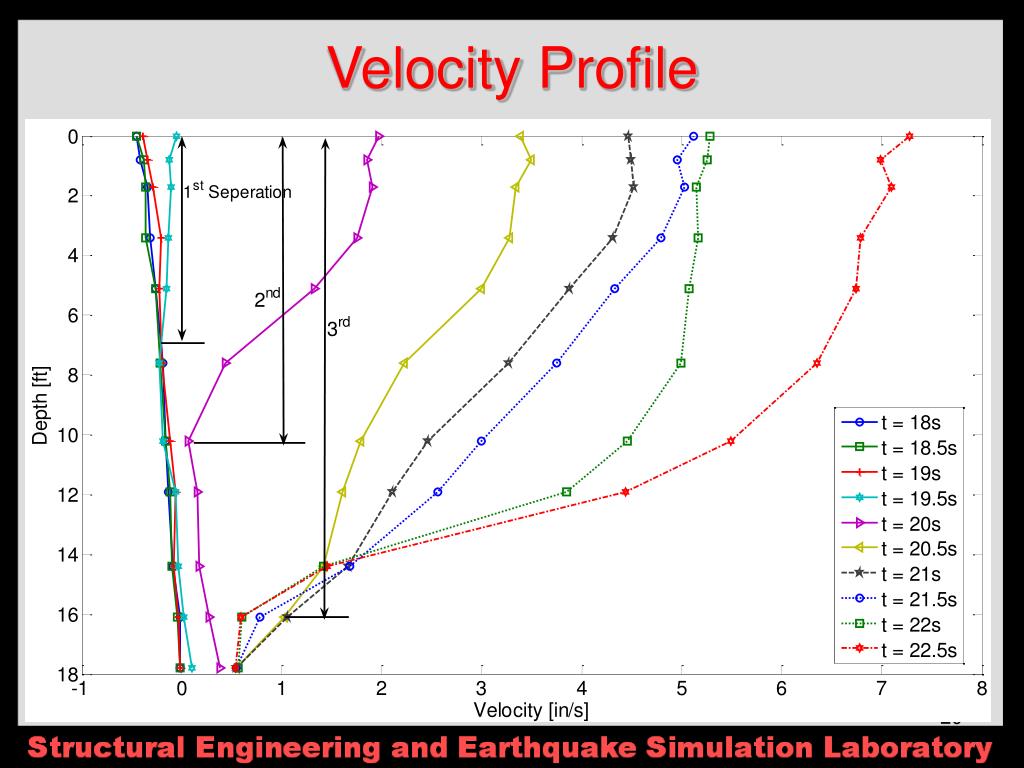

Velocity profile

Velocity Profile

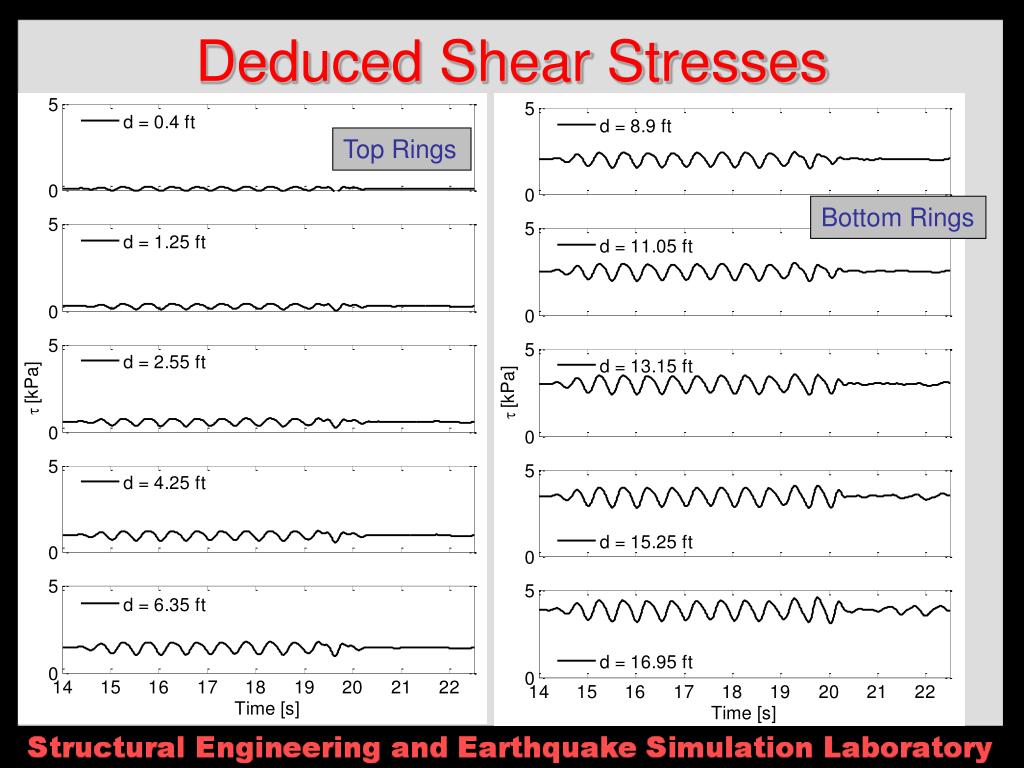

Deduced shear stresses

Deduced Shear Stresses

Top Rings

Bottom Rings

Strength degradation dynamic induced stresses animation

Strength Degradation & Dynamic Induced Stresses: Animation

Strength degradation dynamic induced stresses

Strength Degradation & Dynamic Induced Stresses

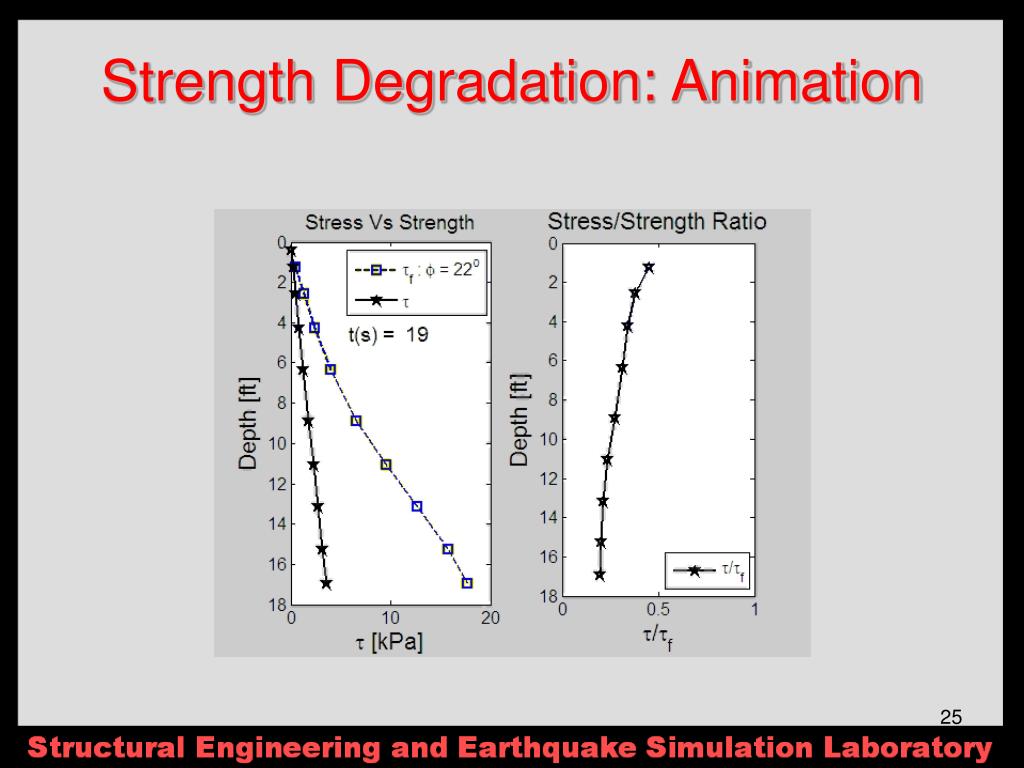

Strength degradation animation

Strength Degradation: Animation

Strength degradation animation1

Strength Degradation: Animation

Strength degradation

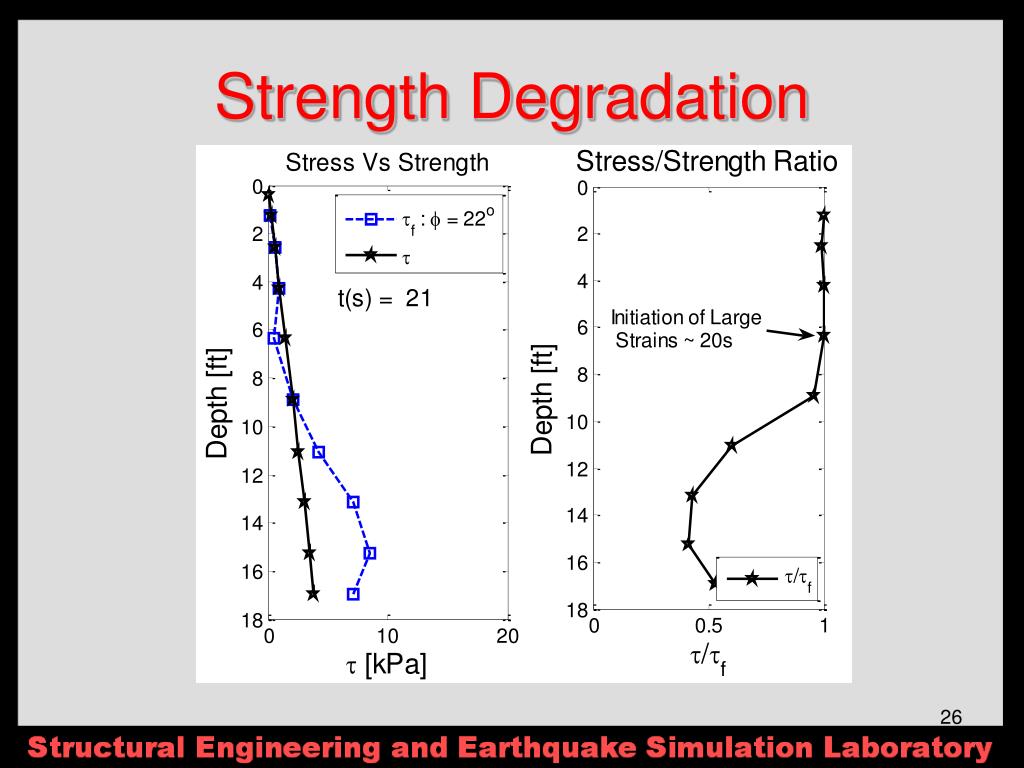

Strength Degradation

Newmark rigid sliding displacement analysis

Original Laminar Box


Rigid Block



Yield Acceleration




Newmark Rigid Sliding Displacement Analysis

  • Yield Acceleration obtained from the available shear strength data which in turn is obtained from the pore pressure data.

  • f = 22o is assumed.

  • Double-integration of relative acceleration to obtain displacement.

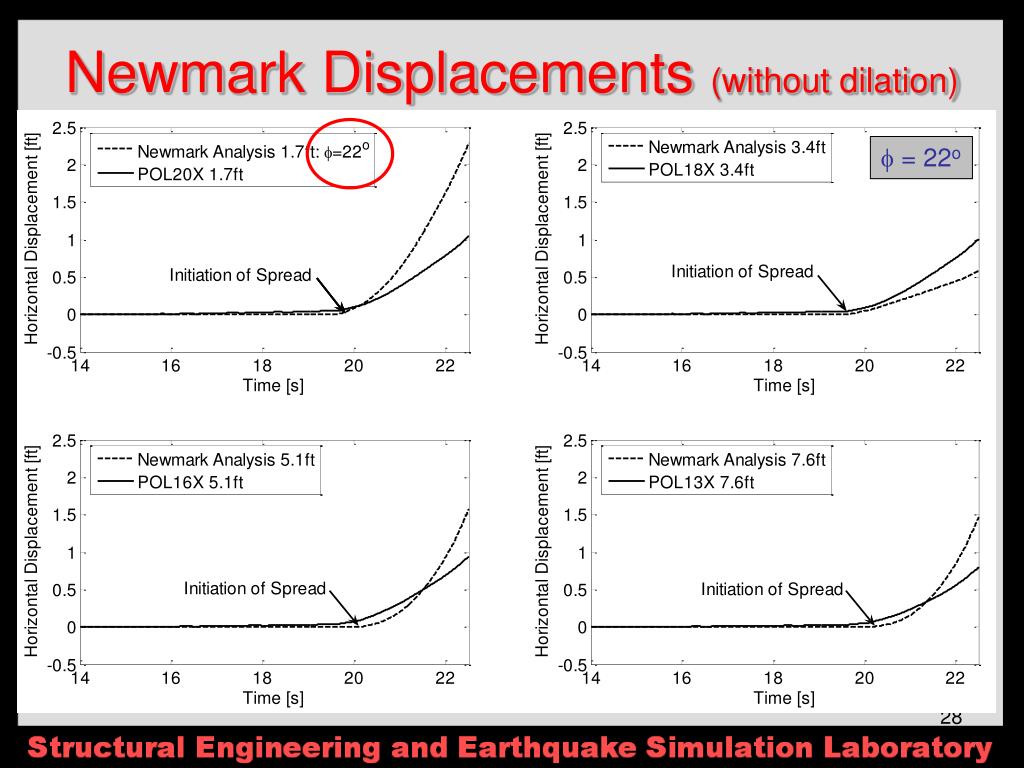

Newmark displacements without dilation

Newmark Displacements (without dilation)

f = 22o

Newmark displacements with dilation



Newmark Displacements (with dilation)

f = 26o

Lower Displacements

Lateral spreading thoughts

Lateral Spreading - Thoughts

  • Tentatively Newmark model agrees with initiation of sliding

  • But over-predicts magnitude of spread

  • Perhaps, dilation contributes to smaller spread than Newmark (w/o dilation)

  • Tentatively, Newmark spreading decreases with inclusion of dilation (increase of frictional angle)

Level ground versus sloping ground lg 0 vs sg 1

Level Ground versus Sloping GroundLG-0 Vs SG-1

Level ground vs sloping ground

Level Ground Vs Sloping Ground

  • LG-0: No static shear

  • SG-1: Non-Zero Static Shear

Influence of initial static shear on pwp development and shear strains

– Discussed next

Lg0 vs sg1 accelerations

LG0 Vs SG1: Accelerations

Quick degradation of accelerations in SG-1 due to fast pwp

development due to initial static shear

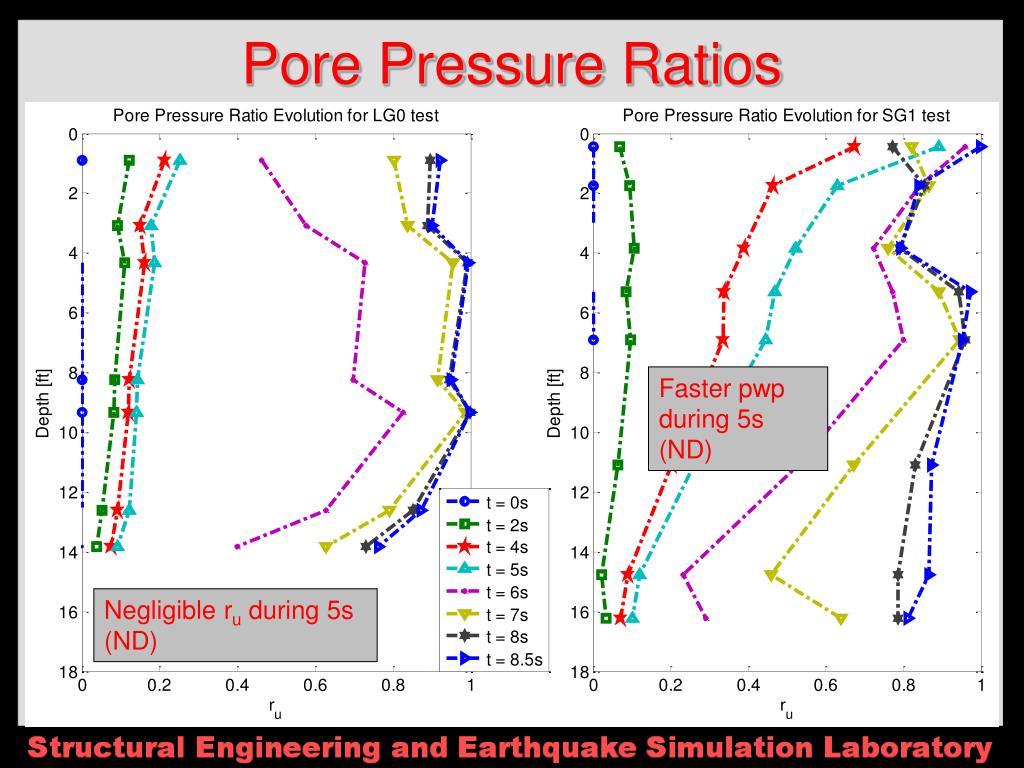

Pore pressure ratios

Pore Pressure Ratios

Faster pwp during 5s (ND)

Negligible ru during 5s (ND)

A closer look at previous slide

A closer look at previous slide

  • At depth ~ 6.3ft, in LG0, the stress oscillates about zero shear stress.

  • In SG1, due to the static shear stress (sloping ground), the stress path is shifted up closer to the failure envelope (f = 22o) which causes rapid build up of strain.

This Fig. clearly explains why soil in SG1 degraded faster than in LG0

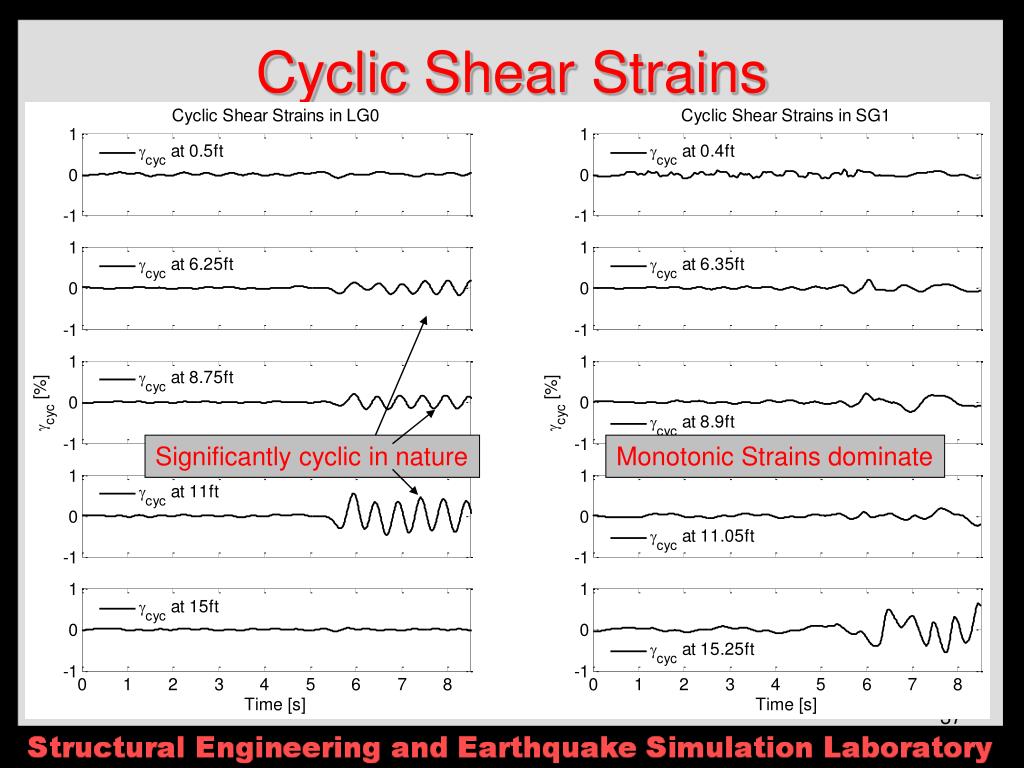

Cyclic shear strains

Significantly cyclic in nature

Cyclic Shear Strains

Monotonic Strains dominate

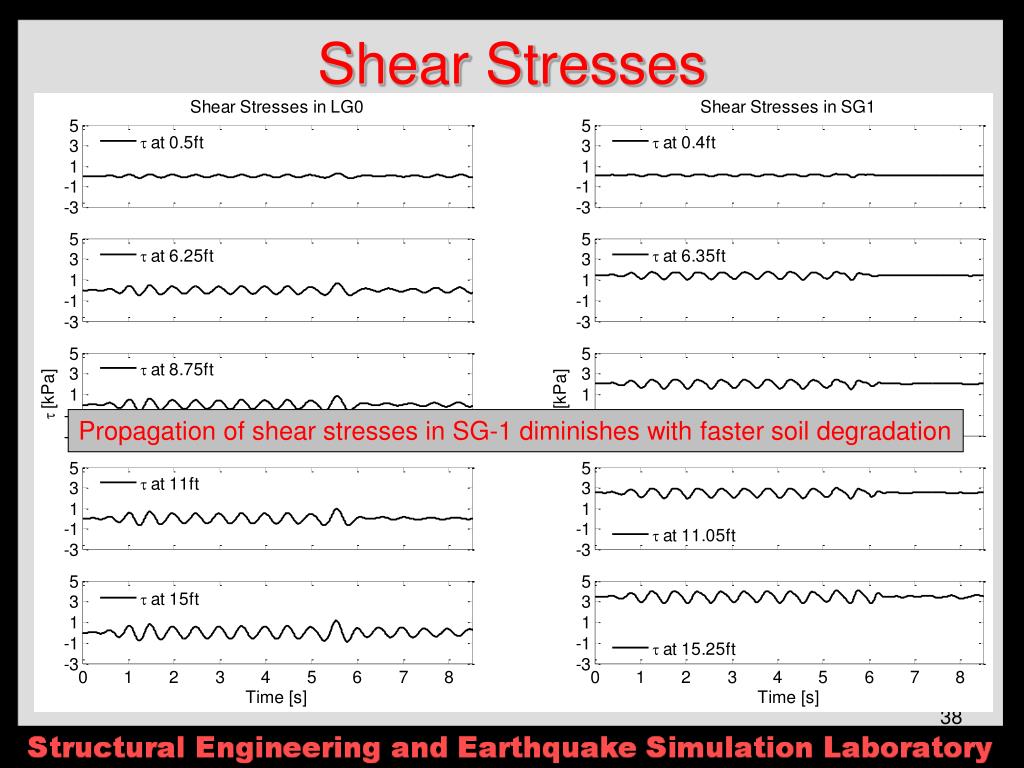

Shear stresses

Shear Stresses

Propagation of shear stresses in SG-1 diminishes with faster soil degradation

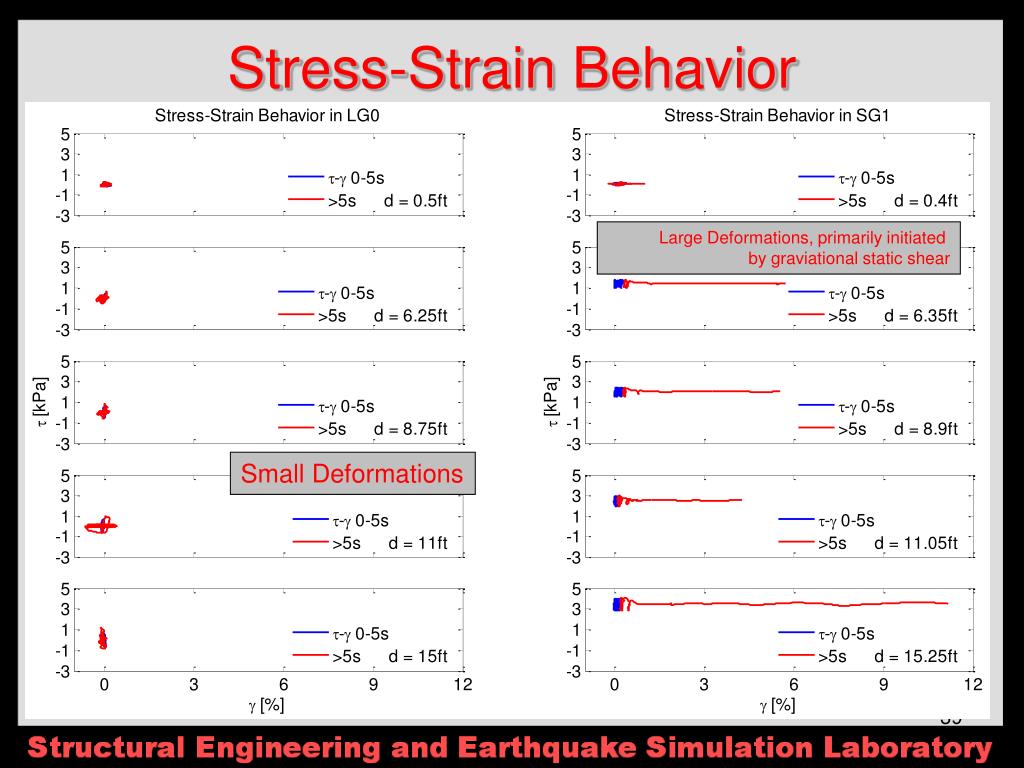

Stress strain behavior

Stress-Strain Behavior

Large Deformations, primarily initiated

by graviational static shear

Small Deformations

Comments on lg 0 vs sg 1

Comments on LG-0 Vs SG-1

  • Initial Static shear stress plays an important role

    • Soil degraded faster in SG-1 compared to LG-0

    • Mostly Cyclic Strains in LG-0; Monotonic strains dominate in SG-1

    • Level Ground Soil Strains accumulate @ high ru ~ 0.9-1.0.

    • Sloping Ground Soil Strains accumulate @ low ru (~ 0.6-0.7)

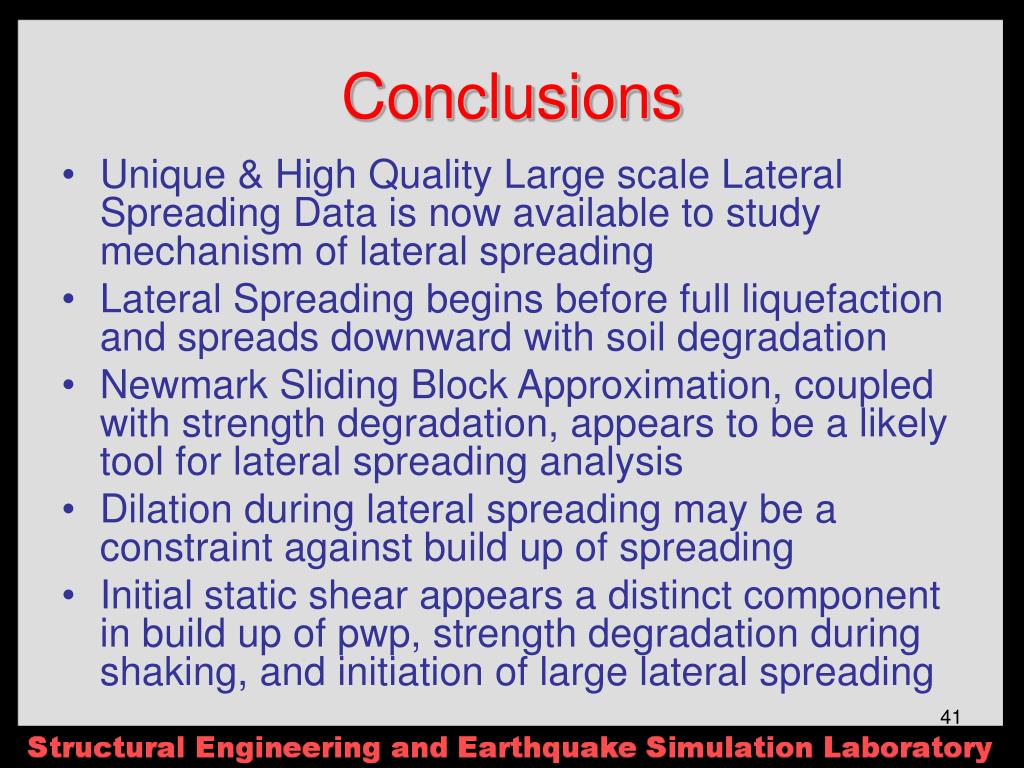

  • Unique & High Quality Large scale Lateral Spreading Data is now available to study mechanism of lateral spreading

  • Lateral Spreading begins before full liquefaction and spreads downward with soil degradation

  • Newmark Sliding Block Approximation, coupled with strength degradation, appears to be a likely tool for lateral spreading analysis

  • Dilation during lateral spreading may be a constraint against build up of spreading

  • Initial static shear appears a distinct component in build up of pwp, strength degradation during shaking, and initiation of large lateral spreading
