  1. Daniel deLahunta Vasilios Morikis Dr. Hyle Park Optical Coherence Tomography (OCT)

  2. Overview of OCT • High resolution, live imaging • Subsurface features • No preparation • Used in many fields • Retinal imaging • Gastrointestinal imaging • Skin imaging

  3. Basic Working of OCT system • Tissue sample is place under light source • Light is reflected back out • Information about the tissue structure is encoded in the reflected light • Signal gets weaker with depth • Resolution is on the order of micrometers with up to several millimeters of imaging depth

  4. Ultrasound

  5. Optical coherence tomography • OCT uses an interferometer to detect the much shorter time delays between light signals • Interference fringes form when the reference and sample arm lengths are equal to within the coherence length of the light source • A depth profile (A-line) is obtained by detection of the interference pattern generated by light returning from the sample and reference arms as the length of the reference arm is scanned.

  6. Optical coherence tomography • The intensity of interference patterns tells the reflectivity throughout the tissue • A 2D image (or 3D volume) is formed by scanning the beam laterally across the sample.

  7. Polarization-sensitive OCT Image of knuckle

  8. Summer Projects • Analyze data from previous system • Determine degree of inflammation in rat nerve after crush • Improve predicted value of myelin thickness • Building of two new OCT systems • Set-up and calibration of reference and sample arms

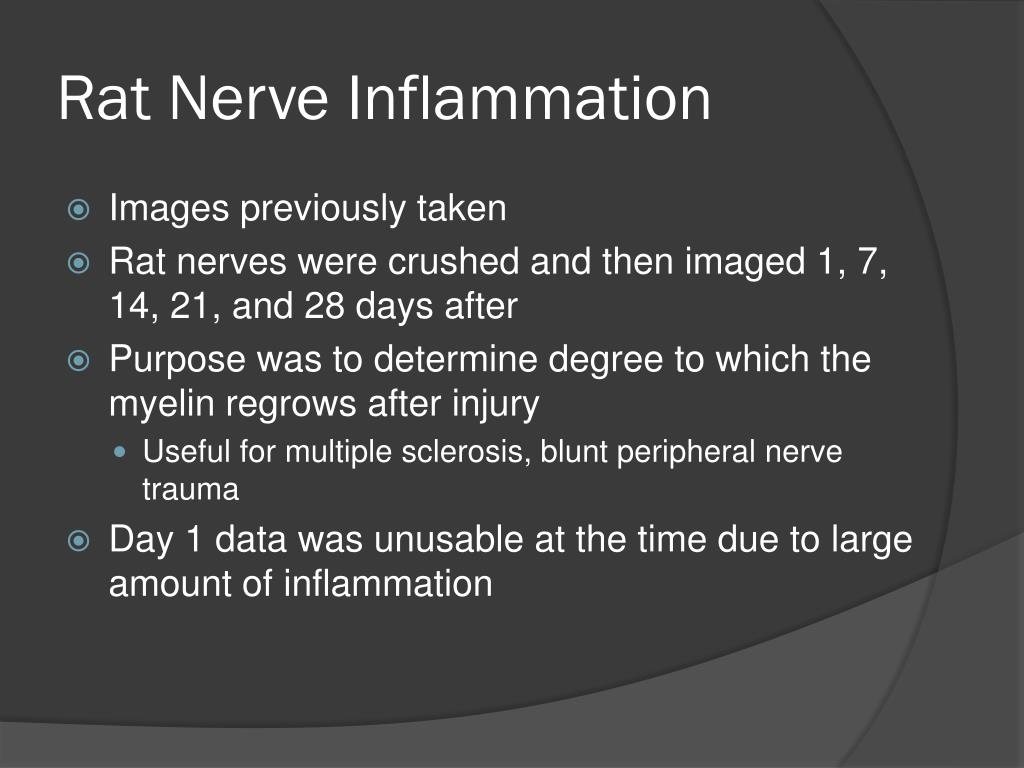

  9. Rat Nerve Inflammation • Images previously taken • Rat nerves were crushed and then imaged 1, 7, 14, 21, and 28 days after • Purpose was to determine degree to which the myelin regrows after injury • Useful for multiple sclerosis, blunt peripheral nerve trauma • Day 1 data was unusable at the time due to large amount of inflammation

  10. Determining Amount of Inflammation • Use ImageJ • Convert images to binary • Create new image with white background and black where nerve is • Combine the two images • Inflammation is highlighted • Determine area of inflammation and total area

  11. Inflammation results

  12. Initial Data • Myelin measurements from intensity sensitive system • PS-OCT Slope from polarization sensitive system

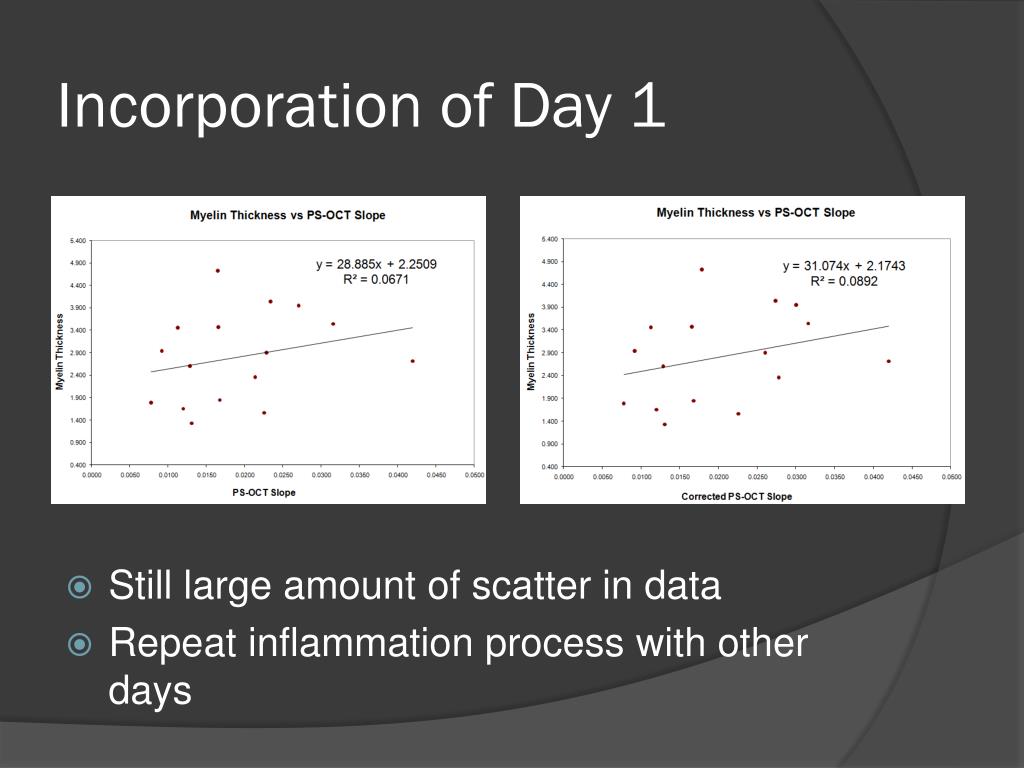

  13. Incorporation of Day 1 • Still large amount of scatter in data • Repeat inflammation process with other days

  14. Days 7,14, 21, and 28

  15. Other Options • Compared control and crush site data by dividing crush site from control • Compared control and crush site data by subtracting crush site from control

  16. Building of New Systems

  17. Contributions • Galvanometer and control box • 800 nm sample arm • Calibrated reference arm for both systems

  18. Acknowlegdements • Dr. Hyle Park, Shahid, Yan, Erica, Christian, and the rest of the BIONIL research group • NSF, BRITE program, and Jun Wang
