2.6 Major Design Issues

Shuman Guo

CSc 8320 Advanced Operating Systems



  • Design & Implementation Issues

    • Object Models and Naming Schemes

    • Distributed Coordination

    • Interprocess Communication

    • Distributed Resources

    • Fault Tolerance and Security

  • Summary

  • References

2 6 major design issues

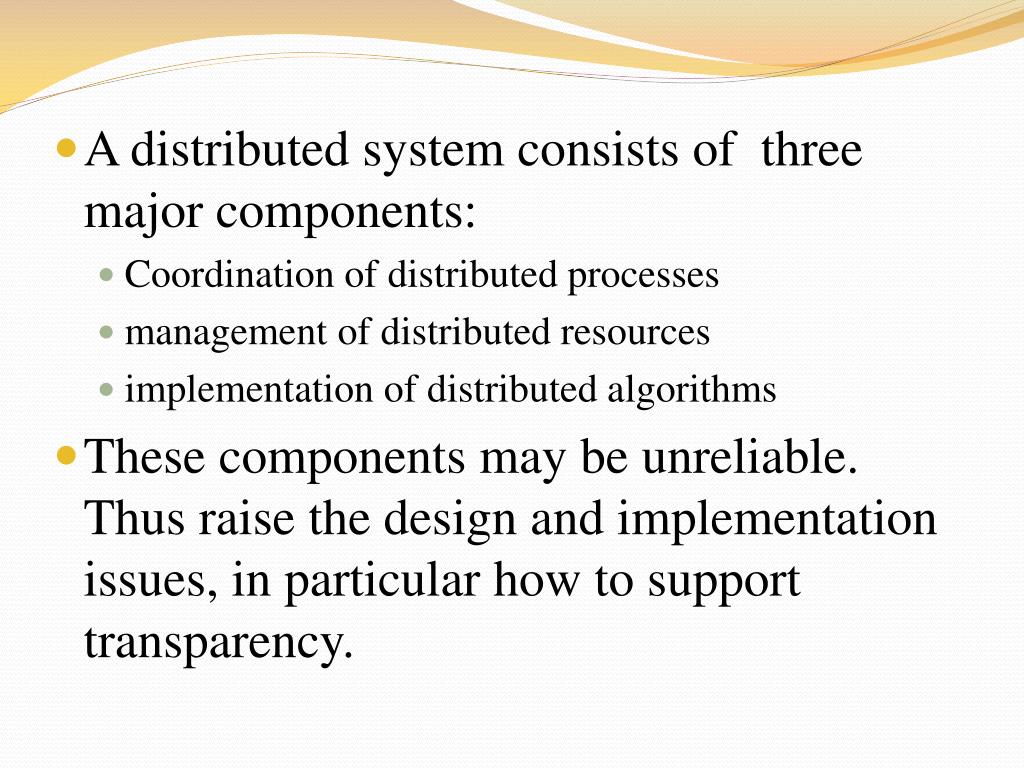

  • A distributed system consists of three major components:

    • Coordination of distributed processes

    • management of distributed resources

    • implementation of distributed algorithms

    • These components may be unreliable. Thus raise the design and implementation issues, in particular how to support transparency.

Design implementation issues

Design & Implementation Issues

  • Object Models and Naming Schemes

  • Distributed Coordination

  • Interprocess Communication

  • Distributed Resources

  • Fault Tolerance and Security

Object models and naming schemes 1

Object Models and Naming Schemes [1]

  • Objects in a computer system :

    • processes, data files, memory, devices, processors, and networks.

  • Objects are encapsulated in servers

    • process servers, file servers, memory servers

    • A client is a null server that accesses object servers.

  • Cont d


    • Three possible ways to identify a server

      • Identification by name (name server)

      • Identification by either physical or logical address (network server)

      • Identification by service that the servers provide

    Distributed coordination 1

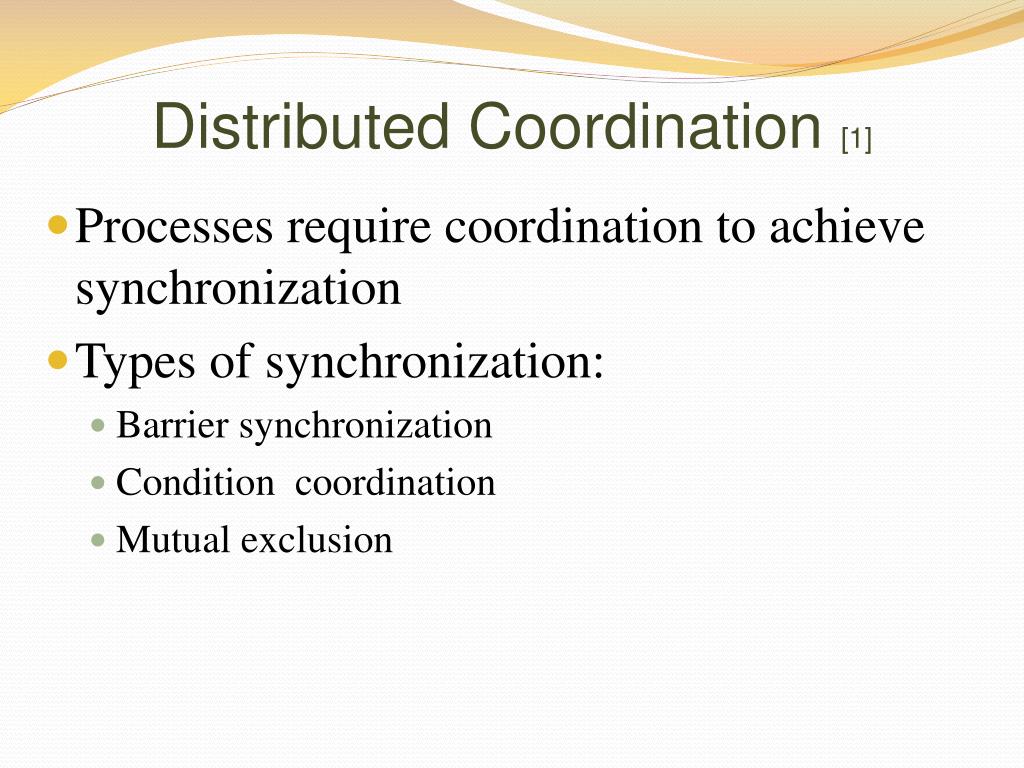

    Distributed Coordination [1]

    • Processes require coordination to achieve synchronization

    • Types of synchronization:

      • Barrier synchronization

      • Condition coordination

      • Mutual exclusion

    Types of synchronization

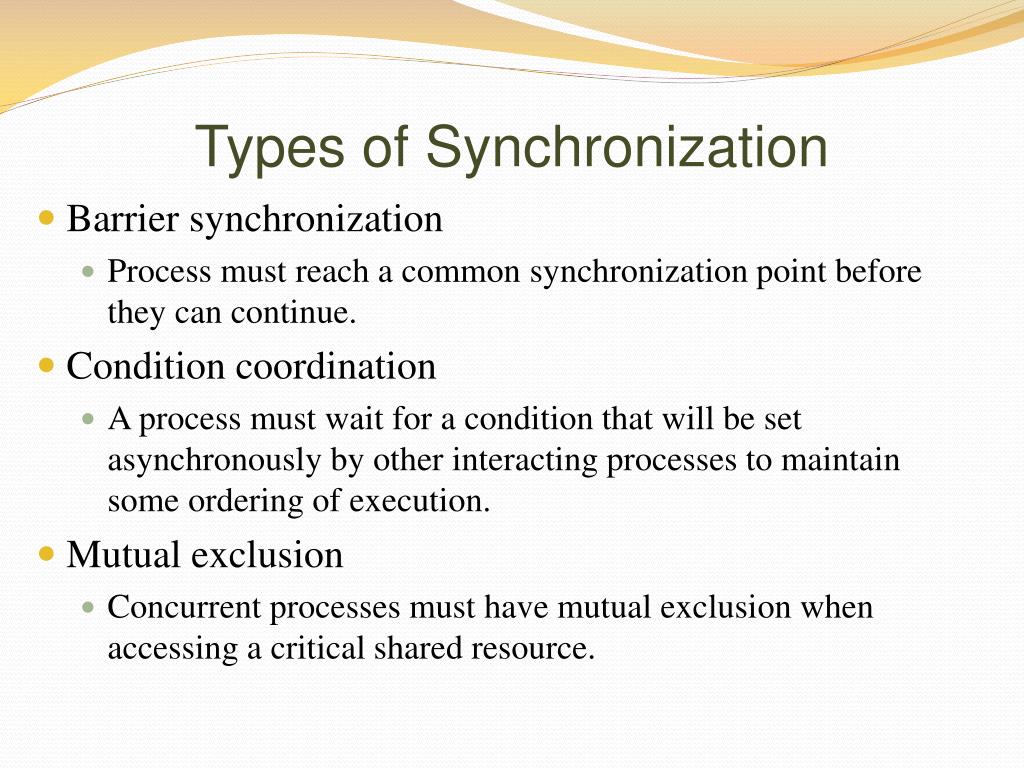

    Types of Synchronization

    • Barrier synchronization

      • Process must reach a common synchronization point before they can continue.

    • Condition coordination

      • A process must wait for a condition that will be set asynchronously by other interacting processes to maintain some ordering of execution.

    • Mutual exclusion

      • Concurrent processes must have mutual exclusion when accessing a critical shared resource.

    Example logical clocks

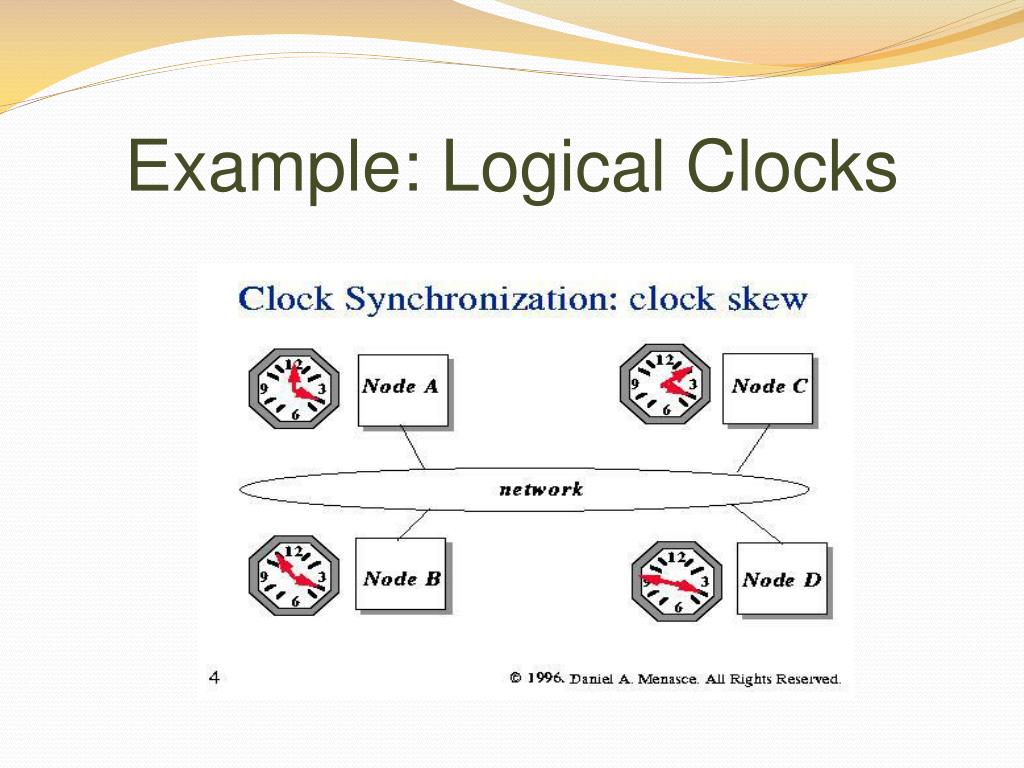

    Example: Logical Clocks

    Deadlock handling 5

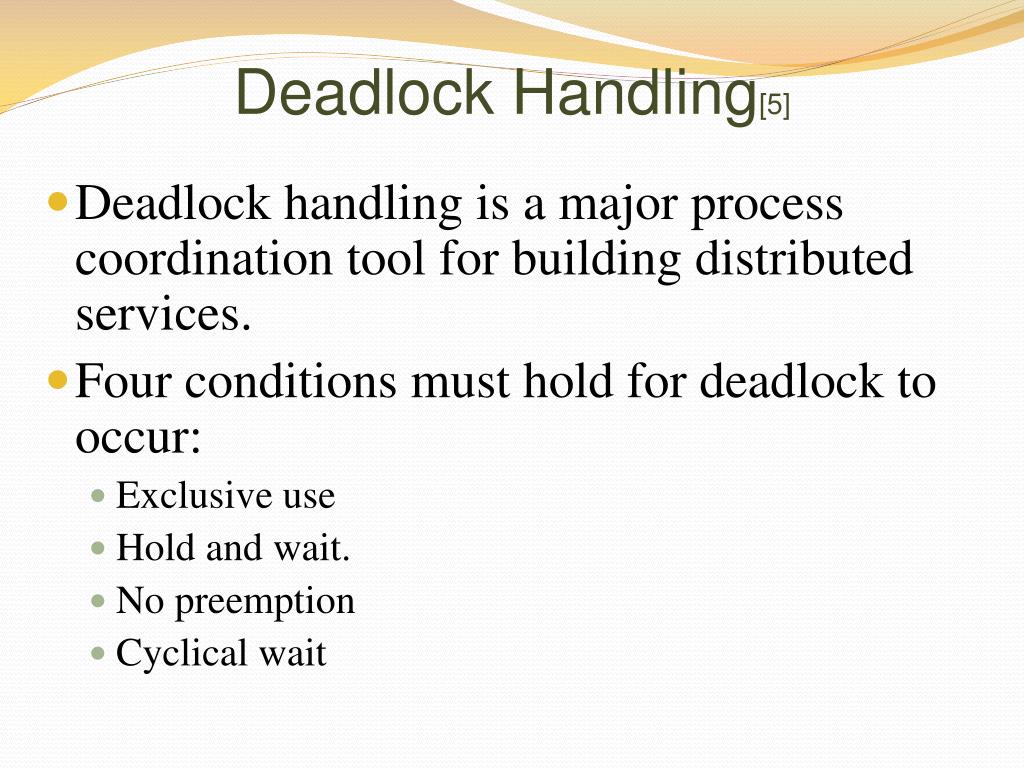

    Deadlock Handling[5]

    • Deadlock handling is a major process coordination tool for building distributed services.

    • Four conditions must hold for deadlock to occur:

      • Exclusive use

      • Hold and wait.

      • No preemption

      • Cyclical wait

    Deadlock cont d

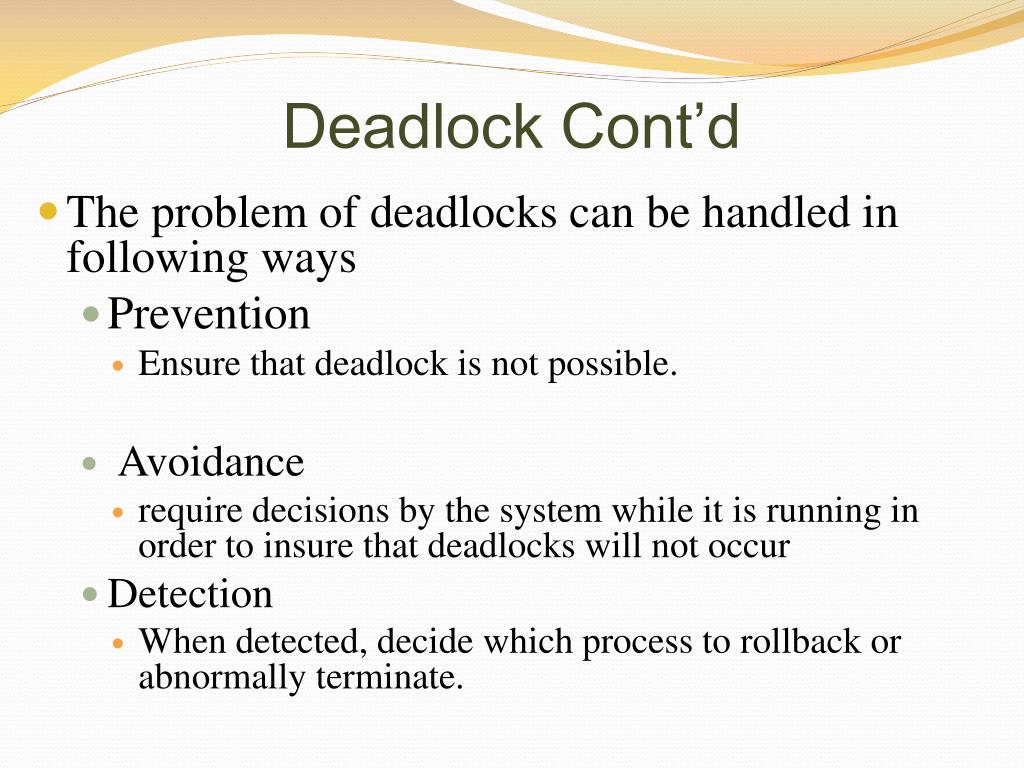

    Deadlock Cont’d

    • The problem of deadlocks can be handled in following ways

      • Prevention

        • Ensure that deadlock is not possible.

      • Avoidance

        • require decisions by the system while it is running in order to insure that deadlocks will not occur

      • Detection

        • When detected, decide which process to rollback or abnormally terminate.

    Deadlock prevention

    Deadlock Prevention

    • Schemes that guarantee the deadlocks can never happen because of the way the system is structured.

    • One of the four conditions is prevented, thus preventing deadlocks.

    • For example, to impose an order on the resources and require processes to request resources in increasing order. This prevents cyclical waitand thus makes deadlocks impossible.

    Interprocess communication 1

    Interprocess Communication[1]

    • Lower level: Interprocess communication can be accomplished by using simple message passing primitives.

    • Higher level logical communication methods provides the transparency:

      • Hide the physical details of message passing

      • Two important concepts :

        • The client/server model

        • Remote Procedure Call (RPC)

    The client server model 1

    The Client/Server Model[1]

    • The client/ server model is a programming example for structuring processes in distributed systems.

      logical communication



      actual communication






    The rpc model 3

    The RPC Model[3]

    • The remote procedure call model is similar to that of the local model:

      • The caller places arguments to a procedure in a specific location (such as a result register).

      • The caller temporarily transfers control to the procedure.

      • When the caller gains control again, it obtains the results of the procedure from the specified location.

      • The caller then continues program execution.

    Rpc cont d

    RPC Cont’d

    • On the server side, a process is dormant (inactive, sleeping)-- awaiting the arrival of a call message. When one arrives, the server process computes a reply that it then sends back to the requesting client. After this, the server process becomes dormant again.

    How rpc works

    How RPC works?

    • Basic network communication with Remote Procedure Call

    Other examples 1 corba 4

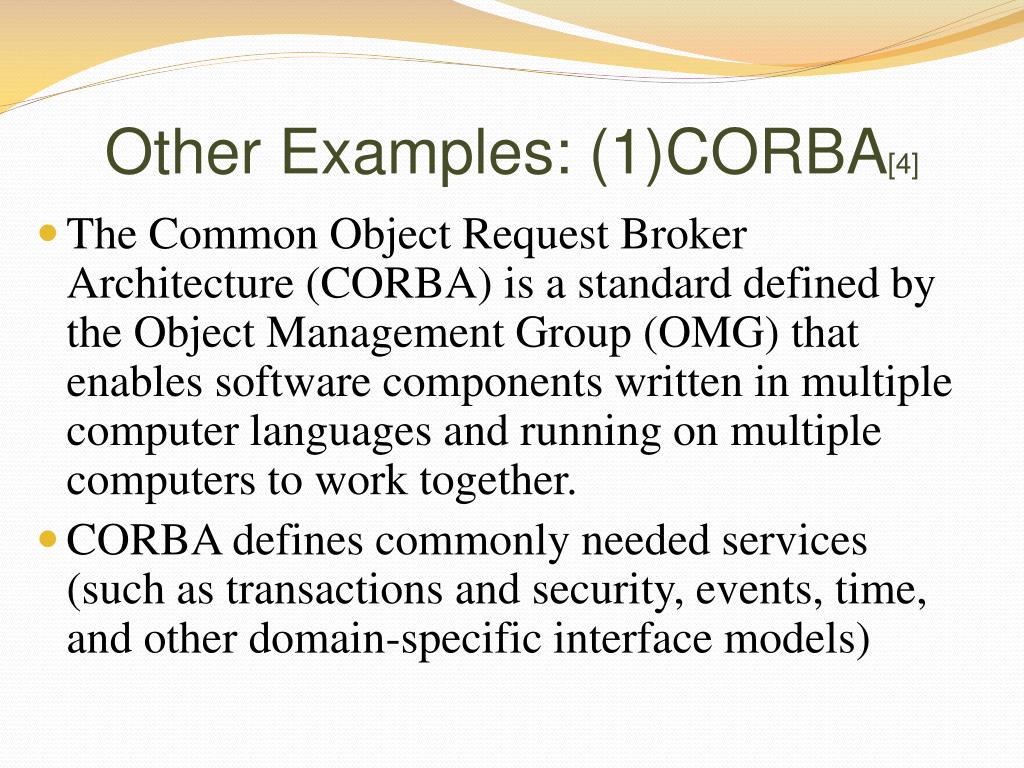

    Other Examples: (1)CORBA[4]

    • The Common Object Request Broker Architecture (CORBA) is a standard defined by the Object Management Group (OMG) that enables software components written in multiple computer languages and running on multiple computers to work together.

    • CORBA defines commonly needed services (such as transactions and security, events, time, and other domain-specific interface models)

    Corba cont d

    CORBA Cont’d

    • The diagram illustrates how the generated code is used within the CORBA infrastructure:

    Other examples 2 java rmi 4

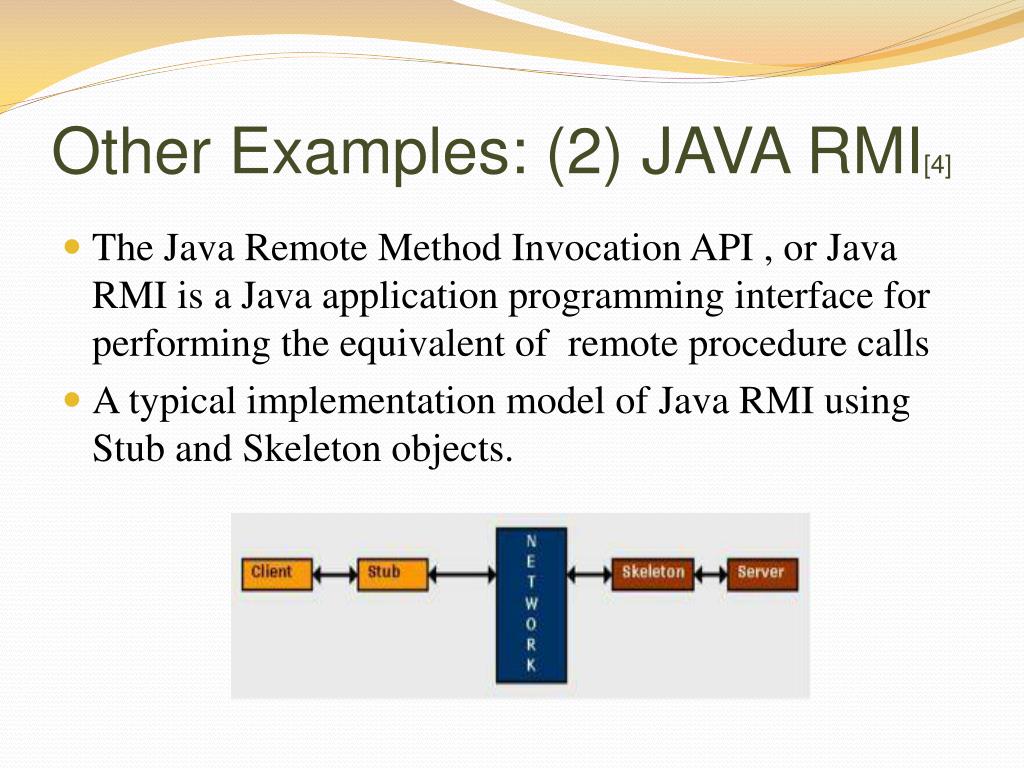

    Other Examples: (2) JAVA RMI[4]

    • The Java Remote Method Invocation API , or Java RMI is a Java application programming interface for performing the equivalent of remote procedure calls

    • A typical implementation model of Java RMI using Stub and Skeleton objects.

    Distributed resources 1

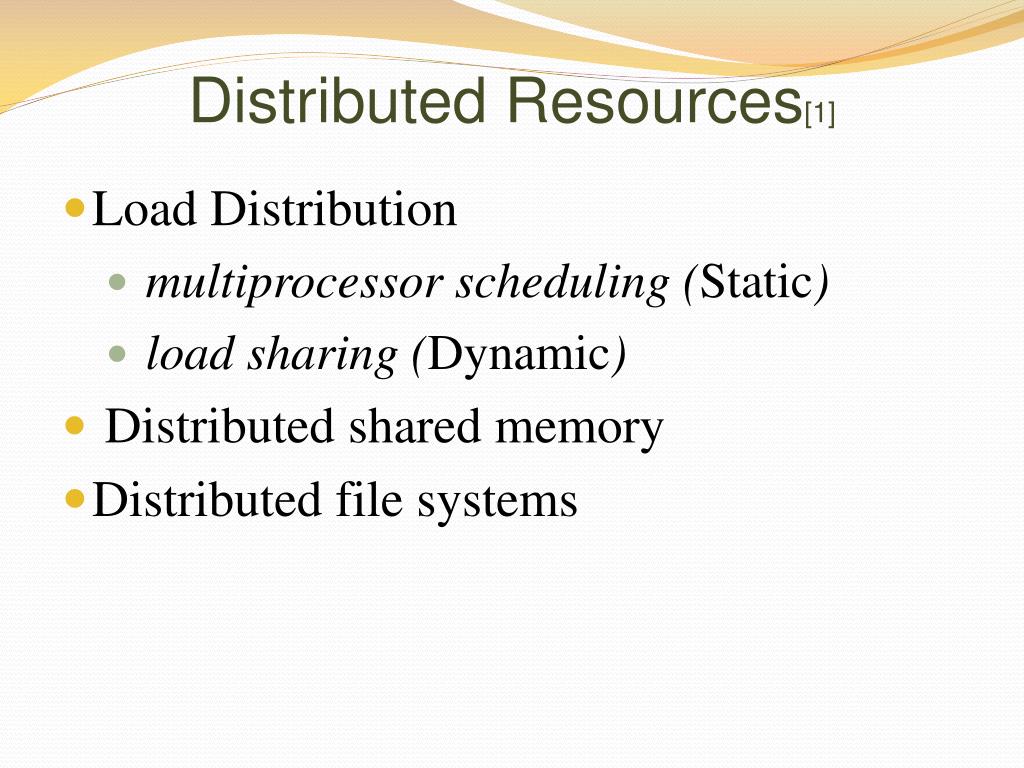

    Distributed Resources[1]

    • Load Distribution

      • multiprocessor scheduling (Static)

      • load sharing (Dynamic)

    • Distributed shared memory

    • Distributed file systems

    Load distribution

    Load Distribution

    • Multiprocessor scheduling

      • Minimize communication overhead with efficient scheduling.

    • Load sharing

  • Process migration strategy & mechanism

  • Distributed file systems and distributed shared memory

    Distributed File Systems and Distributed Shared Memory

    • Distributed file systems

      • Issues are based on a file point of view

    • Distributed shared memory

      • Issues are based on a process perception of the system.

    • The common issues central to them:

      • Sharing and replication of data

    Fault tolerance and security 1

    Fault Tolerance and Security[1]

    • Security threats and failures are both system faults.

    • The problem of failures can be alleviated if there is redundancy in the system.

      • The system should transparently handle failures or removal of machines, network links, and other resources without loss of data or functionality.

      • This should hold true for both the system itself and for its applications.

    Security cont d

    Security Cont’d

    • Security

      • Authentication -- clients and also servers and messages must be authenticated.

      • Authorization-- access control has to be performed across a physical network with heterogeneous components under different administrative units using different security models.

    Security examples 4

    Security examples[4]

    • Extensible Authentication Protocol (EAP) is a universal authentication framework frequently used in wireless networks and P2P connections

    • EAP is not a wire protocol; instead it only defines message formats.

    More info about eap

    More Info about EAP

    • EAP Authentication Protocols for WLANs [6]

    • The relationship between 802.1X and EAP(introduction)[7]

    • EAP Methods for 802.11 Wireless LAN Security[8]

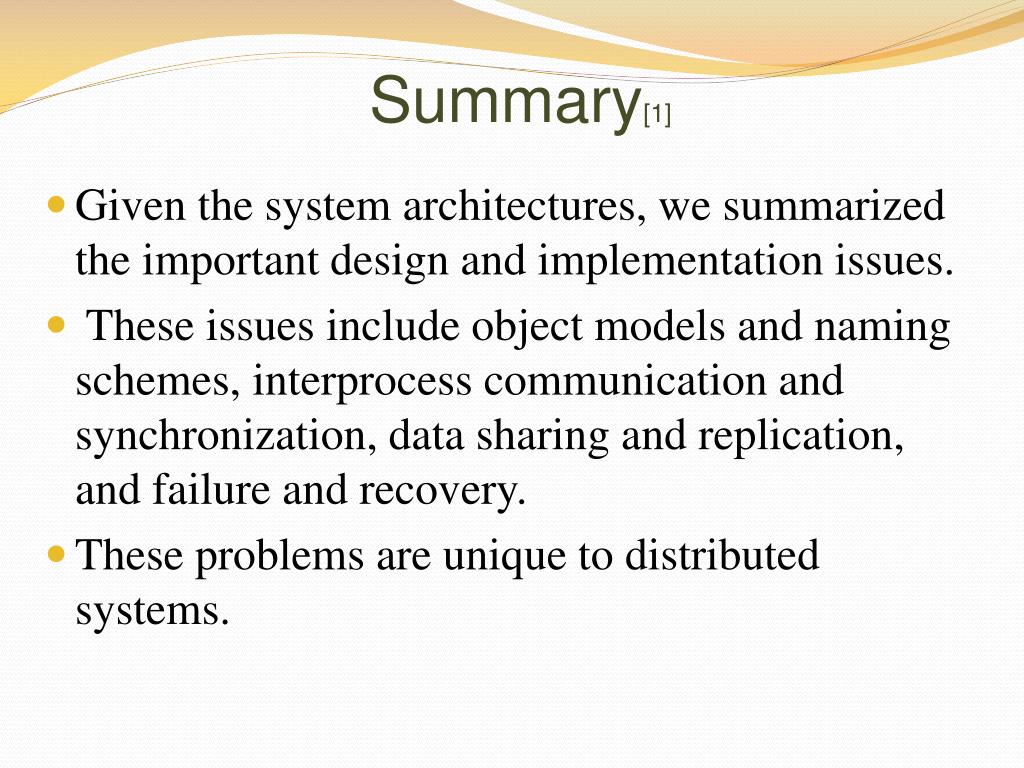

    Summary 1


    • Given the system architectures, we summarized the important design and implementation issues.

    • These issues include object models and naming schemes, interprocess communication and synchronization, data sharing and replication, and failure and recovery.

    • These problems are unique to distributed systems.

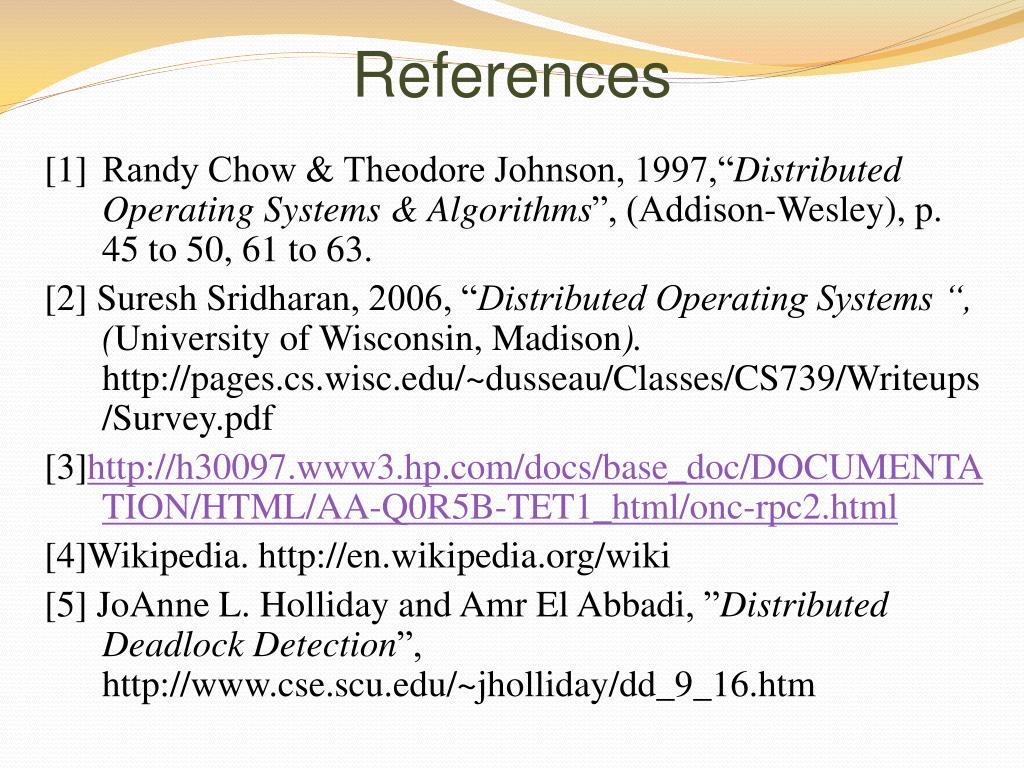

    [1]Randy Chow & Theodore Johnson, 1997,“Distributed Operating Systems & Algorithms”, (Addison-Wesley), p. 45 to 50, 61 to 63.

    [2] Suresh Sridharan, 2006, “Distributed Operating Systems “, (University of Wisconsin, Madison). http://pages.cs.wisc.edu/~dusseau/Classes/CS739/Writeups/Survey.pdf


    [4]Wikipedia. http://en.wikipedia.org/wiki

    [5] JoAnne L. Holliday and Amr El Abbadi, ”Distributed Deadlock Detection”, http://www.cse.scu.edu/~jholliday/dd_9_16.htm



    • [6]Krishna Sankar, Andrew Balinsky, Darrin Miller, Sri Sundaralingam. (Feb 18, 2005)” EAP Authentication Protocols for WLANs”. http://www.ciscopress.com/articles/article.asp?p=369223&seqNum=3&rl=1

    • [7] “802.1X Port-Based Authentication HOWTO” http://tldp.org/HOWTO/8021X-HOWTO/intro.html

    • [8]” EAP Methods for 802.11 Wireless LAN Security” http://www.iec.org/online/tutorials/eap_methods/topic01.html

    Any questions

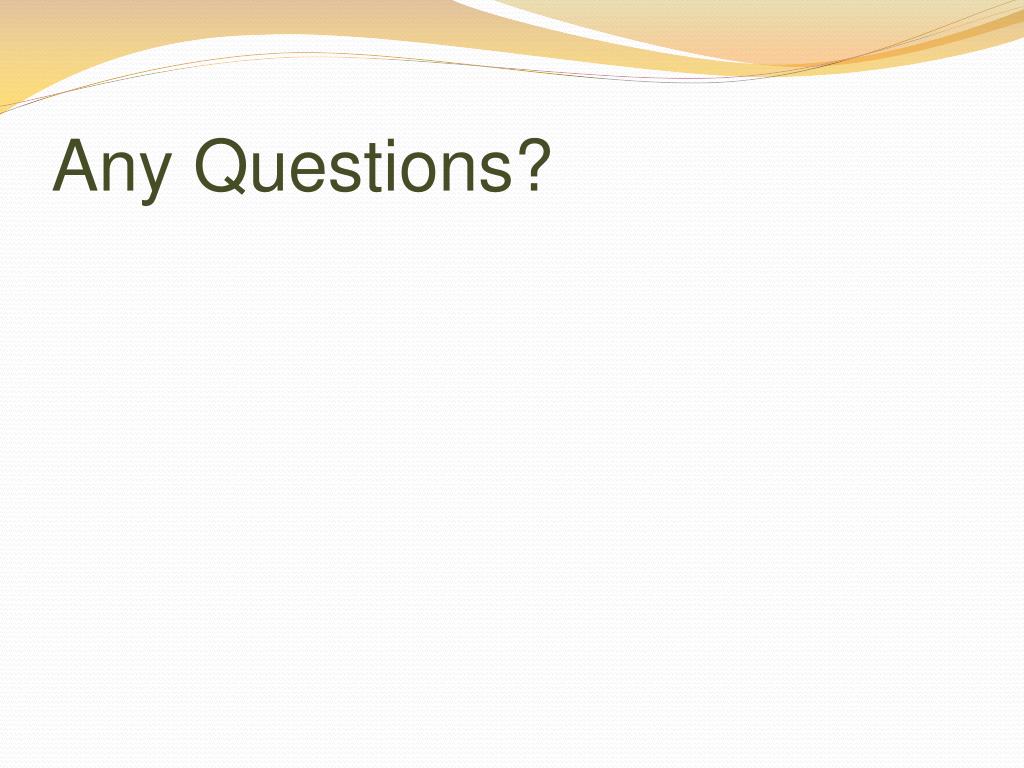

    Any Questions?
