Presentation Transcript

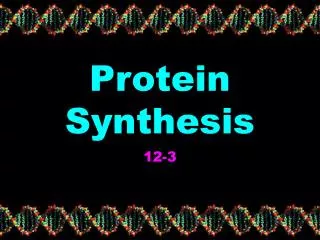

Protein synthesis

Protein Synthesis

12-3


2 steps of protein synthesis

2 Steps of Protein Synthesis

  • Transcription

  • Translation


Transcription

Transcription

  • DNA is coded (transcribed) into the RNA “language”

  • The DNA sequence is copied into a complementary RNA sequence

    • G  C

    • C  G

    • T  A

    • A  U


Transcription1

Transcription

  • Transcription requires RNA polymerase, an enzyme a lot like DNA polymerase

  • RNA polymerase binds to DNA, separates the strands, and uses one strand as a template for making mRNA.

  • RNA polymerase “polymerizes” (links together) the nucleotides that make up mRNA


Where to start

Where to Start?

  • RNA polymerase doesn’t randomly bind to DNA.

  • It will only bind to sites known as promoters—regions of DNA that have specific sequences.

  • Promoters are signals that say “START RNA HERE!”

  • Similar signals also tells transcription to stop.


Rna editing

RNA Editing

  • Some RNA molecules need to be edited before they are ready for making proteins.

  • Sometimes large sequencesmust be removed so that the RNA can make a functional protein. These intervening sequences are called introns.

  • The remaining portions or expressed sequences are called exons. They are spliced back together to form the final draft of mRNA.


The genetic code

The Genetic Code

  • There are 20 different amino acids found in nature.

  • Proteins are made by joining amino acids into long chains called polypeptides.

  • The genetic code is read 3 letters at a time. Each set of 3 nucleotides is called a codon.

  • Each codon specifies a specific amino acid.


The genetic code1

The Genetic Code

  • There are 64 different codons.

  • Some amino acids have more than one codon.

  • The START codon is AUG. It occurs at the beginning of EVERY protein.

  • There are 3 STOP codons—UAA, UAG, and UGA.


Translation

Translation

  • mRNA carries the coded message to the ribosome. The message must then be decoded or translated so the ribosome can build the protein.

  • During translation, the ribosome uses information from mRNA to produce proteins.

  • Translation is carried out by tRNA and rRNA.


Translation1

Translation

  • Each tRNA molecule has an amino acid attached to one end and 3 nucleotide bases at the other end.

  • The 3 nucleotide bases attached to tRNA are called an anticodon because they are complementary to the codon for that amino acid.

  • Example: codon = AAGanti = UUC(AAG codes for Lysine)


Translation2

Translation

  • tRNA can then give the correct amino acid to the ribosome.

  • The ribosome, which is made of rRNA, attaches the amino acids together to make the polypeptide chain (protein).


Dna rna and proteins

DNA, RNA, and Proteins

  • DNA is like the master copy.

  • RNA is like the blueprint the workers use.

  • The workers are ribosomes.

  • Proteins are the finished product.

  • Proteins are the keys to almost EVERYTHING that living cells do!
