  1. Optimum Coil Design for Inductive Energy Harvesting in Substations Dr Nina Roscoe, Dr Martin Judd Institute for Energy and Environment University of Strathclyde

  2. Overview • Background • The role of condition monitoring sensors • Supplying energy to condition monitoring sensors • Inductive energy harvesting • Coil design • Core materials and dimensions • Determining the number of turns • Experimental test equipment • Results • Converting ac output voltage to regulated dc voltage • Conclusions

  3. The role of condition monitoring sensors • Reliability of electrical power supply • Good asset management improves reliability of supply • Knowledge of local environmental conditions • Electrical power supply asset management • Increased life expectancy Environmental stress, e.g. • Temperature cycling or humidity • Pollution (measured through leakage current) Degradation monitoring, e.g. • Increasing conductor temperature • Breaker operating mechanisms (accelerometer readings) • Maintenance and replacement of assets only when required • Cost reduction

  4. Supplying energy to condition monitoring sensors • Two main conventional methods • Batteries • At HV potential, or on HV conductors, require a power outage to change batteries • Mains power • Only available in the safe areas • Expensive to install in remote areas of the substation “Fit-and-forget” self powered wireless sensors enable low cost condition monitoring • Many energy sources available for harvesting • solar, wind, thermal, electromagnetic etc. • All may have a have a role in a particular range of sensor applications • Inductive electromagnetic harvesting

  5. Toroidal core is “threaded” onto conductor High current conductor Wire wound on toroidal core “Free-standing” harvester Transformer Magnetic flux Inductive Harvesting: Two inductive harvester approaches “Threaded” harvester “Free-standing” harvester

  6. “Free-standing” inductive harvesters Harvesting coil • µr_eff = Voc-iron_core • Voc- air core • Voc = open circuit coil voltage D L Wireless sensor and transmitter from Invisible Systems Cast iron core

  7. Core materials and dimensions • Aim: • Demonstrator to deliver 0.5 mW output power in 25 µTrms (safe area) • Invisible Systems wireless sensor • Core Material • 3 materials compared: cast iron, laminated steel, ferrite • Length to diameter ratios (L/D) < 12; µr_effnot strongly linked to µr • L/D > 12; µr_eff of ferrite outperforms others • Highest L/D realisable in cast iron • Length to (effective) diameter explored • High L/D for high Pout/Vol • Limit to practical and safe L/D • Compromise: 0.5 m long, 50 mm diameter for demonstrator • Less than optimal Pout/Vol • Achieves adequate output power in suitable B

  8. Determining the number of turns • Measured Pout vs number of turns (0.5 m long cast iron cored coils) Optimum impedance match • Coil approximated by self inductance and series resistance • Self inductance can be compensated with series capacitance • Optimum load resistance equal to coil series resistance Optimum number of turns • Output power is proportional to the number of turns only if: • Inductance is compensated • No significant distributed effects • Affected by inter-turn and inter-layer capacitance

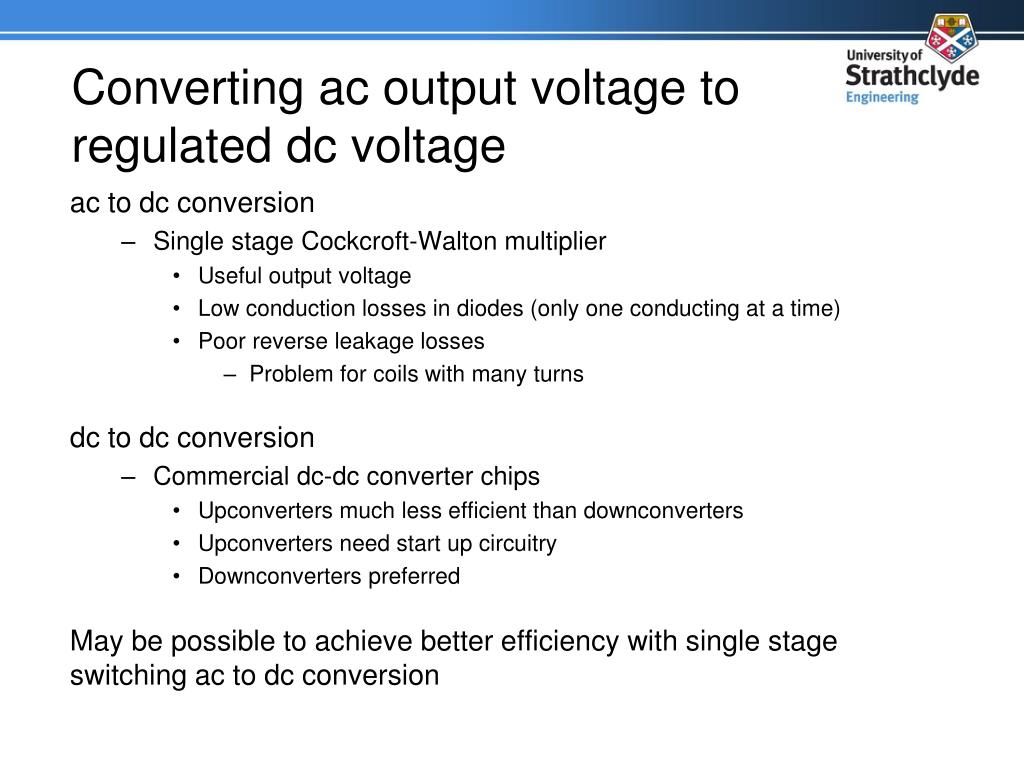

  9. Converting ac output voltage to regulated dc voltage • ac to dc conversion • Single stage Cockcroft-Walton multiplier • Useful output voltage • Low conduction losses in diodes (only one conducting at a time) • Poor reverse leakage losses • Problem for coils with many turns • dc to dc conversion • Commercial dc-dc converter chips • Upconverters much less efficient than downconverters • Upconverters need start up circuitry • Downconverters preferred • May be possible to achieve better efficiency with single stage switching ac to dc conversion

  10. Experimental Test Equipment 3 Current carrying coils The blue arrows show the location and orientation of the uniform magnetic field Harvesting coil placed in uniform magnetic field Maxwell coils

  11. Results • Output power measurements for coil placed in 25 µTrms Cast iron core 1.3mW @ 6.5 Vrms, RL= 33 kΩ 40,000 turns 1mW @ 10Vdc RL= 100 kΩ ac-dc converter 50 mm 500 mm ac-dc converter dc-dc converter • Rs = 33 kΩ • Ls = 100 H • Ccomp = 100 nF 0.85mW @ 3.6Vdc RL= 15 kΩ

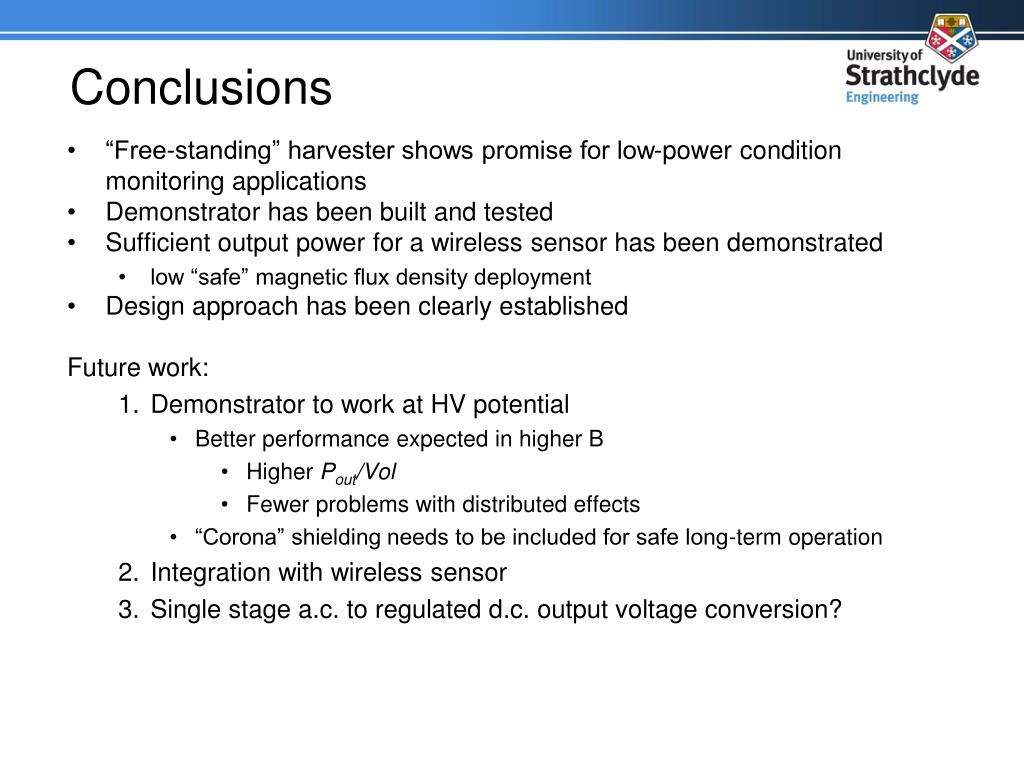

  12. Conclusions • “Free-standing” harvester shows promise for low-power condition monitoring applications • Demonstrator has been built and tested • Sufficient output power for a wireless sensor has been demonstrated • low “safe” magnetic flux density deployment • Design approach has been clearly established • Future work: • Demonstrator to work at HV potential • Better performance expected in higher B • Higher Pout/Vol • Fewer problems with distributed effects • “Corona” shielding needs to be included for safe long-term operation • Integration with wireless sensor • Single stage a.c. to regulated d.c. output voltage conversion?
