Presentation Transcript
subsystems

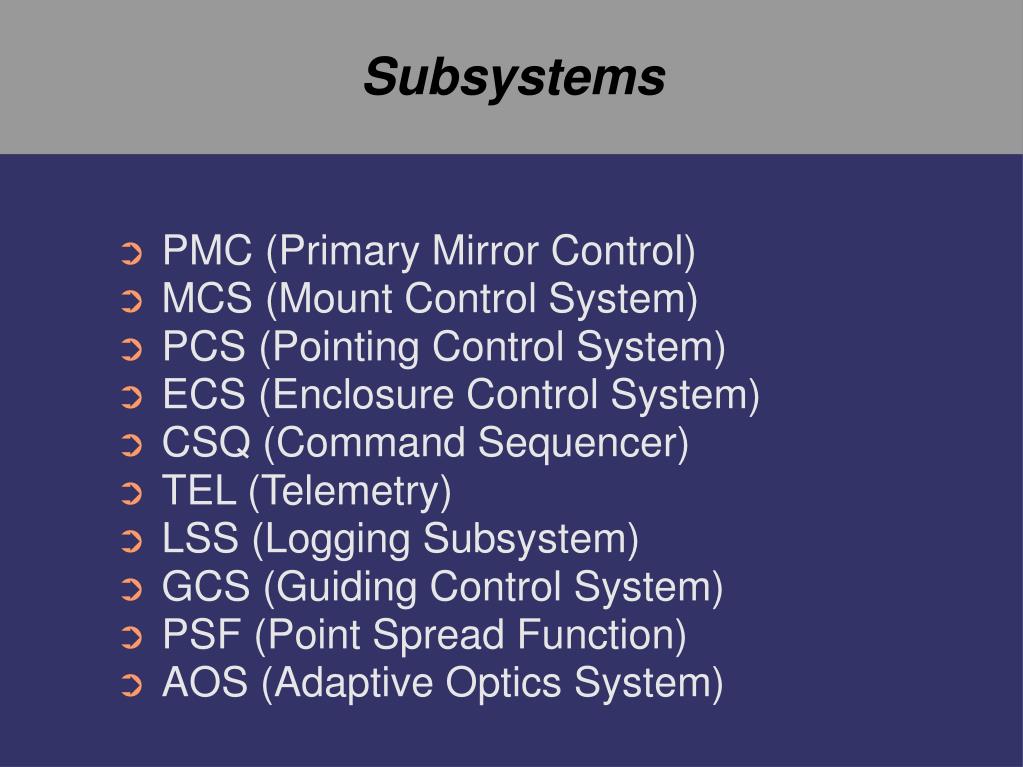

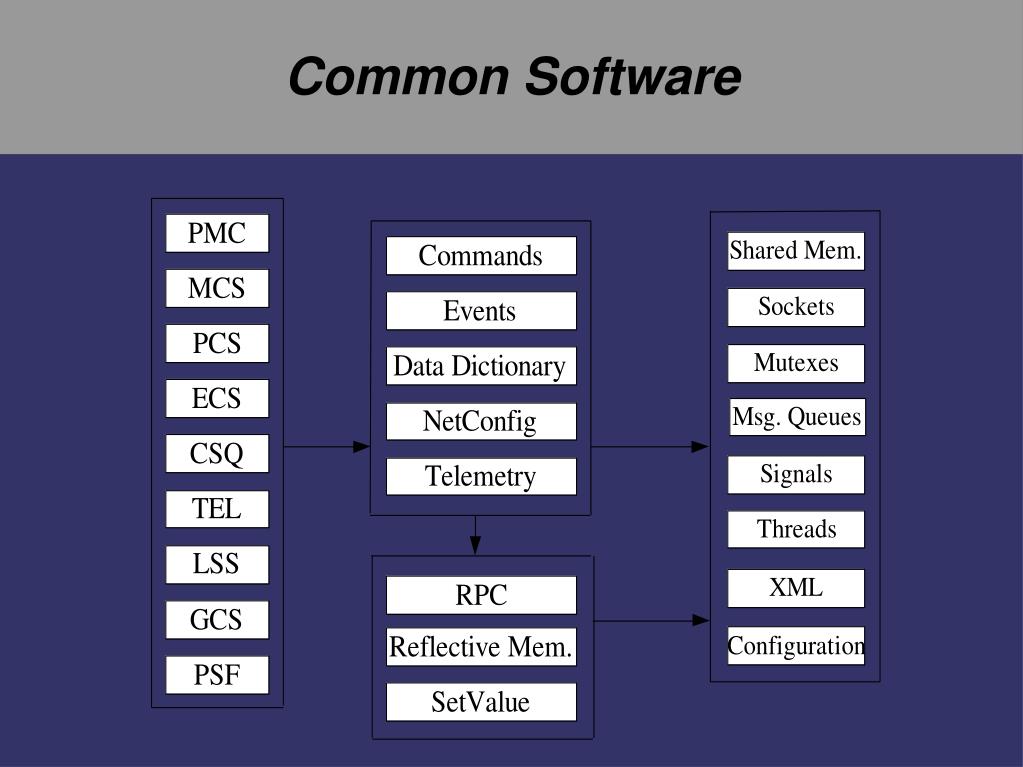

Subsystems
  • PMC (Primary Mirror Control)
  • MCS (Mount Control System)
  • PCS (Pointing Control System)
  • ECS (Enclosure Control System)
  • CSQ (Command Sequencer)
  • TEL (Telemetry)
  • LSS (Logging Subsystem)
  • GCS (Guiding Control System)
  • PSF (Point Spread Function)
  • AOS (Adaptive Optics System)
subsytem design
Subsytem Design
  • Commands
  • Events
  • Hardware Interface

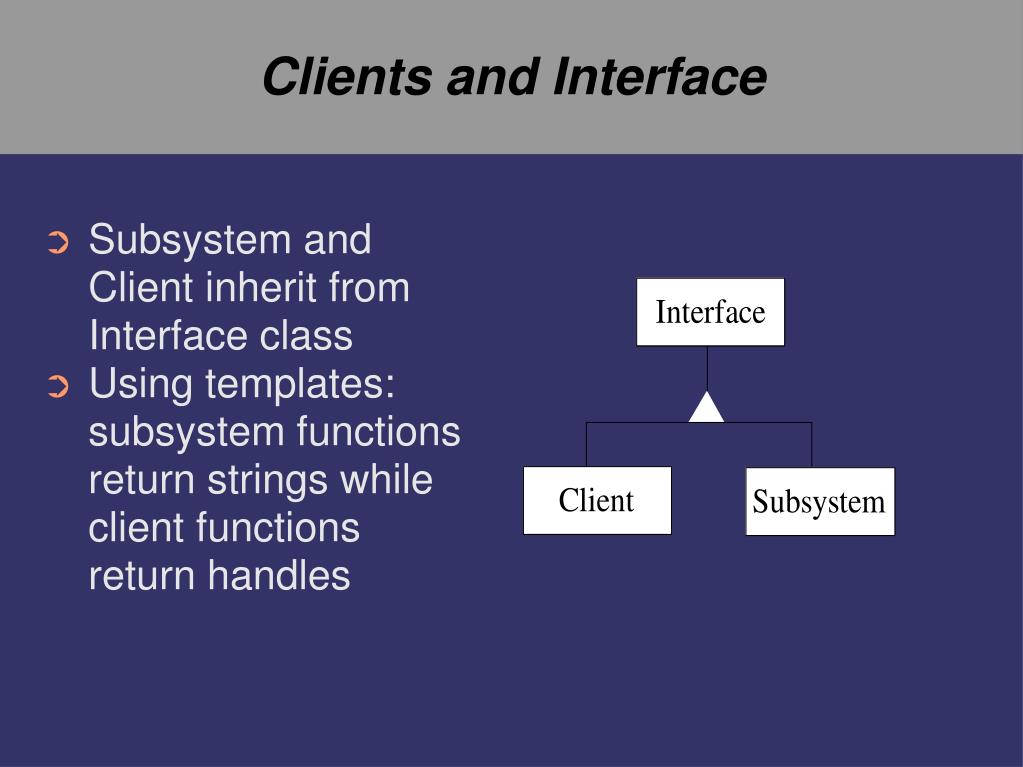

clients and interface
Clients and Interface
  • Subsystem and Client inherit from Interface class
  • Using templates: subsystem functions return strings while client functions return handles

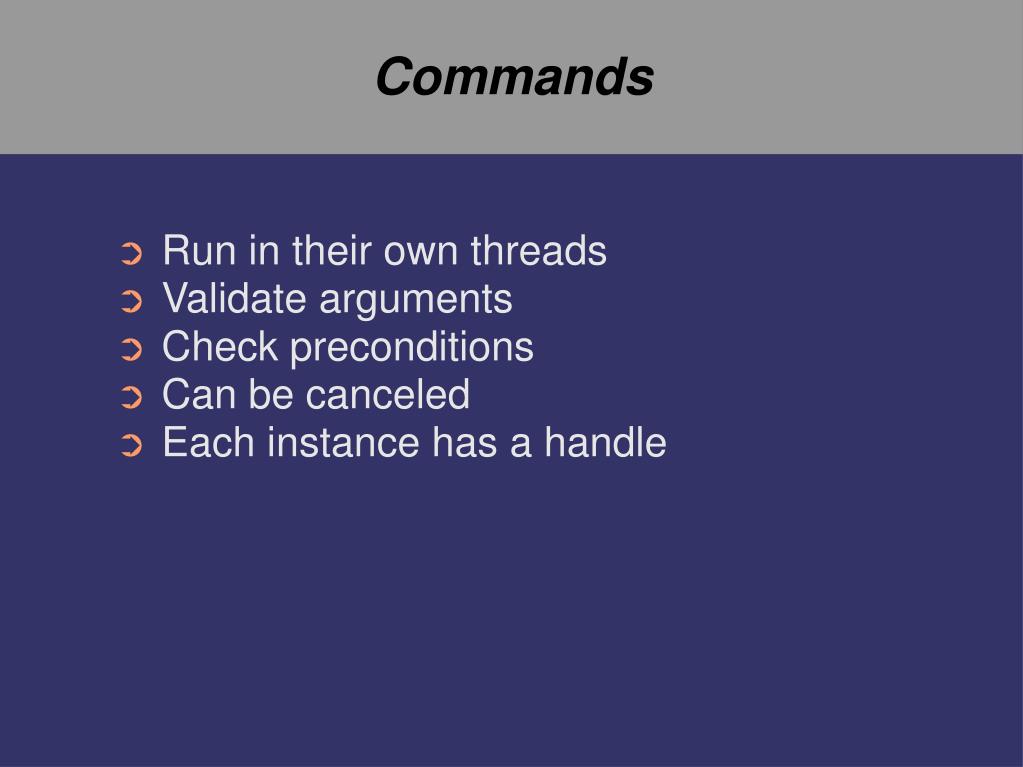

commands
Commands
  • Run in their own threads
  • Validate arguments
  • Check preconditions
  • Can be canceled
  • Each instance has a handle

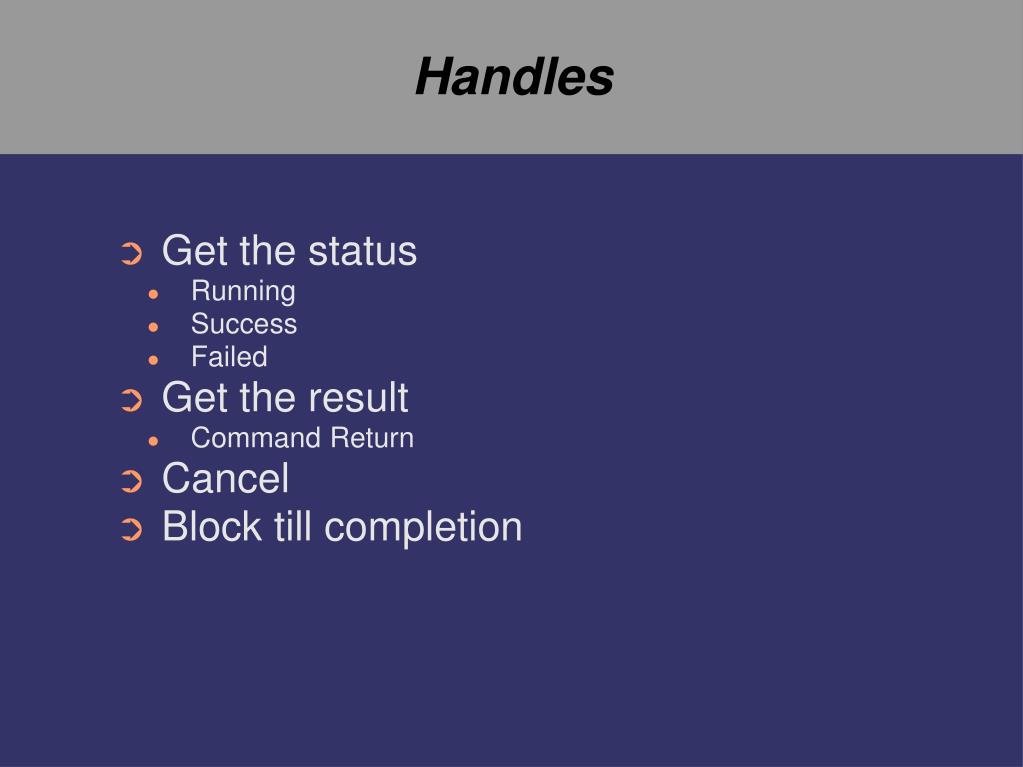

handles
Handles
  • Get the status
    • Running
    • Success
    • Failed
  • Get the result
    • Command Return
  • Cancel
  • Block till completion
events

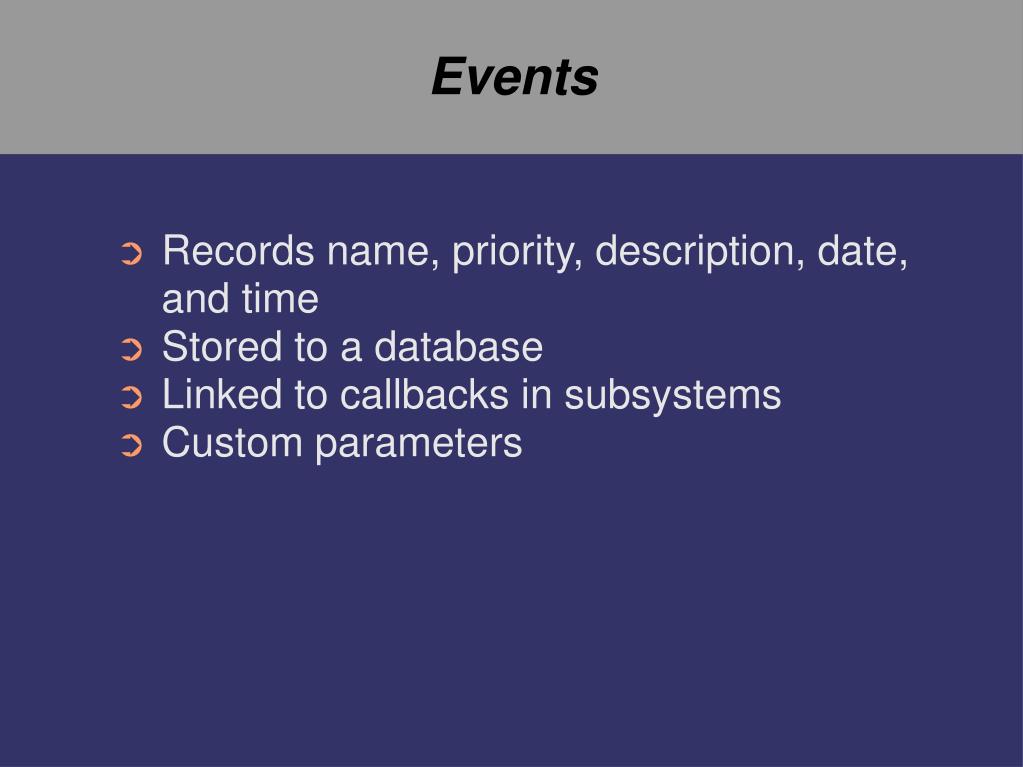

Events
  • Records name, priority, description, date, and time
  • Stored to a database
  • Linked to callbacks in subsystems
  • Custom parameters

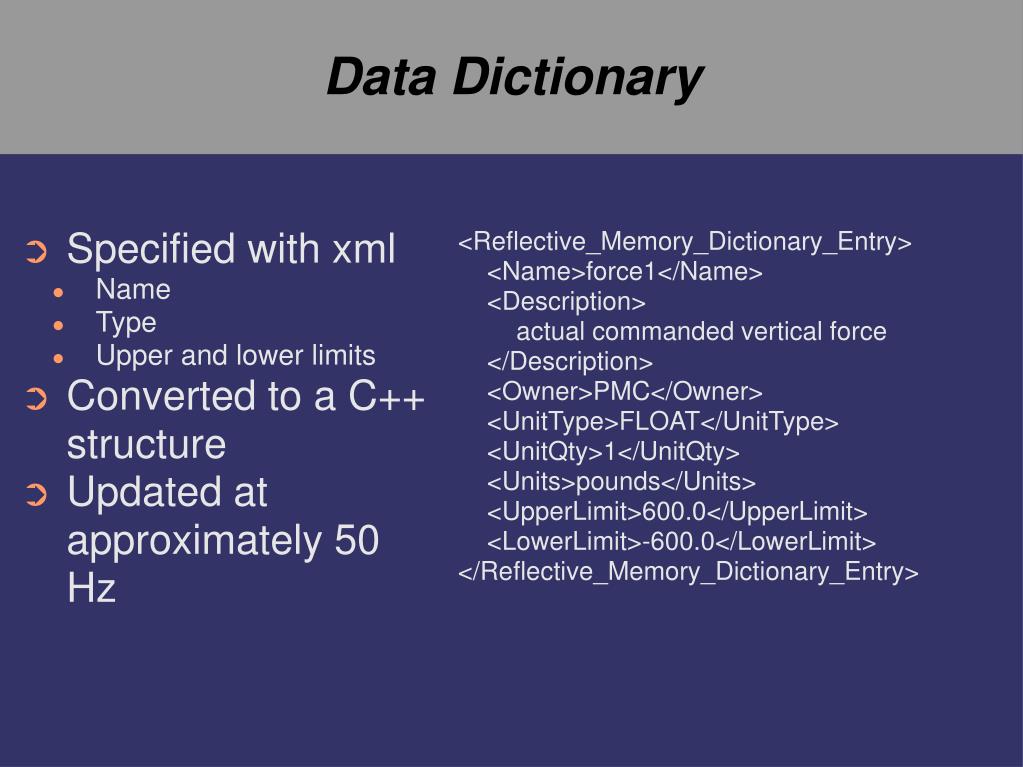

data dictionary
<Reflective_Memory_Dictionary_Entry>

<Name>force1</Name>

<Description>

actual commanded vertical force

</Description>

<Owner>PMC</Owner>

<UnitType>FLOAT</UnitType>

<UnitQty>1</UnitQty>

<Units>pounds</Units>

<UpperLimit>600.0</UpperLimit>

<LowerLimit>-600.0</LowerLimit>

</Reflective_Memory_Dictionary_Entry>

Data Dictionary
  • Specified with xml
    • Name
    • Type
    • Upper and lower limits
  • Converted to a C++ structure
  • Updated at approximately 50 Hz

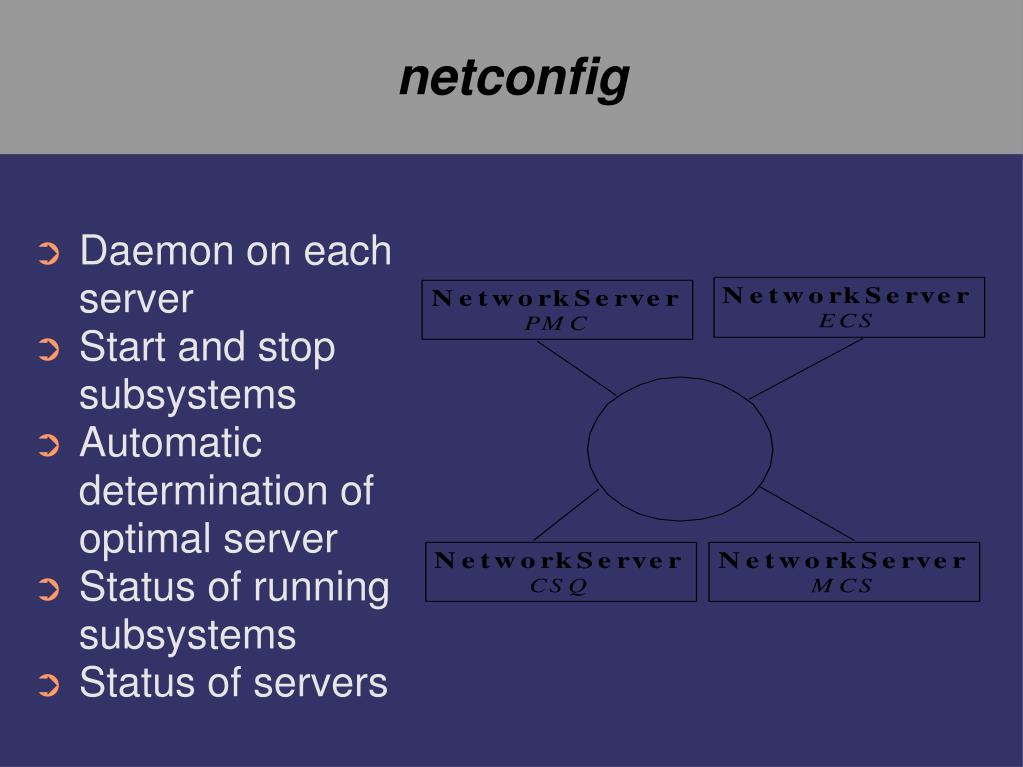

netconfig
netconfig
  • Daemon on each server
  • Start and stop subsystems
  • Automatic determination of optimal server
  • Status of running subsystems
  • Status of servers

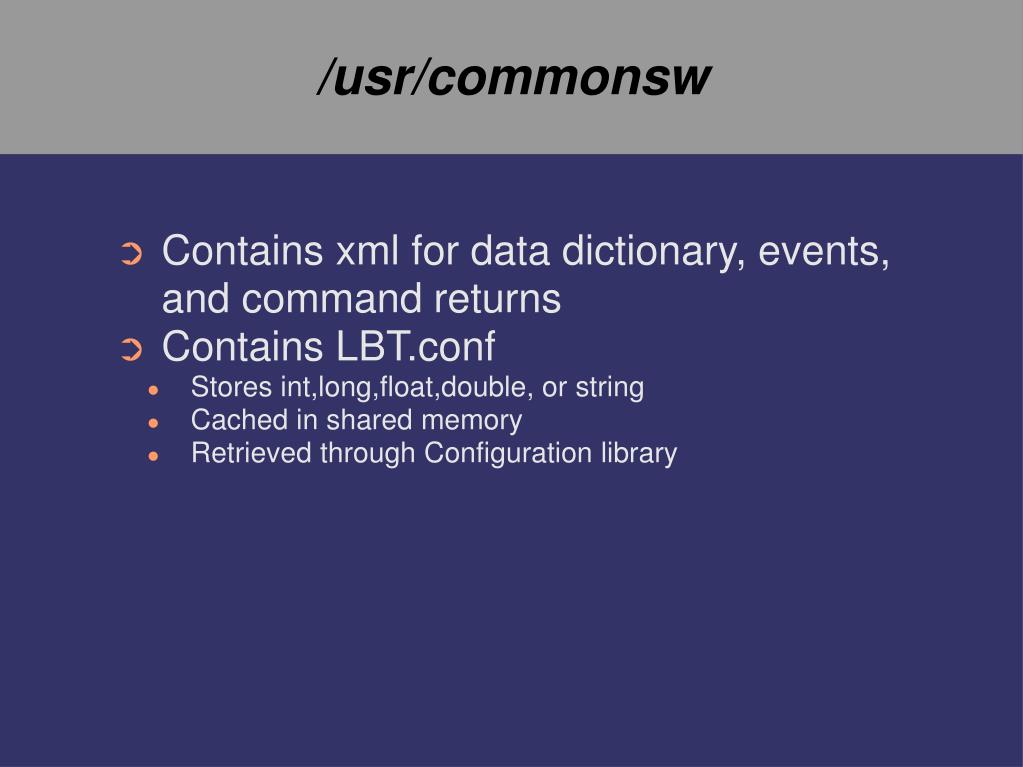

usr commonsw
/usr/commonsw
  • Contains xml for data dictionary, events, and command returns
  • Contains LBT.conf
    • Stores int,long,float,double, or string
    • Cached in shared memory
    • Retrieved through Configuration library
software control management
Software Control Management
  • CVS
  • Each component has a tag.
  • Collection of tags make a release.
