Outline

Mapping Data in Peer-to-Peer Systems: Semantics and Algorithmic IssuesBy A. Kementsietsidis, M. Arenas and R.J. MillerPresented by Md. Anisur Rahman: 3558643Anahit Martirosyan: 100628480LianXiang Qiu: 3603336University Of OttawaWinter 2004


Outline

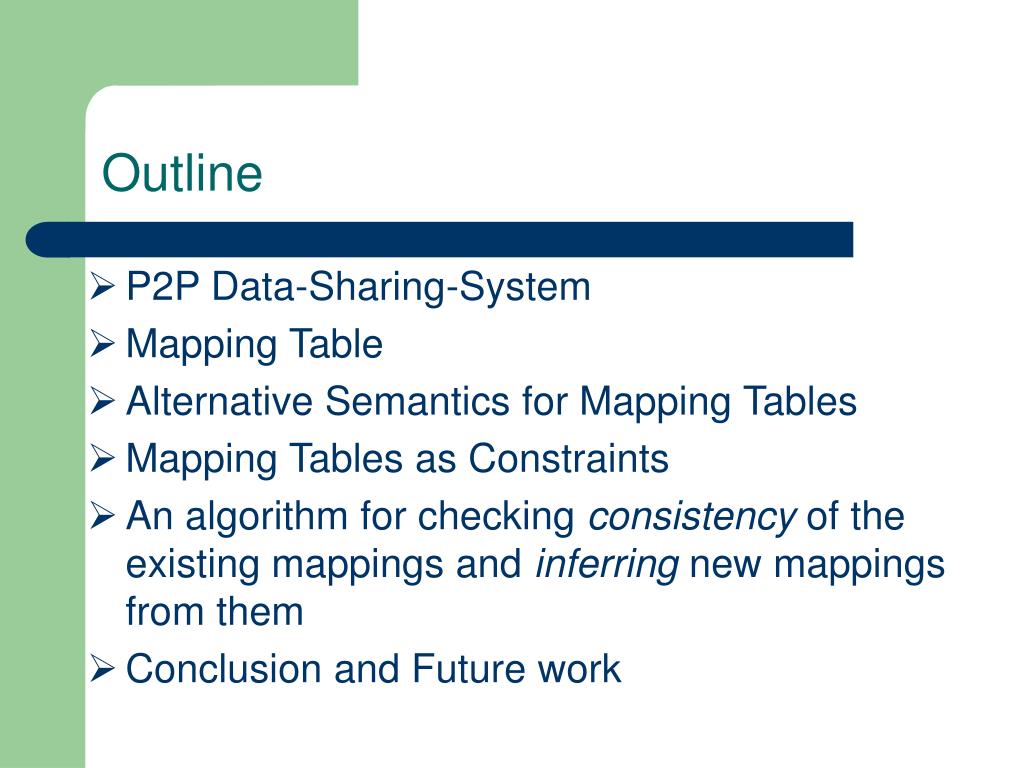

Outline

  • P2P Data-Sharing-System

  • Mapping Table

  • Alternative Semantics for Mapping Tables

  • Mapping Tables as Constraints

  • An algorithm for checking consistency of the existing mappings and inferring new mappings from them

  • Conclusion and Future work


Peer to peer data sharing system

Peer-to-Peer Data-Sharing System


What is a mapping table

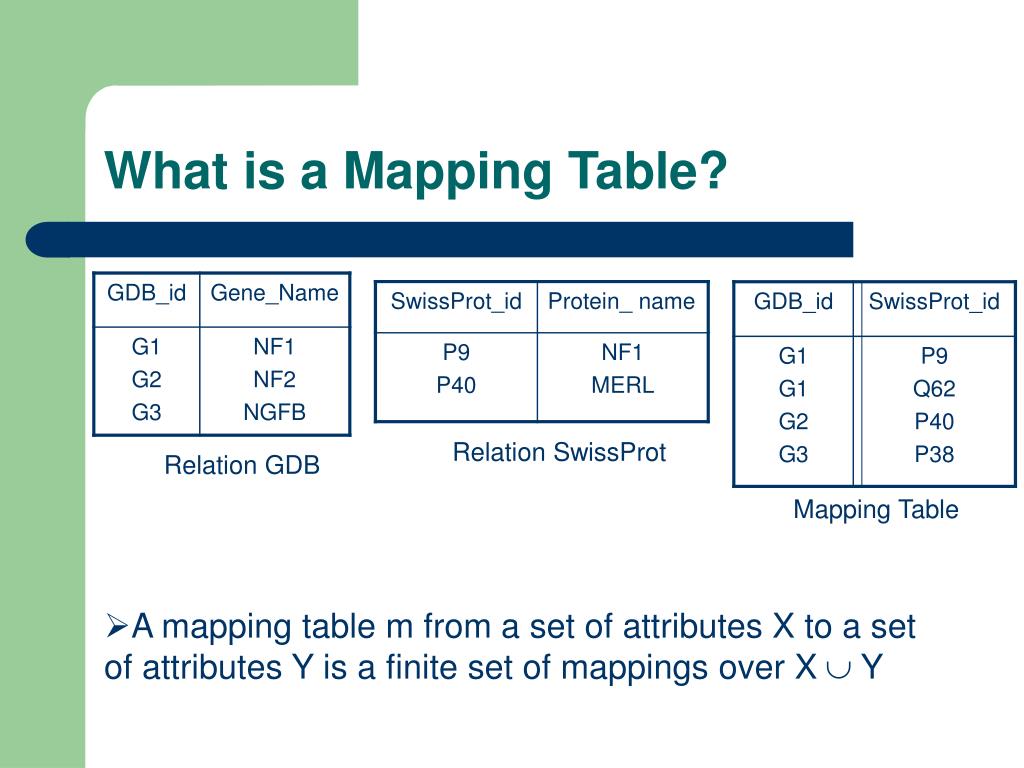

What is a Mapping Table?

Relation SwissProt

Relation GDB

Mapping Table

  • A mapping table m from a set of attributes X to a set of attributes Y is a finite set of mappings over X  Y


Alternative semantics for mapping tables

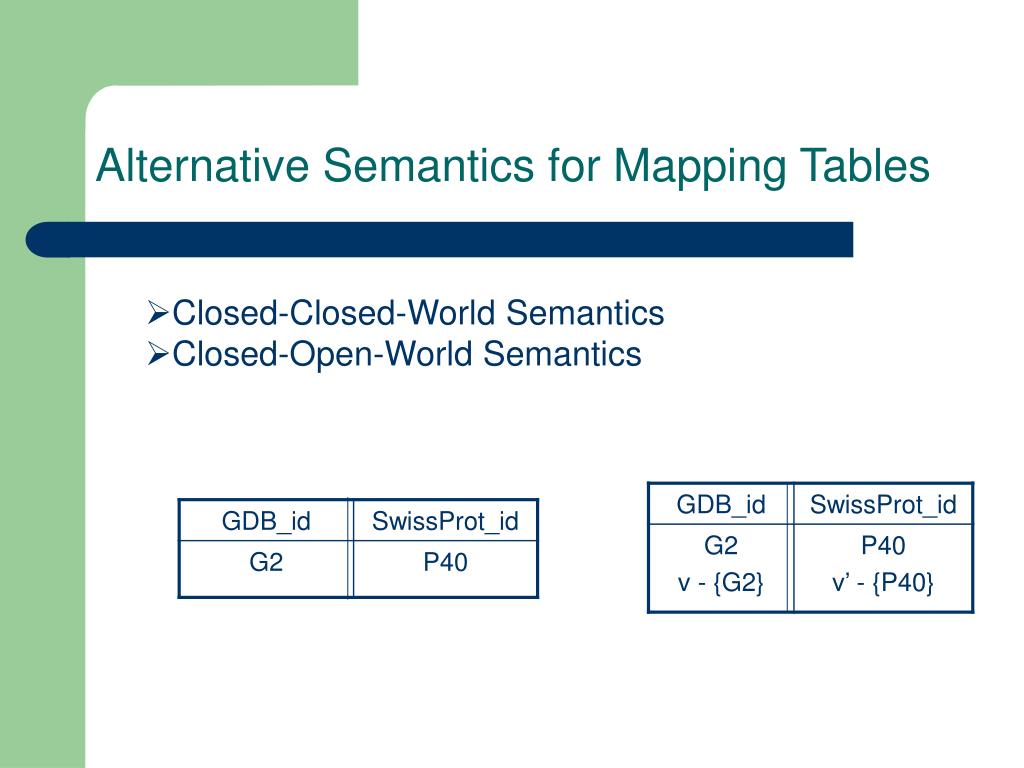

Alternative Semantics for Mapping Tables

  • Closed-Closed-World Semantics

  • Closed-Open-World Semantics


Valuation over a mapping table

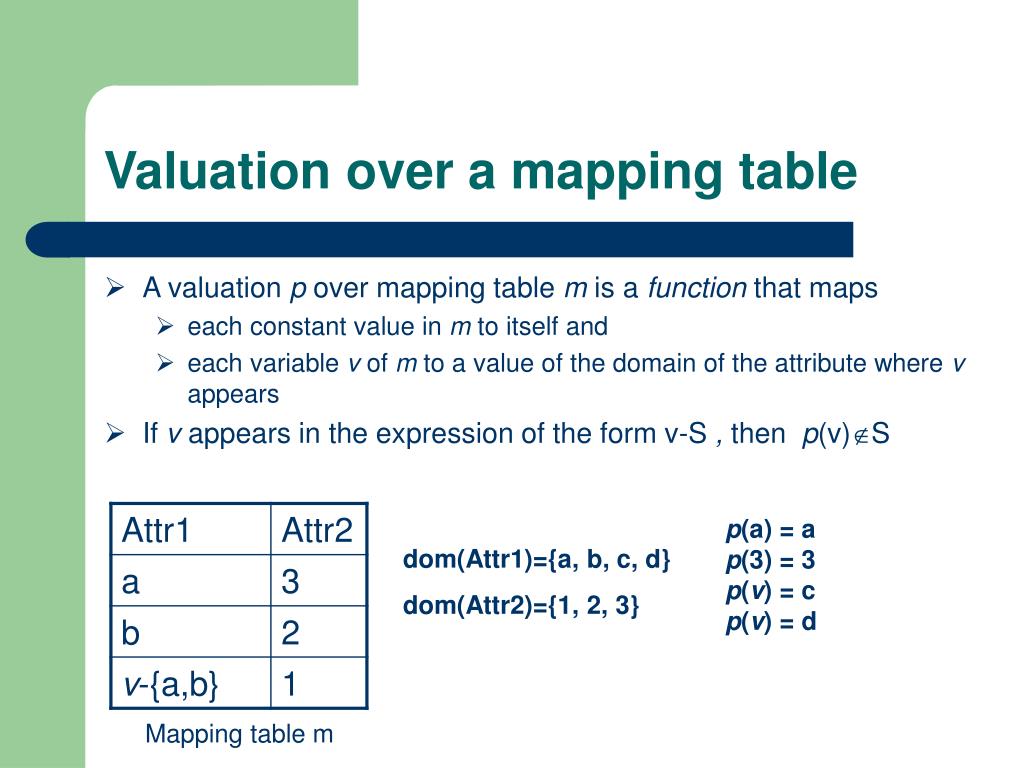

Valuation over a mapping table

  • A valuation p over mapping table m is a function that maps

    • each constant value in m to itself and

    • each variable v of m to a value of the domain of the attribute where v appears

  • If v appears in the expression of the form v-S , then p(v)S

p(a) = a

p(3) = 3

p(v) = c

p(v) = d

dom(Attr1)={a, b, c, d}

dom(Attr2)={1, 2, 3}

Mapping table m


Mapping constraint

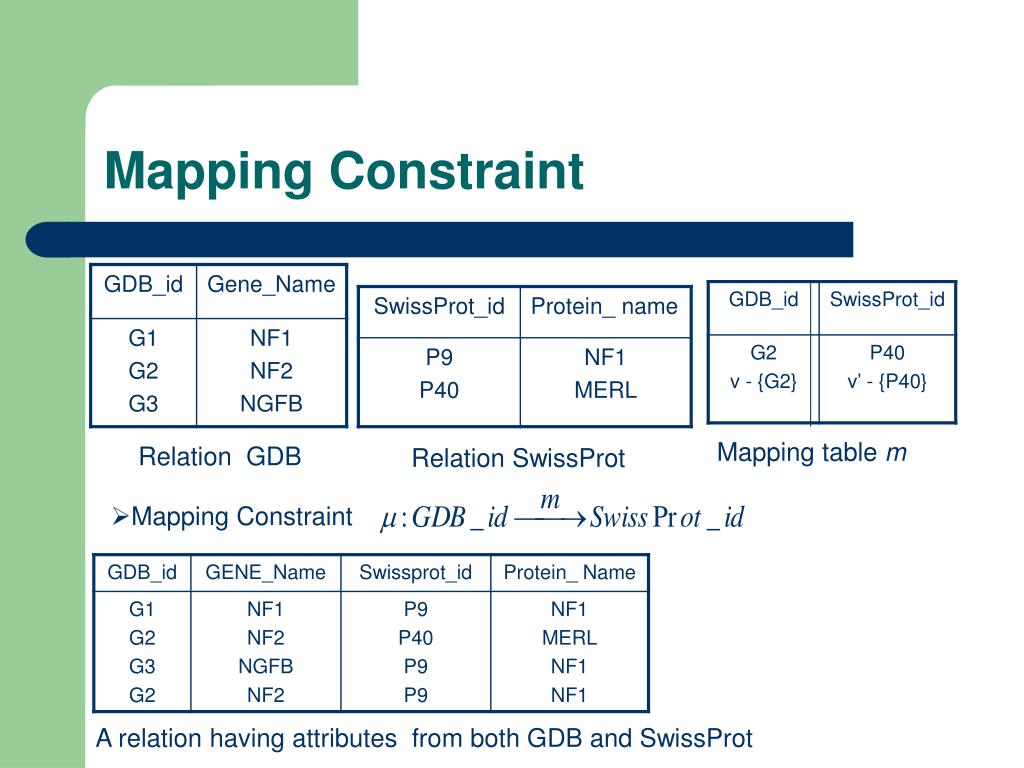

Mapping Constraint

Mapping table m

Relation GDB

Relation SwissProt

  • Mapping Constraint

A relation having attributes from both GDB and SwissProt


Extension of a mapping constraint

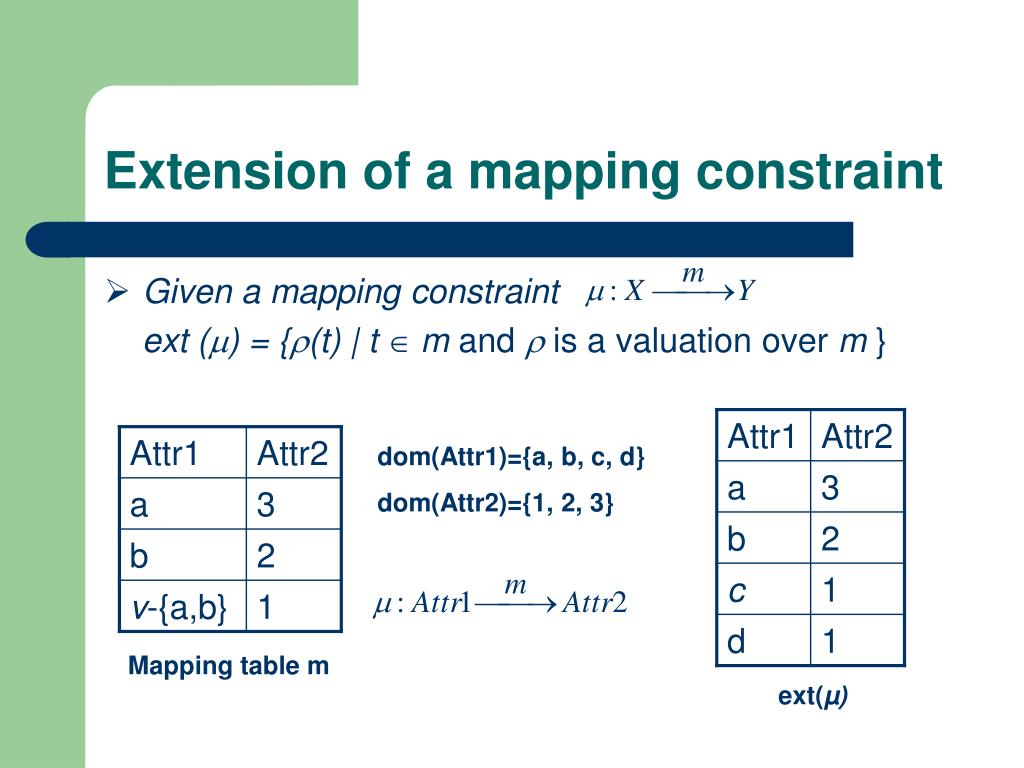

Extension of a mapping constraint

  • Given a mapping constraint

    ext () = {(t) |t mand is a valuation over m}

dom(Attr1)={a, b, c, d}

dom(Attr2)={1, 2, 3}

Mapping table m

ext(µ)


Cover of a set of mapping constraints

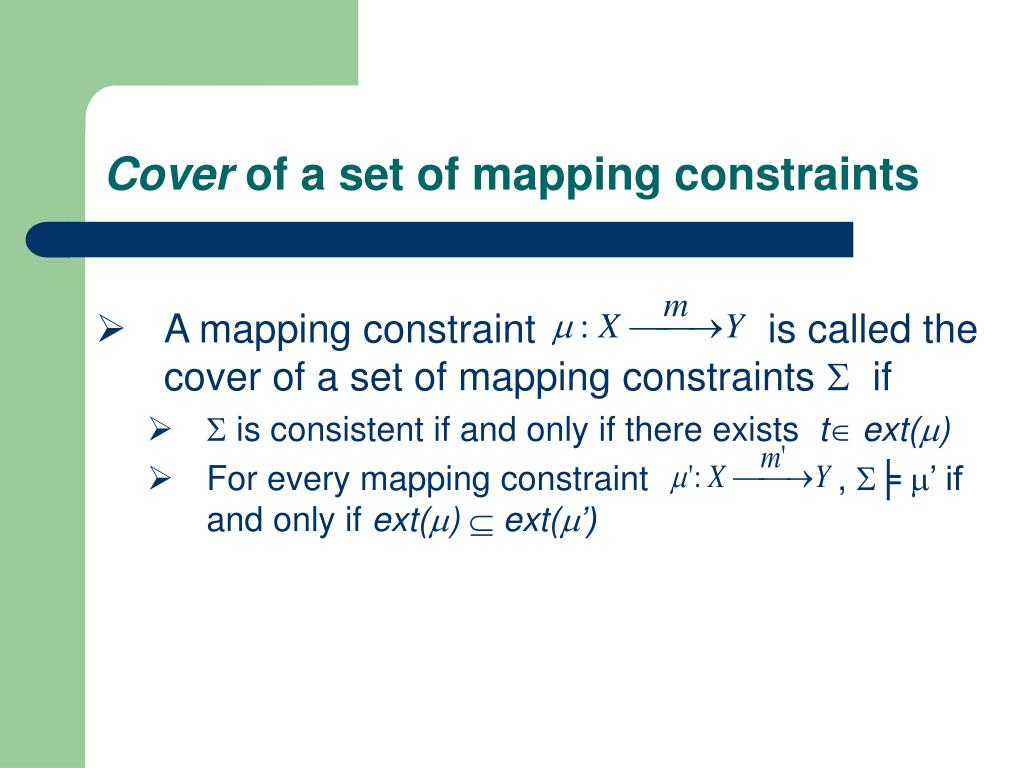

Cover of a set of mapping constraints

  • A mapping constraintis called the cover of a set of mapping constraints  if

    •  is consistent if and only if there exists text()

    • For every mapping constraint , ╞’ if and only if ext()  ext(’)


Example of cover

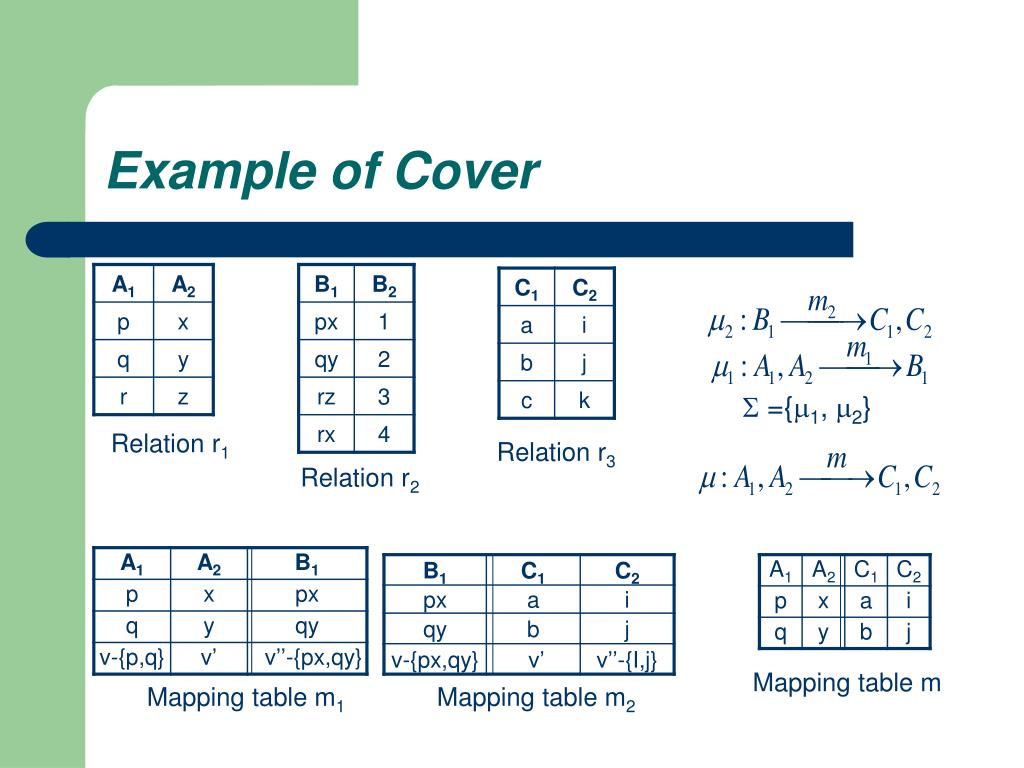

Example of Cover

 ={1, 2}

Relation r1

Relation r3

Relation r2

Mapping table m

Mapping table m1

Mapping table m2


The algorithm

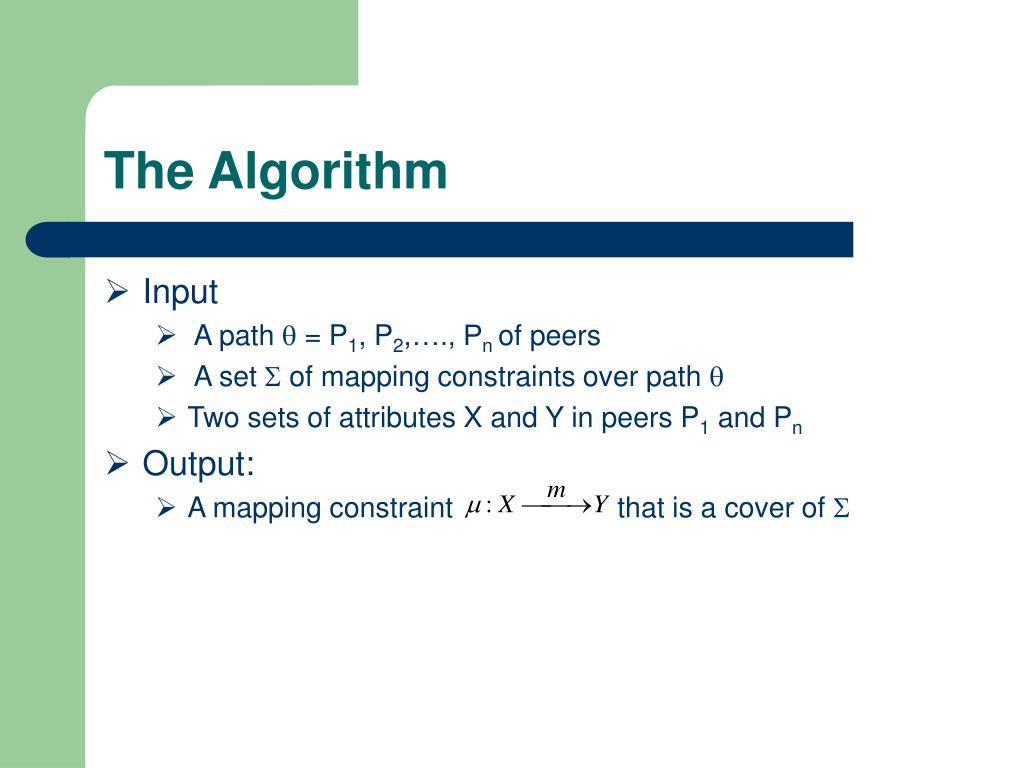

The Algorithm

  • Input

    • A path  = P1, P2,…., Pn of peers

    • A set  of mapping constraints over path 

    • Two sets of attributes X and Y in peers P1 and Pn

  • Output:

    • A mapping constraint that is a cover of 


How is the algorithm useful

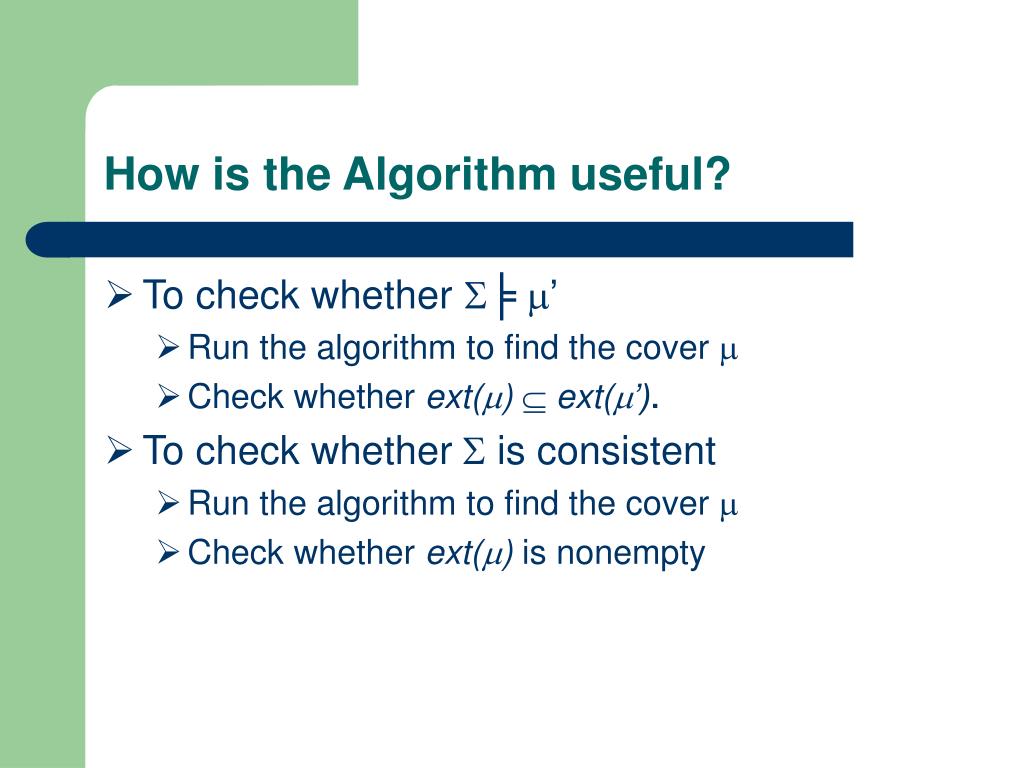

How is the Algorithm useful?

  • To check whether ╞’

    • Run the algorithm to find the cover 

    • Check whether ext()  ext(’).

  • To check whether is consistent

    • Run the algorithm to find the cover 

    • Check whether ext() is nonempty


An example

P2

P4

{B1, B2,.., B6}

{D3, D4}

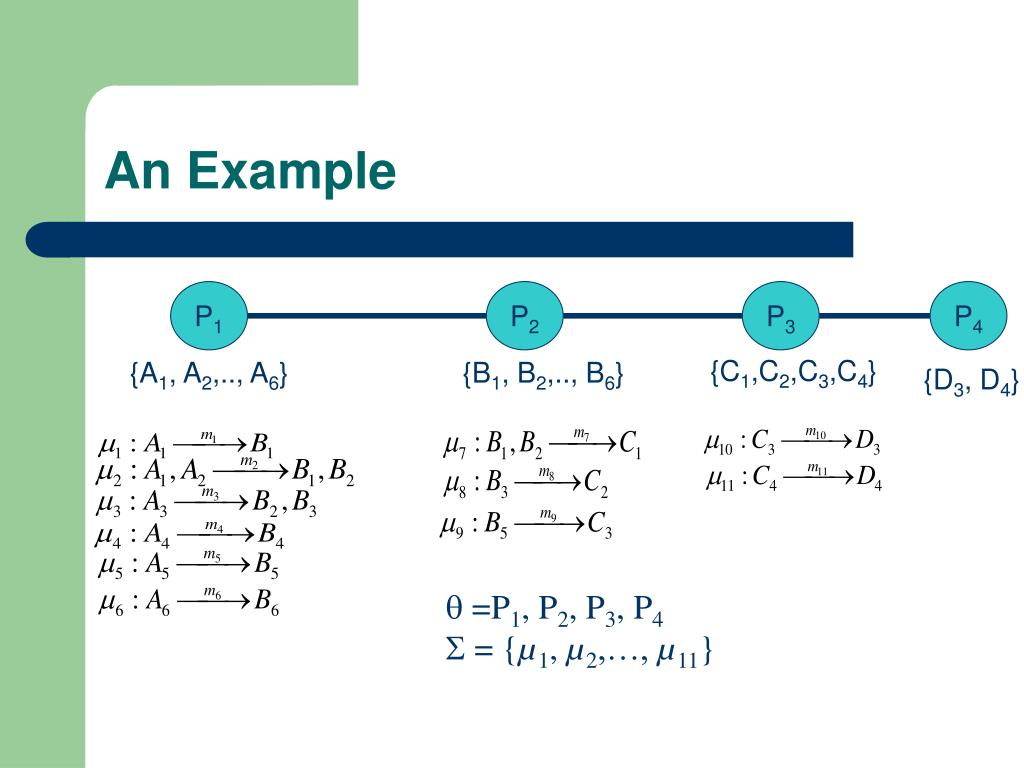

An Example

P1

P3

{C1,C2,C3,C4}

{A1, A2,.., A6}

 =P1, P2, P3, P4

 = {µ1, µ2,…, µ11}


Partitions

1

2

3

4

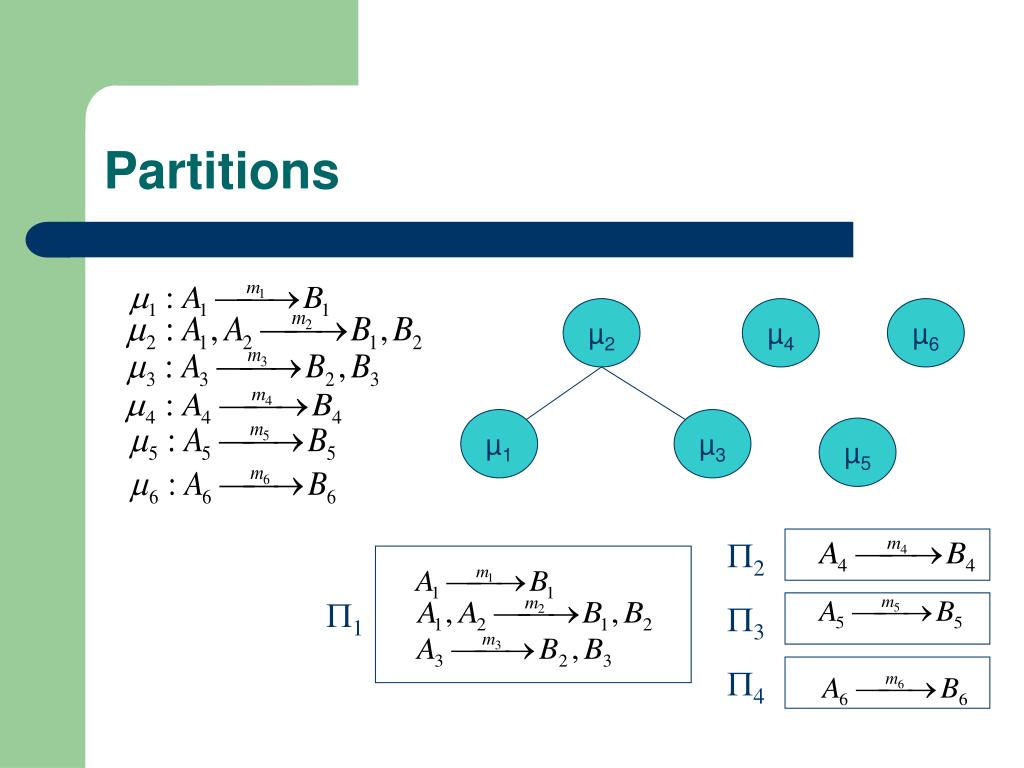

Partitions

µ2

µ4

µ6

µ1

µ3

µ5


Inferred partitions

5

1

6

7

2

3

4

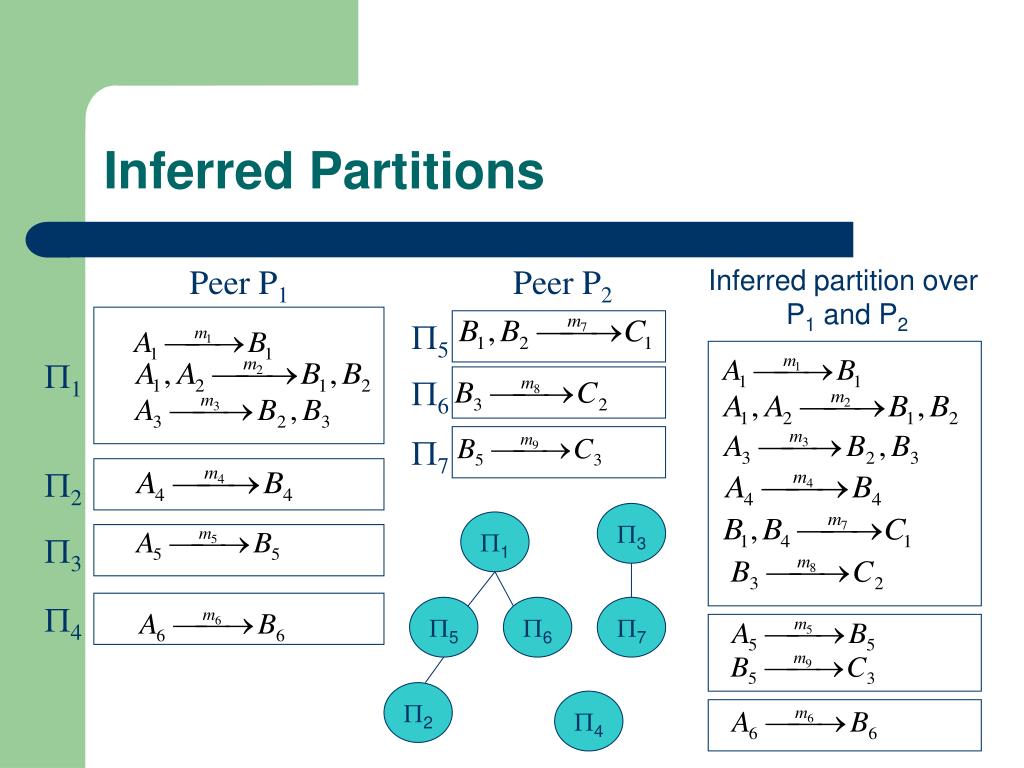

Inferred Partitions

Peer P1

Peer P2

Inferred partition over

P1 and P2

3

1

5

6

7

2

4


Advantages of partitioning

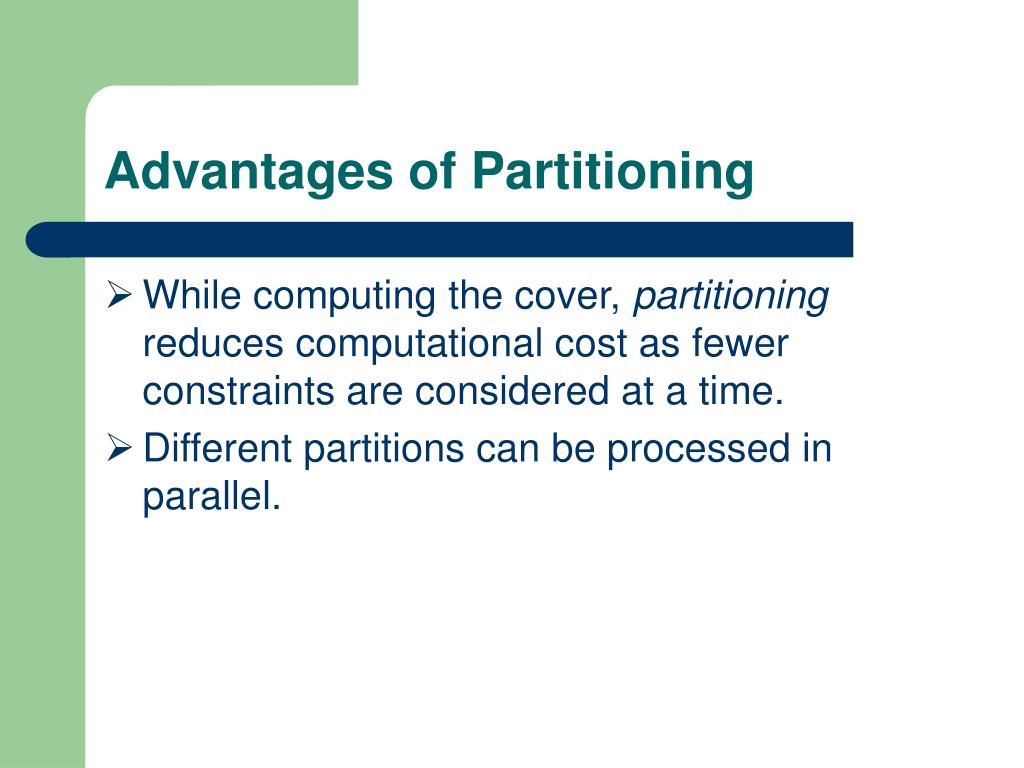

Advantages of Partitioning

  • While computing the cover, partitioning reduces computational cost as fewer constraints are considered at a time.

  • Different partitions can be processed in parallel.


Description of the algorithm

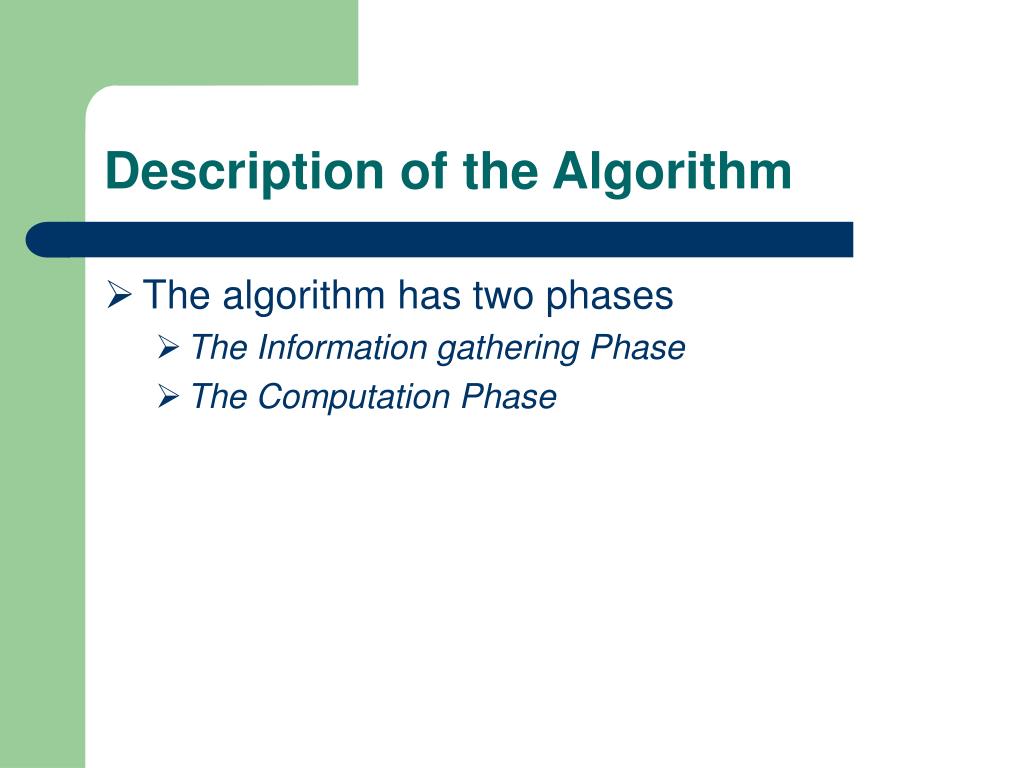

Description of the Algorithm

  • The algorithm has two phases

    • The Information gathering Phase

    • The Computation Phase


Information gathering phase

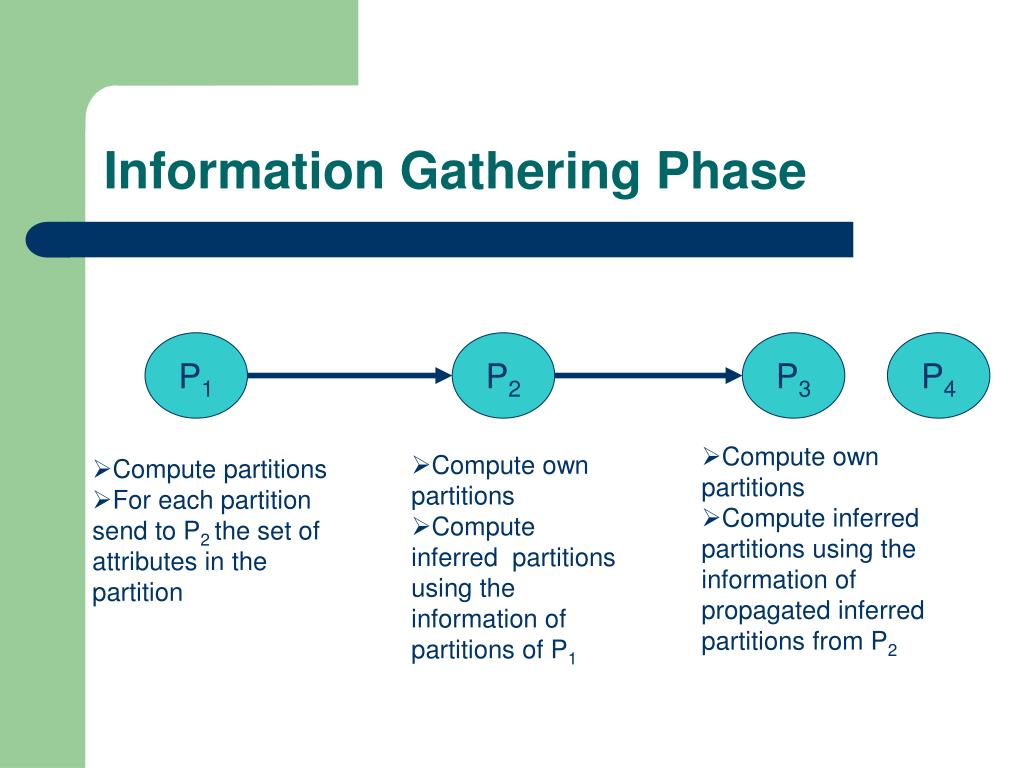

Information Gathering Phase

P1

P2

P3

P4

  • Compute own partitions

  • Compute inferred partitions using the information of propagated inferred partitions from P2

  • Compute own partitions

  • Compute inferred partitions using the information of partitions of P1

  • Compute partitions

  • For each partition send to P2 the set of attributes in the partition


Computation phase

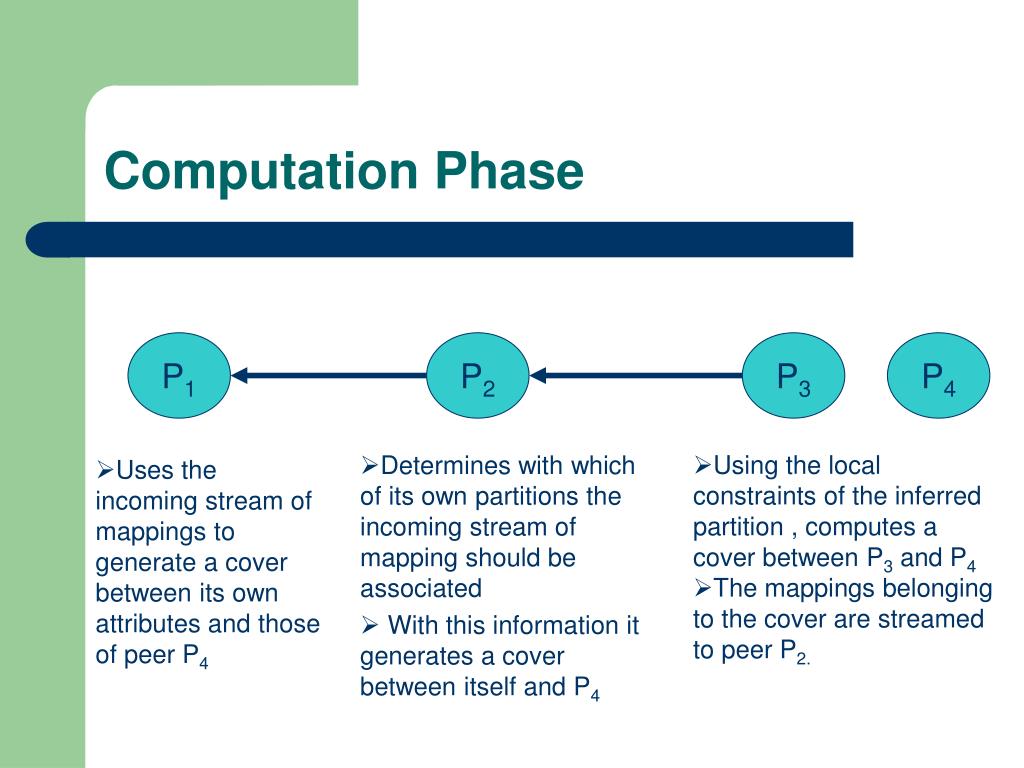

Computation Phase

P1

P2

P3

P4

  • Using the local constraints of the inferred partition , computes a cover between P3 and P4

  • The mappings belonging to the cover are streamed to peer P2.

  • Determines with which of its own partitions the incoming stream of mapping should be associated

  • With this information it generates a cover between itself and P4

  • Uses the incoming stream of mappings to generate a cover between its own attributes and those of peer P4


Conclusion and future scope

Conclusion and Future Scope

  • This paper showed that by treating mapping tables as constraints on the exchange of information between peers it is possible to reason about them and check their consistency.

  • There is scope for investigating the use of mapping tables in support of query answering.


Outline

Thank You
