Programmable logic devices by abdulqadir alaqeeli 1 27 98

Programmable Logic DevicesbyAbdulqadir Alaqeeli1/27/98

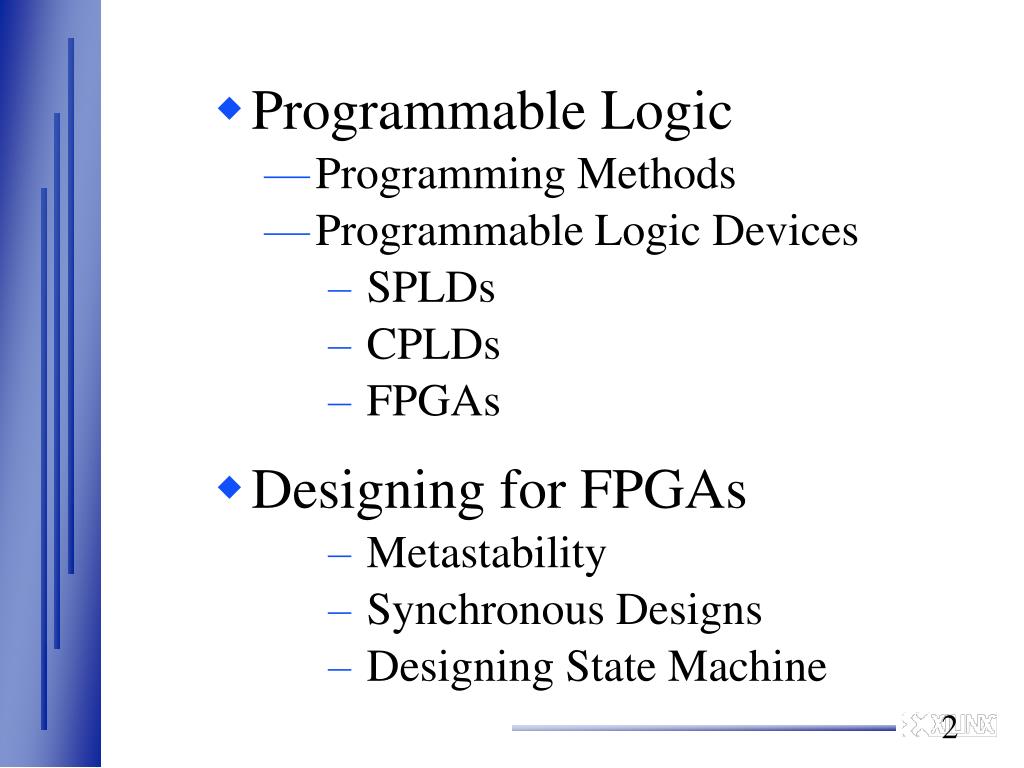

Programmable logic devices by abdulqadir alaqeeli 1 27 98

  • Programmable Logic

    • Programming Methods

    • Programmable Logic Devices

      • SPLDs

      • CPLDs

      • FPGAs

  • Designing for FPGAs

    • Metastability

    • Synchronous Designs

    • Designing State Machine


Programming methods

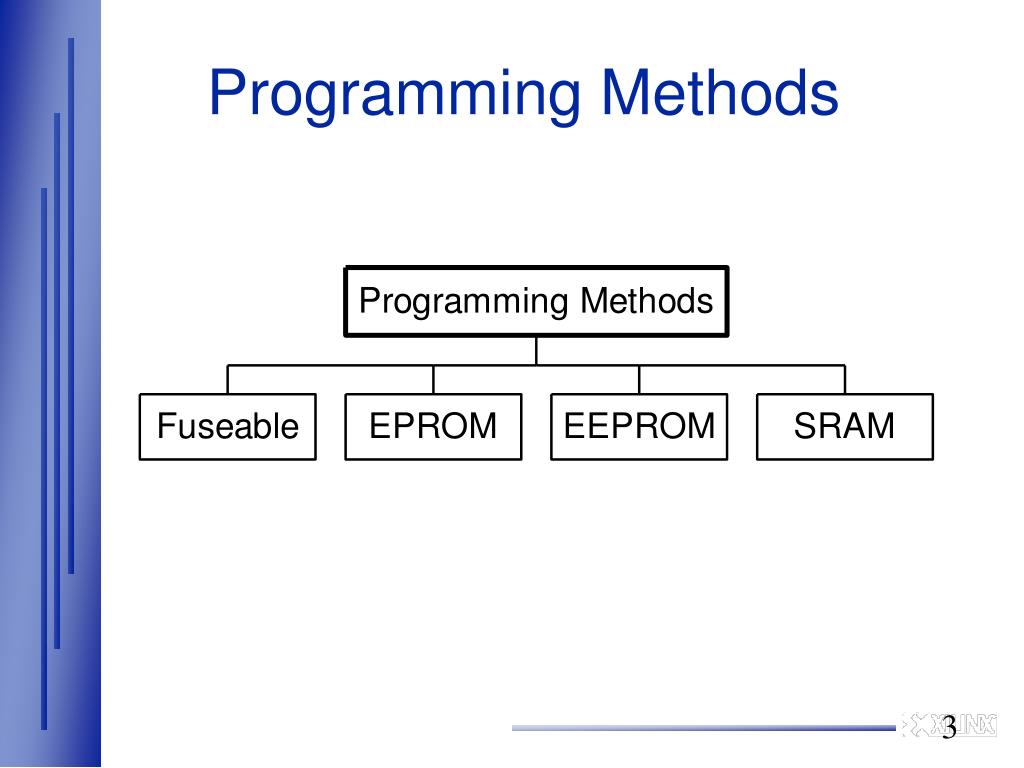

Programming Methods


Programmable logic devices by abdulqadir alaqeeli 1 27 98

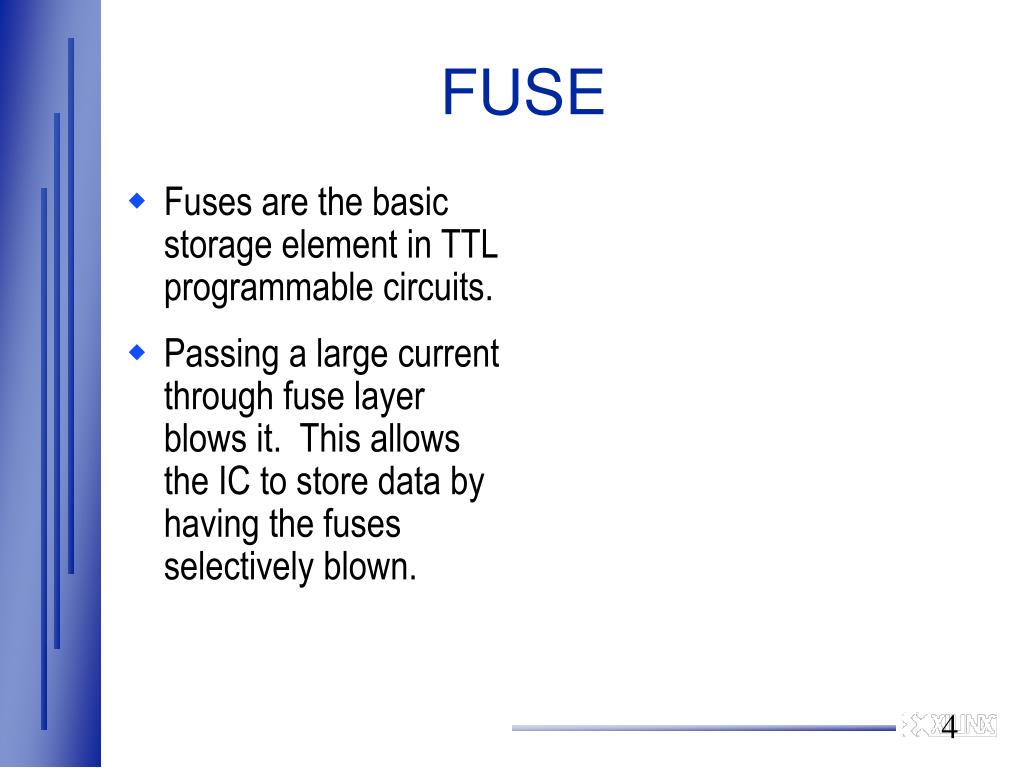

FUSE

  • Fuses are the basic storage element in TTL programmable circuits.

  • Passing a large current through fuse layer blows it. This allows the IC to store data by having the fuses selectively blown.


Eprom

EPROM

  • In CMOS the metal fuse is replaced by FAMOS transistor.

  • By hot electron injection, a charge is placed onto the floating gate and switch action is provided.

  • UV erasable.


Eeprom and sram

EEPROM and SRAM

  • EEPROM

    • Electrically erasable floating gate.

    • No UV.

  • SRAM

    • Loads configuration memory cells that control the logic and interconnect. (i.e. pass-transistors)

    • To erase, turn the power off.


Programming technologies

Programming Technologies

1) Bipolar fusible link

- Closed device, burned open by high current

2) SRAM based

- Uses pass transistors controlled by SRAM

- CMOS based

3) E/EEPROM based

- Floating gate

- CMOS based


Programmable logic devices

Programmable Logic Devices

  • Simple PLDs:

    • PALs

    • PLAs

    • PROMs

    • GALs

  • Complex PLDs

  • FPGAs


  • Programmable array logic pals

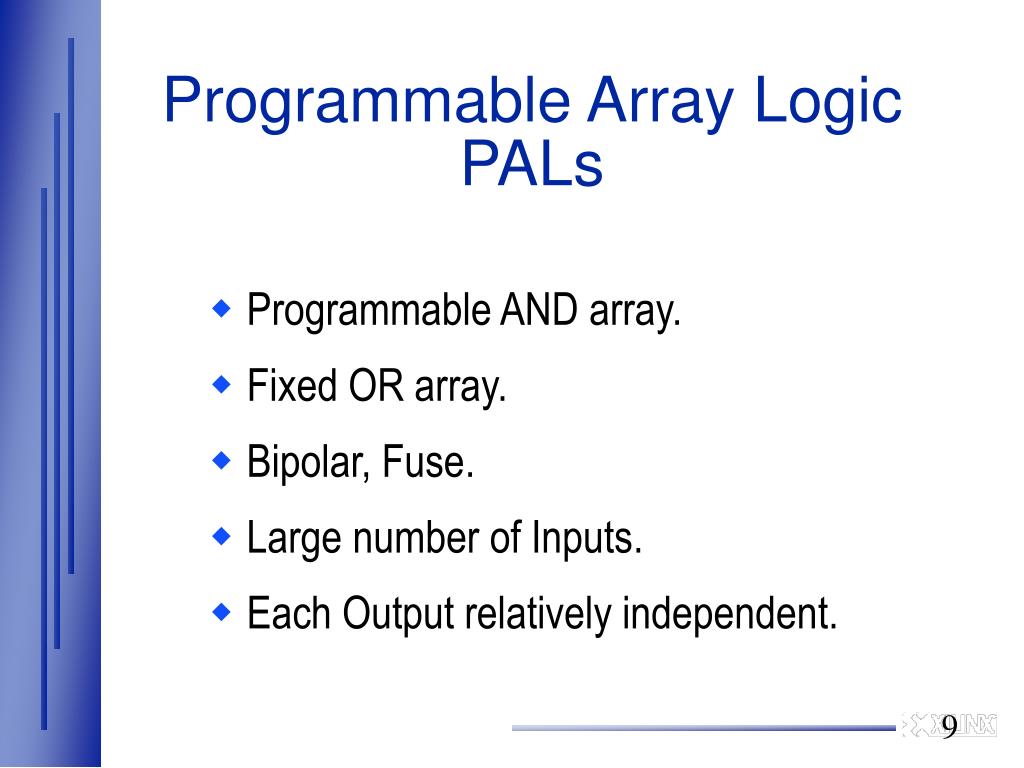

    Programmable Array Logic PALs

    • Programmable AND array.

    • Fixed OR array.

    • Bipolar, Fuse.

    • Large number of Inputs.

    • Each Output relatively independent.


    Programmable logic arrays plas

    Programmable Logic Arrays PLAs

    • Programmable AND array.

    • Programmable OR array.

    • Bipolar, Fuse.

    • Large number of Inputs.

    • Output functions share some product terms.


    Programmable rom prom

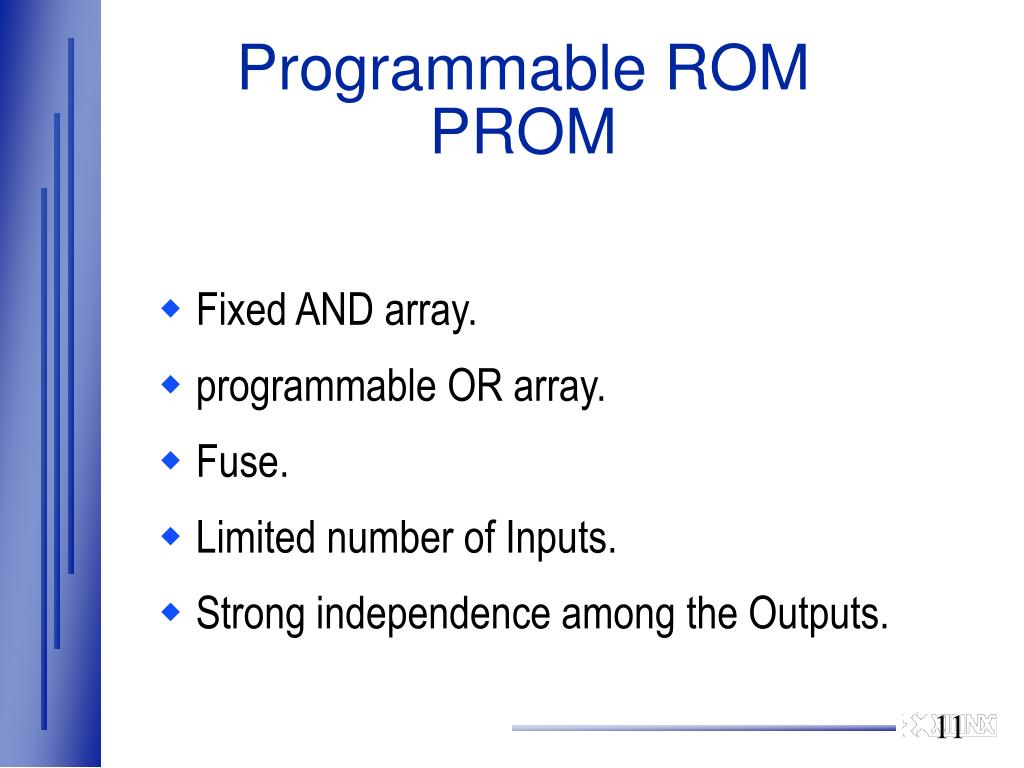

    Programmable ROMPROM

    • Fixed AND array.

    • programmable OR array.

    • Fuse.

    • Limited number of Inputs.

    • Strong independence among the Outputs.


    Programmable logic devices by abdulqadir alaqeeli 1 27 98

    • PALs : most popular PLD architecture.

    • PLAs : most flexible of combinatorial PLDs.

    • PROMs:can be used to store any logic function.


    Generic array logic gals

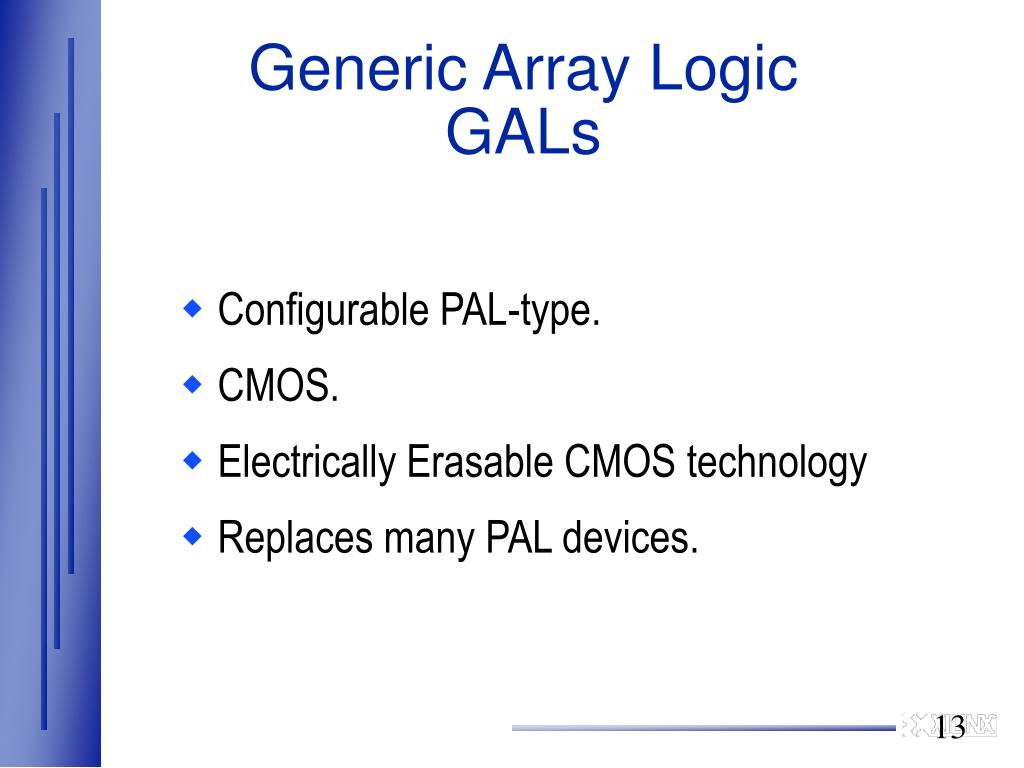

    Generic Array LogicGALs

    • Configurable PAL-type.

    • CMOS.

    • Electrically Erasable CMOS technology

    • Replaces many PAL devices.


    Complex programmable logic devices

    Complex Programmable Logic Devices

    ( CPLDs )


    Xc7300 dual block architecture

    XC7300 Dual Block Architecture

    • Universal Interconnect Matrix

      • - SMARTswitch

    PAL-like Function Block

    High

    Density

    Function

    Block

    High

    Density

    Function

    Block

    Input

    Registers

    I/O

    I/O

    UIM

    3.3 /5 Volt I/O

    High Drive

    - 24 mA

    Fast

    Function

    Block

    Fast

    Function

    Block

    FO

    FO

    FAST

    tSU = 4.0 ns

    tC0 = 5.5 ns

    FAST

    5 ns Pin to Pin

    fCLK =167 MHz


    Xc9500 flexible architecture

    3

    JTAG

    Controller

    In-System

    Programming Controller

    JTAG Port

    Function

    Block 1

    I/O

    I/O

    Function

    Block 2

    I/O

    I/O

    Blocks

    FastCONNECT

    Switch Matrix

    I/O

    Function

    Block 3

    Global Clocks

    3

    Global Set/Reset

    1

    Function

    Block n

    Global Tri-States

    2 or 4

    XC9500 - Flexible Architecture


    Xc9500 function block

    Global

    Clocks

    Global

    Tri-State

    2 or 4

    3

    I/O

    Macrocell 1

    Product-

    Term

    Allocator

    AND

    Array

    36

    From

    FastCONNECT

    I/O

    Macrocell 18

    To

    FastCONNECT

    XC9500 Function Block


    Xc9500 architectural features

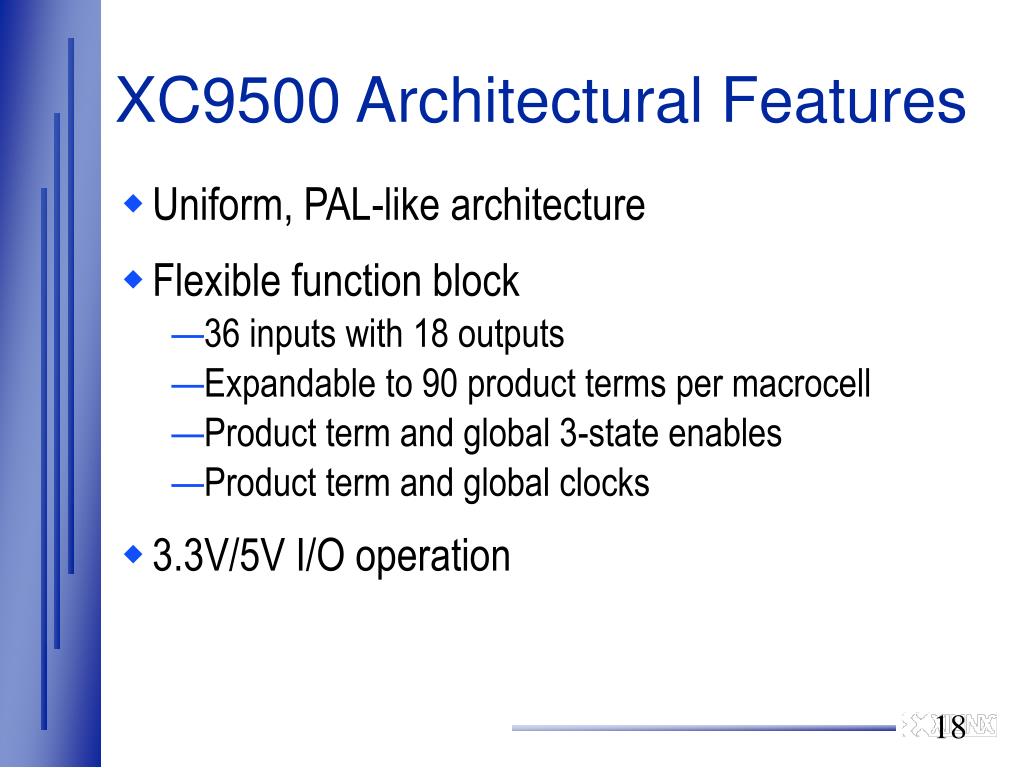

    XC9500 Architectural Features

    • Uniform, PAL-like architecture

    • Flexible function block

      • 36 inputs with 18 outputs

      • Expandable to 90 product terms per macrocell

      • Product term and global 3-state enables

      • Product term and global clocks

    • 3.3V/5V I/O operation


    Xc9500 optimizes pin locking

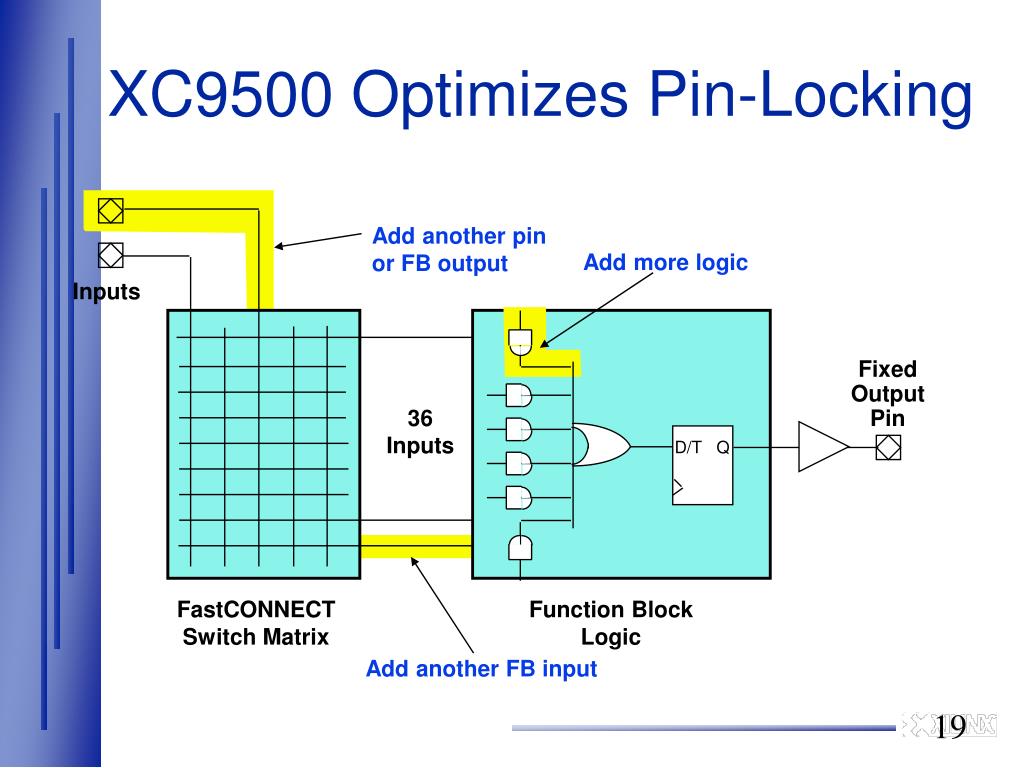

    XC9500 Optimizes Pin-Locking

    Add another pin

    or FB output

    Add more logic

    Inputs

    • 36

    • Inputs

    Fixed

    Output

    Pin

    D/T

    Q

    FastCONNECT

    Switch Matrix

    Function Block

    Logic

    Add another FB input


    Xc9500 product family

    XC9500 Product Family

    0.6µ Phase I Family

    9536

    9536F

    9572

    9572F

    95108

    95108F

    95144

    95180

    95216

    95288

    Macrocells

    36

    72

    108

    144

    180

    216

    288

    Usable

    Gates

    800

    1600

    2400

    3200

    4000

    4800

    6400

    tPD (ns)

    5

    7.5

    7.5

    7.5

    10

    10

    10

    Registers

    36

    72

    108

    144

    180

    216

    288

    Max. User

    I/Os

    34

    72

    108

    133

    168

    168

    192

    44PC1

    44VQ

    84PC1

    100TQ

    100PQ1

    84PC1

    100TQ

    100PQ1

    160PQ1

    100PQ

    160PQ

    208HQ

    304HQ

    160PQ

    208HQ

    160PQ

    208HQ

    Packages


    Field programmable gate arrays

    Field Programmable Gate Arrays

    ( FPGAs )


    Fpga architecture

    Programmable

    Interconnect

    I/O Blocks (IOBs)

    Configurable

    Logic Blocks (CLBs)

    FPGA Architecture


    Xc4000 configurable logic blocks

    C2

    C1

    C3

    C4

    H1 DIN S/R EC

    S/R

    Control

    G4

    DIN

    SD

    G

    G3

    F'

    YQ

    Q

    D

    Func.

    G'

    G2

    H'

    Gen.

    G1

    EC

    RD

    1

    H

    G'

    Y

    Func.

    H'

    S/R

    Gen.

    Control

    F4

    F

    F3

    DIN

    SD

    Func.

    F'

    XQ

    F2

    Q

    D

    Gen.

    G'

    F1

    H'

    EC

    RD

    1

    H'

    X

    F'

    K

    XC4000 Configurable Logic Blocks

    • 2 Four-input function generators (Look Up Tables)

      • 16x1 RAM or Logic function

    • 2 Registers

    • - Each can be configured as Flip Flop or Latch

    • - Independent clock polarity

    • - Synchronous and asynchronous Set/Reset


    Look up tables

    Combinatorial Logic

    A B C D Z

    0 0 0 0 0

    0 0 0 1 0

    0 0 1 0 0

    0 0 1 1 1

    0 1 0 0 1

    0 1 0 1 1

    . . .

    1 1 0 0 0

    1 1 0 1 0

    1 1 1 0 0

    1 1 1 1 1

    A

    B

    Z

    C

    D

    WE

    G4

    G

    G3

    Func.

    G2

    Gen.

    G1

    Look Up Tables

    Look Up Table

    • Combinatorial Logic is stored in 16x1 SRAM Look Up Tables (LUTs) in a CLB

    • Example:

    4-bit address

    4

    (2 )

    2

    = 64K !

    • Capacity is limited by number of inputs, not complexity

    • Choose to use each function generator as 4 input logic (LUT) or as high speed sync.dual port RAM


    Rom is equivalent to logic

    As Gates

    As ROM

    DATA(0)=0

    DATA(1)=0

    DATA(2)=0

    DATA(3)=1

    I1

    A0

    F1

    F1

    O = I1*I2

    X

    O

    X

    DOUT

    I2

    F2

    A1

    F2

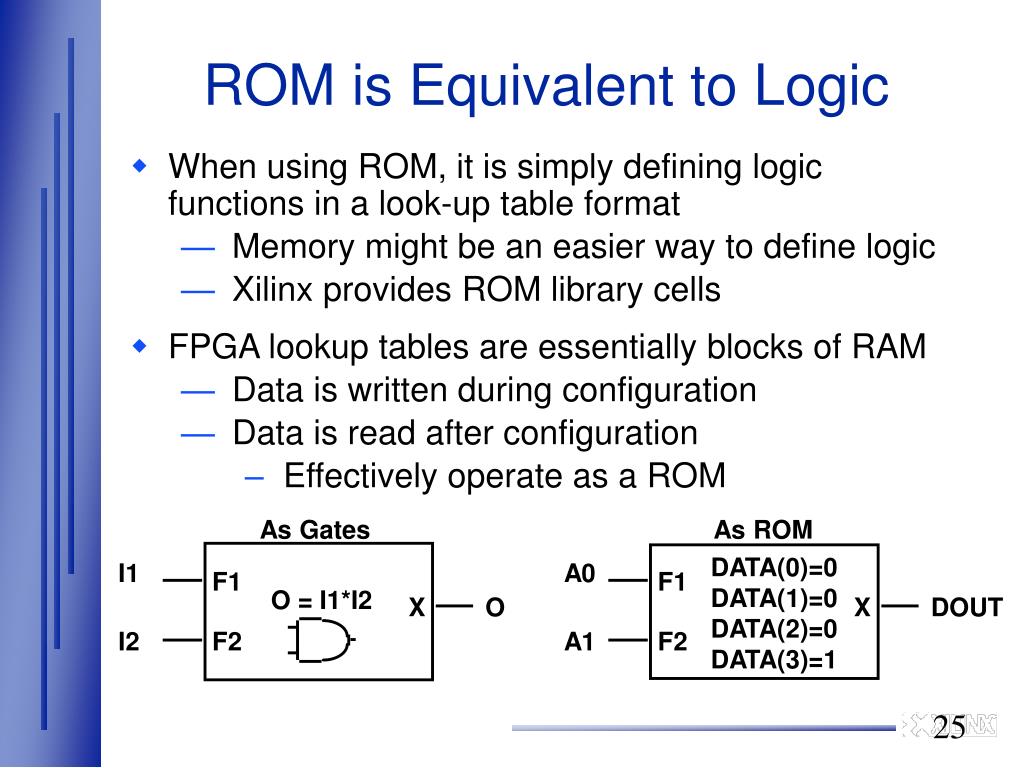

    ROM is Equivalent to Logic

    • When using ROM, it is simply defining logic functions in a look-up table format

      • Memory might be an easier way to define logic

      • Xilinx provides ROM library cells

    • FPGA lookup tables are essentially blocks of RAM

      • Data is written during configuration

      • Data is read after configuration

        • Effectively operate as a ROM


    Ram provides 16x the storage of flip flops

    CLB

    CLB

    D1

    32 bits

    2 bits

    D1

    D

    Q

    Q1

    A0

    O1

    A1

    A2

    D2

    D

    Q

    Q2

    A3

    A4

    CLK

    WE

    RAM Provides 16X the Storage of Flip-Flops

    • 32 bits versus 2 bits of storage

      • Two 16x1 RAMS or One 32X1 Single Port Ram fit in one CLB

      • One 16x1 Dual Port RAM fits in one CLB

    • 32x8 shift register with RAM = 11 CLBs

      • Using flip-flops, takes 128 CLBs for data alone

      • Address decoders not included


    Using function generator as ram

    Using Function Generator As RAM


    Ram guidelines

    RAM Guidelines

    • Less than 32 words is best

      • 32x1 or 16x2 per RAM requires only one CLB

        • Delays are short, (one level of logic)

      • Data and output MUXes are required to expand depth

    • Less than 256 words recommended per RAM

      • Use external memory for 256 words or more

    • Width easily expanded

      • Connect the address lines to multiple blocks

    • Recommendation: Use less than 1/2 of max memory resources

      • Maximum memory uses all logic resources of CLBs


    Xc4000e i o block diagram

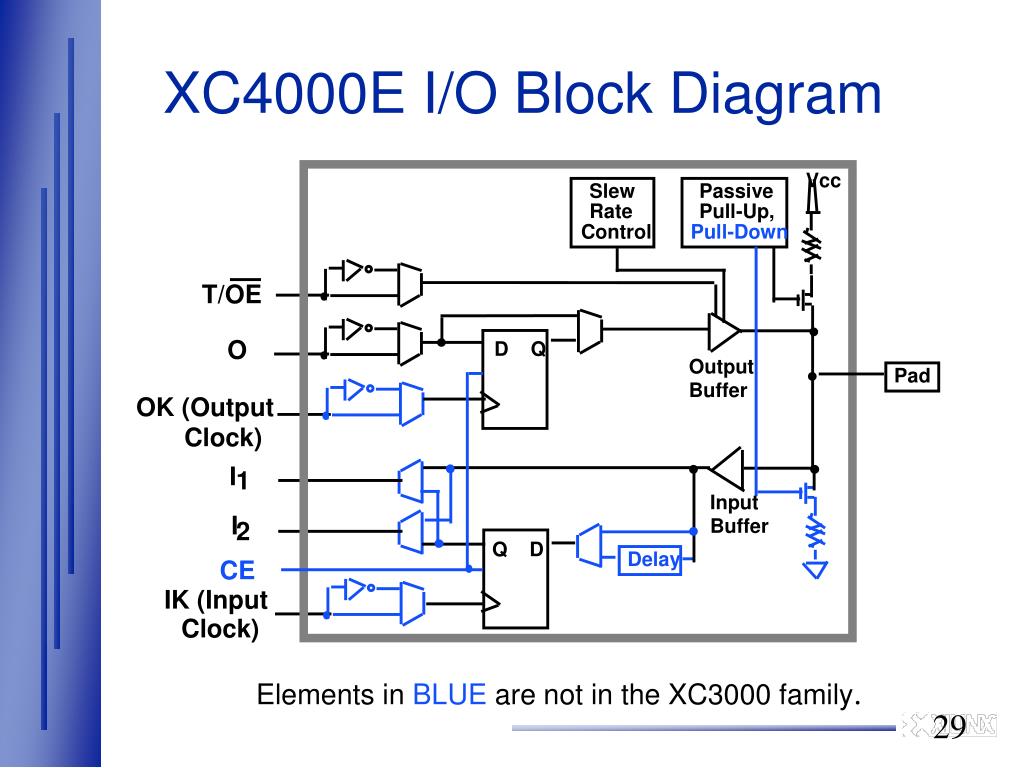

    XC4000E I/O Block Diagram

    Vcc

    Slew

    Passive

    Rate

    Pull-Up,

    Control

    Pull-Down

    T/OE

    O

    D Q

    Output

    Pad

    Buffer

    OK (Output

    Clock)

    I

    1

    Input

    I

    Buffer

    2

    Q D

    Delay

    CE

    IK (Input

    Clock)

    Elements in BLUE are not in the XC3000 family.


    Xilinx fpga routing

    CLB

    CLB

    Switch

    Matrix

    Switch

    Matrix

    CLB

    CLB

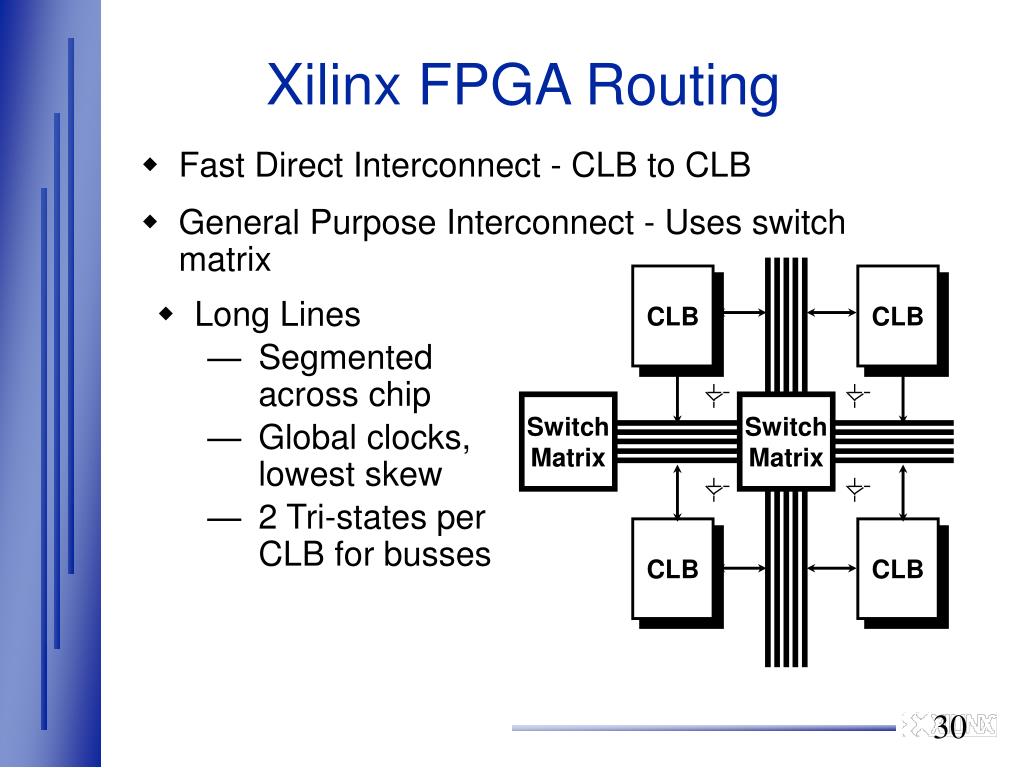

    Xilinx FPGA Routing

    • Fast Direct Interconnect - CLB to CLB

    • General Purpose Interconnect - Uses switch matrix

    • Long Lines

      • Segmented across chip

      • Global clocks, lowest skew

      • 2 Tri-states per CLB for busses


    Fast direct interconnect

    Direct connections from CLB to adjacent CLB or IOB

    Fastest interconnect

    Less than 1 ns delay

    Fast Direct Interconnect

    CLB

    CLB

    CLB

    CLB


    Flexible general purpose interconnect

    Flexible but slow if crosses many channels

    XC3000

    5 lines per channel

    XC4000

    8 similar Single- Length lines

    4 Double-Length lines skip every other switch matrix

    4 Quadrable-Length Lines skip three switch matrices.

    Flexible General-Purpose Interconnect

    CLB

    CLB

    Switch

    Matrix

    Switch

    Matrix

    CLB

    CLB


    Use long lines for high fanout nets

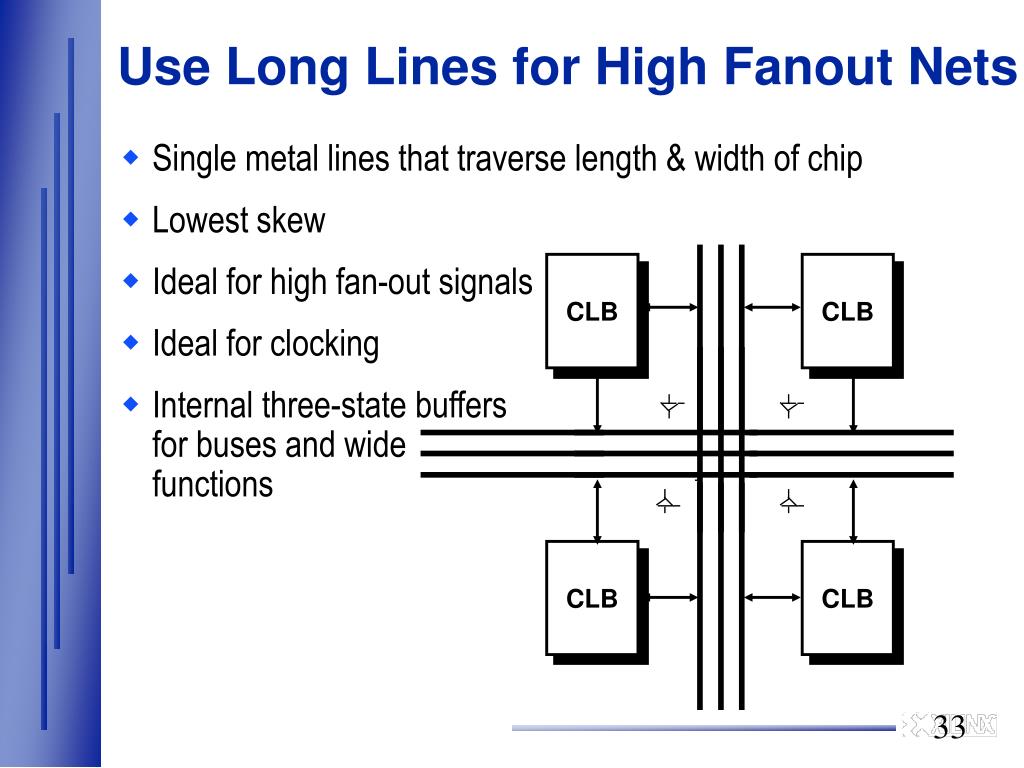

    Use Long Lines for High Fanout Nets

    • Single metal lines that traverse length & width of chip

    • Lowest skew

    • Ideal for high fan-out signals

    • Ideal for clocking

    • Internal three-state buffers

      for buses and wide functions

    CLB

    CLB

    CLB

    CLB


    Cpld or fpga

    CPLD or FPGA?

    • FPGA

    • SRAM reconfiguration

    • Excellent for computer architecture, DSP, registered designs

    • PROM required for non-volatile operation

    • CPLD

    • Non-volatile

    • Wide fan-in

    • Fast counters, state machines

    • Combinational Logic


    Designing for fpgas

    Designing For FPGAs


    Avoiding metastability

    Avoiding Metastability

    • Metastability caused by violation of timing specifications such as setup

    • In-between state takes unknown time to resolve

      • Two destinations could be responding to different values

    • Error rate decreases by a factor of 40 for every additional 1ns of delay before destinations respond to signal

    • Be aware but not paranoid!

    D

    Q

    Metastable Output

    Data and Clock

    Change Simultaneously


    Use synchronous design

    Use Synchronous Design

    • Easy to analyze internal timing of synchronous designs

    • Hold time is not an issue

      • Clock skew is guaranteed to be much shorter than the minimum clock-to-Q of any CLB

    • Use global clock distribution networks

      • If not, check for clock skew problems

    2.5ns

    D

    Q

    D

    Q

    3.0ns

    3.1ns


    Avoid gated clock or asynchronous reset

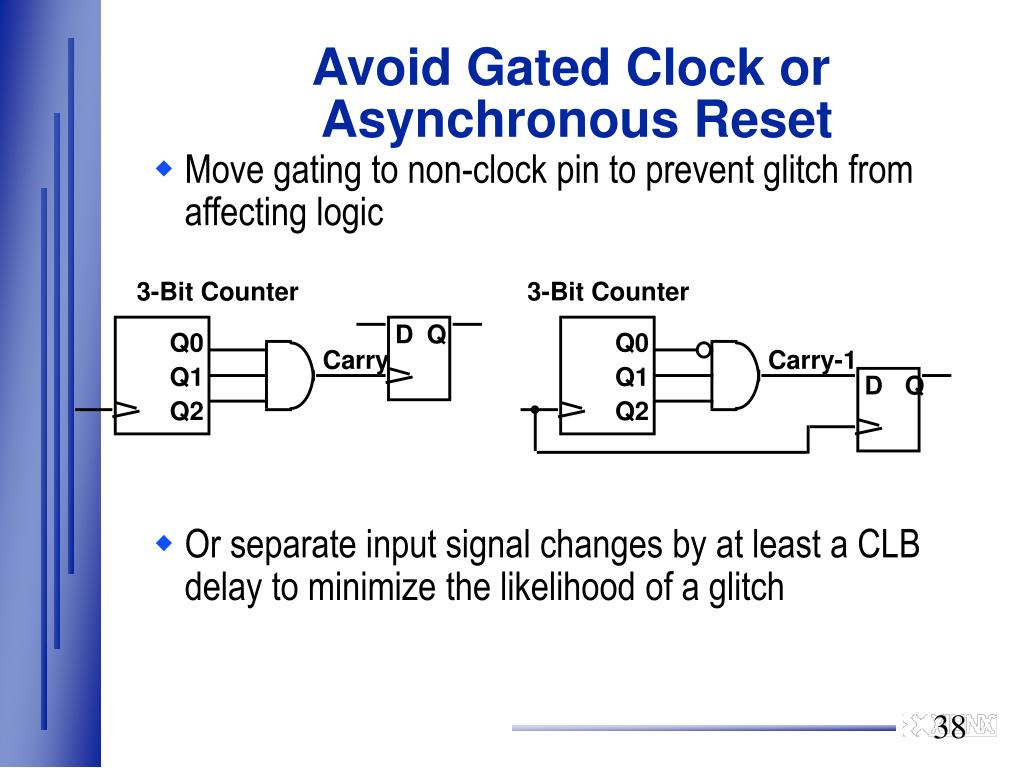

    Avoid Gated Clock or Asynchronous Reset

    • Move gating to non-clock pin to prevent glitch from affecting logic

    • Or separate input signal changes by at least a CLB delay to minimize the likelihood of a glitch

    3-Bit Counter

    3-Bit Counter

    D

    Q

    Q0

    Q0

    Carry

    Carry-1

    Q1

    Q1

    D

    Q

    Q2

    Q2


    Pipeline for speed

    Pipeline for Speed

    • Register-rich FPGAs encourage pipelining

    • Pipelining improves speed

      • Consider wherever latency is not an issue

      • Use for terminal counts, carry lookahead, etc.

    • Clock period will be approximately

      • 2 x (number of combinatorial levels) x (speed grade)

      • XC3100A-3: 3 levels x 2 x 3ns = 18 ns clock period


    Use dedicated carry for large counters

    Use Dedicated Carry for Large Counters

    • Use XC4000/XC5000 carry logic to improve counter speed and density

      • Especially for counters of >5 bits

    tADDER

    tCO

    A

    d

    d

    e

    r

    R

    e

    g

    tNET


    Use one hot encoding for state machines

    Use One-Hot Encoding for State Machines

    • Shift register is always fast and dense

      • “One-hot” uses one flip-flop for each count

      • Useful for state machine encoding

    • Use MooreType state machines.

    D

    Q

    D

    Q

    D

    Q

    D

    Q

    D

    Q


    Use lfsrs for fixed count

    Use LFSRs for Fixed Count

    • Consider Linear Feedback Shift Register for speed when terminal count is all that is needed

      • Or when any regular sequence is acceptable (e.g., FIFO)

    • Maximal length sequence of 2n-1

    • Use XNOR feedback to make lockup state all 1s

    10-bit Shift Register

    D1

    Q1

    Q7

    Q10


    Use global clock buffers

    Use Global Clock Buffers

    • Use clock buffers for highest fanout clocks

      • Drive low-skew, high-speed long line resources

      • Use BUFG primitive to be family-independent

    • Limit number of clocks to ease placement issues

      • XC3000: 2 (GCLK, ACLK)

      • XC4000/XC5000: 4 (BUFGP / BUFG)

    • Additional clocks might be routable on long lines

      • Otherwise routed on general interconnect

        • Slower and higher skew


    Using a clock generated off chip

    Using a Clock Generated Off-Chip

    • Connect IPAD directly to clock buffer primitive

      • Required for BUFGP

    • Provides higher speed and uses fewer routing resources

    D

    IPAD

    BUFG


    Generating clock on chip

    Generating Clock On-Chip

    • XC4000

      • Internal clock available after configuration

      • Use OSC4 primitive

    F8M

    F500k

    BUFGS

    F16k

    OSC4

    F490

    F15


    Use clock enables instead of gating clock

    Use Clock Enables Instead of Gating Clock

    • Use clock enable when using most of or all logic inputs

      • Not recommended to gate clock signal directly

    • Use muxed data when using only 1-2 logic inputs

      • Easier to route

    • Some macros use logic for clock enable while others use the CE pin

      • Make sure CE, if unused, is always connected to VCC

    FDxE

    D

    Q

    CE

    D

    Q

    CE


  • Login
